JACOB

Brass reducers/enlargers, metric thread

Selected variant

JACOB.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Hexagon 18 mm
Inner Thread M16x1,5
Length Overall 16 mm
Material screw Nickel-plated brass
O-ring No
Outer Thread M12x1,5
Pack Size 100
Temperature range dynamic max. 200 °C
Temperature range dynamic min. -60 °C
Thread Length 5 mm
Thread type Metric

Accessories

Related

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Articles Hexagon Inner Thread IP Class Length Overall O-ring Outer Thread Pack Size Temperature range dynamic max. Temperature range dynamic min. Thread Length

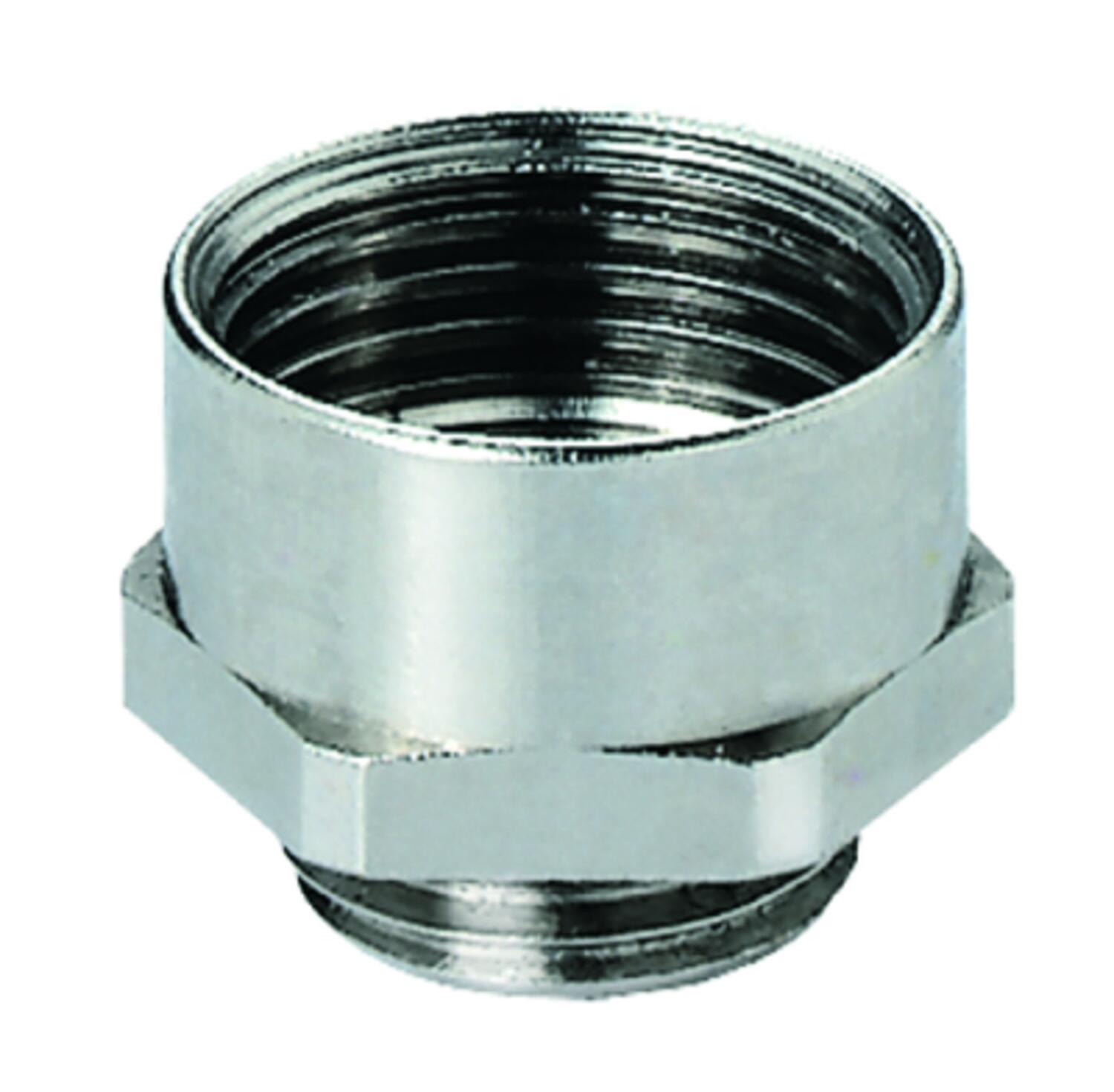

MxxMxxFR_02.tif
Enlarger, M12 / M16, brass
Art:
M12M16 Copied
18 mm
M16x1,5
16 mm
No
M12x1,5
100
200 °C
-60 °C
5 mm
MxxMxxFR_02.tif
ENLARGER M16x1,5-M20x1,5 BRASS
Art:
M16M20 Copied
22 mm
M20x1,5
16.5 mm
No
M16x1,5
100
200 °C
-60 °C
5 mm
MxxMxxFR_02.tif
ENLARGER M20x1,5-M25x1,5 BRASS
Art:
M20M25 Copied
27 mm
M25x1,5
18.5 mm
No
M20x1,5
50
200 °C
-60 °C
6 mm
MxxMxxFR_02.tif
ENLARGER M25x1,5-M32x1,5 BRASS
Art:
M25M32 Copied
34 mm
M32x1,5
20.5 mm
No
M25x1,5
25
200 °C
-60 °C
7 mm
MxxMxxFR_02.tif
ENLARGER M32x1,5-M40x1,5 BRASS
Art:
M32M40 Copied
42 mm
M40x1,5
23.5 mm
No
M32x1,5
25
200 °C
-60 °C
8 mm
MxxMxxFR_02.tif
ENLARGER M40x1,5-M50x1,5 BRASS
Art:
M40M50 Copied
52 mm
M50x1,5
30 mm
No
M40x1,5
10
200 °C
-60 °C
8 mm
MxxMxxFR_02.tif
Enlarger, M50 / M63, brass
Art:
M50M63 Copied
65 mm
M63x1,5
32.5 mm
No
M50x1,5
10
200 °C
-60 °C
9 mm

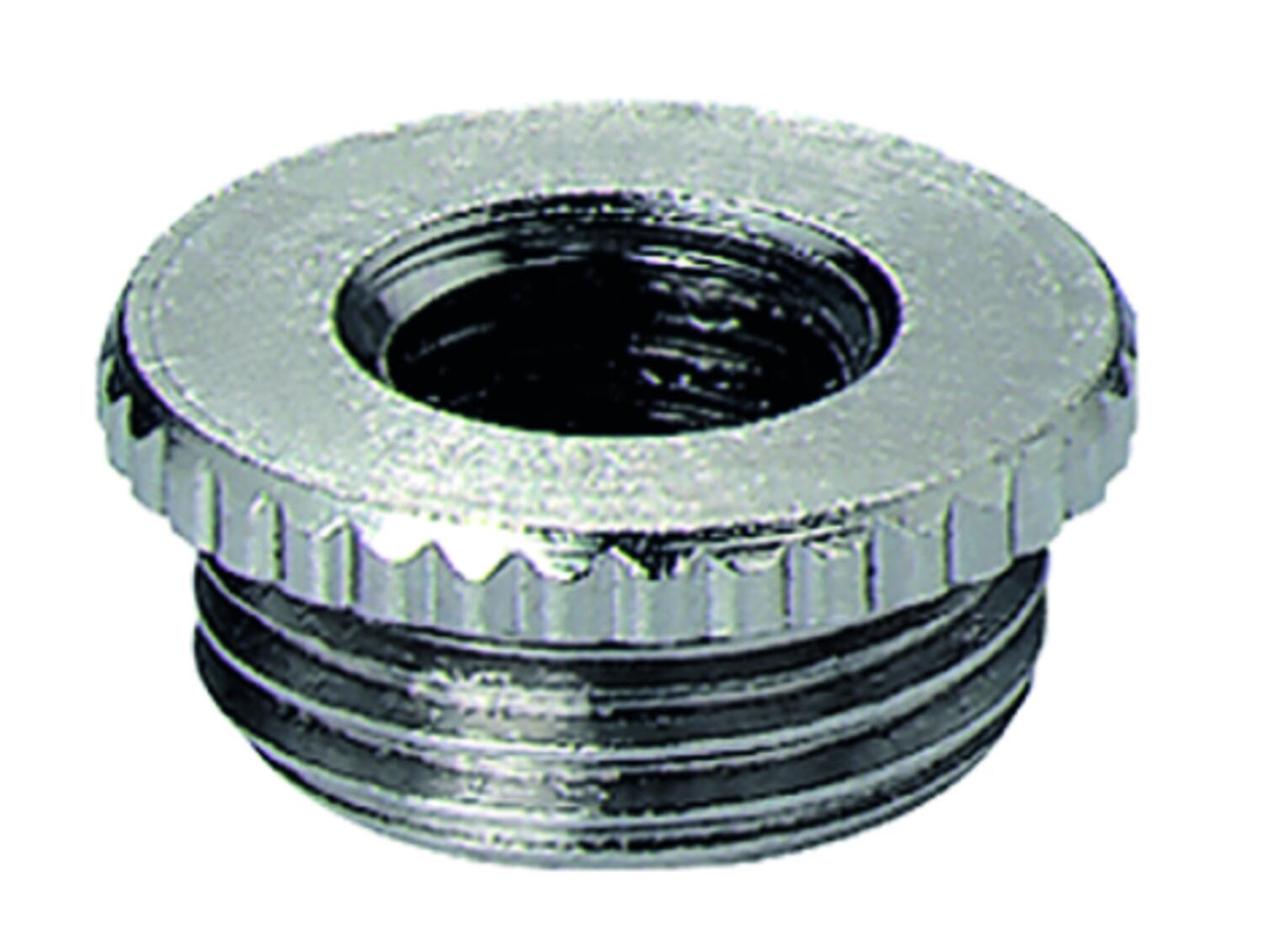

MxxMxx_02.tif
REDUCTION M16x1,5-M12x1,5
Art:
M16M12 Copied
M12x1,5
8.5 mm
No
M16x1,5
100
200 °C
-60 °C
6 mm
MxxMxx_02.tif
Reducer, M20 / M12, brass
Art:
M20M12 Copied
M12x1,5
9 mm
No
M20x1,5
100
200 °C
-60 °C
6.5 mm
MxxMxx_02.tif
REDUCTION M20x1,5-M16x1,5
Art:
M20M16 Copied
M16x1,5
9 mm
No
M20x1,5
100
200 °C
-60 °C
6.5 mm
MxxMxx_02.tif
Reducer, M25 / M16, brass
Art:
M25M16 Copied
M16x1,5
10 mm
No
M25x1,5
100
200 °C
-60 °C
7 mm
MxxMxx_02.tif
REDUCTION M25x1,5-M20x1,5
Art:
M25M20 Copied
M20x1,5
10 mm
No
M25x1,5
100
200 °C
-60 °C
7 mm
MxxMxx_02.tif
Reducer, M32 / M20, brass
Art:
M32M20 Copied
M20x1,5
11.5 mm
No
M32x1,5
50
200 °C
-60 °C
8 mm
MxxMxx_02.tif
REDUCTION M32x1,5-M25x1,5
Art:
M32M25 Copied
M25x1,5
11.5 mm
No
M32x1,5
50
200 °C
-60 °C
8 mm
MxxMxx_02.tif
Reducer, M40 / M25, brass
Art:
M40M25 Copied
M25x1,5
12.5 mm
No
M40x1,5
25
200 °C
-60 °C
9 mm
MxxMxx_02.tif
REDUCTION M40x1,5-M32x1,5
Art:
M40M32 Copied
M32x1,5
12.5 mm
No
M40x1,5
25
200 °C
-60 °C
9 mm
MxxMxx_02.tif
Reducer, M50 / M32, brass
Art:
M50M32 Copied
M32x1,5
14 mm
No
M50x1,5
10
200 °C
-60 °C
10 mm
MxxMxx_02.tif
Reducer, M50 / M40, brass
Art:
M50M40 Copied
M40x1,5
14 mm
No
M50x1,5
10
200 °C
-60 °C
10 mm
MxxMxx_02.tif
Reducer, M60 / M40, brass
Art:
M60M40 Copied
M40x1,5
14 mm
No
M63x1,5
10
200 °C
-60 °C
10 mm
MxxMxx_02.tif
Reducer, M63 / M50, brass
Art:
M63M50 Copied
M50x1,5
14 mm
No
M63x1,5
10
200 °C
-60 °C
10 mm

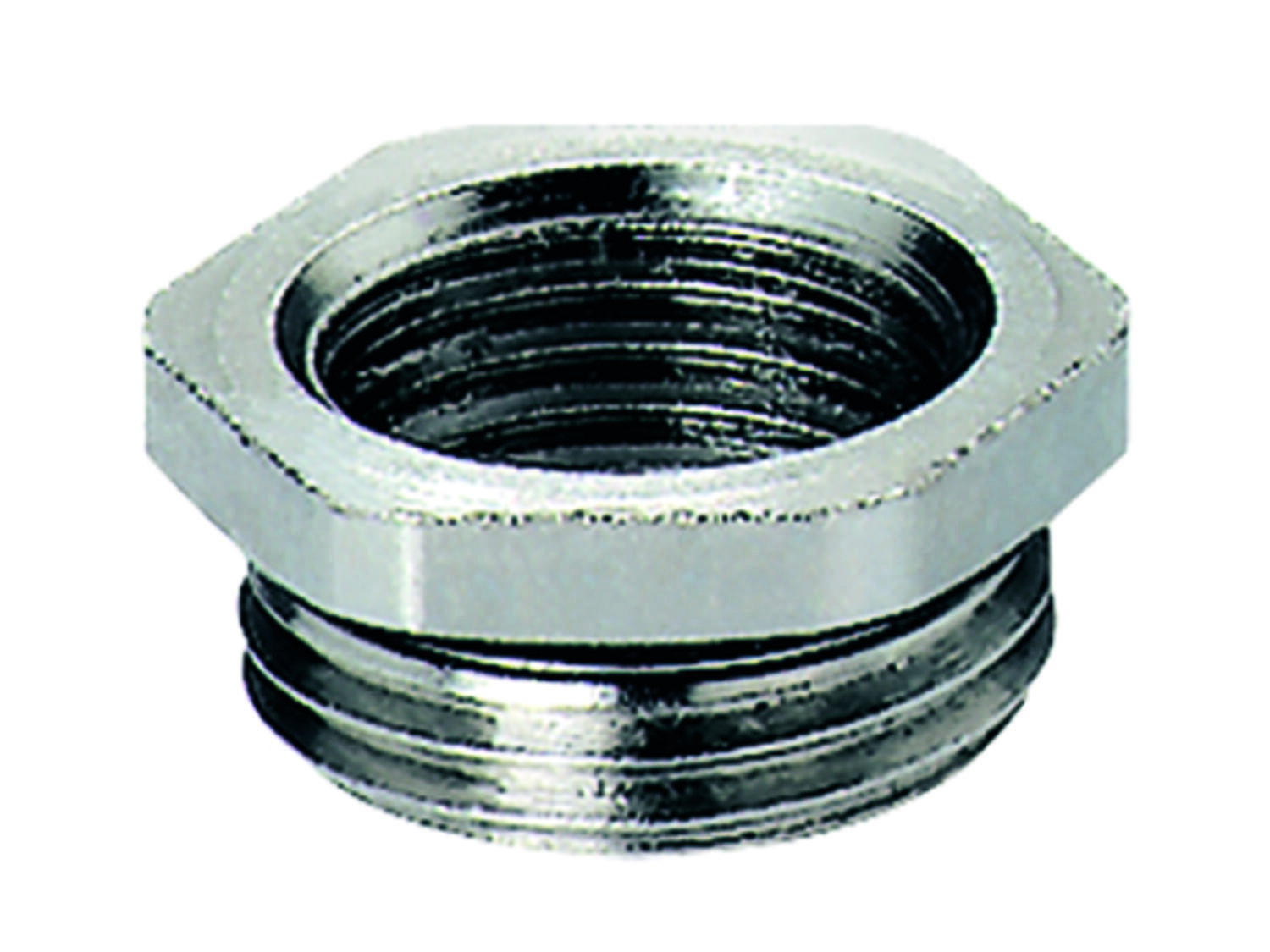

MxxMxx6OM_02.tif
Reducer with O-ring, M16 / M12, brass
Art:
M16M12/6/OM Copied
17 mm
M12x1,5
IP68
8 mm
Yes
M16x1,5
100
100 °C
-40 °C
5 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M20 / M12, brass
Art:
M20M12/6/OM Copied
22 mm
M12x1,5
IP68
9 mm
Yes
M20x1,5
100
100 °C
-40 °C
6 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M20 / M16, brass
Art:
M20M16/6/OM Copied
22 mm
M16x1,5
IP68
9 mm
Yes
M20x1,5
100
100 °C
-40 °C
6 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M25 / M16, brass
Art:
M25M16/6/OM Copied
27 mm
M16x1,5
IP68
10 mm
Yes
M25x1,5
100
100 °C
-40 °C
7 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M25 / M20, brass
Art:
M25M20/6/OM Copied
27 mm
M20x1,5
IP68
10 mm
Yes
M25x1,5
100
100 °C
-40 °C
7 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M32 / M16, brass
Art:
M32M16/6/OM Copied
34 mm
M16x1,5
IP68
11 mm
Yes
M32x1,5
50
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M32 / M20, brass
Art:
M32M20/6/OM Copied
34 mm
M20x1,5
IP68
11 mm
Yes
M32x1,5
50
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M32 / M25, brass
Art:
M32M25/6/OM Copied
34 mm
M25x1,5
IP68
11 mm
Yes
M32x1,5
50
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M40 / M20, brass
Art:
M40M20/6/OM Copied
43 mm
M20x1,5
IP68
12 mm
Yes
M40x1,5
25
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M40 / M25, brass
Art:
M40M25/6/OM Copied
43 mm
M25x1,5
IP68
12 mm
Yes
M40x1,5
25
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M40 / M32, brass
Art:
M40M32/6/OM Copied
43 mm
M32x1,5
IP68
12 mm
Yes
M40x1,5
25
100 °C
-40 °C
8 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M50 / M25, brass
Art:
M50M25/6/OM Copied
55 mm
M25x1,5
IP68
13 mm
Yes
M50x1,5
10
100 °C
-40 °C
9 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M50 / M32, brass
Art:
M50M32/6/OM Copied
55 mm
M32x1,5
IP68
13 mm
Yes
M50x1,5
10
100 °C
-40 °C
9 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M50 / M40, brass
Art:
M50M40/6/OM Copied
55 mm
M40x1,5
IP68
13 mm
Yes
M50x1,5
10
100 °C
-40 °C
9 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M63 / M32, brass
Art:
M63M32/6/OM Copied
65 mm
M32x1,5
IP68
14 mm
Yes
M63x1,5
10
100 °C
-40 °C
10 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M63 / M40, brass
Art:
M63M40/6/OM Copied
65 mm
M40x1,5
IP68
14 mm
Yes
M63x1,5
10
100 °C
-40 °C
10 mm
MxxMxx6OM_02.tif
Reducer with O-ring, M63 / M50, brass
Art:
M63M50/6/OM Copied
65 mm
M50x1,5
IP68
14 mm
Yes
M63x1,5
10
100 °C
-40 °C
10 mm
