JACOB

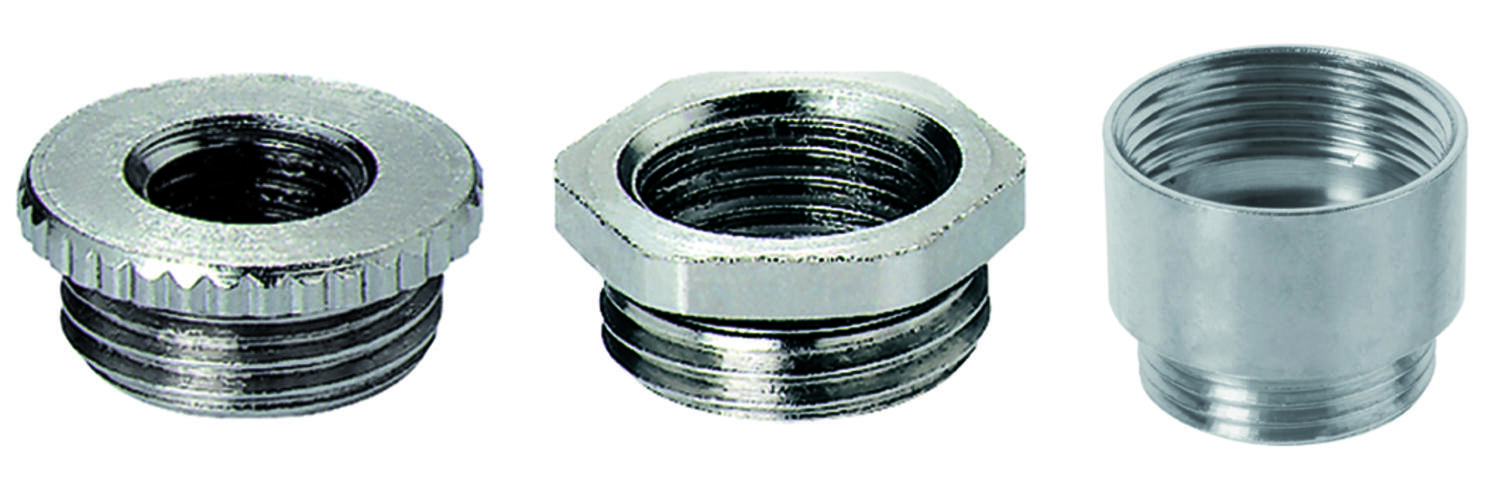

Brass reducers/enlargers, PG thread

Selected variant

JACOB.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Inner Thread PG 9
Length Overall 15 mm
Material screw Nickel-plated brass
O-ring No
Outer Thread PG 7
Pack Size 100
Temperature range dynamic max. 200 °C
Temperature range dynamic min. -60 °C
Thread Length 5 mm
Thread type PG

Accessories

Related

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Articles Hexagon Inner Thread IP Class Length Overall O-ring Outer Thread Pack Size Temperature range dynamic max. Temperature range dynamic min. Thread Length

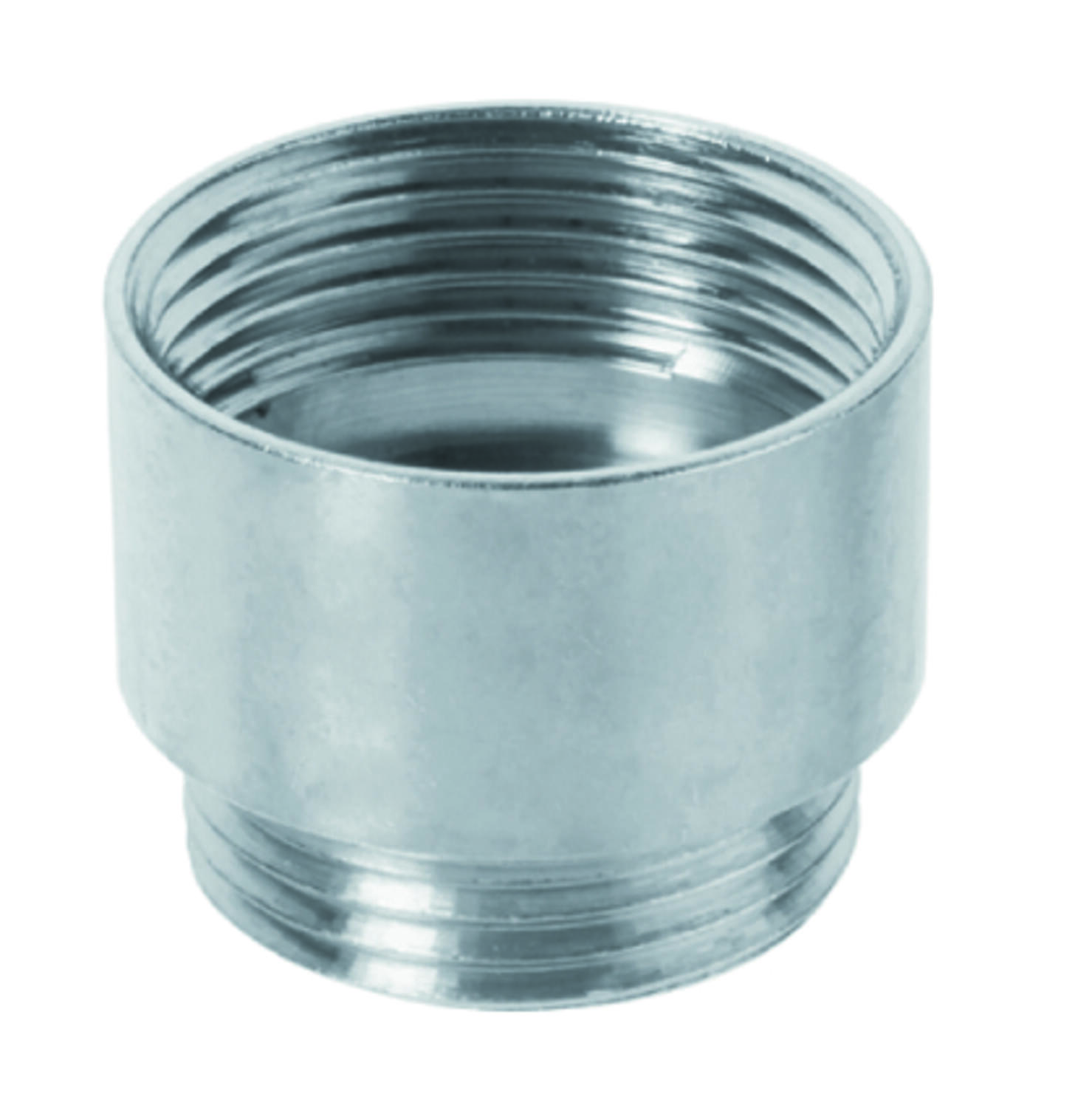

xxxxEPG_02.tif
Enlarger, PG7 / PG9, brass
Art:
709 Copied
PG 9
15 mm
No
PG 7
100
200 °C
-60 °C
5 mm
xxxxEPG_02.tif
Enlarger, PG9 / PG11, brass
Art:
911 Copied
PG 11
16.5 mm
No
PG 9
100
200 °C
-60 °C
6 mm
xxxxEPG_02.tif
Enlarger, PG9 / PG13,5, brass
Art:
913 Copied
PG 13,5
17.5 mm
No
PG 9
100
200 °C
-60 °C
6 mm
xxxxEPG_02.tif
Enlarger, PG11 / PG13,5, brass
Art:
1113 Copied
PG 13,5
17.5 mm
No
PG 11
100
200 °C
-60 °C
6 mm
xxxxEPG_02.tif
Enlarger METALL PG 11-16
Art:
1116 Copied
PG 16
19 mm
No
PG 11
100
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG11 / PG21, brass
Art:
1121 Copied
PG 21
21 mm
No
PG 11
100
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG13,5 / PG16, brass
Art:
1316 Copied
PG 16
19 mm
No
PG 13,5
100
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG13,5 / PG21, brass
Art:
1321 Copied
PG 21
21 mm
No
PG 13,5
100
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG16 / PG21, brass
Art:
1621 Copied
PG 21
21 mm
No
PG 16
100
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG16 / PG29, brass
Art:
1629 Copied
PG 29
22.5 mm
No
PG 16
50
200 °C
-60 °C
6.5 mm
xxxxEPG_02.tif
Enlarger, PG21 / PG29, brass
Art:
2129 Copied
PG 29
23 mm
No
PG 21
50
200 °C
-60 °C
7 mm
xxxxEPG_02.tif
Enlarger, PG29 / P36, brass
Art:
2936 Copied
PG 36
27.5 mm
No
PG 29
25
200 °C
-60 °C
8 mm
xxxxEPG_02.tif
Enlarger, PG36 / PG42, brass
Art:
3642 Copied
PG 42
31 mm
No
PG 36
10
200 °C
-60 °C
9 mm
xxxxEPG_02.tif
ENLARGER PG42 - PG48 BRASS
Art:
4248 Copied
PG 48
33 mm
No
PG 42
10
200 °C
-60 °C
10 mm

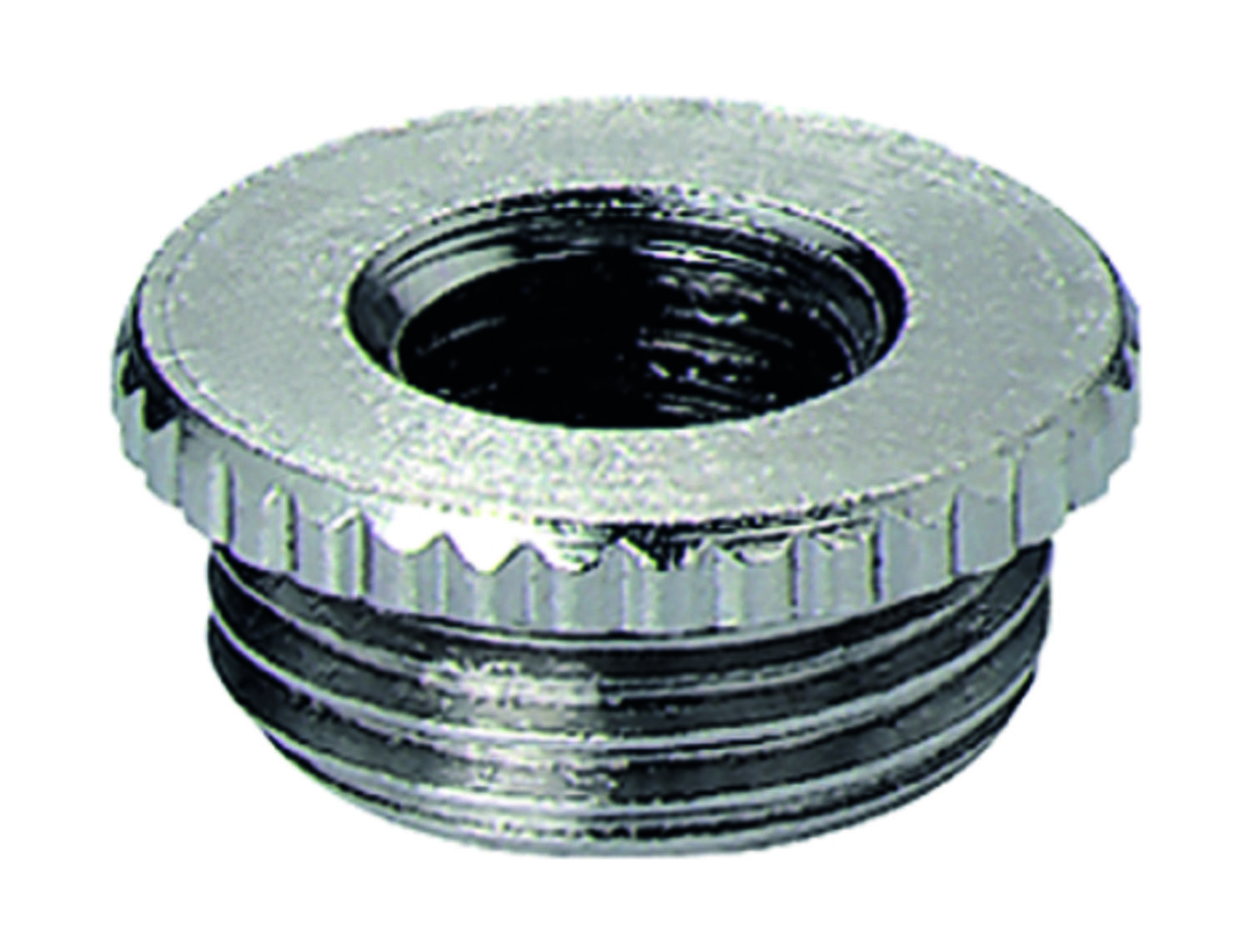

xxxxRPG_02.tif
Reducer, PG9 / PG7, brass
Art:
907 Copied
PG 7
8.5 mm
No
PG 9
100
200 °C
-60 °C
6 mm
xxxxRPG_02.tif
Reducer, PG11 / PG7, brass
Art:
1107 Copied
PG 7
8.5 mm
No
PG 11
100
200 °C
-60 °C
6 mm
xxxxRPG_02.tif
Reducer, PG11 / PG9, brass
Art:
1109 Copied
PG 9
8.5 mm
No
PG 11
100
200 °C
-60 °C
6 mm
xxxxRPG_02.tif
Reducer, PG13,5 / PG11, brass
Art:
1311 Copied
PG 11
9 mm
No
PG 13,5
100
200 °C
-60 °C
6.5 mm
xxxxRPG_02.tif
Reducer, PG16 / PG7, brass
Art:
1607 Copied
PG 7
9.5 mm
No
PG 16
100
200 °C
-60 °C
6.5 mm
xxxxRPG_02.tif
REDUCTION PG 16-9
Art:
1609 Copied
PG 9
9.5 mm
No
PG 16
100
200 °C
-60 °C
6.5 mm
xxxxRPG_02.tif
Reducer, PG16 / PG11, brass
Art:
1611 Copied
PG 11
9.5 mm
No
PG 16
100
200 °C
-60 °C
6.5 mm
xxxxRPG_02.tif
Reducer, PG16 / PG13,5, brass
Art:
1613 Copied
PG 13,5
9.5 mm
No
PG 16
100
200 °C
-60 °C
6.5 mm
xxxxRPG_02.tif
Reducer, PG21 / PG11, brass
Art:
2111 Copied
PG 11
10 mm
No
PG 21
100
200 °C
-60 °C
7 mm
xxxxRPG_02.tif
REDUCTION PG 21-13,5
Art:
2113 Copied
PG 13,5
10 mm
No
PG 21
100
200 °C
-60 °C
7 mm
xxxxRPG_02.tif
Reducer, PG21 / PG16, brass
Art:
2116 Copied
PG 16
10 mm
No
PG 21
100
200 °C
-60 °C
7 mm
xxxxRPG_02.tif
Reducer, PG29 / PG16, brass
Art:
2916 Copied
PG 16
11.5 mm
No
PG 29
50
200 °C
-60 °C
8 mm
xxxxRPG_02.tif
Reducer, PG29 / PG21, brass
Art:
2921 Copied
PG 21
11.5 mm
No
PG 29
50
200 °C
-60 °C
8 mm
xxxxRPG_02.tif
Reducer, PG36 / PG21, brass
Art:
3621 Copied
PG 21
12.5 mm
No
PG 36
25
200 °C
-60 °C
9 mm
xxxxRPG_02.tif
Reducer, PG36 / PG29, brass
Art:
3629 Copied
PG 29
12.5 mm
No
PG 36
25
200 °C
-60 °C
9 mm
xxxxRPG_02.tif
Reducer, PG42 / PG29, brass
Art:
4229 Copied
PG 29
14 mm
No
PG 42
10
200 °C
-60 °C
10 mm
xxxxRPG_02.tif
Reducer, PG48 / PG36, brass
Art:
4836 Copied
PG 36
14 mm
No
PG 48
10
200 °C
-60 °C
10 mm
xxxxRPG_02.tif
Reducer, PG48 / PG42, brass
Art:
4842 Copied
PG 42
41 mm
No
PG 48
10
200 °C
-60 °C
10 mm

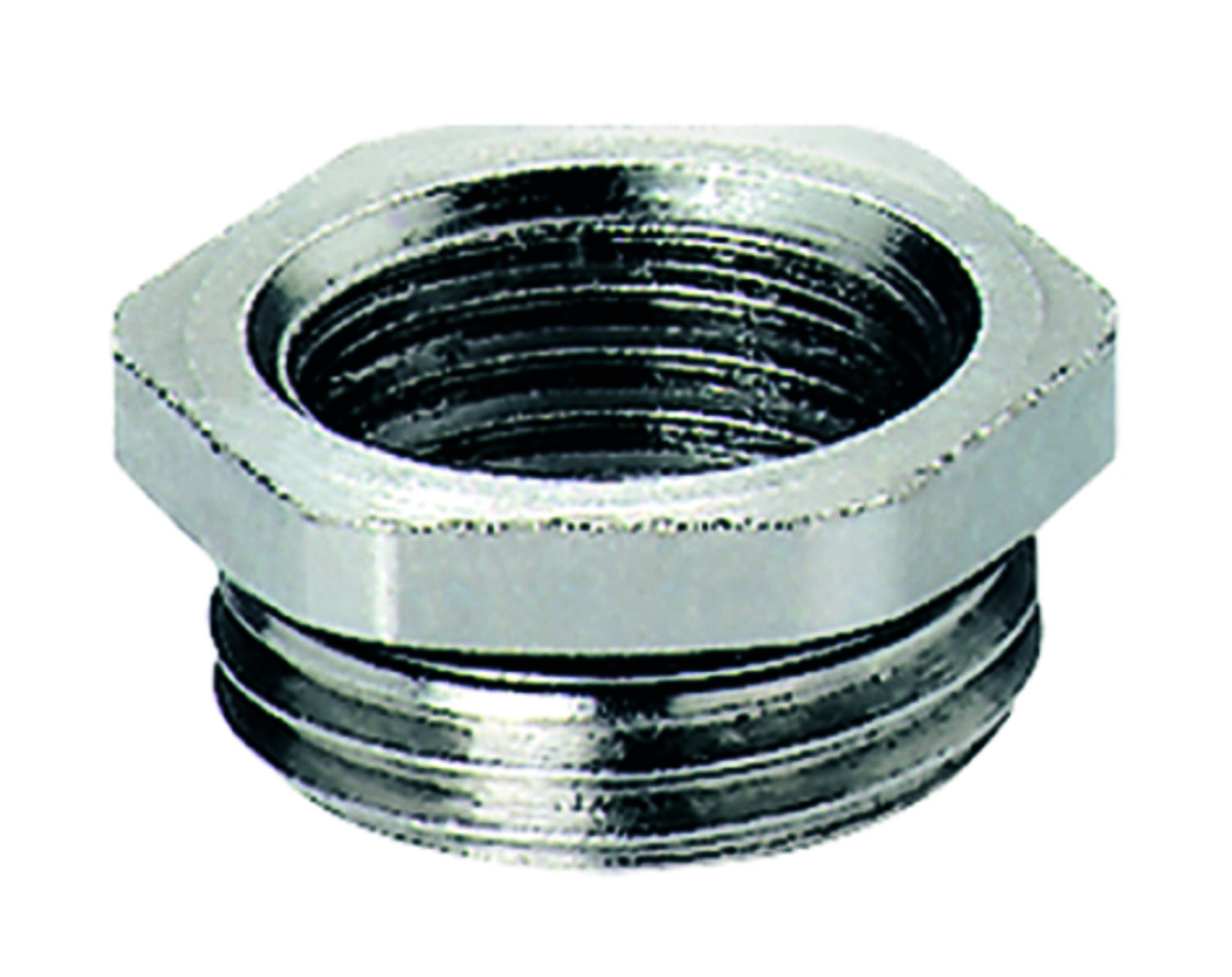

6xxxxOM_02.tif
Reducer with O-ring, PG9 / PG7, brass
Art:
60907/OM Copied
18 mm
PG 7
IP68
8.5 mm
Yes
PG 9
100
100 °C
-40 °C
6 mm
6xxxxOM_02.tif
Reducer with O-ring, PG11 / PG7, brass
Art:
61107/OM Copied
20 mm
PG 7
IP68
8.5 mm
Yes
PG 11
100
100 °C
-40 °C
6 mm
6xxxxOM_02.tif
Reducer with O-ring, PG11 / PG9, brass
Art:
61109/OM Copied
20 mm
PG 9
IP68
8.5 mm
Yes
PG 11
100
100 °C
-40 °C
6 mm
6xxxxOM_02.tif
Reducer with O-ring, PG13,5 / PG7, brass
Art:
61307/OM Copied
24 mm
PG 7
IP68
9.5 mm
Yes
PG 13,5
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG13,5 / PG9, brass
Art:
61309/OM Copied
24 mm
PG 9
IP68
9.5 mm
Yes
PG 13,5
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG13,5 / PG11, brass
Art:
61311/OM Copied
24 mm
PG 11
IP68
9.5 mm
Yes
PG 13,5
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG16 / PG7, brass
Art:
61607/OM Copied
24 mm
PG 7
IP68
9.5 mm
Yes
PG 16
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG16 / PG9, brass
Art:
61609/OM Copied
24 mm
PG 9
IP68
9.5 mm
Yes
PG 16
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG16 / PG11, brass
Art:
61611/OM Copied
24 mm
PG 11
IP68
9.5 mm
Yes
PG 16
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG16 / PG13,5, brass
Art:
61613/OM Copied
24 mm
PG 13,5
IP68
9.5 mm
Yes
PG 16
100
100 °C
-40 °C
6.5 mm
6xxxxOM_02.tif
Reducer with O-ring, PG21 / PG11, brass
Art:
62111/OM Copied
32 mm
PG 11
IP68
10 mm
Yes
PG 21
100
100 °C
-40 °C
7 mm
6xxxxOM_02.tif
Reducer with O-ring, PG21 / PG13,5, brass
Art:
62113/OM Copied
32 mm
PG 13,5
IP68
10 mm
Yes
PG 21
100
100 °C
-40 °C
7 mm
6xxxxOM_02.tif
Reducer with O-ring, PG21 / PG16, brass
Art:
62116/OM Copied
32 mm
PG 16
IP68
10 mm
Yes
PG 21
100
100 °C
-40 °C
7 mm
6xxxxOM_02.tif
Reducer with O-ring, PG29 / PG21, brass
Art:
62921/OM Copied
41 mm
PG 21
IP68
11.5 mm
Yes
PG 29
50
100 °C
-40 °C
8 mm
6xxxxOM_02.tif
Reducer with O-ring, PG36 / PG21, brass
Art:
63621/OM Copied
41 mm
PG 21
IP68
12.5 mm
Yes
PG 36
25
100 °C
-40 °C
9 mm
6xxxxOM_02.tif
Reducer with O-ring, PG36 / PG29, brass
Art:
63629/OM Copied
50 mm
PG 29
IP68
12.5 mm
Yes
PG 36
25
100 °C
-40 °C
9 mm
6xxxxOM_02.tif
Reducer with O-ring, PG42 / PG36, brass
Art:
64236/OM Copied
50 mm
PG 36
IP68
14 mm
Yes
PG 42
25
100 °C
-40 °C
10 mm
6xxxxOM_02.tif
Reducer with O-ring, PG29 / PG16, brass
Art:
62916/OM Copied
60 mm
PG 16
IP68
11.5 mm
Yes
PG 29
50
100 °C
-40 °C
8 mm
