JACOB

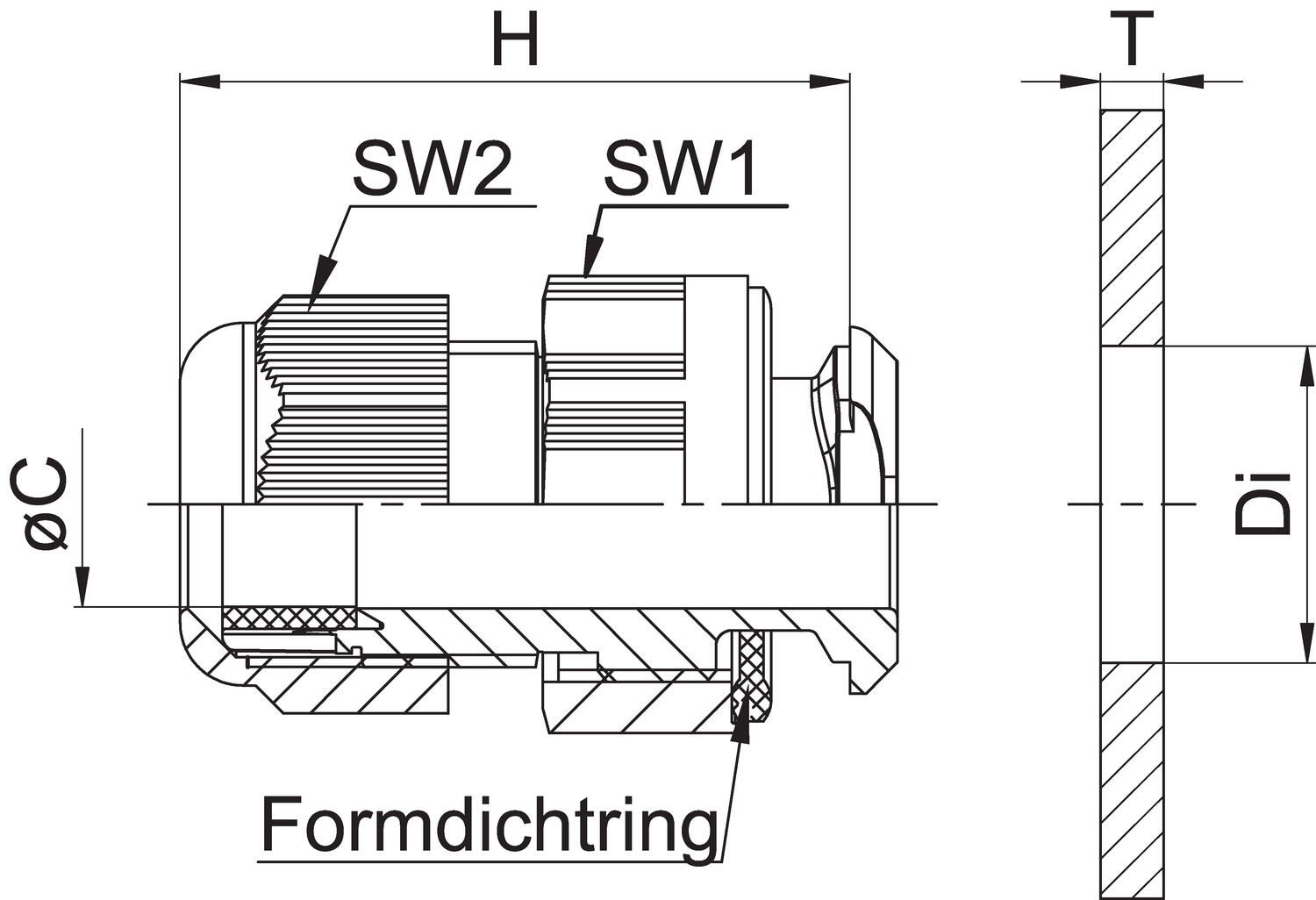

PERFECT FIX glands, no counter nut
- Minimal space required
- Quick and easy installation
- Completely surface-mounted gland
Selected variant
Specifications
| Cable Diameter Max | 10 mm |
|---|---|
| Cable Diameter Min | 5 mm |
| Color | Grey RAL 7035 |
| IP Class | IP68 |
| Length Overall | 38.5 mm |
| Material screw | Polyamide |
| O-ring | Yes |
| Pack Size | 100 |
|---|---|
| Packing Materials | CR/NBR |
| Temperature range dynamic max. | 100 °C |
| Temperature range dynamic min. | -20 °C |
| Thread size | M16x1,5 |
