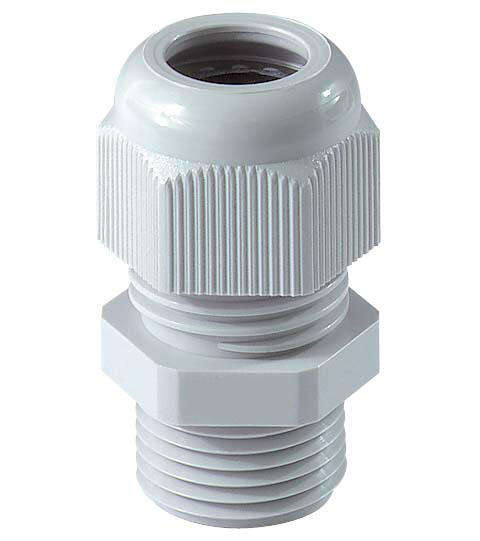

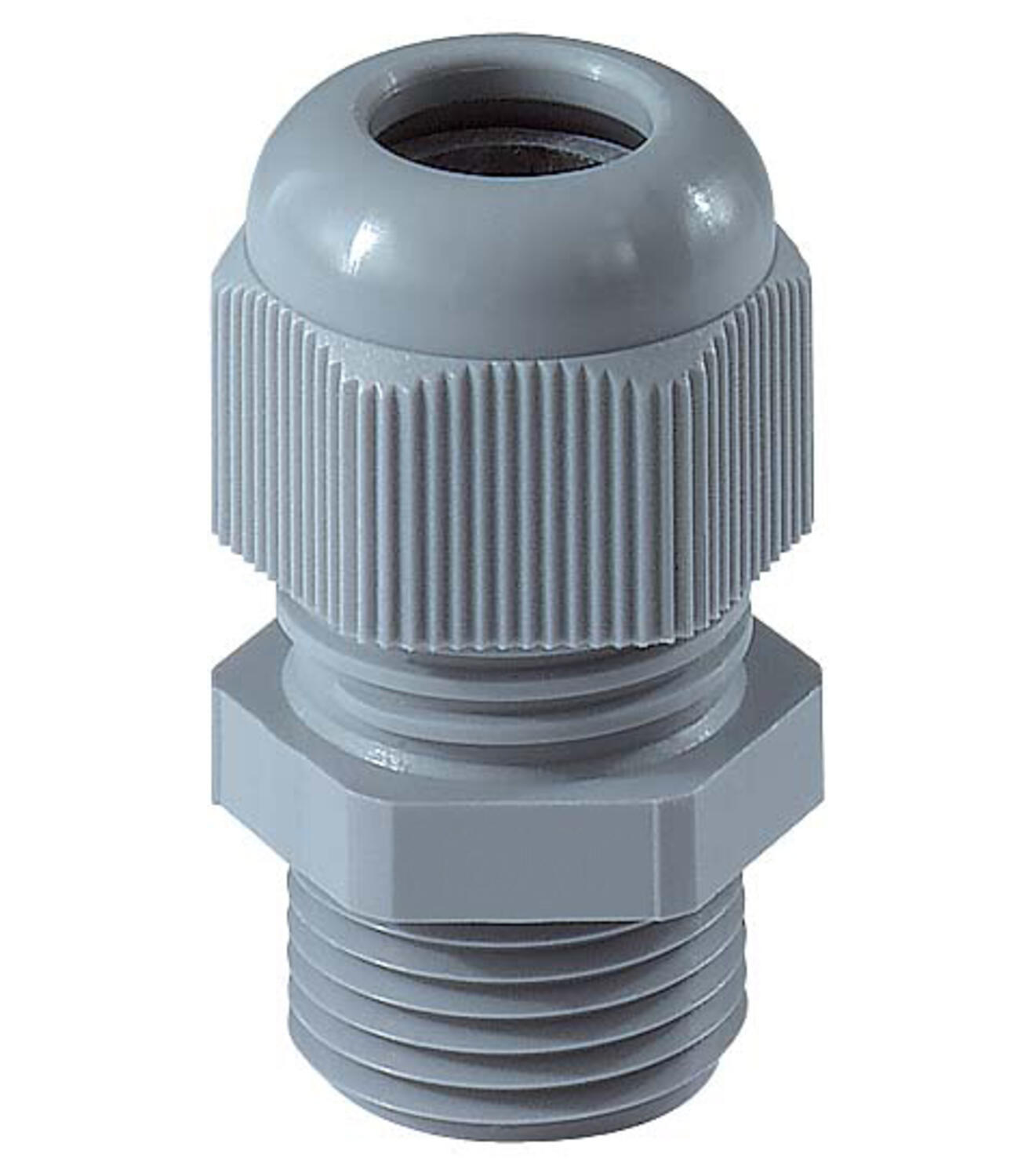

Plastic cable glands, metric thread 50.612PA7001

Products
- - Back
  - Cables & Connectors
  - Electronics
  - Motors & Bearings
  - Robotics
  - Machine Vision
  - Panel components
  - Safety
  - Sensors & Switches
  - Vehicle
  Cables & Connectors

  We offer standard and customized cabling and connecting solutions for machine- and device manufacturers.

  Products
  Show all Cables & Connectors

  Cable accessories

  Cables

  Conduits

  Connectors

  Electronics

  We offer variety of soldering stations, customized industrial displays, timers and motor clocks.

  Products
  Show all Electronics

  Fume Extraction

  Electromechanical components

  Enclosures, heating and ventilation

  Monitors, displays and keyboards

  Power supplies

  Production materials

  Soldering

  Motors & Bearings

  We offer a wide selection of both AC and DC motors, linear motion and transmission, bearings of all types ranging from standard bearings to customer specific solutions.

  Products
  Show all Motors & Bearings

  Bearings

  Motors

  Robotics

  Discover our range of industrial robots from KUKA. We offer industrial robots in various configurations to meet different needs and challenges in various tasks.

  Products
  Show all Robotics

  Cobots

  Accessories for cobots

  Machine Vision

  Vehicle camera systems to improve safety and productivity. Cameras and imaging components for all industrial vision applications.

  Products
  Show all Machine Vision

  3D sensors

  Camera enclosures

  Cameras

  Expansion cards

  Industrial-grade computers

  LED light sources

  Lenses

  Machine vision filters

  POE-switches

  Software

  Panel components

  Components to be used inside and outside of electrical control panels.

  Products
  Show all Panel components

  Battery

  Cabinet heaters

  Cable glands

  Cable trunkings

  Counters

  EMC filters

  Enclosure lighting

  Filter fans

  Fuses, fusegear and fuse systems

  Micro-PLC

  Mounting rails

  PID controllers

  Power supplies

  Pushbuttons & Pilot lights

  Relays

  Remote Management

  Signal converters

  Signaling equipment

  Temperature controllers

  Terminals

  Weekly time swithes

  Safety

  Safety components and safety systems to machine manufacturers and end customers.

  Products
  Show all Safety

  Emergency stop buttons

  Interlock systems

  Optical safety

  Rope pull switches

  Safety controllers

  Safety edges

  Safety fences

  Safety laser scanners

  Safety mats

  Safety radar

  Safety relays

  Safety switches

  SIL-approved rotary encoders

  Sensors & Switches

  Components and sensors for movement, pressure, flow and force measurement and monitoring for machine and device manufactures.

  Products
  Show all Sensors & Switches

  Camera sensors

  Force measurement

  Magnetic switches

  Capacitive sensors

  Flow monitoring

  Foot switches

  Enclosures

  Inductive sensors

  Laser scanners

  Level switches

  Limit switches

  Linear sensors

  Mass flow

  Photosensors

  Pressure sensors

  Rotary encoders

  Rotameters

  Inclination and acceleration sensors

  Ultrasonic sensors

  Vehicle

  Products and mobile camera-monitor systems mainly for heavy machine and vehicle solutions.

  Products
  Show all Vehicle

  Beacons and back-up alarms

  Vehicle cameras
Suppliers
Info
About us
- - Back
  - Brochures
  - Business practices
  - Company
  - Customer magazine
  - Logistics Center
  - Vacancies
Contact us

Approvals	CSA, UL, VDE
Cable Diameter Max	6.5 mm
Cable Diameter Min	3 mm
Color	Grey RAL 7001
Hexagon	15 mm
IP Class	IP68
Length Overall	31 mm
Material screw	Polyamide
O-ring	No

Pack Size	100
Packing Materials	CR/NBR
Temperature range dynamic max.	100 °C
Temperature range dynamic min.	-20 °C
Temperature range static short term min.	-40 °C
Thread Length	8 mm
Thread size	M12x1,5
Thread type	Metric

Articles	Cable Diameter Max	Cable Diameter Min	Color	Hexagon	Length Overall	Pack Size	Thread Length	Thread size
Cable Gland, M12, plastic, grey RAL7001 Art: 50.612PA7001 Copied	6.5 mm	3 mm	Grey RAL 7001	15 mm	31 mm	100	8 mm	M12x1,5
Cable Gland, M12, plastic, grey RAL7035 Art: 50.612PA7035 Copied	6.5 mm	3 mm	Grey RAL 7035	15 mm	31 mm	100	8 mm	M12x1,5
Cable Gland, M12, plastic, black RAL9005 Art: 50.612 PA/SW Copied	6.5 mm	3 mm	Black RAL 9005	15 mm	31 mm	100	8 mm	M12x1,5
Cable Gland, M16, plastic, grey RAL7001 Art: 50.616PA7001 Copied	9.5 mm	5 mm	Grey RAL 7001	20 mm	35.5 mm	100	8 mm	M16x1,5
Cable Gland, M16, plastic, grey RAL7035 Art: 50.616PA7035 Copied	9.5 mm	5 mm	Grey RAL 7035	20 mm	35.5 mm	100	8 mm	M16x1,5
Cable Gland, M16, plastic, black RAL9005 Art: 50.616 PA/SW Copied	9.5 mm	5 mm	Black RAL 9005	20 mm	35.5 mm	100	8 mm	M16x1,5
Cable Gland, M20, plastic, grey RAL7001 Art: 50.620PA7001 Copied	13 mm	8 mm	Grey RAL 7001	24 mm	36 mm	100	8 mm	M20x1,5
Cable Gland, M20, plastic, grey RAL7035 Art: 50.620PA7035 Copied	13 mm	8 mm	Grey RAL 7035	24 mm	36 mm	100	8 mm	M20x1,5
Cable Gland, M25, plastic, grey RAL7001 Art: 50.625PA7001 Copied	17 mm	11 mm	Grey RAL 7001	29 mm	43 mm	50	8 mm	M25x1,5
Cable Gland, M25, plastic, grey RAL7035 Art: 50.625PA7035 Copied	17 mm	11 mm	Grey RAL 7035	29 mm	43 mm	50	8 mm	M25x1,5
Cable Gland, M25, plastic, black RAL9005 Art: 50.625 PA/SW Copied	17 mm	11 mm	Black RAL 9005	29 mm	43 mm	50	8 mm	M25x1,5
Cable Gland, M32, plastic, grey RAL7001 Art: 50.632PA7001 Copied	21 mm	15 mm	Grey RAL 7001	36 mm	50 mm	25	10 mm	M32x1,5
Cable Gland, M32, plastic, grey RAL7035 Art: 50.632PA7035 Copied	21 mm	15 mm	Grey RAL 7035	36 mm	50 mm	25	10 mm	M32x1,5
Cable Gland, M32, plastic, black RAL9005 Art: 50.632 PA/SW Copied	21 mm	15 mm	Black RAL 9005	36 mm	50 mm	25	10 mm	M32x1,5
Cable Gland, M40, plastic, grey RAL7001 Art: 50.640PA7001 Copied	28 mm	19 mm	Grey RAL 7001	46 mm	51 mm	10	10 mm	M40x1,5
Cable Gland, M40, plastic, grey RAL7035 Art: 50.640PA7035 Copied	28 mm	19 mm	Grey RAL 7035	46 mm	51 mm	10	10 mm	M40x1,5
Cable Gland, M40, plastic, black RAL9005 Art: 50.640 PA/SW Copied	28 mm	19 mm	Black RAL 9005	46 mm	51 mm	10	10 mm	M40x1,5
Cable Gland, M50, plastic, grey RAL7001 Art: 50.650PA7001 Copied	35 mm	27 mm	Grey RAL 7001	55 mm	61.5 mm	5	12 mm	M50x1,5
Cable Gland, M50, plastic, grey RAL7035 Art: 50.650PA7035 Copied	35 mm	27 mm	Grey RAL 7035	55 mm	61.5 mm	5	12 mm	M50x1,5
Cable Gland, M50, plastic, black RAL9005 Art: 50.650 PA/SW Copied	35 mm	27 mm	Black RAL 9005	55 mm	61.5 mm	5	12 mm	M50x1,5
Cable Gland, M63, plastic, grey RAL7001 Art: 50.663PA7001 Copied	42 mm	32 mm	Grey RAL 7001	68 mm	65.5 mm	5	12 mm	M63x1,5
Cable Gland, M63, plastic, grey RAL7035 Art: 50.663PA7035 Copied	42 mm	32 mm	Grey RAL 7035	68 mm	65.5 mm	5	12 mm	M63x1,5
Cable Gland, M63, plastic, black RAL9005 Art: 50.663 PA/SW Copied	42 mm	32 mm	Black RAL 9005	68 mm	65.5 mm	5	12 mm	M63x1,5
Cable Gland, M12, plastic, long thread, grey RAL7001 Art: 50.612PA7001L Copied	6.5 mm	3 mm	Grey RAL 7001	15 mm	38 mm	100	15 mm	M12x1,5
Cable Gland, M12, plastic, long thread, grey RAL7035 Art: 50.612PA7035L Copied	6.5 mm	3 mm	Grey RAL 7035	15 mm	38 mm	100	15 mm	M12x1,5
Cable Gland, M12, plastic, long thread, black RAL9005 Art: 50.612PA/SWL Copied	6.5 mm	3 mm	Black RAL 9005	15 mm	38 mm	100	15 mm	M12x1,5
Cable glandING HSK-M M16x1,5 GRÅ Art: 50.616PA7001L Copied	9.5 mm	5 mm	Grey RAL 7001	20 mm	42.5 mm	100	15 mm	M16x1,5
Cable Gland, M16, plastic, long thread, grey RAL7035 Art: 50.616PA7035L Copied	9.5 mm	5 mm	Grey RAL 7035	20 mm	42.5 mm	100	15 mm	M16x1,5
Cable Gland, M16, plastic, long thread, black RAL9005 Art: 50.616PA/SWL Copied	9.5 mm	5 mm	Black RAL 9005	20 mm	42.5 mm	100	15 mm	M16x1,5
Cable Gland, M20, plastic, long thread, grey RAL7001 Art: 50.620PA7001L Copied	13 mm	8 mm	Grey RAL 7001	24 mm	43 mm	100	15 mm	M20x1,5
Cable Gland, M20, plastic, long thread, grey RAL7035 Art: 50.620PA7035L Copied	13 mm	8 mm	Grey RAL 7035	24 mm	43 mm	100	15 mm	M20x1,5
Cable Gland, M20, plastic, long thread, black RAL9005 Art: 50.620PA/SWL Copied	13 mm	8 mm	Black RAL 9005	24 mm	43 mm	100	15 mm	M20x1,5
Cable Gland, M25, plastic, long thread, grey RAL7001 Art: 50.625PA7001L Copied	17 mm	11 mm	Grey RAL 7001	29 mm	50 mm	50	15 mm	M25x1,5
Cable Gland, M25, plastic, long thread, grey RAL7035 Art: 50.625PA7035L Copied	17 mm	11 mm	Grey RAL 7035	29 mm	50 mm	50	15 mm	M25x1,5
Cable Gland, M25, plastic, long thread, black RAL9005 Art: 50.625PA/SWL Copied	17 mm	11 mm	Black RAL 9005	29 mm	50 mm	50	15 mm	M25x1,5
FÖRSKR.HSK-M M32x1,5 GRÅ Art: 50.632PA7001L Copied	21 mm	15 mm	Grey RAL 7001	36 mm	55 mm	25	15 mm	M32x1,5
Cable Gland, M32, plastic, long thread, grey RAL7035 Art: 50.632PA7035L Copied	21 mm	15 mm	Grey RAL 7035	36 mm	55 mm	25	15 mm	M32x1,5
Cable Gland, M32, plastic, long thread, black RAL9005 Art: 50.632PA/SWL Copied	21 mm	15 mm	Black RAL 9005	36 mm	55 mm	25	18 mm	M32x1,5
Cable Gland, M40, plastic, long thread, grey RAL7001 Art: 50.640PA7001L Copied	28 mm	19 mm	Grey RAL 7001	46 mm	59 mm	10	18 mm	M40x1,5
Cable Gland, M40, plastic, long thread, grey RAL7035 Art: 50.640PA7035L Copied	28 mm	19 mm	Grey RAL 7035	46 mm	59 mm	10	18 mm	M40x1,5
Cable Gland, M40, plastic, long thread, black RAL9005 Art: 50.640PA/SWL Copied	28 mm	19 mm	Black RAL 9005	46 mm	59 mm	10	18 mm	M40x1,5
Cable Gland, M50, plastic, long thread, grey RAL7001 Art: 50.650PA7001L Copied	35 mm	27 mm	Grey RAL 7001	55 mm	67.5 mm	5	18 mm	M50x1,5
Cable Gland, M50, plastic, long thread, grey RAL7035 Art: 50.650PA7035L Copied	35 mm	27 mm	Grey RAL 7035	55 mm	67.5 mm	5	18 mm	M50x1,5
Cable Gland, M50, plastic, long thread, black RAL9005 Art: 50.650PA/SWL Copied	35 mm	27 mm	Black RAL 9005	55 mm	67.5 mm	5	18 mm	M50x1,5
Cable Gland, M63, plastic, long thread, grey RAL7001 Art: 50.663PA7001L Copied	42 mm	32 mm	Grey RAL 7001	68 mm	71.5 mm	5	18 mm	M63x1,5
Cable Gland, M63, plastic, long thread, grey RAL7035 Art: 50.663PA7035L Copied	42 mm	32 mm	Grey RAL 7035	68 mm	71.5 mm	5	18 mm	M63x1,5
Cable Gland, M63, plastic, long thread, black RAL9005 Art: 50.663PA/SWL Copied	42 mm	32 mm	Black RAL 9005	68 mm	71.5 mm	5	18 mm	M63x1,5
