Plastic reducers/enlargers, metric thread

Selected variant

JACOB.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Color Grey RAL 7035
Hexagon 20 mm
Inner Thread M16x1,5
Length Overall 20.5 mm
Material screw Polyamide
O-ring No
Outer Thread M12x1,5
Pack Size 100
Temperature range dynamic max. 100 °C
Temperature range dynamic min. -30 °C
Thread Length 8 mm
Thread type Metric

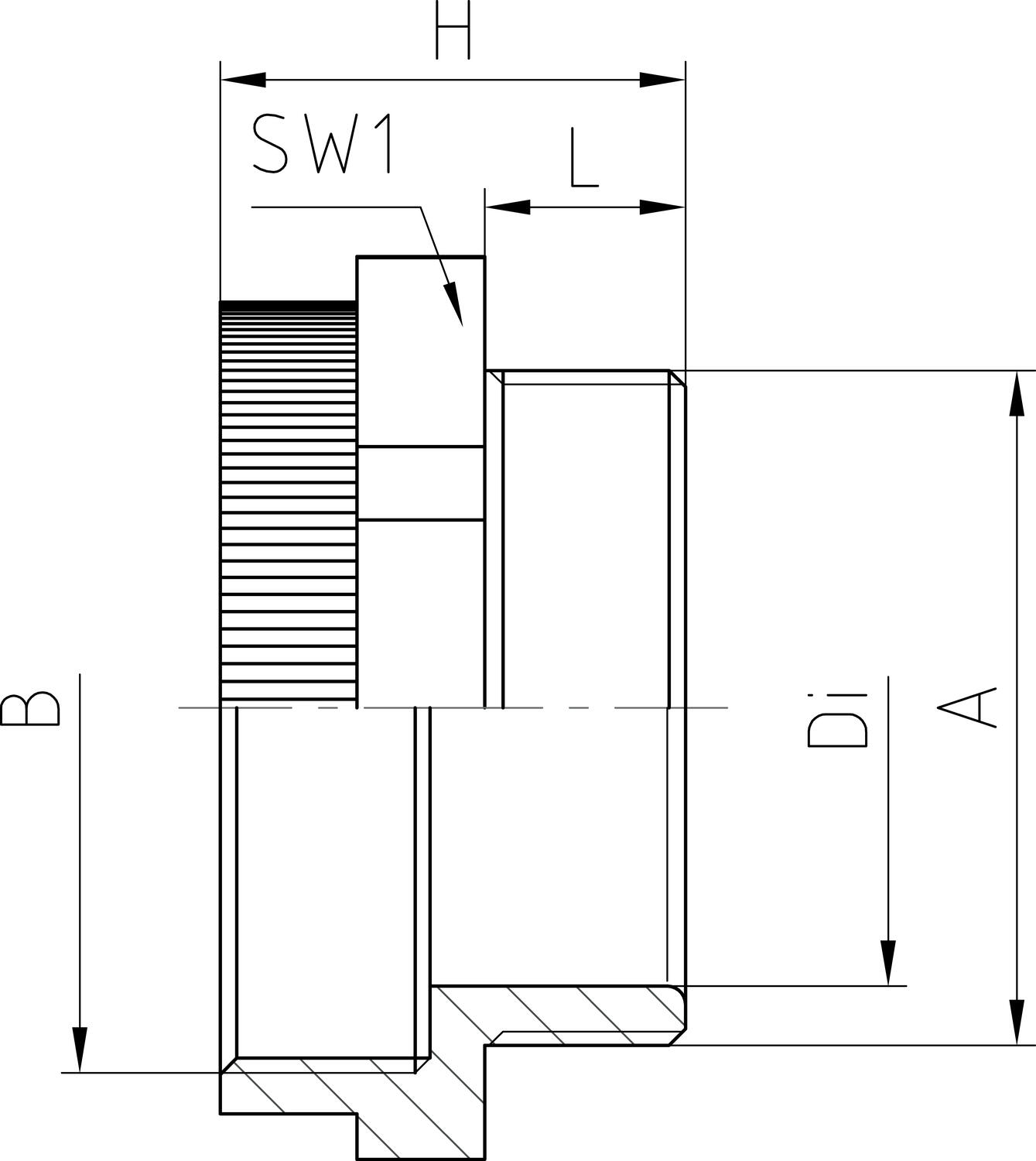

Measurements and connections

Accessories

Related

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Articles Color Hexagon Inner Thread Length Overall Outer Thread Pack Size Temperature range dynamic min. Thread Length
MxxMxxPA_02_Gray.tif
LAAJENNUSHOLKKI M12/M16 MUOVI
Art:
M12M16PA Copied
Grey RAL 7035
20 mm
M16x1,5
20.5 mm
M12x1,5
100
-30 °C
8 mm
MxxMxxPA_02_Gray.tif
ENLARGER M16x1,5-M20x1,5
Art:
M16M20PA Copied
Grey RAL 7035
24 mm
M20x1,5
20.5 mm
M16x1,5
100
-30 °C
8 mm

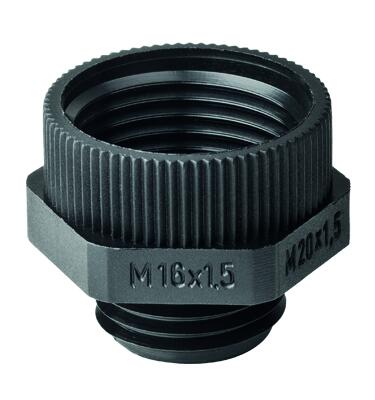

MxxMxxPA_02_Black.tif
Enlarger, M16 / M20, plastic, black RAL9005
Art:
M16M20PA/SW Copied
Black RAL 9005
24 mm
M20x1,5
20.5 mm
M16x1,5
100
-30 °C
8 mm
MxxMxxPA_02_Black.tif
Enlarger, M20 / M25, plastic, black RAL9005
Art:
M20M25PA/SW Copied
Black RAL 9005
30 mm
M25x1,5
21 mm
M20x1,5
100
-30 °C
8 mm
MxxMxxPA_02_Gray.tif
LAAJENNUSHOLKKI M25/M32 MUOVI
Art:
M25M32PA Copied
Grey RAL 7035
37 mm
M32x1,5
37 mm
M25x1,5
50
-30 °C
8 mm
MxxMxxPA_02_Black.tif
Enlarger, M25 / M32, plastic, black RAL9005
Art:
M25M32PA/SW Copied
Black RAL 9005
37 mm
M32x1,5
37 mm
M25x1,5
50
-30 °C
8 mm
MxxMxxPA_02_Gray.tif
Enlarger, M32 / M40, plastic, grey RAL7035
Art:
M32M40PA Copied
Grey RAL 7035
45 mm
M40x1,5
25 mm
M32x1,5
50
-30 °C
10 mm

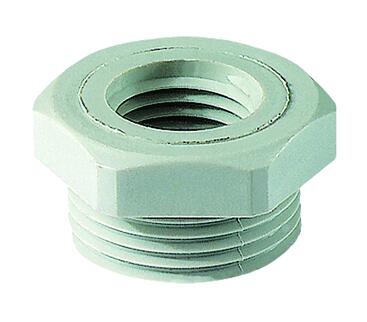

MxxMxxPAzzzz_02_Gray.tif
Reducer, M16 / M12, plastic, grey RAL7035
Art:
M16M12PA Copied
Grey RAL 7035
24 mm
M12x1,5
12 mm
M16x1,5
100
-40 °C
8 mm

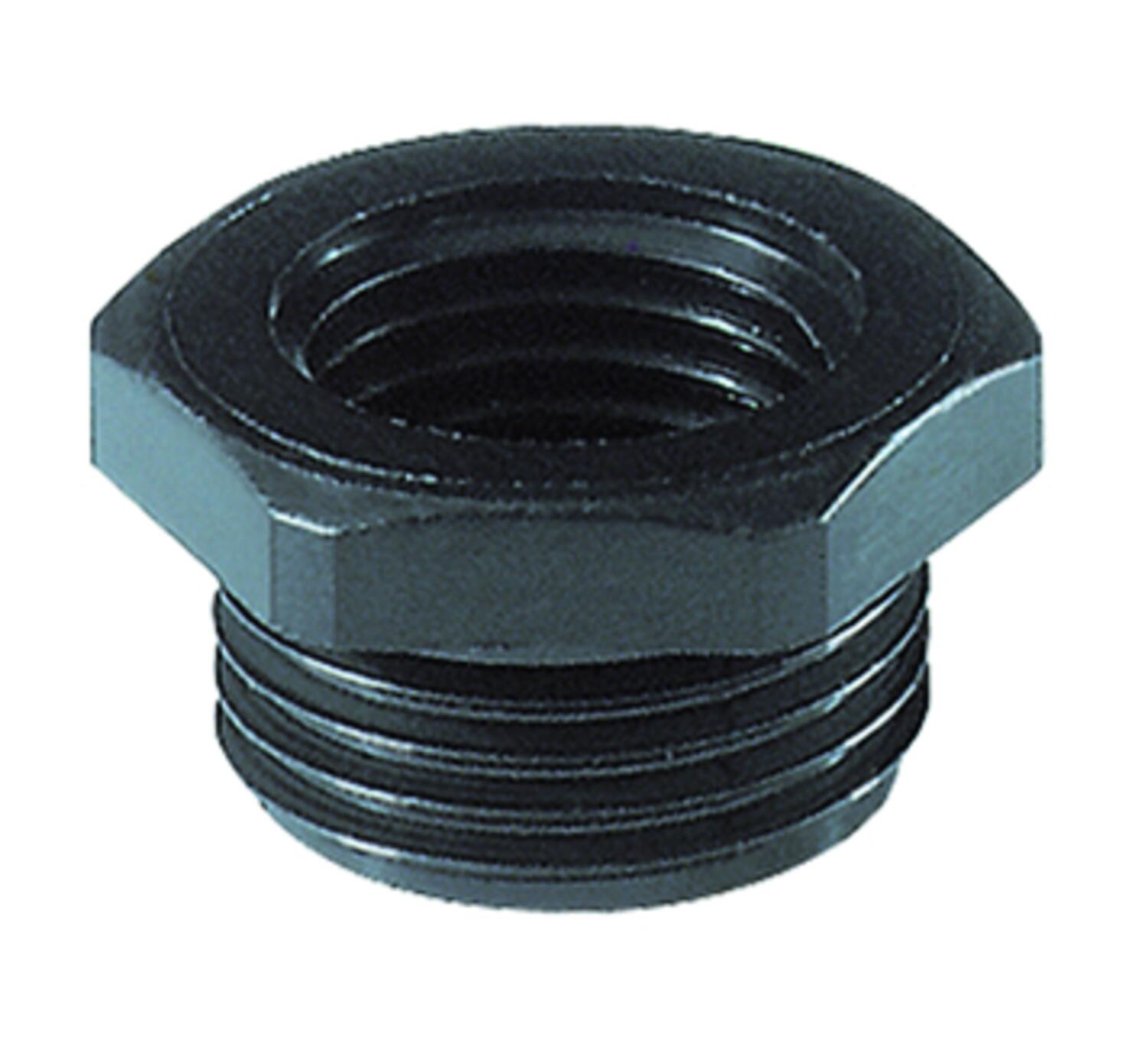

MxxMxxPAzzzz_02_Black.tif
Reducer, M16 / M12, plastic, black RAL9005
Art:
M16M12PA/SW Copied
Black RAL 9005
24 mm
M12x1,5
12 mm
M16x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M20x1,5-M12x1,5
Art:
M20M12PA Copied
Grey RAL 7035
24 mm
M12x1,5
12 mm
M20x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M20 / M12, plastic, black RAL9005
Art:
M20M12PA/SW Copied
Black RAL 9005
24 mm
M12x1,5
12 mm
M20x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M20x1,5-M16x1,5
Art:
M20M16PA Copied
Grey RAL 7035
24 mm
M16x1,5
12 mm
M20x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M20 / M16, plastic, black RAL9005
Art:
M20M16PA/SW Copied
Black RAL 9005
24 mm
M16x1,5
12 mm
M20x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M25 / M12, plastic, grey RAL7035
Art:
M25M12PA Copied
Grey RAL 7035
29 mm
M12x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M25 / M12, plastic, black RAL9005
Art:
M25M12PA/SW Copied
Black RAL 9005
29 mm
M12x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M25x1,5-M16x1,5
Art:
M25M16PA Copied
Grey RAL 7035
29 mm
M16x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M25 / M16, plastic, black RAL9005
Art:
M25M16PA/SW Copied
Black RAL 9005
29 mm
M16x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M25x1,5-M20x1,5
Art:
M25M20PA Copied
Grey RAL 7035
29 mm
M20x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M25 / M20, plastic, black RAL9005
Art:
M25M20PA/SW Copied
Black RAL 9005
29 mm
M20x1,5
14 mm
M25x1,5
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M32 / M12, plastic, grey RAL7035
Art:
M32M12PA Copied
Grey RAL 7035
36 mm
M12x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M32 / M12, plastic, black RAL9005
Art:
M32M12PA/SW Copied
Black RAL 9005
36 mm
M12x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M32 / M16, plastic, grey RAL7035
Art:
M32M16PA Copied
Grey RAL 7035
36 mm
M16x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M32 / M16, plastic, black RAL9005
Art:
M32M16PA/SW Copied
Black RAL 9005
36 mm
M16x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M32x1,5-M20x1,5
Art:
M32M20PA Copied
Grey RAL 7035
36 mm
M20x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M32 / M20, plastic, black RAL9005
Art:
M32M20PA/SW Copied
Black RAL 9005
36 mm
M20x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M32x1,5-M25x1,5
Art:
M32M25PA Copied
Grey RAL 7035
36 mm
M25x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M32 / M25, plastic, black RAL9005
Art:
M32M25PA/SW Copied
Black RAL 9005
36 mm
M25x1,5
16 mm
M32x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M40 / M16, plastic, grey RAL7035
Art:
M40M16PA Copied
Grey RAL 7035
46 mm
M16x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M40 / M16, plastic, black RAL9005
Art:
M40M16PA/SW Copied
Black RAL 9005
46 mm
M16x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M40 / M20, plastic, grey RAL7035
Art:
M40M20PA Copied
Grey RAL 7035
46 mm
M20x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M40 / M20, plastic, black RAL9005
Art:
M40M20PA/SW Copied
Black RAL 9005
46 mm
M20x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M40x1,5-M25x1,5
Art:
M40M25PA Copied
Grey RAL 7035
46 mm
M25x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M40 / M25, plastic, black RAL9005
Art:
M40M25PA/SW Copied
Black RAL 9005
46 mm
M25x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M40x1,5-M32x1,5
Art:
M40M32PA Copied
Grey RAL 7035
46 mm
M32x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M40 / M32, plastic, black RAL9005
Art:
M40M32PA/SW Copied
Black RAL 9005
46 mm
M32x1,5
16 mm
M40x1,5
50
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M50 / M20, plastic, grey RAL7035
Art:
M50M20PA Copied
Grey RAL 7035
55 mm
M20x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M50 / M20, plastic, black RAL9005
Art:
M50M20PA/SW Copied
Black RAL 9005
55 mm
M20x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M50 / M25, plastic, grey RAL7035
Art:
M50M25PA Copied
Grey RAL 7035
55 mm
M25x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M50 / M25, plastic, black RAL9005
Art:
M50M25PA/SW Copied
Black RAL 9005
55 mm
M25x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M50 / M32, plastic, grey RAL7035
Art:
M50M32PA Copied
Grey RAL 7035
55 mm
M32x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M50 / M32, plastic, black RAL9005
Art:
M50M32PA/SW Copied
Black RAL 9005
55 mm
M32x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION M50x1,5-M40x1,5
Art:
M50M40PA Copied
Grey RAL 7035
55 mm
M40x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M50 / M40, plastic, black RAL9005
Art:
M50M40PA/SW Copied
Black RAL 9005
55 mm
M40x1,5
18 mm
M50x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M63 / M25, plastic, grey RAL7035
Art:
M63M25PA Copied
Grey RAL 7035
68 mm
M25x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M63 / M25, plastic, black RAL9005
Art:
M63M25PA/SW Copied
Black RAL 9005
68 mm
M25x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M63 / M32, plastic, grey RAL7035
Art:
M63M32PA Copied
Grey RAL 7035
68 mm
M32x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M63 / M32, plastic, black RAL9005
Art:
M63M32PA/SW Copied
Black RAL 9005
68 mm
M32x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M63 / M40, plastic, grey RAL7035
Art:
M63M40PA Copied
Grey RAL 7035
68 mm
M40x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M63 / M40, plastic, black RAL9005
Art:
M63M40PA/SW Copied
Black RAL 9005
68 mm
M40x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, M63 / M50, plastic, grey RAL7035
Art:
M63M50PA Copied
Grey RAL 7035
68 mm
M50x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, M63 / M50, plastic, black RAL9005
Art:
M63M50PA/SW Copied
Black RAL 9005
68 mm
M50x1,5
18 mm
M63x1,5
25
-40 °C
12 mm
