Plastic reducers/enlargers, PG thread

Selected variant

JACOB.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Color Grey RAL 7035
Hexagon 19 mm
Inner Thread PG 9
Length Overall 21 mm
Material screw Polyamide
O-ring No
Outer Thread PG 7
Pack Size 100
Temperature range dynamic max. 100 °C
Temperature range dynamic min. -30 °C
Thread Length 8 mm
Thread type PG

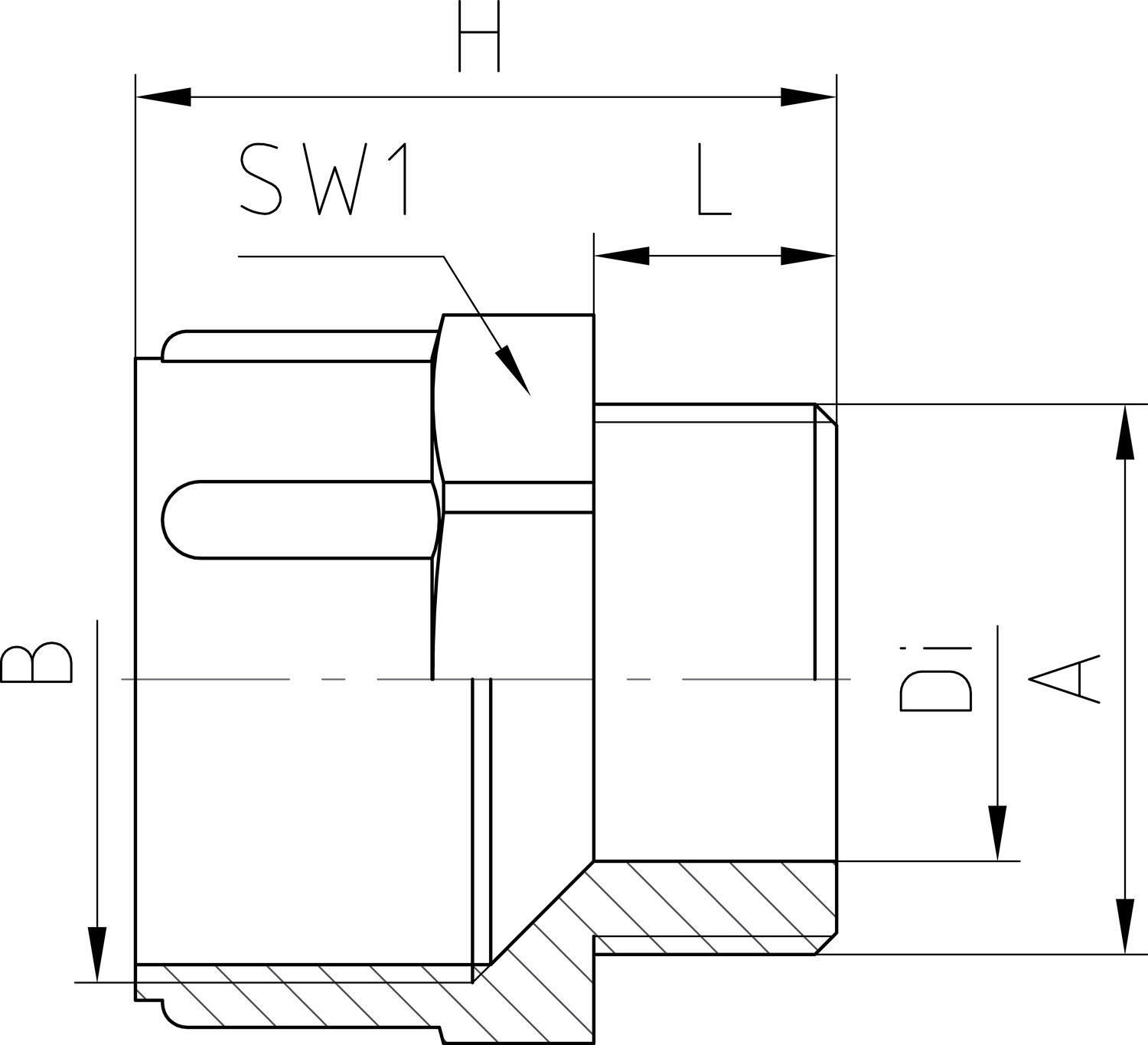

Measurements and connections

Accessories

Related

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Articles Color Hexagon Inner Thread Length Overall O-ring Outer Thread Pack Size Temperature range dynamic min. Thread Length

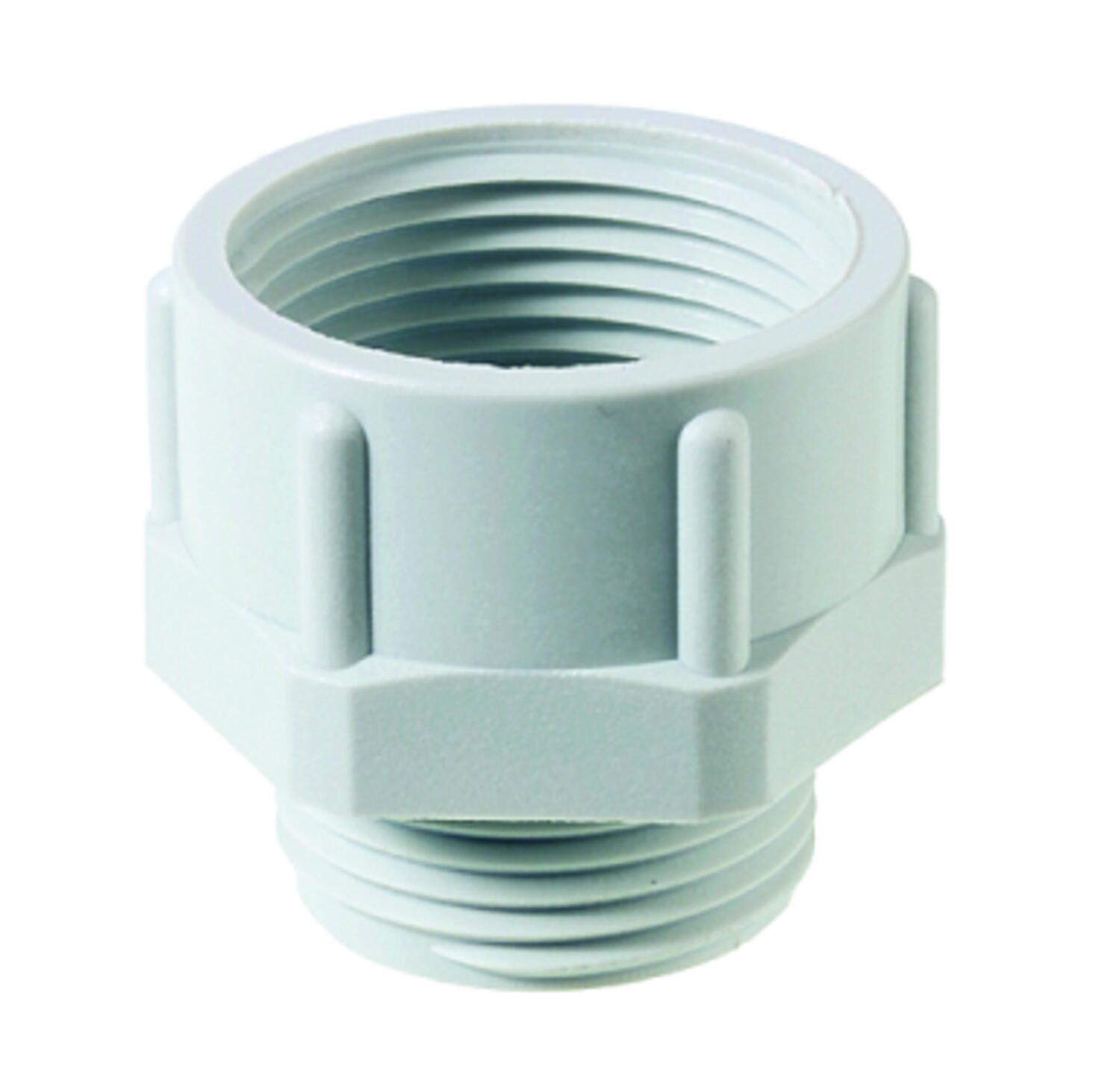

xxxxPAzzEPG_02.tif
Enlarger, PG7 / PG9, plastic, grey RAL7035
Art:
709PA Copied
Grey RAL 7035
19 mm
PG 9
21 mm
No
PG 7
100
-30 °C
8 mm
xxxxPAzzEPG_02.tif
Enlarger, PG9 / PG11, plastic, grey RAL7035
Art:
911PA Copied
Grey RAL 7035
22 mm
PG 11
23 mm
No
PG 9
100
-30 °C
8 mm
xxxxPAzzEPG_02.tif
Enlarger, PG11 / PG13,5, plastic, grey RAL7035
Art:
1113PA Copied
Grey RAL 7035
24 mm
PG 13,5
23 mm
No
PG 11
100
-30 °C
8 mm
xxxxPAzzEPG_02.tif
Enlarger, PG11 / PG16, plastic, grey RAL7035
Art:
1116PA Copied
Grey RAL 7035
27 mm
PG 16
24.5 mm
No
PG 11
100
-30 °C
8 mm
xxxxPAzzEPG_02.tif
Enlarger, PG13,5 / PG16, plastic, grey RAL7035
Art:
1316PA Copied
Grey RAL 7035
27 mm
PG 16
26 mm
No
PG 13,5
100
-30 °C
9 mm
xxxxPAzzEPG_02.tif
Enlarger, PG16 / PG21, plastic, grey RAL7035
Art:
1621PA Copied
Grey RAL 7035
32 mm
PG 21
29 mm
No
PG 16
100
-30 °C
9 mm
xxxxPAzzEPG_02.tif
Enlarger, PG21 / PG29, plastic, grey RAL7035
Art:
2129PA Copied
Grey RAL 7035
42 mm
PG 29
32 mm
No
PG 21
50
-30 °C
10 mm
xxxxPAzzEPG_02.tif
Enlarger, PG29 / PG36, plastic, grey RAL7035
Art:
2936PA Copied
Grey RAL 7035
53 mm
PG 36
35.5 mm
No
PG 29
25
-30 °C
11 mm
xxxxPAzzEPG_02.tif
Enlarger, PG36 / PG42, plastic, grey RAL7035
Art:
3642PA Copied
Grey RAL 7035
60 mm
PG 42
40.5 mm
No
PG 36
10
-30 °C
13 mm
xxxxPAzzEPG_02.tif
Enlarger, PG42 / PG48, plastic, grey RAL7035
Art:
4248PA Copied
Grey RAL 7035
65 mm
PG 48
41 mm
No
PG 42
10
-30 °C
13 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG9 / PG7, plastic, grey RAL7035
Art:
907PA Copied
Grey RAL 7035
19 mm
PG 7
20.5 mm
No
PG 9
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG9 / PG7, plastic, black RAL9005
Art:
907PA/SW Copied
Black RAL 9005
19 mm
PG 7
20.5 mm
No
PG 9
100
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG11 / PG7, plastic, grey RAL7035
Art:
1107PA Copied
Grey RAL 7035
22 mm
PG 7
14 mm
No
PG 11
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG11 / PG7, plastic, black RAL9005
Art:
1107PA/SW Copied
Black RAL 9005
22 mm
PG 7
14 mm
No
PG 11
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG11 / PG9, plastic, grey RAL7035
Art:
1109PA Copied
Grey RAL 7035
22 mm
PG 9
22.5 mm
No
PG 11
-40 °C
8 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG11 / PG9, plastic, black RAL9005
Art:
1109PA/SW Copied
Black RAL 9005
22 mm
PG 9
22.5 mm
No
PG 11
-40 °C
8 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG13,5 / PG7, plastic, grey RAL7035
Art:
1307PA Copied
Grey RAL 7035
24 mm
PG 7
15 mm
No
PG 13,5
100
-40 °C
9 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION PG 13,5-PG 9
Art:
1309PA Copied
Grey RAL 7035
24 mm
PG 9
15 mm
No
PG 13,5
100
-40 °C
9 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG13,5 / PG9, plastic, black RAL9005
Art:
1309PA/SW Copied
Black RAL 9005
24 mm
PG 9
15 mm
No
PG 13,5
100
-40 °C
9 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG13,5 / PG11, plastic, grey RAL7035
Art:
1311PA Copied
Grey RAL 7035
24 mm
PG 11
24 mm
No
PG 13,5
100
-40 °C
9 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG13,5 / PG11, plastic, black RAL9005
Art:
1311PA/SW Copied
Black RAL 9005
24 mm
PG 11
24 mm
No
PG 13,5
100
-40 °C
9 mm
MxxMxxPAzzzz_02_Gray.tif
FÖRMINSKNING PLAST PG 16-9
Art:
1609PA Copied
Grey RAL 7035
27 mm
PG 9
16 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG16 / PG9, plastic, black RAL9005
Art:
1609PA/SW Copied
Black RAL 9005
27 mm
PG 9
16 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION PG 16-11
Art:
1611PA Copied
Grey RAL 7035
27 mm
PG 11
16 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG16 / PG11, plastic, black RAL9005
Art:
1611PA/SW Copied
Black RAL 9005
27 mm
PG 11
16 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION PG 16-13,5
Art:
1613PA Copied
Grey RAL 7035
27 mm
PG 13,5
27 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG16 / PG13,5, plastic, black RAL9005
Art:
1613PA/SW Copied
Black RAL 9005
27 mm
PG 13,5
27 mm
No
PG 16
100
-40 °C
10 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG21 / PG11, plastic, grey RAL7035
Art:
2111PA Copied
Grey RAL 7035
32 mm
PG 11
16 mm
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG21 / PG11, plastic, black RAL9005
Art:
2111PA/SW Copied
Black RAL 9005
32 mm
PG 11
16 mm
No
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
Reduction plastic PG 21-13,5
Art:
2113PA Copied
Grey RAL 7035
32 mm
PG 13,5
16 mm
No
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG21 / PG13,5, plastic, black RAL9005
Art:
2113PA/SW Copied
Black RAL 9005
32 mm
PG 13,5
16 mm
No
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION PG 21-16
Art:
2116PA Copied
Grey RAL 7035
32 mm
PG 16
16 mm
No
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG21 / PG16, plastic, black RAL9005
Art:
2116PA/SW Copied
Black RAL 9005
32 mm
PG 16
16 mm
No
PG 21
100
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG29 / PG13,5, plastic, grey RAL7035
Art:
2913PA Copied
Grey RAL 7035
40 mm
PG 13,5
17 mm
No
PG 29
50
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG29 / PG16, plastic, grey RAL7035
Art:
2916PA Copied
Grey RAL 7035
40 mm
PG 16
17 mm
No
PG 29
50
-40 °C
11 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG29 / PG16, plastic, black RAL9005
Art:
2916PA/SW Copied
Black RAL 9005
40 mm
PG 16
17 mm
No
PG 29
50
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
REDUCTION PG 29-21
Art:
2921PA Copied
Grey RAL 7035
40 mm
PG 21
17 mm
No
PG 29
50
-40 °C
11 mm
MxxMxxPAzzzz_02_Black.tif
Reducer, PG29 / PG21, plastic, black RAL9005
Art:
2921PA/SW Copied
Black RAL 9005
40 mm
PG 21
17 mm
No
PG 29
50
-40 °C
11 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG36 / PG21, plastic, grey RAL7035
Art:
3621PA Copied
Grey RAL 7035
50 mm
PG 21
19 mm
No
PG 36
50
-40 °C
13 mm
MxxMxxPAzzzz_02_Gray.tif
FÖRMINSKNING PLAST PG 36-29
Art:
3629PA Copied
Grey RAL 7035
50 mm
PG 29
24 mm
No
PG 36
50
-40 °C
18 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG42 / PG21, plastic, grey RAL7035
Art:
4221PA Copied
Grey RAL 7035
55 mm
PG 21
24 mm
No
PG 42
25
-40 °C
18 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG42 / PG29, plastic, grey RAL7035
Art:
4229PA Copied
Grey RAL 7035
55 mm
PG 29
24 mm
No
PG 42
25
-40 °C
18 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG42 / PG36, plastic, grey RAL7035
Art:
4236PA Copied
Grey RAL 7035
55 mm
PG 36
24 mm
No
PG 42
25
-40 °C
18 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG48 / PG29, plastic, grey RAL7035
Art:
4829PA Copied
Grey RAL 7035
55 mm
PG 29
24 mm
No
PG 48
25
-40 °C
18 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG48 / PG36, plastic, grey RAL7035
Art:
4836PA Copied
Grey RAL 7035
60 mm
PG 36
20 mm
No
PG 48
25
-40 °C
14 mm
MxxMxxPAzzzz_02_Gray.tif
Reducer, PG48 / PG42, plastic, grey RAL7035
Art:
4842PA Copied
Grey RAL 7035
60 mm
PG 42
23 mm
No
PG 48
25
-40 °C
17 mm
