CANALPLAST
Halogen-free trunkings
Canalplast ALOFREE-series trunkings are suitable for environments where the development of toxic gases can not be tolerated, such as public areas, hotels, theaters, hospitals and transportation. Alofree-trunkings do not propagate flame. Sold only in full packages.
Two versions available: standard version EHF delivered in 2 meter long pieces, covers included.
NXA is spesifically made for more demanding environments such as underground installations. Available in 0,5m length.
- Robust build
- Large selection
- DIN standardized
- Cover included
Selected variant
Specifications
| Approvals | CEI EN50267-2-1, CSA US, EN45545-2, EN50085-2-3, ENISO4589-2, NFX 70-100, RoHS |
|---|---|
| Color | Grey |

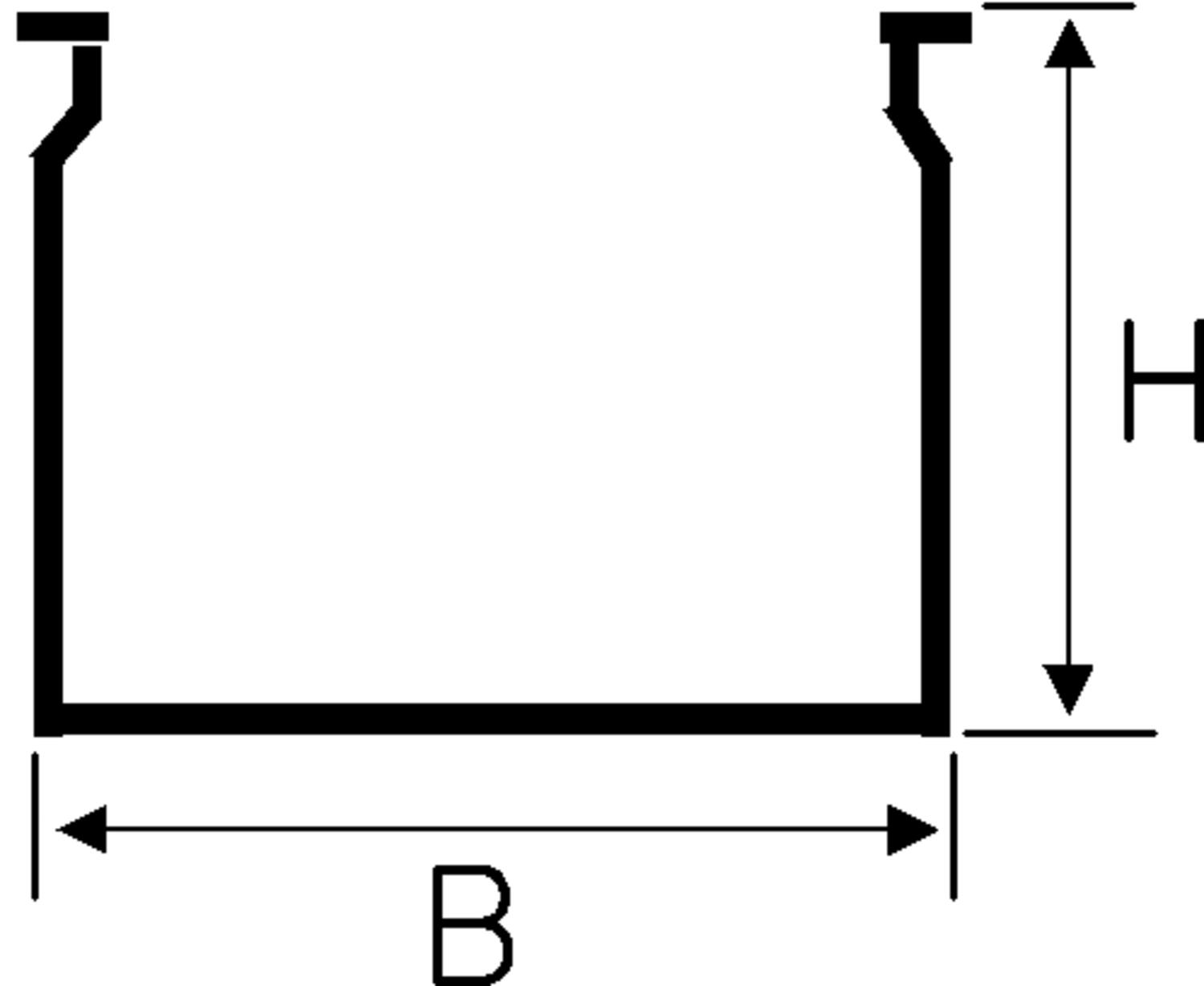

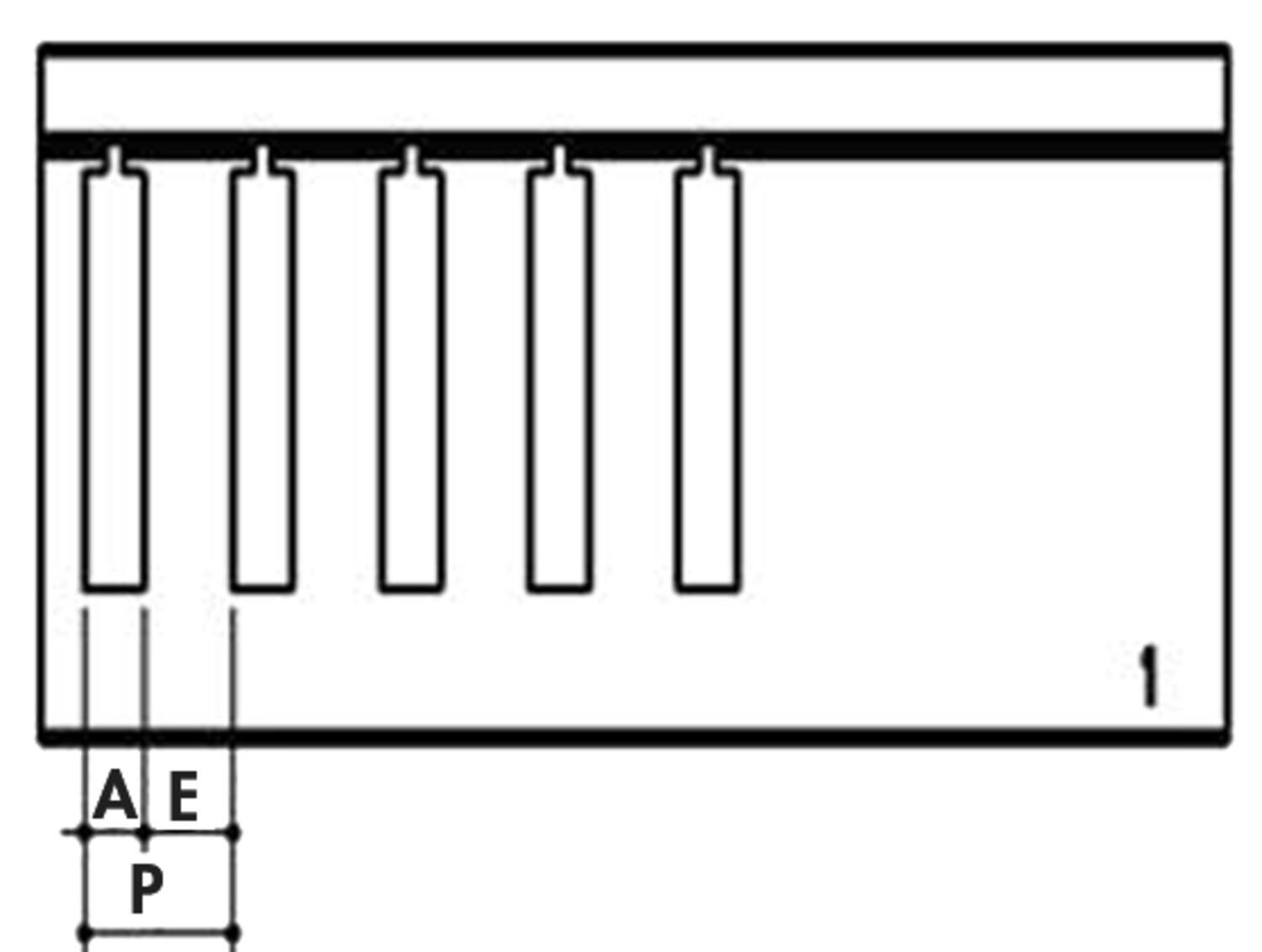

| Dimension A | 5 mm |
| Dimension E | 7.5 mm |
| Height | 25 mm |
| Length | 2000 mm |
| Material | Self-closing P-Blend |
| Pack Size | 42 |
| Punching | DIN 43659 Standard |
| Temperature range bearing, from | -45 °C |
|---|---|
| Temperature range bearing, to | 105 °C |
| Temperature range from | -25 °C |
| Temperature range to | 105 °C |
| Weight Per Channel | 0.4 kg |
| Weight per package | 16.5 kg |
| Width | 25 mm |
Downloads
Product description
Canalplast ALOFREE-series trunkings are suitable for environments where the development of toxic gases can not be tolerated, such as public areas, hotels, theaters, hospitals and transportation. Alofree-trunkings do not propagate flame. Sold only in full packages.
Two versions available: standard version EHF delivered in 2 meter long pieces, covers included.
NXA is spesifically made for more demanding environments such as underground installations. Available in 0,5m length.
