CANALPLAST

Trunking for switchboards, E-series

E-series trunkings are suitable for various switchboard installations. Delivered in 2m long pieces, covers included.

Read more
  • Easy to install
  • Cover included
  • Firm cover locking

Selected variant

CANALPLAST.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CSA US, EN50085-2-3, Gost R, IMQ, RoHS, UL
Color Grey

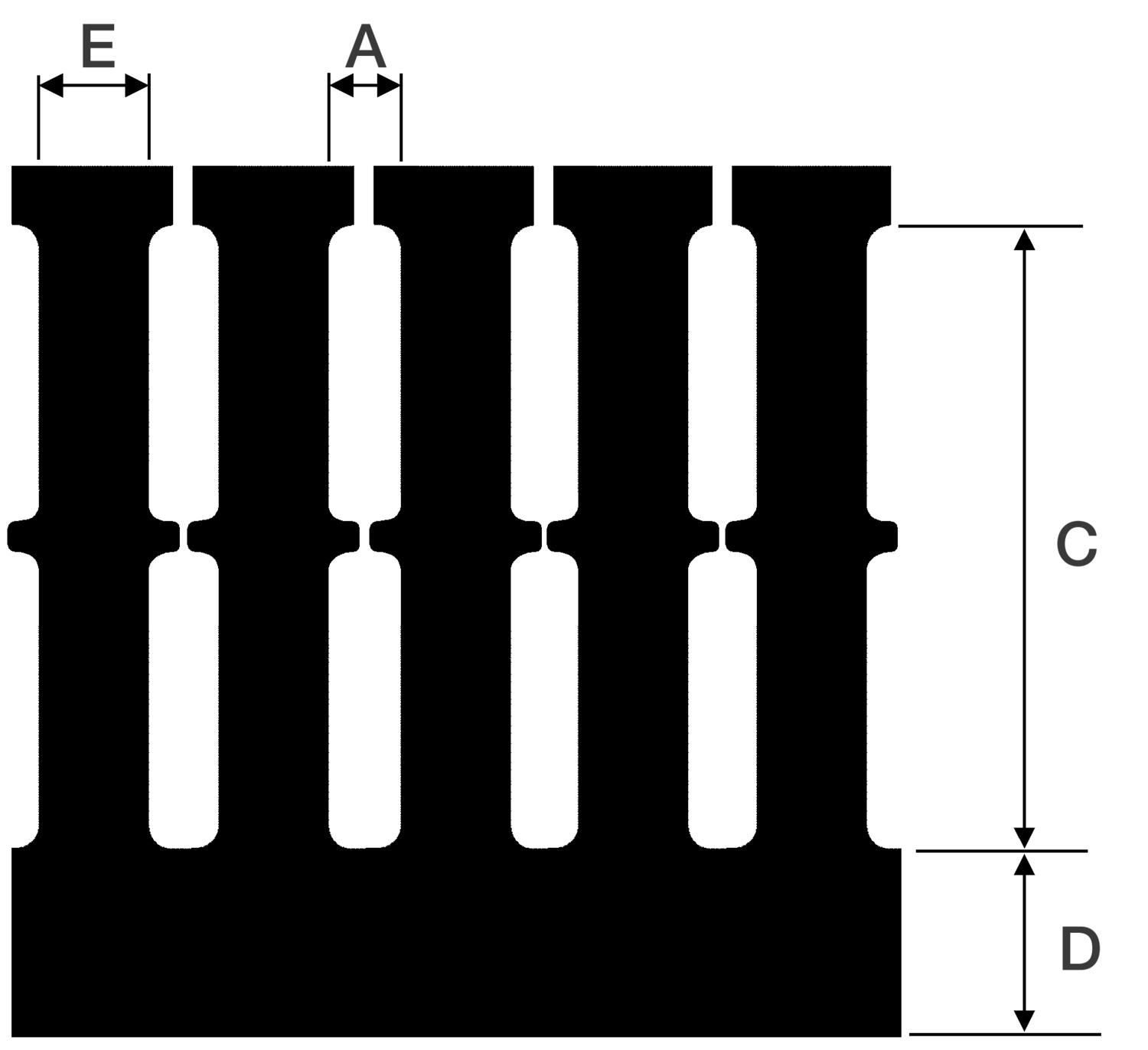

Dimension A 4 mm
Dimension C 7 mm
Dimension D 5 mm
Dimension E 6 mm
Height 17 mm
Length 2000 mm
Material Self-extinguishing rigid PVC

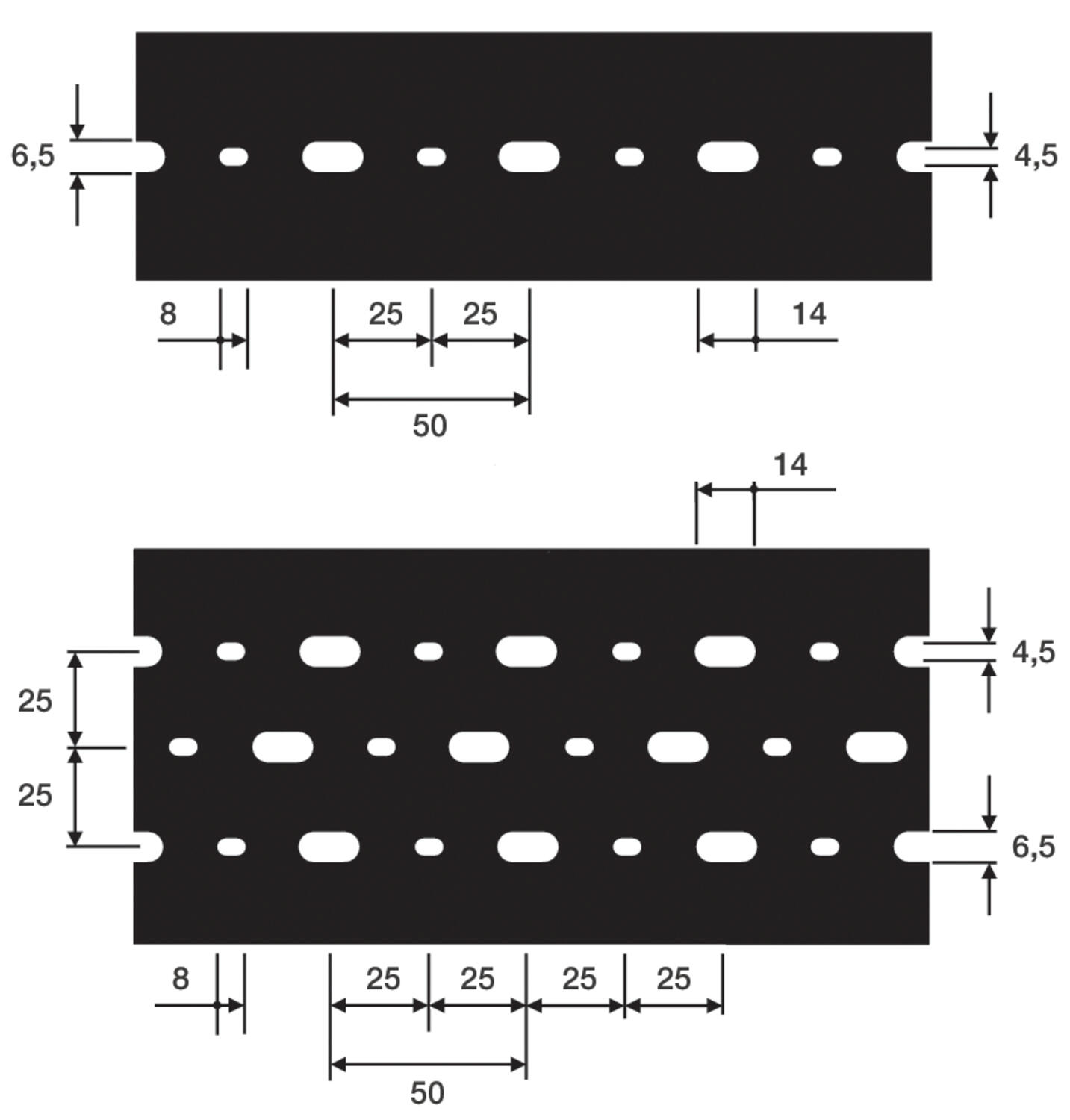

Punching DIN 43659 Standard
Temperature range bearing, from -25 °C
Temperature range bearing, to 60 °C
Temperature range from -5 °C
Temperature range to 60 °C
Width 15 mm

Downloads

Measurements and connections

Product description

E-series trunkings are suitable for various switchboard installations. Delivered in 2m long pieces, covers included.

Accessories

Related products

Related

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Dimension A Dimension C Dimension D Dimension E Height Pack Size Weight Per Channel Weight per package Width
Photo.
CABLE HOLDER DUCTS L15 x K17 (120m pkt)
Art:
E20 Copied
4 mm
7 mm
5 mm
6 mm
17 mm
15 mm
Photo.
CABLE HOLDER DUCTS L15 x K30 (96m pkt)
Art:
E22 Copied
4 mm
12 mm
9 mm
6 mm
30 mm
15 mm
Photo.
CABLE HOLDER DUCTS L15 x K40 (72m pkt)
Art:
E25 Copied
4 mm
17 mm
12 mm
6 mm
40 mm
15 mm
Photo.
CABLE HOLDER DUCTS 25x30
Art:
E16/4 Copied
4 mm
12 mm
9 mm
6 mm
30 mm
40
0.4 kg
16 kg
25 mm
Photo.
CABLE HOLDER DUCTS 25x40 (1 Cart=30 pcs)
Art:
E13/4 Copied
4 mm
17 mm
12 mm
6 mm
40 mm
30
0.52 kg
15.8 kg
25 mm
Photo.
CABLE HOLDER DUCTS 40x40 (1 Cart=20 pcs)
Art:
E8/4 Copied
4 mm
17 mm
12 mm
6 mm
40 mm
20
0.7 kg
14.2 kg
40 mm
Photo.
CABLE HOLDER DUCTS 60x40 (1 Cart=12 pcs)
Art:
E4/4 Copied
4 mm
17 mm
12 mm
6 mm
40 mm
12
0.96 kg
11.4 kg
60 mm
Photo.
CABLE HOLDER DUCTS 80x40 (1 Cart=12 pcs)
Art:
E26/4 Copied
4 mm
17 mm
12 mm
6 mm
40 mm
12
1.22 kg
14.3 kg
80 mm
Photo.
CABLE HOLDER DUCTS 25x60 (1 Cart=20 pcs)
Art:
E7/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
20
0.76 kg
15 kg
25 mm
Photo.
CABLE HOLDER DUCTS 40x60 (1 Cart=18 pcs)
Art:
E5/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
18
1 kg
17.8 kg
40 mm
Photo.
CABLE HOLDER DUCTS 60x60 (1 Cart=12 pcs)
Art:
E9/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
12
1.3 kg
15.5 kg
60 mm
Photo.
CABLE HOLDER DUCTS 80x60 (1 Cart=12 pcs)
Art:
E6/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
12
1.6 kg
19.2 kg
80 mm
Photo.
CABLE HOLDER DUCTS 100x60 (1Cart=10 pcs)
Art:
E17/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
10
1.86 kg
18.7 kg
100 mm
Photo.
CABLE HOLDER DUCTS 120X60 (1 Cart=8 pcs)
Art:
E10/4 Copied
4 mm
37 mm
14 mm
6 mm
60 mm
8
2.19 kg
17.5 kg
120 mm
Photo.
CABLE HOLDER DUCTS 25x80 (1 Cart=16 pcs)
Art:
E14/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
16
0.98 kg
15.6 kg
25 mm
Photo.
CABLE HOLDER DUCTS 40x80 (1 Cart=12 pcs)
Art:
E15/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
12
1.22 kg
14.7 kg
40 mm
Photo.
CABLE HOLDER DUCTS 60x80 (1 Cart=12 pcs)
Art:
E11/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
12
1.54 kg
18.5 kg
60 mm
Photo.
CABLE HOLDER DUCTS 80x80 (1 Cart=12 pcs)
Art:
E12/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
12
1.81 kg
21.7 kg
80 mm
Photo.
CABLE HOLDER DUCTS 100x80 (1 Cart=8 pcs)
Art:
E19/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
8
2.26 kg
18.1 kg
100 mm
Photo.
CABLE HOLDER DUCTS 120x80 (1 Cart=8 pcs)
Art:
E32/4 Copied
4 mm
55 mm
16 mm
6 mm
80 mm
8
2.62 kg
20.5 kg
120 mm
Photo.
CABLE HOLDER DUCTS 150x80 (1 Cart=6 pcs)
Art:
E33 Copied
8 mm
55 mm
16 mm
12 mm
80 mm
6
3.15 kg
18.9 kg
150 mm
Photo.
Art:
E48 Copied
8 mm
55 mm
16 mm
12 mm
80 mm
4
4.15 kg
16.6 kg
200 mm
Photo.
CABLE HOLDER DUCTS 40x100 (1 Cart=8 pcs)
Art:
E35 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
8
1.76 kg
14.1 kg
40 mm
Photo.
CABLE HOLDER DUCTS L60 x K100 (16m pkt)
Art:
E18 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
8
2.12 kg
16.9 kg
60 mm
Photo.
CABLE HOLDER DUCTS L80 x K100 (16m pkt)
Art:
E36 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
8
2.48 kg
19.8 kg
80 mm
Photo.
CABLE HOLDER DUCTS L100 x K100 (16m pkt)
Art:
E37 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
8
2.68 kg
21.5 kg
100 mm
Photo.
CABLE HOLDER DUCTS 120x100 (1Cart=4 pcs)
Art:
E38 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
4
3.15 kg
12.6 kg
120 mm
Photo.
CABLE HOLDER DUCTS 150x100 (1Cart=4 pcs)
Art:
E39 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
4
3.78 kg
15.1 kg
150 mm
Photo.
CABLE HOLDER DUCTS 200x100 (1Cart=4 pcs)
Art:
E40 Copied
8 mm
72 mm
20 mm
12 mm
100 mm
4
4.55 kg
18.2 kg
150 mm
Photo.
CABLE HOLDER DUCTS 100x150 (1Cart=4 pcs)
Art:
E43 Copied
8 mm
110 mm
26 mm
12 mm
150 mm
4
3.65 kg
14.6 kg
100 mm
