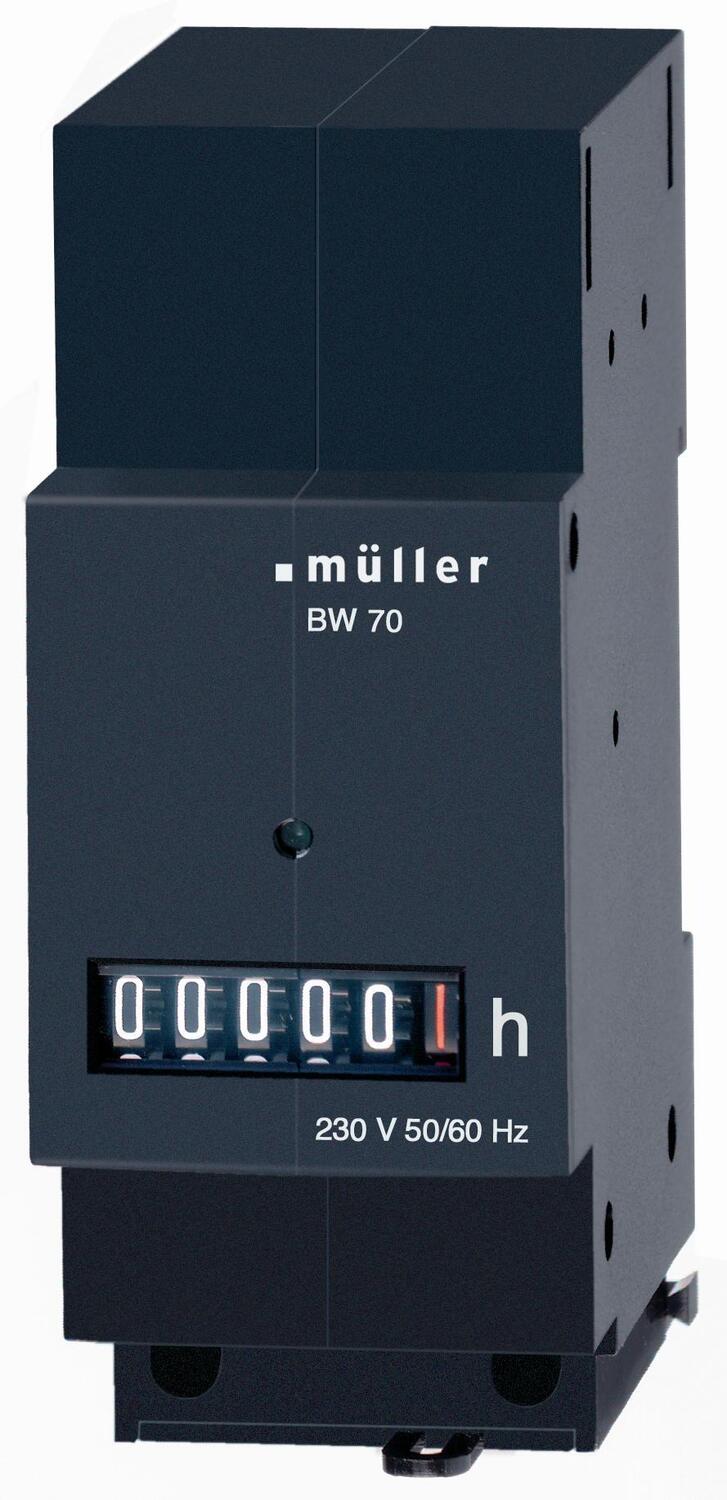

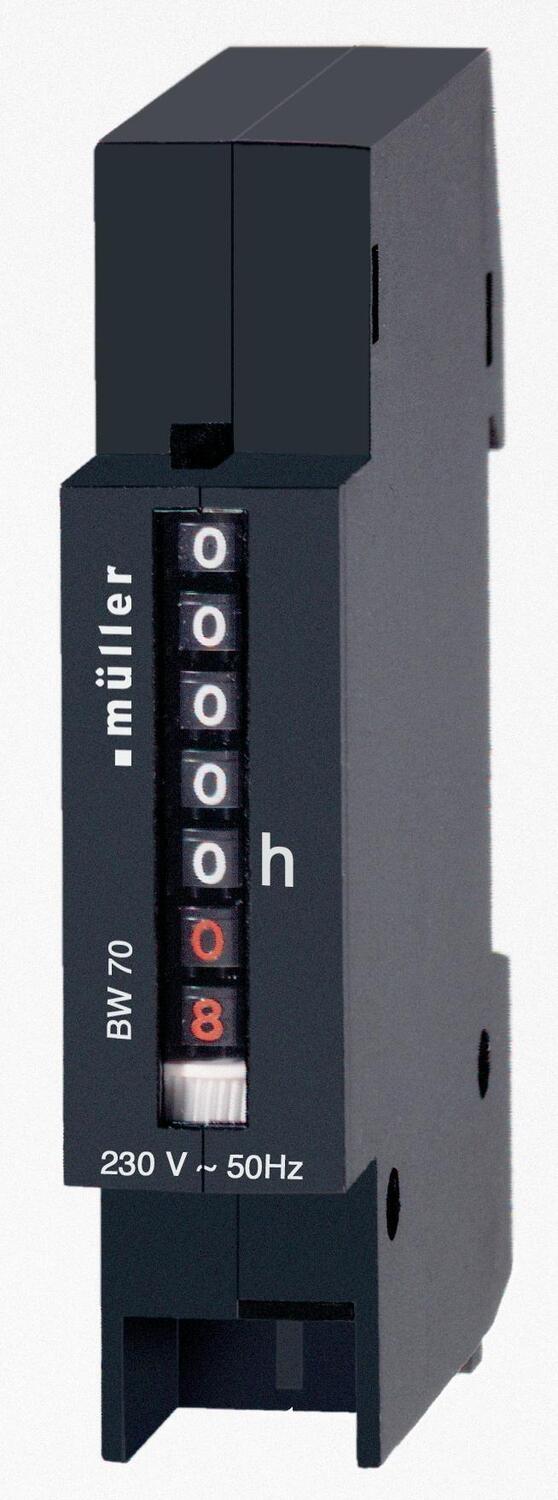

HUGO MÜLLER

Hour counters, DIN rail mounting

Hour counters for DIN-rail mounting, features

  • Alternating Current or Direct Current versions
  • Screw terminals (pull-up type)
  • Touch proof connections according to VBG 4
Read more
  • Electromechanical
  • Width 17,5 mm or 35 mm
  • Front panel IP50 rated
  • Slim format

Selected variant

Selected variant

Specifications

Approvals CE
Depth 61.5 mm
Digit Height 2.6 mm
Frequency 50 Hz
Height 45 mm
IP Class IP50
Material Self-extinguishing Thermo plastic
Power Consumption 0.15 W
Protection Class II
Supply Voltage 24 V
Temperature range from -15 °C
Temperature range to 55 °C
Time Range 0,01-99 999h
Weight 55 g
Width 17.5 mm

Product description

Hour counters for DIN-rail mounting, features

  • Alternating Current or Direct Current versions
  • Screw terminals (pull-up type)
  • Touch proof connections according to VBG 4

Accessories

Related

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Fiepos
Product news

Fiepos — The power supply of the future

The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

PULS Piano PIC
Product news

The recognized Puls quality for an attractive price

The PIANO PIC series is designed for applications that require reliable DIN rail power supplies, which are focused to deliver the most widely required customer functionalities. Our PIC units offer this simplicity without making compromises on PULS’ renowned qualities; efficiency, service lifetime, reliability and size.

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

PULS redundant
Product news

Redundant systems without redundancy modules

With the CP series, PULS offers a unique feature: Power supplies with an integrated decoupling function based on efficient MOSFET technology. This means there is no need for additional redundancy modules in 1+1 and n+1 redundant systems.

Articles Depth Digit Height Frequency Frequenze LED indicator Power Consumption Supply Voltage Temperature range from Temperature range to Time Range Weight Width Voltage DC max Voltage DC min
61.5 mm
2.6 mm
50 Hz
0.15 W
24 V
-15 °C
55 °C
0,01-99 999h
55 g
17.5 mm
61.5 mm
2.6 mm
50 Hz
0.15 W
48 V
-15 °C
55 °C
0,01-99 999h
55 g
17.5 mm
61.5 mm
2.6 mm
50 Hz
0.15 W
115 V
-15 °C
55 °C
0,01-99 999h
55 g
17.5 mm
61.5 mm
2.6 mm
50 Hz
0.15 W
230 V
-15 °C
55 °C
0,01-99 999h
55 g
17.5 mm
61.5 mm
2.6 mm
0.15 W
-10 °C
50 °C
0,1-99 999h
64 g
17.5 mm
48 V
12 V
60 mm
4.4 mm
Yes
0.26 W
-10 °C
50 °C
0,1-99 999h
96 g
35 mm
48 V
12 V
60 mm
4.4 mm
50-60 Hz
Yes
0.26 W
115 V
-15 °C
55 °C
0,01-99 999h
88 g
35 mm
60 mm
4.4 mm
50-60 Hz
Yes
0.26 W
230 V
-15 °C
55 °C
0,01-99 999h
88 g
35 mm
