Hour counters, panel mounting

 Hour counters for panel mounting, features

  • Alternating Current or Direct Current versions
  • With universal connections
  • Touch proof connections according to VBG 4



Read more
  • Electromechanical
  • Front panel 48x48 mm or 53x26 mm
  • Front panel IP50 rated
  • Additional sealing available, IP54 rated

Selected variant

müller_switching controlling counting logo.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE
Depth 63 mm
Digit Height 4.4 mm
Height 26 mm
IP Class IP65
Material Self-extinguishing Thermo plastic
Panelmounting 25 x 50 mm
Power Consumption 0.11 W
Protection Class II
Temperature range from -10 °C
Temperature range to 50 °C
Time Range 0,1-99 999h
Width 53 mm
Voltage DC max 48 V
Voltage DC min 12 V

Downloads

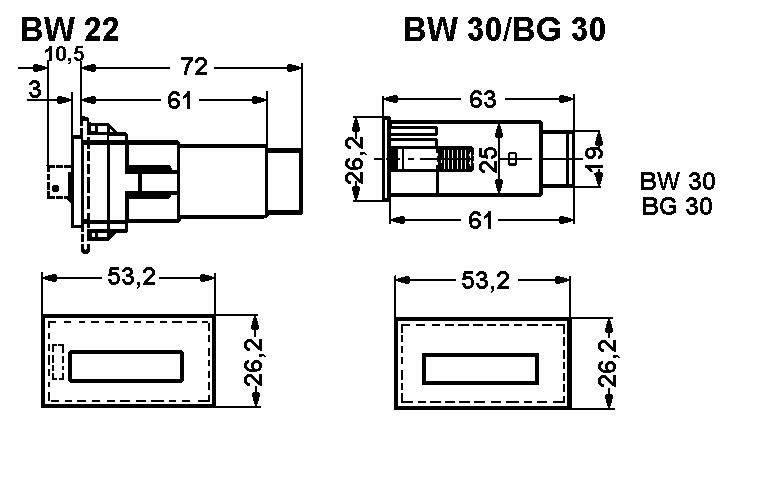

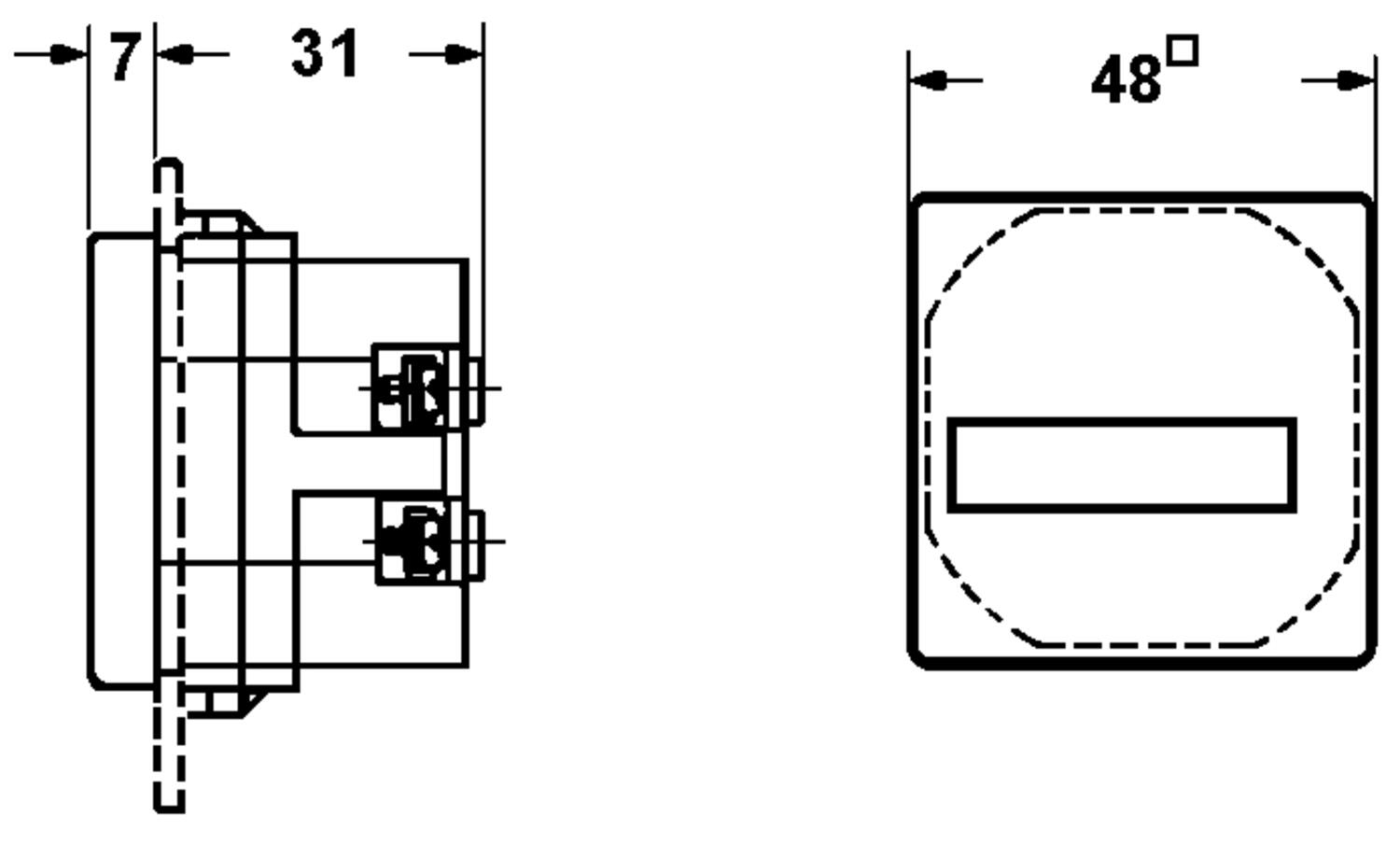

Measurements and connections

Product description

 Hour counters for panel mounting, features

  • Alternating Current or Direct Current versions
  • With universal connections
  • Touch proof connections according to VBG 4



Accessories

Articles Depth Frequency Height IP Class Panelmounting Power Consumption Supply Voltage Temperature range from Temperature range to Time Range Weight Width Voltage DC max Voltage DC min

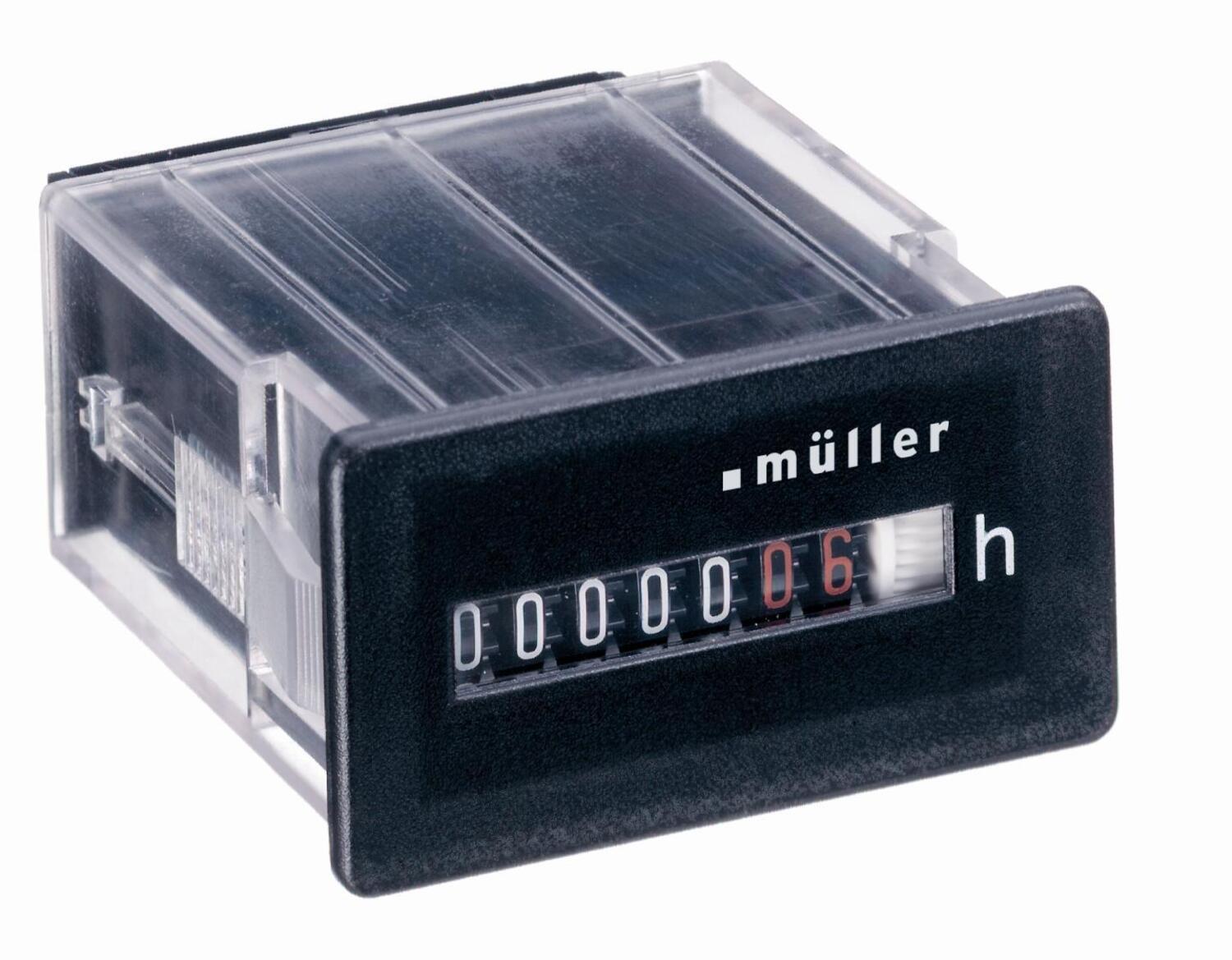

Elapsed time counter LEDIND. 12-48VDC
Art:
BG3018-1248 Copied
63 mm
26 mm
IP65
25 x 50 mm
0.11 W
-10 °C
50 °C
0,1-99 999h
53 mm
48 V
12 V
Elapsed time counter 12-48V DC
Art:
BG4017-1248 Copied
38 mm
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
-10 °C
50 °C
0,1-999 999h
57 g
48 mm
48 V
12 V
Elapsed time counter 24V 50HZ
Art:
BW3018-2450 Copied
63 mm
50 Hz
26 mm
IP65
25 x 50 mm
0.11 W
24 V
-15 °C
55 °C
0,01-99 999h
57 g
53 mm
Elapsed time counter 115V 50HZ
Art:
BW3018-11550 Copied
63 mm
50 Hz
26 mm
IP65
25 x 50 mm
0.11 W
115 V
-15 °C
55 °C
0,01-99 999h
57 g
53 mm
Elapsed time counter 115V 60HZ
Art:
BW3018-11560 Copied
63 mm
60 Hz
26 mm
IP65
25 x 50 mm
0.11 W
115 V
-15 °C
55 °C
0,01-99 999h
57 g
53 mm
Elapsed time counter 230V 50HZ
Art:
BW3018-23050 Copied
63 mm
50 Hz
26 mm
IP65
25 x 50 mm
0.11 W
230 V
-15 °C
55 °C
0,01-99 999h
57 g
53 mm
Elapsed time counter 24V 50HZ

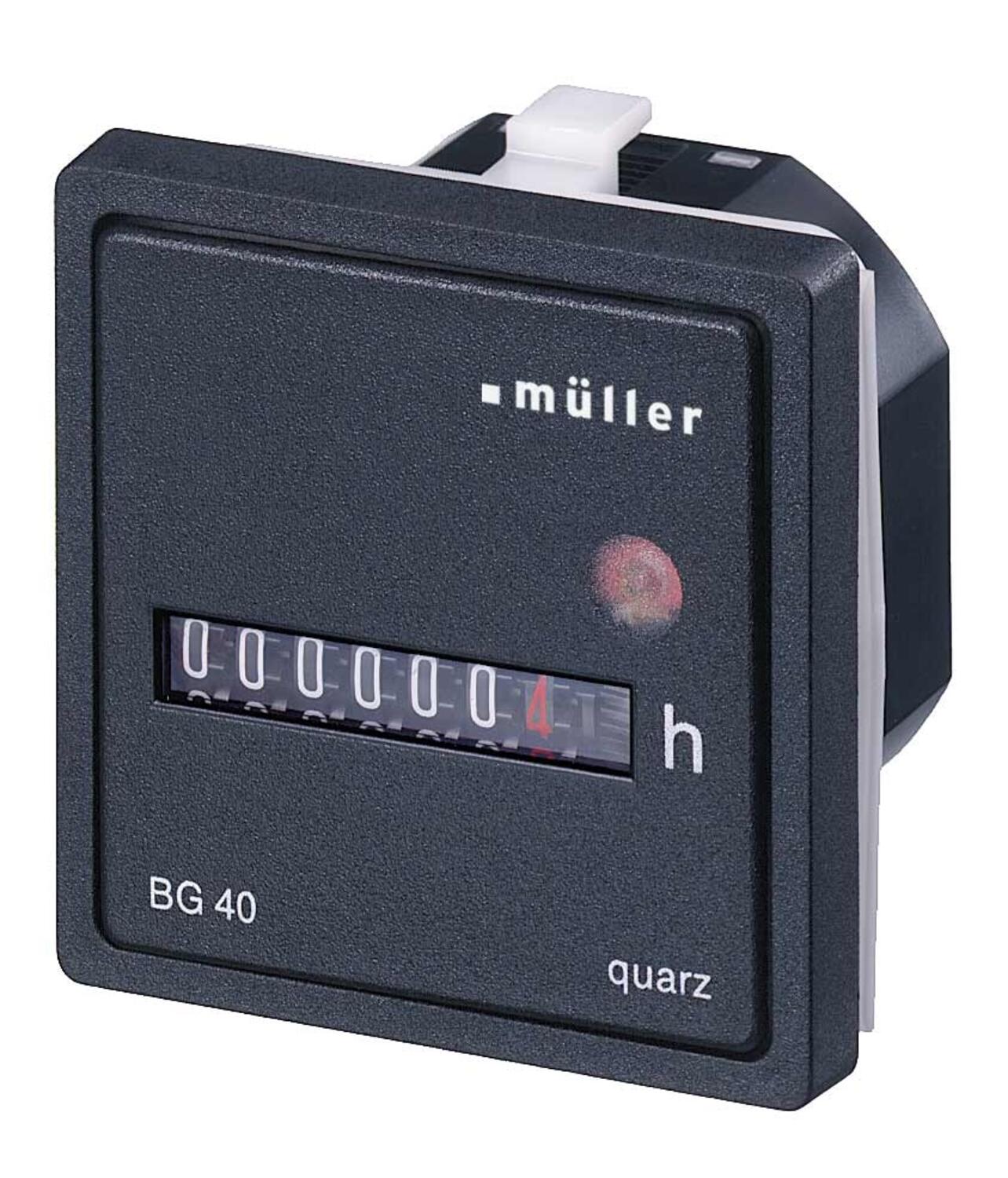

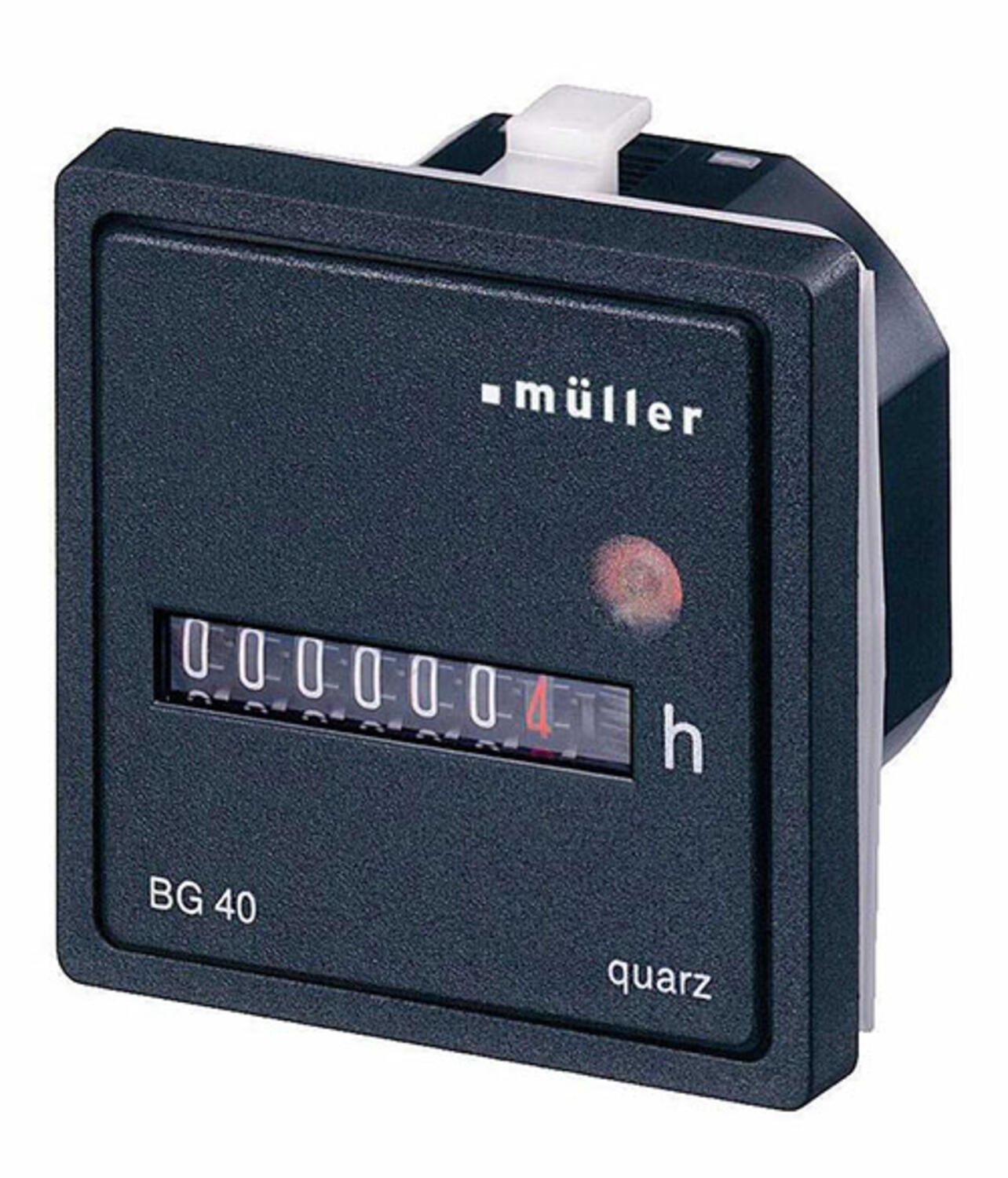

Art:
BW4018-2450 Copied
38 mm
50 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
24 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 24V 60HZ
Art:
BW4018-2460 Copied
38 mm
60 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
24 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 48V 50HZ
Art:
BW4018-4850 Copied
38 mm
50 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
48 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 115V 50HZ
Art:
BW4018-11550 Copied
38 mm
50 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
115 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 115V 60HZ
Art:
BW4018-11560 Copied
38 mm
60 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
115 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 230V 50HZ
Art:
BW4018-23050 Copied
38 mm
50 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
230 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter 230V 60HZ
Art:
BW4018-23060 Copied
38 mm
60 Hz
48 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
230 V
-15 °C
55 °C
0,01-99 999h
50 g
48 mm
Elapsed time counter230V 50HZ trim55X55
Art:
BW4028-23050 Copied
38 mm
50 Hz
55 mm
IP50
45 x 45 mm / halkaisija 50,5 mm
0.15 W
230 V
-15 °C
55 °C
0,01-99 999h
53 g
55 mm
