SCHAFFNER
IEC connection filter FN9222R
The FN 9222 E IEC inlet filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor and integrated earth line choke. Choosing the FN 9222 E product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
Typical applications include:
- Portable electrical and electronic equipment
- Small to medium-sized machines and household equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
- Medical equipment
- Rack mounting equipment
- 1-15 A / DC-400 Hz
- Panel mounted
- Equipped with a resistor
- Optional medical versions available
Selected variant

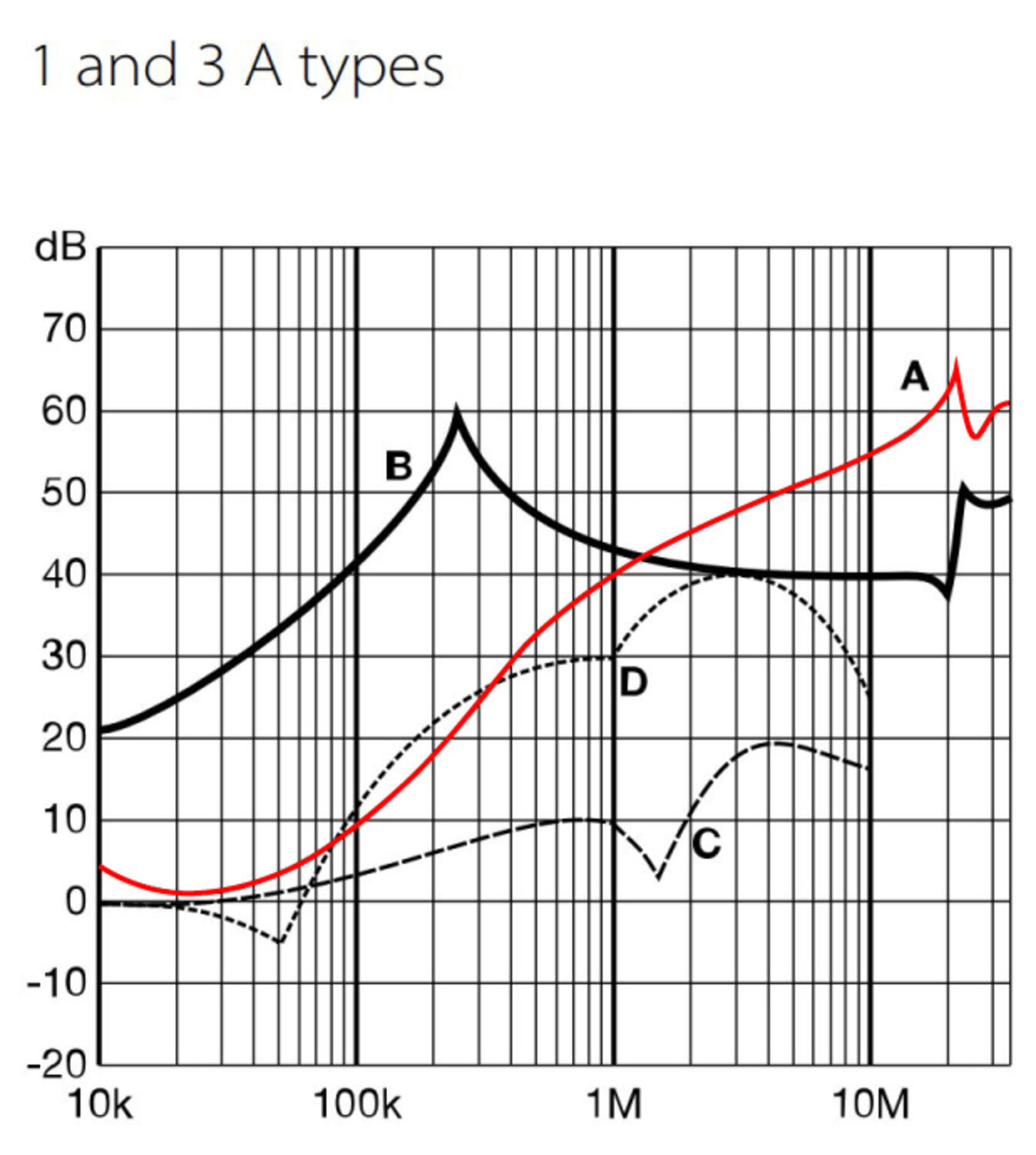

Specifications

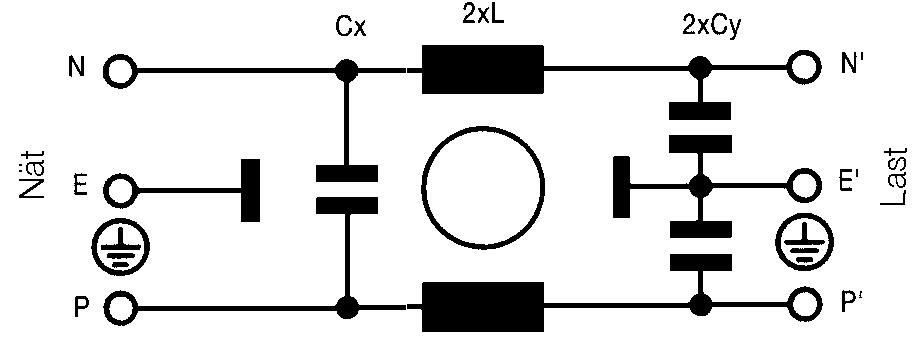

| Approvals | CSA 22.2 N°8 1986, EN60939, IEC 60939, UL 1283 |
|---|---|
| Capacitance Cx | 0.1 µF |
| Capacitance Cy | 2.2 nF |

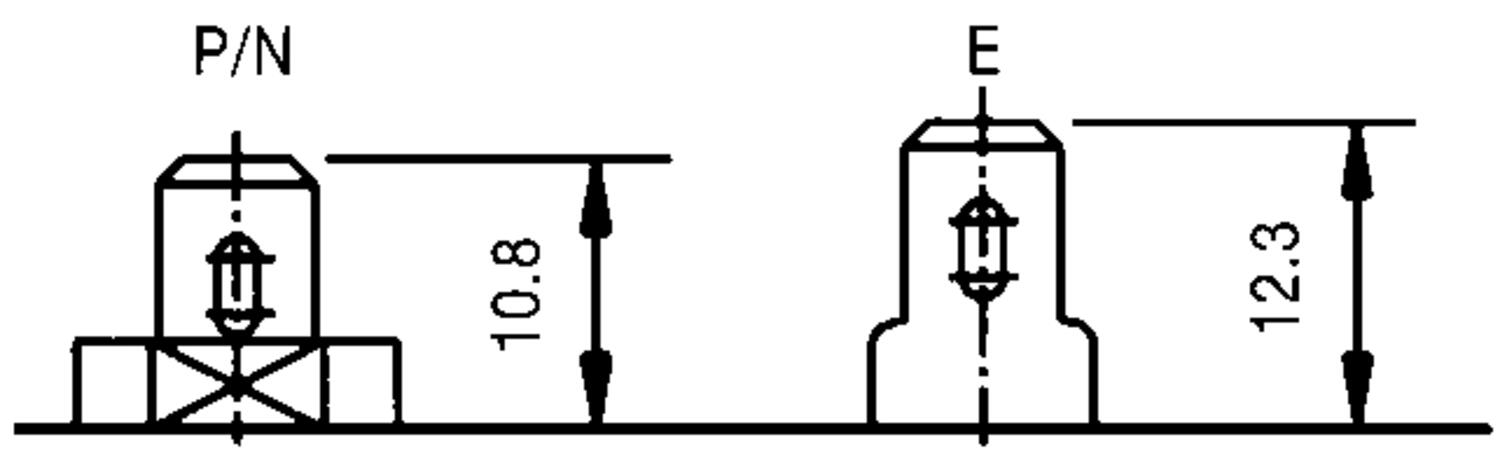

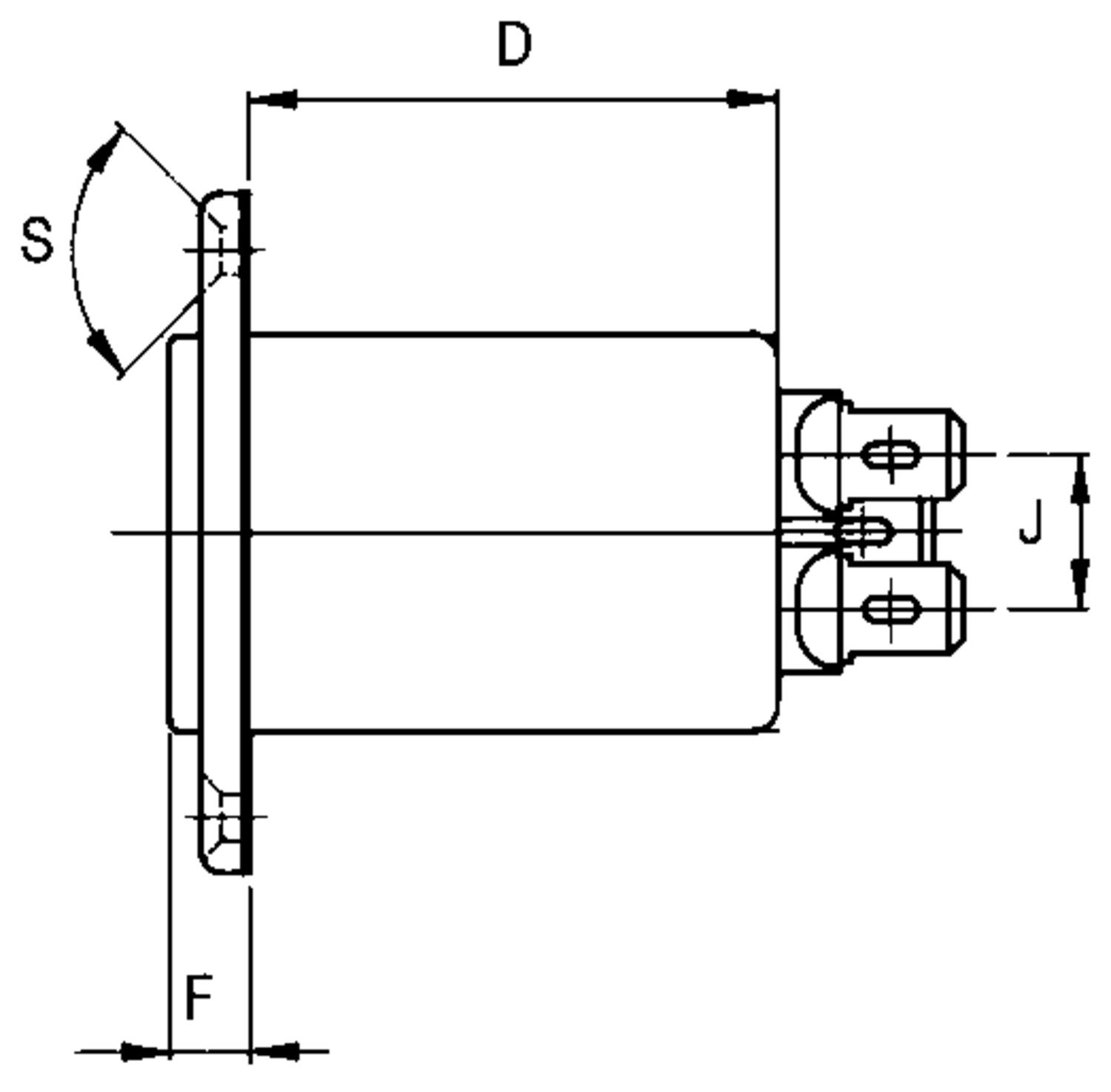

| Connection Thread | Flat plug |
| Flamklass | UL94-V2 |
| Frequenze | DC-400 Hz |
| High Potential Test Voltage "Hipot" | P->PE 2000 V AC, 2 s. P->N 1100 V DC, 2 s (16 A & 20 A). P->N 1000 V AC, 2 s (1-10 A). |
| Inductance | 12 mH |
| IP Class | IP40 |
| Leakage Current Per Phase Max | 0.373 mA |
|---|---|
| MTBF (Mil-HB-217F) | 2256000 h @ 40° C, 230 V AC |
| Operating Voltage Max | 250 V AC |
| Rated current at 50 °C | 1 A |
| Resistance | 1000 kΩ |
| Temperature range from | -25 °C |
| Temperature range to | 85 °C |
| Weight | 0.04 kg |
Product description
The FN 9222 E IEC inlet filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor and integrated earth line choke. Choosing the FN 9222 E product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
Typical applications include:
- Portable electrical and electronic equipment
- Small to medium-sized machines and household equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
- Medical equipment
- Rack mounting equipment
