STEGO
Enclosure lighting - KL 025
KL 025

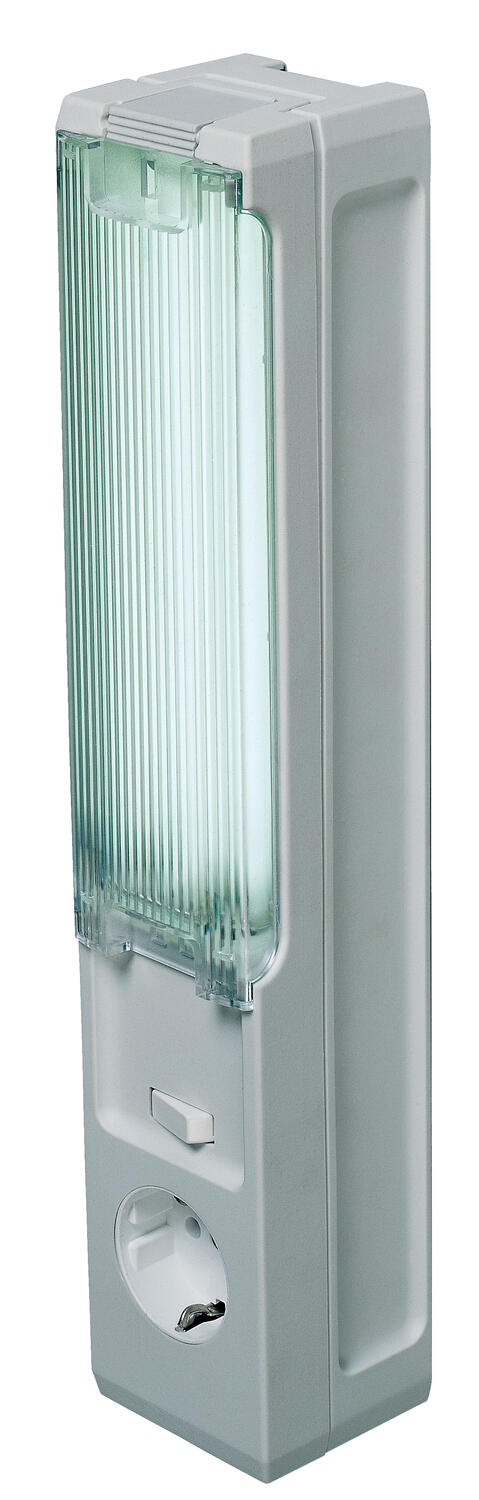

The KL025 cabinet light is compactly designed especially for use in the cabinet. With the powerful magnetic mount, the lighting can easily be installed without any installation work anywhere in steel cabinet. Alternatively, it can be screw-mounted with 2 pieces of DIN (150-180 mm long) pieces inserted from the short sides. The integrated socket enables operation of other electrical auxiliary equipment.
Other voltages may be on request.
- ** OBSOLETE ** END OF LIFE 31/12/20
- Replaced by LED 121/122
Selected variant
Specifications
| Activation | Switch |
|---|---|
| Approvals | CE, EAC, GS, RoHS |
| Color | Light Grey |
| Frequenze | 50 Hz |

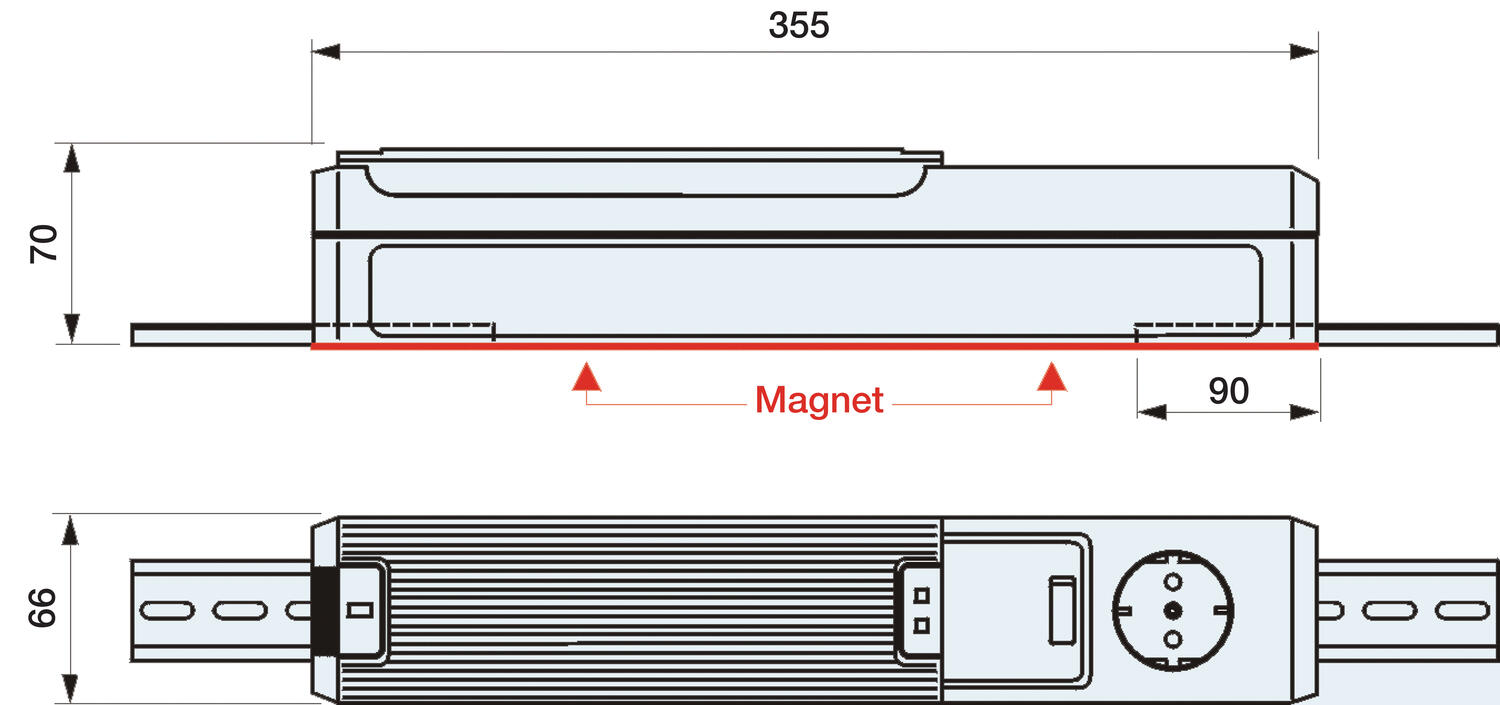

| Height | 70 mm |
| Humidity Storage | <90% RH |
| IP Class | IP20 |
| Length | 355 mm |
| Light source | Fluorescent lamp |
| Material Plastic Housing | Plastic |
| Mounting | Magnetic mount |
| Nominal voltage | 230 V AC |
|---|---|
| Operating Humidity | < 90% RH |
| Operational Temperature | -20°C ... +50°C |
| Power Consumption | 11 W |
| Storage temperature | -45°C ... +70°C |
| Weight | 1 kg |
| Width | 355 mm |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
Product description
The KL025 cabinet light is compactly designed especially for use in the cabinet. With the powerful magnetic mount, the lighting can easily be installed without any installation work anywhere in steel cabinet. Alternatively, it can be screw-mounted with 2 pieces of DIN (150-180 mm long) pieces inserted from the short sides. The integrated socket enables operation of other electrical auxiliary equipment.
Other voltages may be on request.
