STEGO

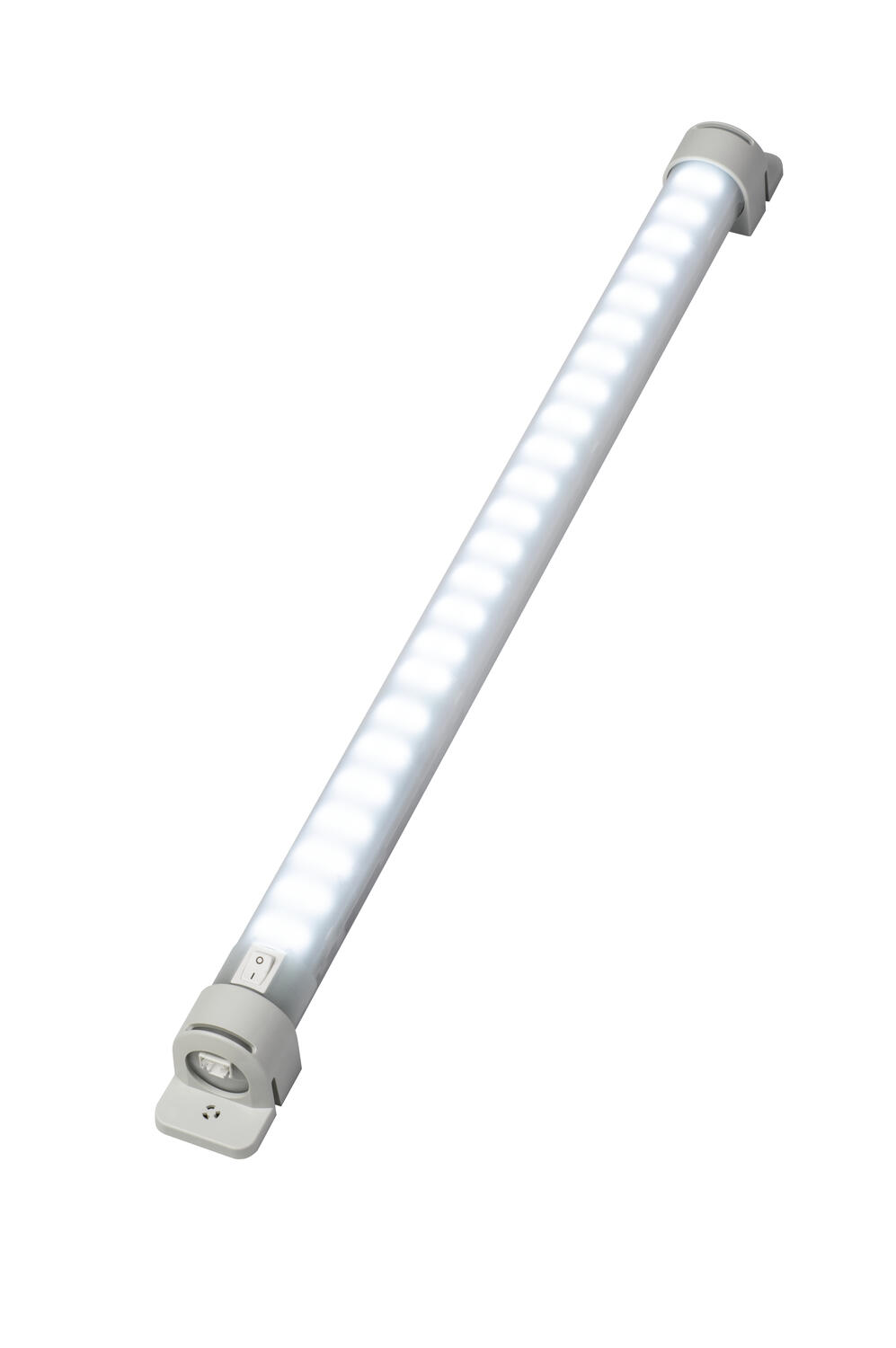

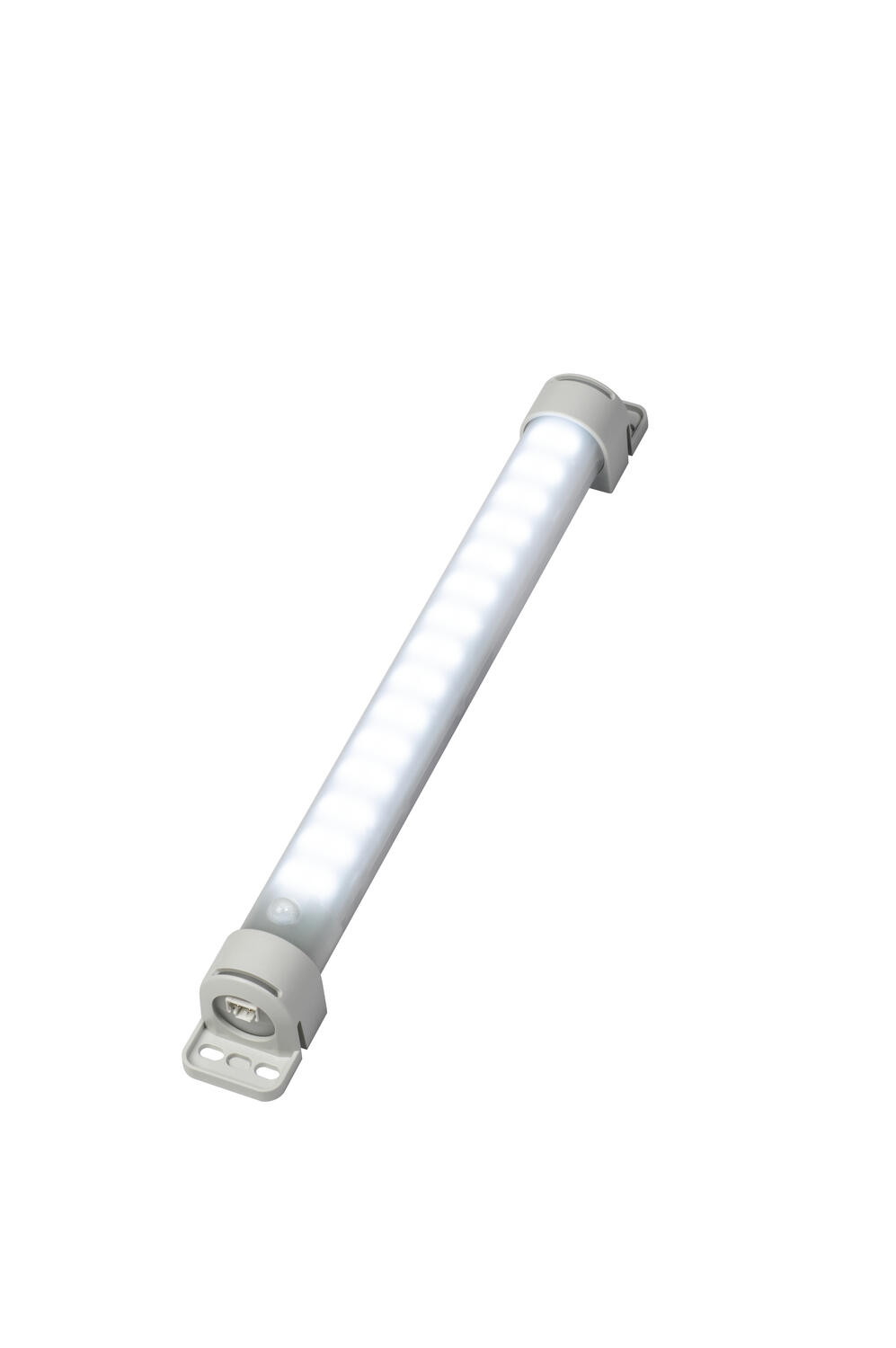

Varioline lamp - LED 021/022
Varioline
The LED 021/022 Varioline lamp is a compact and powerful LED lamp for enclosures, with a power consumption of only 11 W/16 W. The LED tube emits more than 1,000/1,700 Lm, illuminating even large enclosures to their full depth and height.
The emitted daylight colour of 6,500 K provides natural and non-fading colour reproduction and in-turn safety for the user. The LED 021/022 is glare free, rotatable 360° and uses Mid-power LEDs giving a service life of 60,000 h.
- Maintenance free LED lighting
- IR sensor or switched versions
- 360° rotatable, glare free
- Screw or magnet fixing
- Ideal for large enclosures
Selected variant
Specifications
| Activation | Switch |
|---|---|
| Approvals | CE, RoHS |
| Approvals pending | UL, VDE |
| Color | Translucent/White |
| Frequenze | 50/60 Hz |

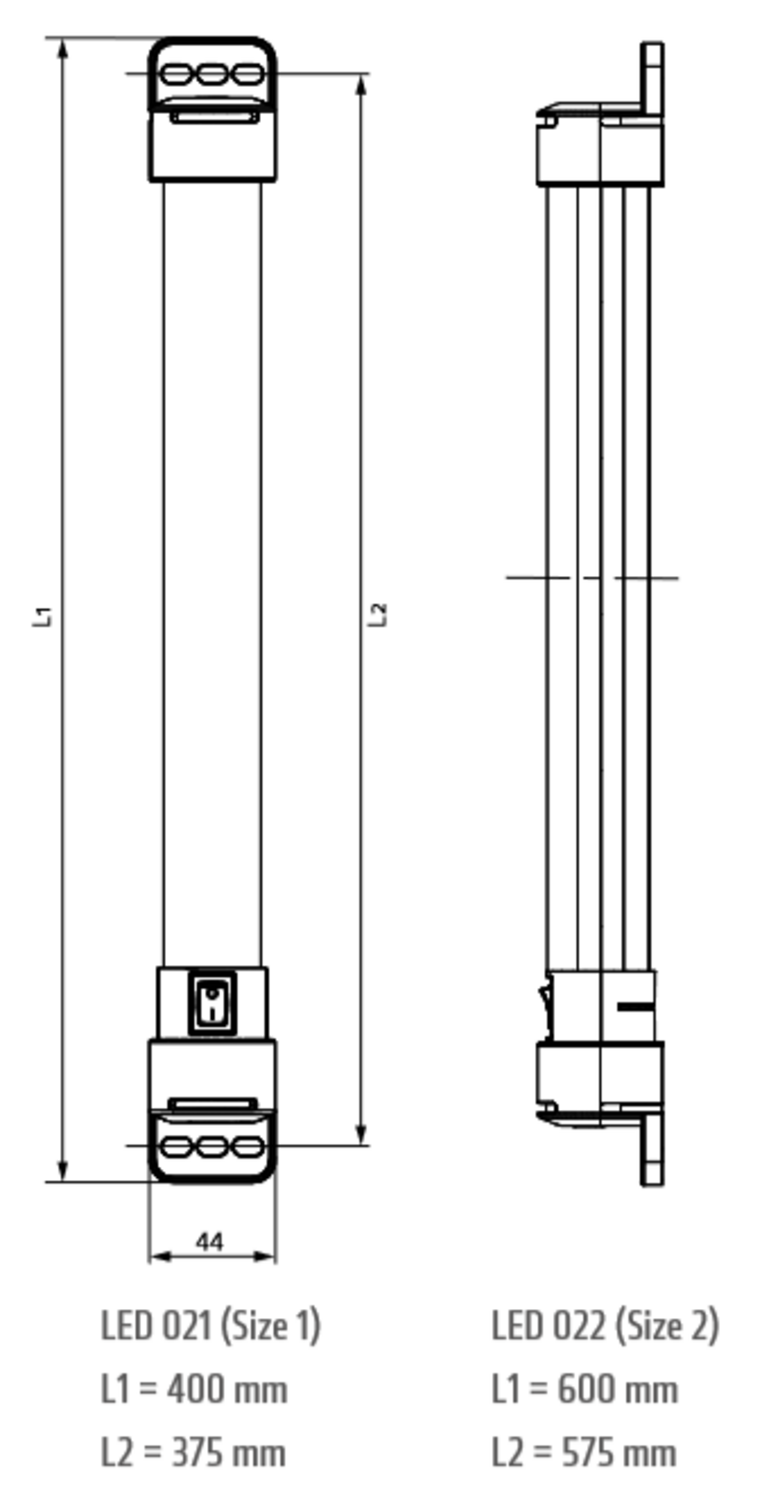

| Height | 44 mm |
| Humidity Storage | <90% RH |
| IP Class | IP20 |
| Length | 400 mm |
| Light source | LED |
| Material of body | Plastic |

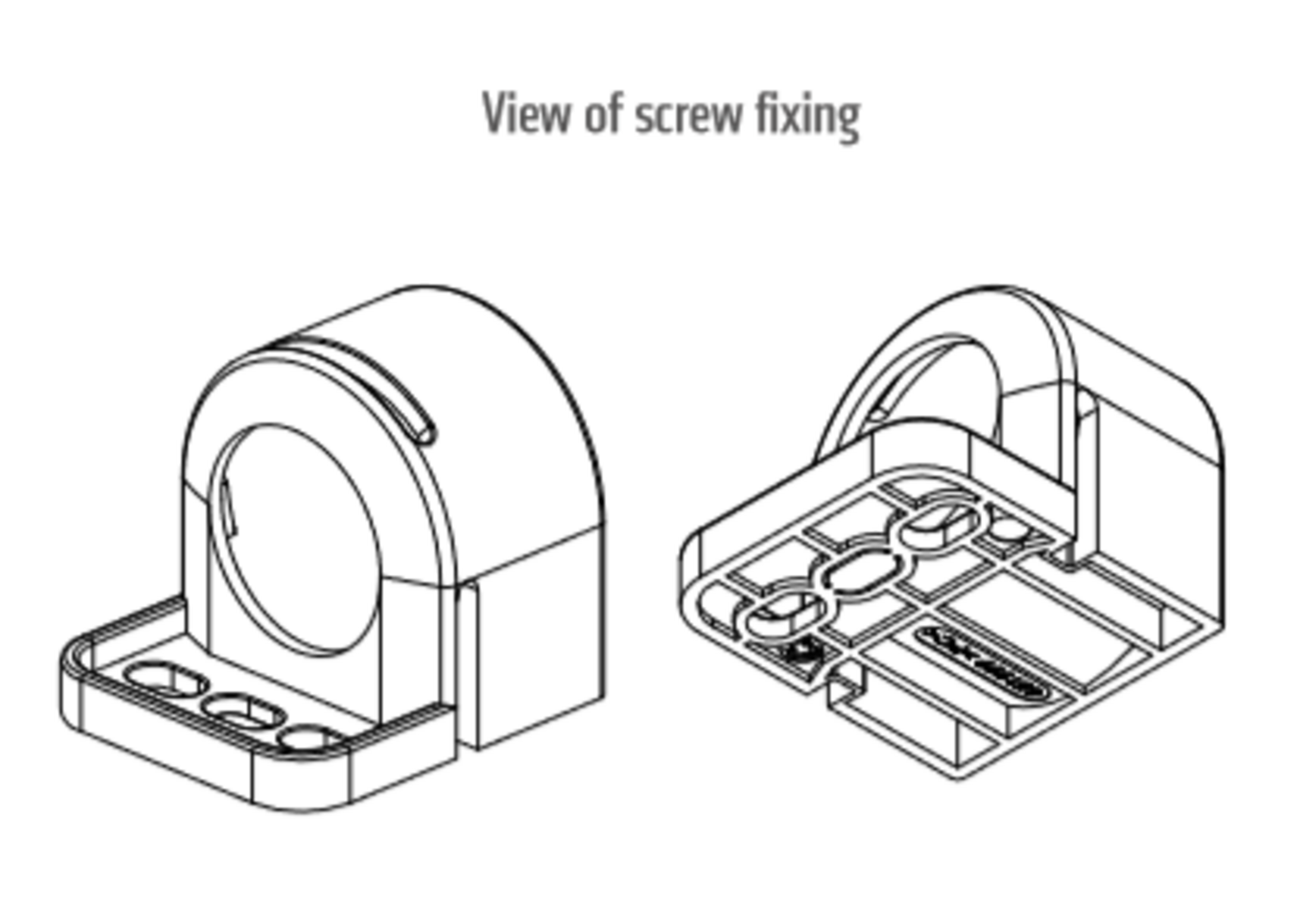

| Mounting | Screw fixing |
| Nominal voltage | 100-240 V AC |
|---|---|
| Operating Humidity | < 90% RH |
| Operational Temperature | -30°C … +40°C |
| Power Consumption | 11 W |
| Protection Class | II (double insulated) |
| Storage temperature | -40°C … +85°C |
| Weight | 0.3 kg |
| Width | 44 mm |
| Voltage max | 265 V ac |
| Voltage min | 90 V ac |
Product description
The LED 021/022 Varioline lamp is a compact and powerful LED lamp for enclosures, with a power consumption of only 11 W/16 W. The LED tube emits more than 1,000/1,700 Lm, illuminating even large enclosures to their full depth and height.
The emitted daylight colour of 6,500 K provides natural and non-fading colour reproduction and in-turn safety for the user. The LED 021/022 is glare free, rotatable 360° and uses Mid-power LEDs giving a service life of 60,000 h.
