MERSEN

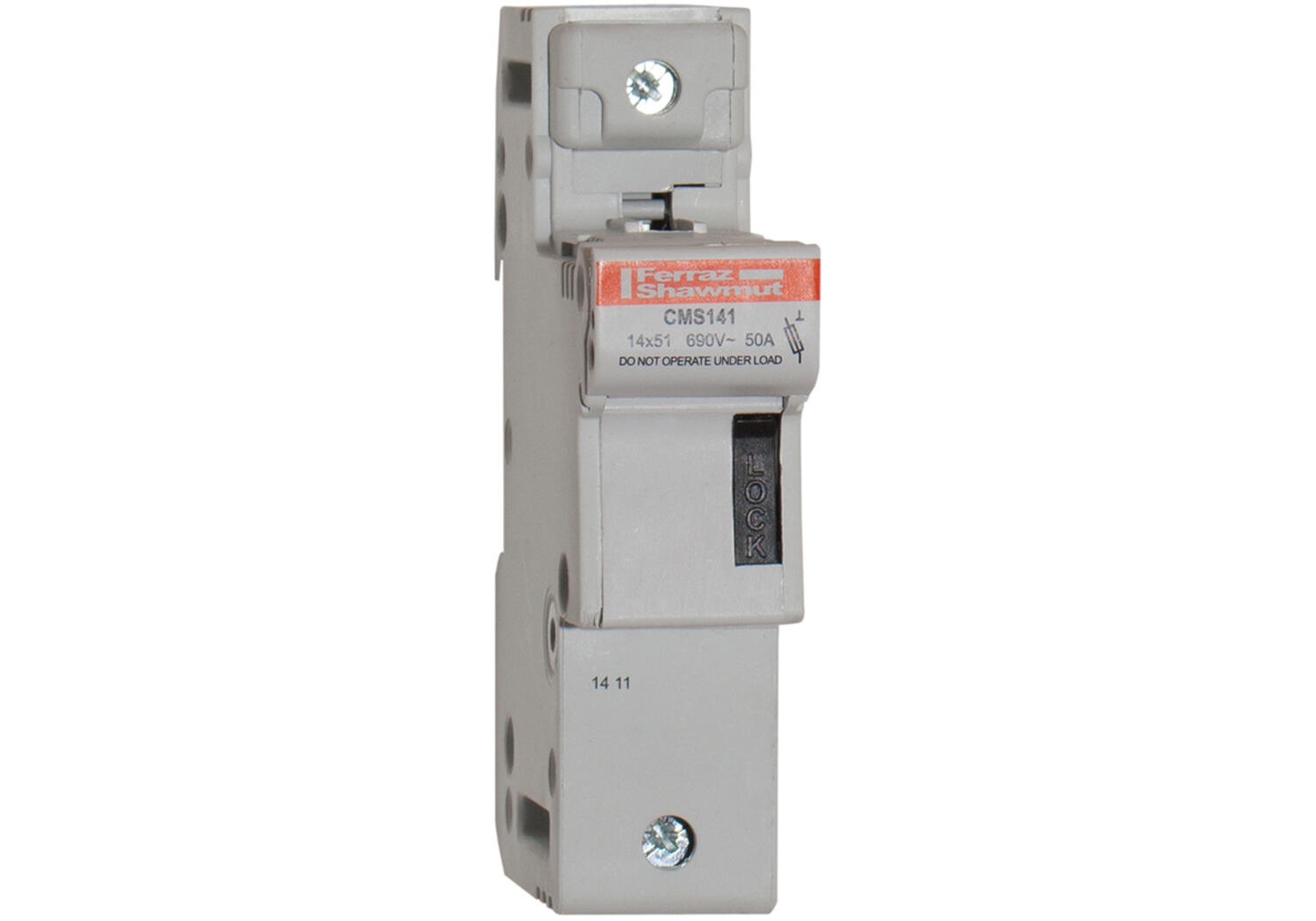

IEC fuse holder Modulostar®
CMS 14 (14x51)

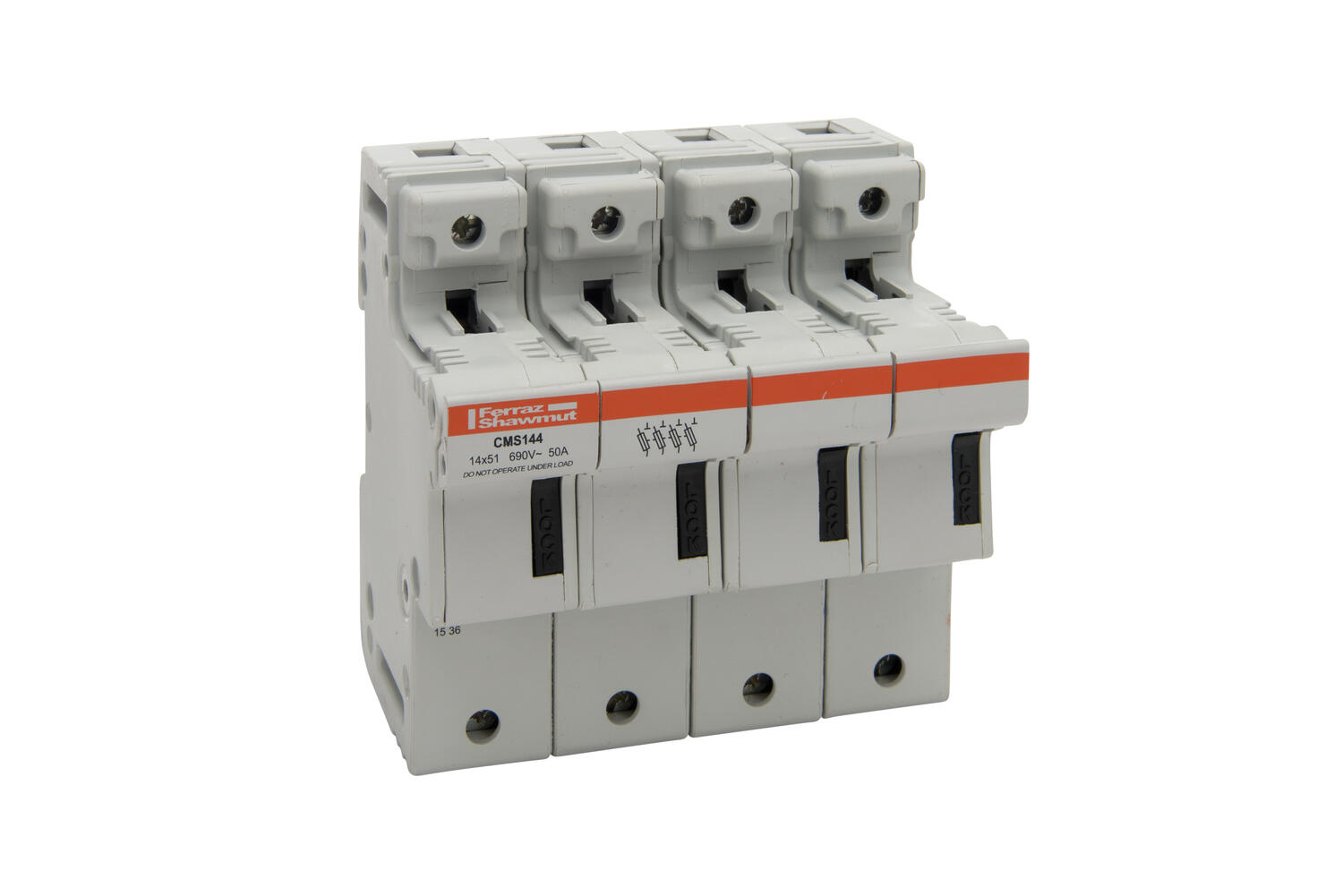

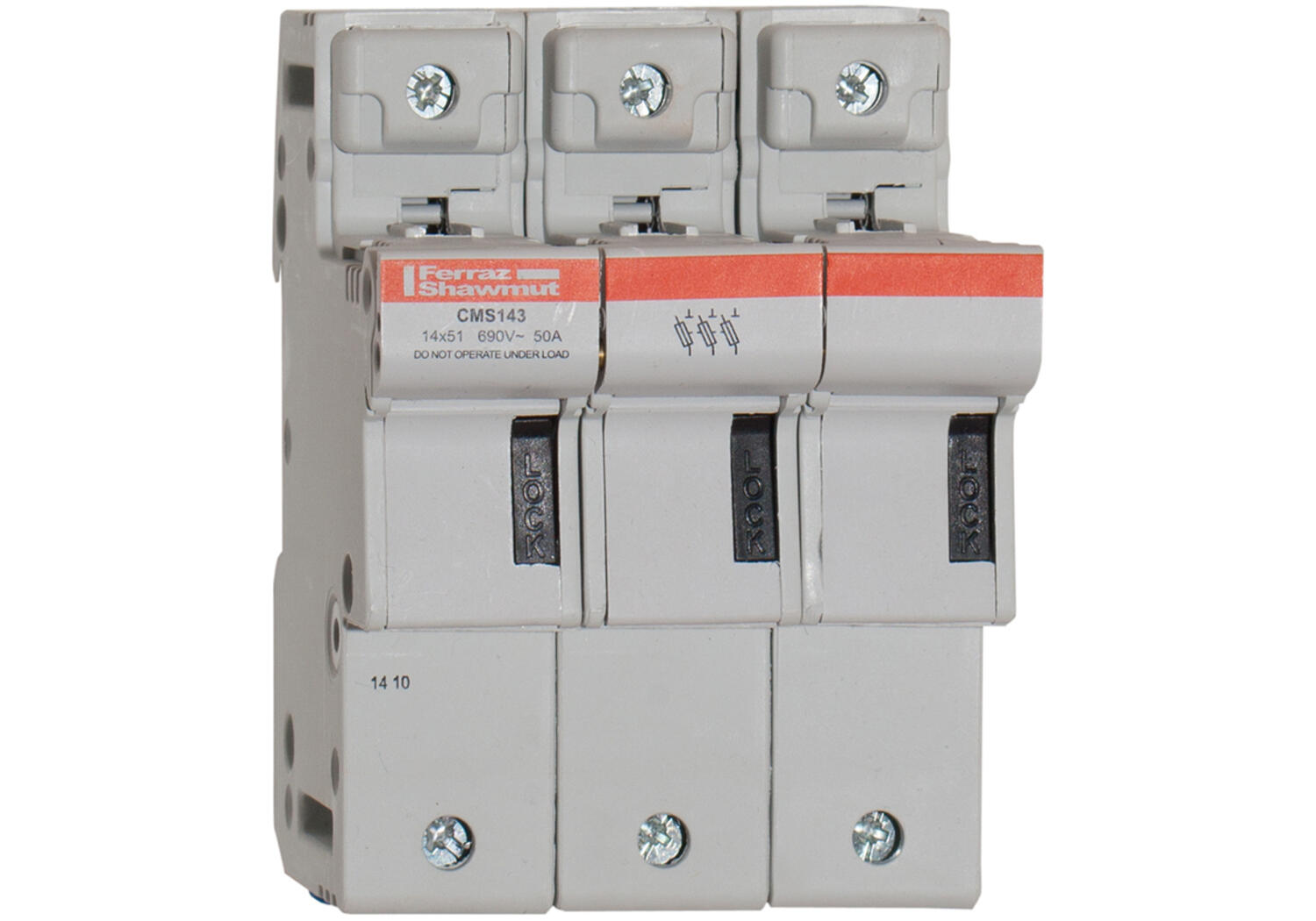

Mersen Modulostar® series offer wide variety of fuse holders. Easy fuse changing, IP20 rated. 1, 2, 3 or 4 pole versions available. Optional blown fuse indicator.
- IP20 rated

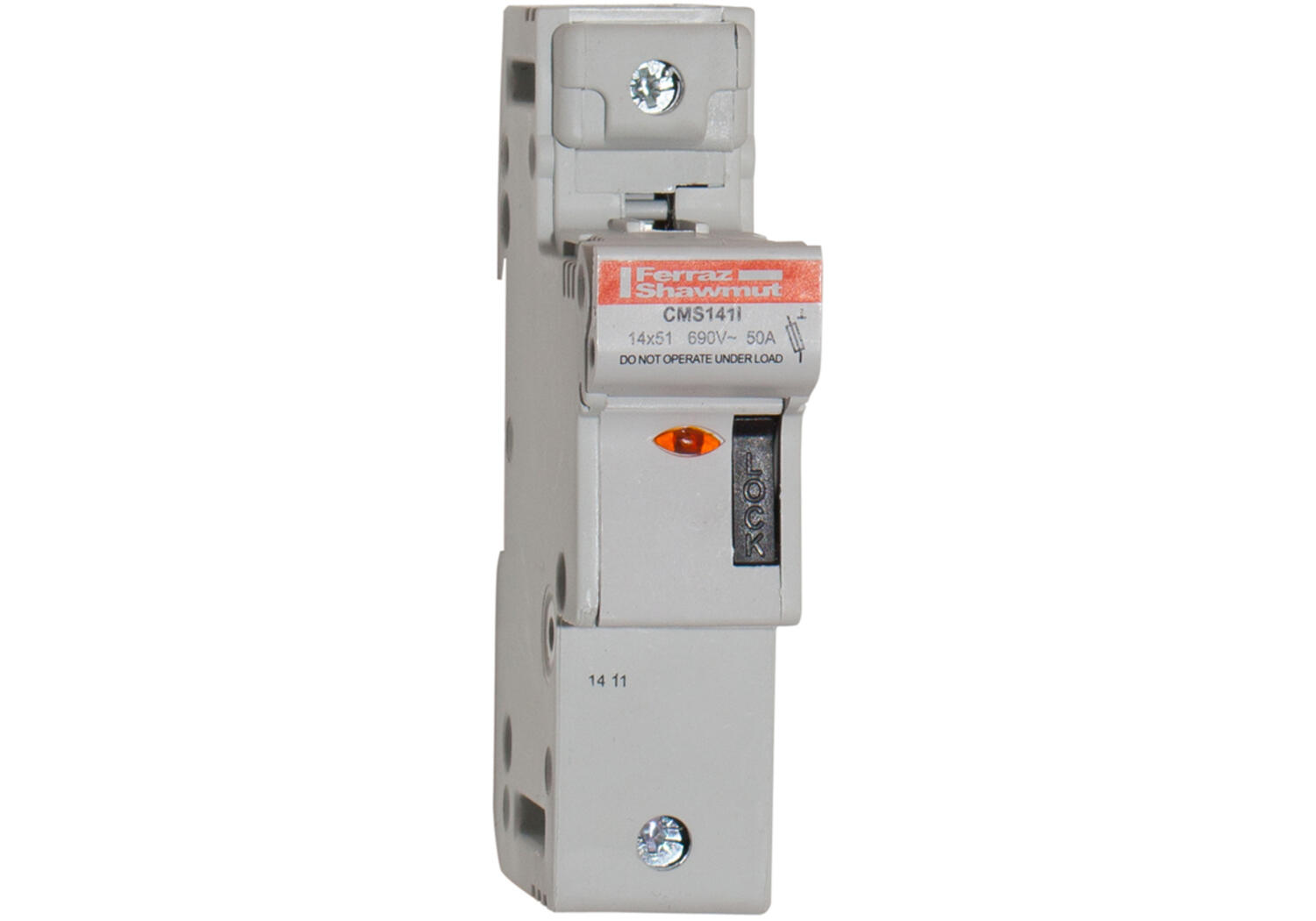

- Available with or without an indicator
- DIN rail mounting
- Modular
- Sealable in open or closed position
- Shock and vibration resistant
- DIN rail mounting
- Optional visual blown fuse indicator, possibility to use micrswitches
- Shock and vibration tested for marine and railway applications
Selected variant
Specifications
| Approvals | CB, CCC, CE, DNV, Lloyd´s, REACH, RoHS, UL |
|---|---|
| Breaking capacity max | 100 kA |
| Current max | 50 A |
| Manufacturer Part No | A331016 |
| Number of poles | 1 |
| Pack Size | 6 |
| Width | 26.5 mm |
| Voltage AC max | 690 V |
| Voltage DC max | 690 V |
Downloads
Product description
Mersen Modulostar® series offer wide variety of fuse holders. Easy fuse changing, IP20 rated. 1, 2, 3 or 4 pole versions available. Optional blown fuse indicator.
- IP20 rated
- Available with or without an indicator
- DIN rail mounting
- Modular
- Sealable in open or closed position
- Shock and vibration resistant
