MERSEN
IEC fuse holder Modulostar®
CMC 10 (10x38)
Mersen Modulostar® series offer wide variety of fuse holders. Easy fuse changing, IP20 rated. 1, 2, 3 or 4 pole versions available. Optional blown fuse indicator.
- IP20 rated
- Available with or without an indicator
- DIN rail mounting
- Modular
- Sealable in open or closed position
- Shock and vibration resistant
New Modulostar CMC10 replace old Modulostar CMS10 fuse holders.
NEW | OLD | |||
Reference | Description | Catalog number | Old ref | old cat nb |

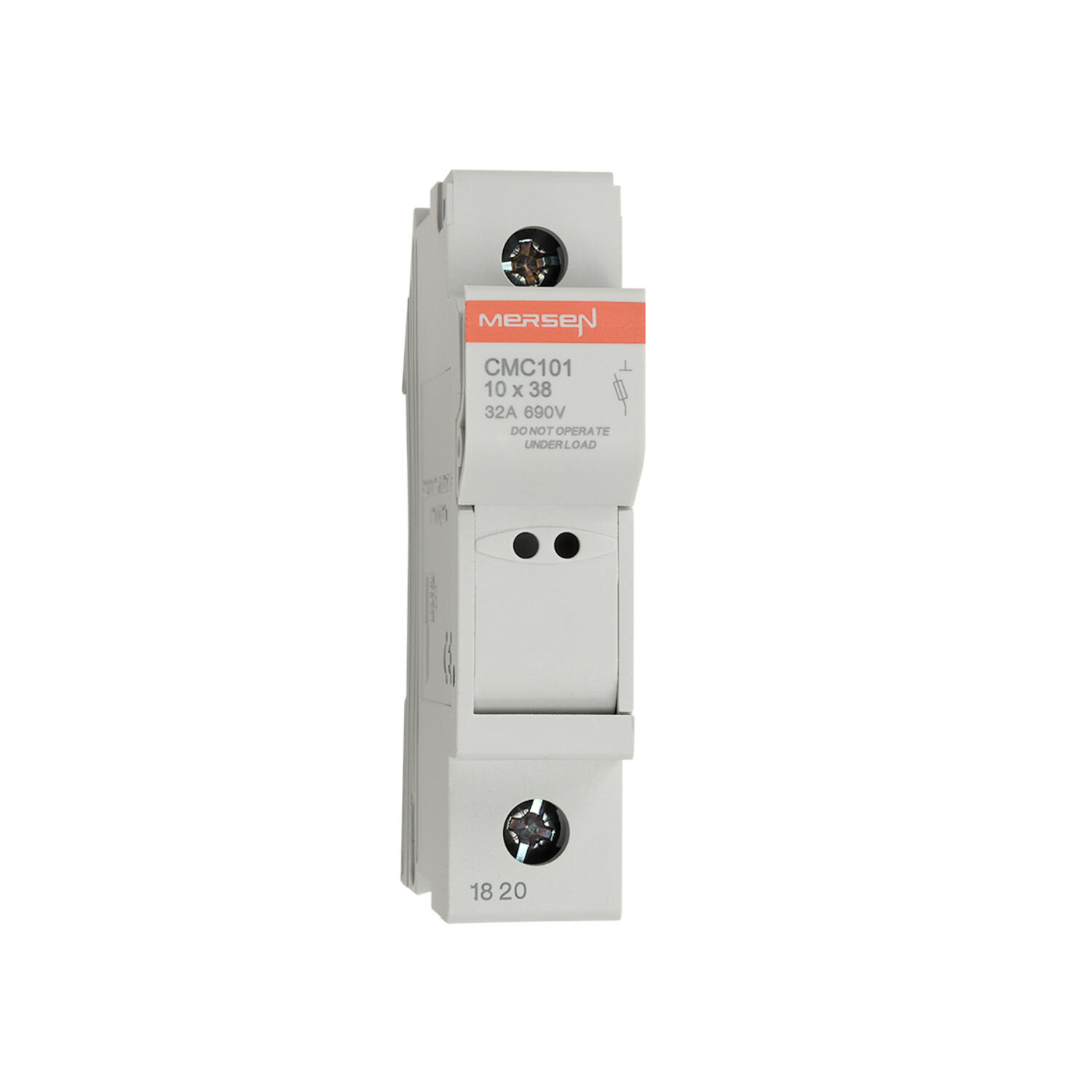

P1062705 | MODULOSTAR CMC10 1P | CMC101 | T305020 | CMS101 |

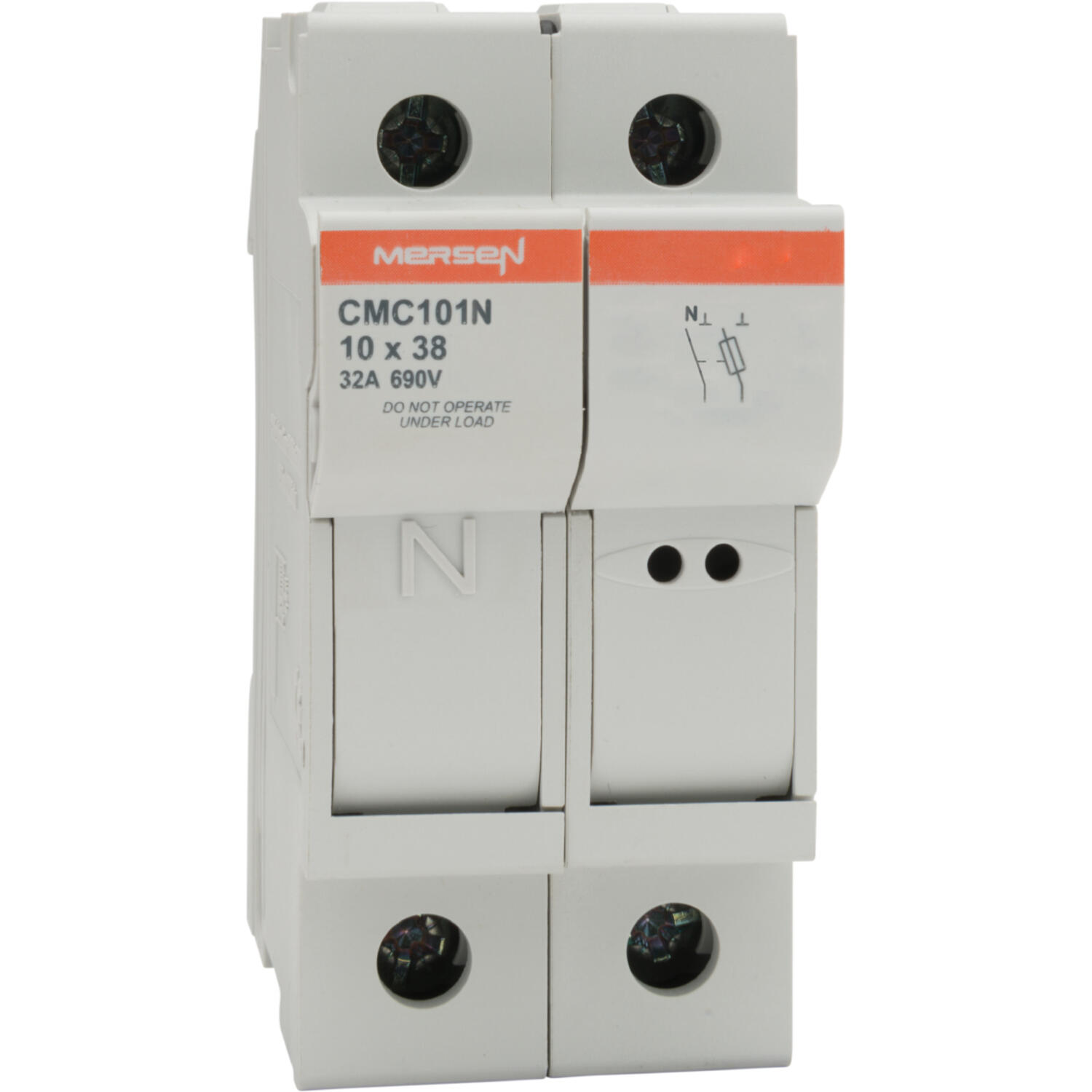

G1062698 | MODULOSTAR CMC10 1P+N | CMC101N | V305021 | CMS101N |
H1062699 | MODULOSTAR CMC10 2P | CMC102 | W305022 | CMS102 |
E1062696 | MODULOSTAR CMC10 3P | CMC103 | X305023 | CMS103 |

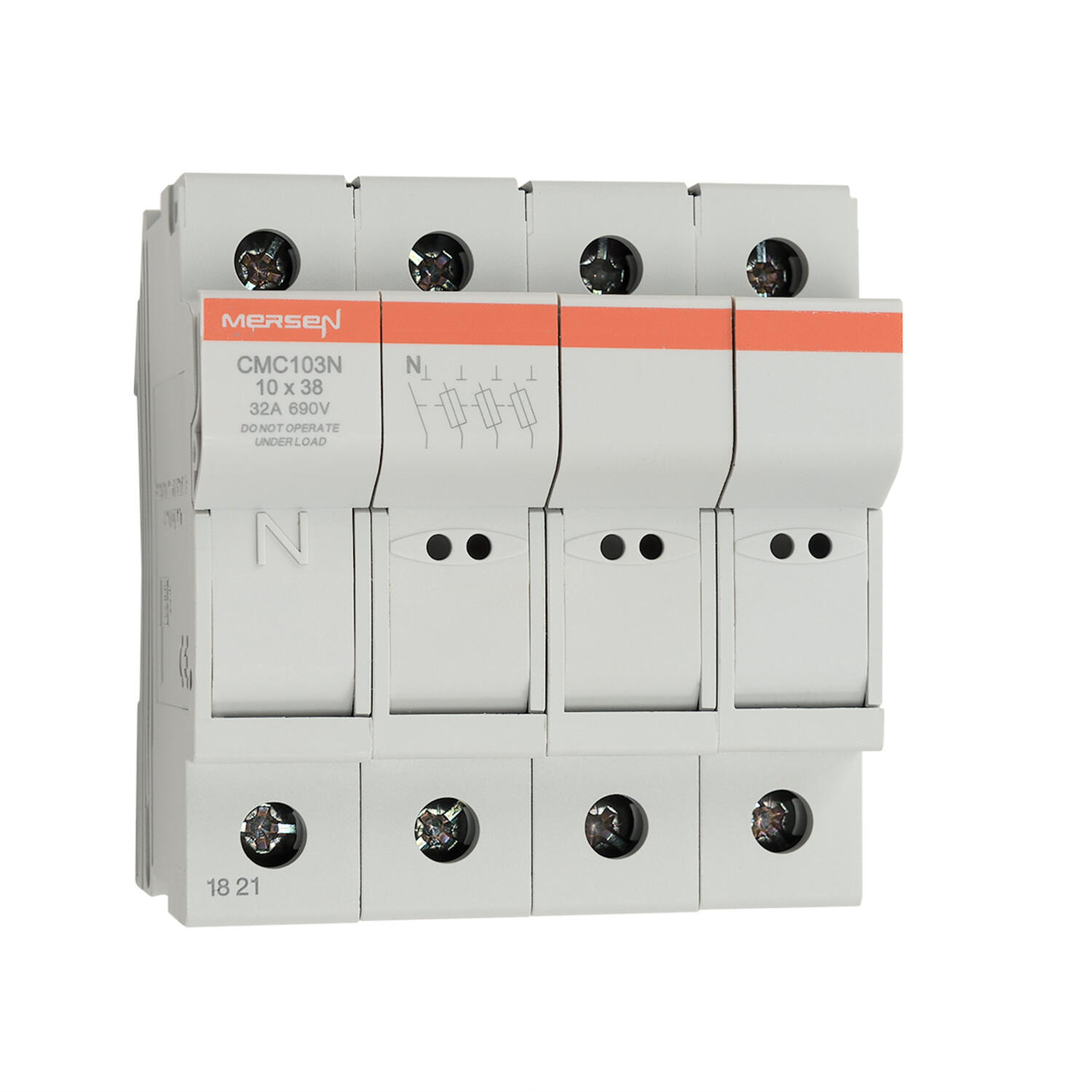

Y1062690 | MODULOSTAR CMC10 3P+N | CMC103N | Y305024 | CMS103N |
Z1062691 | MODULOSTAR CMC10 4P | CMC104 | Z305025 | CMS104 |

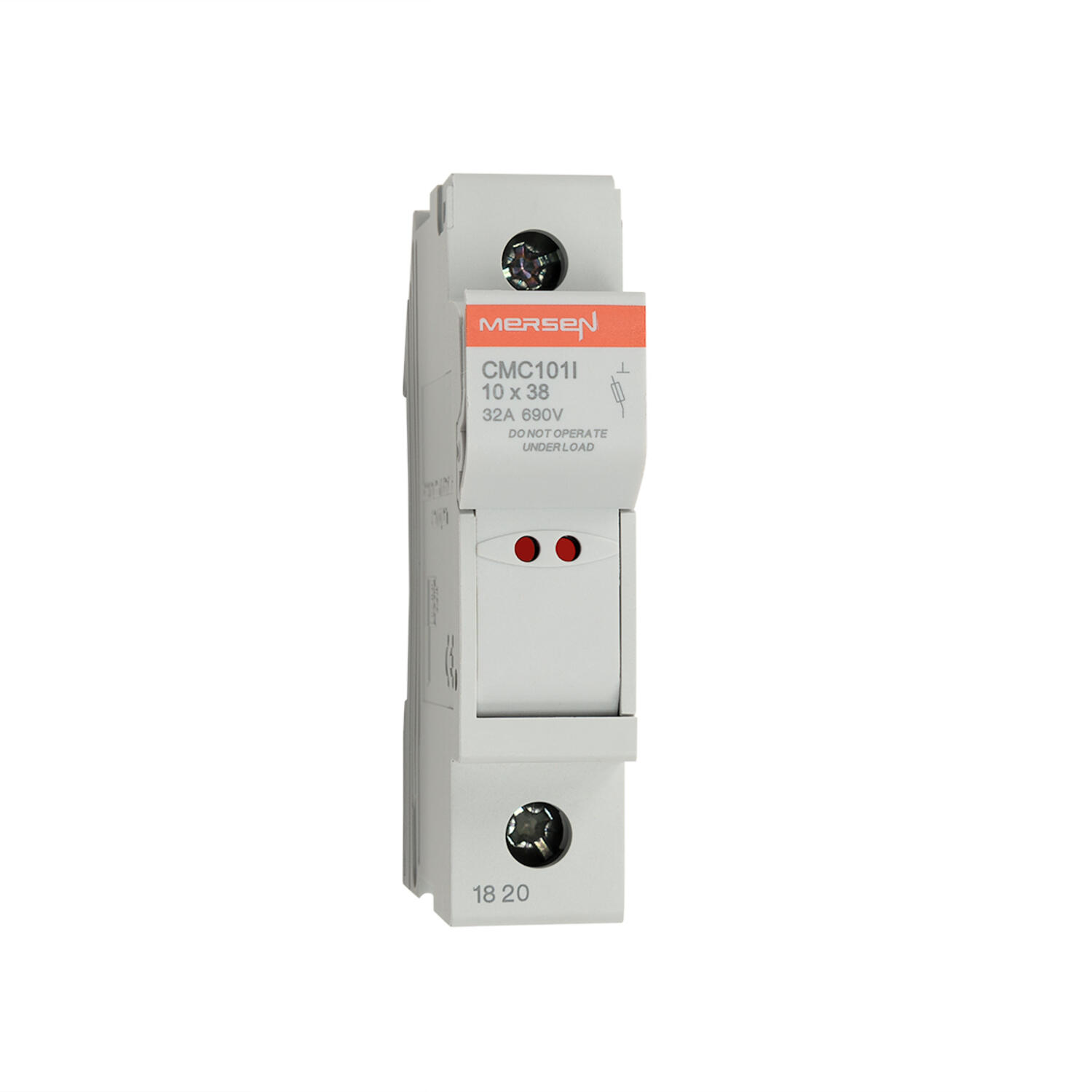

S1062708 | MODULOSTAR CMC10 1P C/I | CMC101I | A305026 | CMS101I |

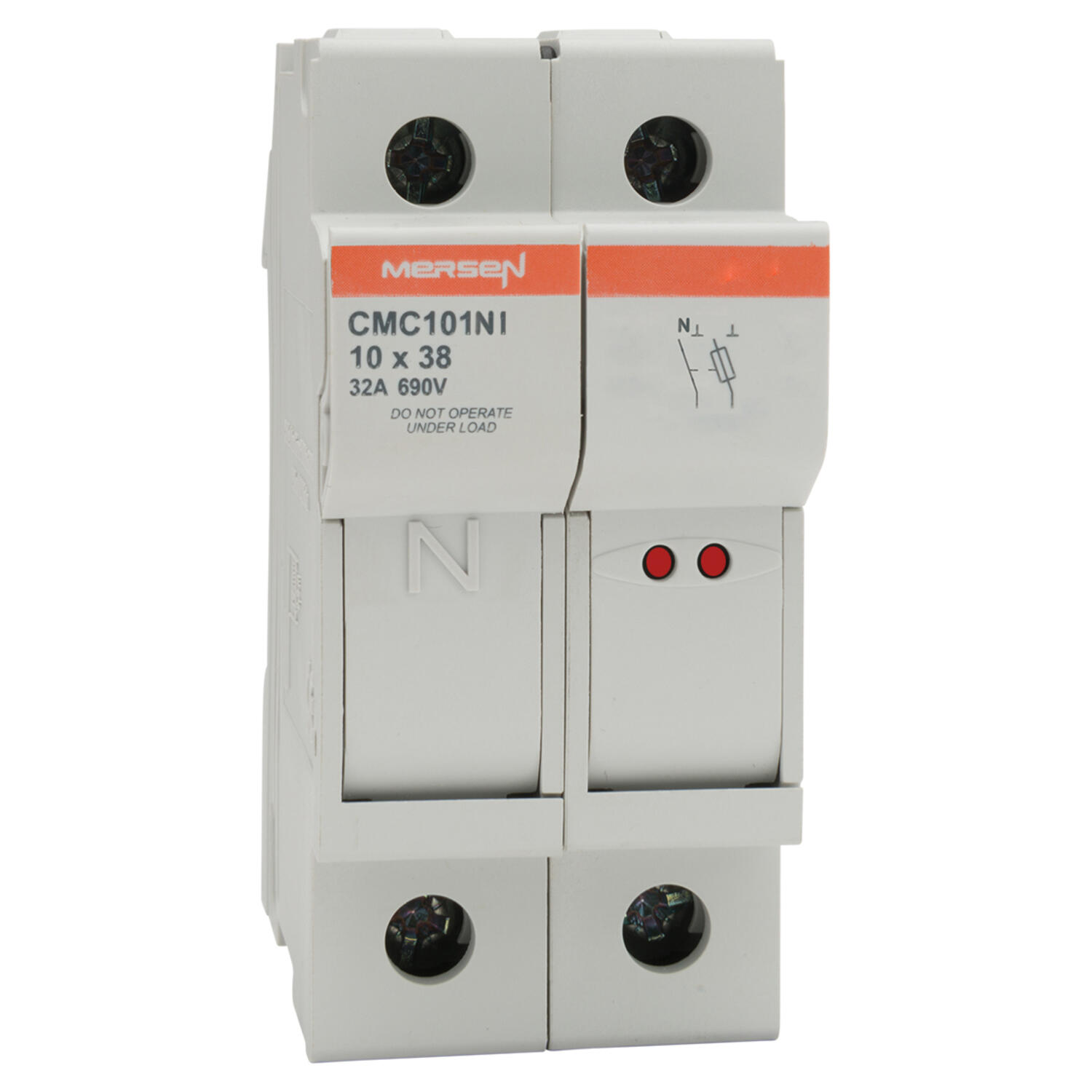

J1062700 | MODULOSTAR CMC10 1P+N C/I | CMC101NI | B305027 | CMS101NI |

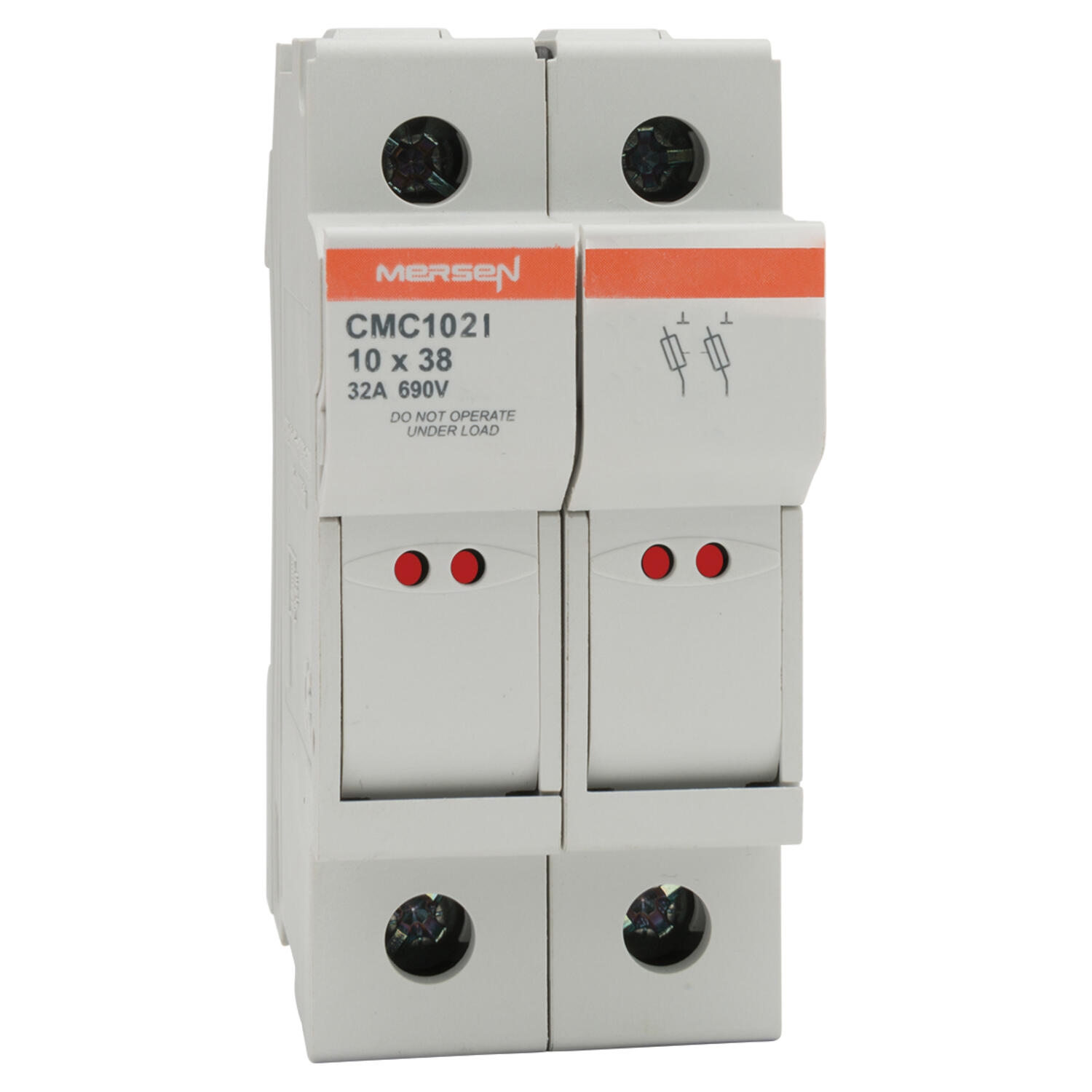

L1062702 | MODULOSTAR CMC10 2P C/I | CMC102I | C305028 | CMS102I |

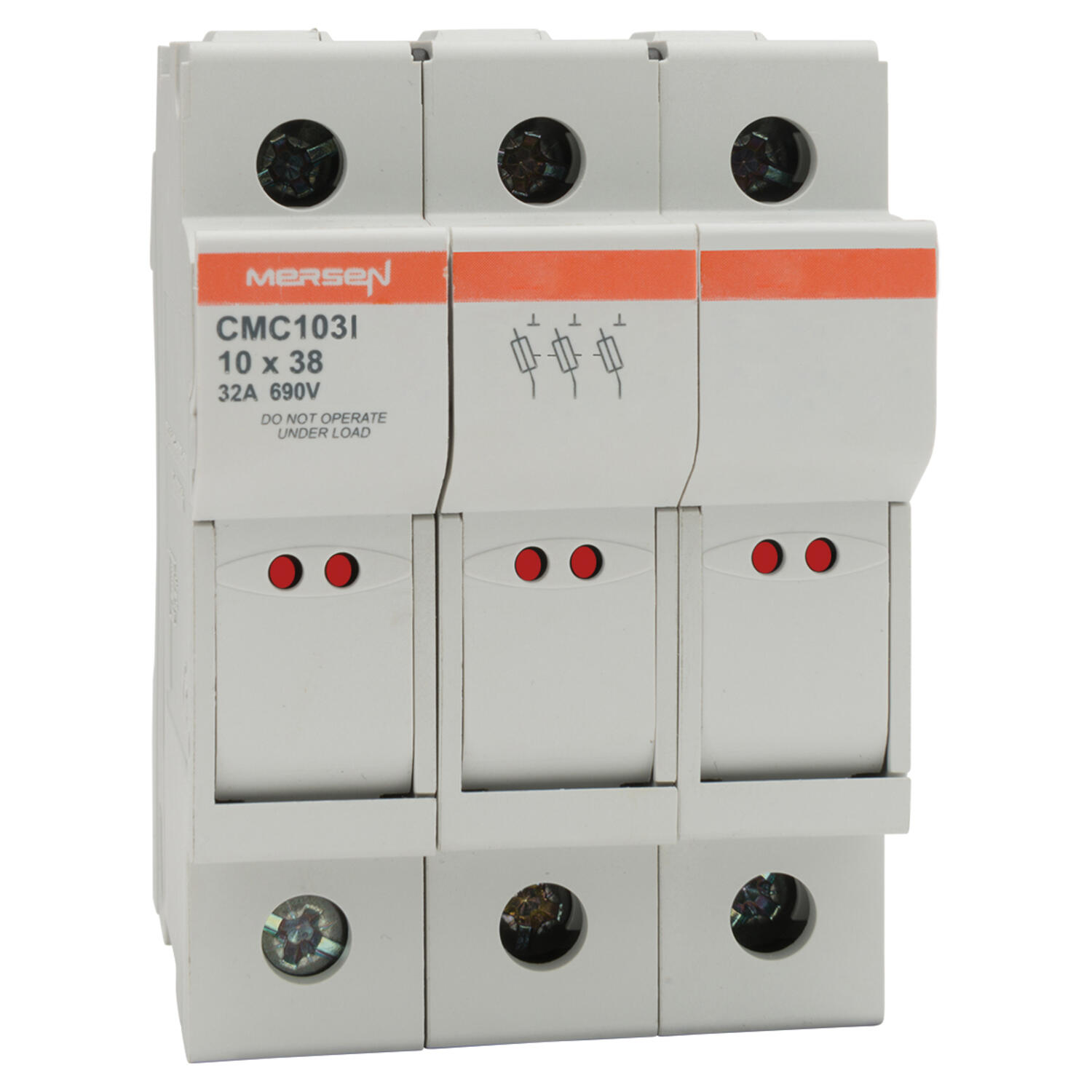

F1062697 | MODULOSTAR CMC10 3P C/I | CMC103I | D305029 | CMS103I |

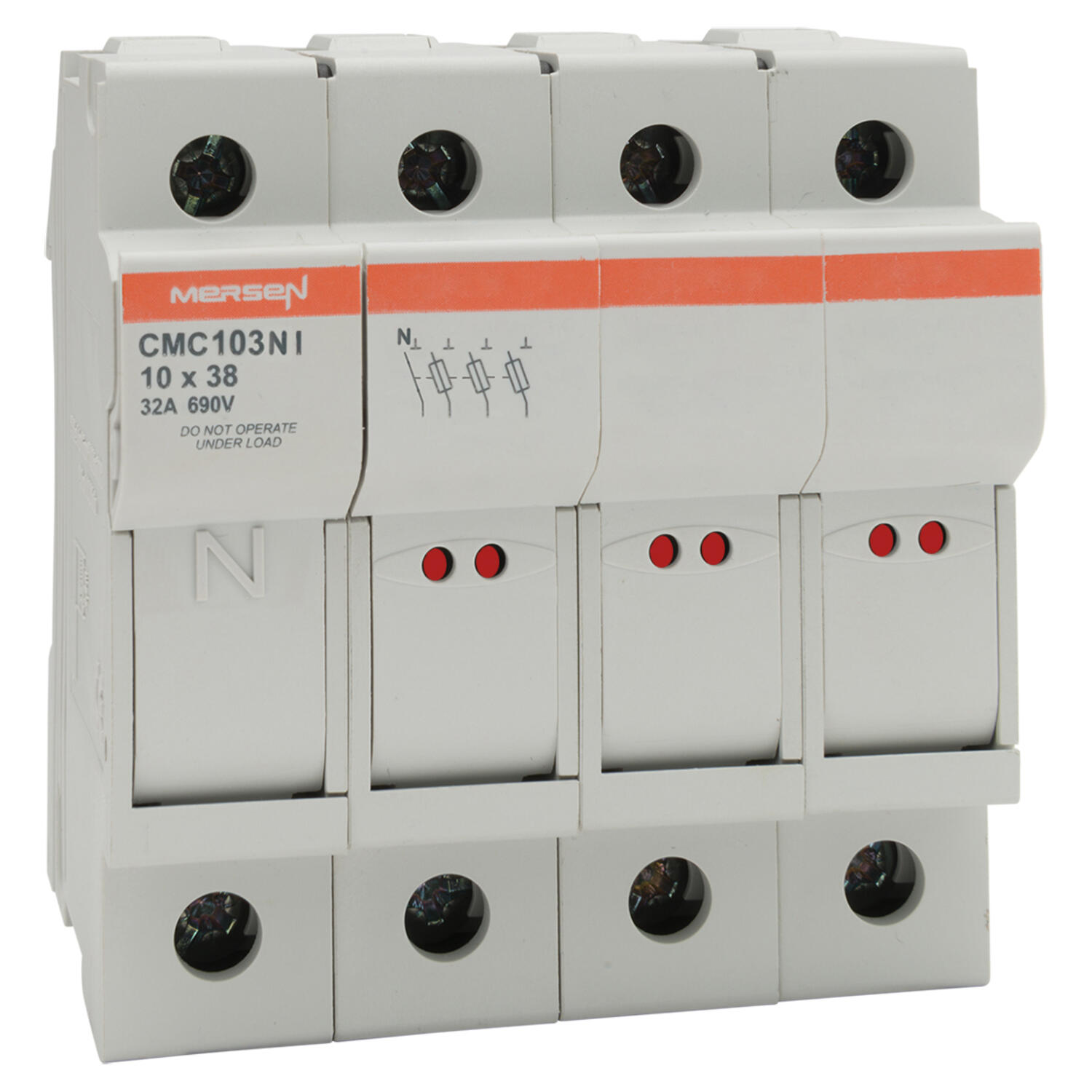

A1062692 | MODULOSTAR CMC10 3P+N C/I | CMC103NI | E305030 | CMS103NI |

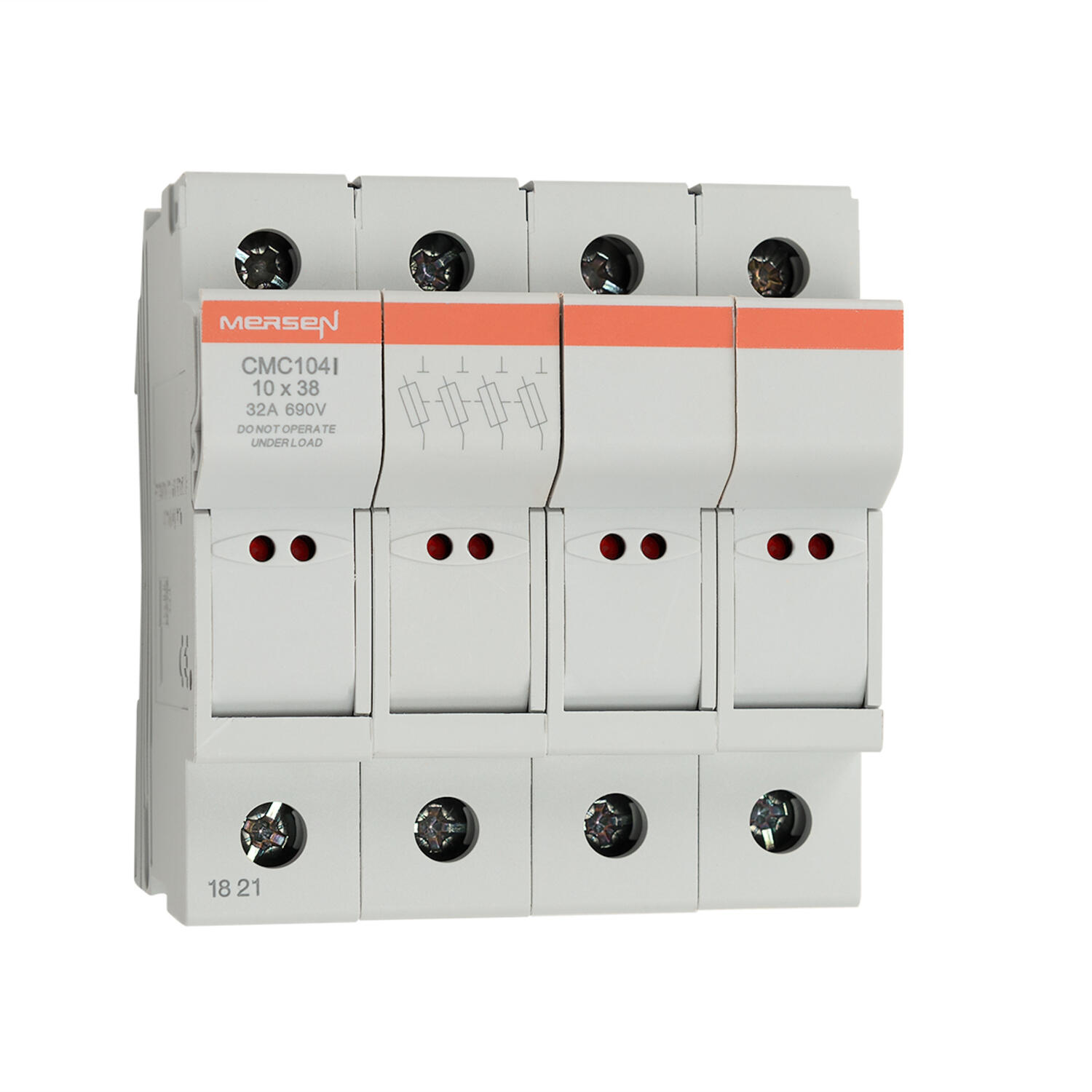

B1062693 | MODULOSTAR CMC10 4P C/I | CMC104I | F305031 | CMS104I |
- DIN rail mounting
- Optional visual blown fuse indicator
- Shock and vibration tested for marine and railway applications
Selected variant
Specifications
| Approvals | BV, CB, CCC, CE, GL, Lloyd´s, REACH, RoHS |
|---|---|
| Breaking capacity max | 200 kA |
| Current max | 32 A |
| Manufacturer Part No | P1062705 |
| Material | PVC |
| Number of poles | 1 |
| Pack Size | 12 |

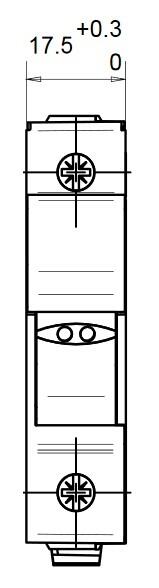

| Width | 17.5 mm |
| Voltage AC max | 690 V |
| Voltage DC max | 690 V |
Product description
Mersen Modulostar® series offer wide variety of fuse holders. Easy fuse changing, IP20 rated. 1, 2, 3 or 4 pole versions available. Optional blown fuse indicator.
- IP20 rated
- Available with or without an indicator
- DIN rail mounting
- Modular
- Sealable in open or closed position
- Shock and vibration resistant
New Modulostar CMC10 replace old Modulostar CMS10 fuse holders.
NEW | OLD | |||
Reference | Description | Catalog number | Old ref | old cat nb |
P1062705 | MODULOSTAR CMC10 1P | CMC101 | T305020 | CMS101 |
G1062698 | MODULOSTAR CMC10 1P+N | CMC101N | V305021 | CMS101N |
H1062699 | MODULOSTAR CMC10 2P | CMC102 | W305022 | CMS102 |
E1062696 | MODULOSTAR CMC10 3P | CMC103 | X305023 | CMS103 |
Y1062690 | MODULOSTAR CMC10 3P+N | CMC103N | Y305024 | CMS103N |
Z1062691 | MODULOSTAR CMC10 4P | CMC104 | Z305025 | CMS104 |
S1062708 | MODULOSTAR CMC10 1P C/I | CMC101I | A305026 | CMS101I |
J1062700 | MODULOSTAR CMC10 1P+N C/I | CMC101NI | B305027 | CMS101NI |
L1062702 | MODULOSTAR CMC10 2P C/I | CMC102I | C305028 | CMS102I |
F1062697 | MODULOSTAR CMC10 3P C/I | CMC103I | D305029 | CMS103I |
A1062692 | MODULOSTAR CMC10 3P+N C/I | CMC103NI | E305030 | CMS103NI |
B1062693 | MODULOSTAR CMC10 4P C/I | CMC104I | F305031 | CMS104I |
