MERSEN

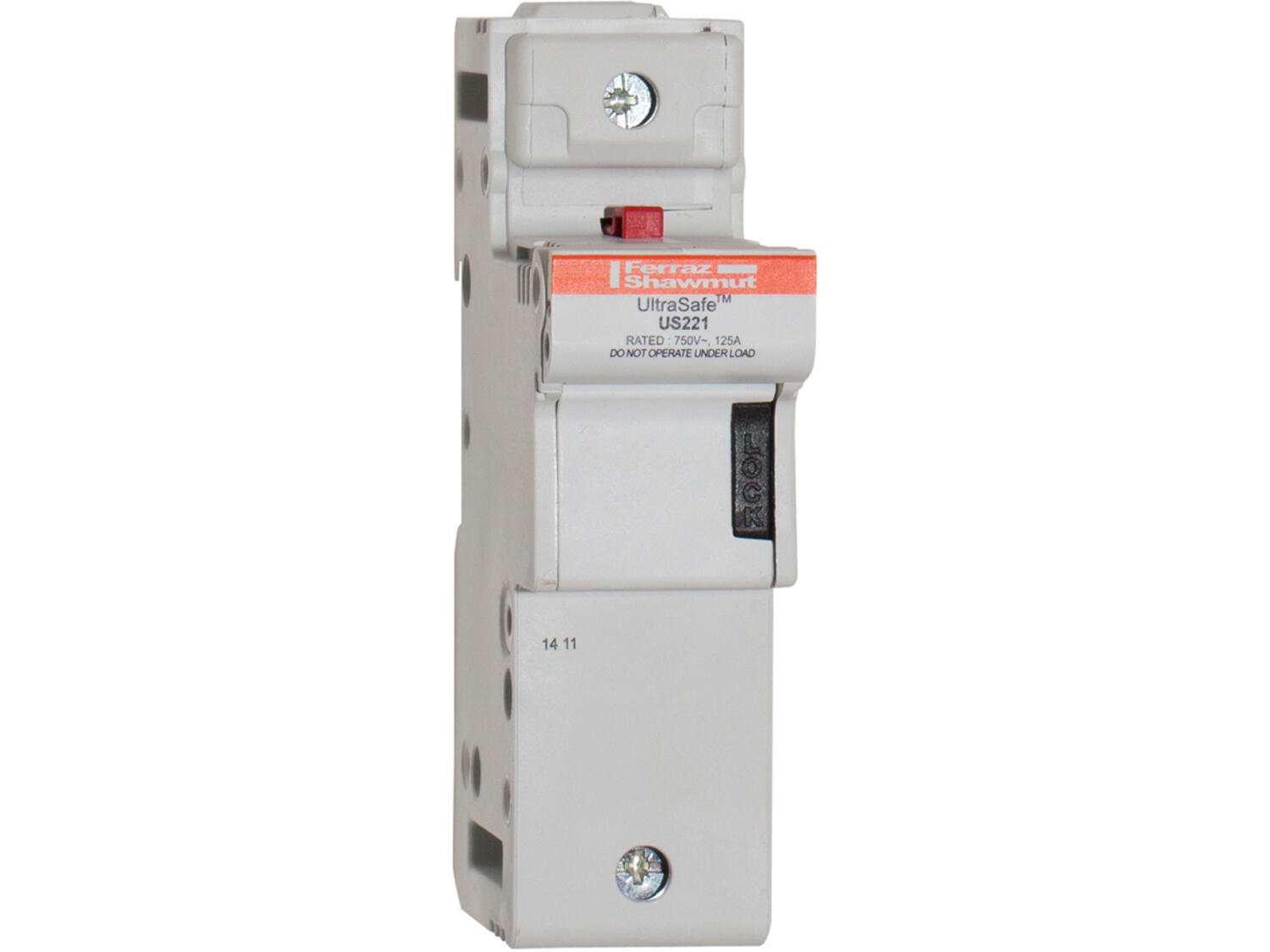

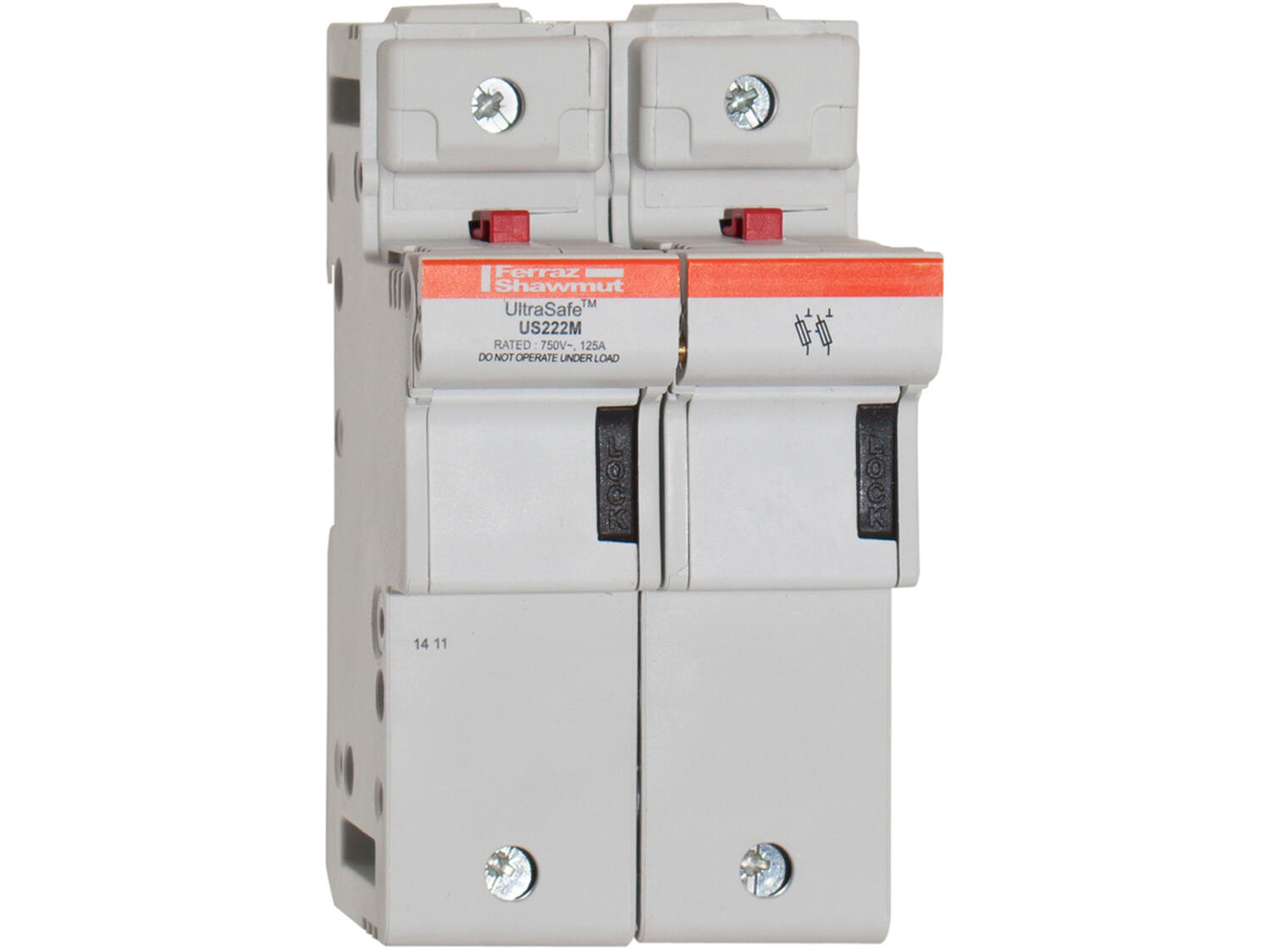

UL/CSA fuse holder UltraSafe™
US22 (22x58)
- DIN rail mounting

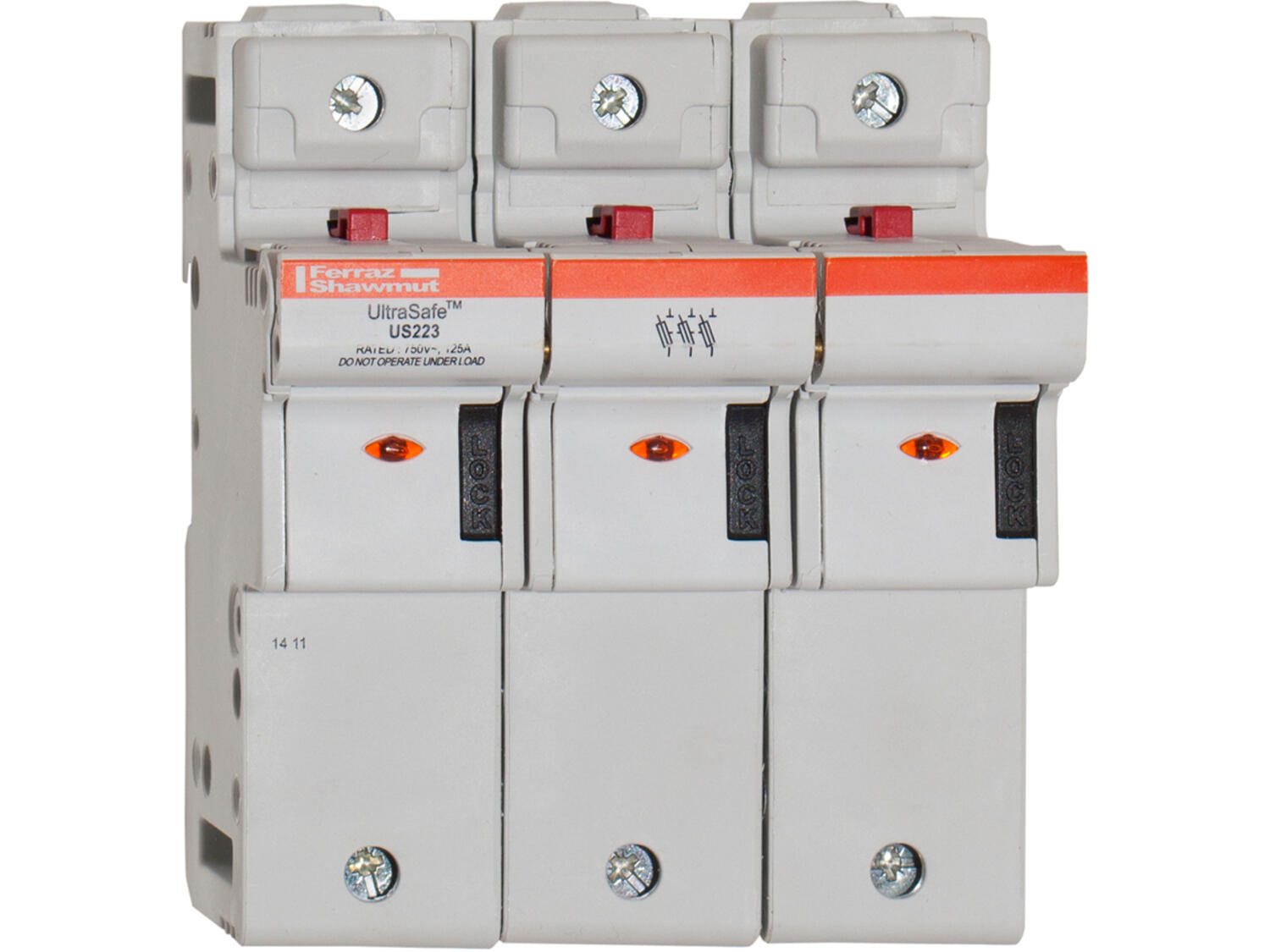

- Optional visual blown fuse indicator
- UL/CSA approved
Selected variant
Specifications
| Approvals | CE, CSA, DNV, REACH, RoHS, UL |
|---|---|
| Breaking capacity max | 100 kA |
| Current max | 125 A |
| Manufacturer Part No | E331158 |
| Number of poles | 1 |
| Pack Size | 6 |
| Width | 35 mm |
| Voltage AC max | 690 V |
| Voltage DC max | 690 V |
