Cylindrical fuse link 14x51, aM

gG type fuses are suitable for cable protection.

aM type fuses are suitable for eg. motor and converter protection.


Fuses are available either with or without striker/indicator.



Indicator

Striker

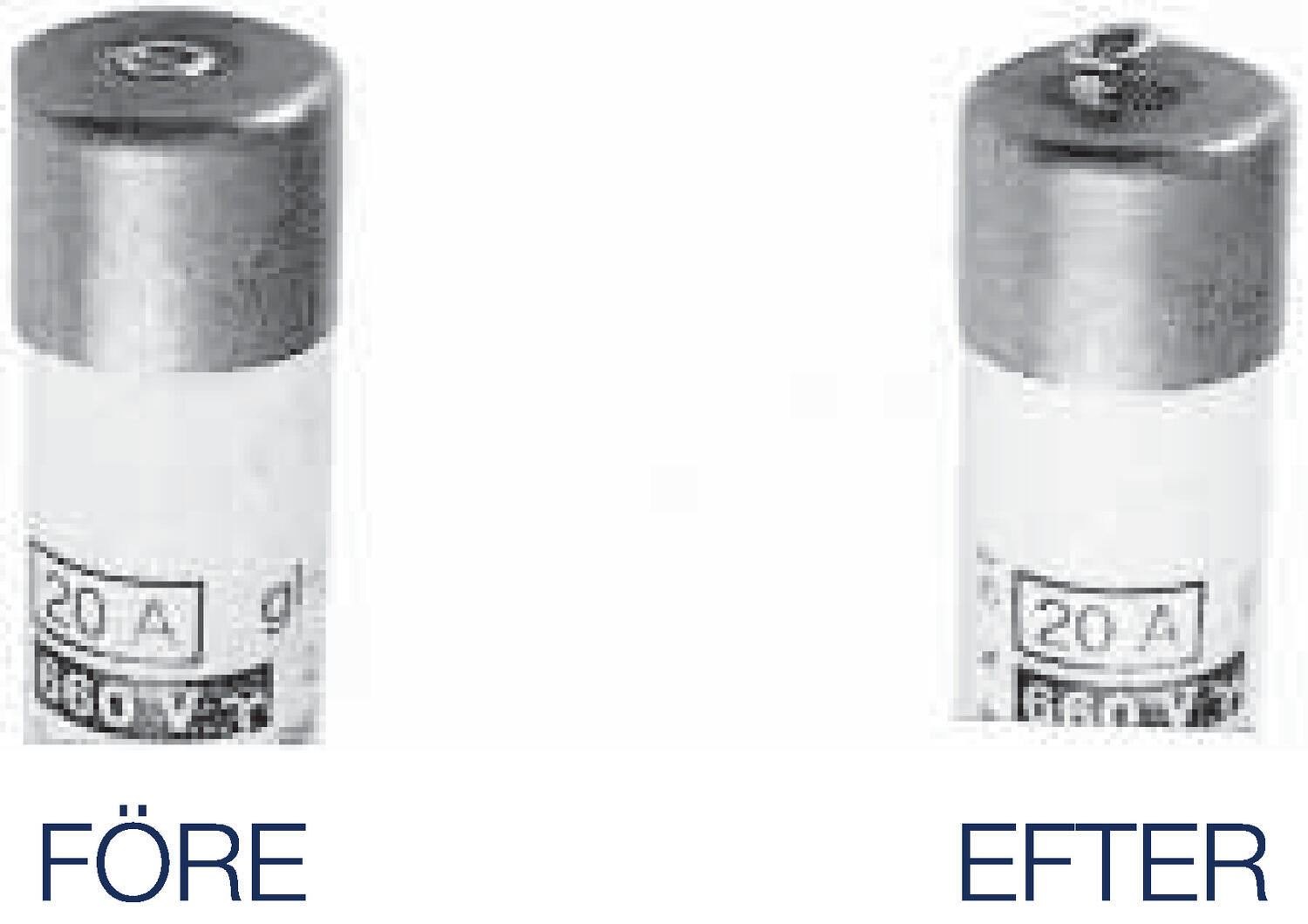

Indicator-before-after

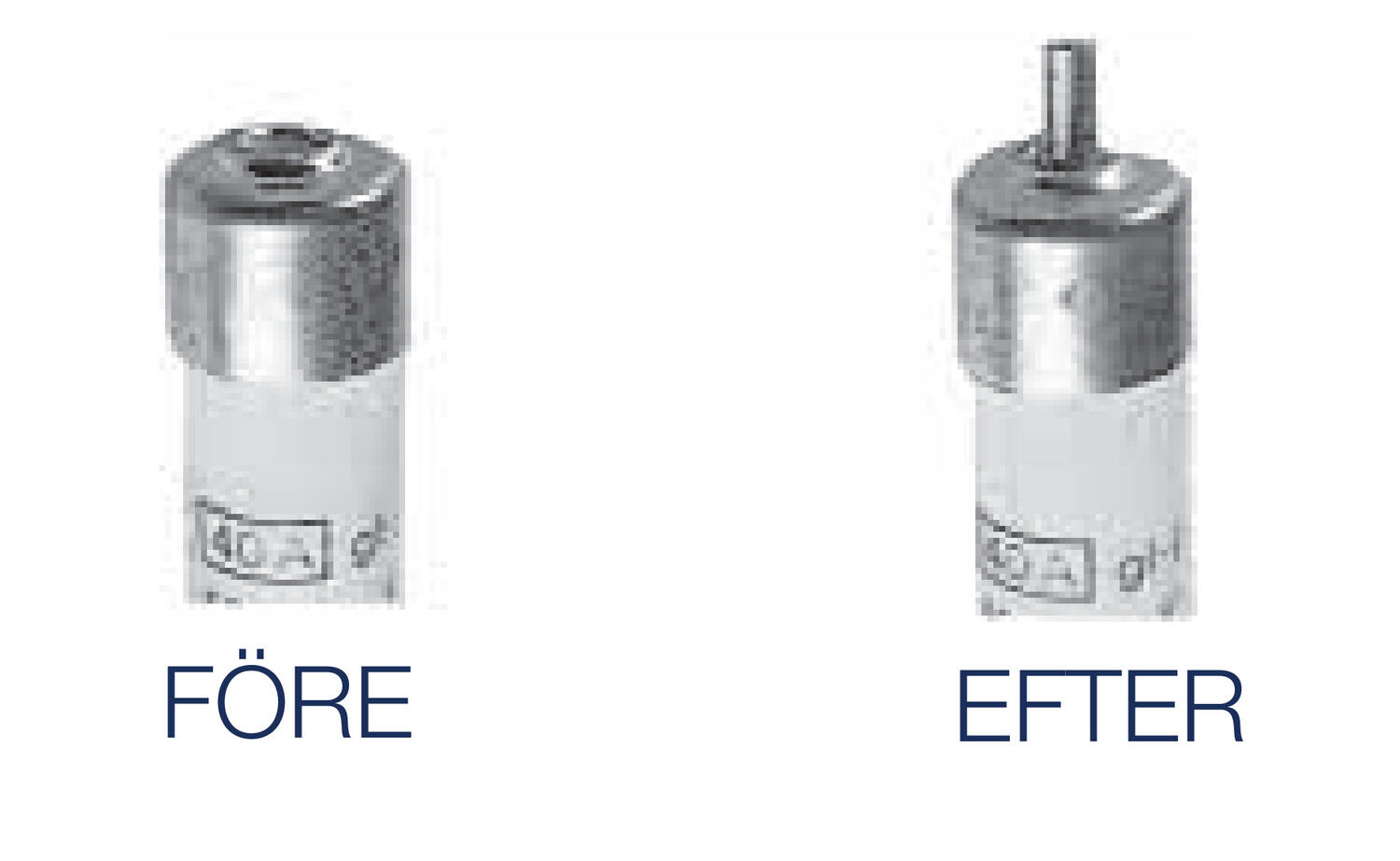

Striker-before-after







Technical specifications



gG

aM

Voltage

500 ...690 V AC

500 ... 690 V AC

Current

1-50 A

0,25 ... 50 A

Breaking capacity

120 kA

120 kA

Standard compliance

IEC 60269-1 & -2

IEC 60269-1 & -2

Approvals

Ce-marking Lloyds

Ce-marking Lloyds

Package size

10 pcs

10 pcs



gG data page: Lataa

aM data page: Lataa





Measurements

Tube fuse-dimension

14x51

mm

A

14,3

B

51

C

13,8





Order numbers

Order number

Description

Size

Current

Voltage

Power loss

Breaking capacity

Package

gG without indicator

FR14GG69V1

K218716

14x51

1 A

690 V AC

0,60 W

120 kA

10

FR14GG69V2

Y219234

14x51

2 A

690 V AC

0,75 W

120 kA

10

FR14GG69V4

A219765

14x51

4 A

690 V AC

1,10 W

120 kA

10

FR14GG69V6

H222210

14x51

6 A

690 V AC

1,25 W

120 kA

10

FR14GG69V8

D222965

14x51

8 A

690 V AC

1,45 W

120 kA

10

FR14GG69V10

L200754

14x51

10 A

690 V AC

1,65 W

120 kA

10

FR14GG69V12

L201812

14x51

12 A

690 V AC

1,80 W

120 kA

10

FR14GG69V16

A211554

14x51

16 A

690 V AC

2,36 W

120 kA

10

FR14GG69V20

Z212588

14x51

20 A

690 V AC

2,75 W

120 kA

10

FR14GG69V25

C213603

14x51

25 A

690 V AC

3,10 W

120 kA

10

FR14GG50V32

W216656

14x51

32 A

500 V AC

3,60 W

120 kA

10

FR14GG50V40

X218198

14x51

40 A

500 V AC

4,00 W

120 kA

10

FR14GG50V50

Z219235

14x51

50 A

500 V AC

4,80 W

120 kA

10



gG with striker

FR14GG50V2P

J211033

14x51

2 A

500 V AC

0,75 W

120 kA

10

FR14GG50V4P

H212067

14x51

4 A

500 V AC

1,10 W

120 kA

10

FR14GG50V6P

G214113

14x51

6 A

500 V AC

1,25 W

120 kA

10

FR14GG50V8P

R215134

14x51

8 A

500 V AC

1,45 W

120 kA

10

FR14GG50V10P

Z216153

14x51

10 A

500 V AC

1,65 W

120 kA

10

FR14GG50V12P

L217176

14x51

12 A

500 V AC

1,80 W

120 kA

10

FR14GG50V16P

Z218200

14x51

16 A

500 V AC

2,35 W

120 kA

10

FR14GG50V20P

B219237

14x51

20 A

500 V AC

2,75 W

120 kA

10

FR14GG50V25P

L222213

14x51

25 A

500 V AC

3,10 W

120 kA

10

FR14GG50V32P

P200757

14x51

32 A

500 V AC

3,60 W

120 kA

10

FR14GG50V40P

P201815

14x51

40 A

500 V AC

4,00 W

120 kA

10



aM without indicator

FR14AM69V0.25

B212590

14x51

0,25 A

690 V AC

0,10 W

120 kA

10

FR14AM69V0.5

L213105

14x51

0,5 A

690 V AC

0,90 W

120 kA

10

FR14AM69V1

E213605

14x51

1 A

690 V AC

0,13 W

120 kA

10

FR14AM69V2

H214114

14x51

2 A

690 V AC

0,18 W

120 kA

10

FR14AM69V4

K214622

14x51

4 A

690 V AC

0,28 W

120 kA

10

FR14AM69V6

S215135

14x51

6 A

690 V AC

0,42 W

120 kA

10

FR14AM69V8

T215642

14x51

8 A

690 V AC

0,55 W

120 kA

10

FR14AM69V10

Z216659

14x51

10 A

690 V AC

0,65 W

120 kA

10

FR14AM69V12

M217177

14x51

12 A

690 V AC

0,75 W

120 kA

10

FR14AM69V16

Q217686

14x51

16 A

690 V AC

1,05 W

120 kA

10

FR14AM69V20

P218720

14x51

20 A

690 V AC

1,30 W

120 kA

10

FR14AM69V25

E219769

14x51

25 A

690 V AC

1,55 W

120 kA

10

FR14AM50V32

M222214

14x51

32 A

500 V AC

 2,05 W

120 kA

10

FR14AM50V40

Q200758

14x51

40 A

500 V AC

 2,65 W

120 kA

10

FR14AM50V45

L211035

14x51

45 A

500 V AC

 2,85 W

120 kA

10

FR14AM50V50

E211558

14x51

50 A

500 V AC

 2,95 W

120 kA

10



aM with striker

FR14AM50V1P

W215644

14x51

1 A

500 V AC

0,13 W

120 kA

10

FR14AM50V2P

B216661

14x51

2 A

500 V AC

0,18 W

120 kA

10

FR14AM50V4P

C218203

14x51

4 A

500 V AC

0,28 W

120 kA

10

FR14AM50V6P

E219240

14x51

6 A

500 V AC

0,42 W

120 kA

10

FR14AM50V8P

N222215

14x51

8 A

500 V AC

0,55 W

120 kA

10

FR14AM50V10P

S200760

14x51

10 A

500 V AC

0,65 W

120 kA

10

FR14AM50V12P

R201817

14x51

12 A

500 V AC

0,75 W

120 kA

10

FR14AM50V16P

G211560

14x51

16 A

500 V AC

1,05 W

120 kA

10

FR14AM50V20P

E212593

14x51

20 A

500 V AC

1,30 W

120 kA

10

FR14AM50V25P

H213608

14x51

25 A

500 V AC

1,55 W

120 kA

10

FR14AM50V32P

N214625

14x51

32 A

500 V AC

2,05 W

120 kA

10

FR14AM50V40P

X215645

14x51

40 A

500 V AC

2,65 W

120 kA

10

FR14AM50V45P

C216662

14x51

45 A

500 V AC

2,85 W

120 kA

10

FR14AM50V50P

D218204

14x51

50 A

500 V AC

2,95 W

120 kA

10
