MERSEN

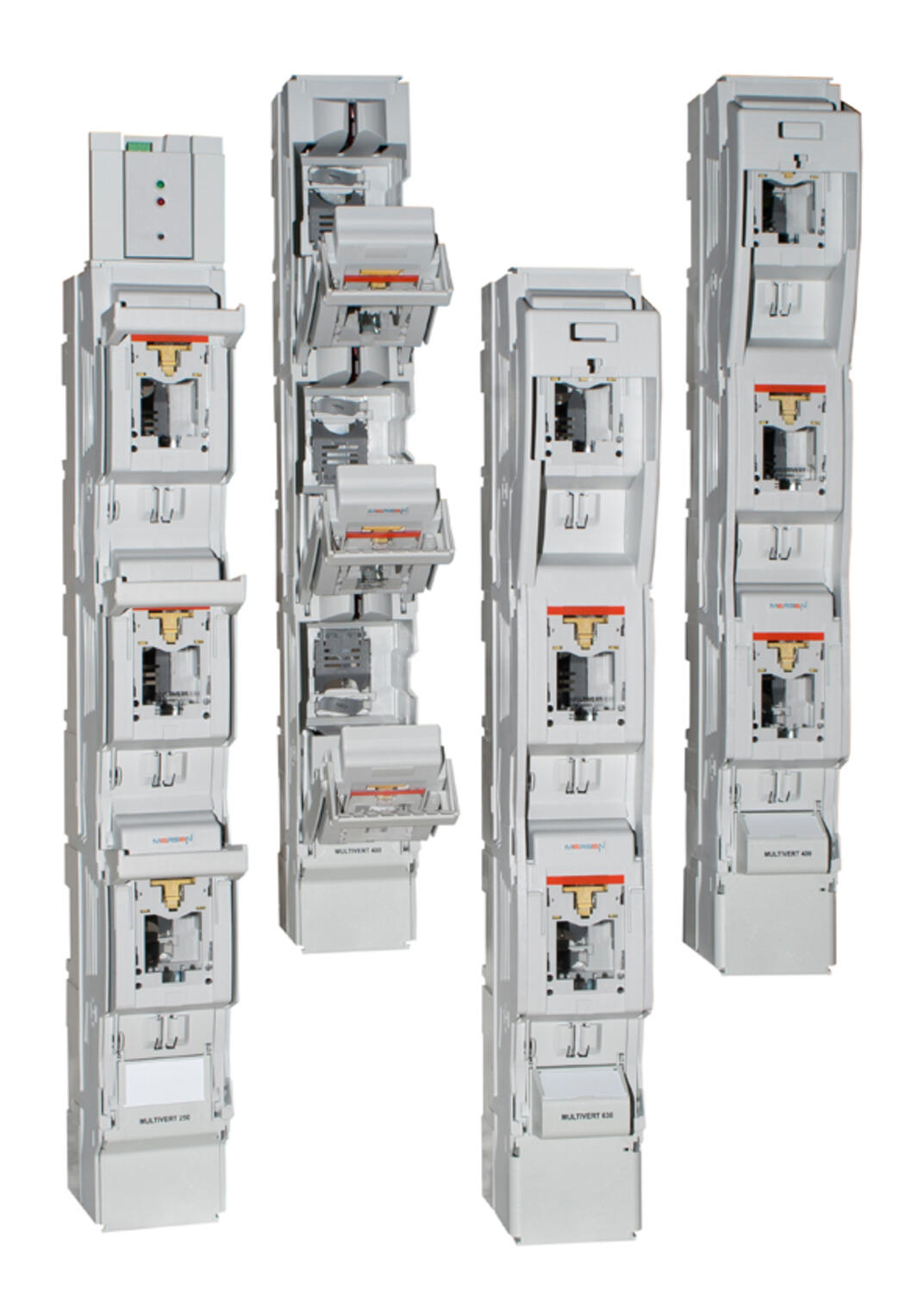

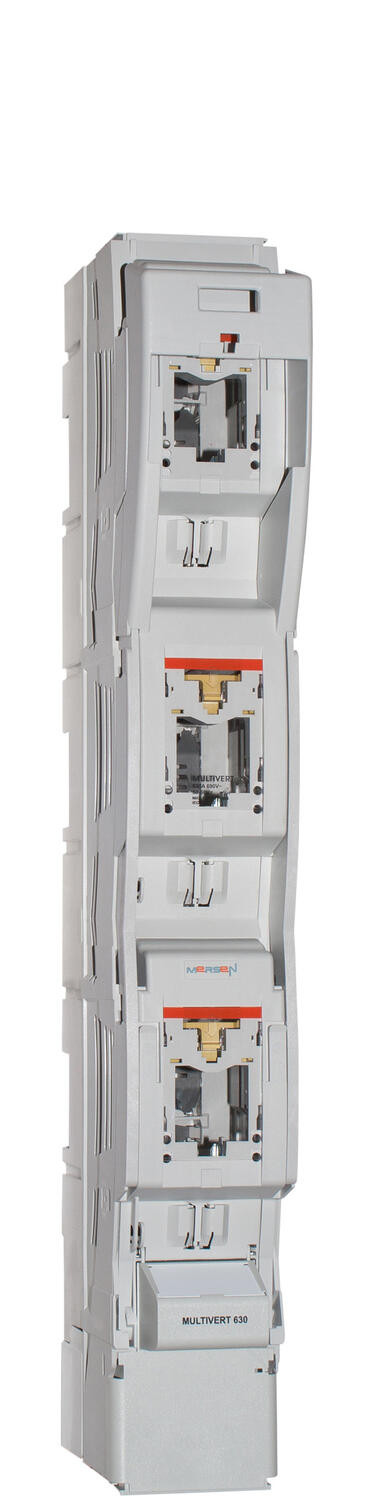

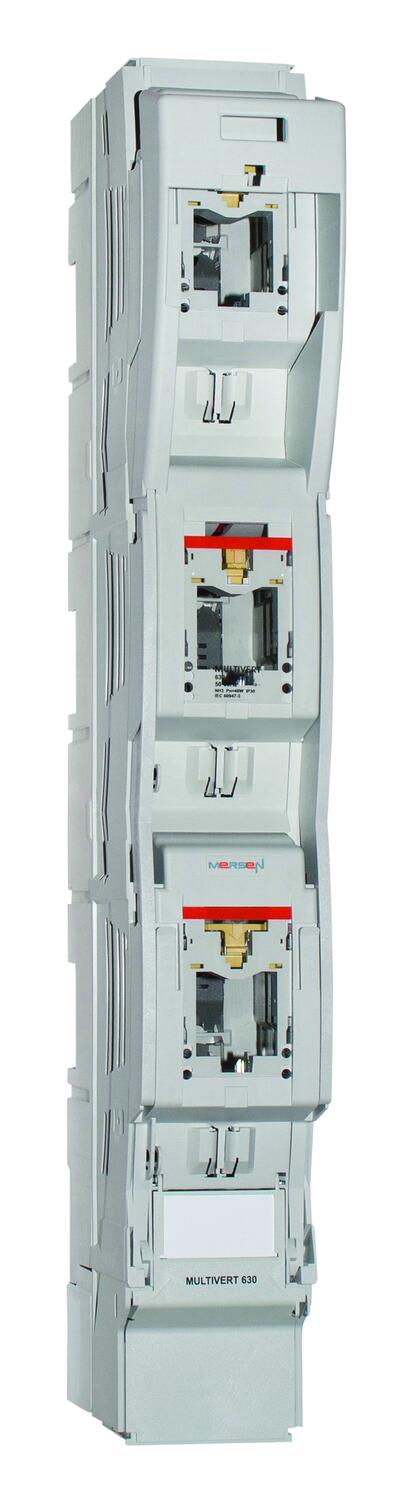

IEC fuse switch disconnector Multivert® 630A
Size 3, 690 VAC
Multivert® 630A IEC fuse switch disconnectors are installed on a 185mm bus bar system. Modular design allows various accessories to be attached. Easy and quick to install, safe to maintain.
- Installed on 185mm bus bar with M12 screws or hooked clamps (accessory)
- Symmetrical switch
- Varieties of cable termination
- Optional integrated measuring transformer
- Installation on 185mm bus bar system
- Triple pole
- Various terminal options
- Optional integrated measuring transformer
Selected variant
Specifications
| Approvals | CB, CCC, CE, REACH, RoHS |
|---|---|

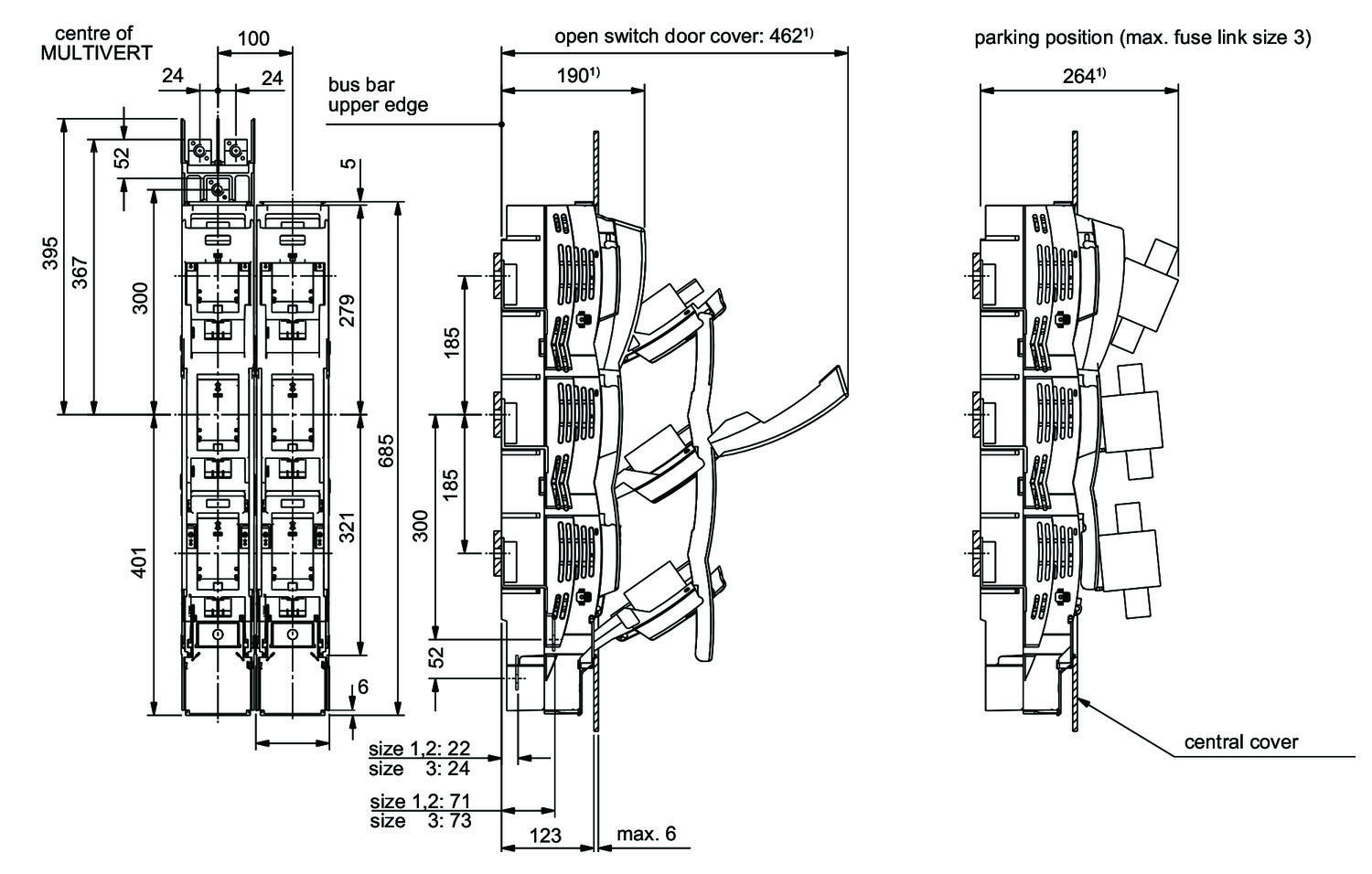

| Length | 685 mm |
| Manufacturer Part No | N1002191 |
| Number Of Incoming Poles | 3 |
| Number Of Outgoing Poles | 3 |
| Number of poles | 3 |
| Rated Current | 630 A |
| Width | 98 mm |
| Voltage AC max | 690 V |
Product description
Multivert® 630A IEC fuse switch disconnectors are installed on a 185mm bus bar system. Modular design allows various accessories to be attached. Easy and quick to install, safe to maintain.
- Installed on 185mm bus bar with M12 screws or hooked clamps (accessory)
- Symmetrical switch
- Varieties of cable termination
- Optional integrated measuring transformer
