MERSEN

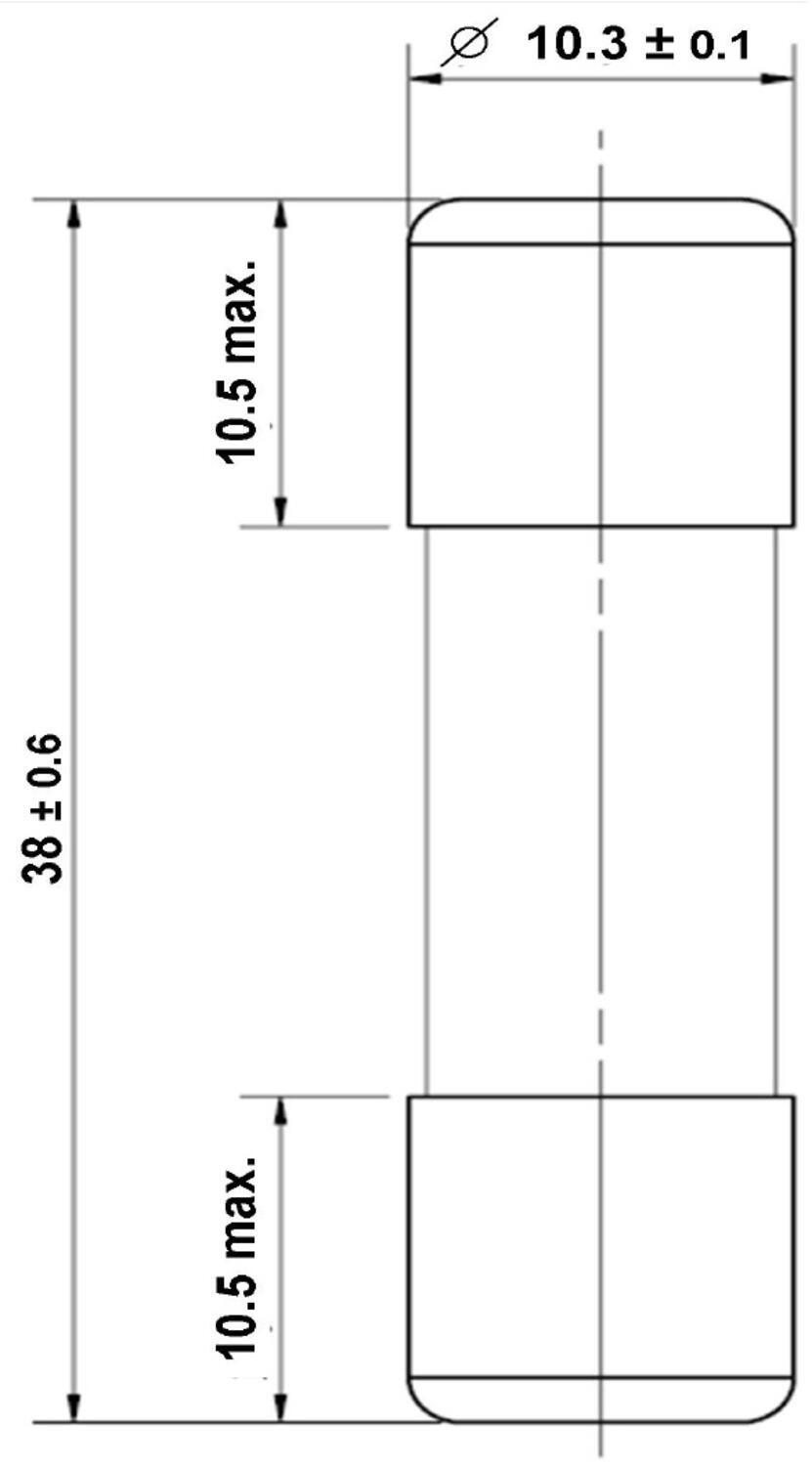

Cylindrical fuse link 10x38, gR
Protistor 10x38 gR extremely fast acting semiconductor protection fuses. Applications include inverters, UPS systems and variable speed drives.
Characteristics:
- Extremely fast acting gR (VDE 636-23 and IEC 60269-4)
- Current limiting
- Fast acting
- 1 - 32 A
- Breaking capacity 160 kA
- 690 VAC (IEC) / 700 VAC (UL)
Selected variant
Specifications
| Approvals | CE, cRUus, CSA, CCC |
|---|---|
| Breaking Capacity | 160 kA |
| Characteristic (CVL) | gR |
| Manufacturer Part No | L1014563 |
| Nominal current | 1 A |
| Pack Size | 10 |
| Voltage AC max | 690 V |
| Voltage DC max | 500 V |
Downloads
Product description
Protistor 10x38 gR extremely fast acting semiconductor protection fuses. Applications include inverters, UPS systems and variable speed drives.
Characteristics:
- Extremely fast acting gR (VDE 636-23 and IEC 60269-4)
- Current limiting
