MERSEN

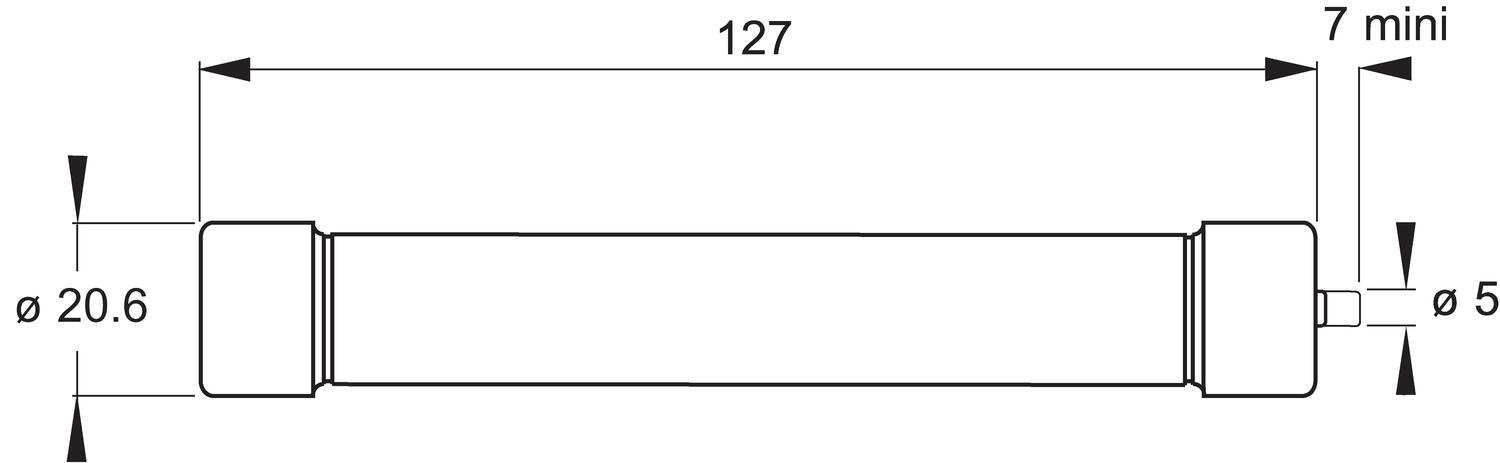

Protistor® Cylindrical fuse link 20x127, gR (gRB/gRC/gRD)
Mersen Protistor® 20x127 gR semic conductor protection fuses are spesifically made for DC applications such as auxiliaries, control cicuits and measuring and monitoring devices.
- Fast acting
- 0,8-63 A
- Breaking capacity 100 kA / 30 kA
- 1000/1500 VDC
Selected variant
Specifications
| Approvals | CCC, CE, REACH, RoHS |
|---|---|
| Breaking Capacity | 100 kA |
| Characteristic (CVL) | gR |
| Indication (CVL) | Striker |
| Manufacturer Part No | Z088020 |
| Nominal current | 6 A |
| Pack Size | 10 |
| Voltage DC max | 1000 V |
Product description
Mersen Protistor® 20x127 gR semic conductor protection fuses are spesifically made for DC applications such as auxiliaries, control cicuits and measuring and monitoring devices.
