Mersen

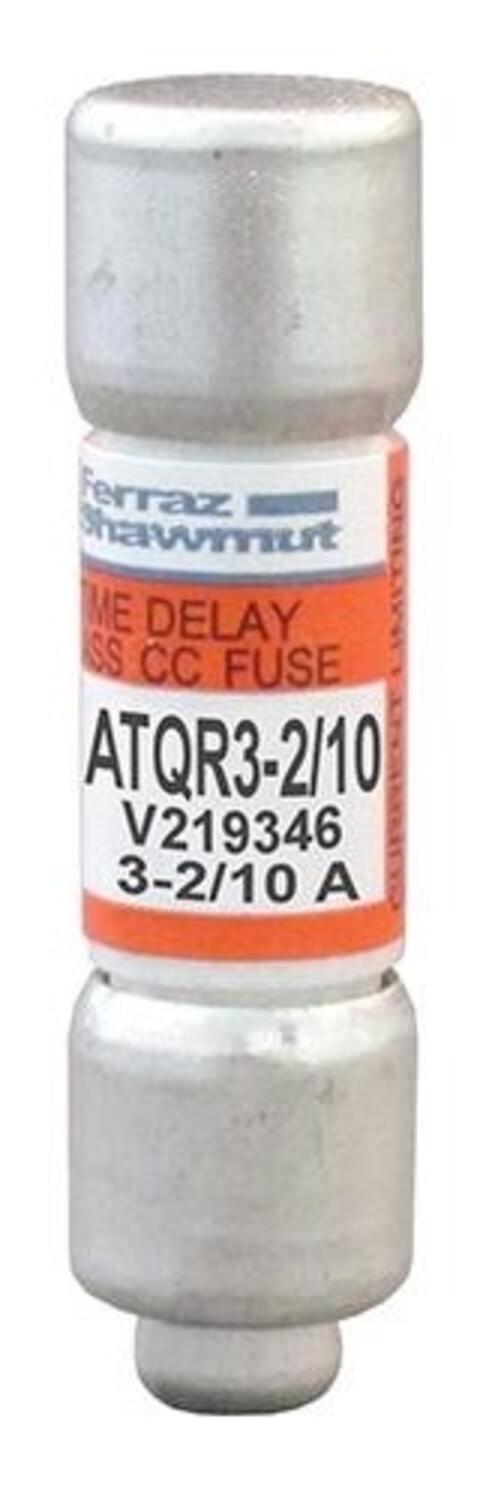

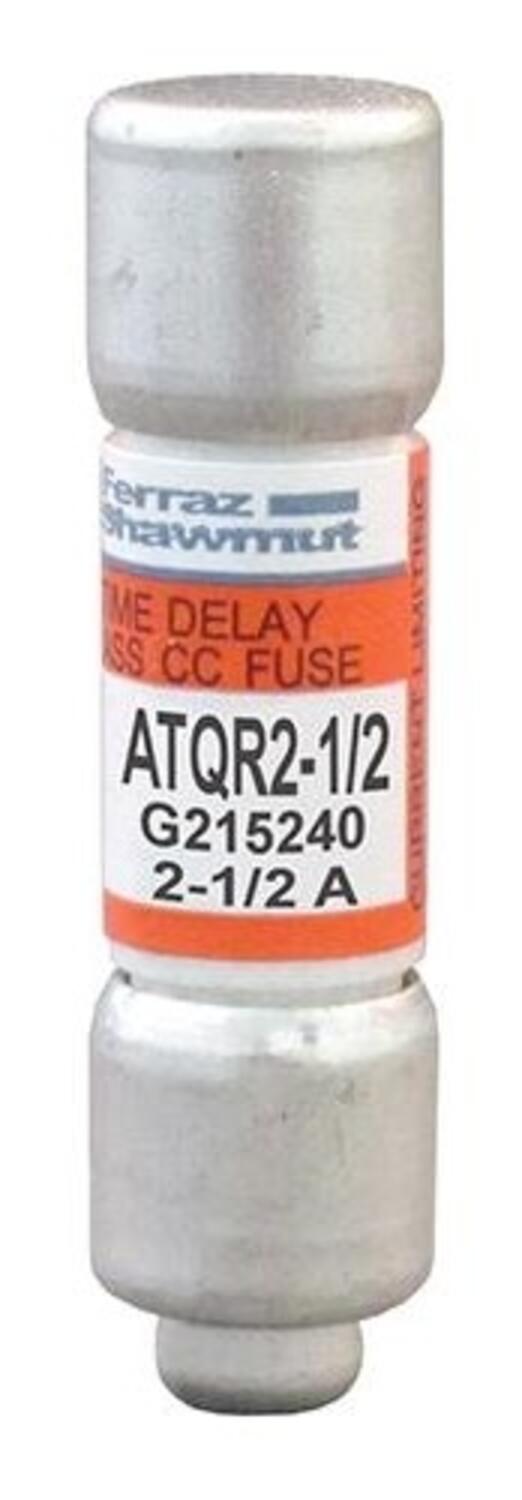

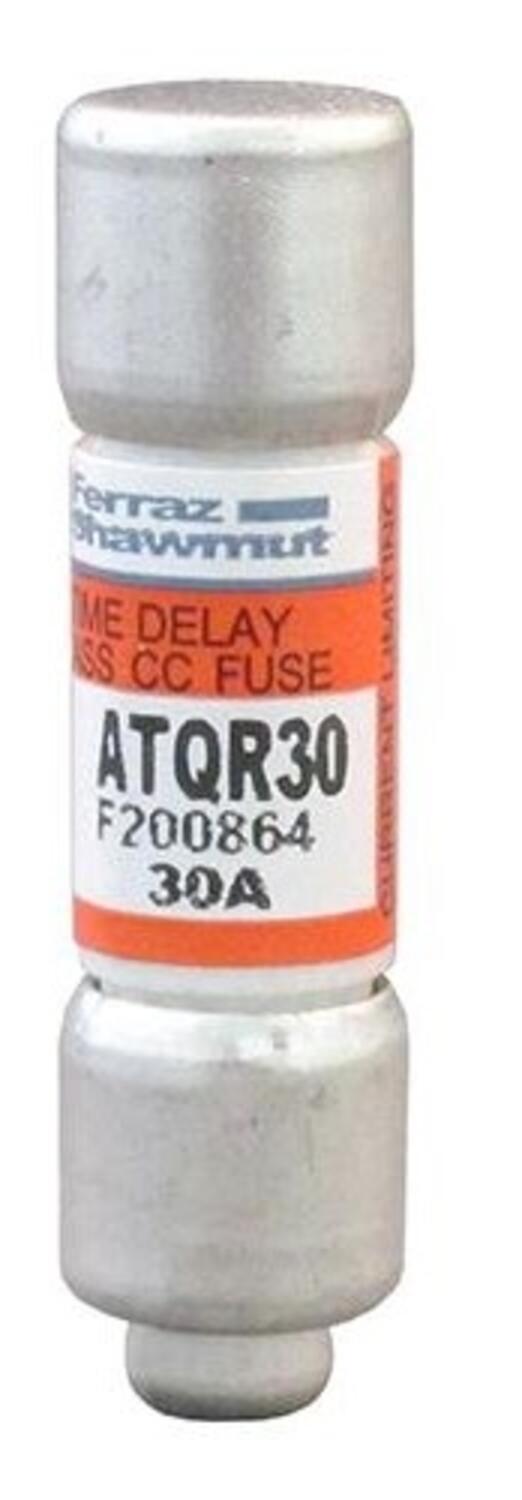

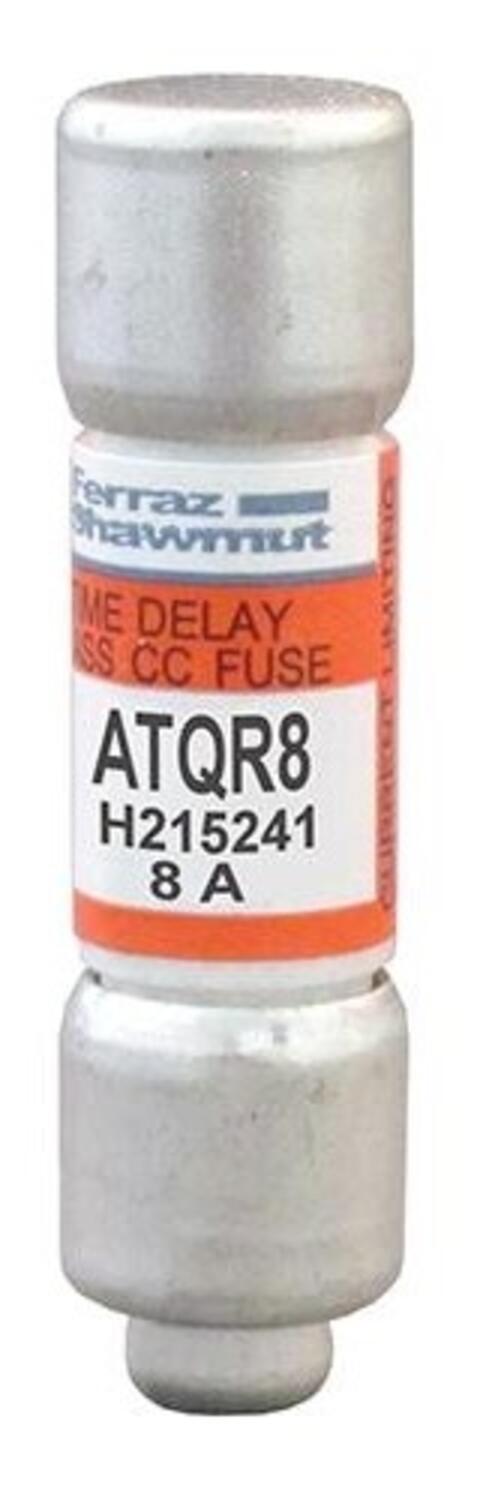

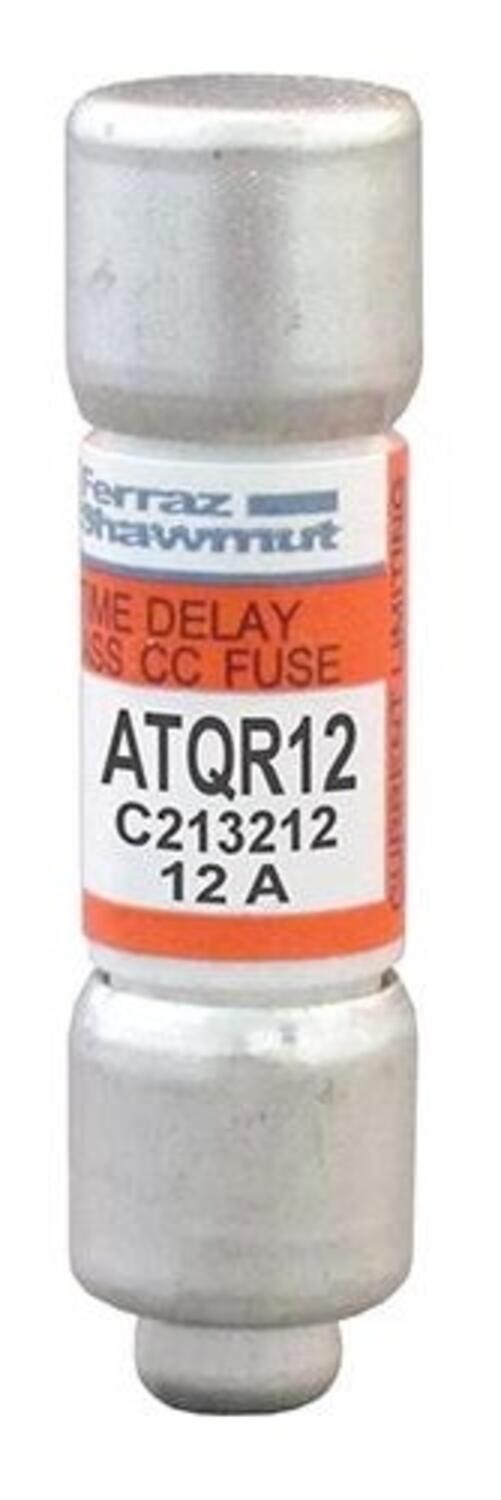

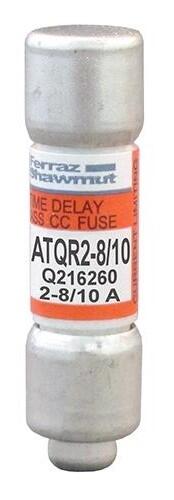

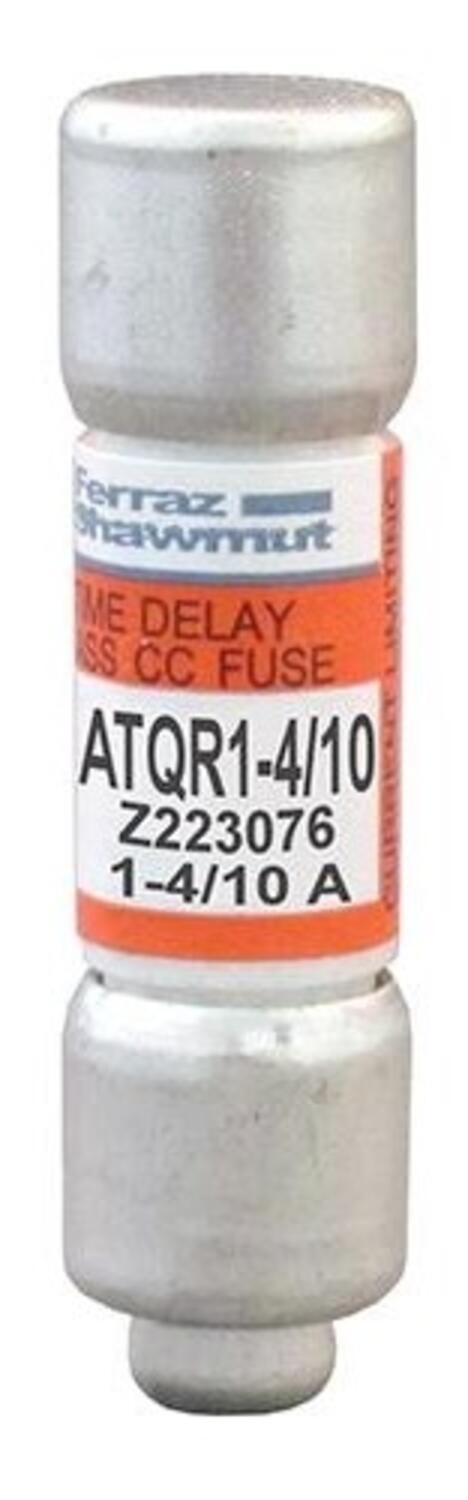

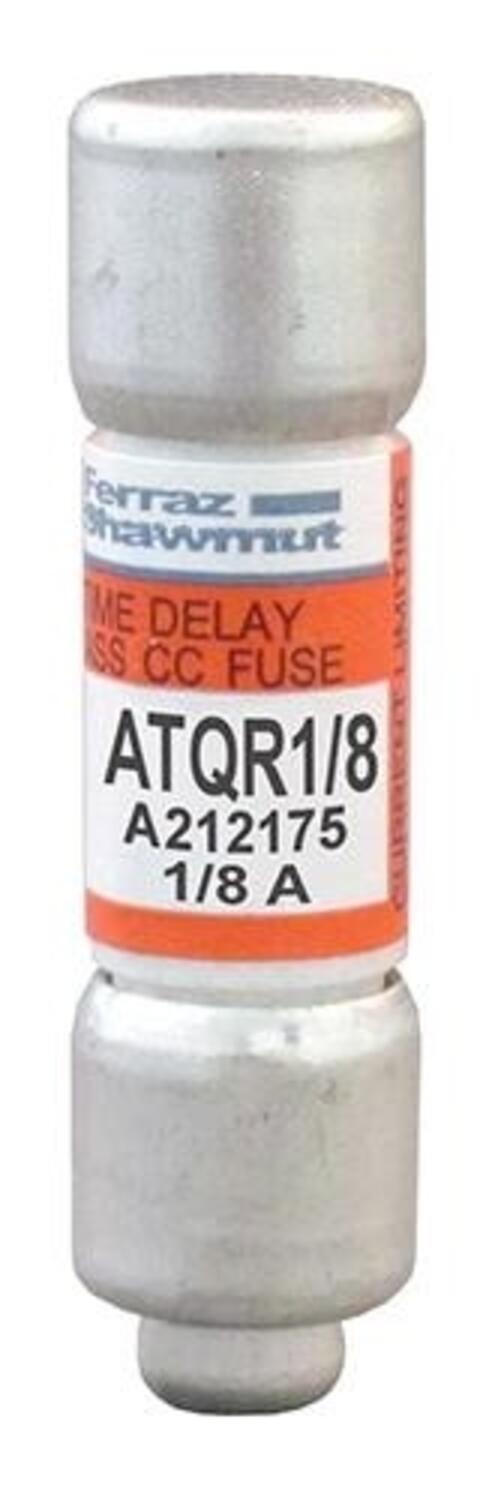

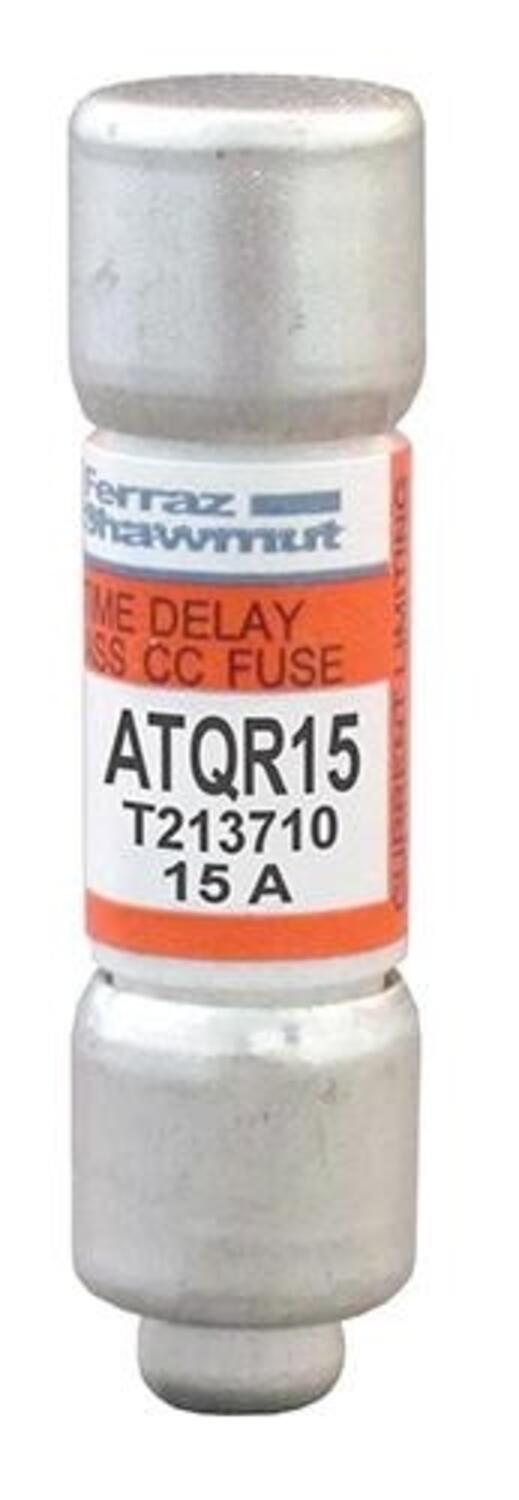

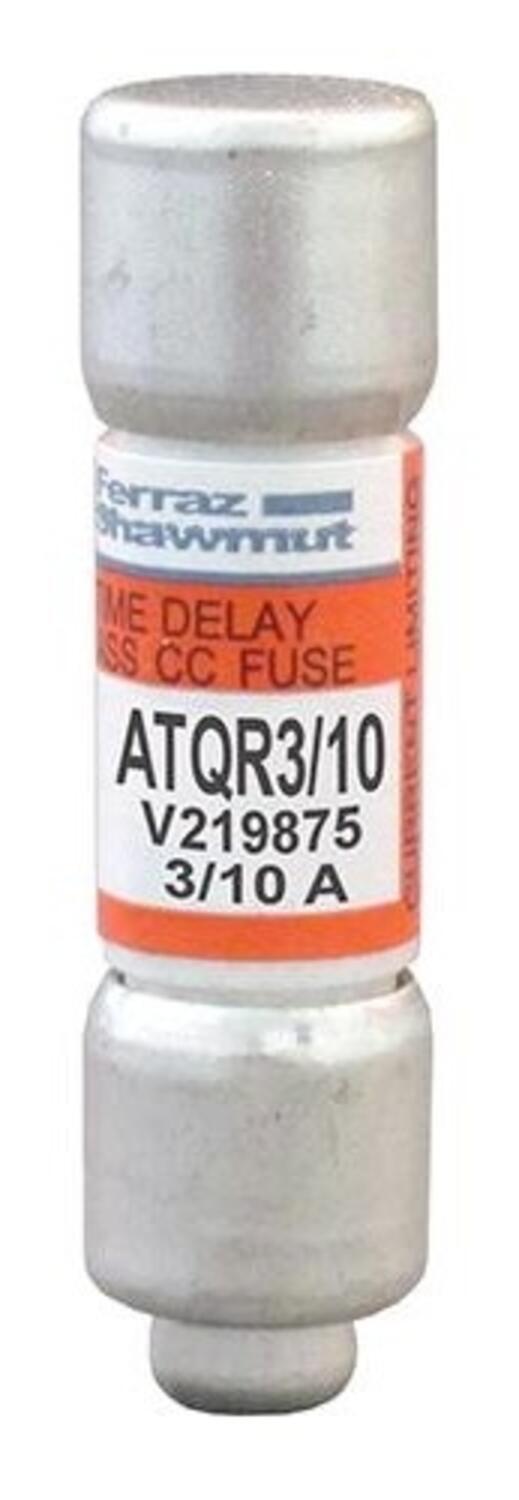

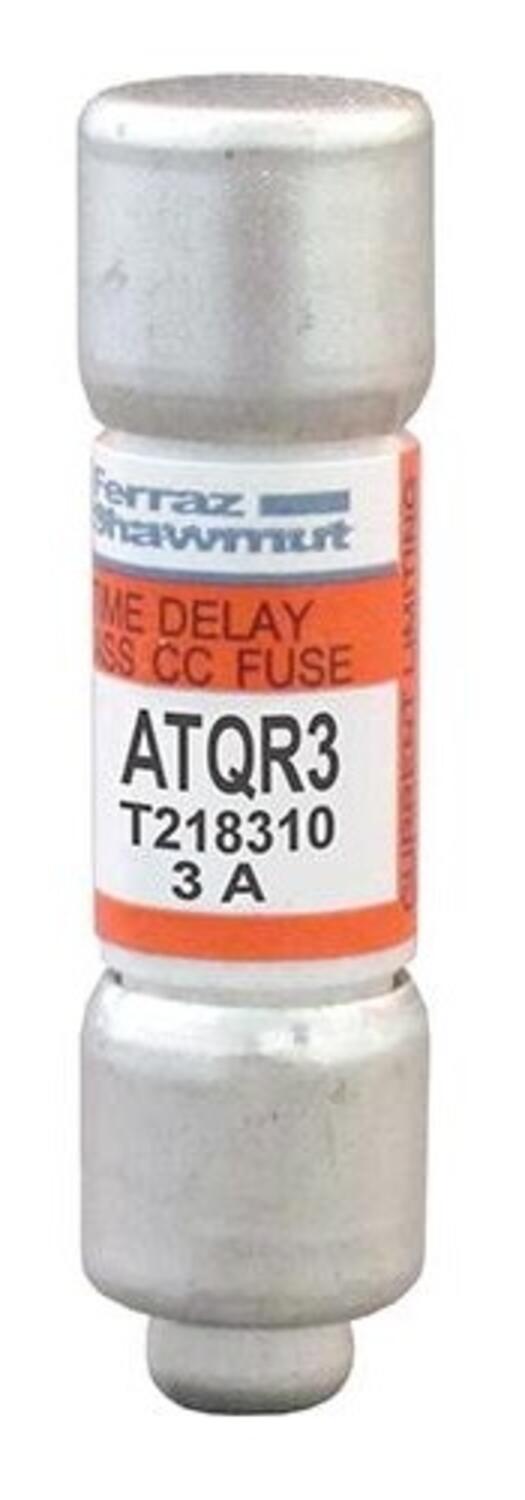

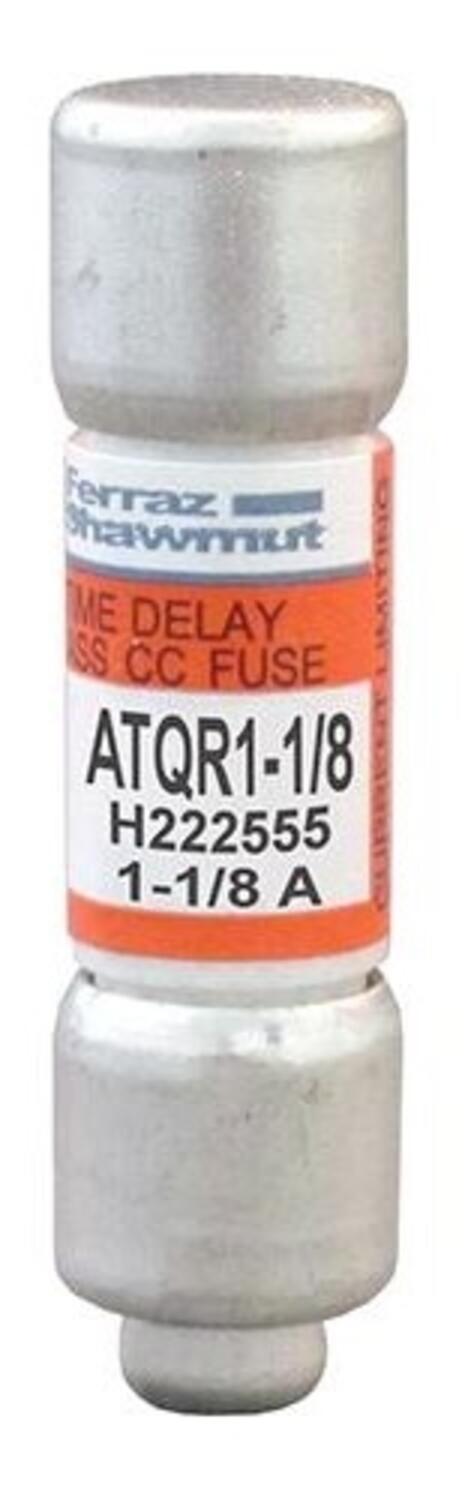

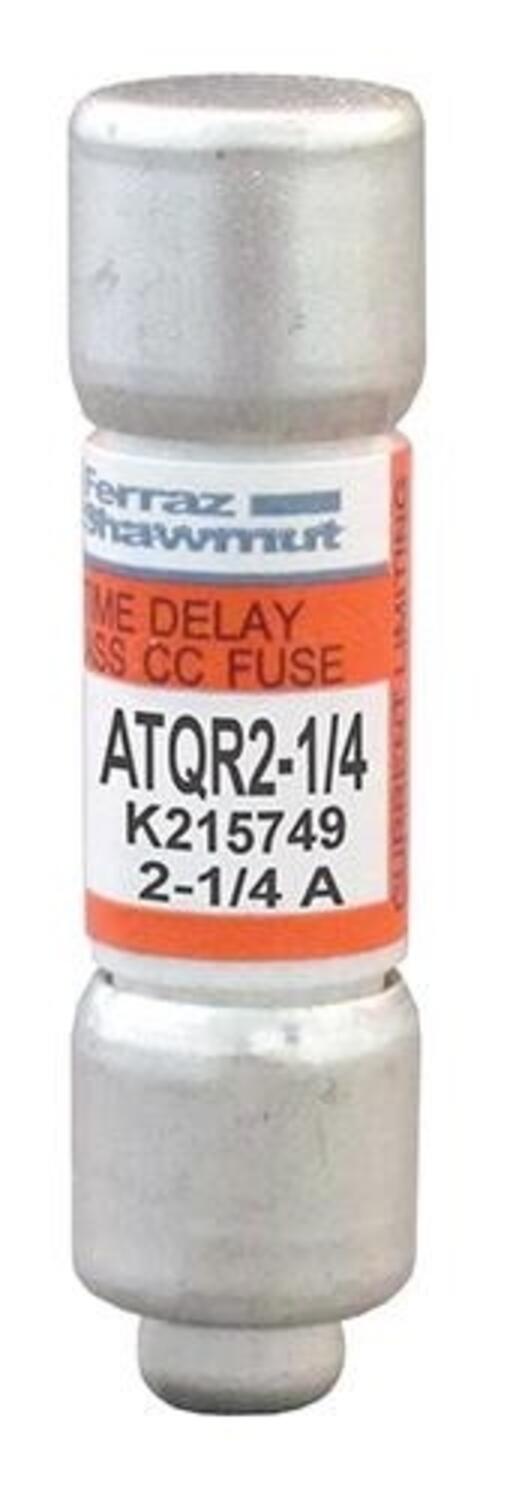

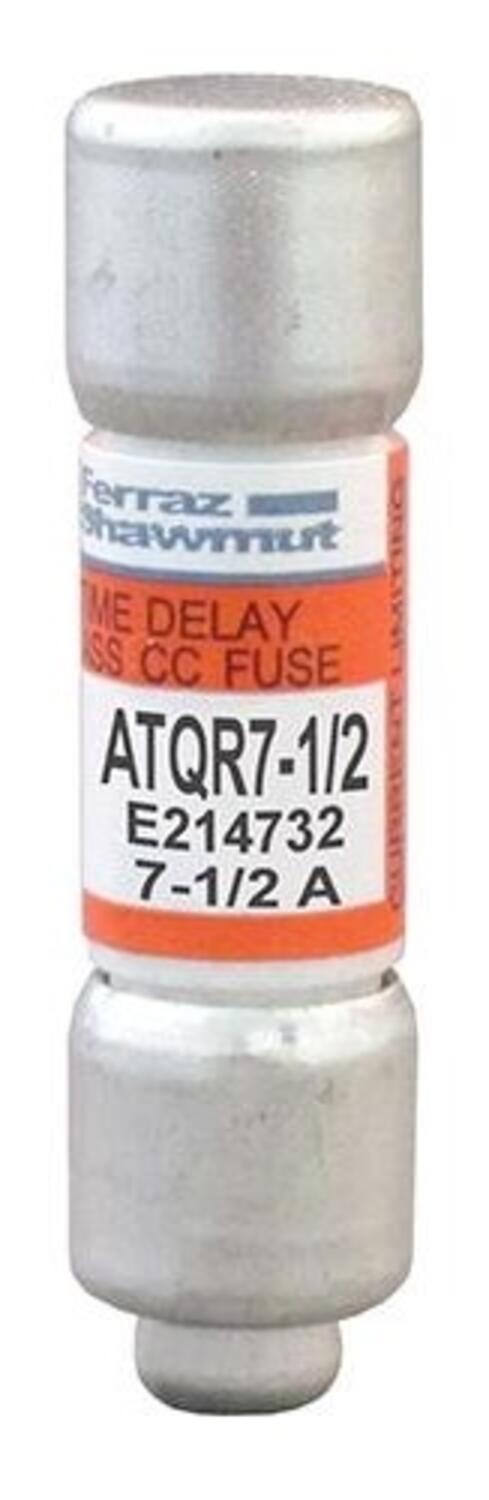

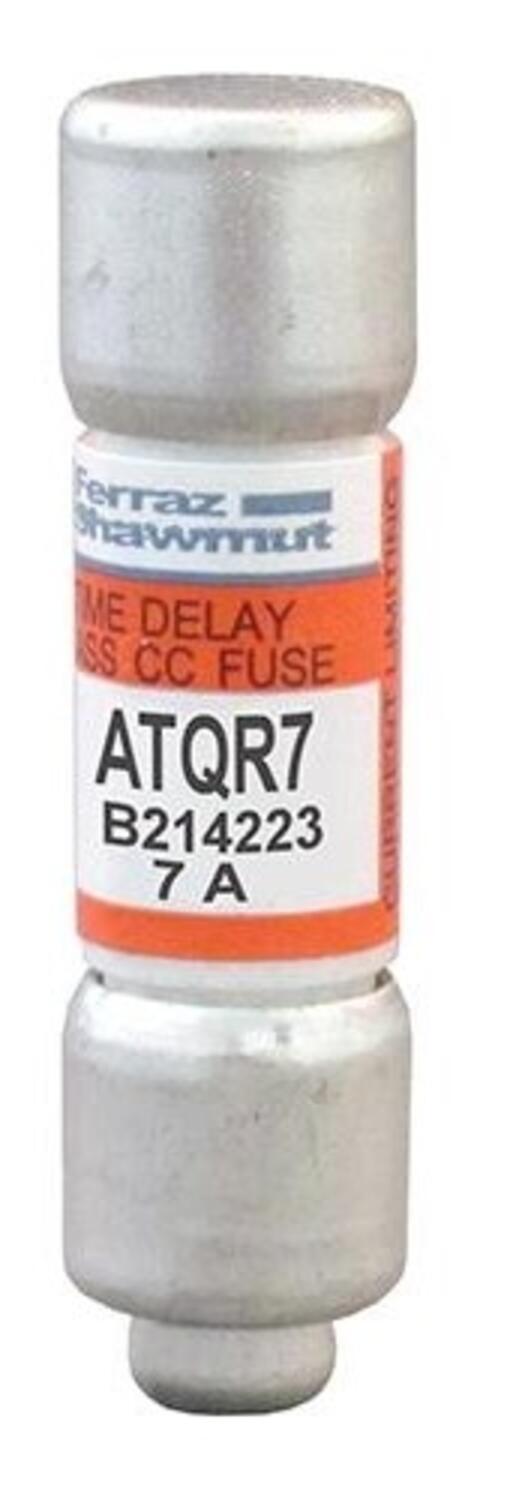

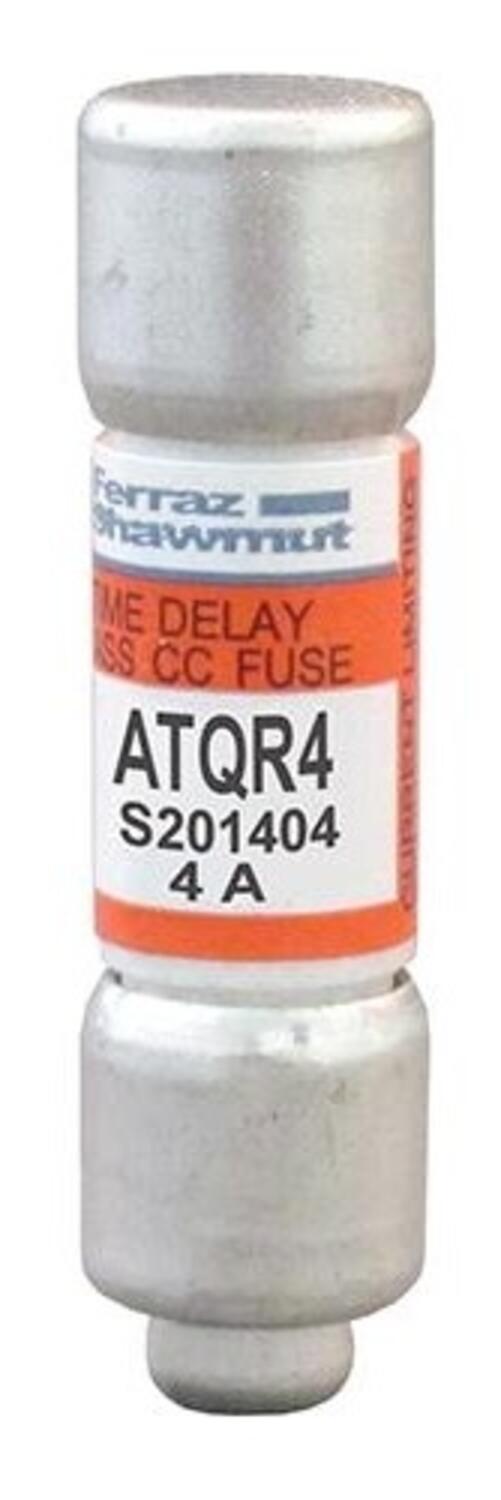

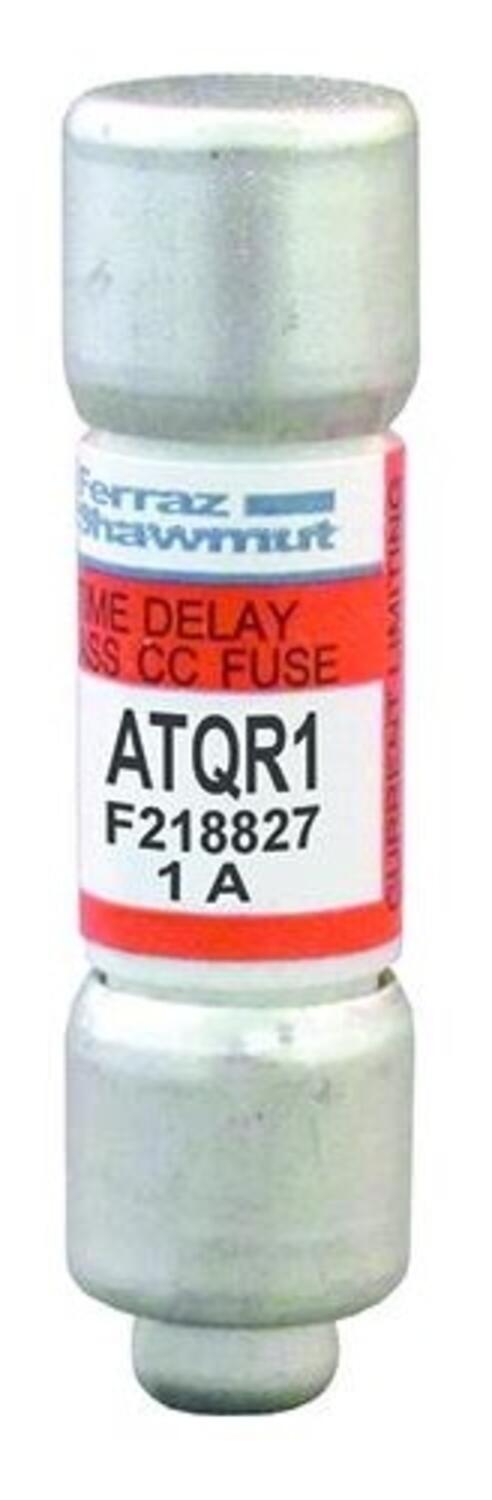

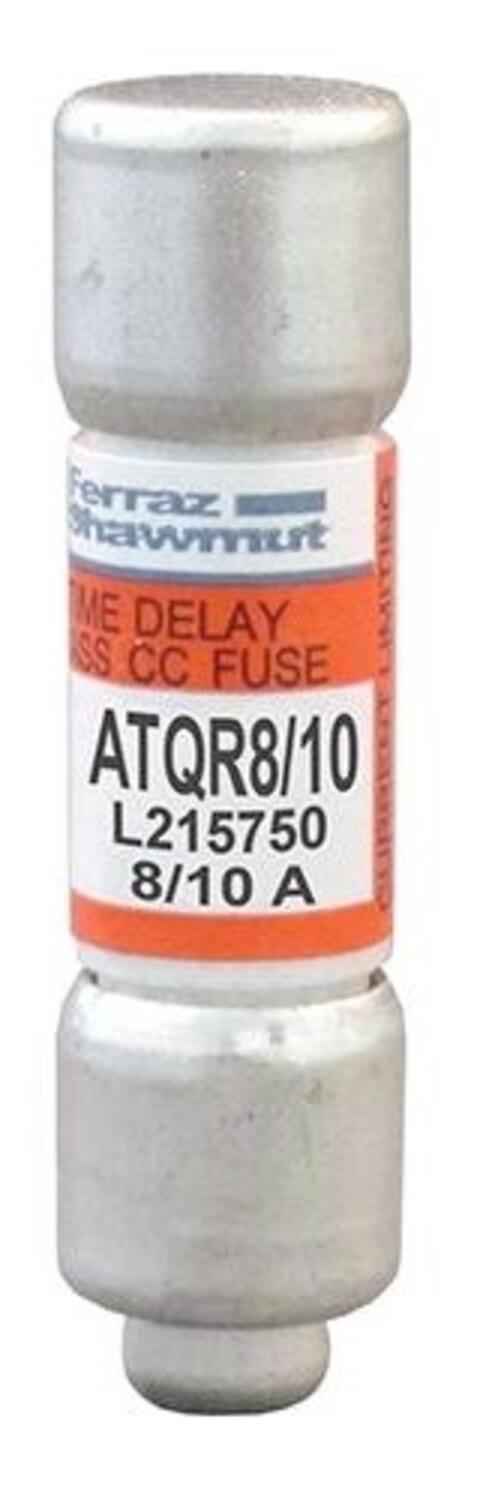

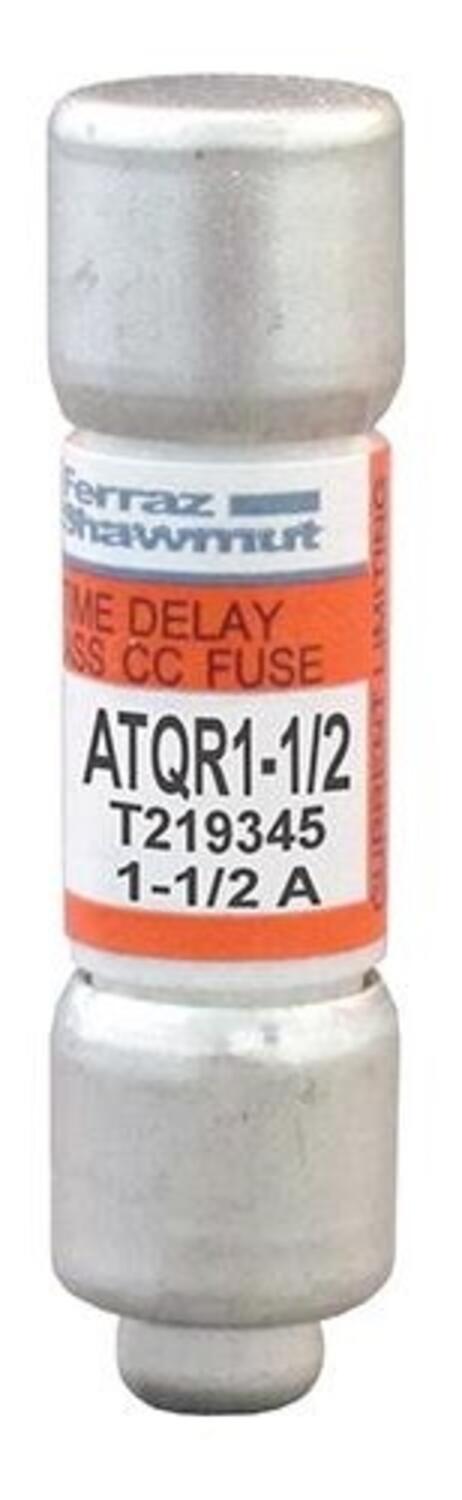

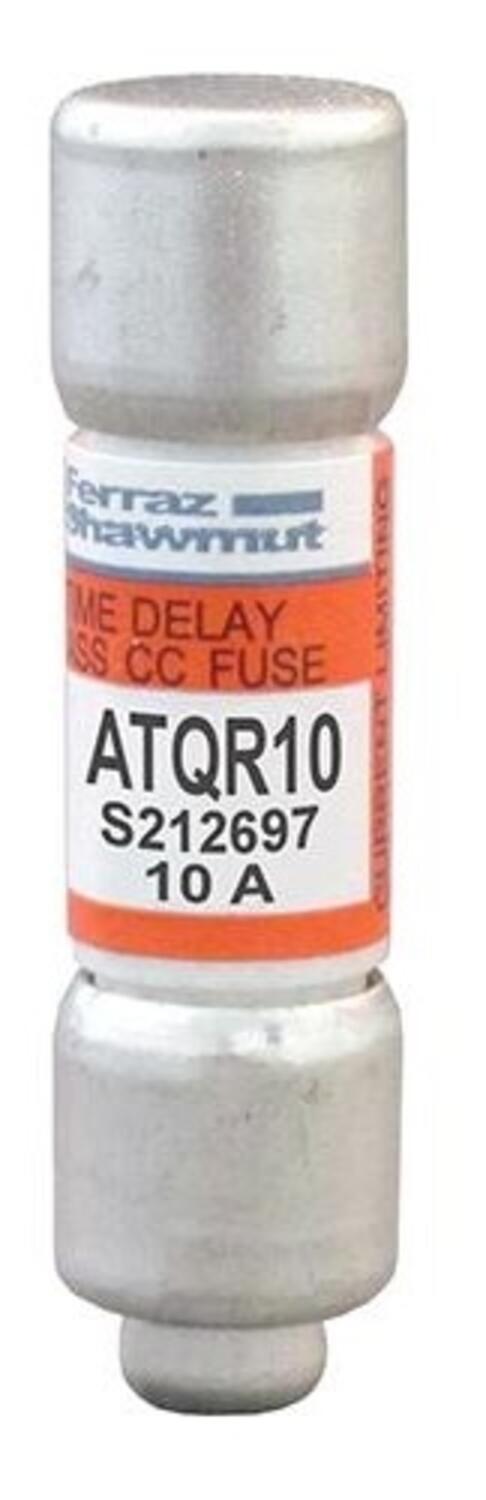

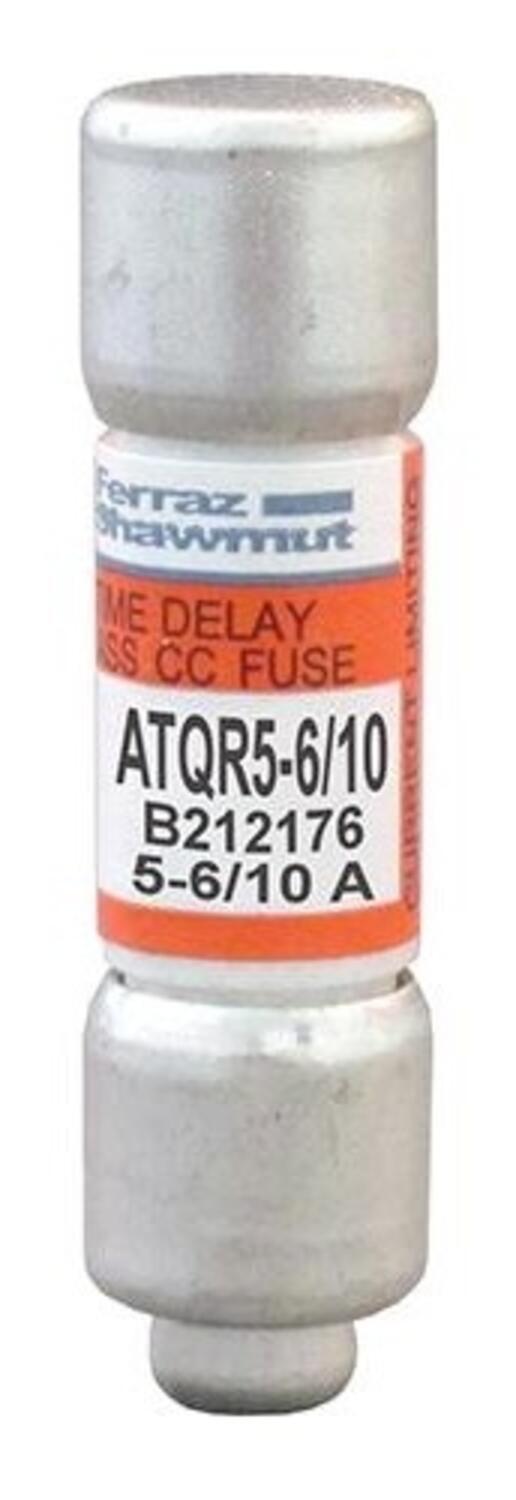

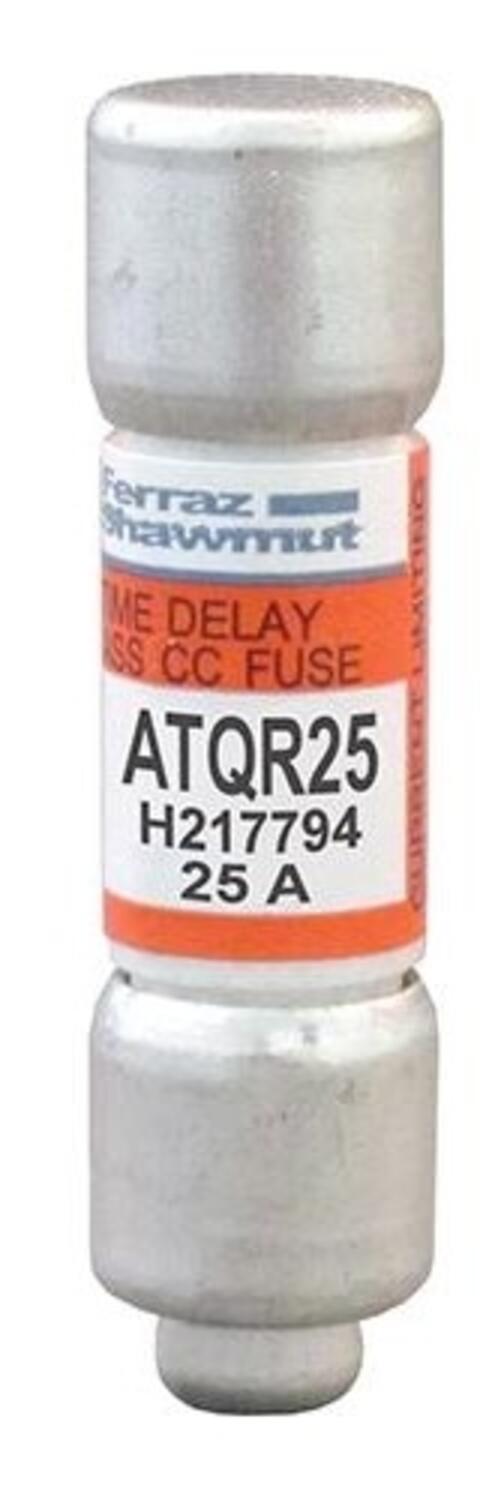

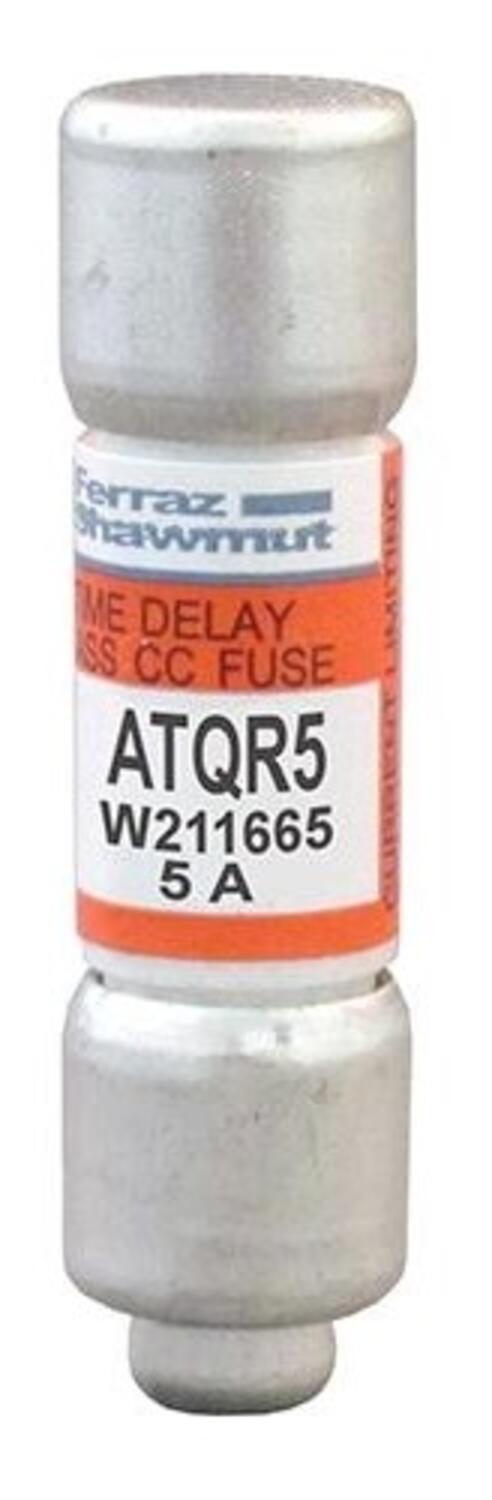

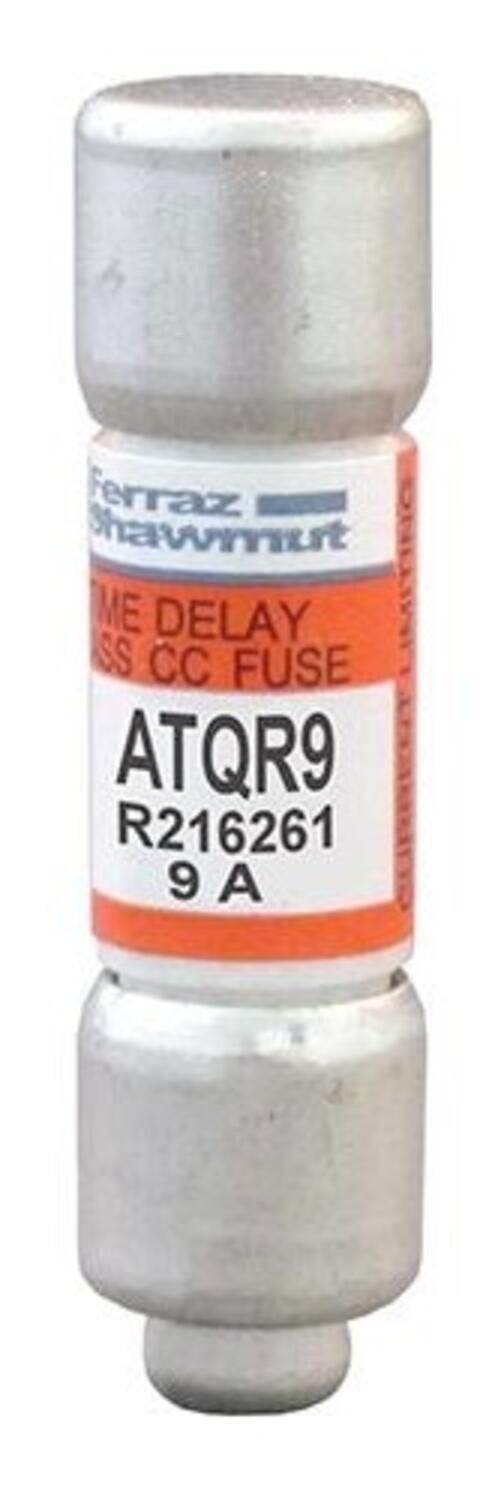

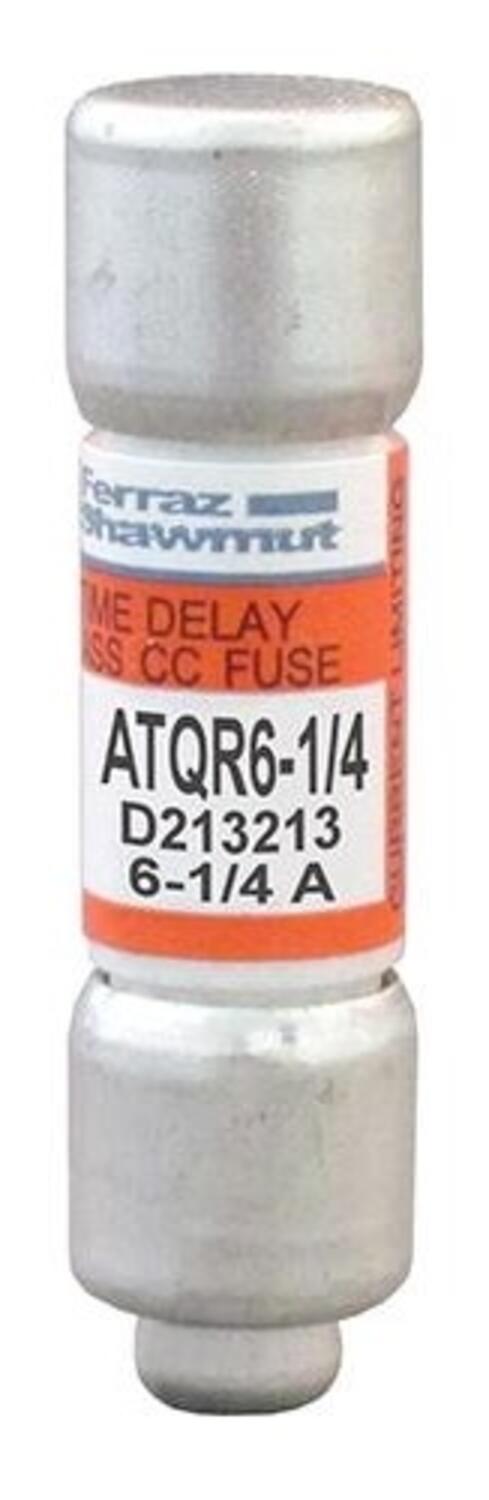

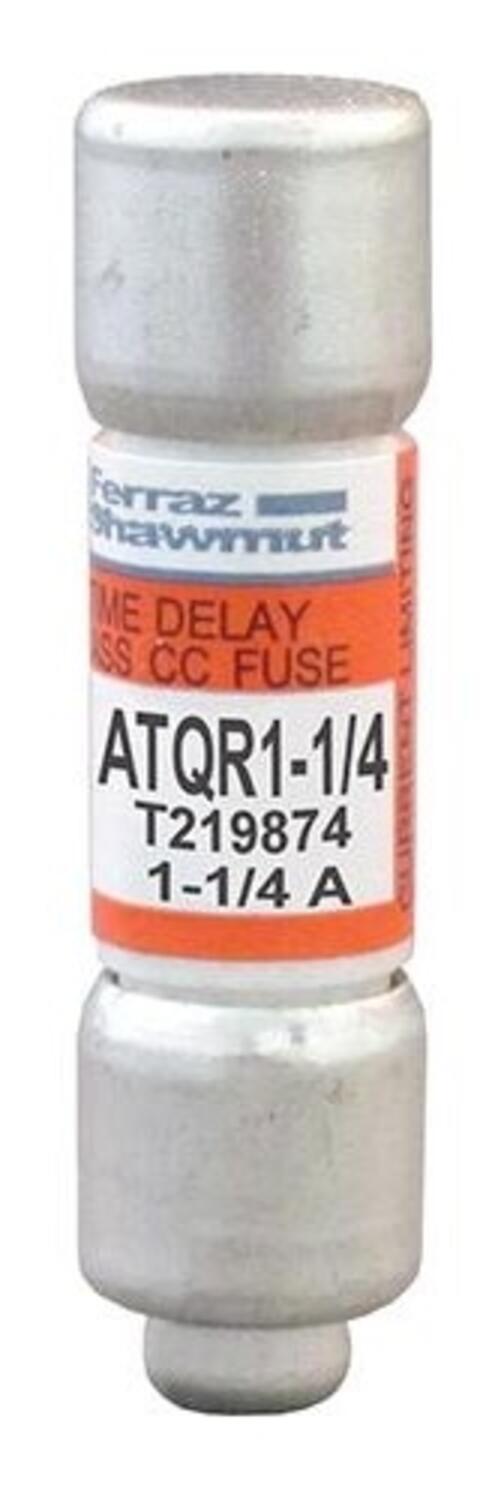

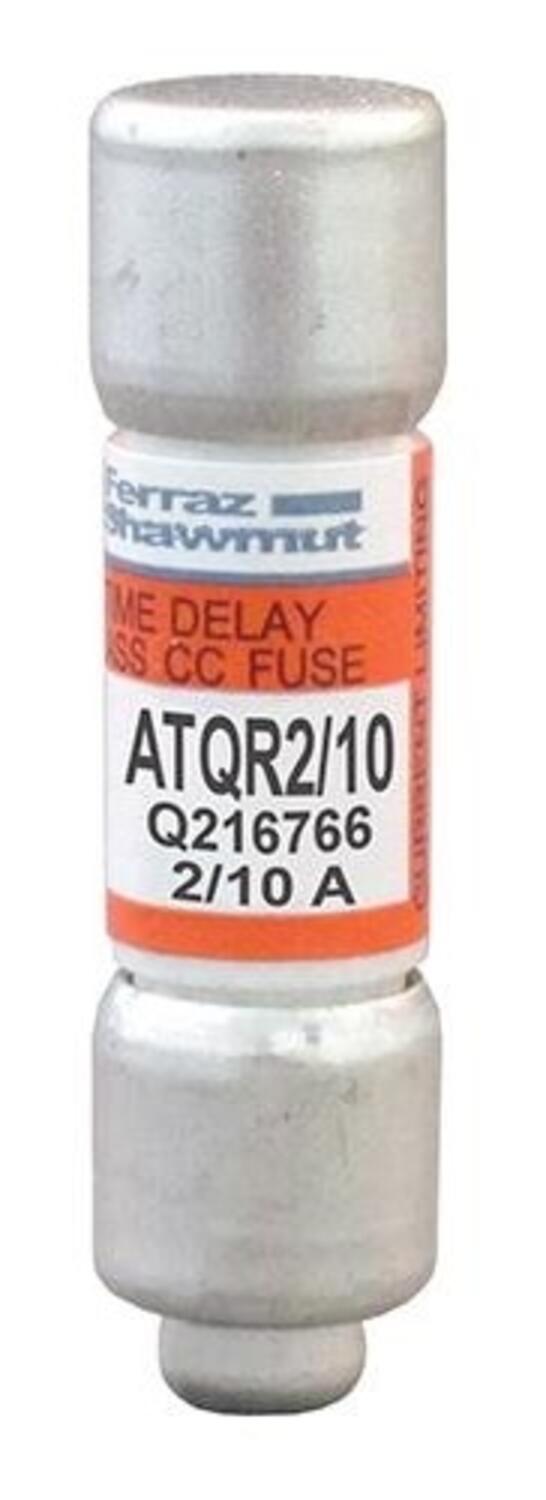

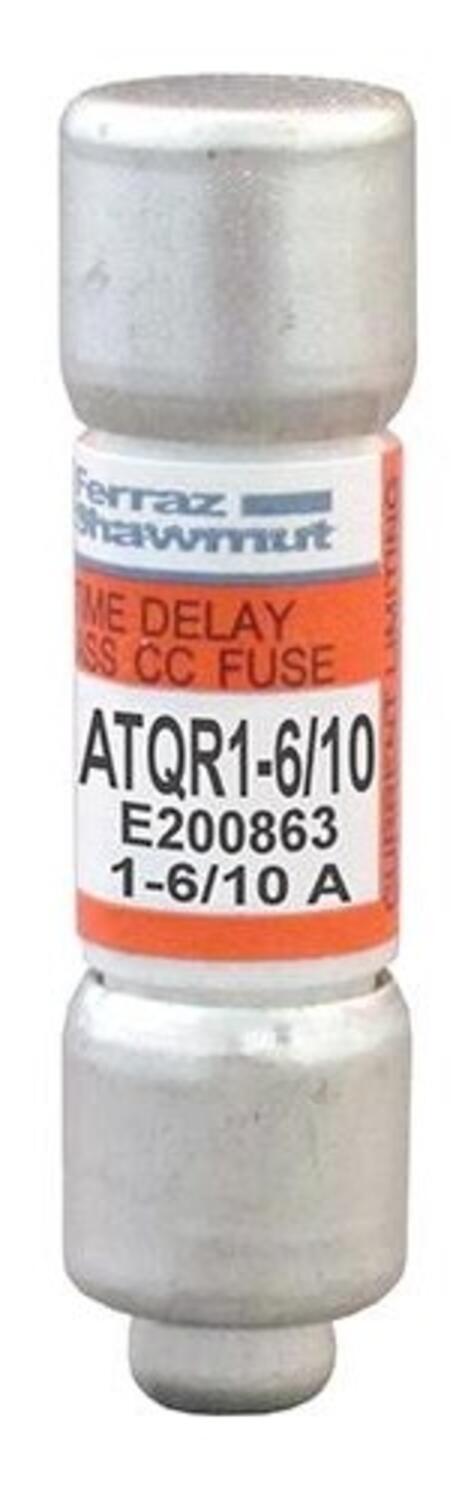

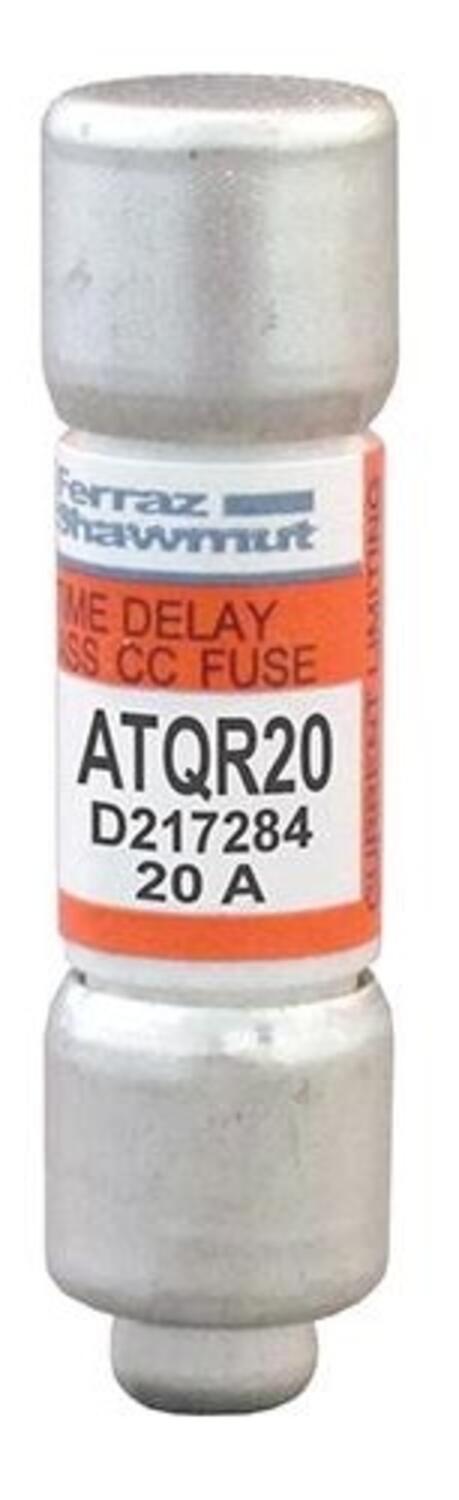

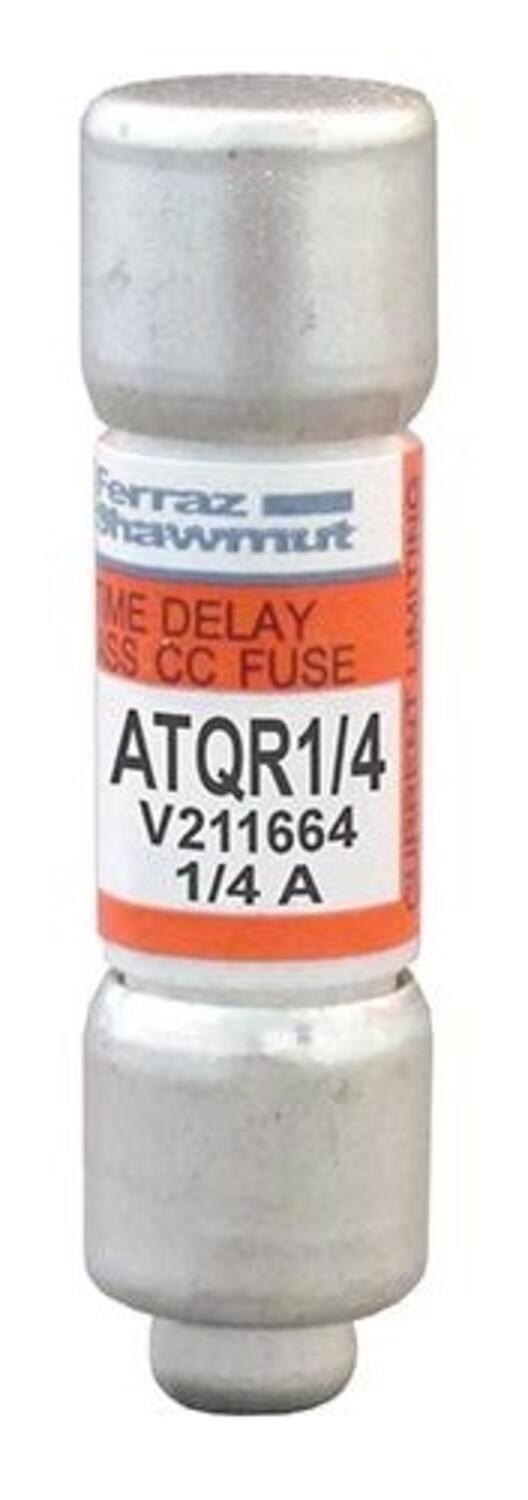

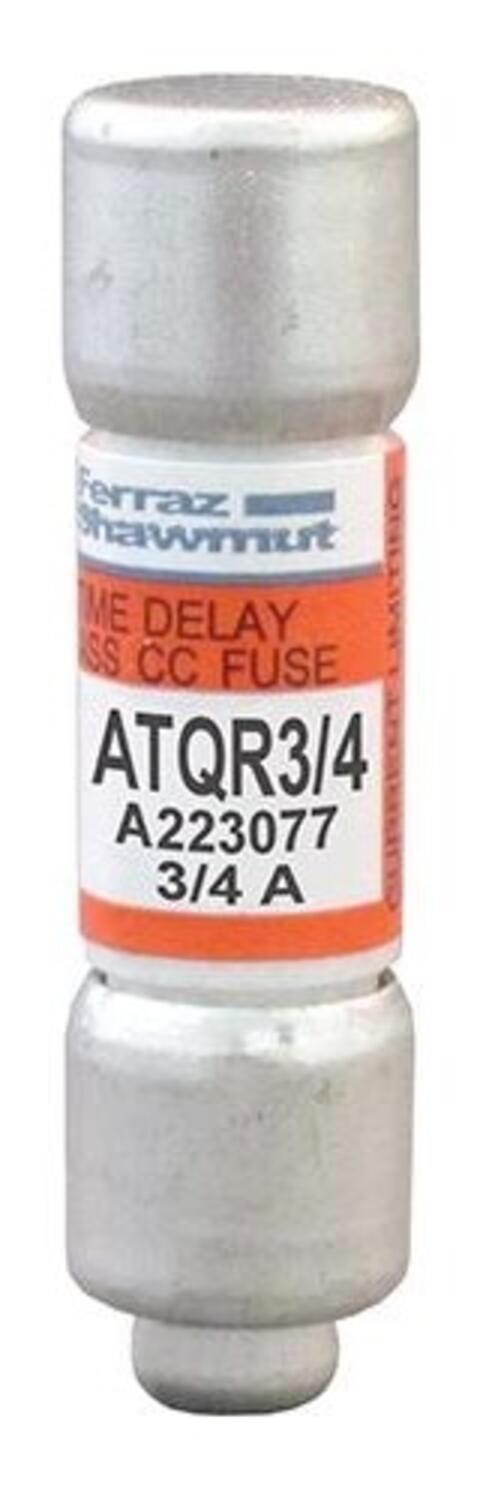

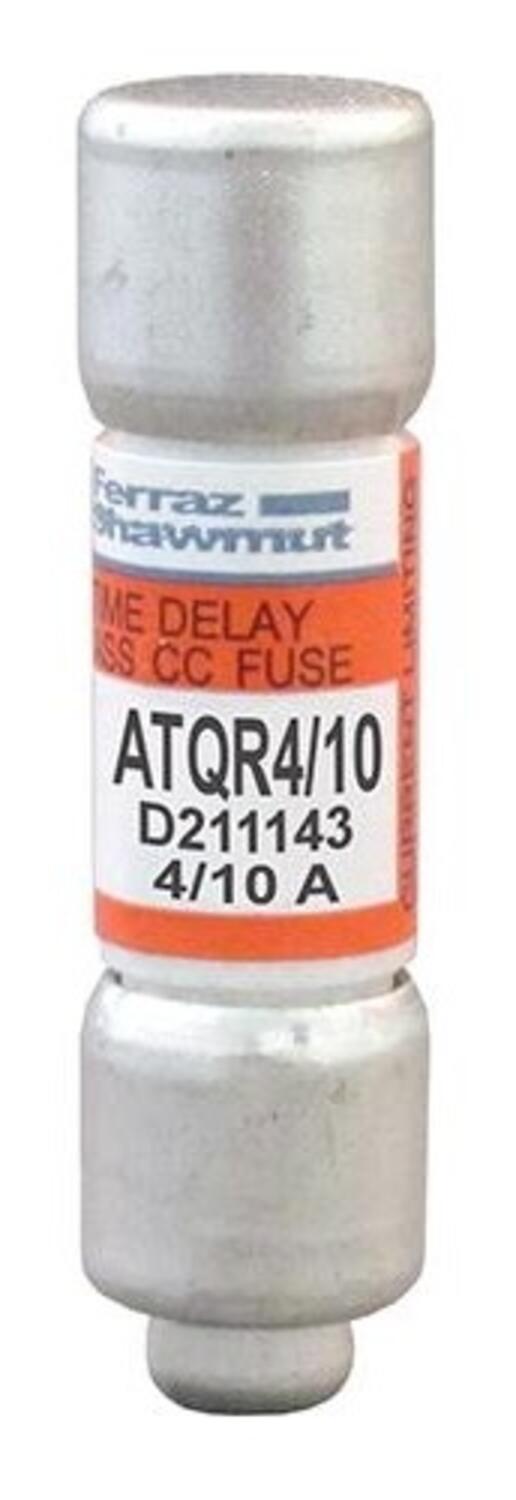

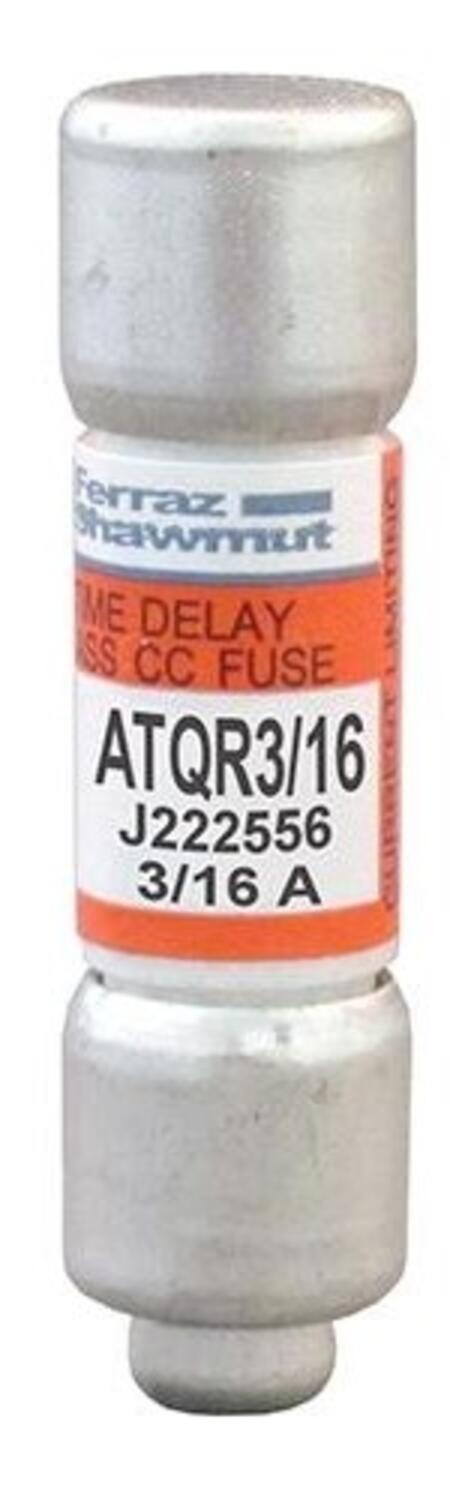

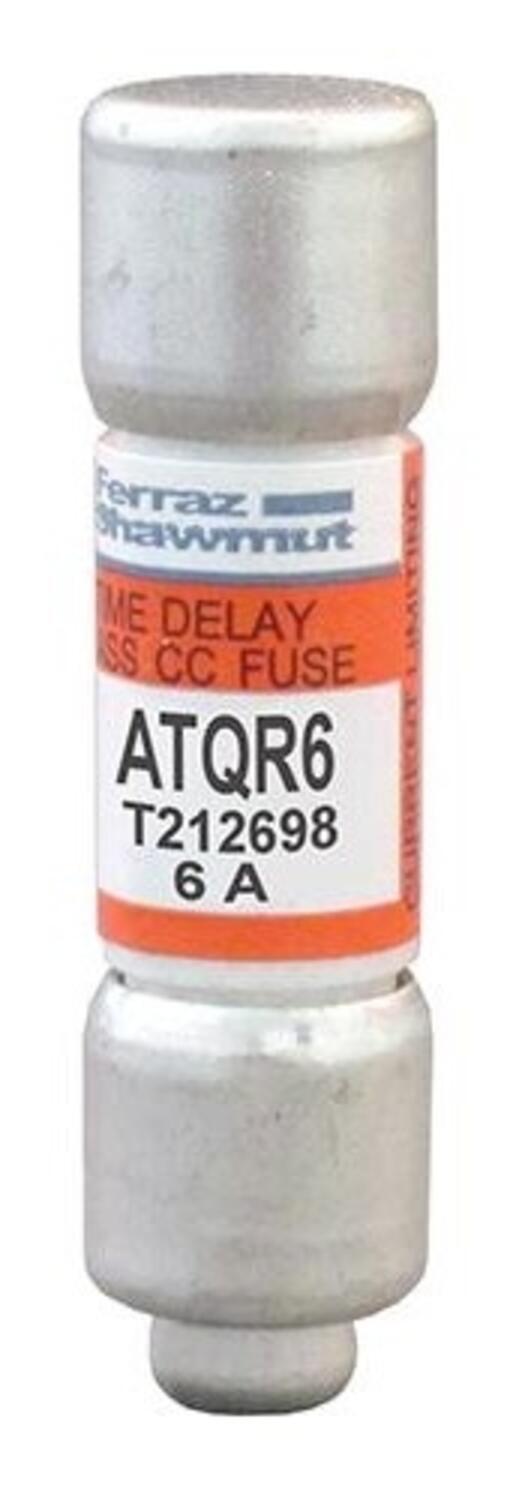

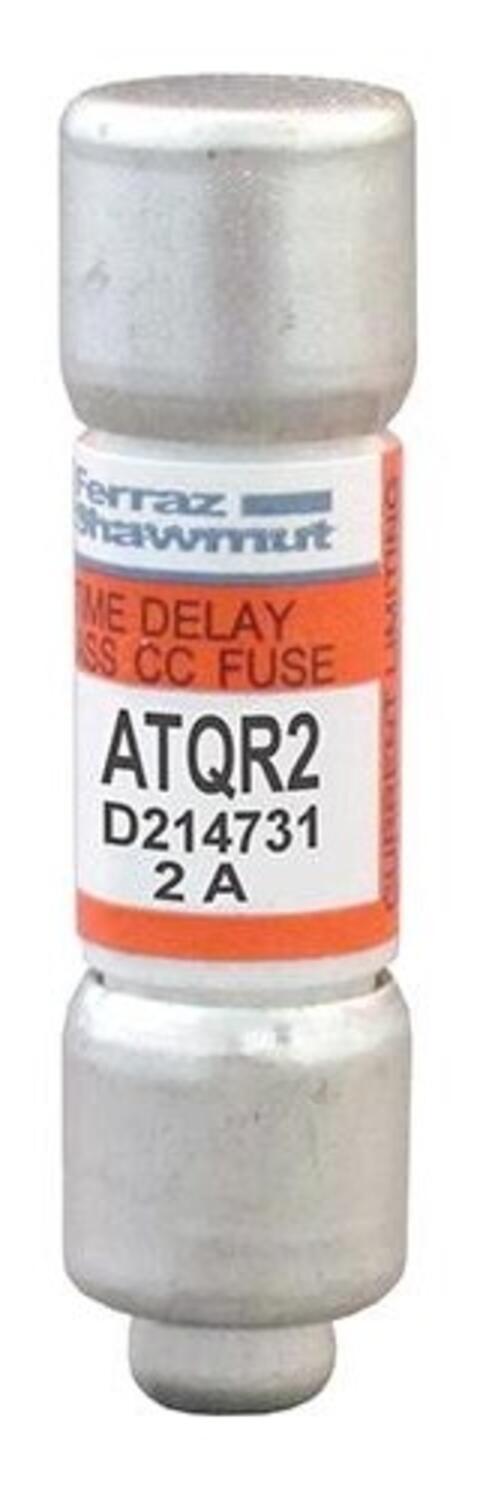

Amp-Trap ATQR Class CC
600 V AC, 300 V DC
Amp-Trap 2000 ATQR fuses are suitable for inductive loads and they withstand high inrush currents. Applications include control transformers, solenoids and other similar devices.
Features:
- Time-delayed
- Current limiting
- For control transformer protection
- For inductive loads
- Time-delay
- Current limiting
- Protection of small inverters
- Breaking capacity 200 kA(AC) / 100 kA(DC)
Selected variant
Specifications
| Approvals | UL, CSA |
|---|---|
| Breaking Capacity | 200 kA |
| Characteristic (CVL) | Time-Delay |
| Manufacturer Part No | E201921 |
| Nominal current | 0.1 A |
| Pack Size | 10 |
| Voltage AC max | 600 V |
| Voltage DC max | 300 V |
Downloads
Product description
Amp-Trap 2000 ATQR fuses are suitable for inductive loads and they withstand high inrush currents. Applications include control transformers, solenoids and other similar devices.
Features:
- Time-delayed
- Current limiting
- For control transformer protection
- For inductive loads
