CROUZET AUTOMATION

Expansion modules

  • Self powered
  • MODBUS Master or Slave
  • Digital and analogue extensions
  • Application specific modules

Selected variant

Crouzet_Automation_logo.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals CE, CSA, RoHS, UL
Depth 57.5 mm
Height 90 mm
Number of inputs 4
Number of outputs 2
OFF-Voltage Logic 0 Mode Input I5 IC 3 V
Supply voltage 12 V DC
Switching Voltage Logic 1 Mode Input I5-IG 7 V
Switching Voltage Max 250 V AC
Temperature range from -20 °C
Temperature range to 70 °C
Width 35.5 mm

Downloads

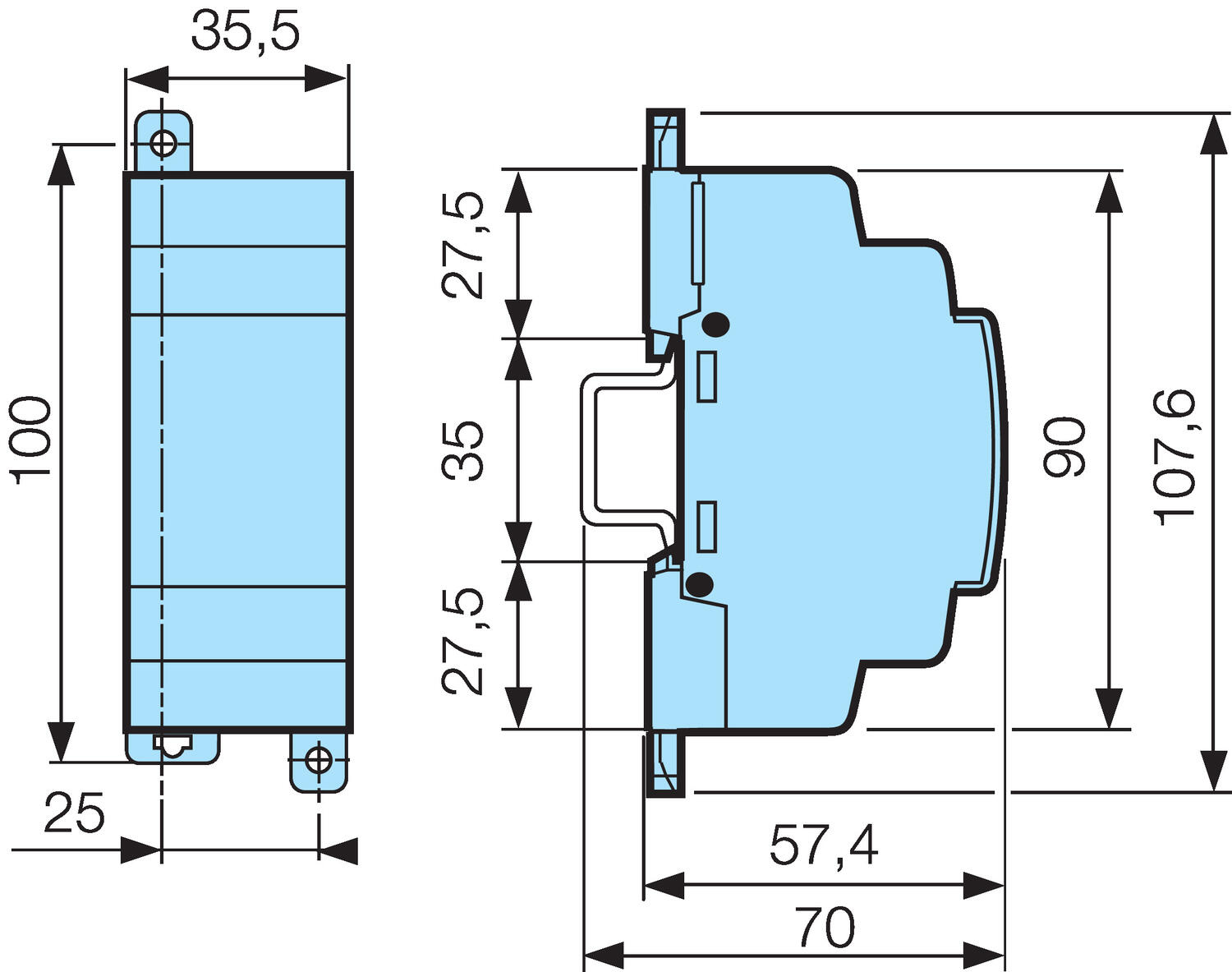

Measurements and connections

Accessories

Related products

Related

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Approvals Depth Expandable Height Number of inputs Number of outputs OFF-Voltage Logic 0 Mode Input I1-I4 OFF-Voltage Logic 0 Mode Input I5 IC Supply voltage Switching Voltage Logic 1 Mode Input I1-I4 Switching Voltage Logic 1 Mode Input I5-IG Switching Voltage Max Temperature range from Temperature range to Width
EXTENSION XR06 12VDC
Art:
88970215 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
4
2
3 V
12 V DC
7 V
250 V AC
-20 °C
70 °C
35.5 mm
MILL.3 XR06 6 I/O 24VDC
Art:
88970211 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
4
2
5 V
24 V DC
15 V
250 V AC
-20 °C
70 °C
35.5 mm
EXP.MODULE XR06 24VAC
Art:
88970214 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
4
2
5 V
24 V AC
14 V
250 V AC
-20 °C
70 °C
35.5 mm
MILL.3 XR06 6 I/O 230VAC
Art:
88970213 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
4
2
28 V
100-240 V AC
79 V
250 V AC
-20 °C
70 °C
35.5 mm
EXP.MODULE XR10 12VDC
Art:
88970225 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
6
4
3 V
12 V DC
7 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR10 10 I/O 24VDC
Art:
88970221 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
6
4
5 V
24 V DC
15 V
250 V AC
-20 °C
70 °C
72 mm
EXP.MODULE XR10 24VAC
Art:
88970224 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
6
4
5 V
24 V AC
14 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR10 10 I/O 230VAC
Art:
88970223 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
6
4
28 V
100-240 V AC
79 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR14 14 I/O 12VDC
Art:
88970235 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
8
6
3 V
12 V DC
7 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR14 14 I/O 24VDC
Art:
88970231 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
8
6
5 V
24 V DC
15 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR14 14 I/O 24VAC
Art:
88970234 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
8
6
5 V
24 V AC
14 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XR14 14 I/O 230VAC
Art:
88970233 Copied
CE, CSA, RoHS, UL
57.5 mm
90 mm
8
6
28 V
100-240 V AC
79 V
250 V AC
-20 °C
70 °C
72 mm

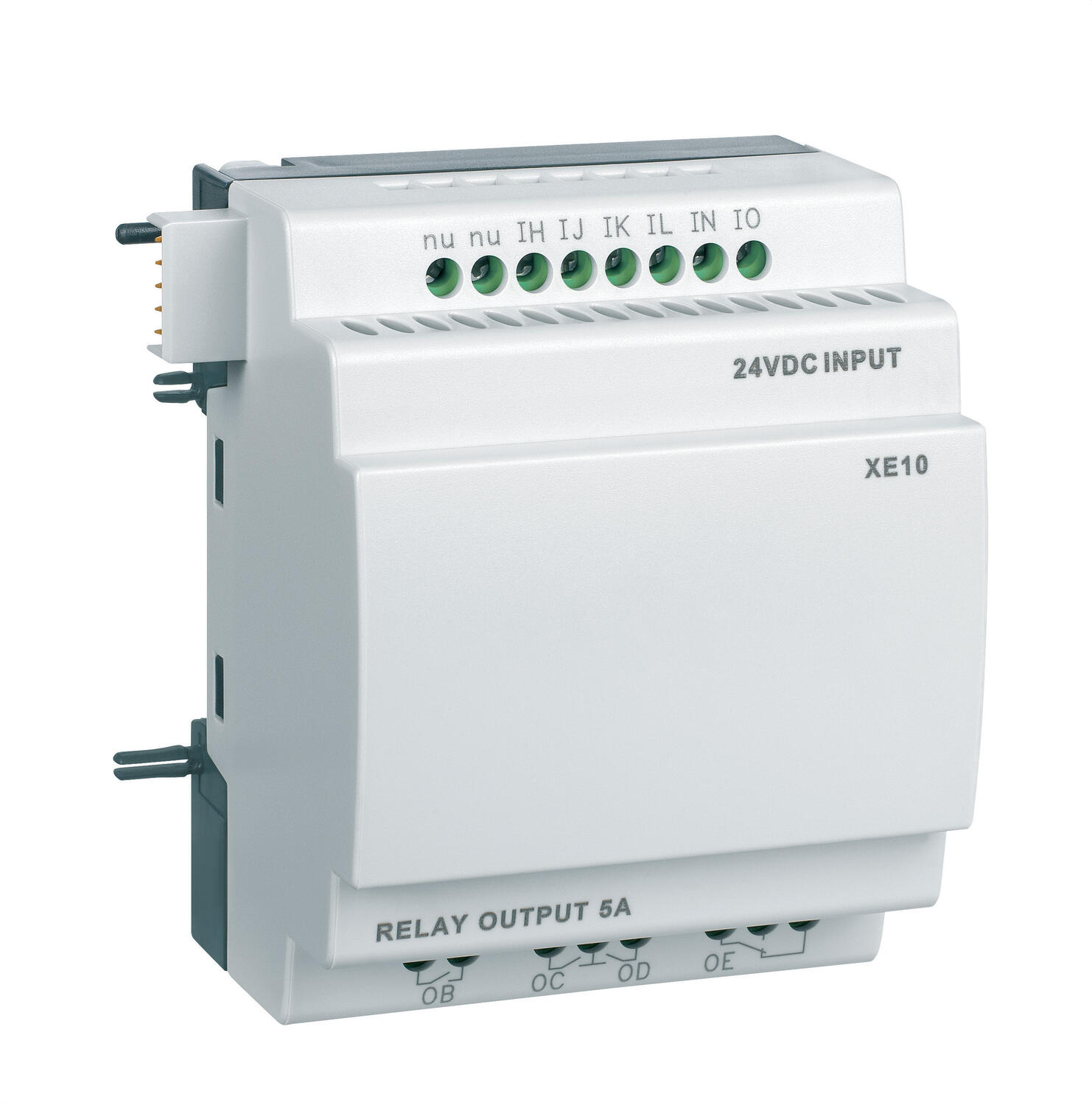

MILL.3 XE10 10I/O EXT 24VDC
Art:
88970321 Copied
CE, CSA, RoHS, UL
57.5 mm
Yes
90 mm
6
4
5 V
24 V DC
15 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XE10 10I/O EXT 24VAC
Art:
88970324 Copied
CE, CSA, RoHS, UL
57.5 mm
Yes
90 mm
6
4
5 V
24 V AC
14 V
250 V AC
-20 °C
70 °C
72 mm
MILL.3 XE10 10I/O EXT 230VAC
Art:
88970323 Copied
CE, CSA, RoHS, UL
57.5 mm
Yes
90 mm
6
4
28 V
100-240 V AC
79 V
250 V AC
-20 °C
70 °C
72 mm

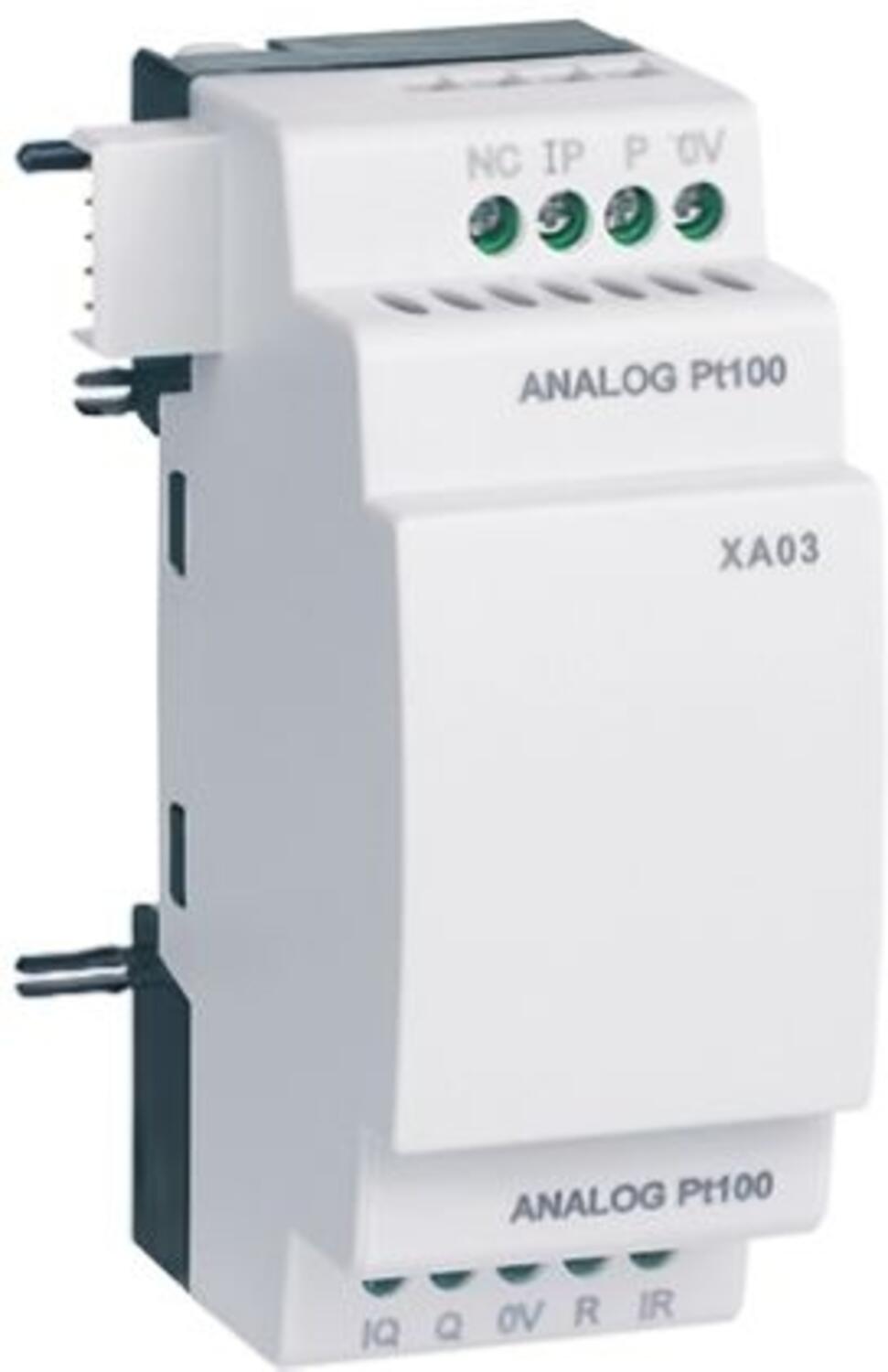

MILL.3 XA03 3 PT100 INPUTS
Art:
88970800 Copied
CE, CSA, GL, UL
57.4 mm
90 mm
3
24 V DC
35.5 mm

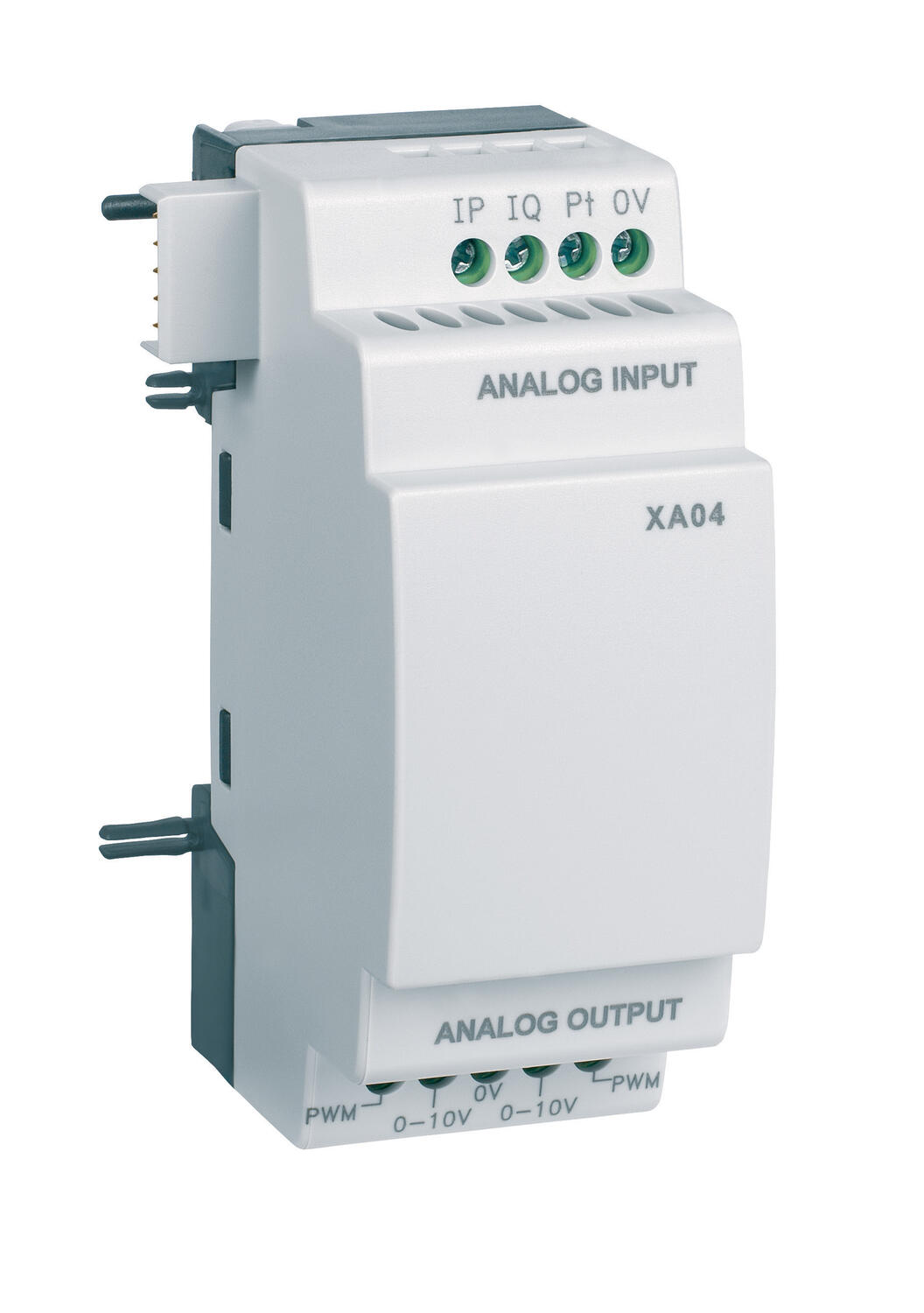

MILL.3 XA04 4 ANA I/O 24VDC
Art:
88970241 Copied
57.4 mm
90 mm
2
2
24 V DC
35.5 mm

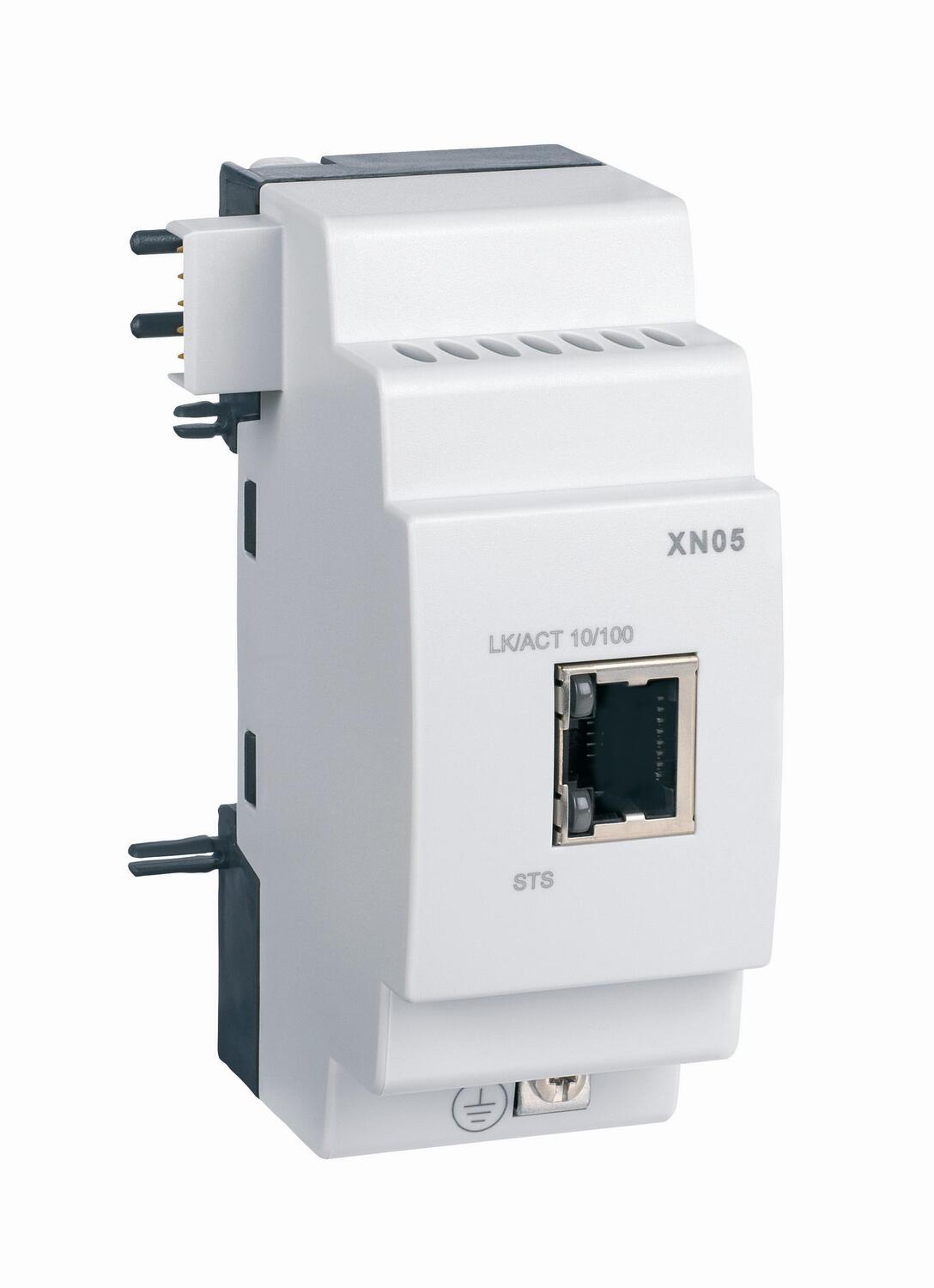

MILL.3 XN05 ETHERNET SLAVE 24V
Art:
88970270 Copied
24 V DC
MILL.3 XN06 MODBUS SLAVE 24VDC
Art:
88972250 Copied
24 V DC

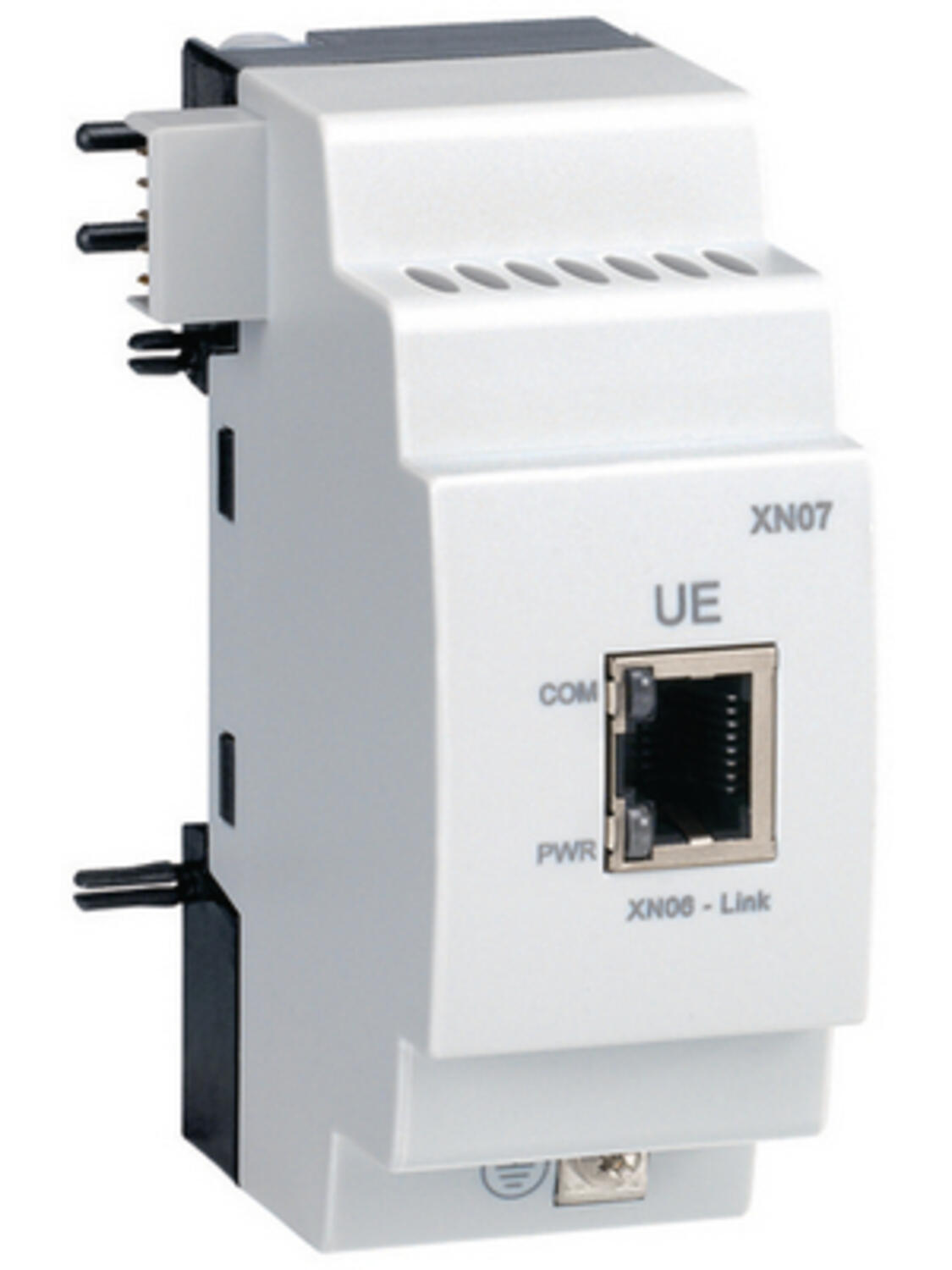

MILL.3 XN07 24VDC
Art:
88974250 Copied
24 V DC
