CROUZET AUTOMATION
The Crouzet Touch range of HMI offers a high quality, high performance HMI but at a highly competative price.
We see more and more panels and system controlled and monitored by an HMI as opposed to traditional gauges, pilot light and meters. Modernising a panel with an HMI used to be an expensive and difficult task. Now, with the new range of Crouzet Touch HMI you can modernise and improve your application at a fraction of the historical costs.
The Crouzet Touch range consists of two versions,
Essential | Performance |
|
|
Approvals | UL, CE |
---|---|
Backlight | LED > 30.000 h |
Depth | 32 mm |
Display | 4,3" TFT LCD |
Height | 102 mm |
I / O Ports - COM Port RS-232 | COM1 male |
I / O Ports - COM Port RS-485 | COM1 2/4 wires male, COM3 2 wires male |
IP Class Front | IP65 |
Power consumption | 300 mA @24V |
Processor | 32 bit RISC Cortex-A8, 600 MHz |
---|---|
Punching | 119 x 93 mm |
Resolution | 480x272 |
Supply voltage | 24 V DC |
Temperature range from | 0 °C |
Temperature range to | 50 °C |
Width | 128 mm |
The Crouzet Touch range of HMI offers a high quality, high performance HMI but at a highly competative price.
We see more and more panels and system controlled and monitored by an HMI as opposed to traditional gauges, pilot light and meters. Modernising a panel with an HMI used to be an expensive and difficult task. Now, with the new range of Crouzet Touch HMI you can modernise and improve your application at a fraction of the historical costs.
The Crouzet Touch range consists of two versions,
Essential | Performance |
|
|
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.
Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Approvals | Depth | Display | Height | I / O Ports - COM Port RS-232 | I / O Ports - COM Port RS-485 | Power consumption | Processor | Punching | Resolution | Temperature range to | Width | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

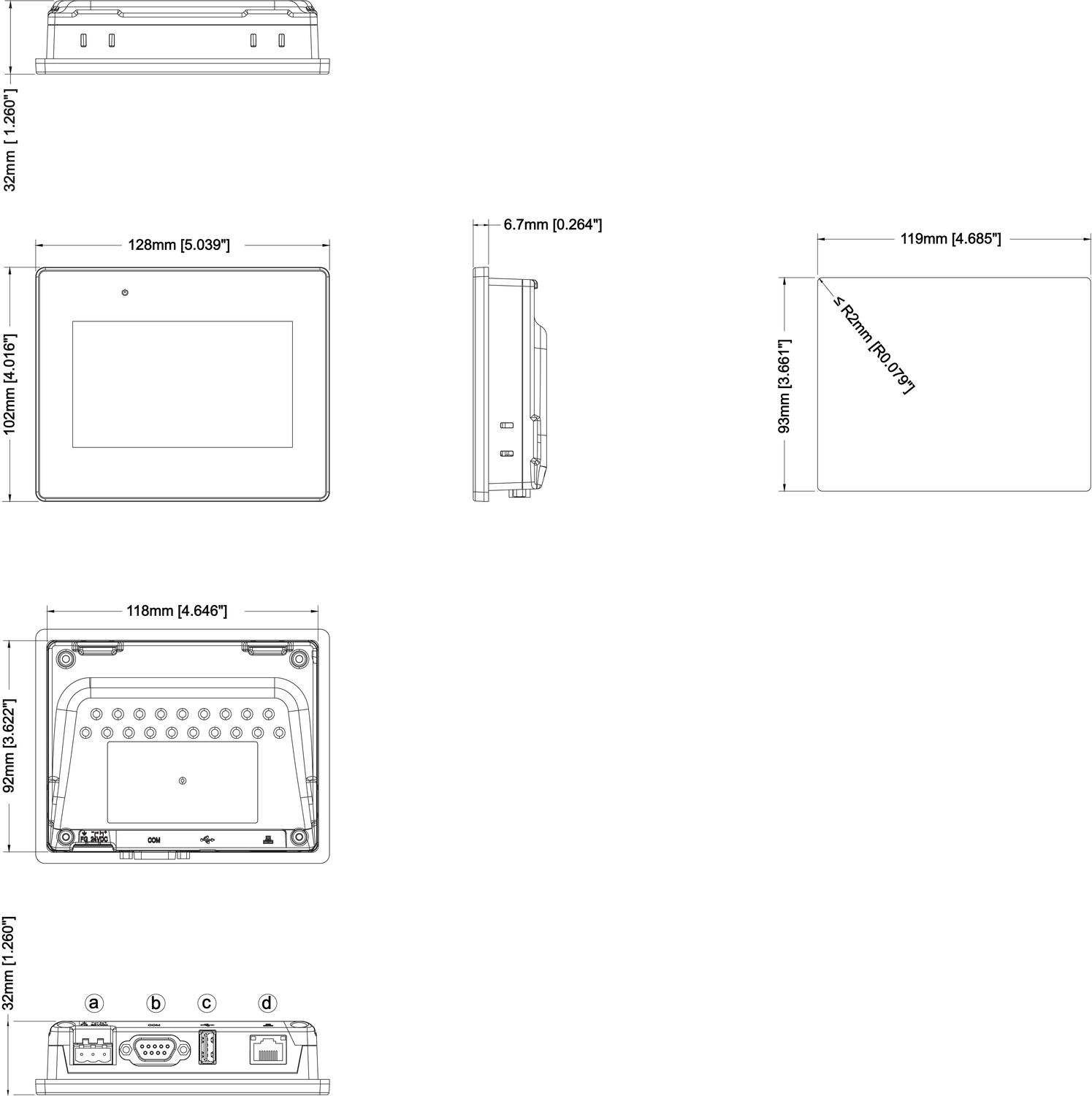

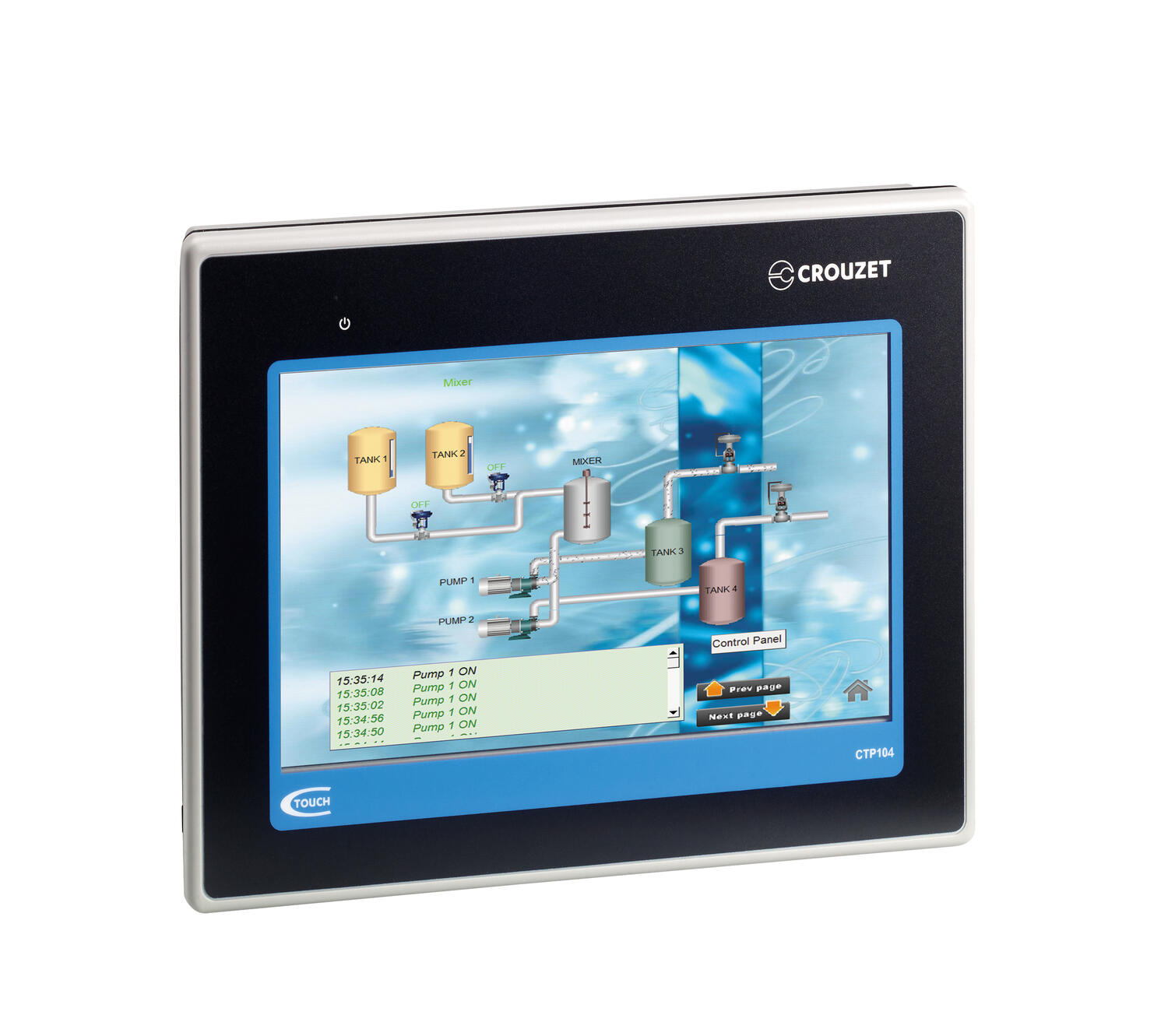

HMI CTP104-E Performance 4.3" + M3 Serial Cable
Art:
88970553
Copied
|
UL, CE
|
32 mm
|
4,3" TFT LCD
|
102 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
119 x 93 mm
|
480x272
|
50 °C
|
128 mm
|
| |
![]()
HMI CTP104-E Performance 4.3"
Art:
88970554
Copied
|
UL, CE
|
32 mm
|
4,3" TFT LCD
|
102 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
119 x 93 mm
|
480x272
|
45 °C
|
128 mm
|
| |
![]()
HMI CTP107-E Performance 7" + M3 Serial Cable
Art:
88970563
Copied
|
UL, CE
|
34 mm
|
7" TFT LCD
|
146.3 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
192 x 139 mm
|
800x480
|
50 °C
|
200.4 mm
|
| |
![]()
HMI CTP107-E Performance 7"
Art:
88970564
Copied
|
UL, CE
|
34 mm
|
7" TFT LCD
|
146.3 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
450 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
192 x 139 mm
|
800x480
|
50 °C
|
200.4 mm
|
| |
![]()
HMI CTP110-E Performance 10" + M3 Serial Cable
Art:
88970573
Copied
|
CE
|
36.5 mm
|
9,7" TFT LCD
|
203.1 mm
|
COM1 male, COM3 male
|
COM2 2/4 wires female, COM3 2 wires female
|
650 mA @24V
|
32 bit RISC Cortex-A8, 1 GHz
|
250 x 192 mm
|
1024x768
|
50 °C
|
260.6 mm
|
| |
![]()
HMI CTP110-E Performance 10"
Art:
88970574
Copied
|
CE
|
36.5 mm
|
9,7" TFT LCD
|
203.1 mm
|
COM1 male, COM3 male
|
COM2 2/4 wires female, COM3 2 wires female
|
650 mA @24V
|
32 bit RISC Cortex-A8, 1 GHz
|
250 x 192 mm
|
1024x768
|
50 °C
|
260.6 mm
|
| |
![]()
HMI CT104 Essential 4.3" + M3 Serial Cable
Art:
88970523
Copied
|
CE
|
32 mm
|
4,3" TFT LCD
|
102 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
119 x 93 mm
|
480x272
|
50 °C
|
128 mm
|
| |
![]()
HMI CT104 Essential 4.3"
Art:
88970524
Copied
|
CE
|
32 mm
|
4,3" TFT LCD
|
102 mm
|
COM1 male
|
COM1 2/4 wires male, COM3 2 wires male
|
300 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
119 x 93 mm
|
480x272
|
50 °C
|
128 mm
|
| |
![]()
HMI CT107 Essential 7" + M3 Serial Cable
Art:
88970533
Copied
|
CE
|
34 mm
|
7" TFT LCD
|
146.5 mm
|
COM1 male
|
COM2 2/4 wires male
|
500 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
192 x 138 mm
|
800x480
|
50 °C
|
200.4 mm
|
| |
![]()

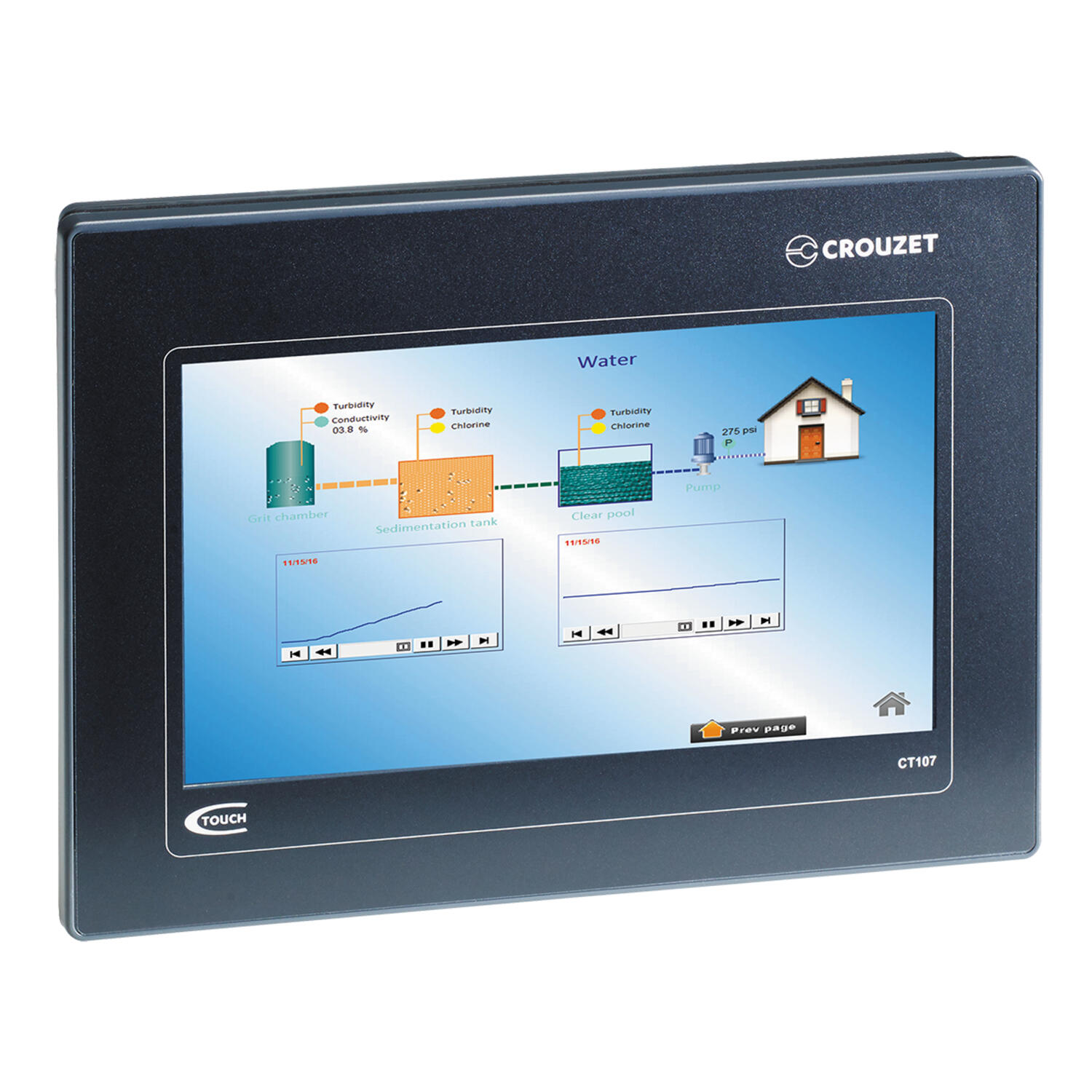

HMI CT107 Essential 7"
Art:
88970534
Copied
|
CE
|
34 mm
|
7" TFT LCD
|
146.5 mm
|
COM1 male
|
COM2 2/4 wires male
|
500 mA @24V
|
32 bit RISC Cortex-A8, 600 MHz
|
192 x 138 mm
|
800x480
|
50 °C
|
200.4 mm
|
|
