CAL CONTROLS
CAL 9500P
- PID controller equipped with bright LED display
- Display indicates default and measured values
- Easy to program
- 3 outputs by default
- Analog input and output options available
Selected variant
Specifications
| Approvals | CE, CSA, EMC, UL, FM |
|---|---|
| Digit Height | 10 mm |
| Digital signal in | No |
| Frequenze | 50-60 Hz |
| IP Class | IP66 |
| Material Protection | Polycarbonate |
| Mounting | Panel mount |
| Number Of Digits | 4 |

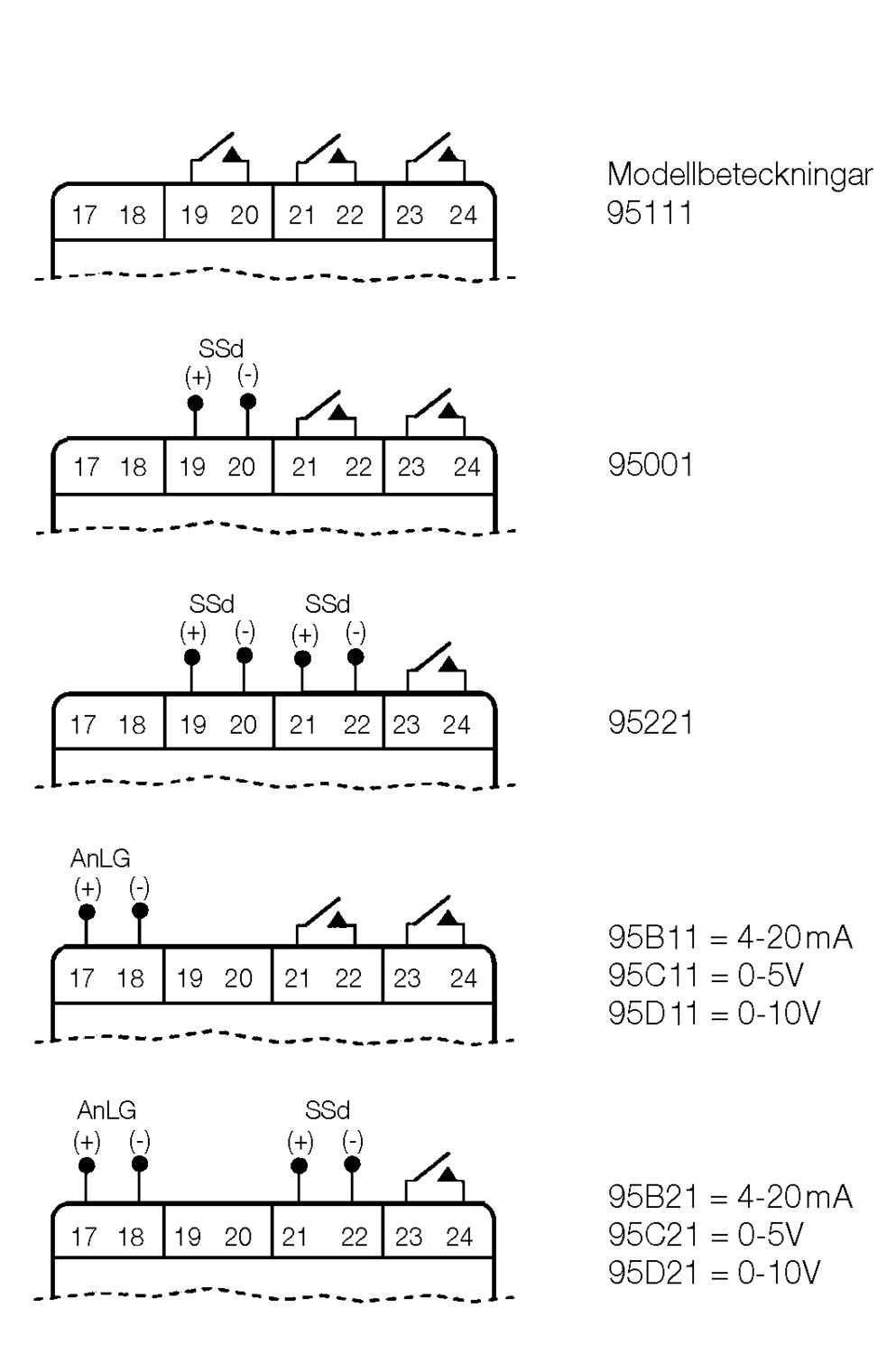

| Output | Logic (SSR), 2x Relay |
|---|---|

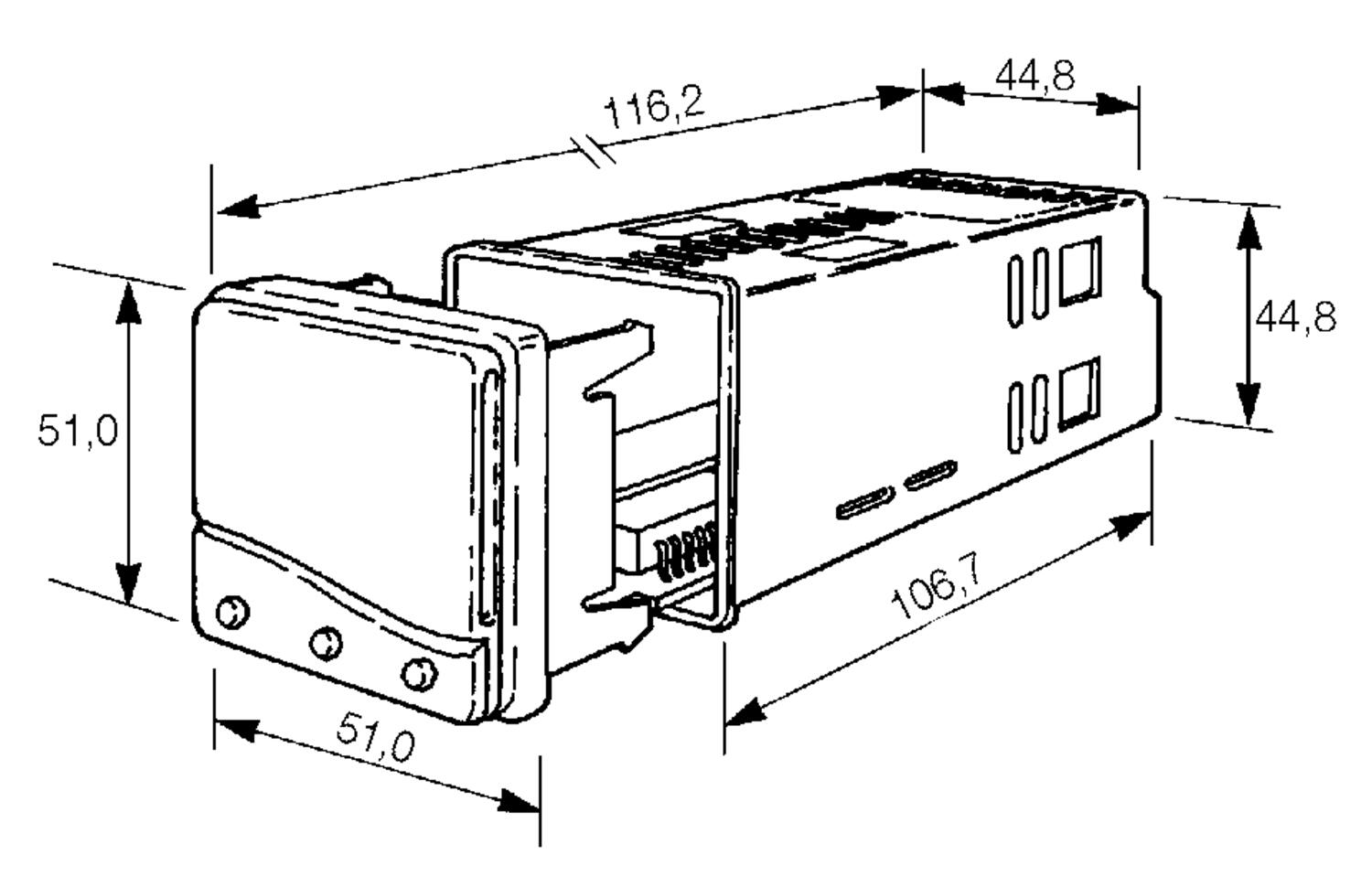

| Panel size | 48x48 mm |
| Power Supply AC max | 264 V |
| Power Supply AC min | 90 V |
| Temperature resistance housing to | 50 °C |
| Weight | 180 g |
