PULS
Power supply 1-phase, 36 V DC Dimension C series, Generation 2
36-42V, 6,7A
- Width 39mm
- 95,4% efficiency

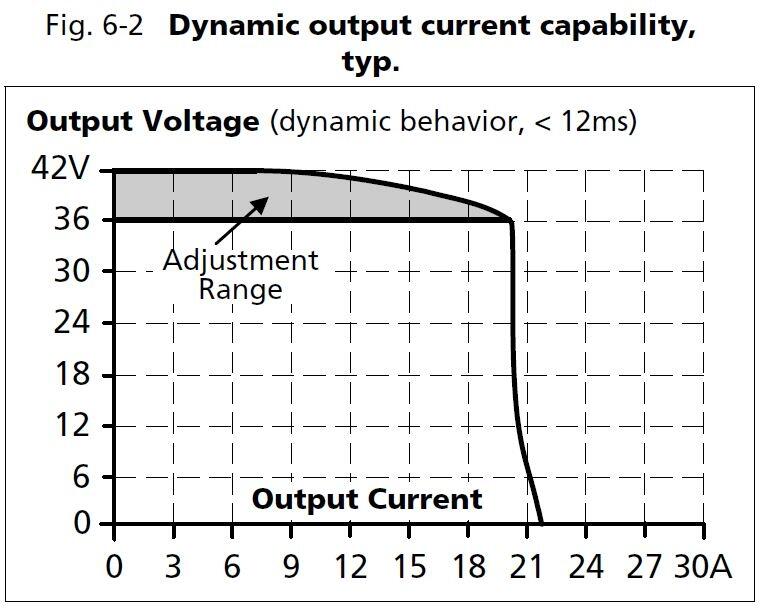

- 20% power reserve

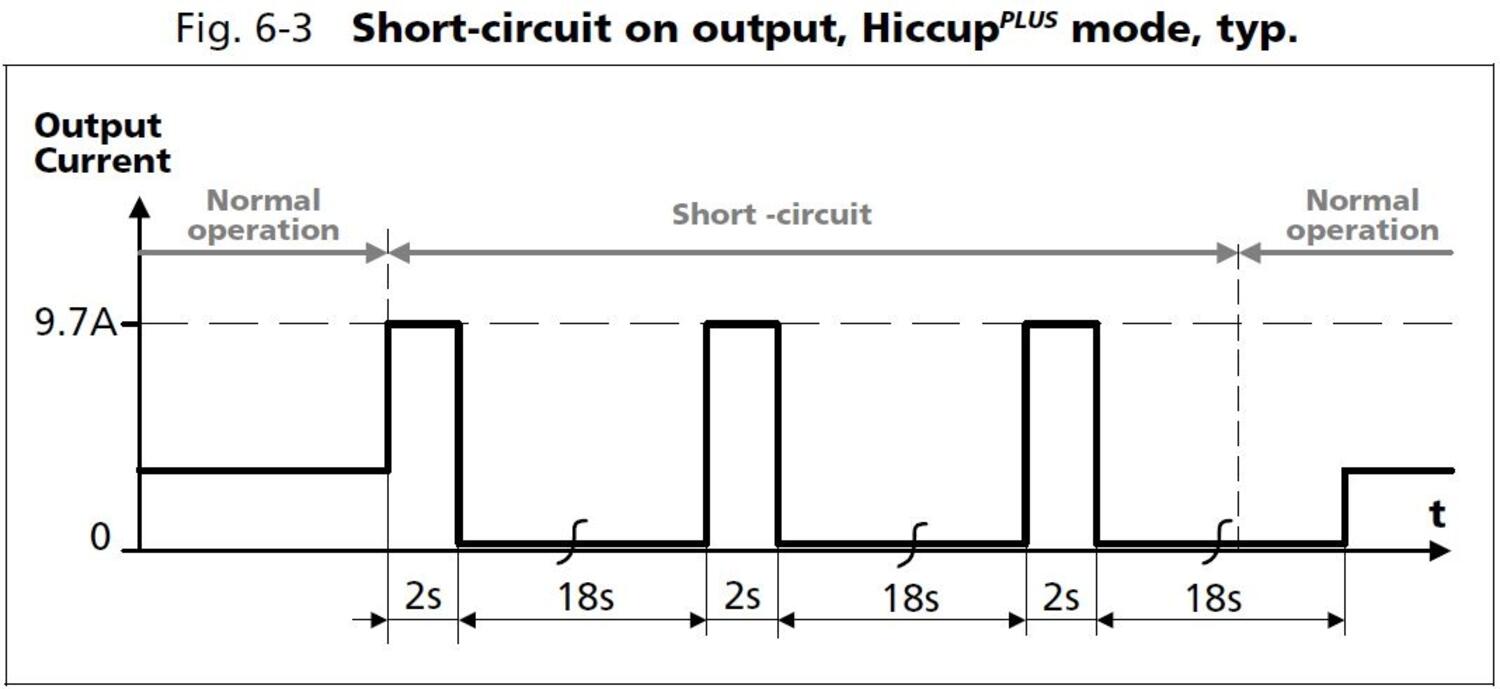

- Active PFC, DC-OK Relay Contact, Hiccup Plus
Selected variant
Specifications
| Input voltage AC | 100-240 V |
|---|---|
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 264 V AC |
| Input voltage DC | 110-150 V |
| Input voltage dc min | 88 V DC |
| Input voltage dc max | 180 V DC |
| Inrush current at 120 V ac typical | 6 A |
| Input current at 230 V ac typical | 6 A |
| Input voltage range | Wide-range |
| Power Factor at 120 V AC, full load. Typical | 0.99 |
| Power Factor at 230 V AC, full load. Typical | 0.97 |
| Number of phases | 1 |

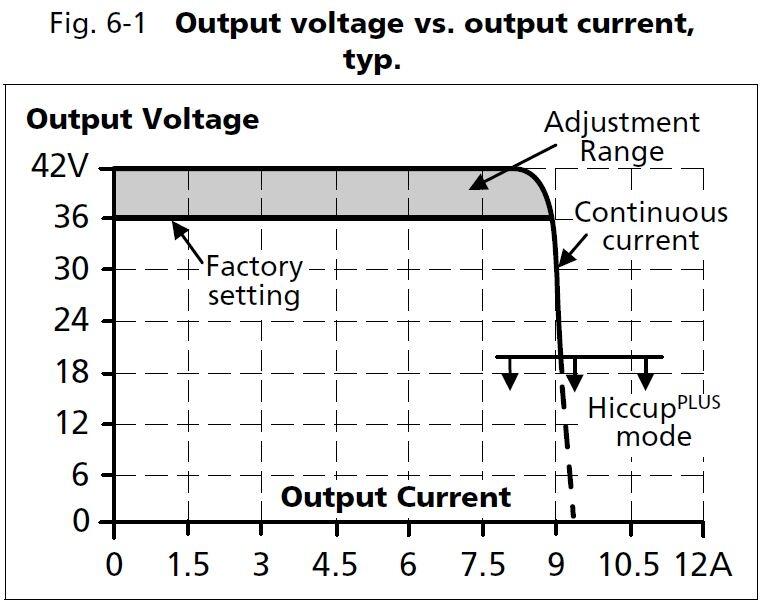

| Output voltage | 36 V DC |
| Output voltage min | 36 V DC |
| Output voltage max | 42 V DC |
| Output Current | 6.7 A |
| Effect | 240 W |

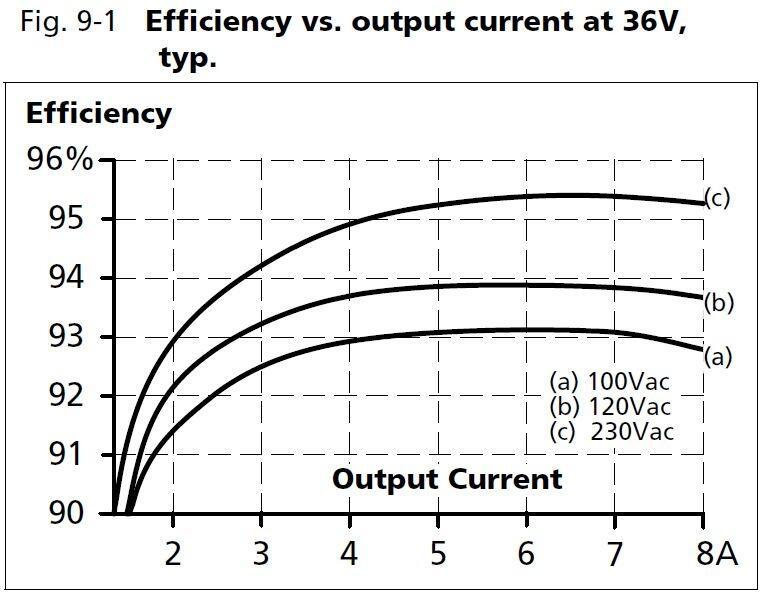

| Efficiency At 120 V AC, full load. Typical | 93.8 % |
| Efficiency At 230 V AC. Typical | 94.3 % |
| Efficiency At 230 V AC, full load. Typical | 95.4 % |
| Lifetime at 120 V ac, full load and +40 ° C | 87000 h |
| Lifetime at 230 V ac, full load and +40 ° C | 130000 h |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 661000 h |
|---|---|

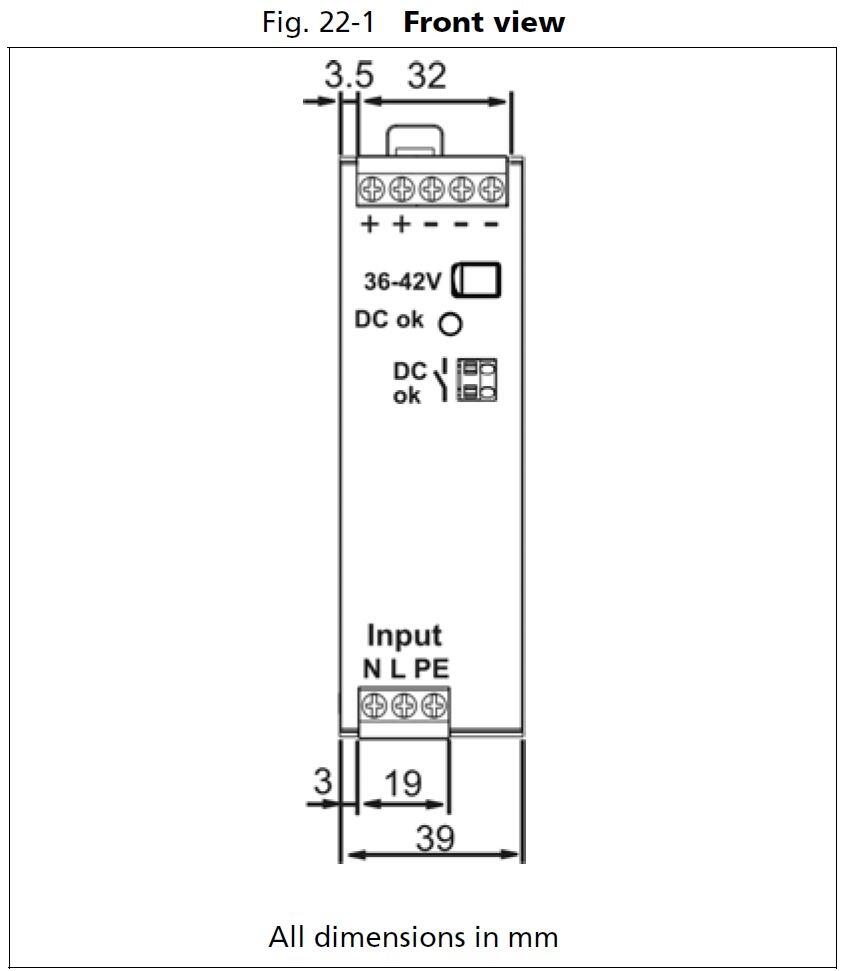

| Width | 39 mm |
| Height | 124 mm |
| Depth | 117 mm |
| Weight | 0.6 kg |
| Approvals | ABS, CB, CE, CSA, EX, GL, IECEx, UL |
| Hold-up time at 120 V AC, full load. Typical. | 38 ms |
| Hold-up time at 230 V AC, full load. Typical. | 38 ms |
| IP Class | IP20 |
| Clamp type | Screw |
| Material Protection | Aluminium |
| Supply Frequency | 50-60 ±6 % |
| Ripple. max | 50 mV pp |
| Series | Dimension C |
| Power Consumption At 120 V AC | 2.16 A |
| Power Consumption At 230 V AC | 1.13 A |

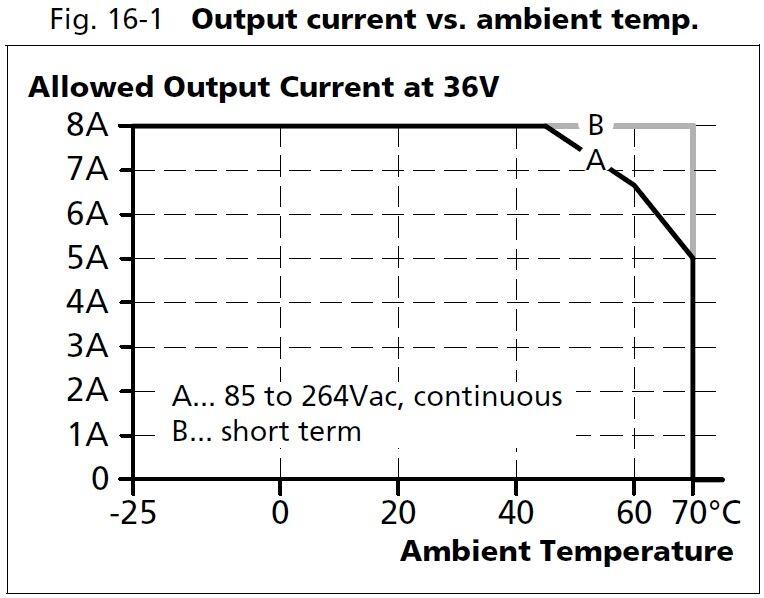

| Power Reduction Of 60 To 70 ° C | 6 W/°C |
| Temperature Range Without Derating From | -25 °C |
| Temperature Range Without Derating To | 60 °C |
| Active Transient | Yes |
| DC relay output | Yes |
