PULS
Accessories

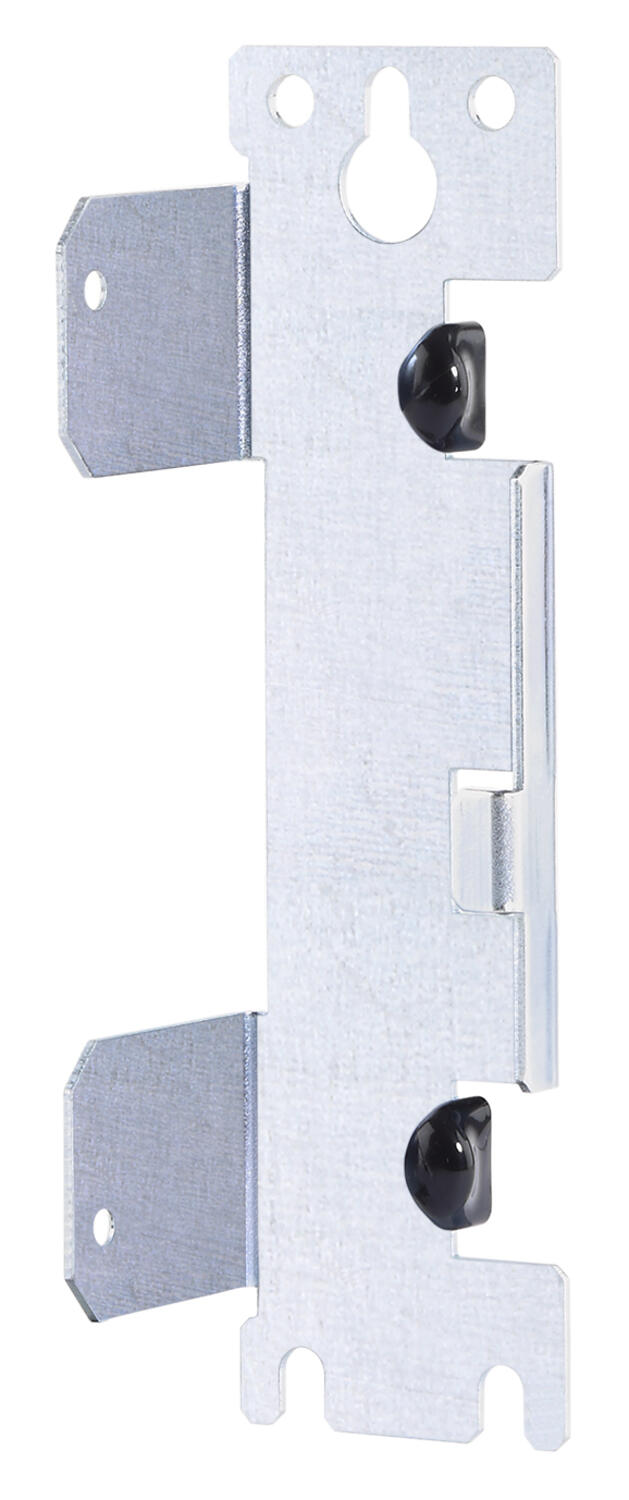

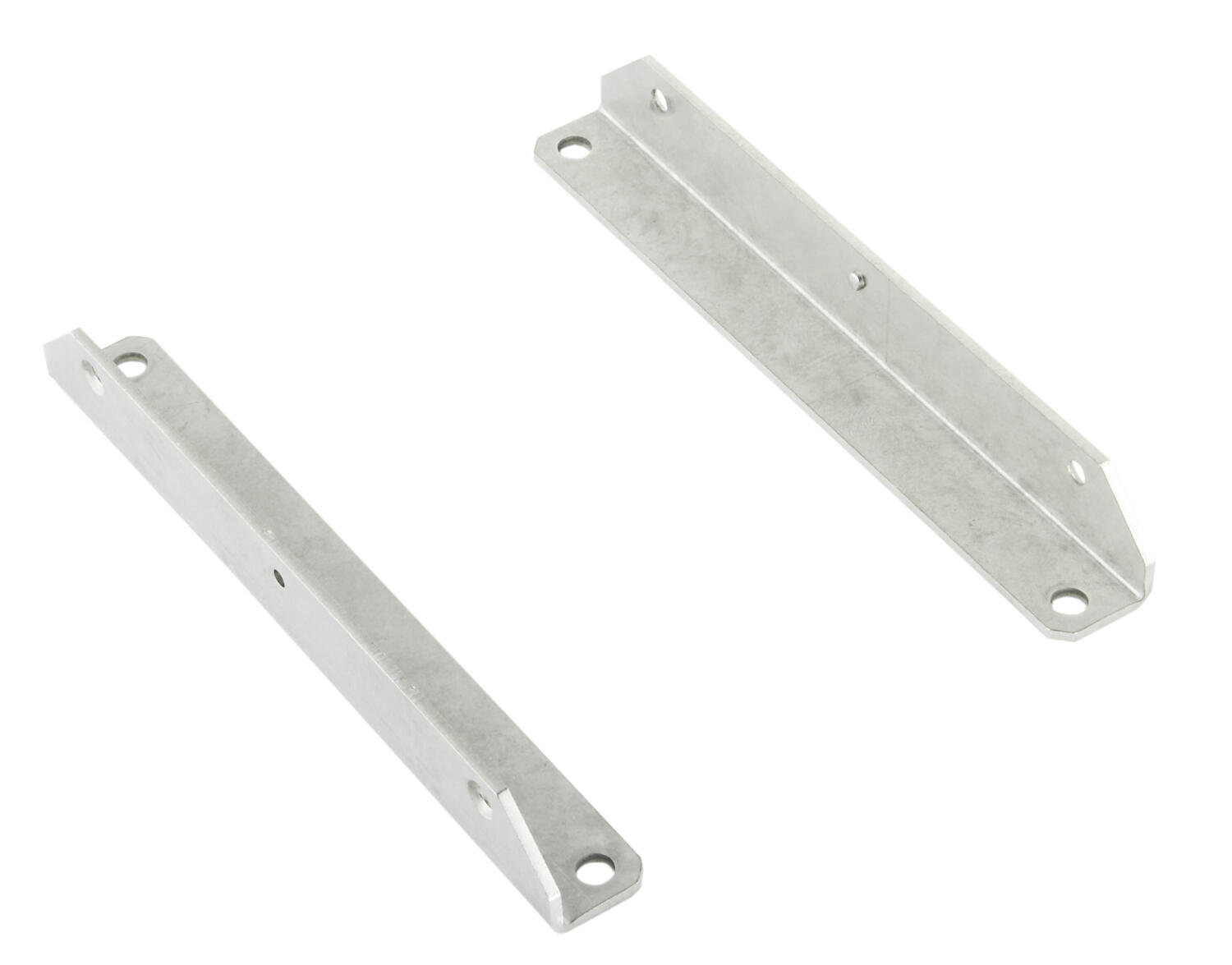

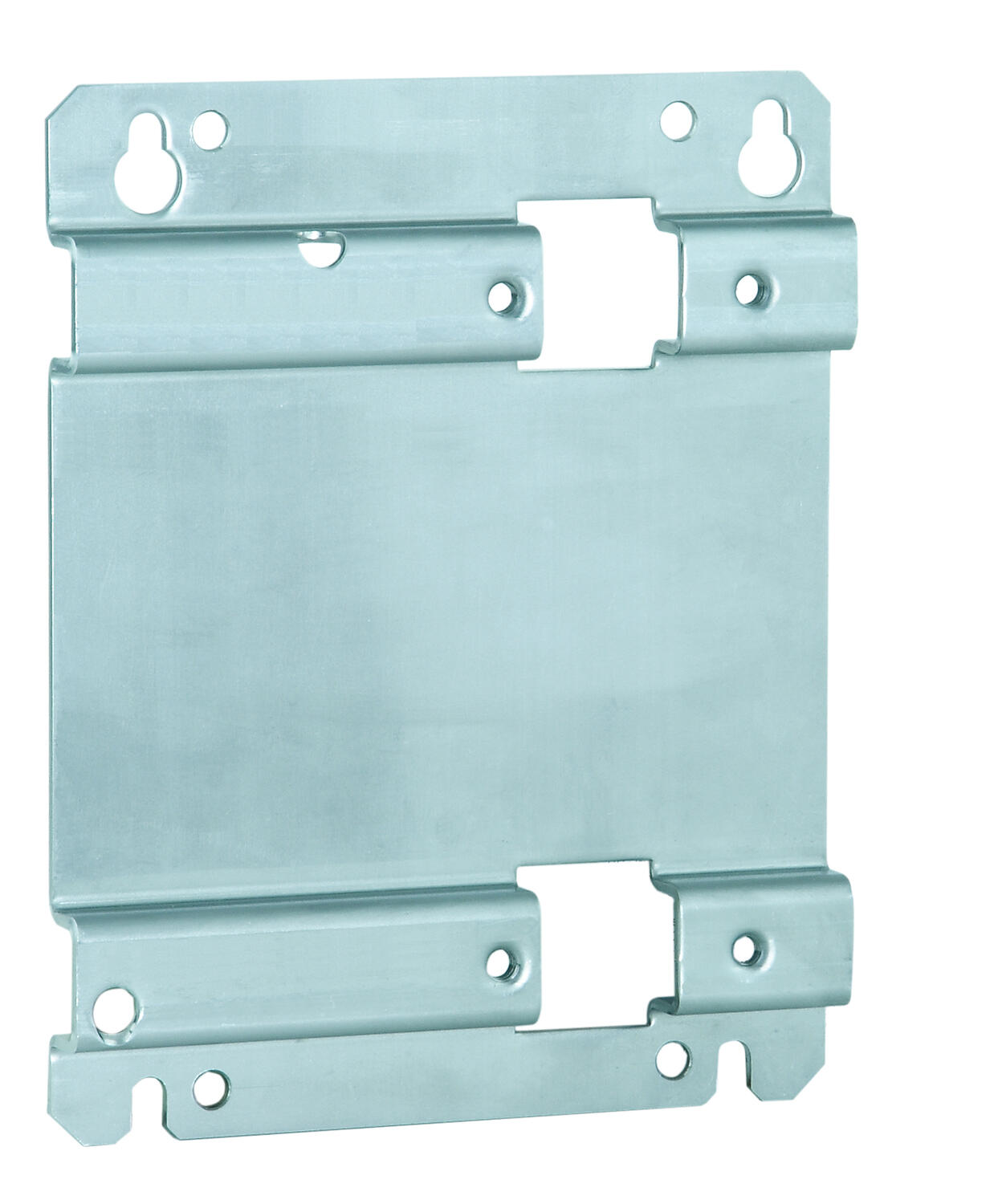

Screw bracket for series Silverline
The screw brackets are designed for use where there is no DIN rail or when a rail is not sufficiently stable.

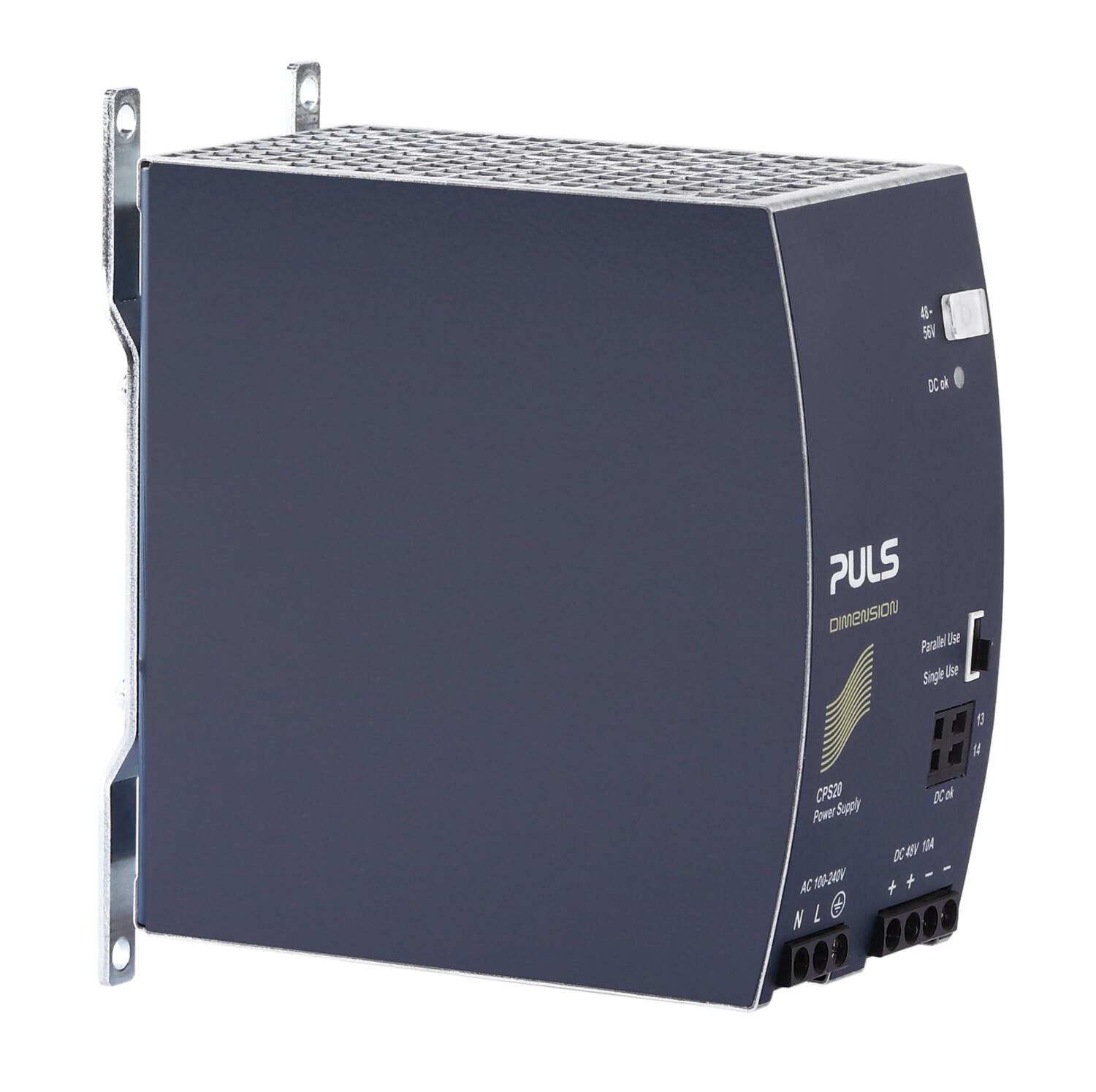

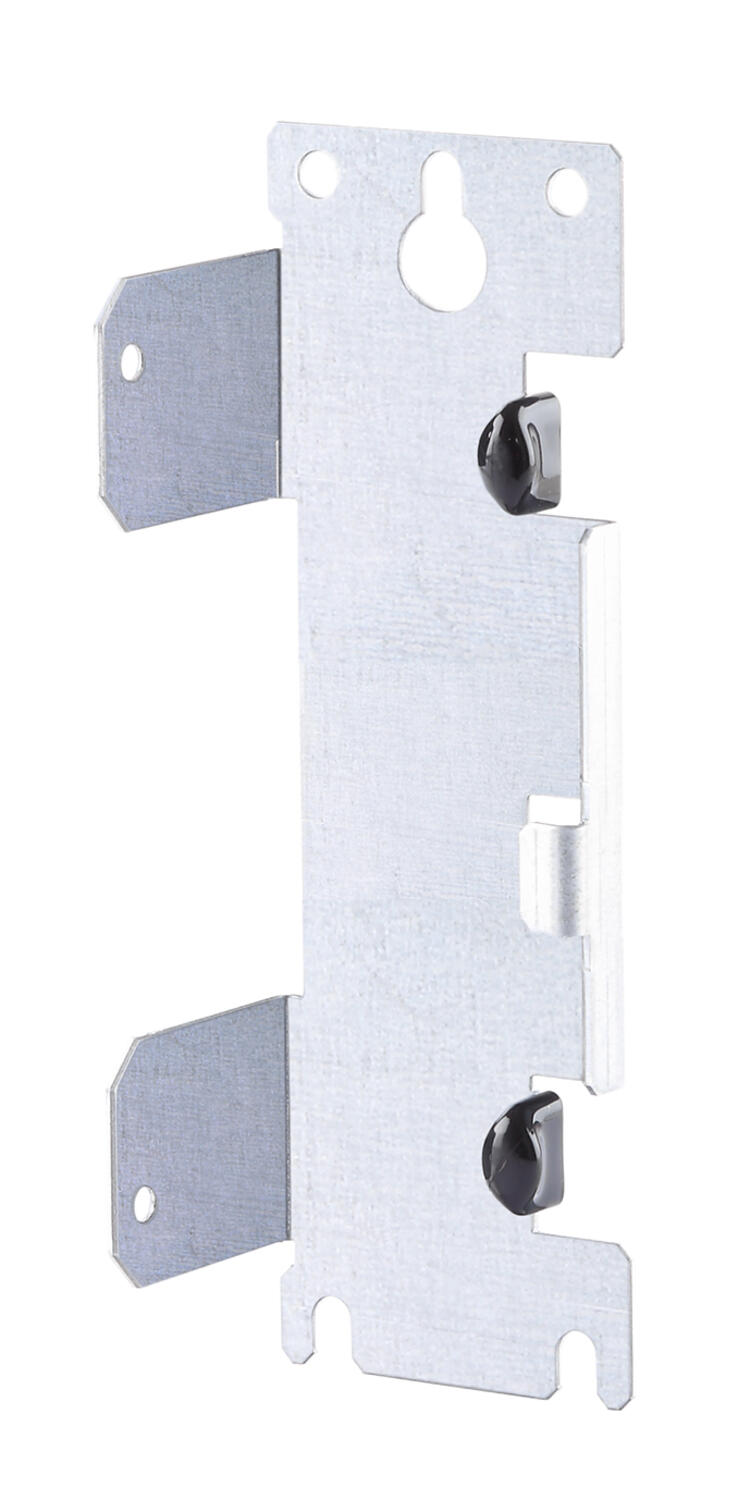

Screw bracket for series Dimension
The screw brackets are designed for use where there is no DIN rail or when a rail is not sufficiently stable. Remove the existing brackets on the unit and then mount the screw brackets in the same screw holes.

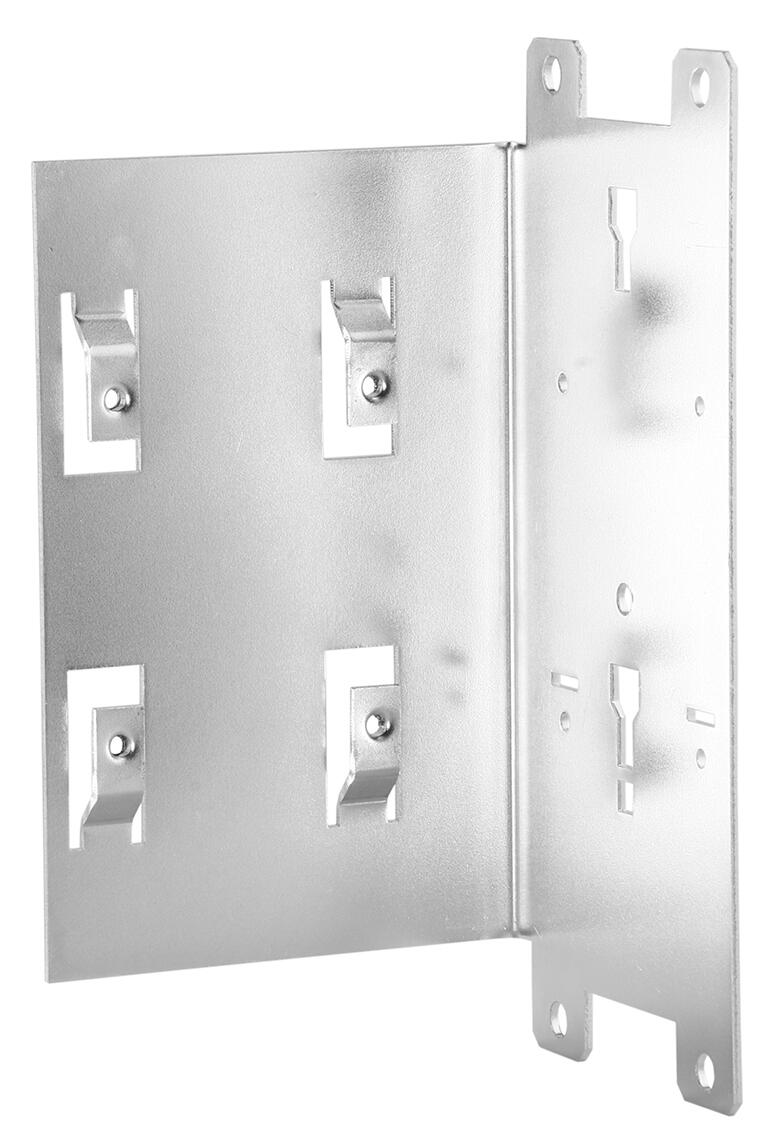

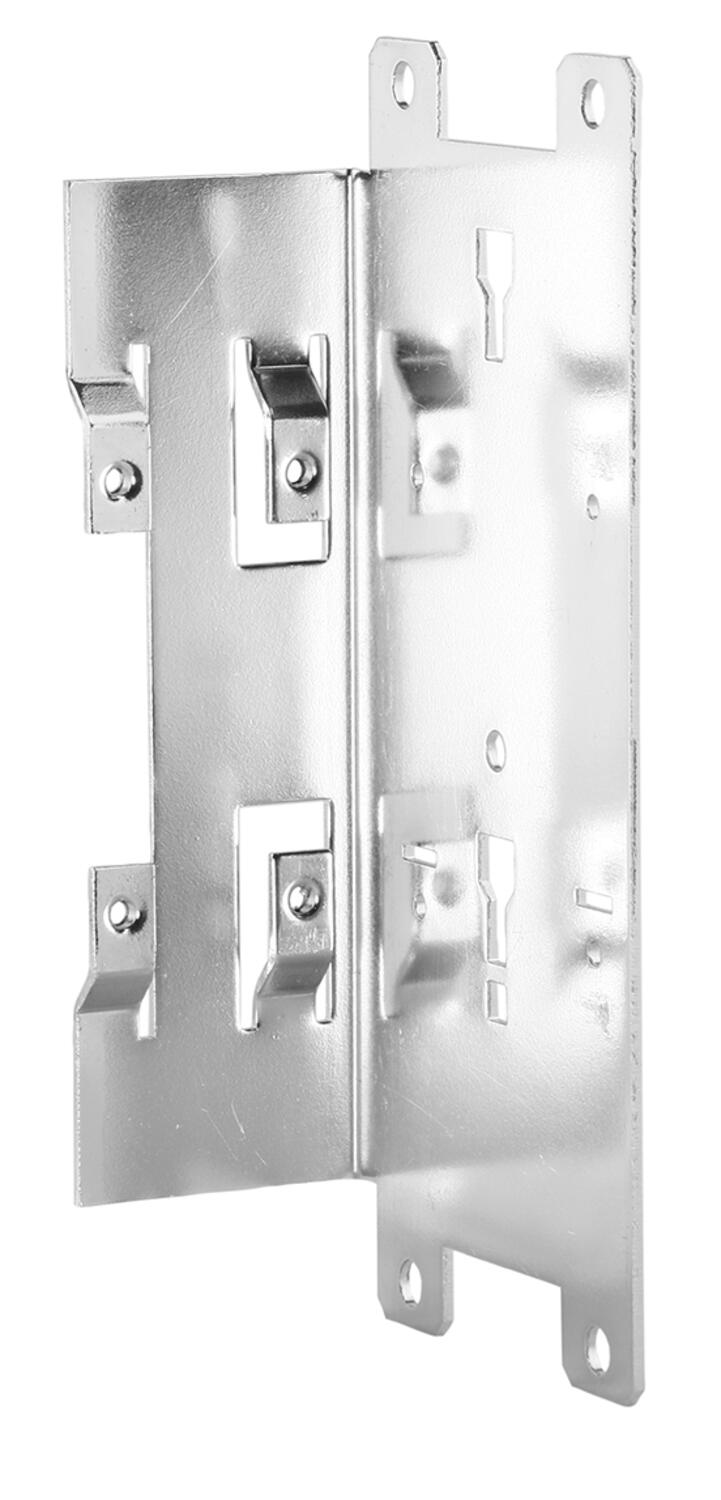

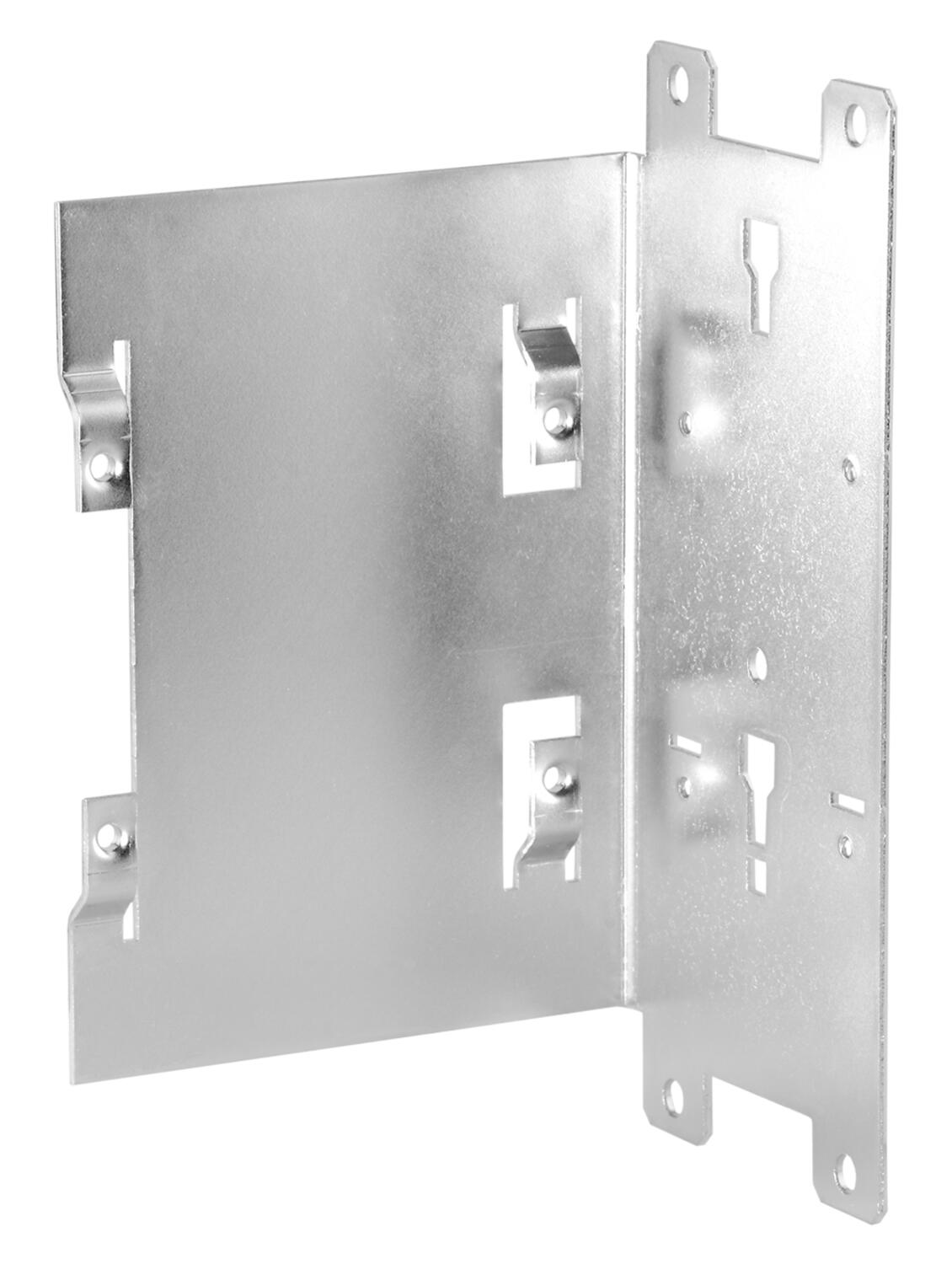

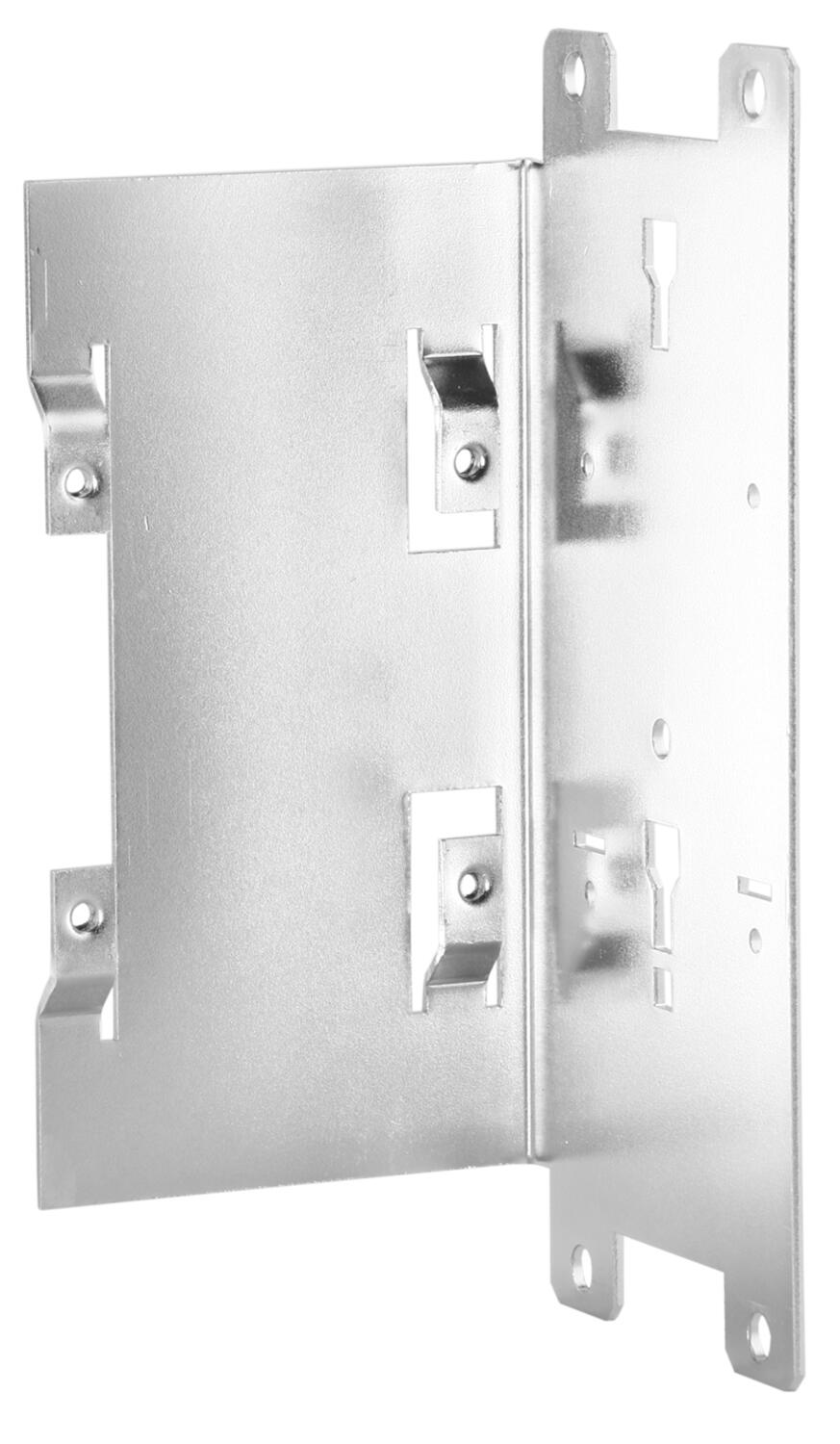

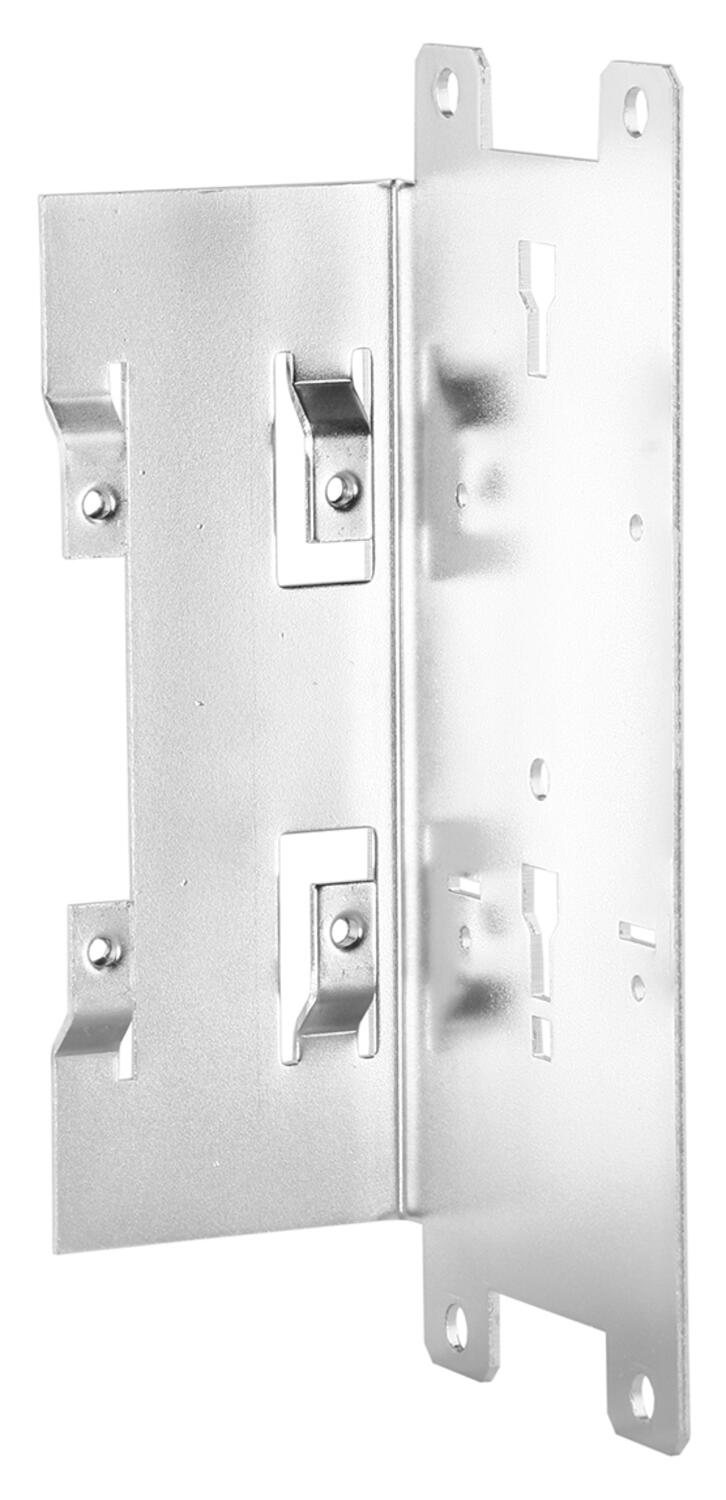

Side-mount bracket for series Dimension
The side bracket enables mounting of the Dimension unit in shallow enclosures. The bracket in its basic configuration is for screw assembly. The DIN rail bracket that is removed from the unit can be mounted on the side bracket for attachment to the DIN rail.
Selected variant

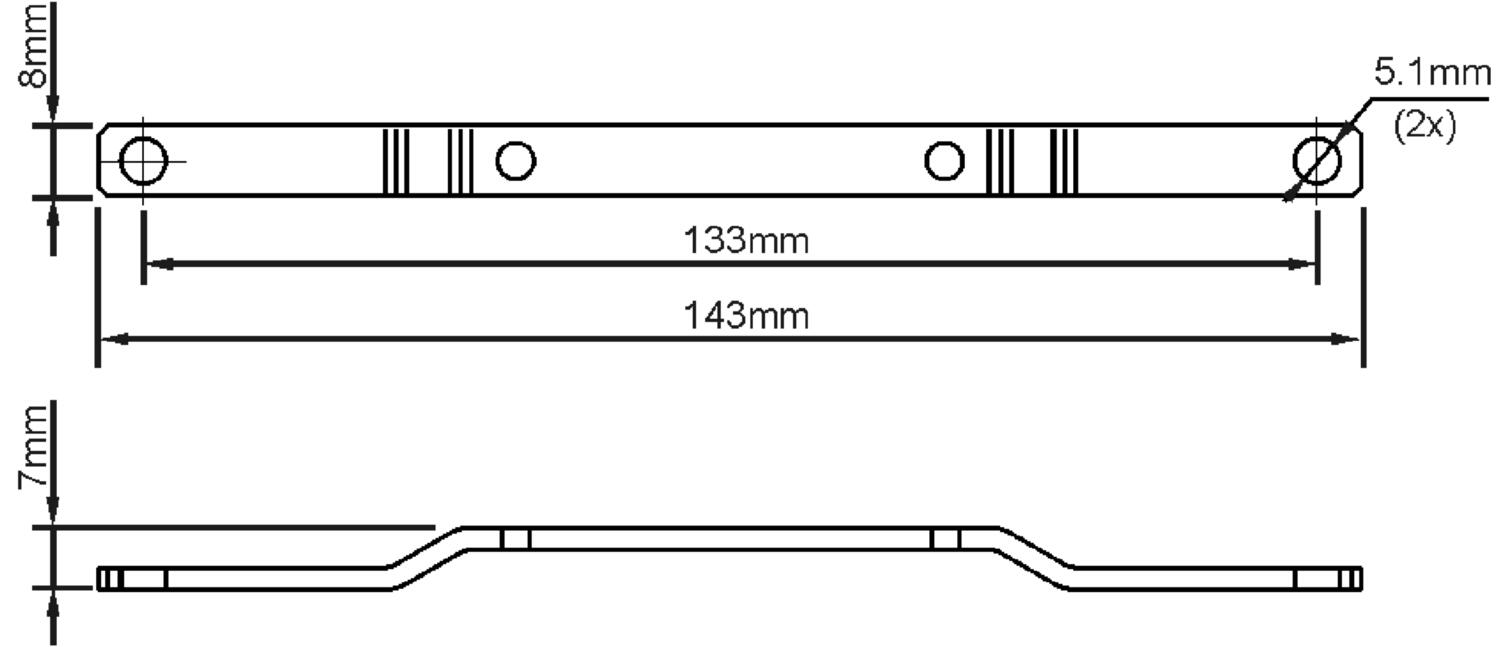

Specifications
| Type Power Supply | Accessories |
|---|---|
| Width | 8 mm |
| Height | 143 mm |
| Depth | 7 mm |
| Weight | 0.025 kg |
Product description
Screw bracket for series Silverline
The screw brackets are designed for use where there is no DIN rail or when a rail is not sufficiently stable.
Screw bracket for series Dimension
The screw brackets are designed for use where there is no DIN rail or when a rail is not sufficiently stable. Remove the existing brackets on the unit and then mount the screw brackets in the same screw holes.
Side-mount bracket for series Dimension
The side bracket enables mounting of the Dimension unit in shallow enclosures. The bracket in its basic configuration is for screw assembly. The DIN rail bracket that is removed from the unit can be mounted on the side bracket for attachment to the DIN rail.
