PULS
FIEPOS Basic
100-240 V AC/24-28 V DC, 300 and 500 W

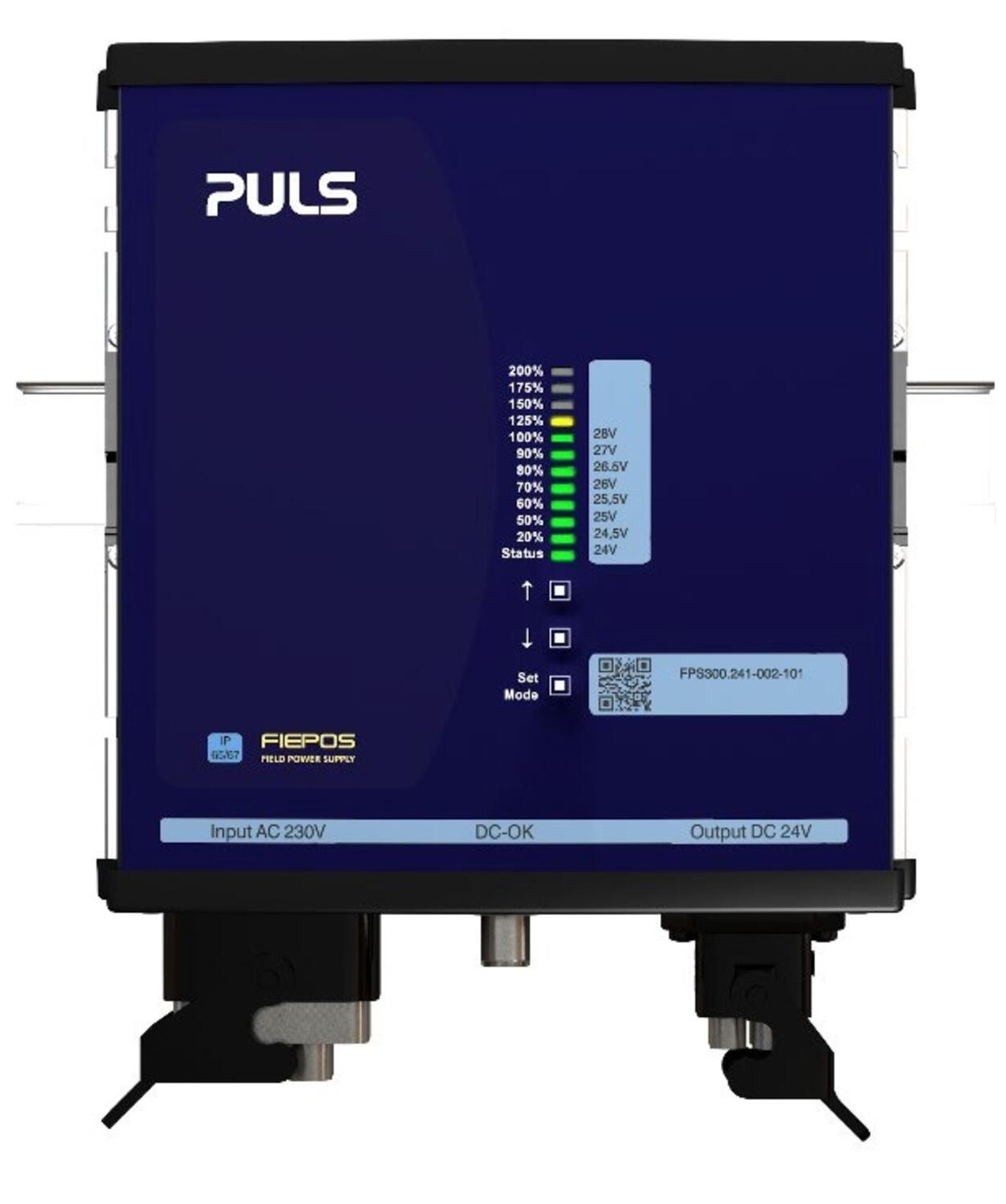

The FPS300 is an industrial grade power supply for 1- phase networks incorporated in to a rugged wall-mount housing with IP65/67 protection.
It provides one floating, stabilized SELV/PELV output, which is galvanically separated from the input.

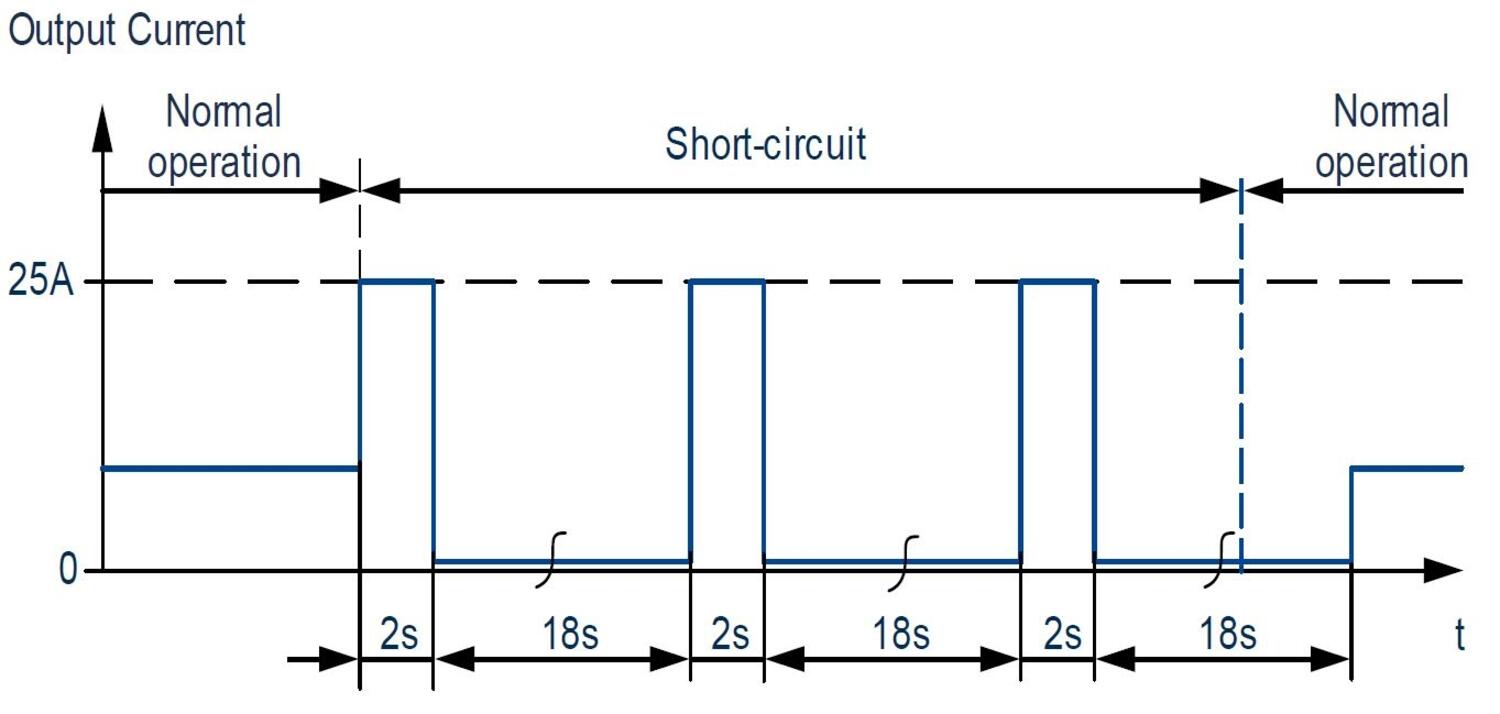

In case of an overload or load failure, the output offers hiccup-mode. The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the low input inrush current and the extremely high efficiencies, which are achieved by various technological design technologies.
- IP65/IP67
- Efficiency >95%
- Output power 360/600W
- 600/1000 Wpeak 5s
- DC-OK relay
Selected variant
Specifications
| Number of phases | 1 |
|---|---|
| Input voltage AC | 100-240 V |
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 264 V AC |
| Input voltage DC | 110-300 V |
| Input voltage dc min | 88 V DC |
| Input voltage dc max | 360 V DC |
| Inrush current at 120 V ac typical | 3 A |
| Inrush current at 230 V ac typical | 6 A |
| Power Factor at 120 V AC, full load. Typical | 0.99 |
| Power Factor at 230 V AC, full load. Typical | 0.97 |
| Supply Frequency | 50-60 Hz ±6 % |
| Power Consumption At 120 V AC | 3.2 A |
| Power Consumption At 230 V AC | 1.68 A |

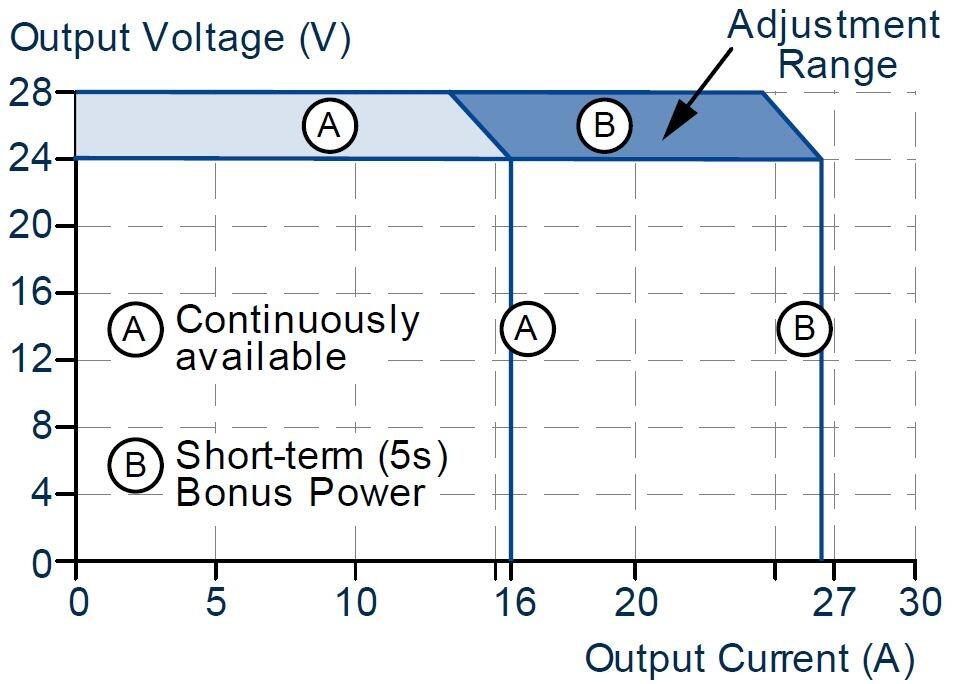

| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 28 V DC |
| Output Current | 12.5 A |
| Output current max | 25 A |
| Effect | 300 W |

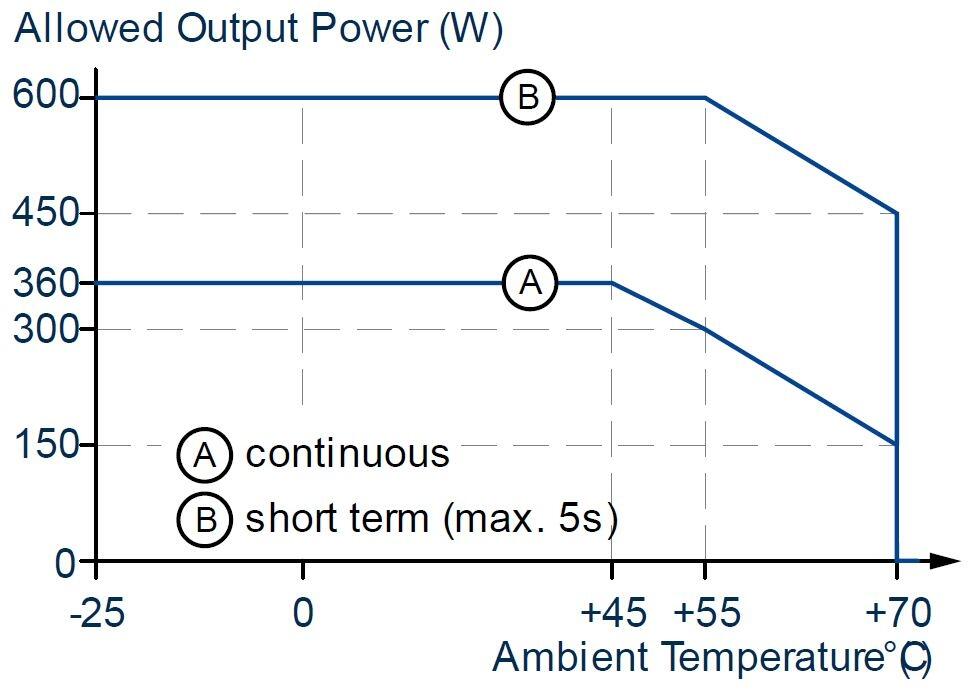

| Total output power <+45°C | 360 W |
| Total output power <+55°C | 300 W |
| Total output power <+70°C | 150 W |
| Total output power <5 s, <+55°C | 600 W |
| Total output power <5 s, <+70°C | 300 W |
| Power drop from +55 °C to + 70 °C | 10 W/°C |
|---|---|
| Ripple. max | 50 mV pp |
| Temperature Range Without Derating From | -25 °C |
| Temperature Range Without Derating To | 55 °C |
| Back-feeding loads | 35V / 4 J |

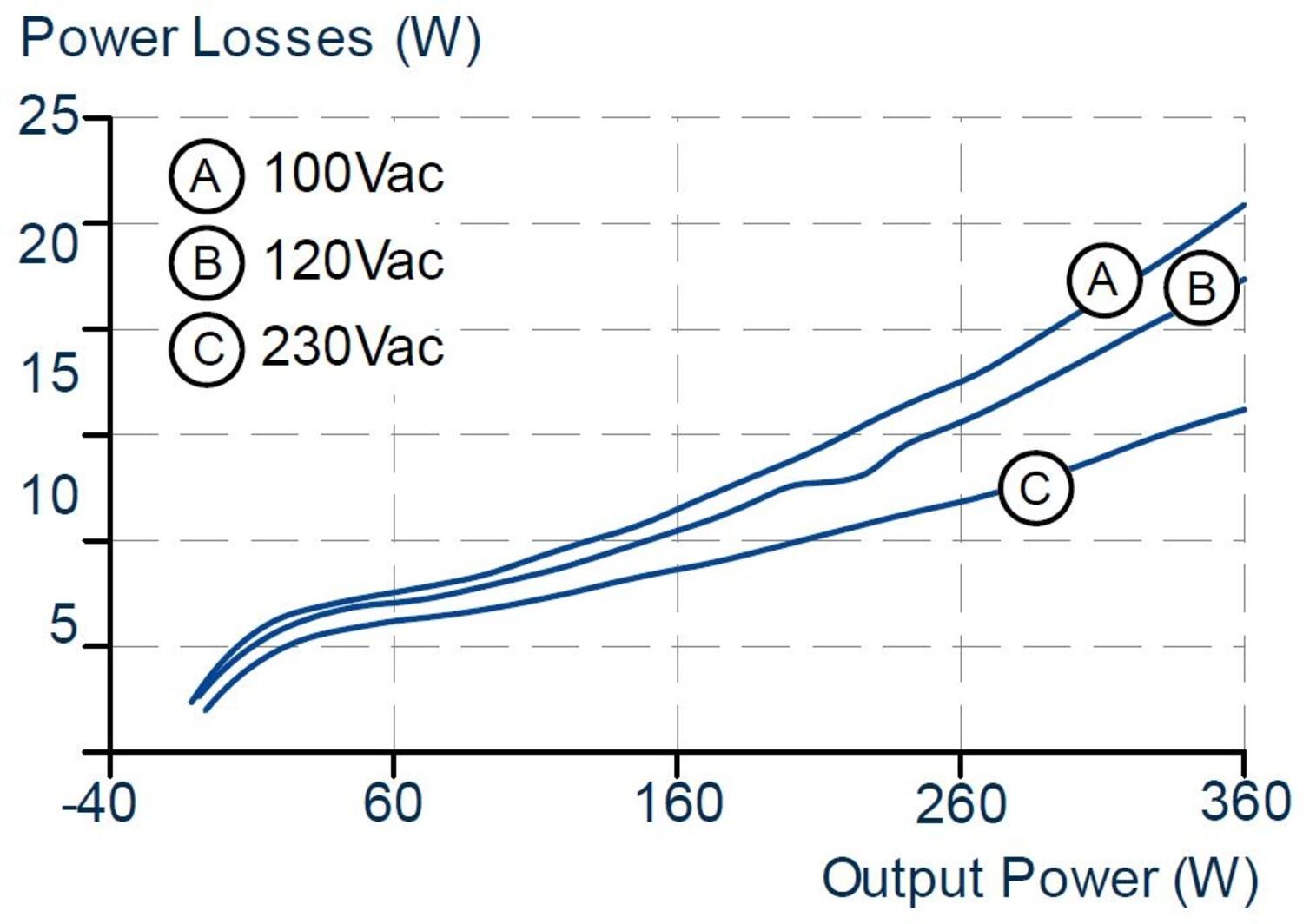

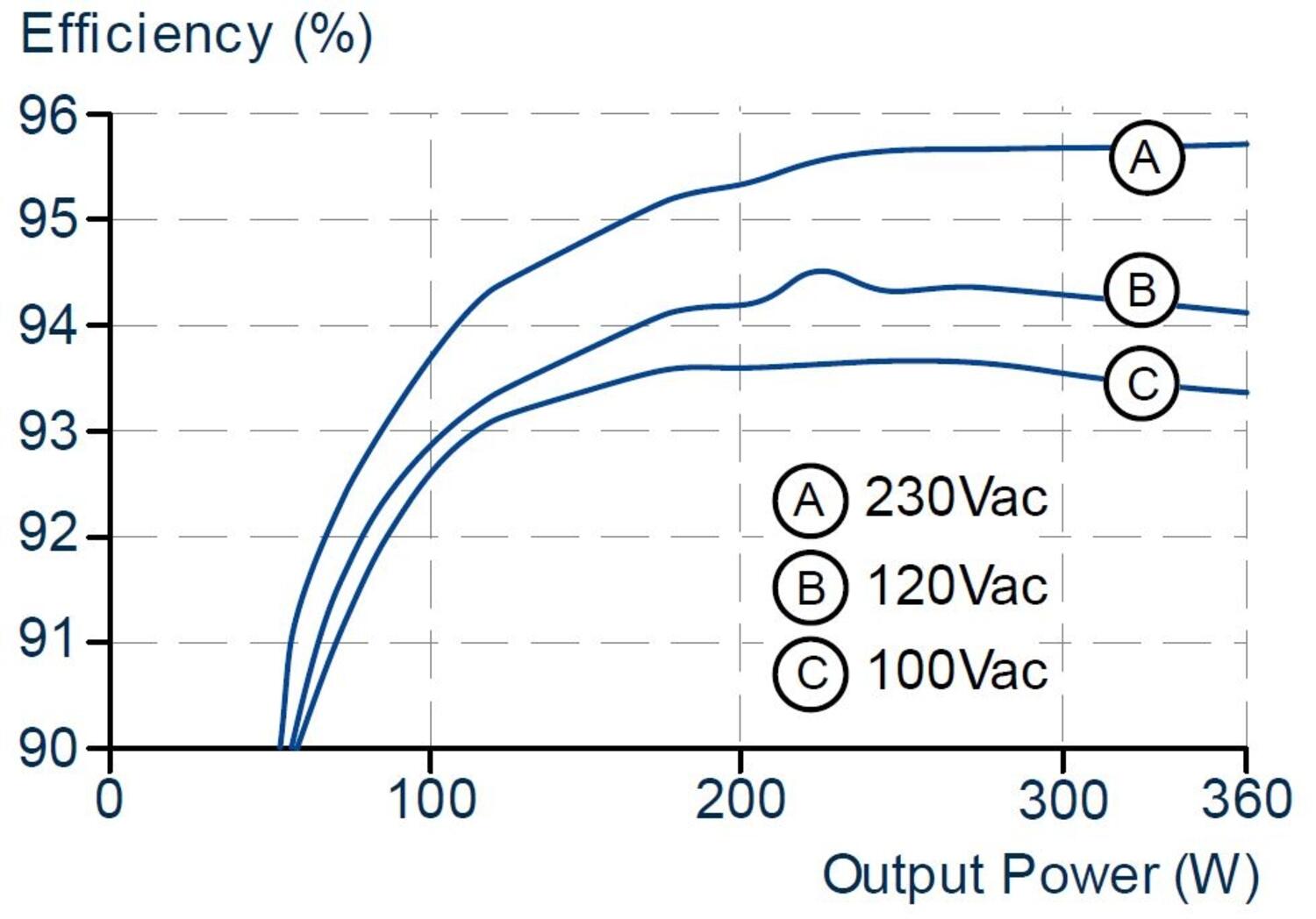

| Efficiency At 120 V AC, full load. Typical | 94.3 % |
| Efficiency At 230 V AC. Typical | 94.6 % |
| Efficiency At 230 V AC, full load. Typical | 95.7 % |

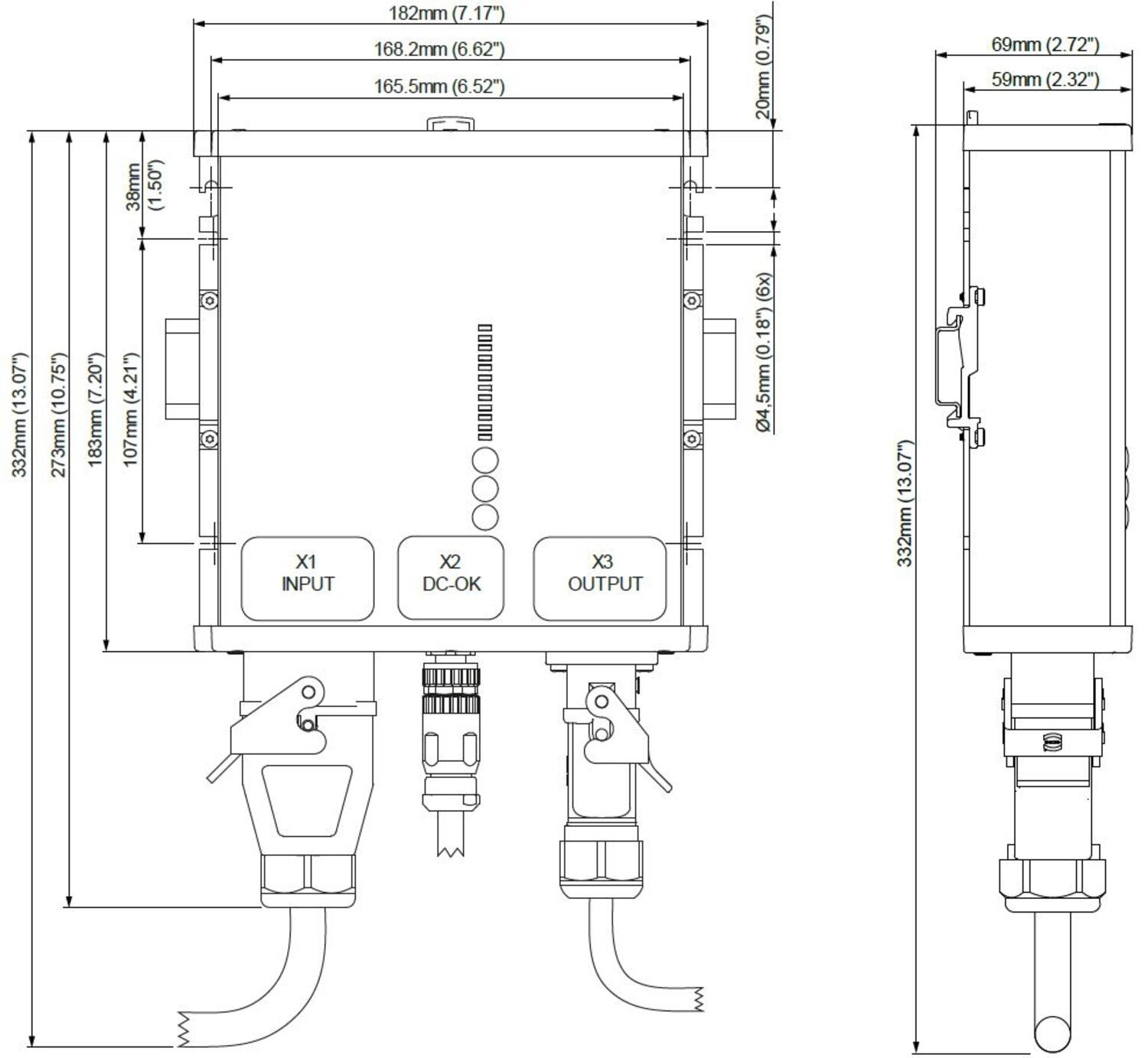

| Width | 182 mm |
| Height | 183 mm |
| Depth | 59 mm |
| Weight | 1.2 kg |
| Output connectors | 1x HAN Q4/0 |

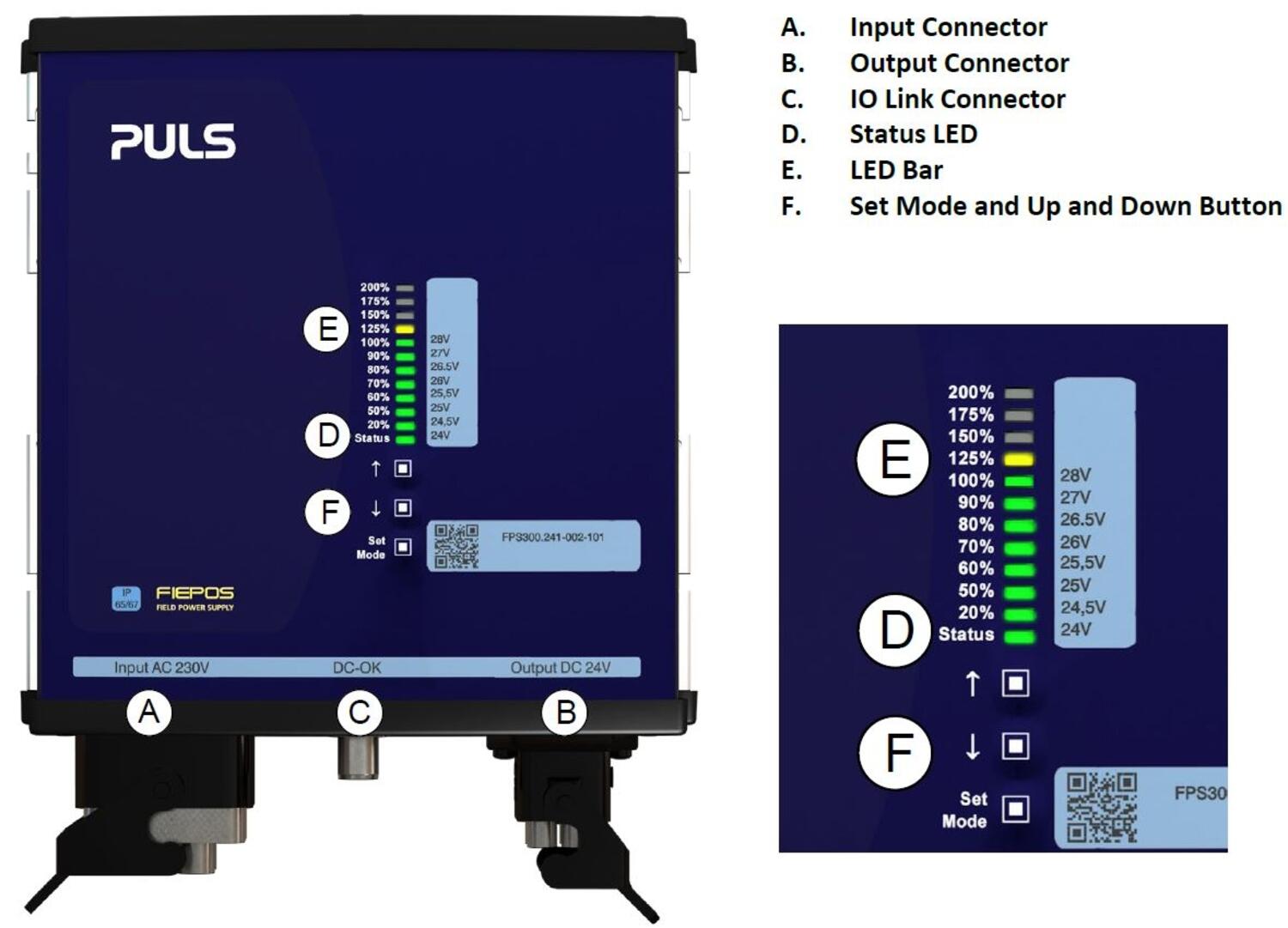

| DC-OK/IO-link connector | M12-A |
| Input connector | HAN Q4/2 |
| Series | FIEPOS Basic |
| Approvals | CB, CE, UKCA, cULus |
| DC relay output | Yes |
| IO-LINK | No |
| Material Protection | Aluminium |
| Hold-up time at 120 V AC, full load. Typical. | 37 ms |
| Hold-up time at 230 V AC, full load. Typical. | 37 ms |
| IP Class | IP65, IP67 |
| Active Transient | Yes |
Product description
The FPS300 is an industrial grade power supply for 1- phase networks incorporated in to a rugged wall-mount housing with IP65/67 protection.
It provides one floating, stabilized SELV/PELV output, which is galvanically separated from the input.
In case of an overload or load failure, the output offers hiccup-mode. The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the low input inrush current and the extremely high efficiencies, which are achieved by various technological design technologies.
