Selected variant
Specifications
| Number of phases | 1 |
|---|---|
| Input voltage AC | 200-240 V |
| Input voltage ac min | 180 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 26 A |
| Power Factor at 230 V AC, full load. Typical | 0.99 |
| Supply Frequency | 50-60 ±6 % |
| Power Consumption At 230 V AC | 2.2 A |
| Type Power Supply | AC-DC |
| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 28 V DC |
| Output Current | 20 A |
| Effect | 480 W |

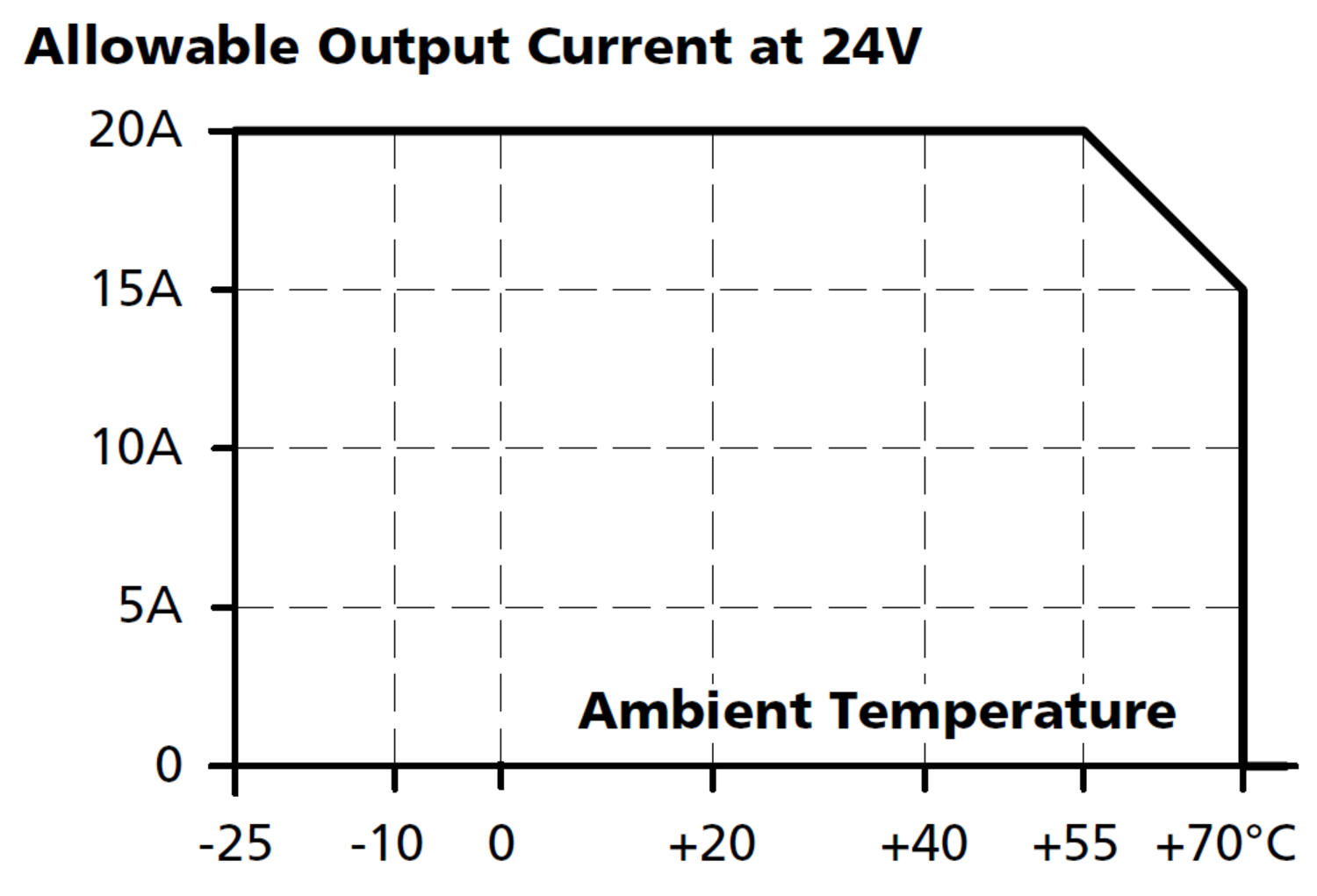

| Power Reduction Of 60 To 70 ° C | 8 W/°C |
| Ripple. max | 100 mV pp |
| Temperature Range Without Derating From | -25 °C |
| Temperature Range Without Derating To | 55 °C |
|---|---|

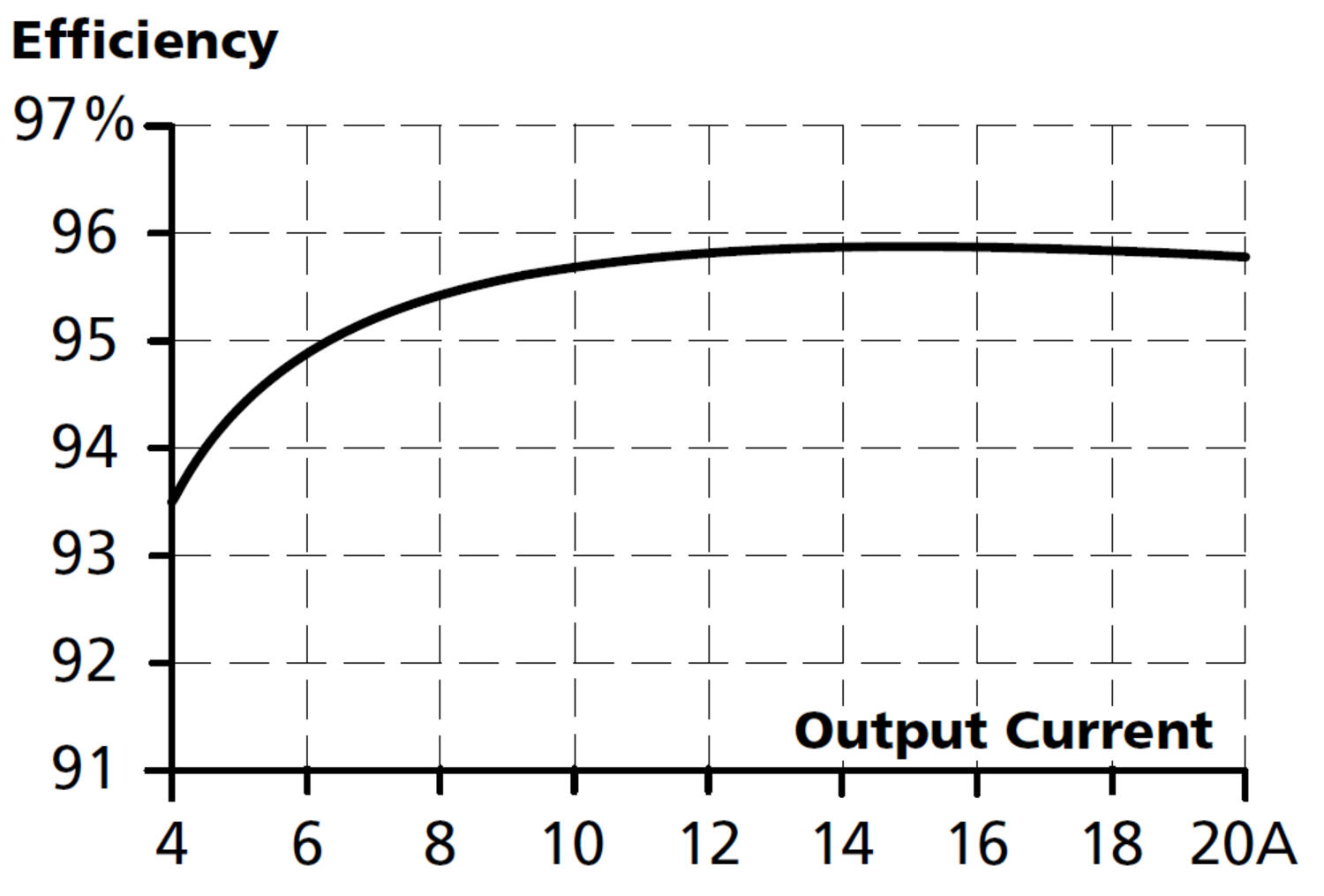

| Efficiency At 230 V AC. Typical | 95.2 % |
| Efficiency At 230 V AC, full load. Typical | 95.7 % |
| Lifetime at 230 V ac, full load and +40 ° C | 51000 h |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 482000 h |

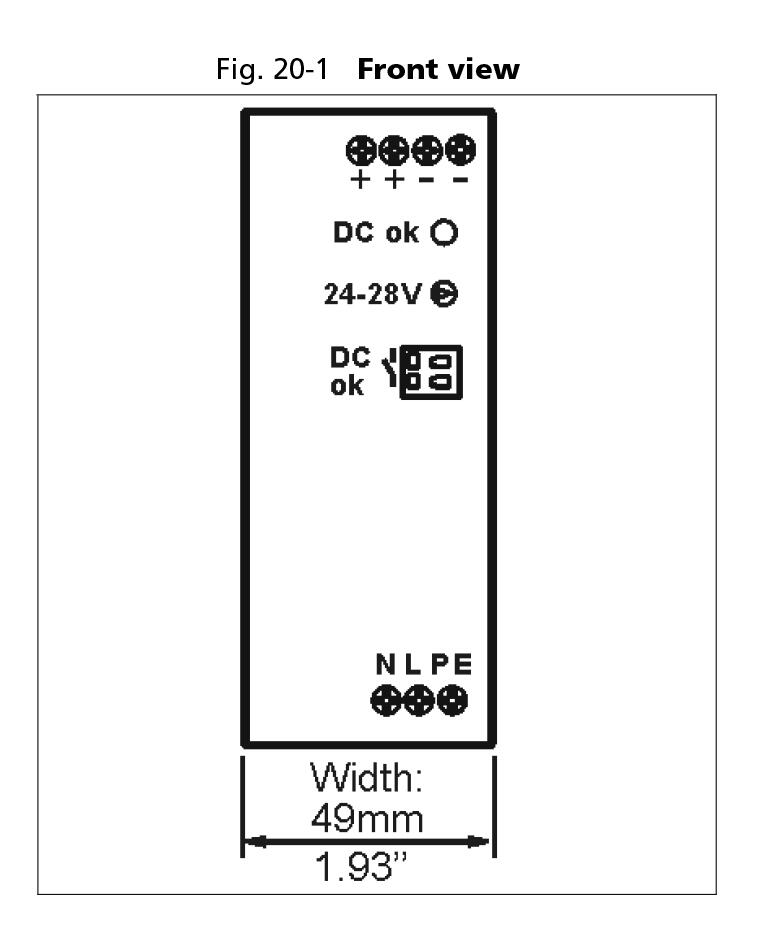

| Width | 49 mm |
| Height | 124 mm |
| Depth | 124 mm |
| Weight | 0.62 kg |
| Clamp type | Screw |
| Series | Piano |
| Approvals | CB, CE, cRUus, cULus |
| DC relay output | Yes |
| Material Protection | Polycarbonate |
| Hold-up time at 230 V AC, full load. Typical. | 30 ms |
| IP Class | IP20 |
