PULS

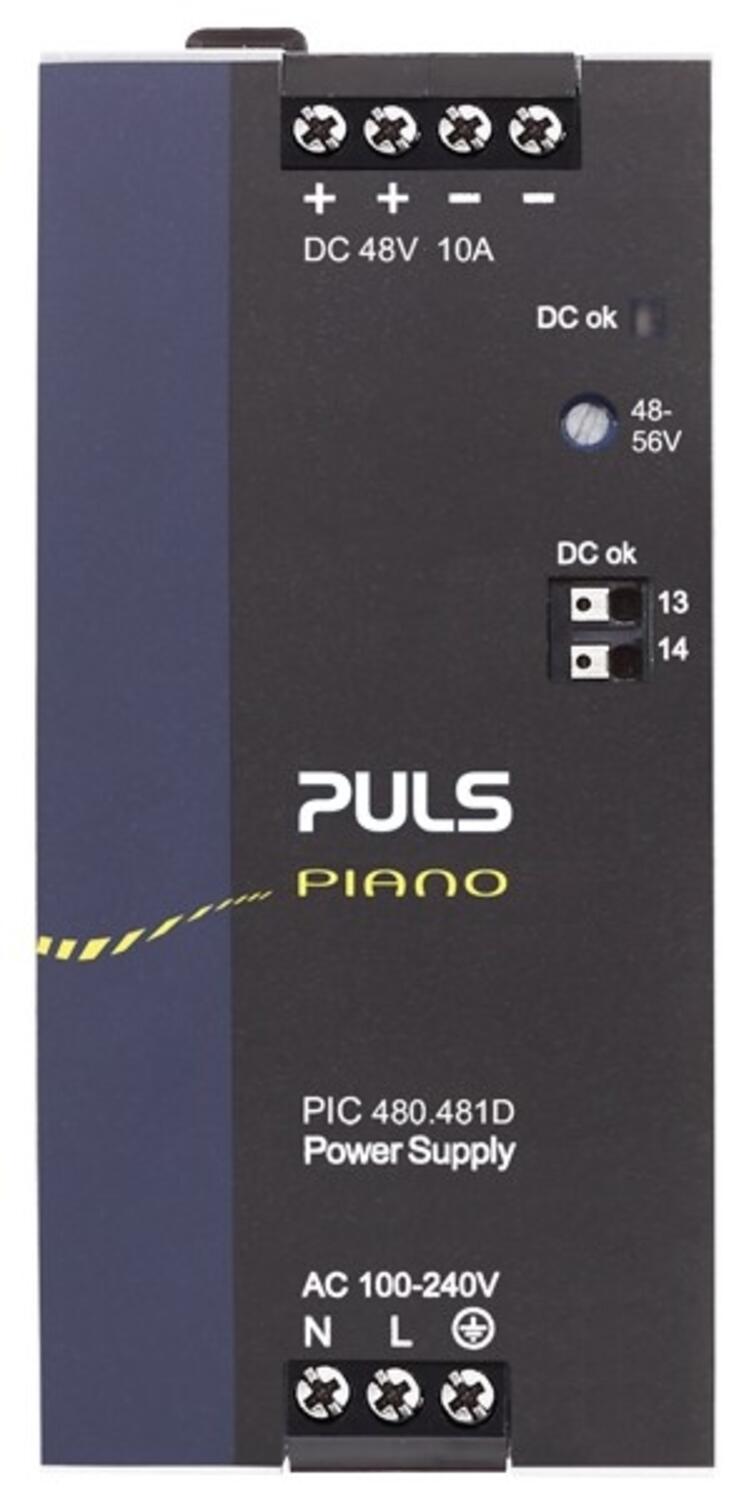

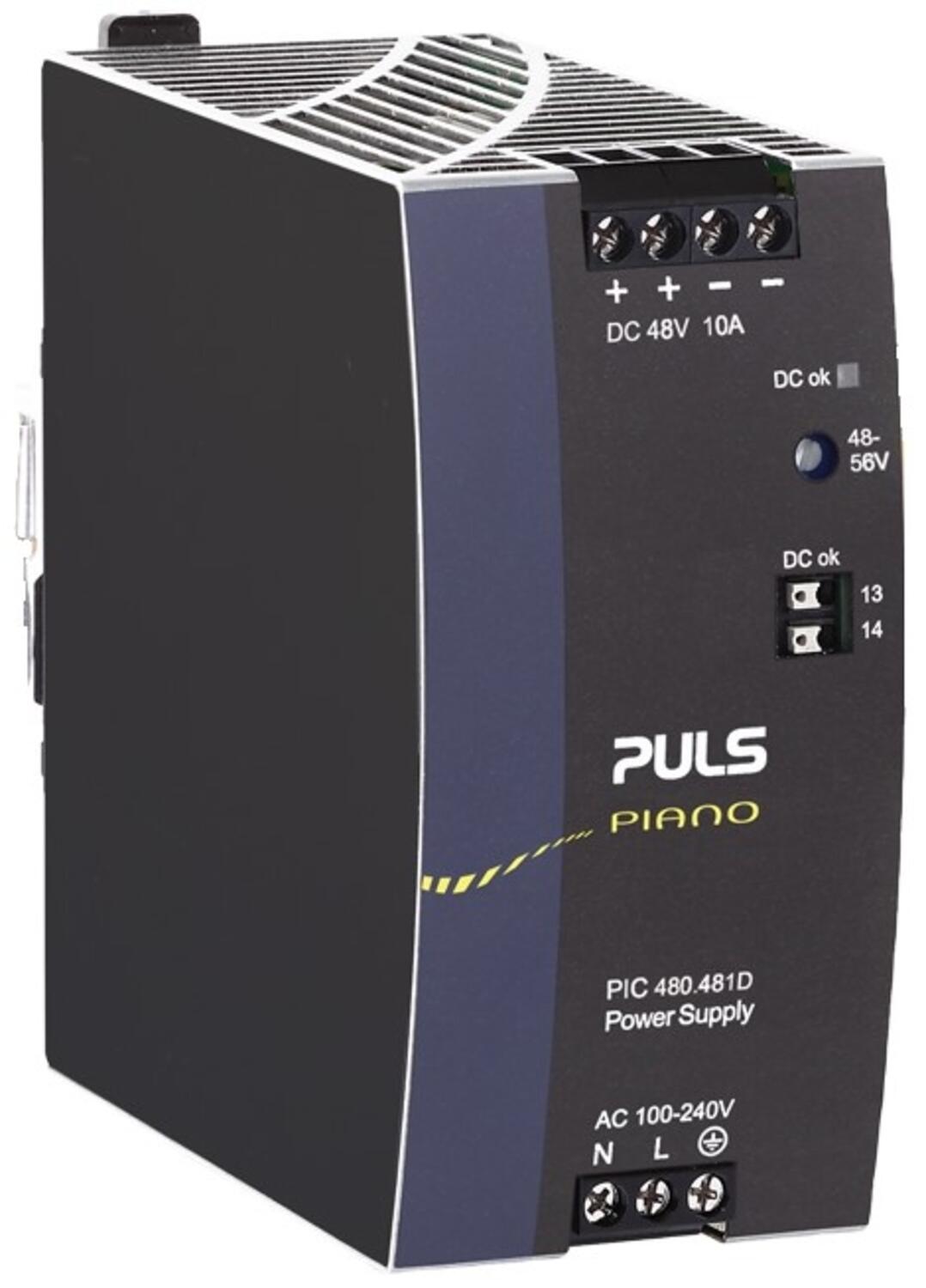

Power Supply 1-Phase, 48 V dc Piano Series
- Output current of 10 A
- Width 59mm
- Efficiency up to 95,7%
- DC-OK relay
Selected variant
Specifications
| Input voltage range | Wide-range |
|---|---|
| Number of phases | 1 |
| Input voltage AC | 100-240 V |
| Input voltage ac min | 90 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 120 V ac typical | 18 A |
| Inrush current at 230 V ac typical | 42 A |
| Power Factor at 120 V AC, full load. Typical | 0.99 |
| Power Factor at 230 V AC, full load. Typical | 0.97 |
| Supply Frequency | 50-60 ±6 % |
| Power Consumption At 120 V AC | 4.3 A |
| Power Consumption At 230 V AC | 2.3 A |
| Type Power Supply | AC-DC |

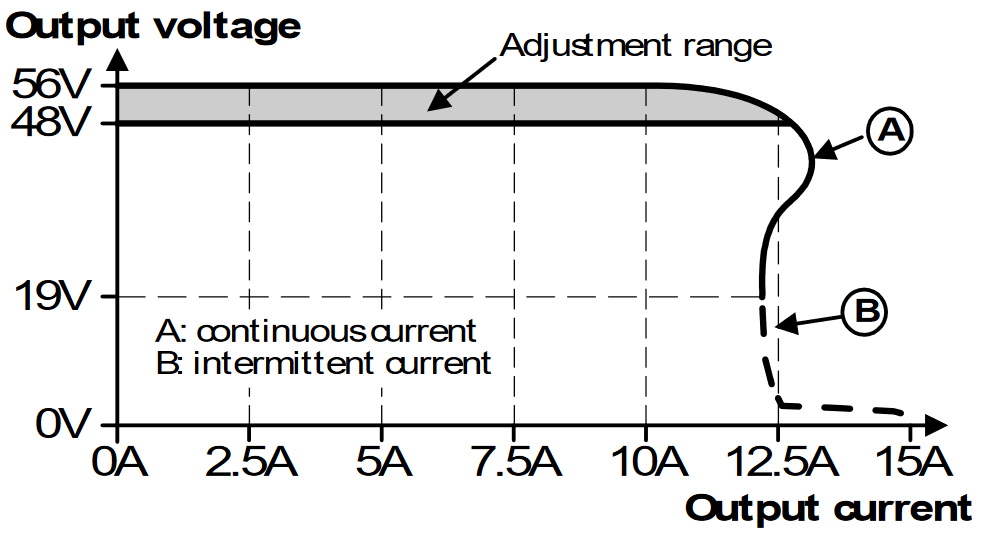

| Output voltage | 48 V DC |
| Output voltage min | 48 V DC |
| Output voltage max | 56 V DC |
| Output Current | 10 A |
| Effect | 480 W |
| Ripple. max | 100 mV pp |

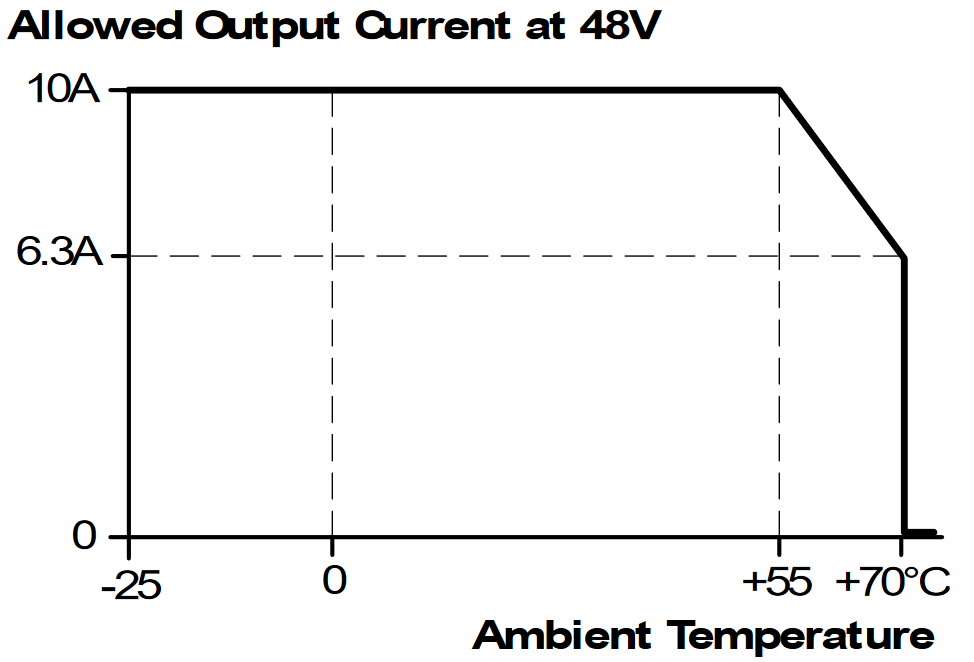

| Temperature Range Without Derating From | -25 °C |
| Temperature Range Without Derating To | 55 °C |
|---|---|

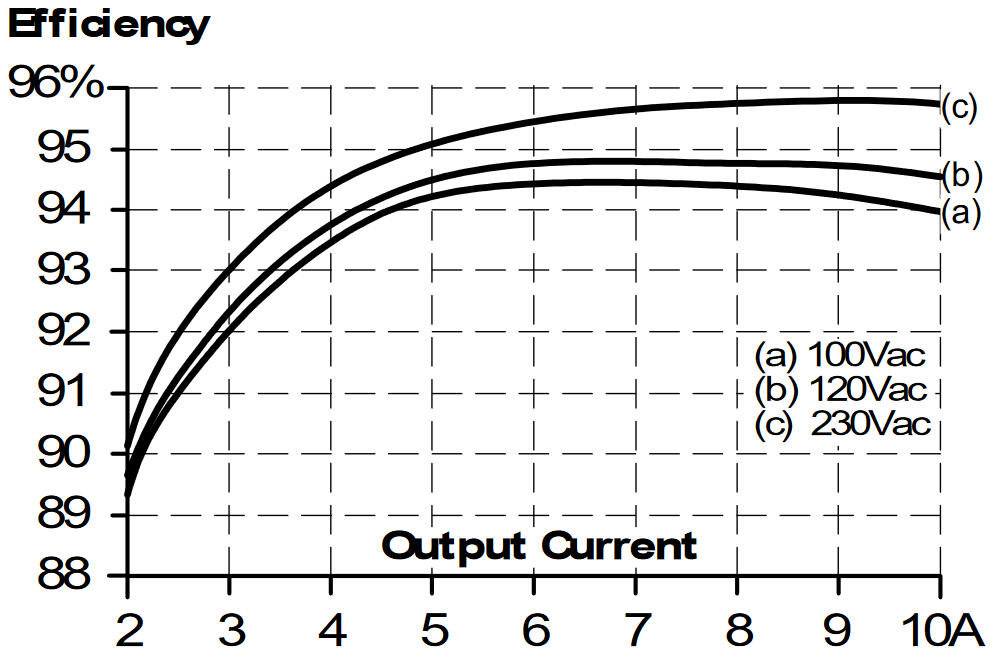

| Efficiency At 120 V AC, full load. Typical | 94.6 % |
| Efficiency At 230 V AC. Typical | 94.6 % |
| Efficiency At 230 V AC, full load. Typical | 95.7 % |
| Lifetime at 120 V ac, full load and +40 ° C | 101000 h |
| Lifetime at 230 V ac, full load and +40 ° C | 138000 h |
| MTBF (IEC 61709) 230 V AC, Maximum Load, 40 ° C | 704000 h |

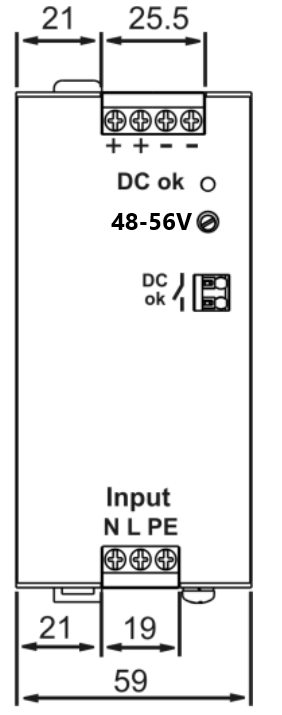

| Width | 59 mm |
| Height | 124 mm |
| Depth | 127 mm |
| Weight | 0.81 kg |
| Clamp type | Screw |
| Series | Piano |
| Approvals | CB, CE, cULus |
| DC relay output | Yes |
| Material Protection | Aluminium |
| Hold-up time at 120 V AC, full load. Typical. | 27 ms |
| Hold-up time at 230 V AC, full load. Typical. | 27 ms |
| IP Class | IP20 |
