BACO
Clips
Mounting clips for contact & LED blocks
Mounting clips are used to assemble contact blocks & LED blocks in the required configuration.
They interface with all pushbutton, selector switch, key switch, mushroom & pilot light heads.
Available in 1 way, 3 way or 5 way for up to 5 blocks.
Contacts can be double stacked on the 1 & 3 way clips to achieve up to the maximum 6 blocks.
LED blocks must always be placed in the center position.

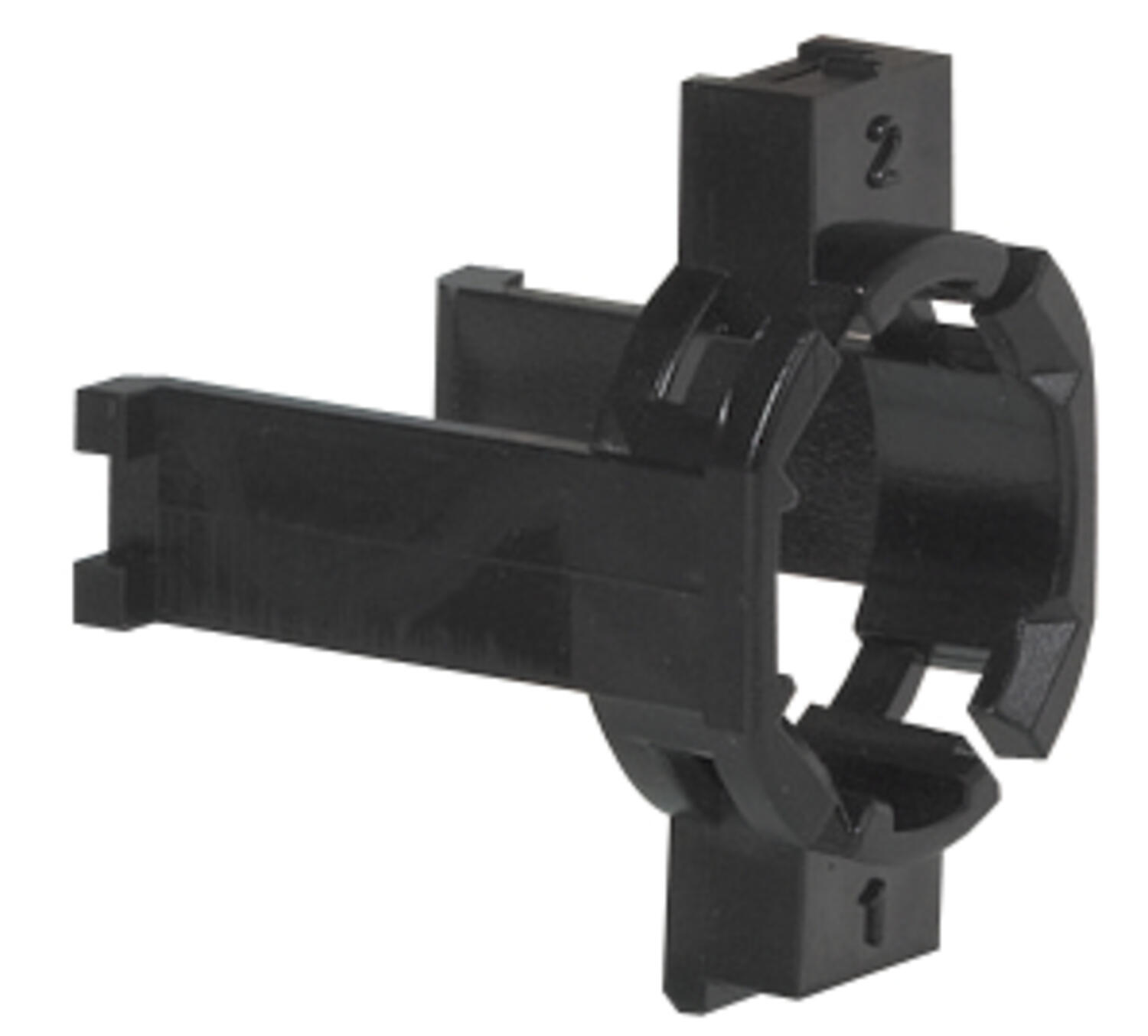

1 way clips simply snap into place and are removed by pinching the plastic release tabs.

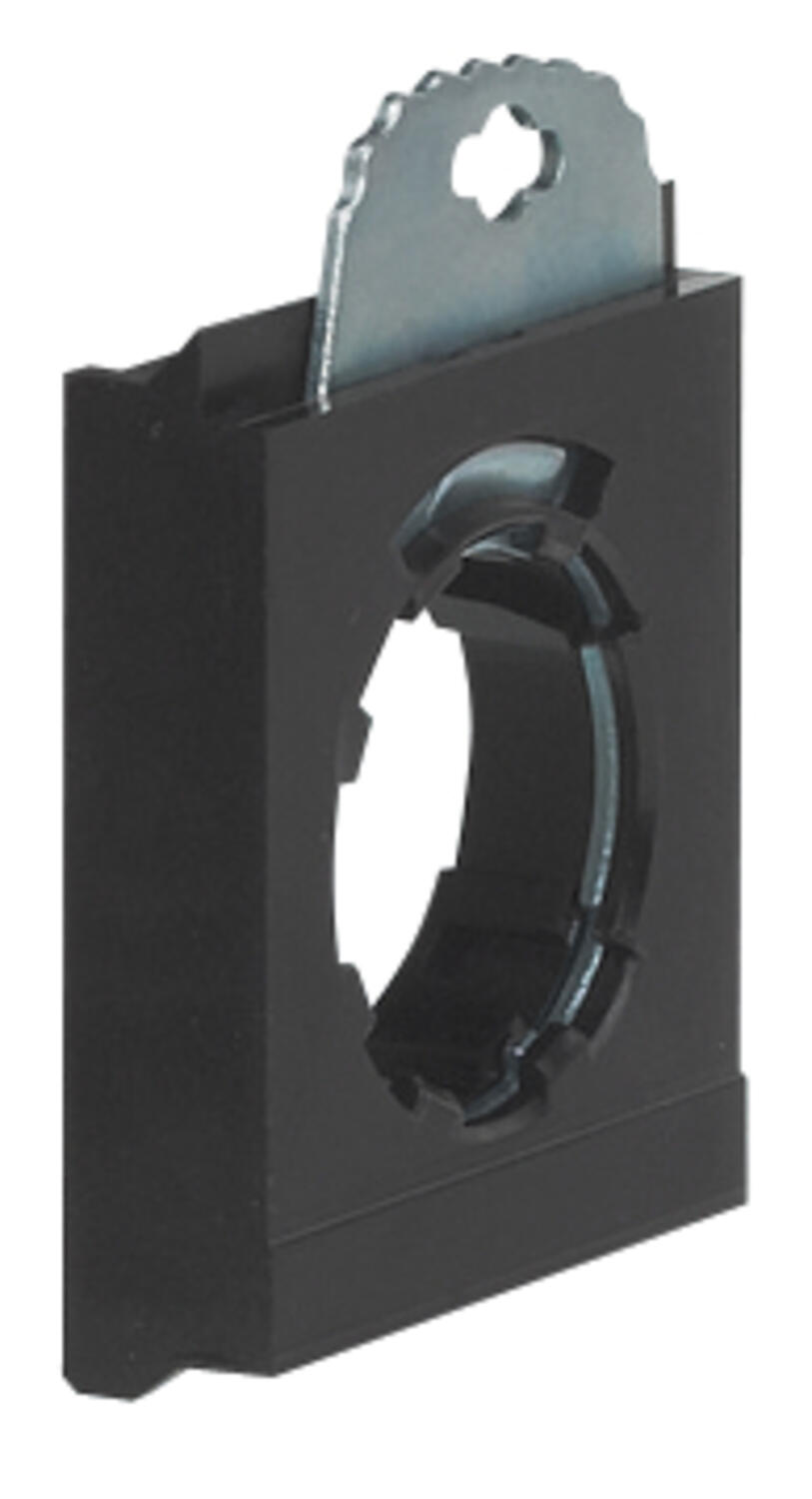

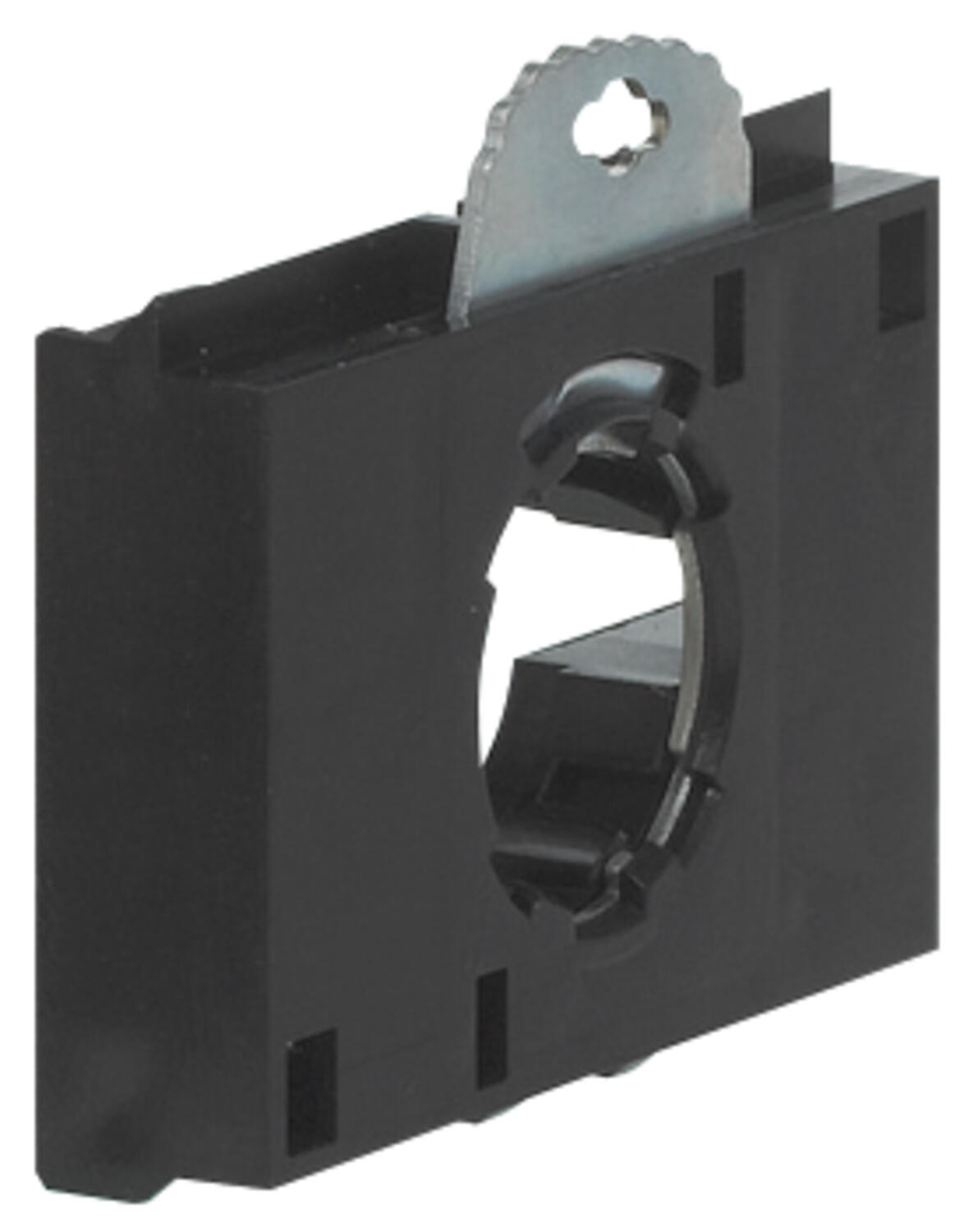

3 & 5 way clips lock in place with a robust metal lever to ensure a secure connection.
- 1, 3 & 5 module clips
- Robust metal locking lever
- Mount up to 6 blocks
Selected variant
Specifications
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 11 g |
Product description
Mounting clips are used to assemble contact blocks & LED blocks in the required configuration.
They interface with all pushbutton, selector switch, key switch, mushroom & pilot light heads.
Available in 1 way, 3 way or 5 way for up to 5 blocks.
Contacts can be double stacked on the 1 & 3 way clips to achieve up to the maximum 6 blocks.
LED blocks must always be placed in the center position.
1 way clips simply snap into place and are removed by pinching the plastic release tabs.
3 & 5 way clips lock in place with a robust metal lever to ensure a secure connection.
