BACO
Legend Plates
Legend plate frames & inserts
Legend plate frames are mounted on the pushbutton head before installation in the panel and the inserts are simply snaped into the legend plate frame.

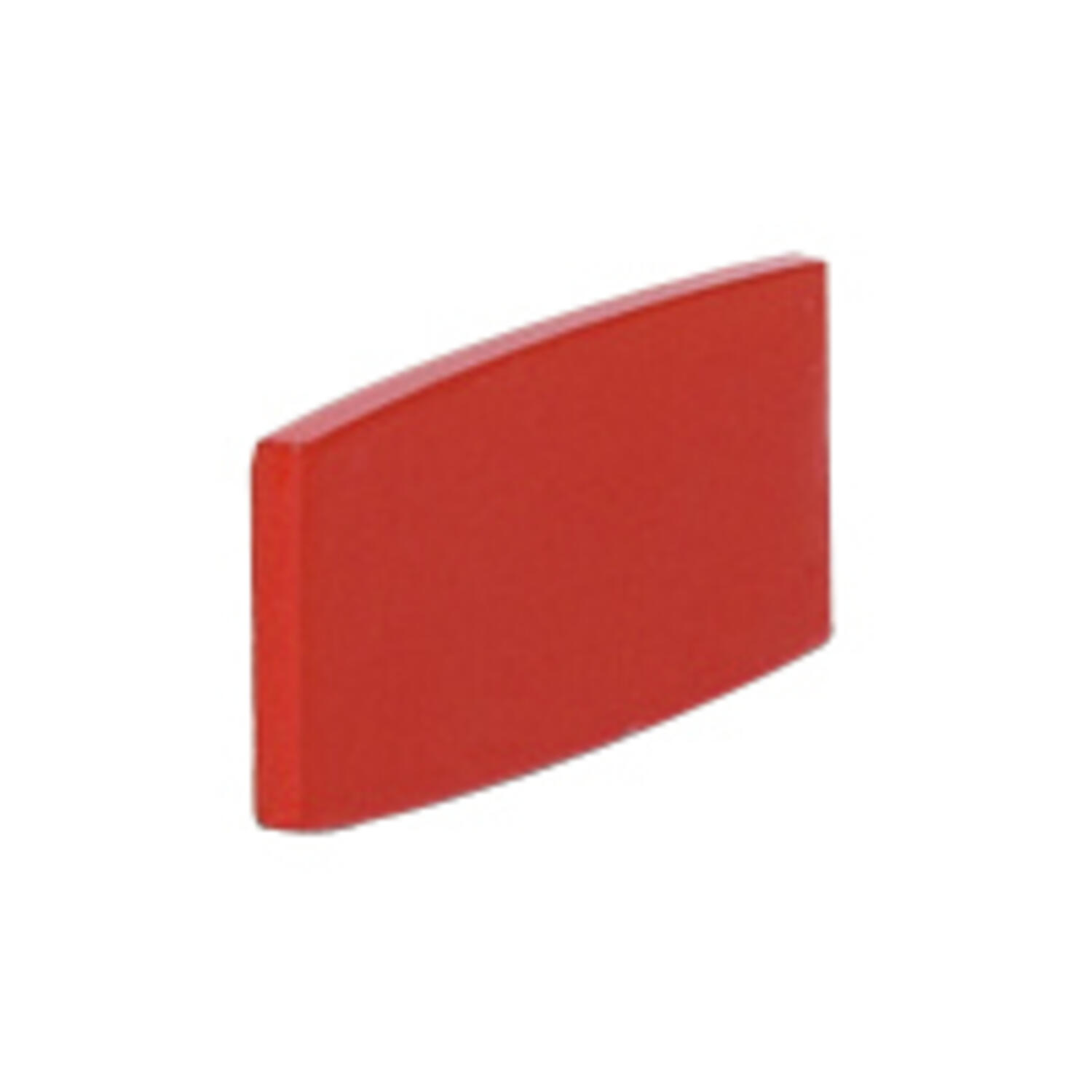

Inserts are available in red, black, white, transparent or standard silver.

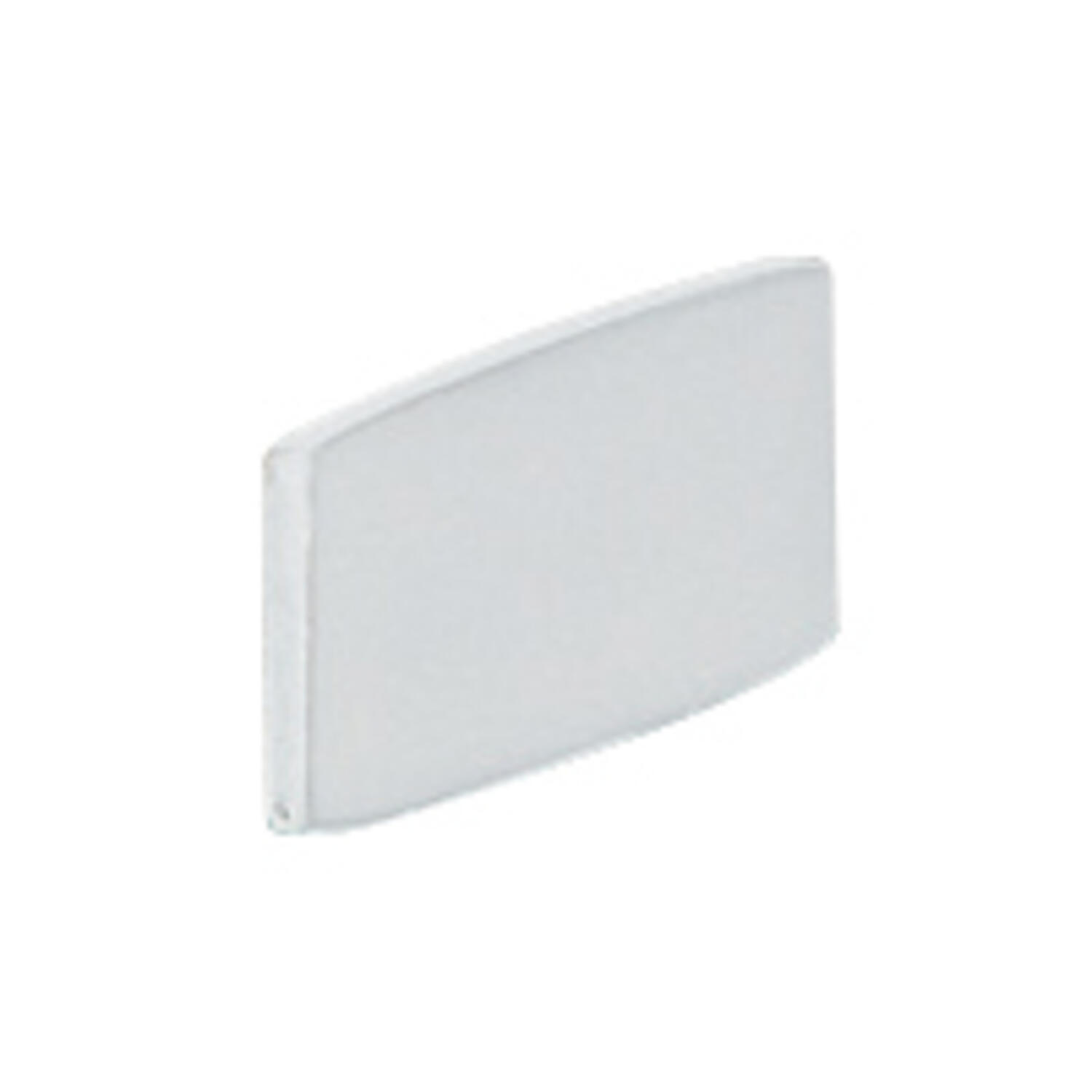

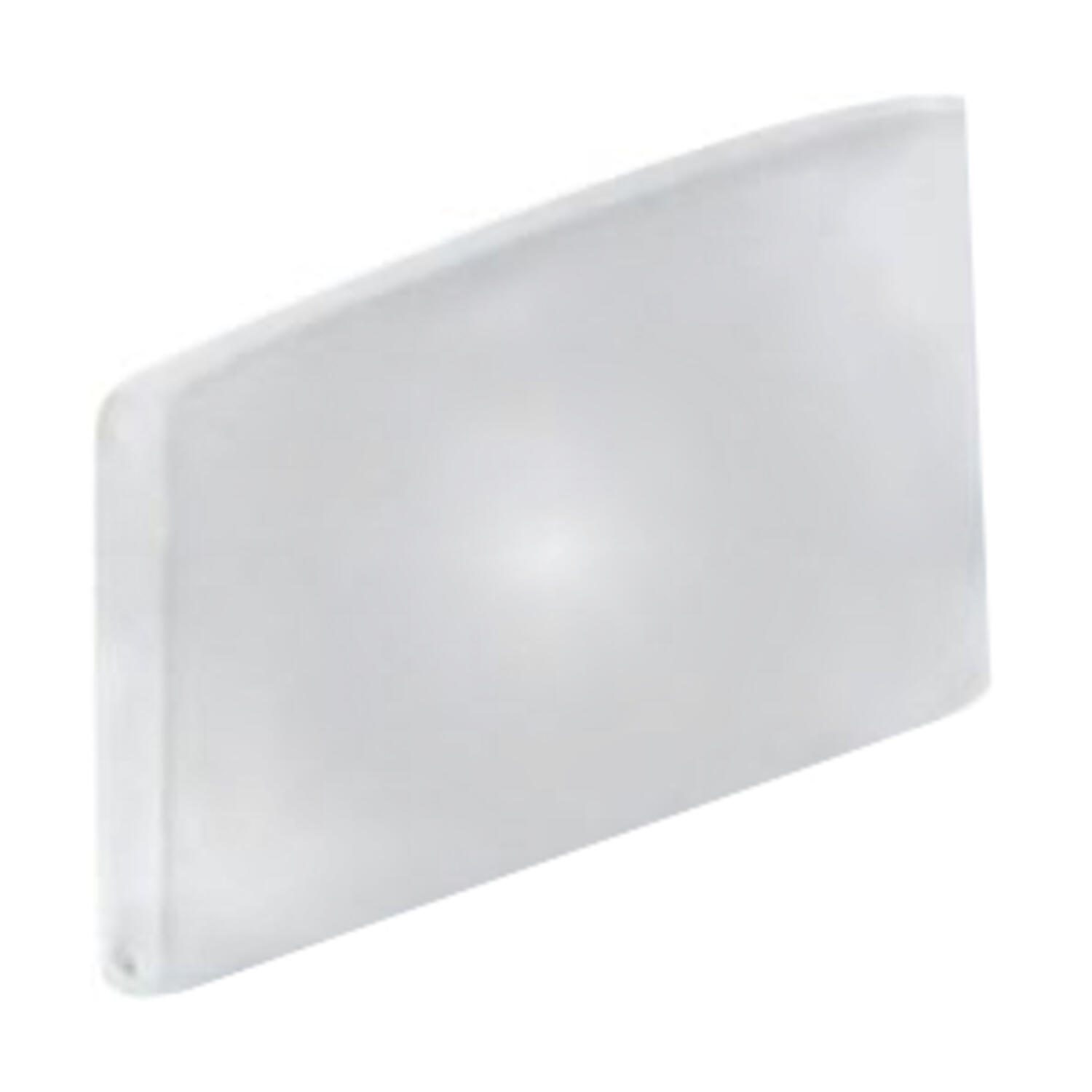

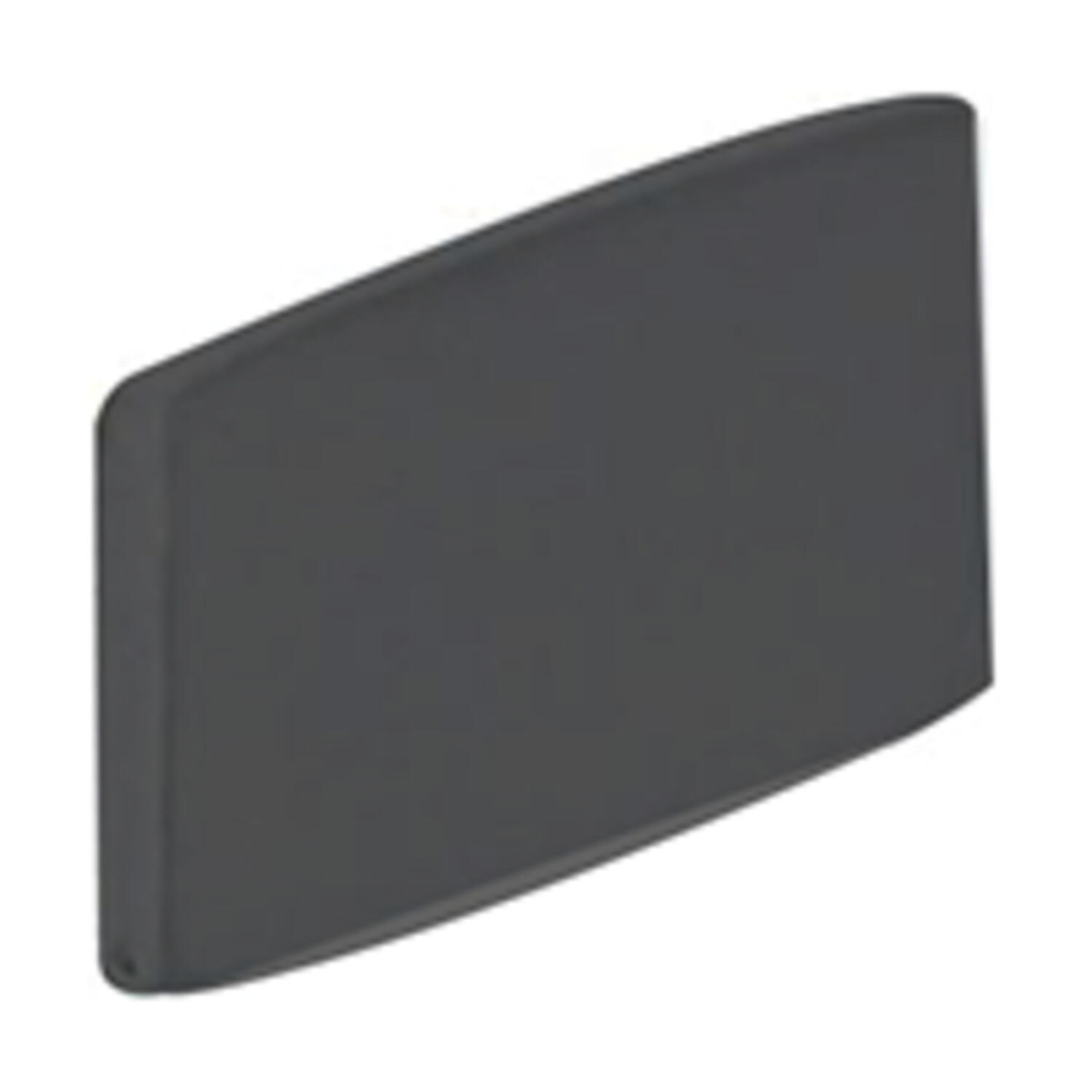

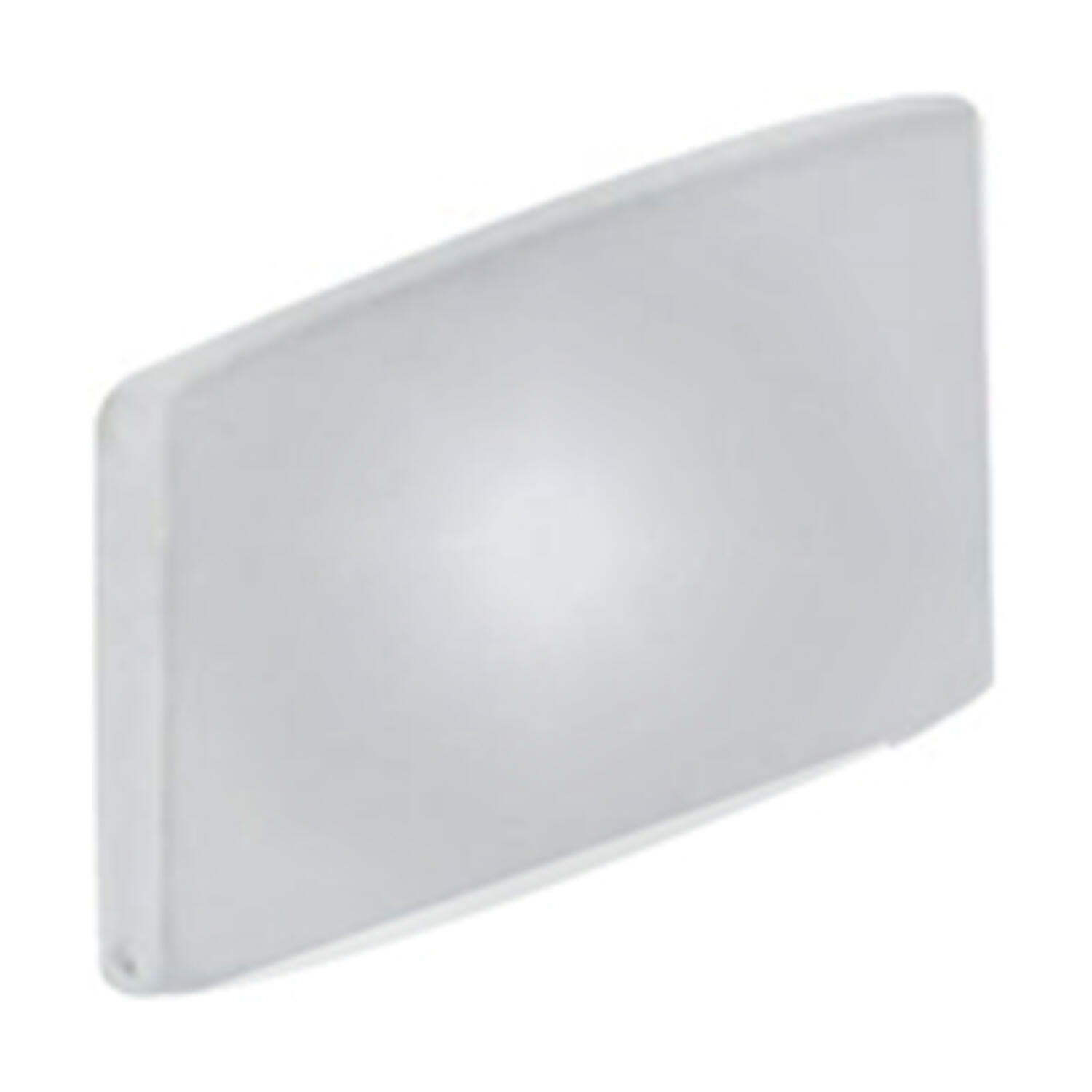

LIAx are standard width inserts for 2 lines of up to 13 characters.

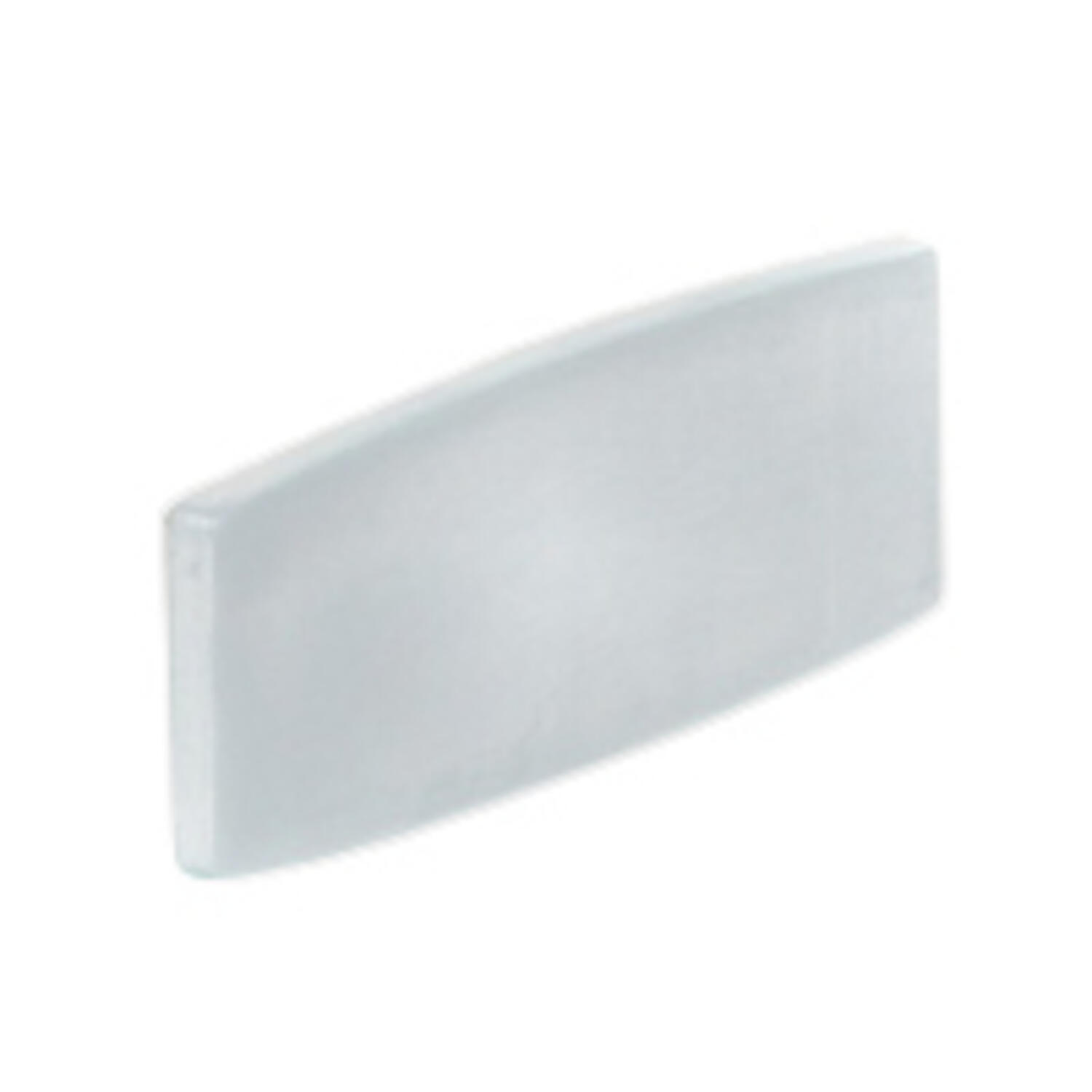

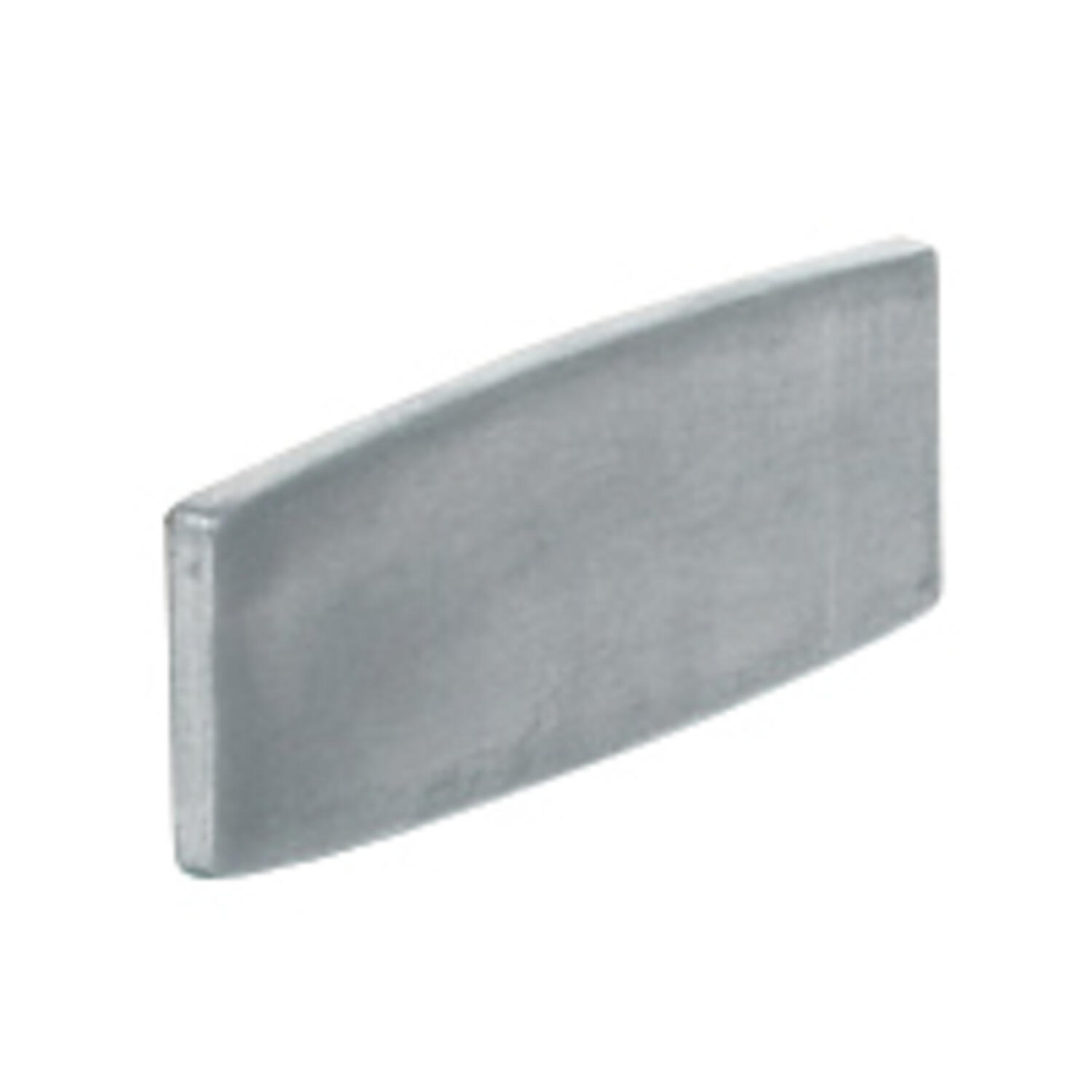

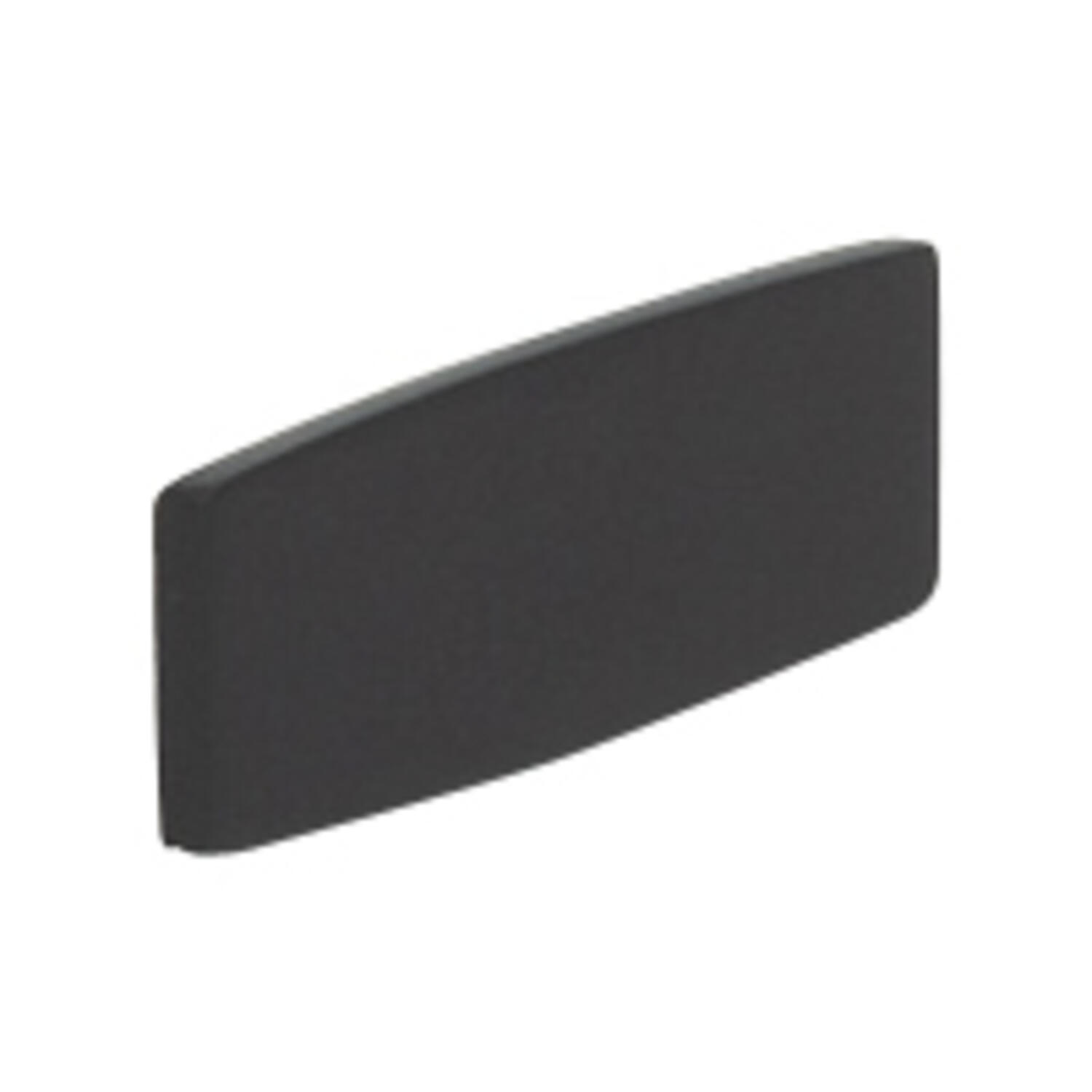

LIBx are large width inserts for 2 lines of up to 18 characters.

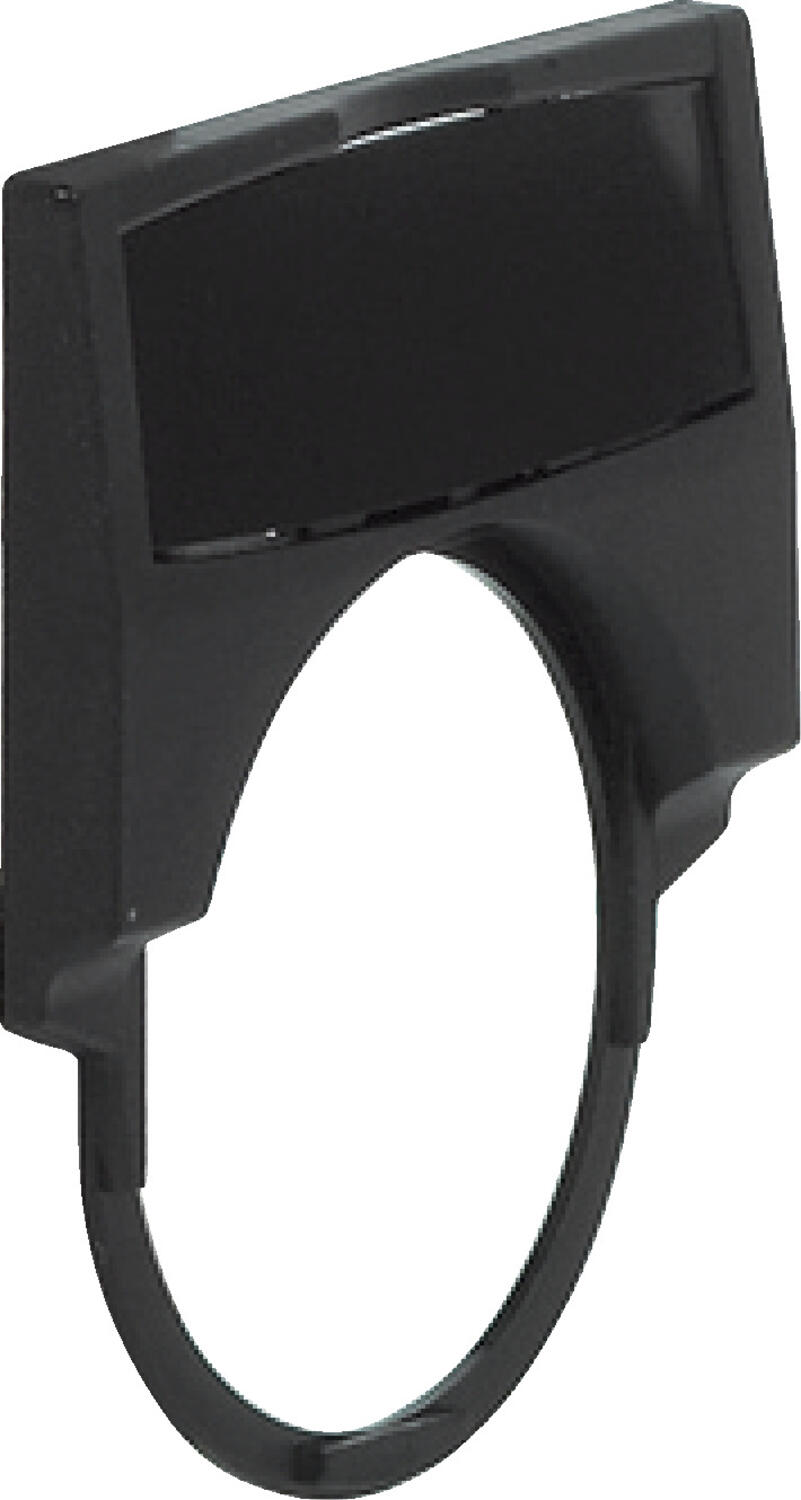

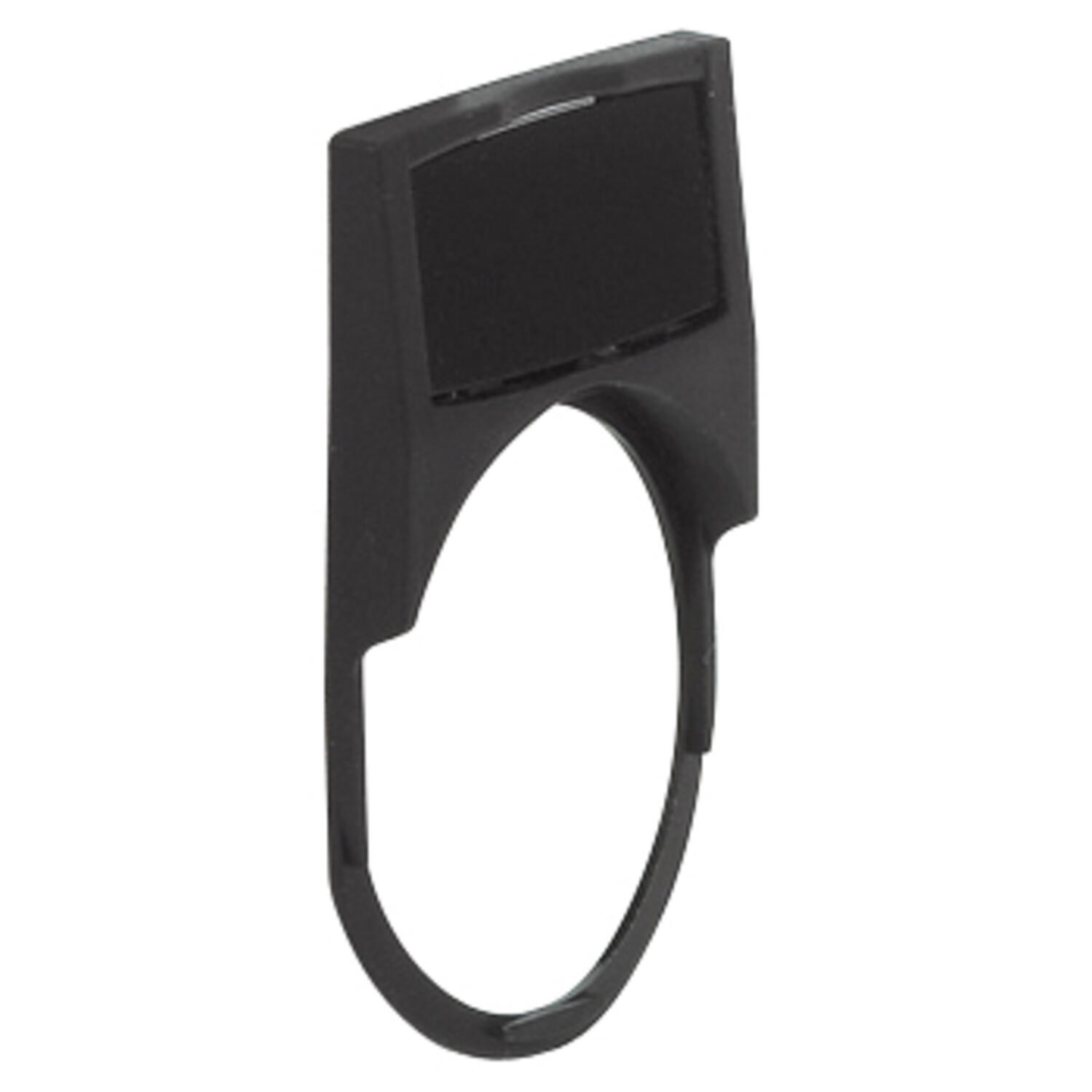

LWP3 is the standard frame for LIAx inserts.

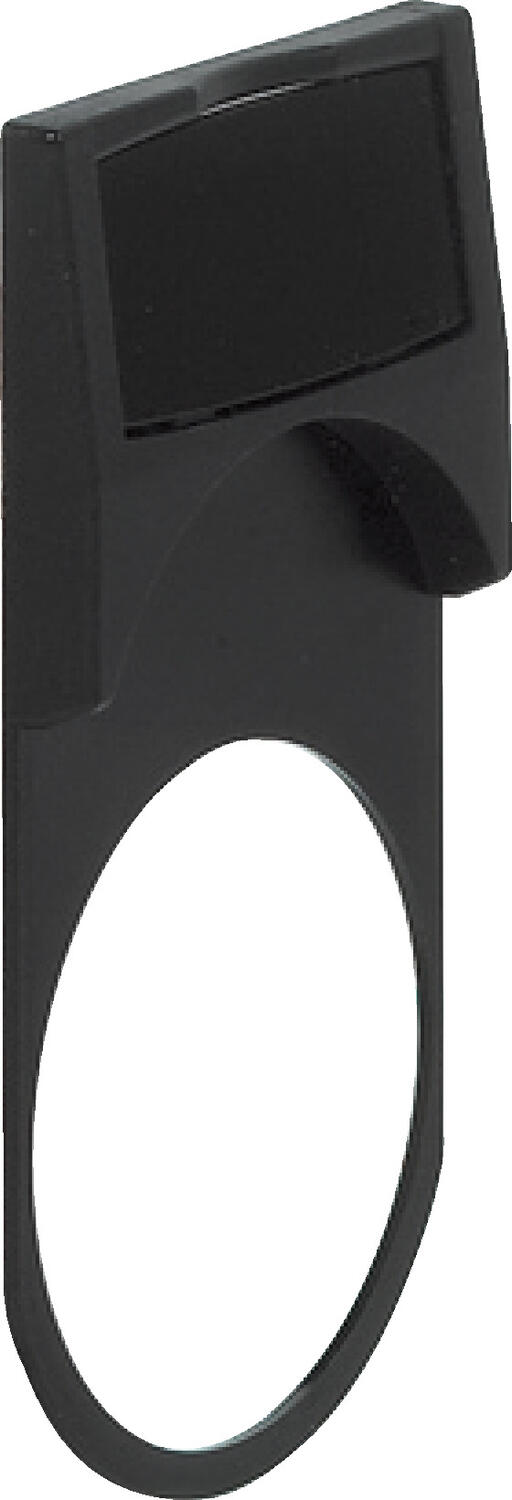

LWG3 is the standard frame for LIBx inserts.

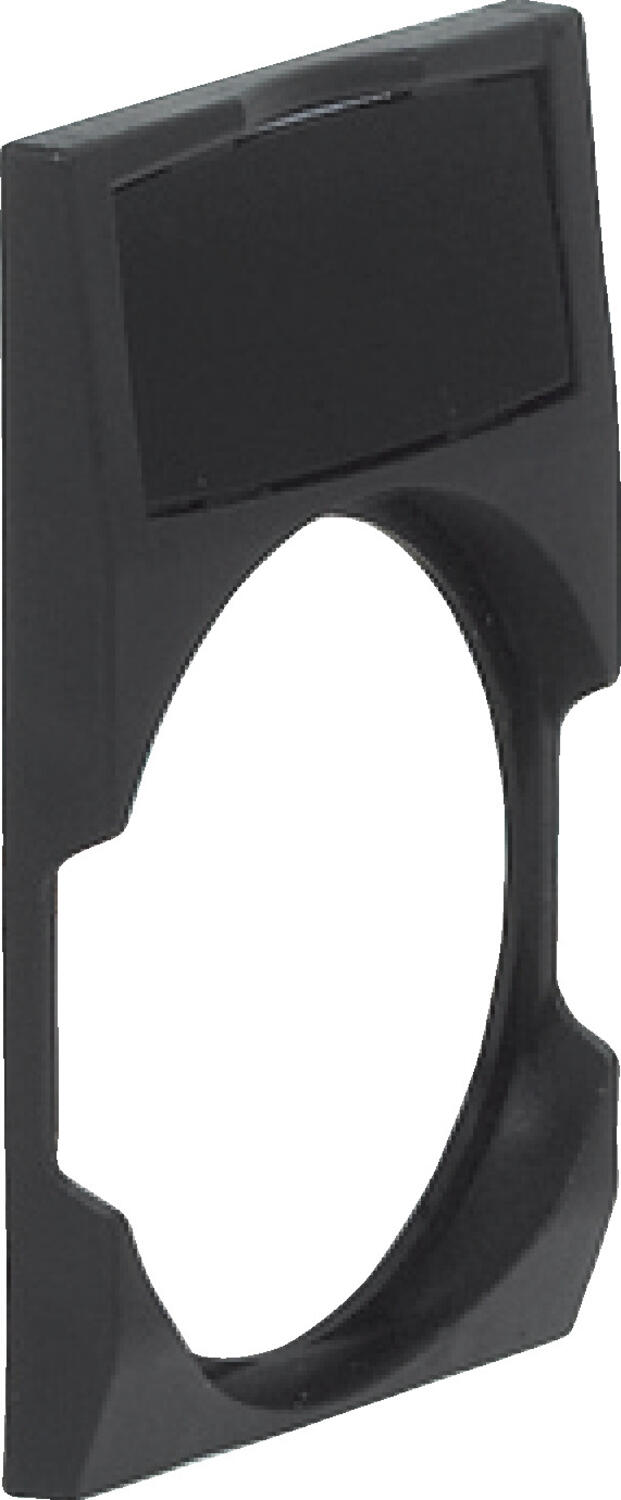

LWP4 is a square profile frame for LIAx inserts
LWP2 is for twin & tripple touch heads for LIAx inserts.

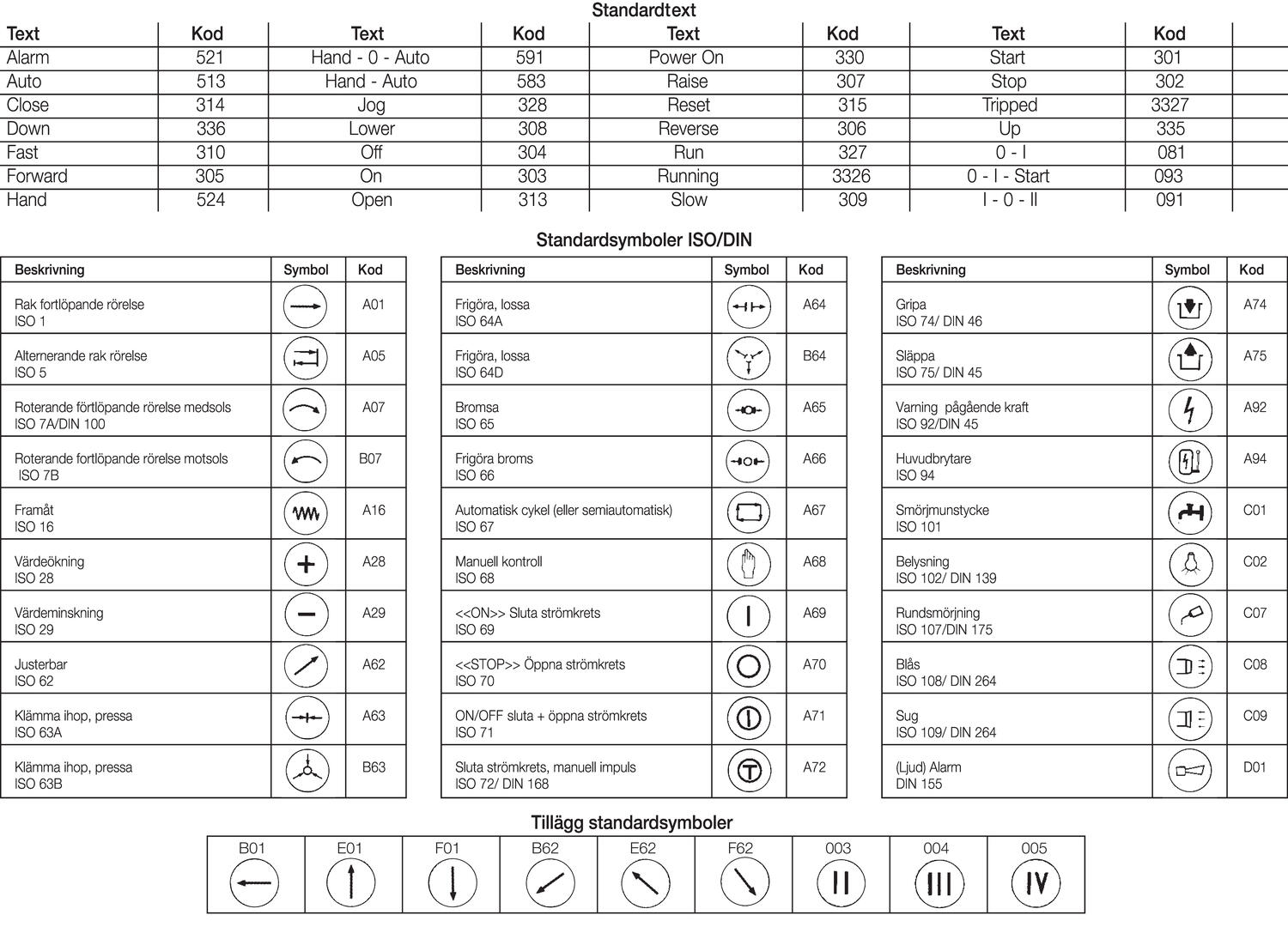

All options below are for blank legend plate inserts but we can offer a wide range of pre engraved inserts of standard texts or symbols. We can also custom engrave the inserts to your exact requirement, please contact us for more details.
- Standard or large width frames
- 5 legend insert colour options
- Option for custom engraved texts
- Option for twin touch head
Selected variant
Specifications
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
Product description
Legend plate frames are mounted on the pushbutton head before installation in the panel and the inserts are simply snaped into the legend plate frame.
Inserts are available in red, black, white, transparent or standard silver.
LIAx are standard width inserts for 2 lines of up to 13 characters.
LIBx are large width inserts for 2 lines of up to 18 characters.
LWP3 is the standard frame for LIAx inserts.
LWG3 is the standard frame for LIBx inserts.
LWP4 is a square profile frame for LIAx inserts
LWP2 is for twin & tripple touch heads for LIAx inserts.
All options below are for blank legend plate inserts but we can offer a wide range of pre engraved inserts of standard texts or symbols. We can also custom engrave the inserts to your exact requirement, please contact us for more details.
