BACO

PR ONE cam switches

16A

  • Excellent value for money
  • Includes switch and knob
  • Screw mount

Selected variant

BACO.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Angle 45°
Area Cable Single Wire Max 4 mm²
Cable Area Multi-Conductor Max 2.5 mm²
Conventional free air thermal current Ith 20 A
Function Stable
Mounting Screw on
Number Of Contacts 1
Number of poles 1
Number of positions 2
Plate 48x48
Protection rating front of panel IP40
Protection rating rear of panel IP20
Rated insulation voltage Ui 690 V
Rated operating current Ie (AC15/230V) 6 A
Rated operating current Ie (AC21A/22A) 16 A
Rated operating power (AC23A/3x230V) 4 kW
Rated operating power (AC23A/3x400V) 7.5 kW
Rated operating power (AC3/3x230V) 3 kW
Rated operating power (AC3/3x400V) 4 kW
Standards CB, CCC, CE, CSA, IEC 60947-3 , IEC 60947-1, UL, UL 508
Temperature range from -20 °C
Temperature range to 70 °C
Type/Model ON-OFF switch

Downloads

Measurements and connections

Accessories

Related

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Angle Number Of Contacts Number of poles Number of positions Type/Model
PR ONE 0-1.jpg

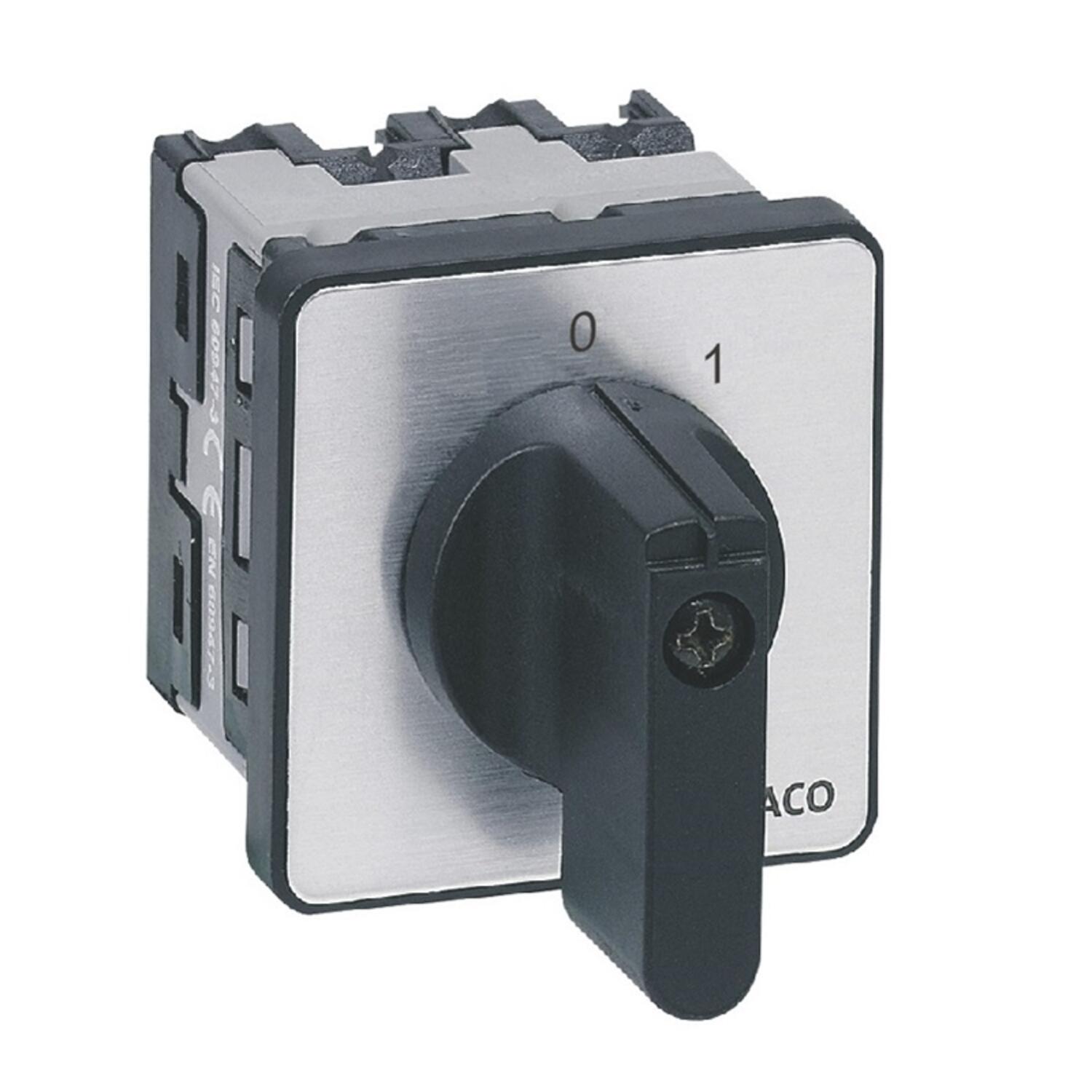

PR ONE 16A "0-1" 1-POLE
Art:
227600 Copied
45°
1
1
2
ON-OFF switch
PR ONE 0-1.jpg
PR ONE 16A "0-1" 2-POLE
Art:
227601 Copied
45°
2
2
2
ON-OFF switch
PR ONE 0-1.jpg
PR ONE 16A "0-1" 3-POLES
Art:
227602 Copied
45°
3
3
2
ON-OFF switch
BACO_227609_PR_ONE_Kamströmställare.eps

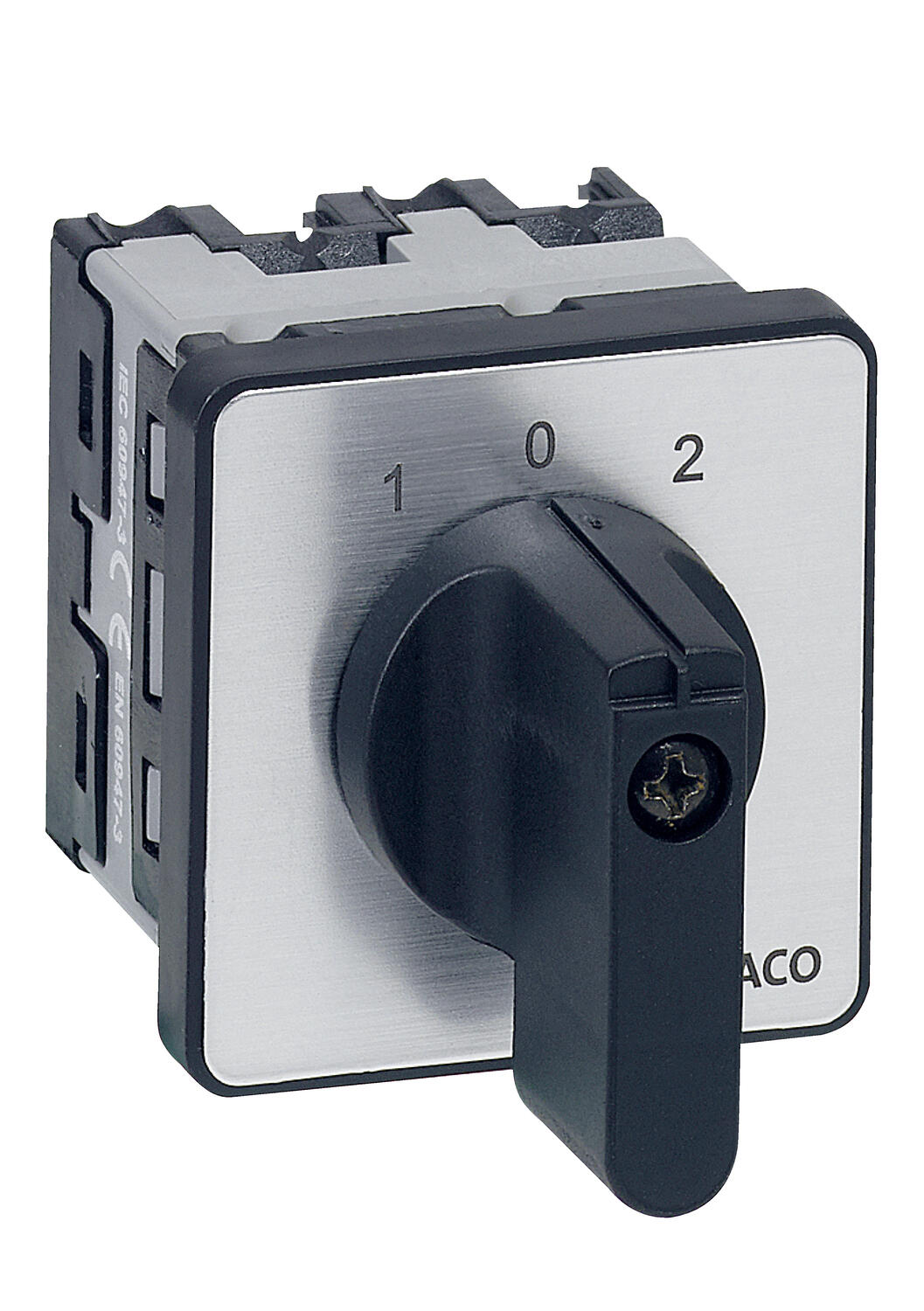

PR ONE 16A "1-0-2" 1-POLE
Art:
227609 Copied
45°
2
1
3
Change-over switch
BACO_227609_PR_ONE_Kamströmställare.eps
PR ONE 16A "1-0-2" 2-POLES
Art:
227610 Copied
45°
4
2
3
Change-over switch
BACO_227609_PR_ONE_Kamströmställare.eps
PR ONE 16A "1-0-2" 3-POLES
Art:
227611 Copied
45°
6
3
3
Change-over switch
PR ONE 16 A 0-1-2.jpg

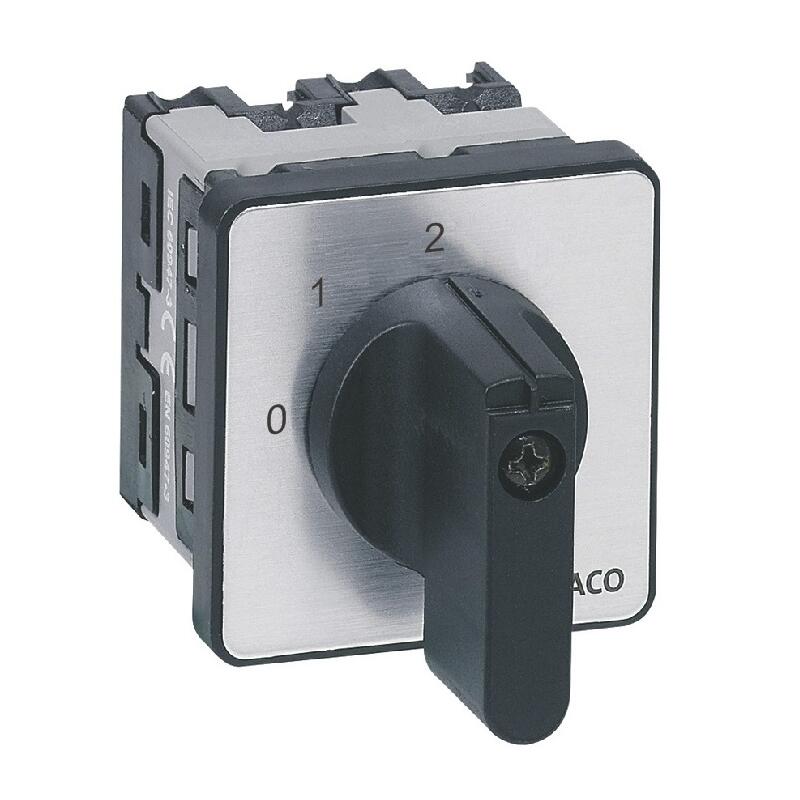

PR ONE 16A "0-1-2" 1-POLE
Art:
227618 Copied
45°
2
1
3
Selector switch
PR ONE 16 A 0-1-2.jpg
PR ONE 16A "0-1-2" 2-POLES
Art:
227619 Copied
45°
4
2
3
Selector switch
PR ONE 16 A 0-1-2.jpg
PR ONE 16A "0-1-2" 3-POLES
Art:
227620 Copied
45°
6
3
3
Selector switch

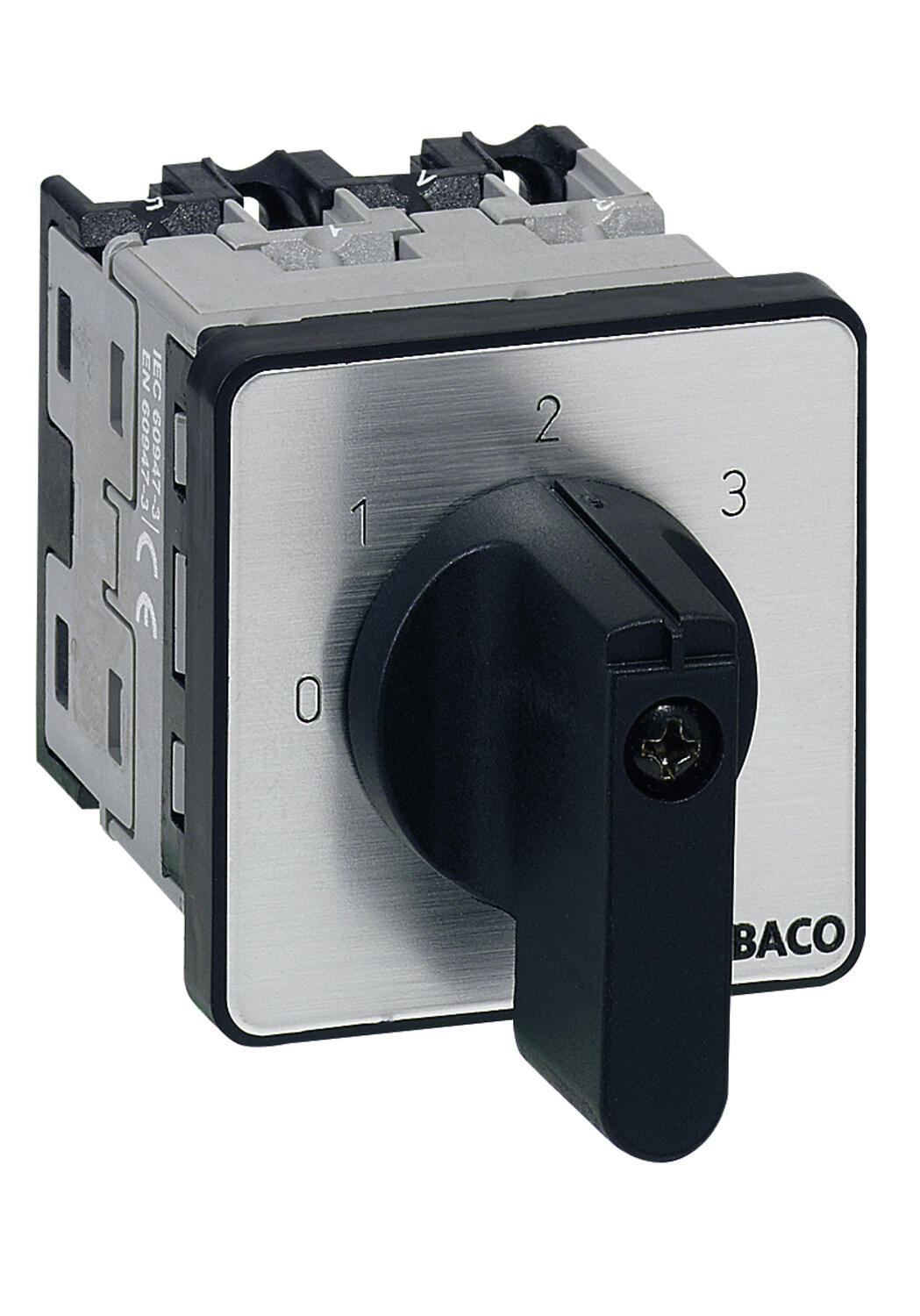

PR ONE 16A "0-1-2-3" 1-POLES
Art:
227621 Copied
45°
3
1
4
Selector switch

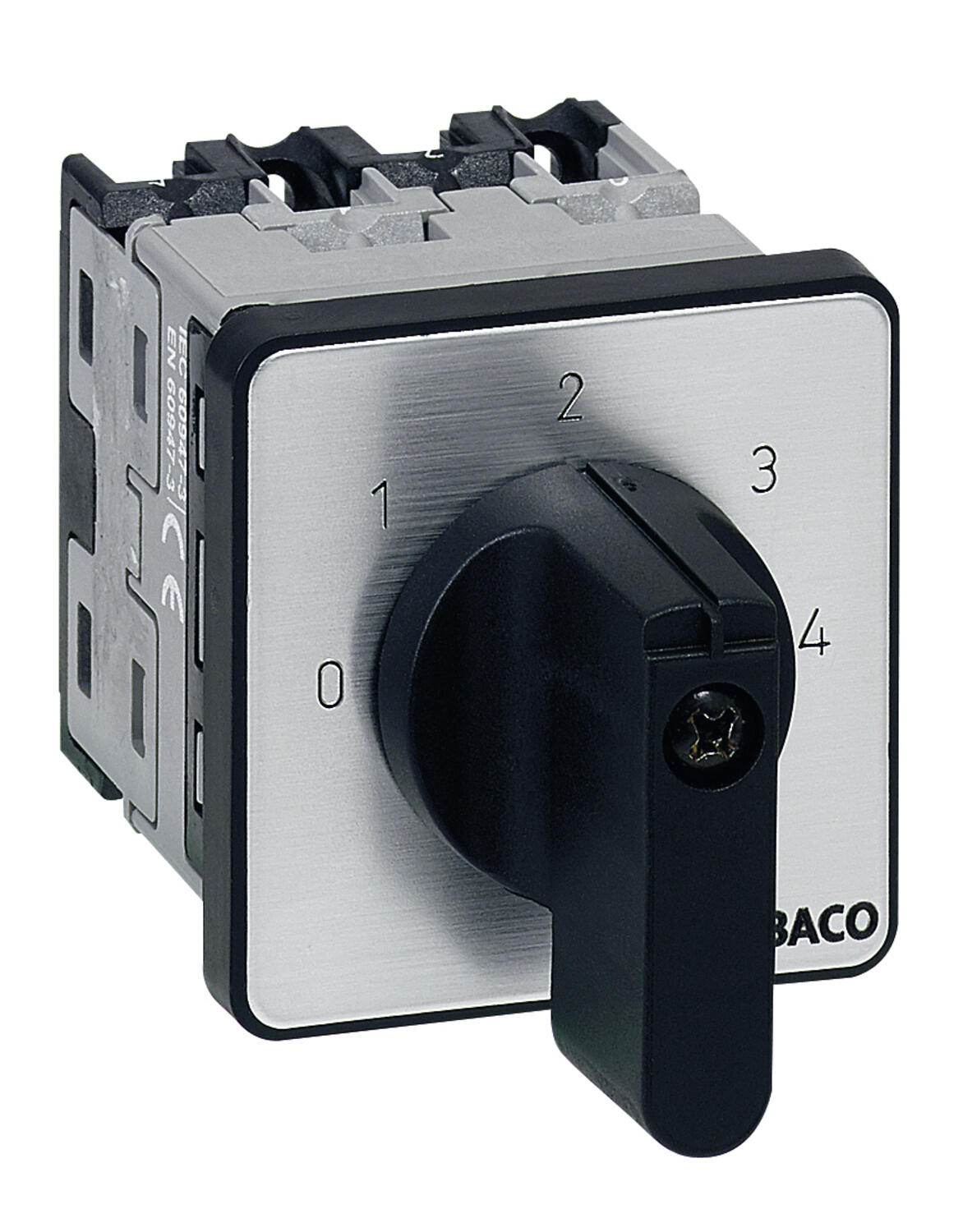

PR ONE 16A "0-1-2-3-4" 1-POLE
Art:
227622 Copied
45°
4
1
5
Selector switch

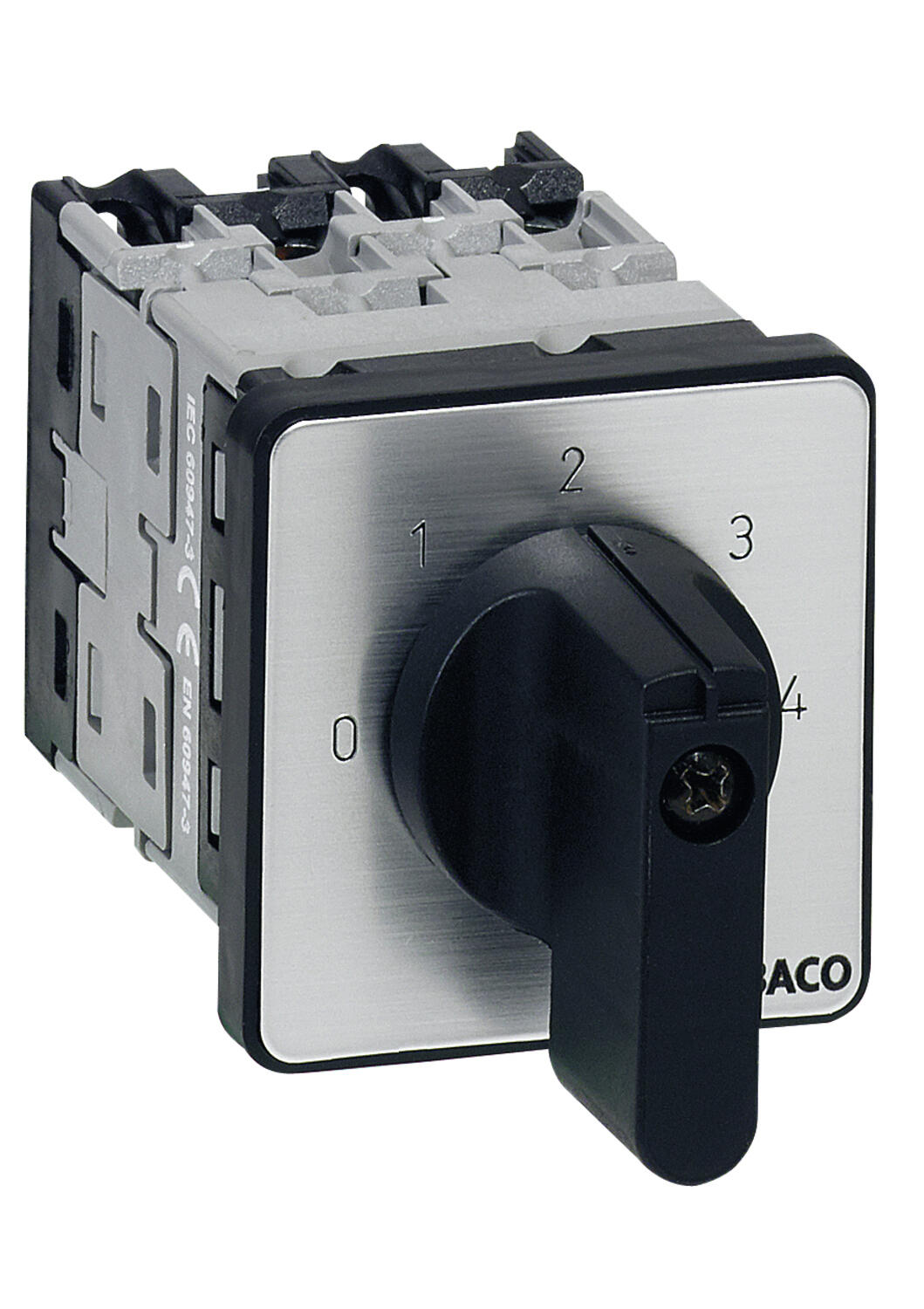

PR ONE 16A "0-1-2-3-4-5" 1-POLE
Art:
227623 Copied
45°
5
1
6
Selector switch

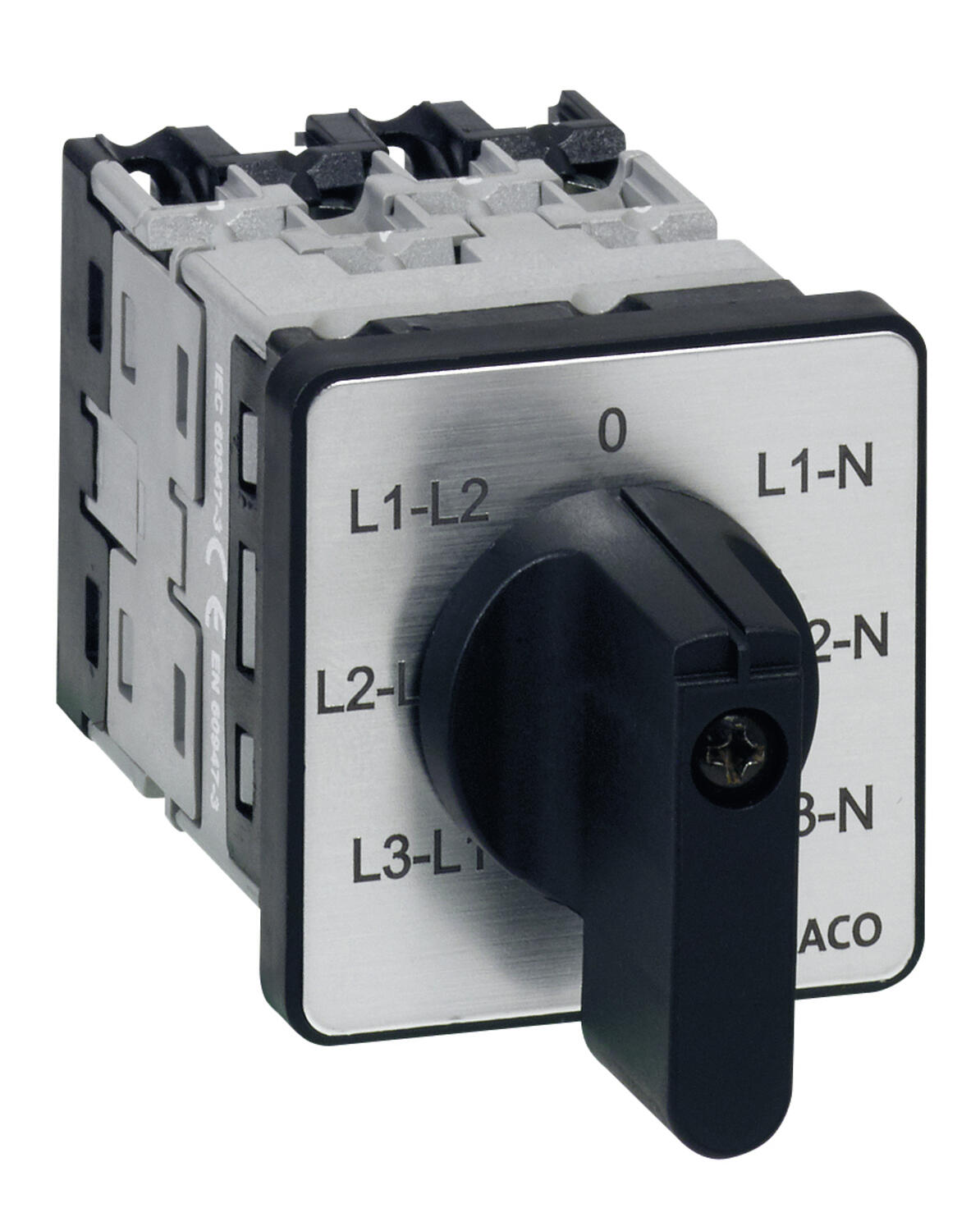

PR ONE 16A VOLTMETER L1, L2, L3, N
Art:
227636 Copied
45°
6
1
7
Voltmeter switch
BACO_227637_PR_ONE_Kamströmställare.eps

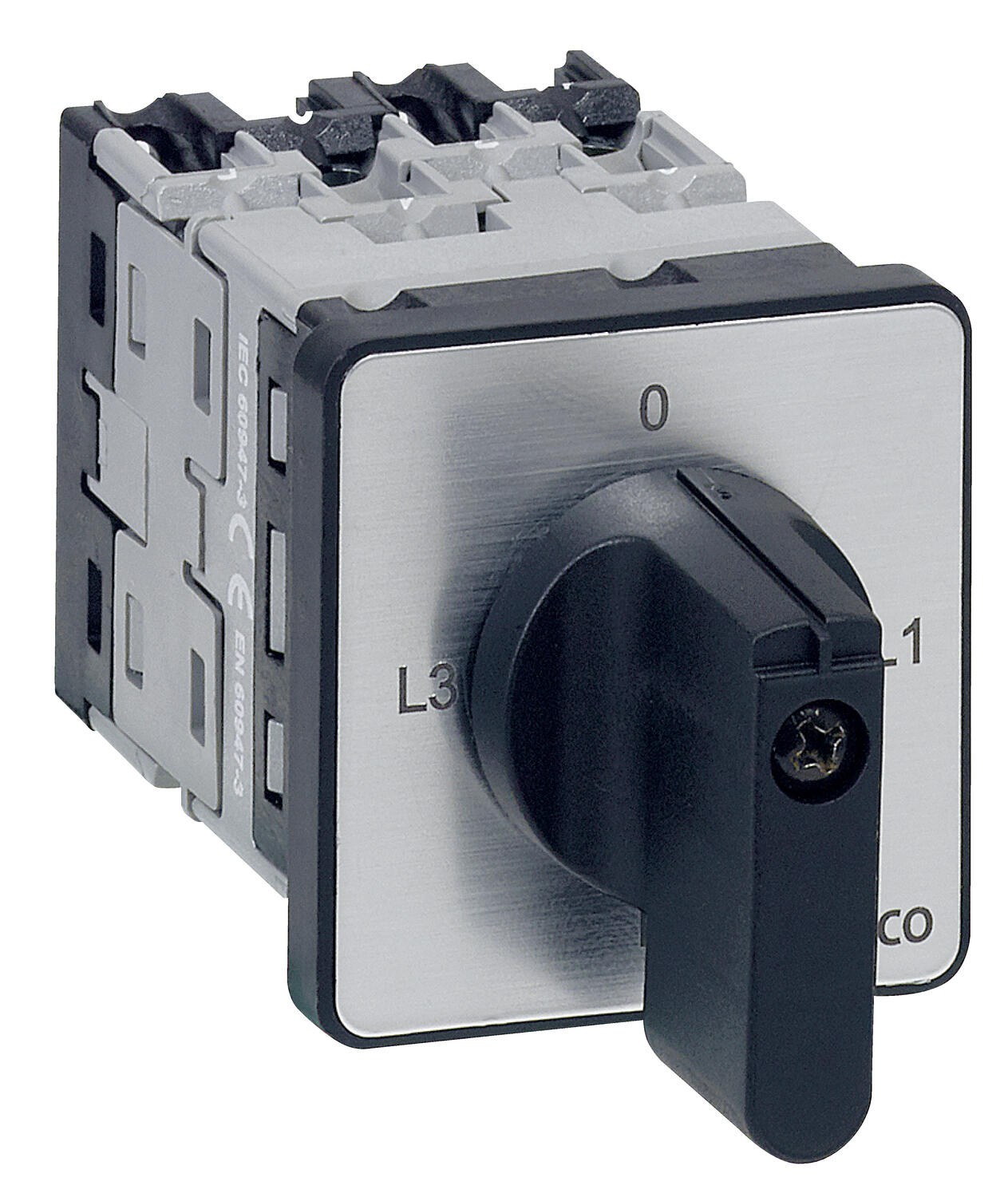

PR ONE 16A AMMETER SWITCH "0-L1-L2-L3"
Art:
227637 Copied
90°
6
1
4
Ammeter switch
