BACO

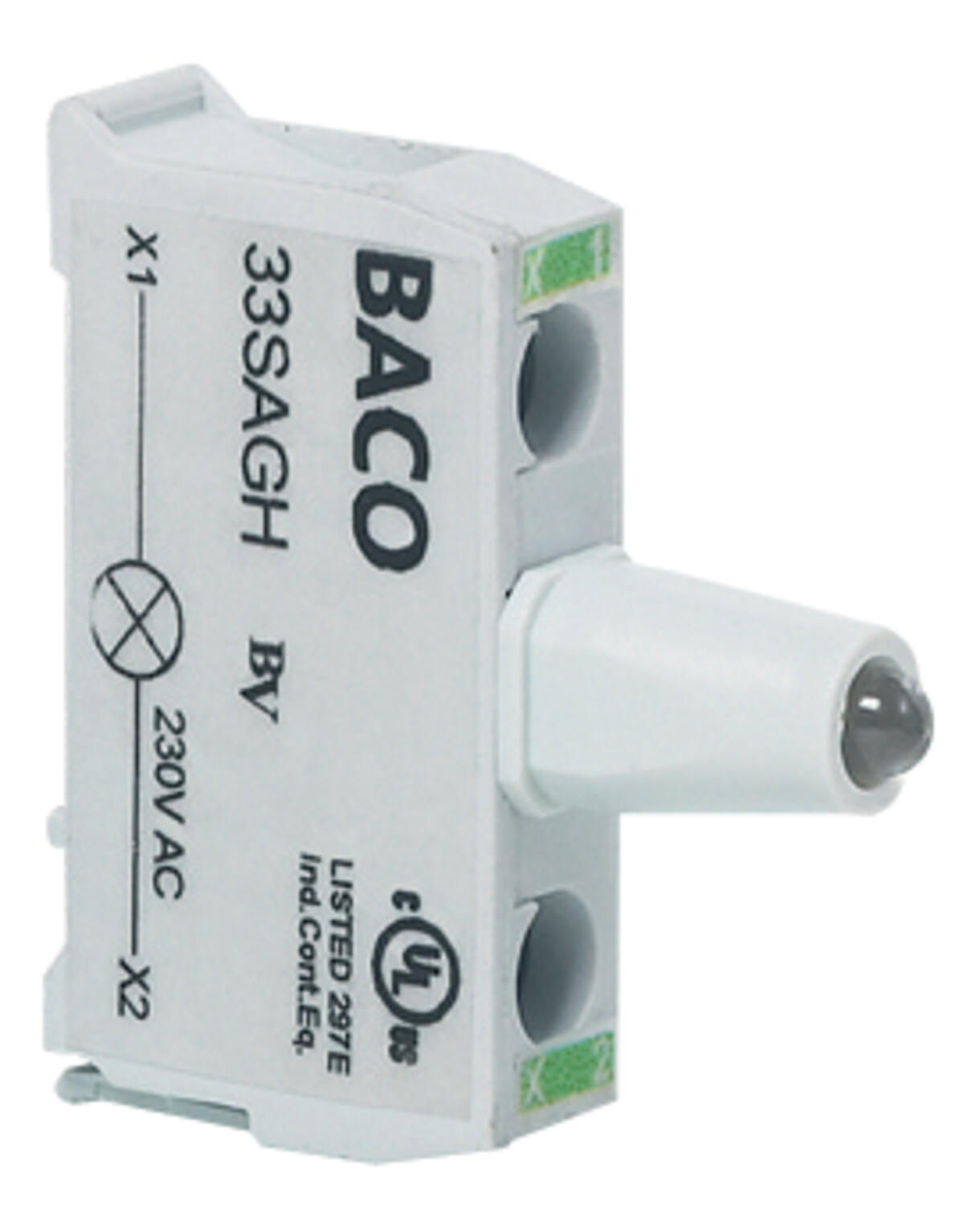

LED blocks
Screw terminals for rear mount
LED blocks with screw terminal connection for rear mounting in LBX control station enclosures.
Snap directly in the centre position of the enclosure base with no clip required.
Suitable for all illuminated pushbutton, selector switch, mushroom or pilot light heads.
Available in colour options, red, green, yellow, white & blue.
Available in voltage options 12-24Vac/dc, 130Vac & 230Vac.
Long lifetime of up to 100,000 hours.
- Rear mount for LBX stations
- Long lifetime up to 100,000 hours
- 5 colour & 3 voltage options
- Fingersafe IP20 terminals
Selected variant
Specifications
| Color | Red |
|---|---|
| Connection | Screw Rear Mount |
| LED supply voltage | 12-24V AC/DC |
| LED Voltage Tolerance | ± 20% |
| Rated insulation voltage Ui | 300 V |
| Protection rating rear of panel | IP20 |
| Connection stranded wire with ferrule min | 0.5 mm² |
| Connection stranded wire with ferrule max | 1.5 mm² |
| Connection solid wire max | 2.5 mm² |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
|---|---|
| Lifetime at rated supply voltage (25°C) | 100000 h |
| Weight | 19 g |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Torque max | 1.2 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 4 kV |
| Power consumption | 25 mA ±20% |
| Frequenze | 50/60 Hz |
Product description
LED blocks with screw terminal connection for rear mounting in LBX control station enclosures.
Snap directly in the centre position of the enclosure base with no clip required.
Suitable for all illuminated pushbutton, selector switch, mushroom or pilot light heads.
Available in colour options, red, green, yellow, white & blue.
Available in voltage options 12-24Vac/dc, 130Vac & 230Vac.
Long lifetime of up to 100,000 hours.
