BACO

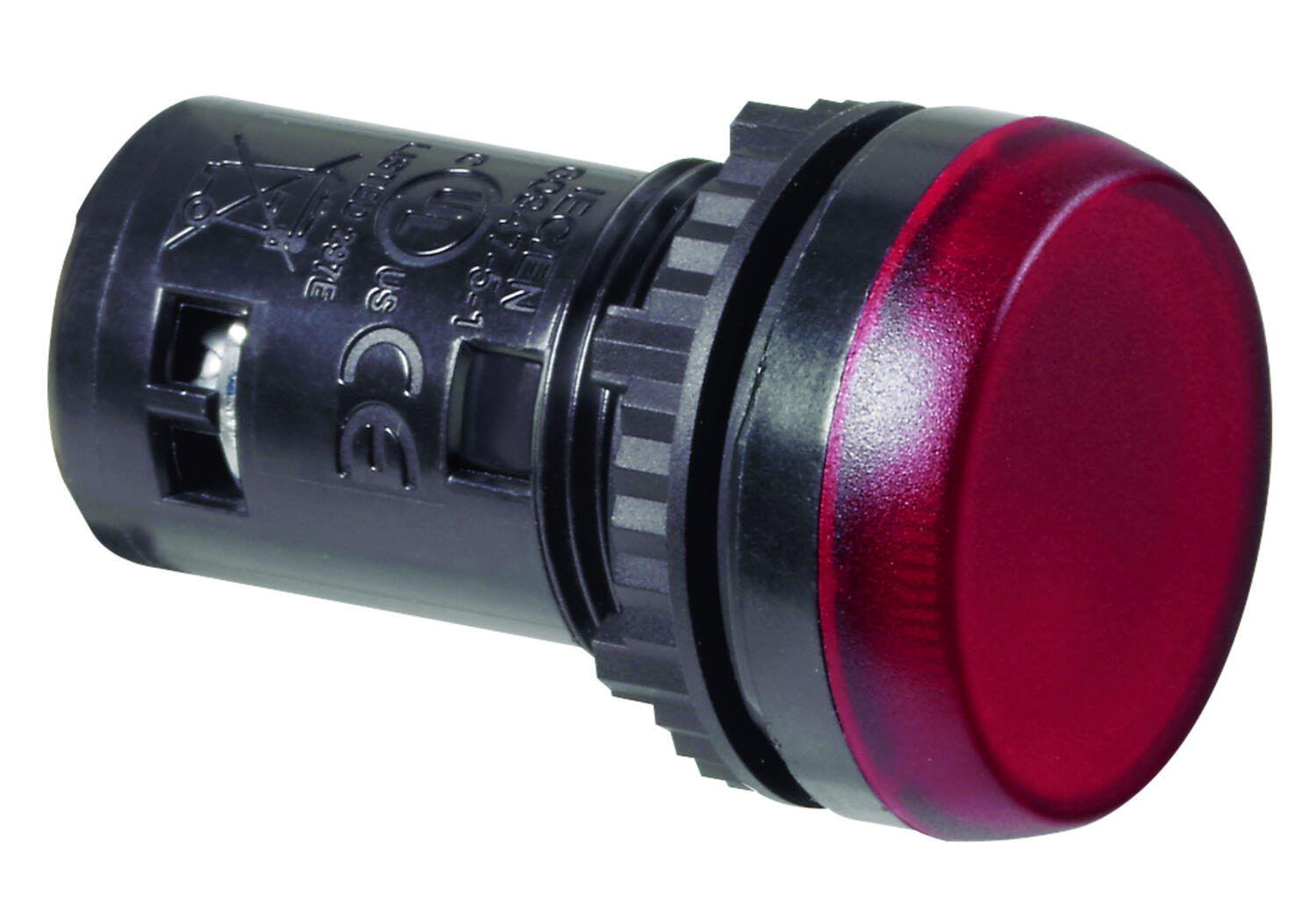

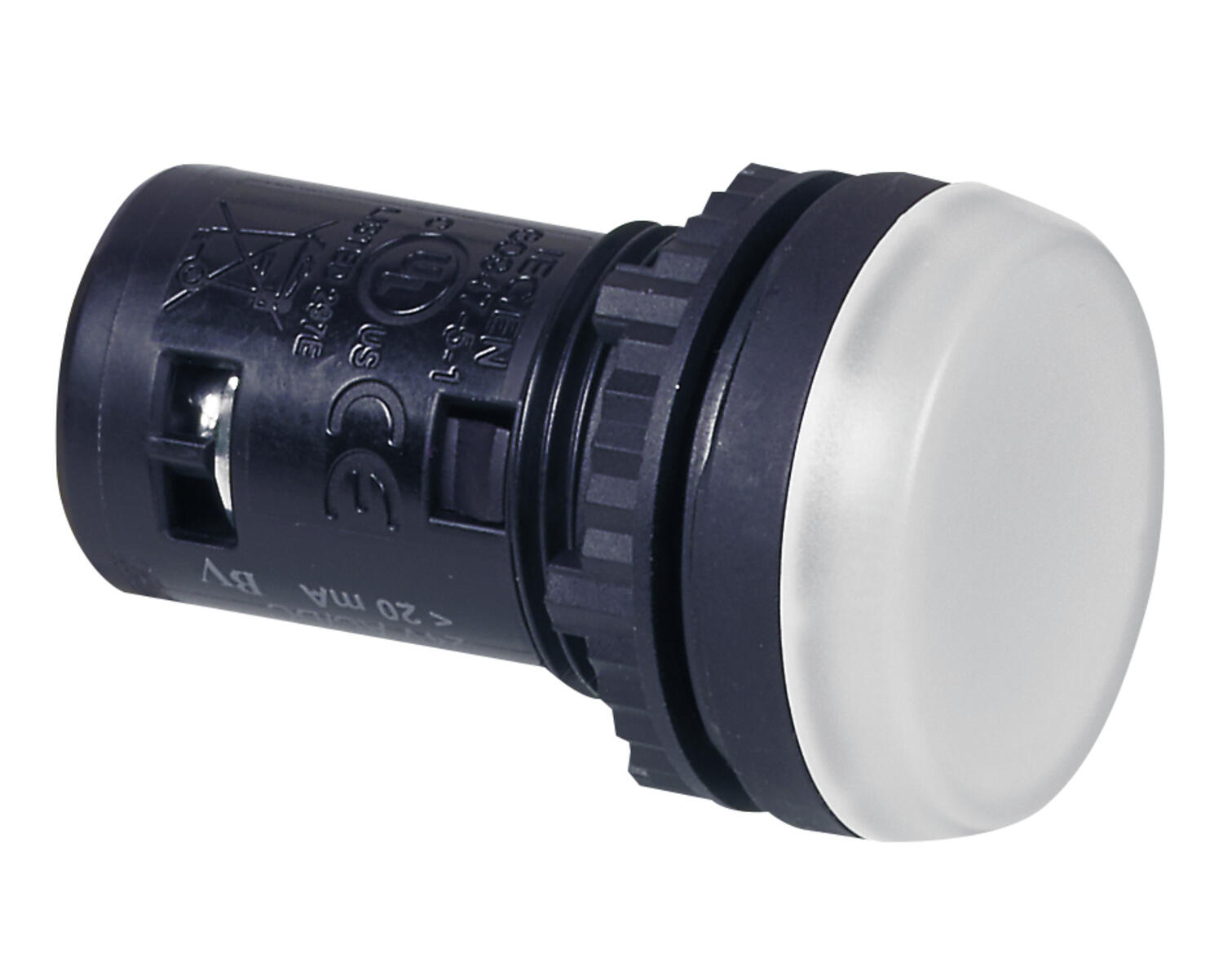

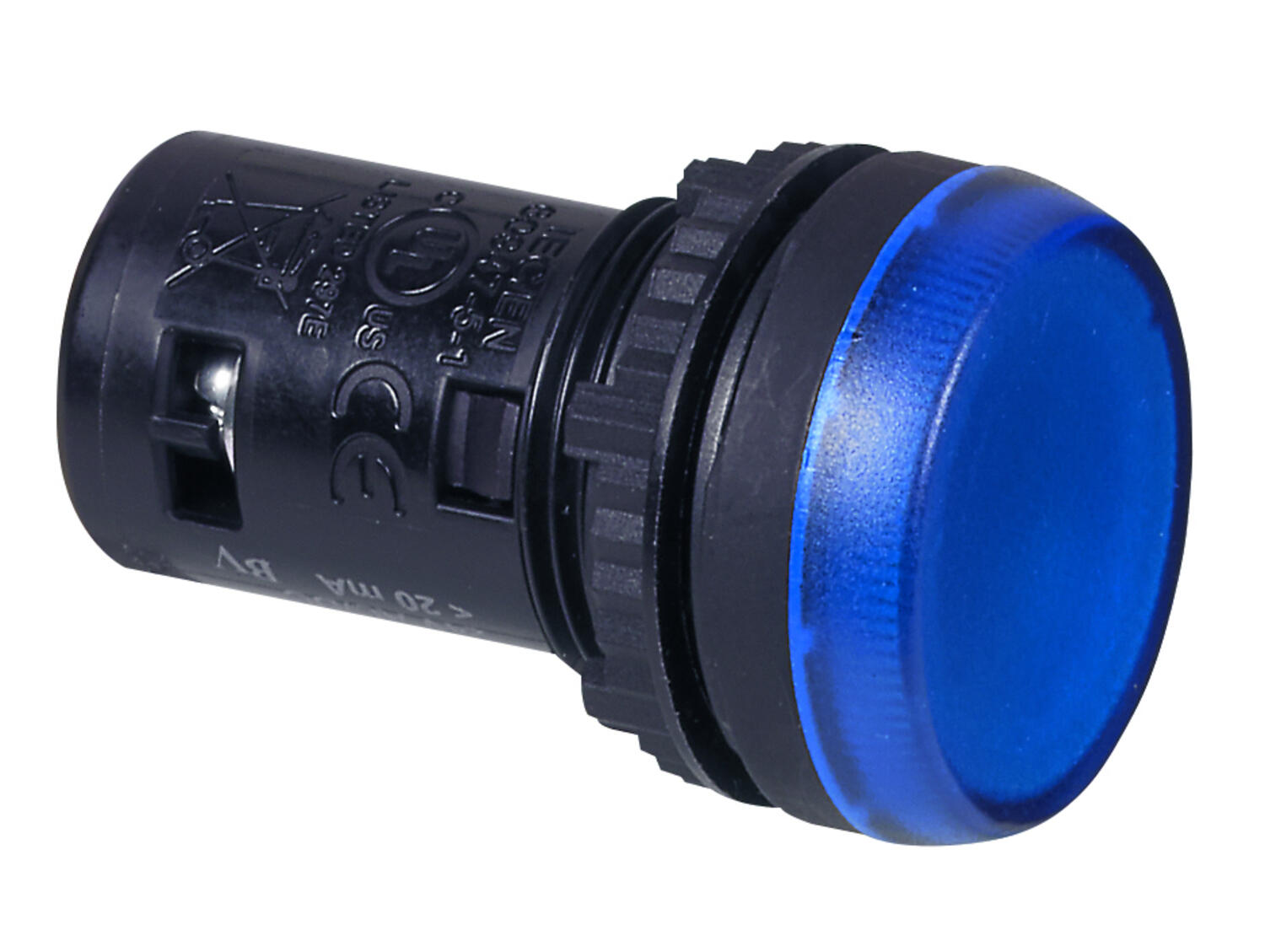

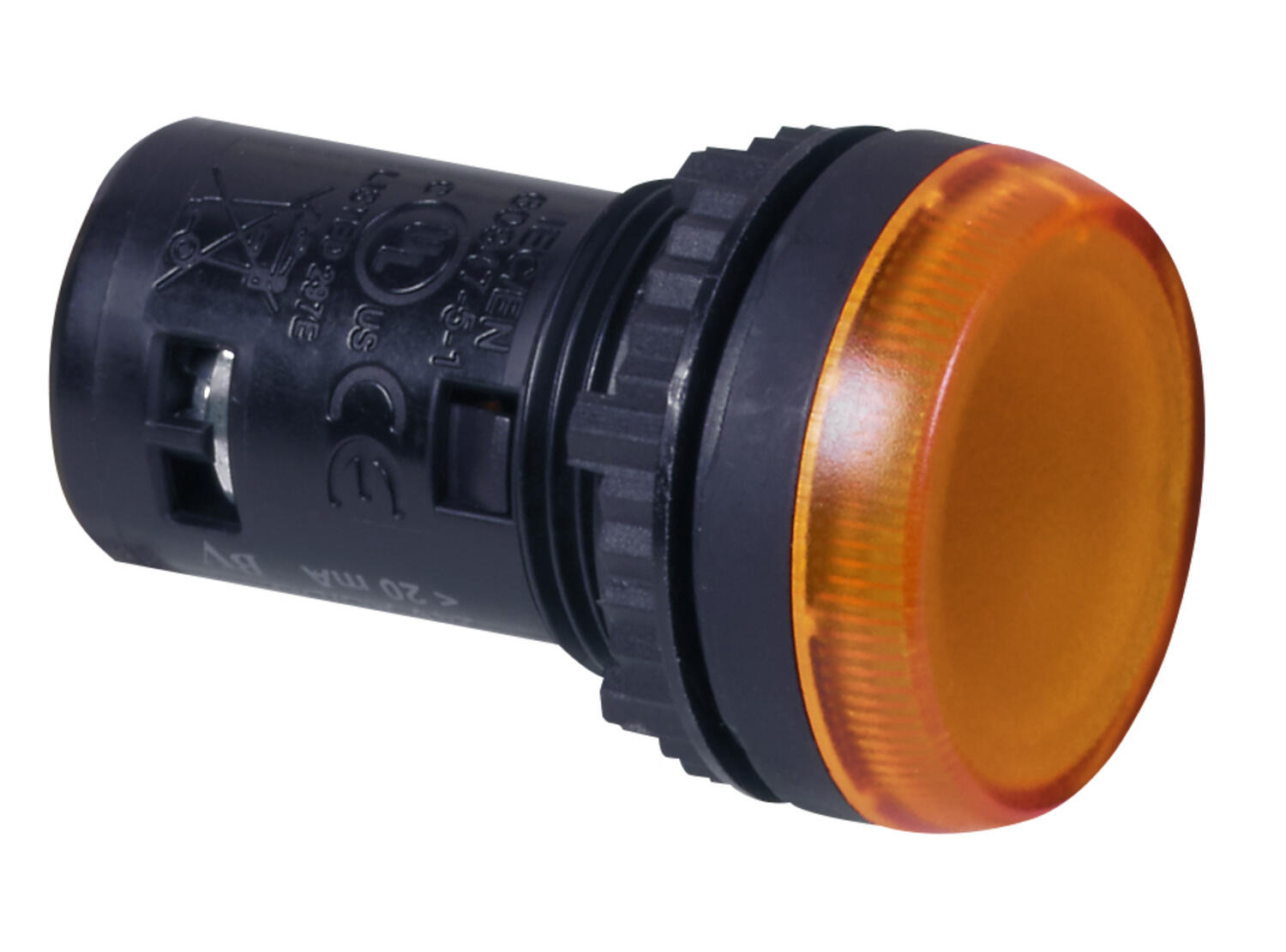

One Piece Pilot Lights
Complete Pilot Light With Integrated LED
LED pilot lights in a robust housing with modern design that are easy to install in a 22.5mm hole.
The one piece body has an integrated LED and easily accessible screw connections at the bottom of the base.
The unit is ideal for harsh industrial environments thanks to a high impact resistance and protection class rating of IP66 / IP69K and therefore suitable for a wide range of applications.
- IP66 / IP69K
- 12-24V, 115V, 230V ac/dc

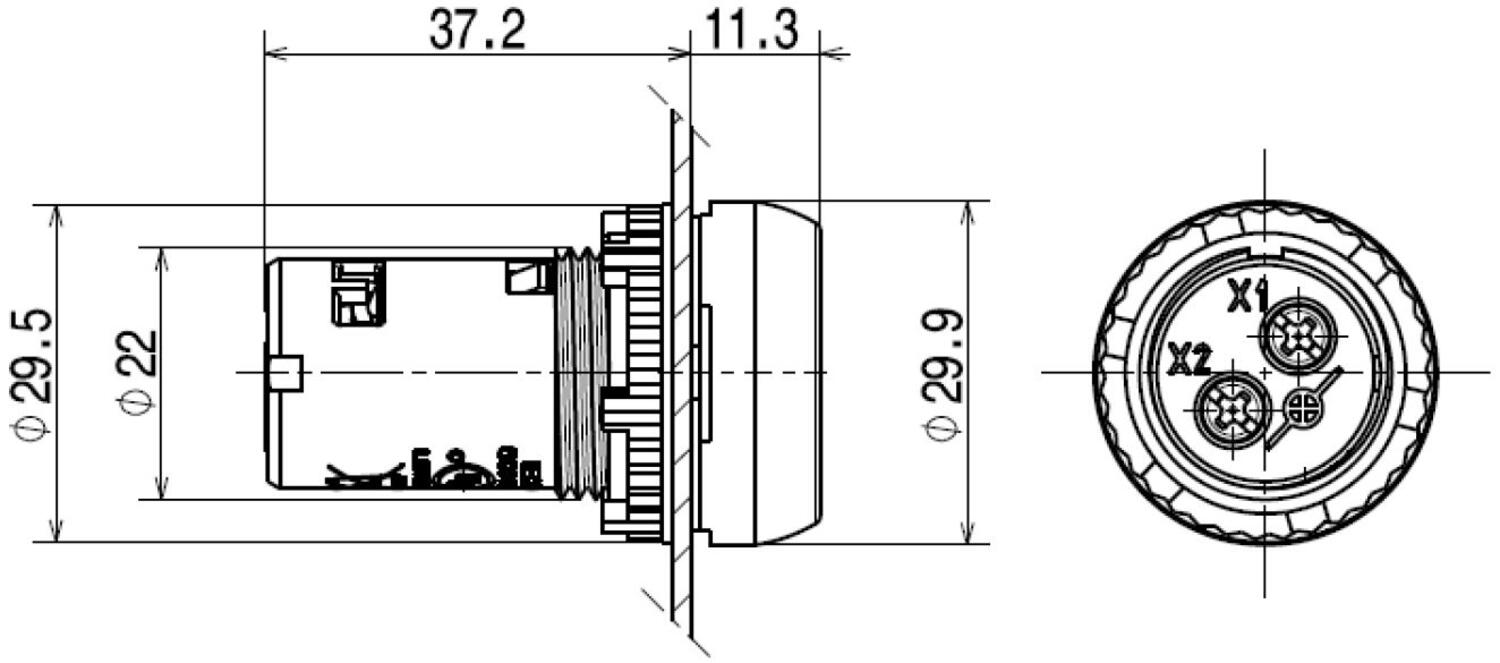

- Compact 37.2 mm behind panel depth
- Long lifetime up to 100,000 hours
Selected variant
Specifications
| Color | Red |
|---|---|
| Connection | Screw |
| LED supply voltage | 24V ac/dc |
| LED Voltage Tolerance | ±10% |
| Rated insulation voltage Ui | 300 V |
| Protection rating front of panel | IP69, IP69K, NEMA Type 4X, NEMA Type 12, NEMA Type 13 |
| Protection rating rear of panel | IP20 |
| Impact resistance | IK05 |
| Protection Class | II |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
|---|---|
| Lifetime at rated supply voltage (25°C) | 100000 h |
| Width | 30 mm |
| Structural Depth | 37.2 mm |
| Weight | 19 g |
| Approvals | BV, CB, CCC, CE, REACH, RoHS, UL |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 4 kV |
| Power consumption | 4,6 mA |
| Frequenze | 50/60 Hz |
Product description
LED pilot lights in a robust housing with modern design that are easy to install in a 22.5mm hole.
The one piece body has an integrated LED and easily accessible screw connections at the bottom of the base.
The unit is ideal for harsh industrial environments thanks to a high impact resistance and protection class rating of IP66 / IP69K and therefore suitable for a wide range of applications.
