BACO
Illuminated Mushroom
Mushroom Head

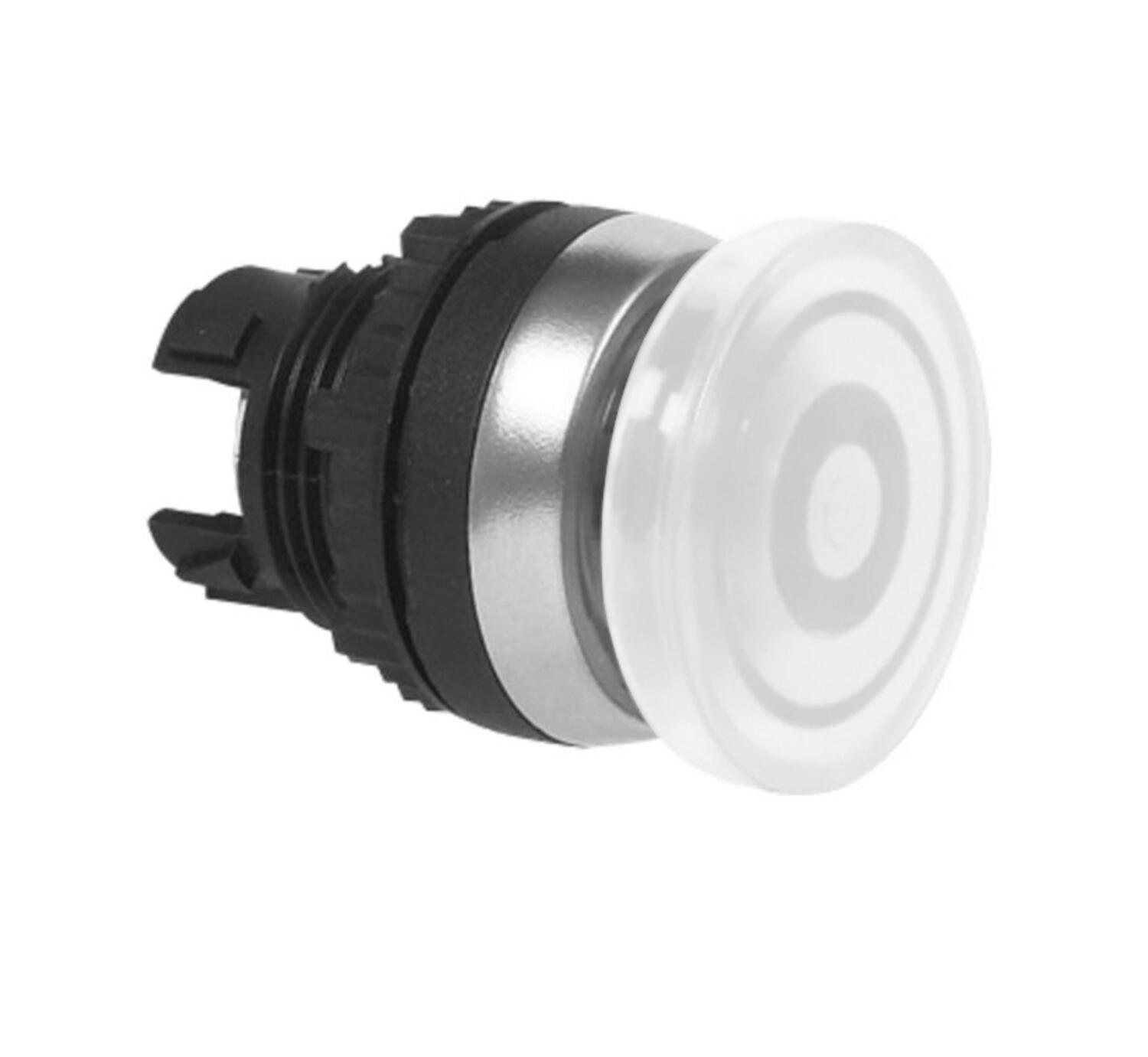

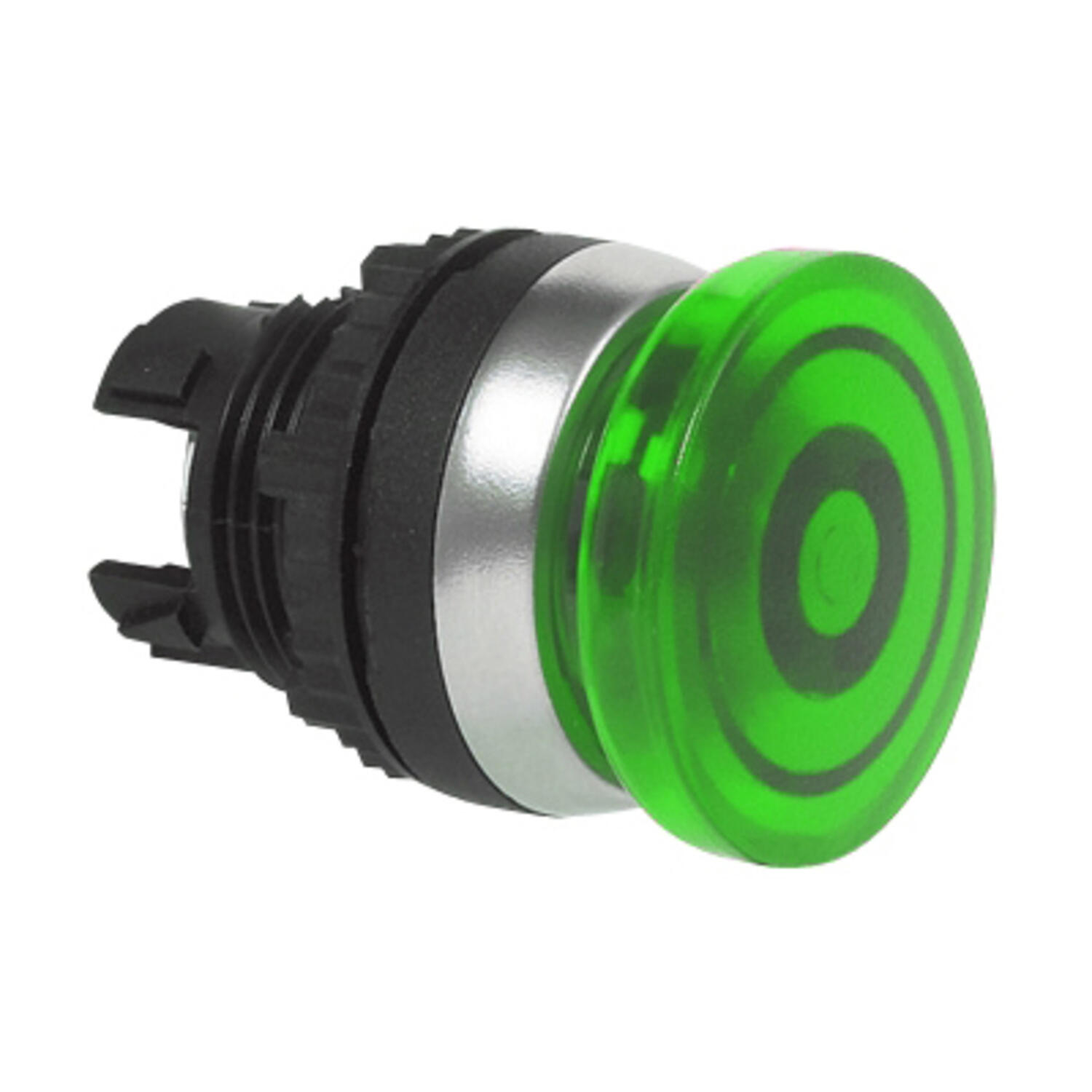

Illuminated spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
- IP66 / IP69K
- Non latching spring return

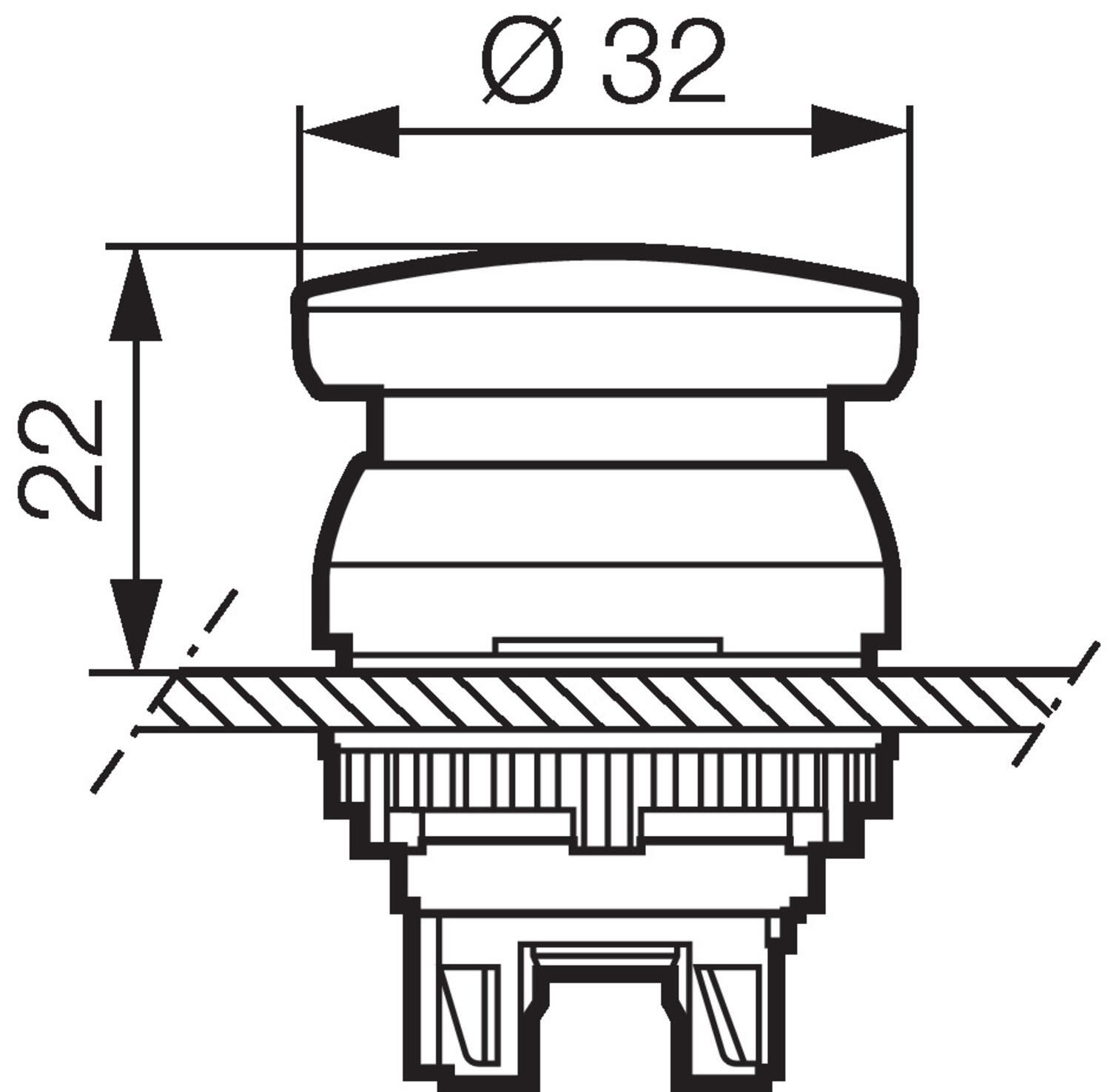

- Diameter 32mm head
- Illuminate with LED blocks
Selected variant
Specifications
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Color | Red |
| Function | Spring return |
| Illuminated | Yes |
| Impact resistance | IK05 |
| IP Class | IP66, IP69, IP69K |
|---|---|
| Recommended Torque | 3 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Type/Model | Mushroom ø40mm |
Product description
Illuminated spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
