BACO
Mushroom Heads
Non Illuminated

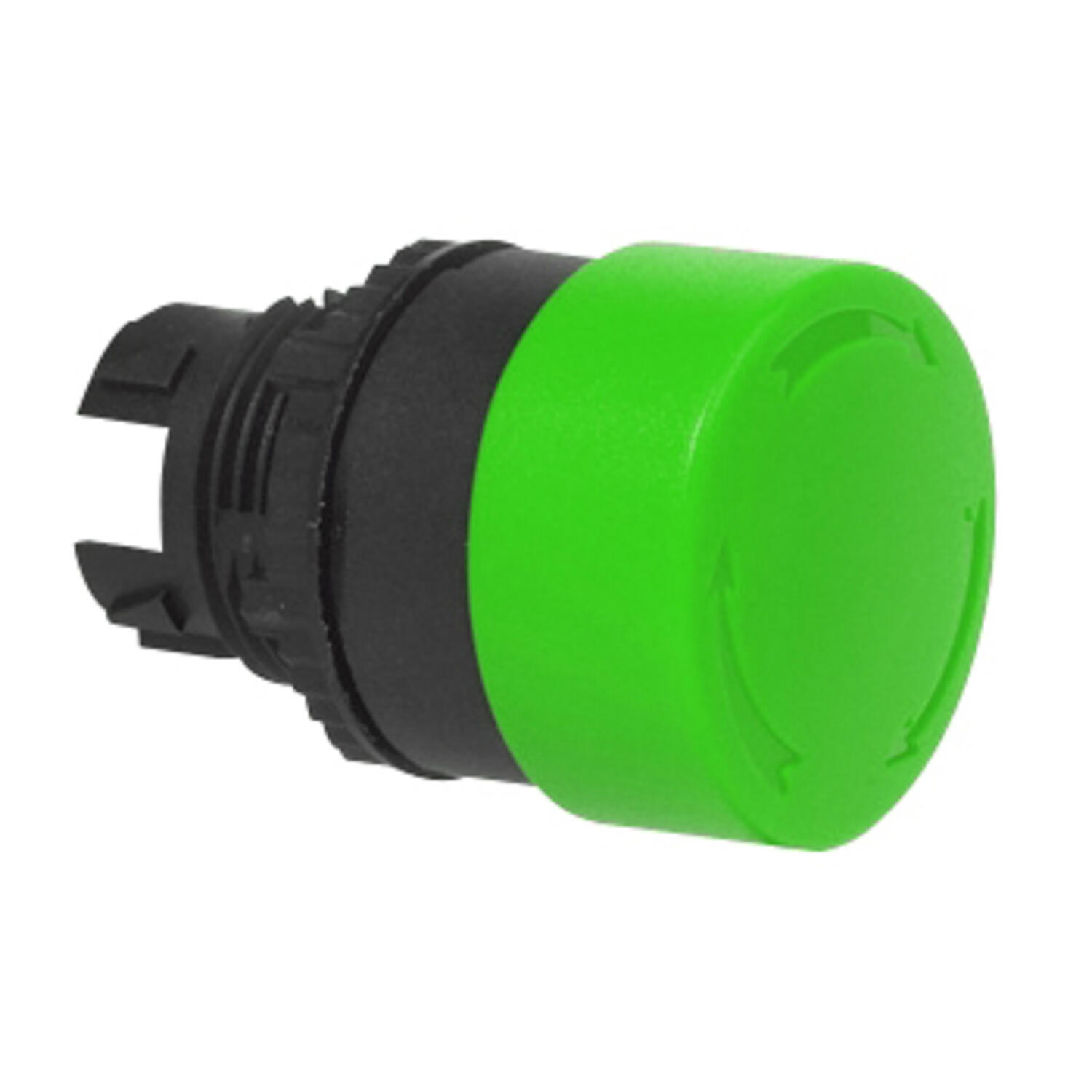

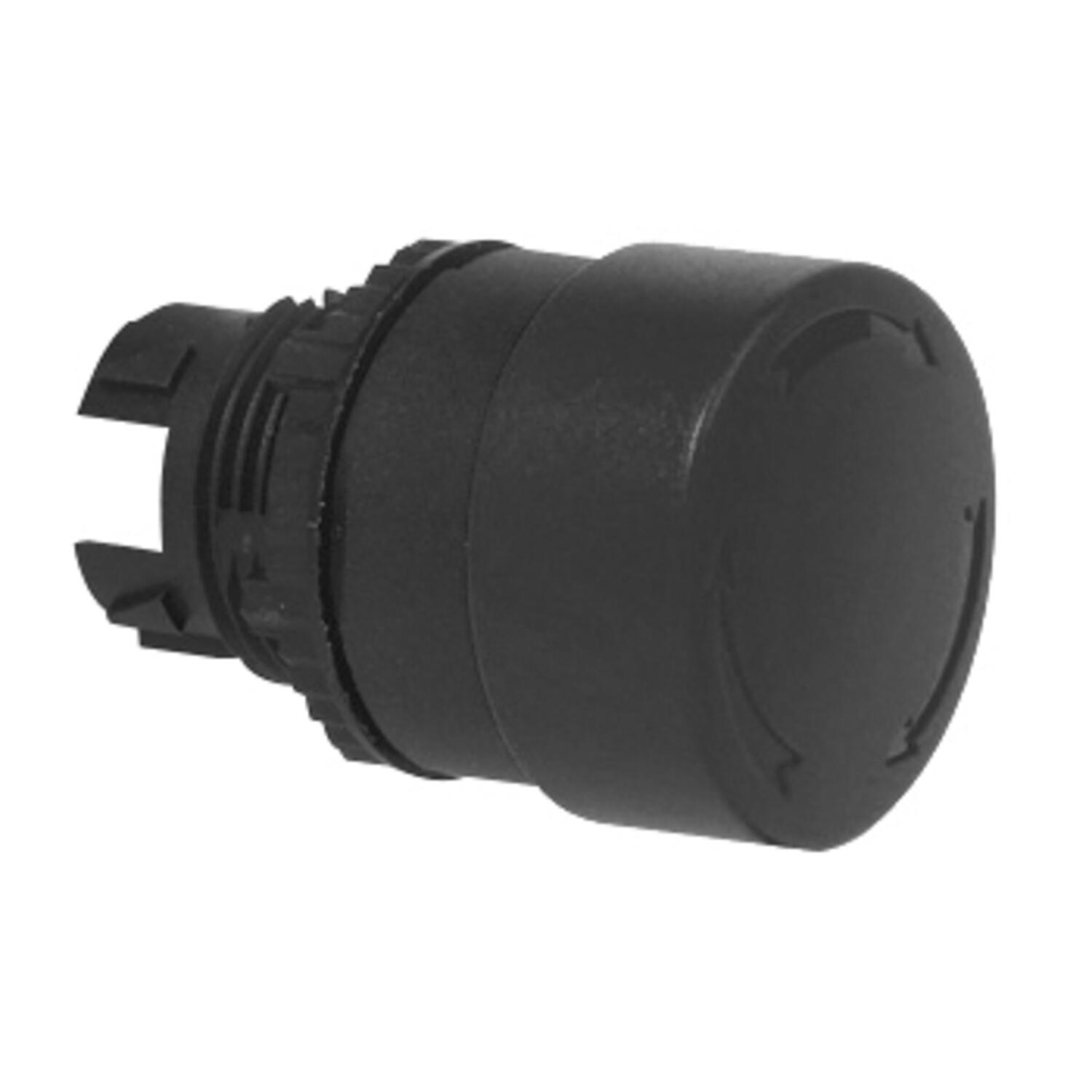

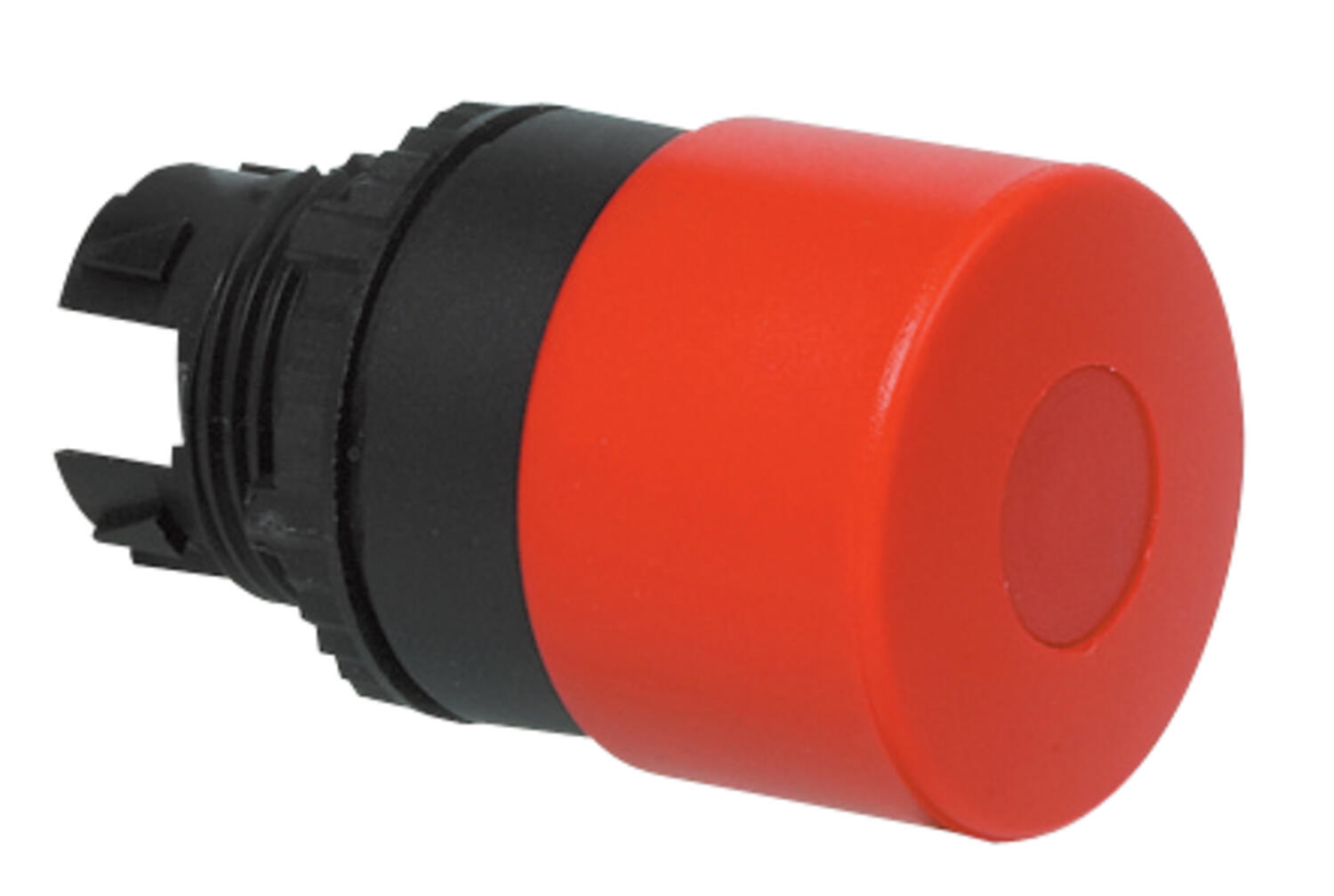

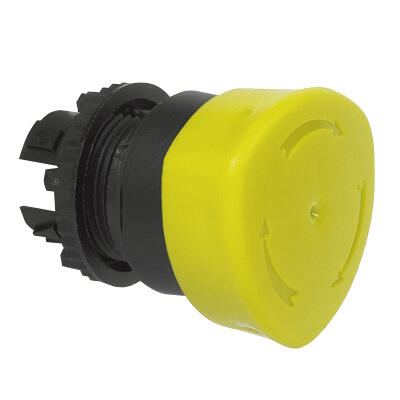

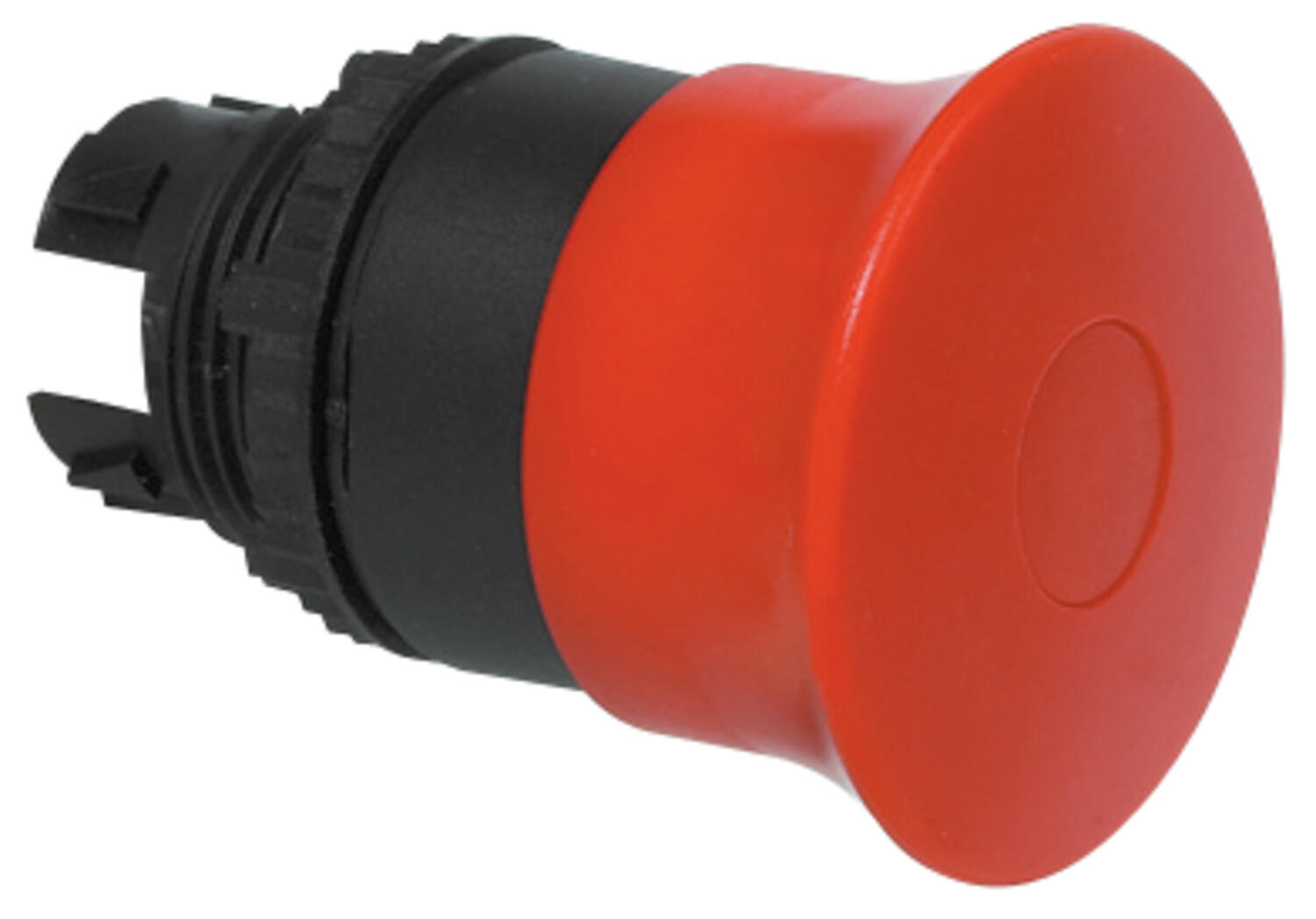

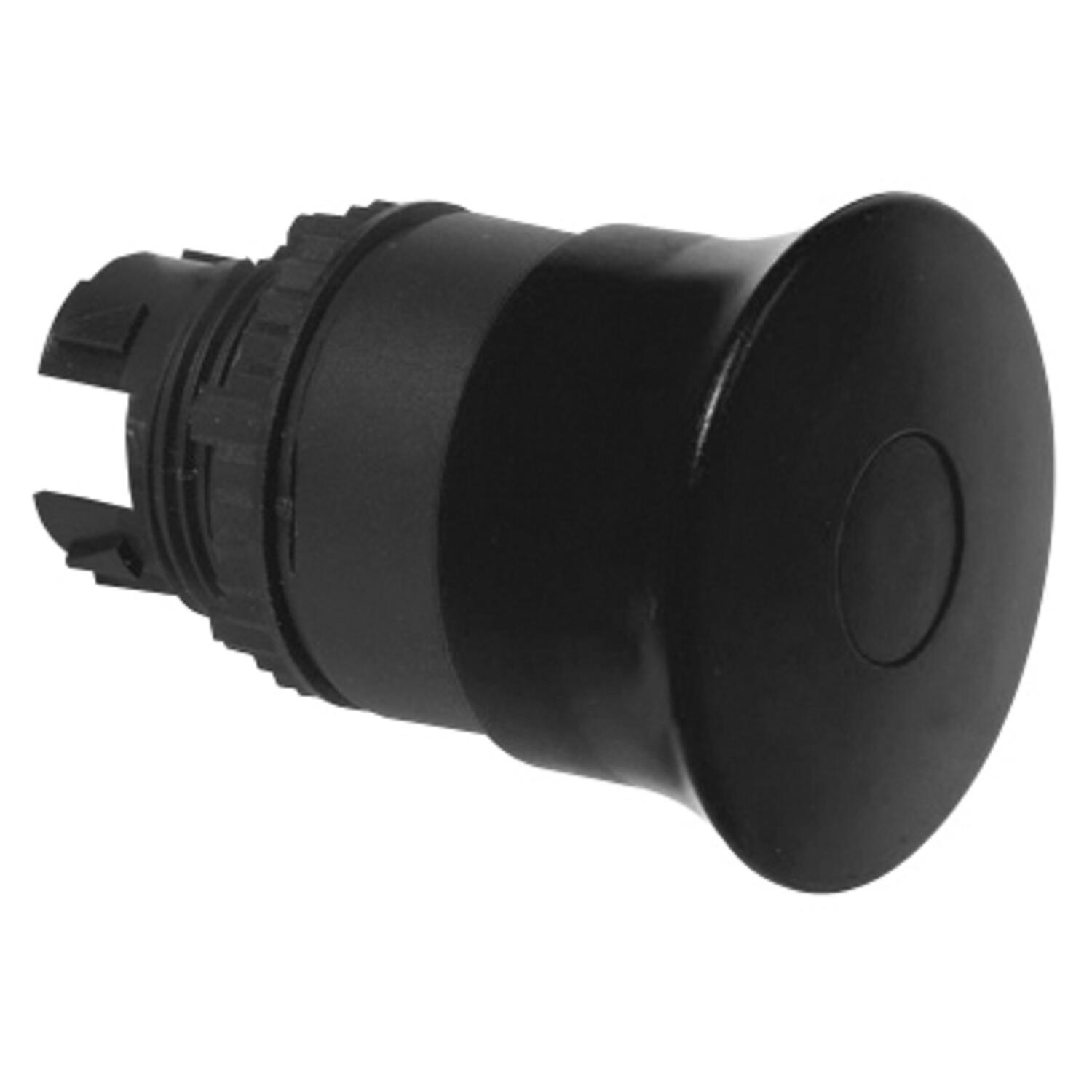

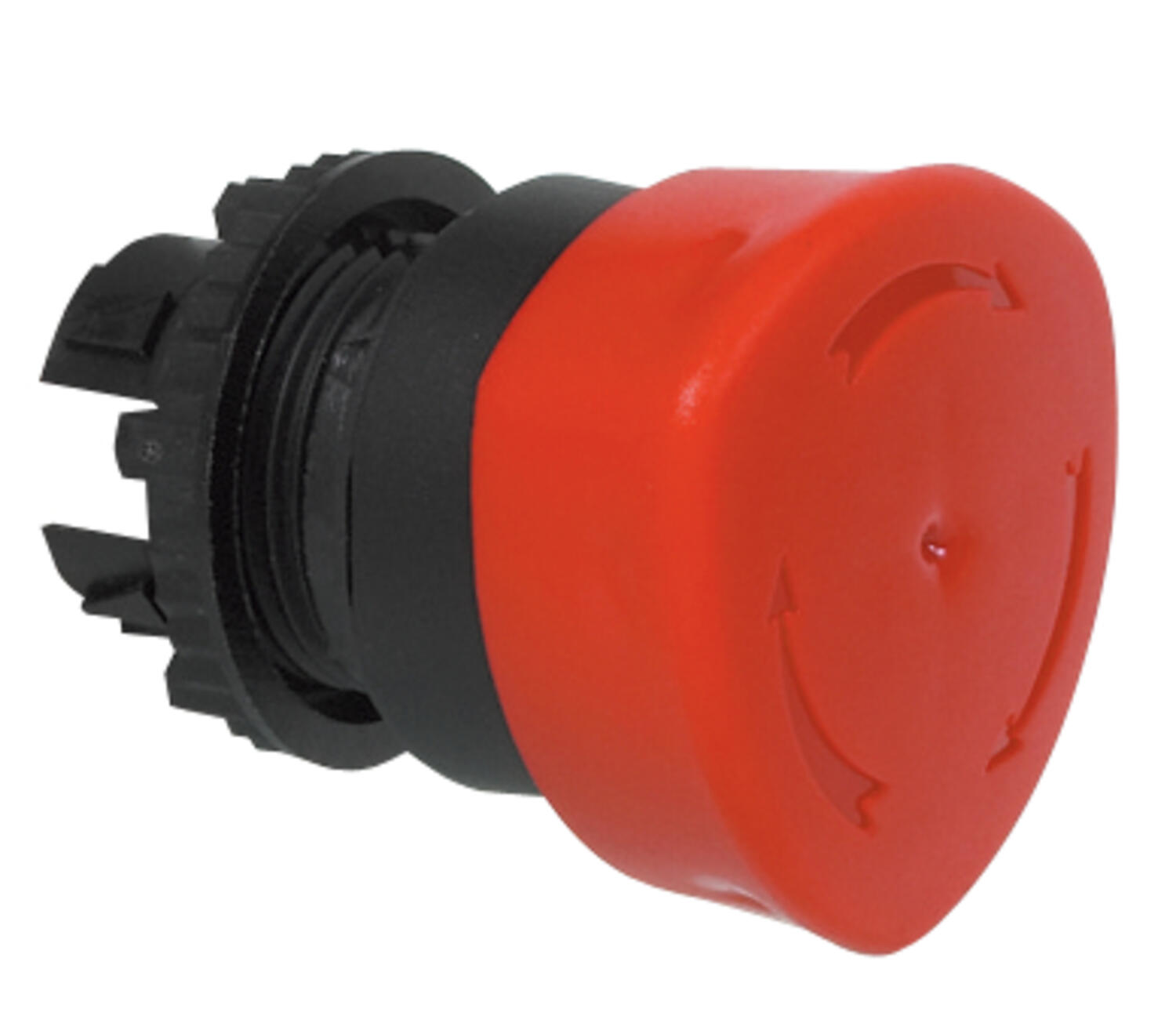

Non illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull, turn & key release.
Combine with separate clip and contact blocks to make a complete mushroom head assembly.
- IP66 / IP69K
- Head size Ø32mm or Ø40mm

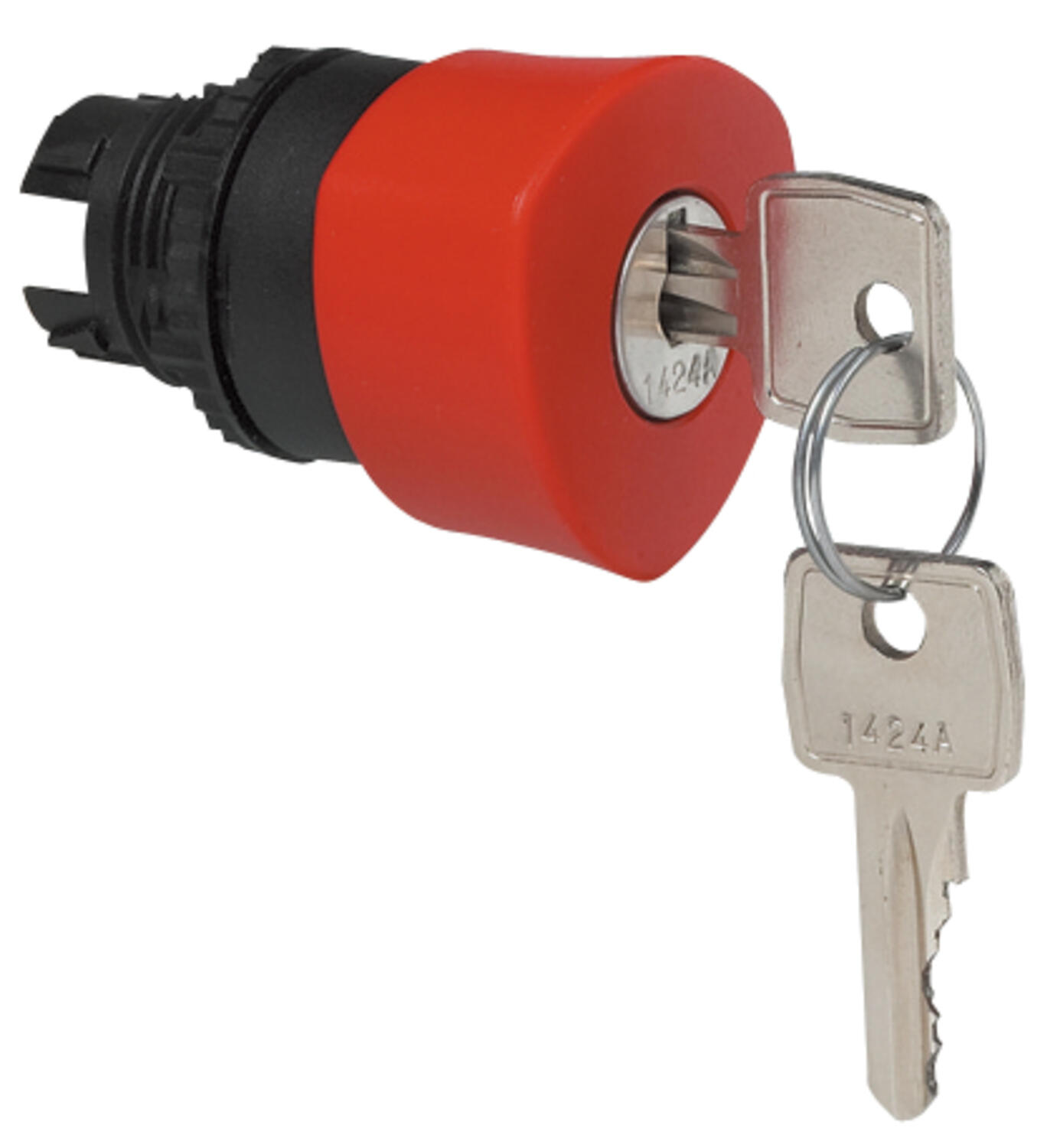

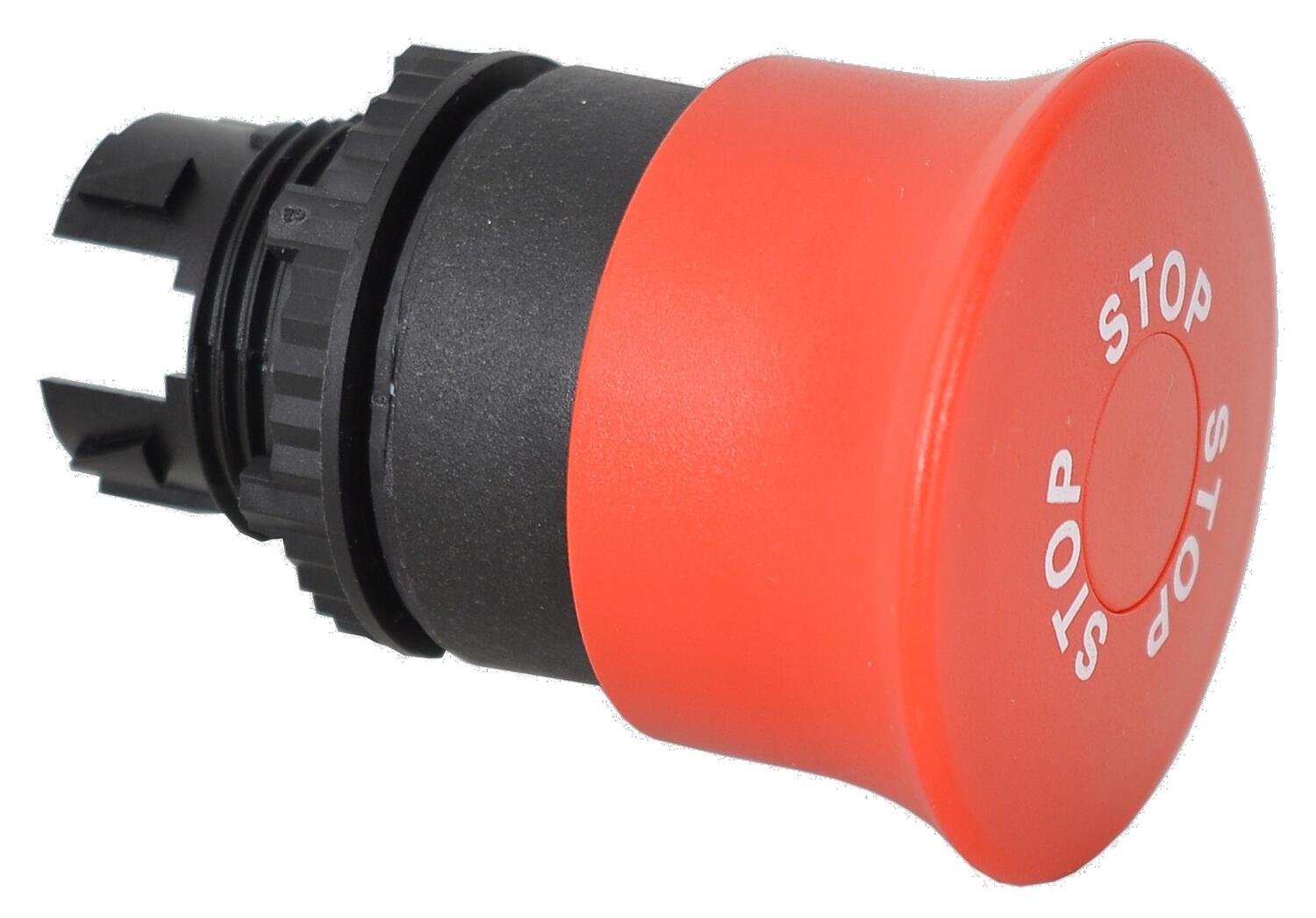

- Pull, turn or key reset

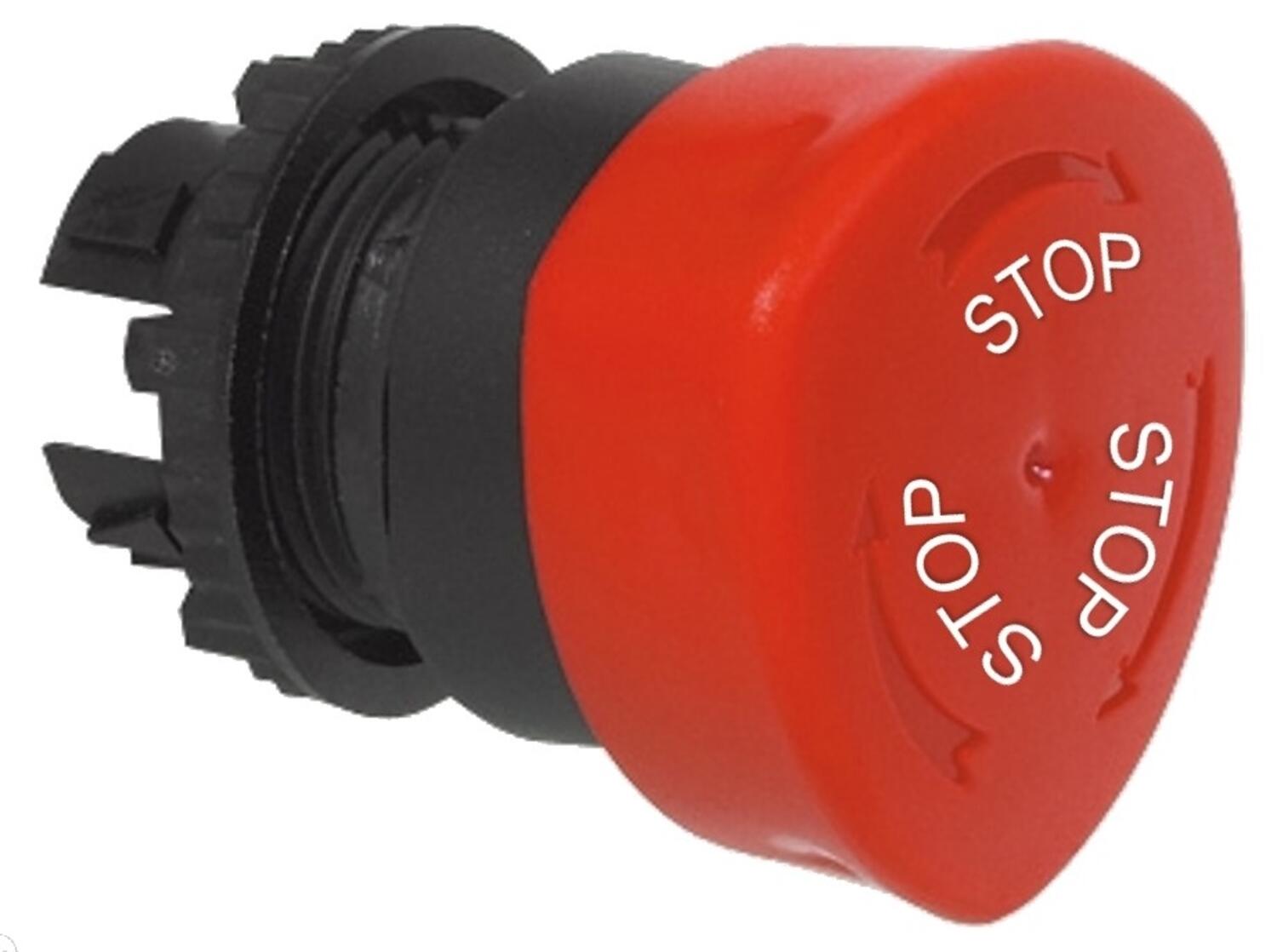

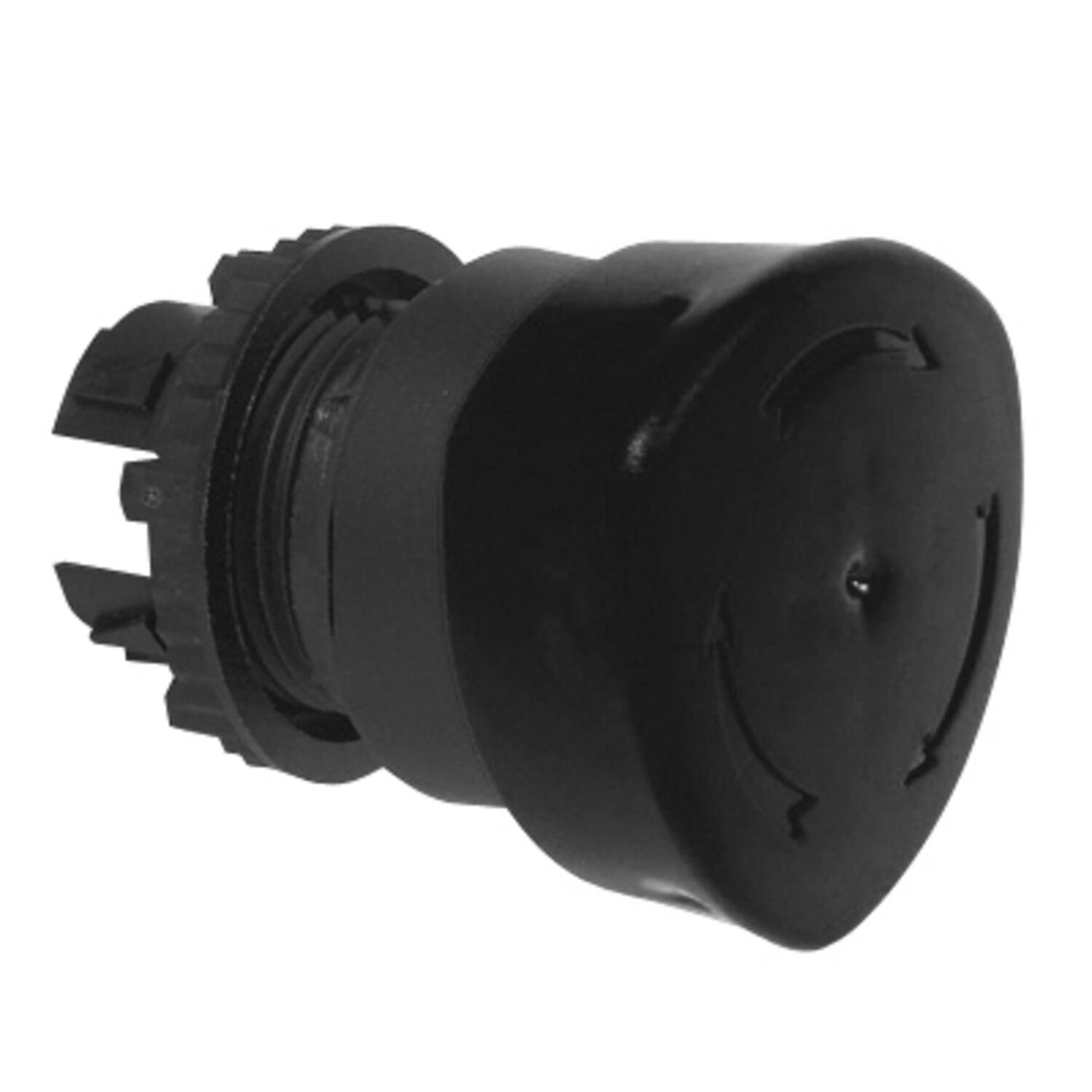

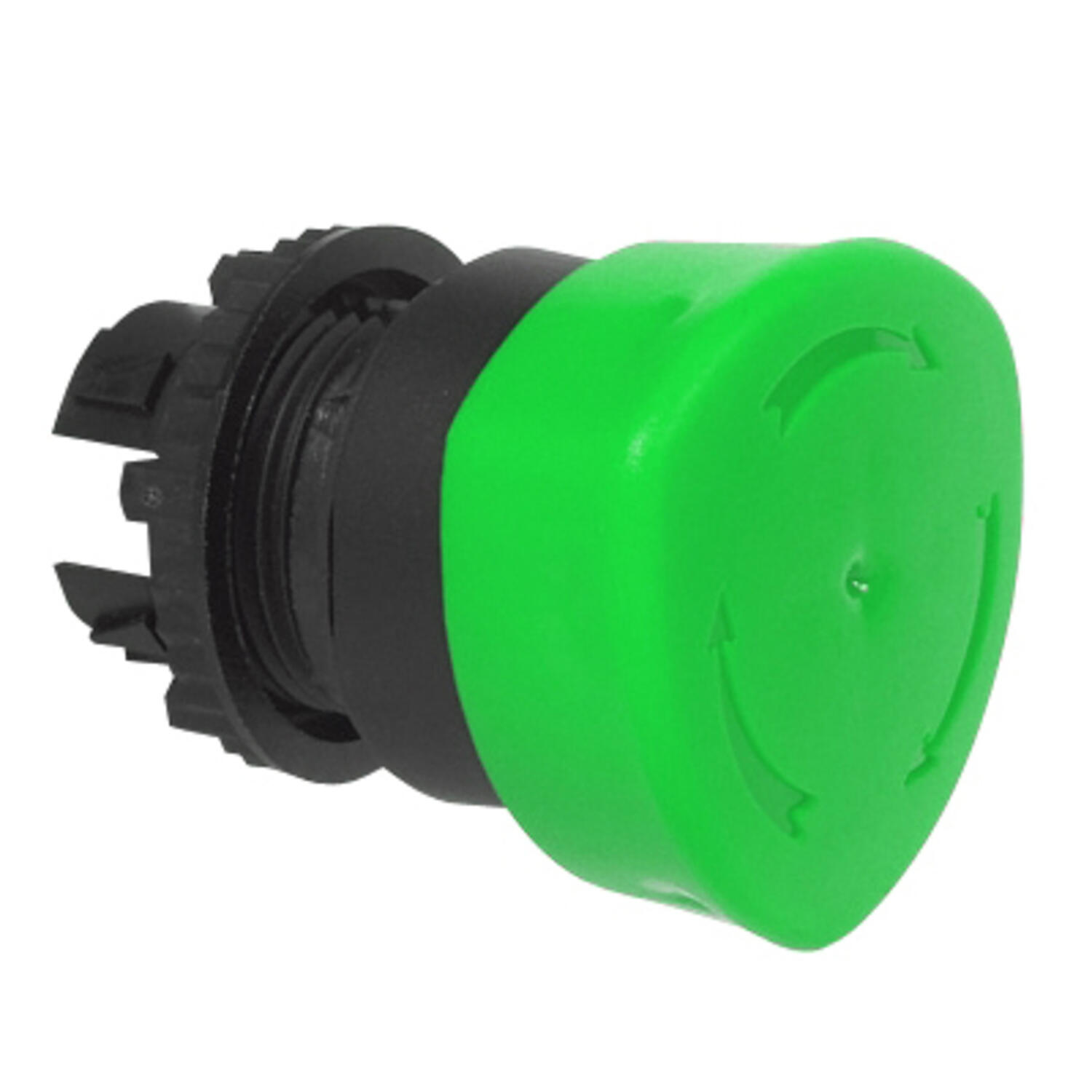

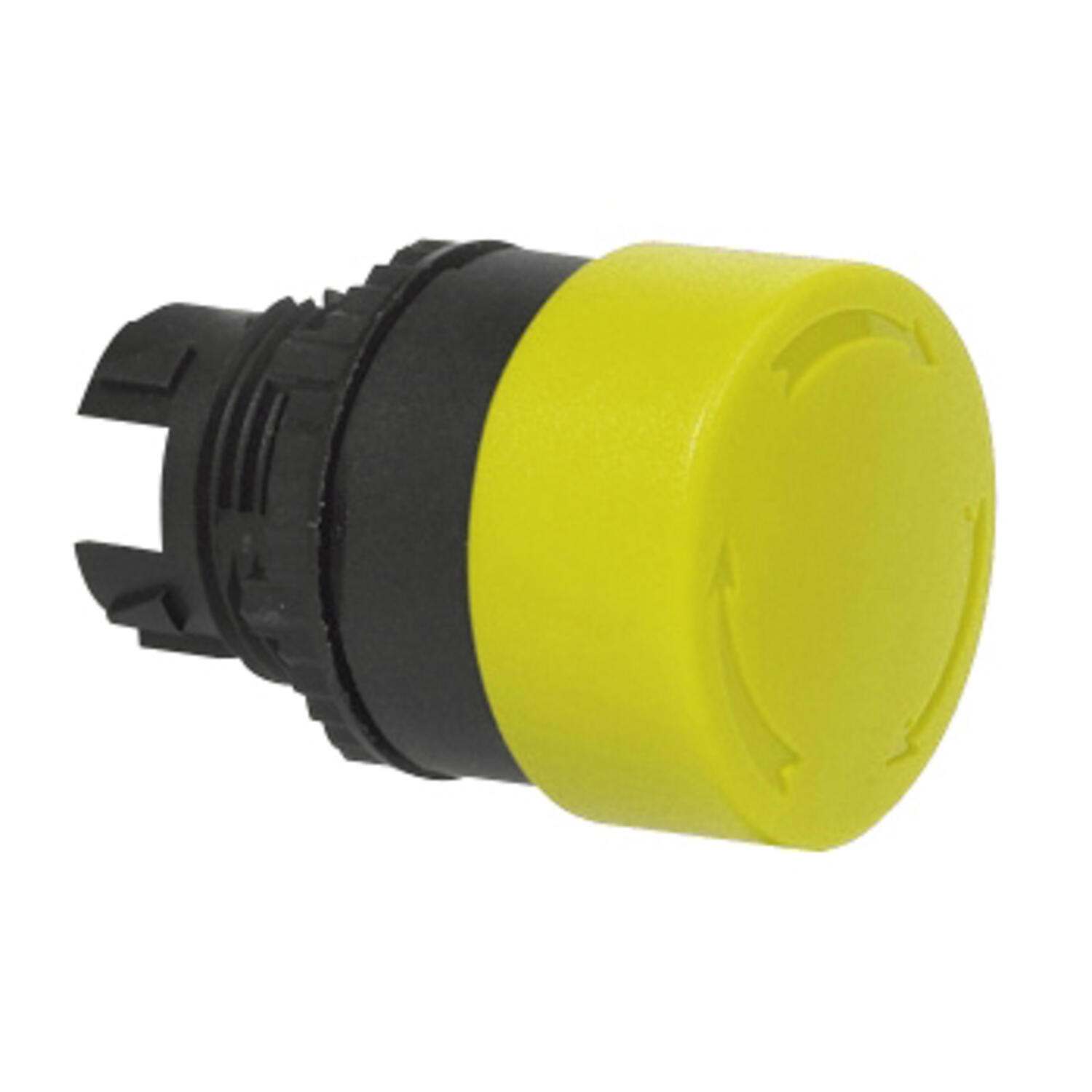

- Various colour & text options
Selected variant
Specifications
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |

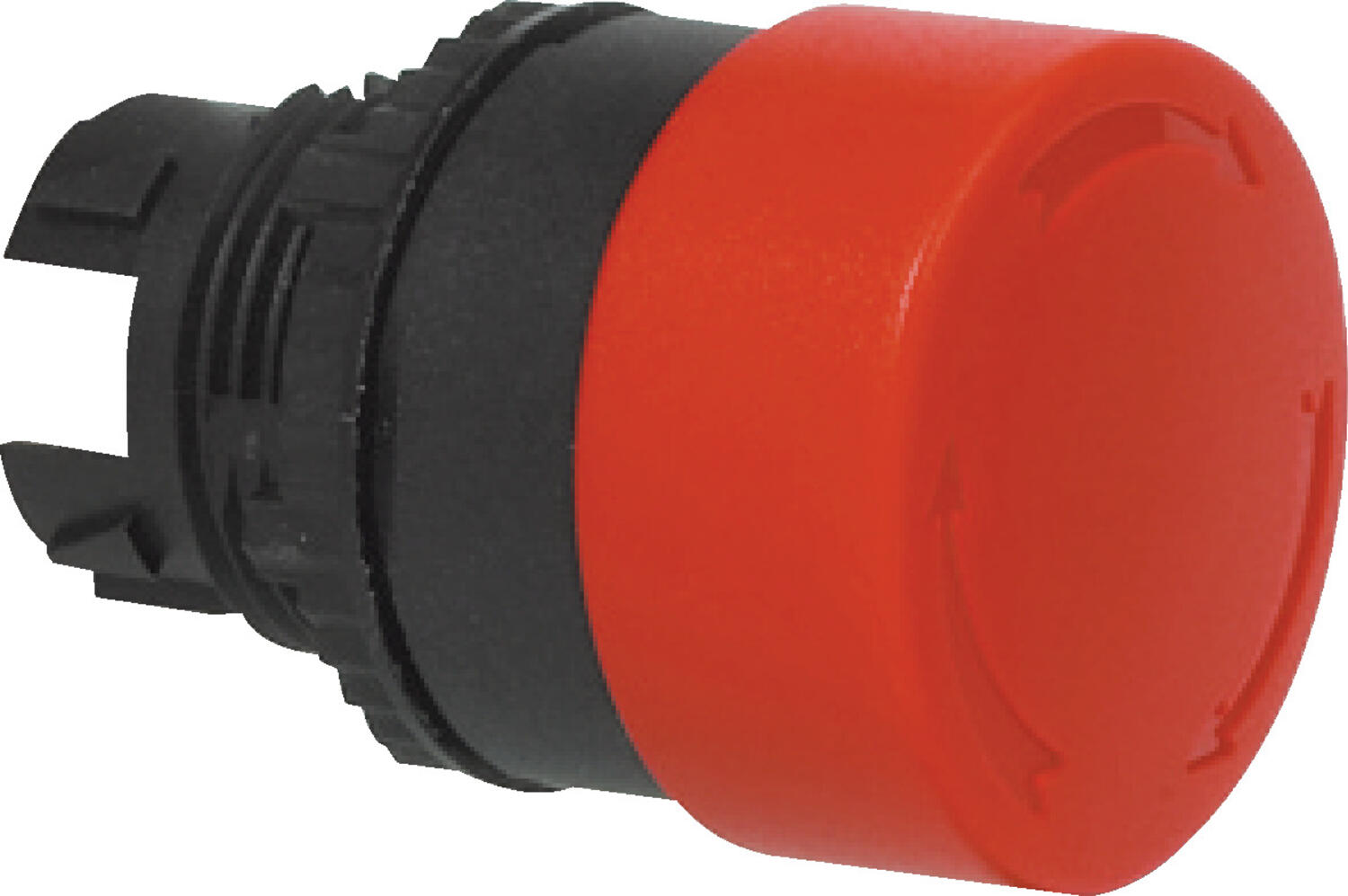

| Color | Red |
| Function | Turn reset |
| Illuminated | No |
| Impact resistance | IK05 |
| IP Class | IP66, IP69, IP69K |
|---|---|
| Recommended Torque | 3 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |

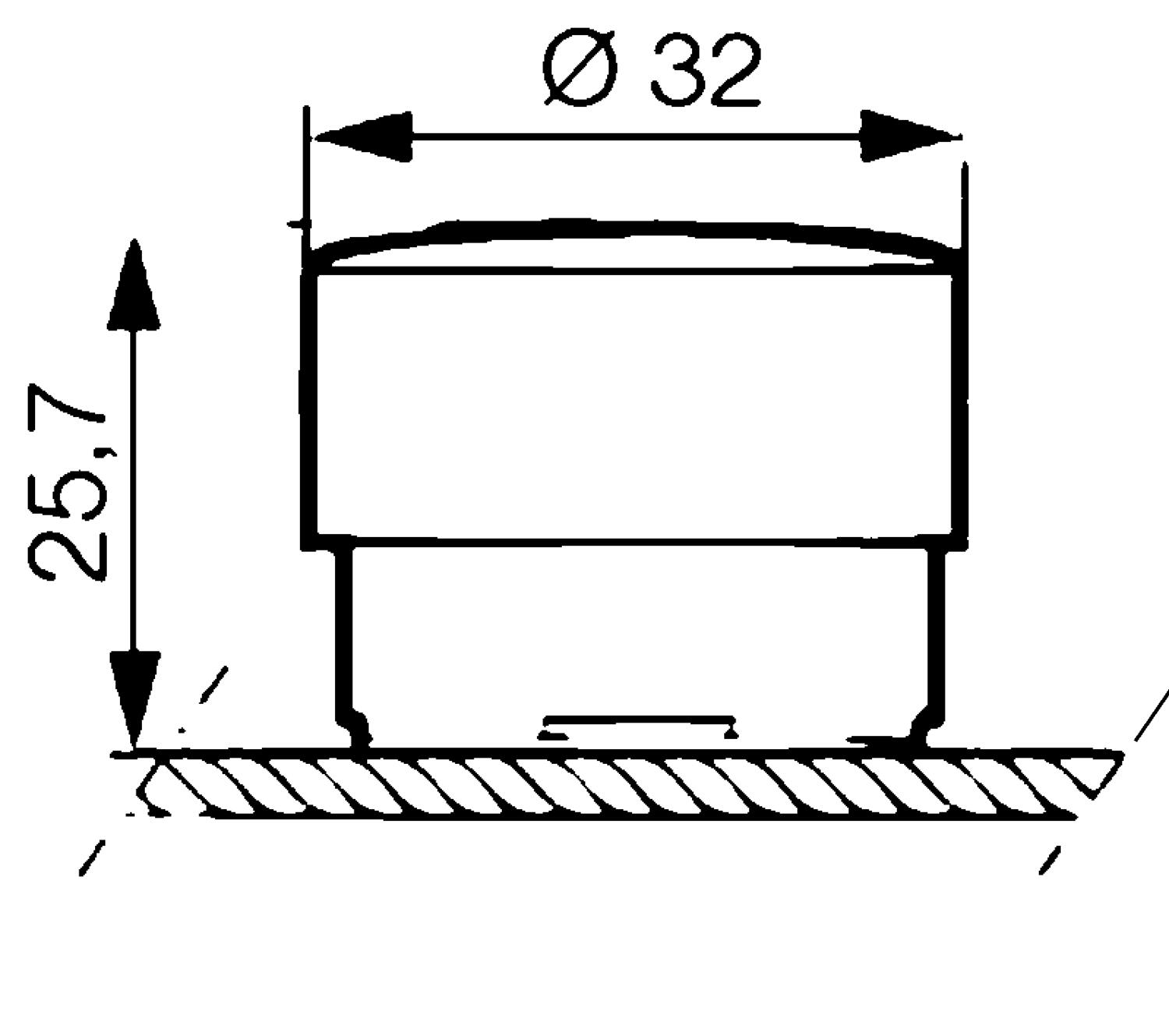

| Type/Model | Mushroom ø32mm |
Product description
Non illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull, turn & key release.
Combine with separate clip and contact blocks to make a complete mushroom head assembly.
