BACO
Mushroom Heads
Illuminated

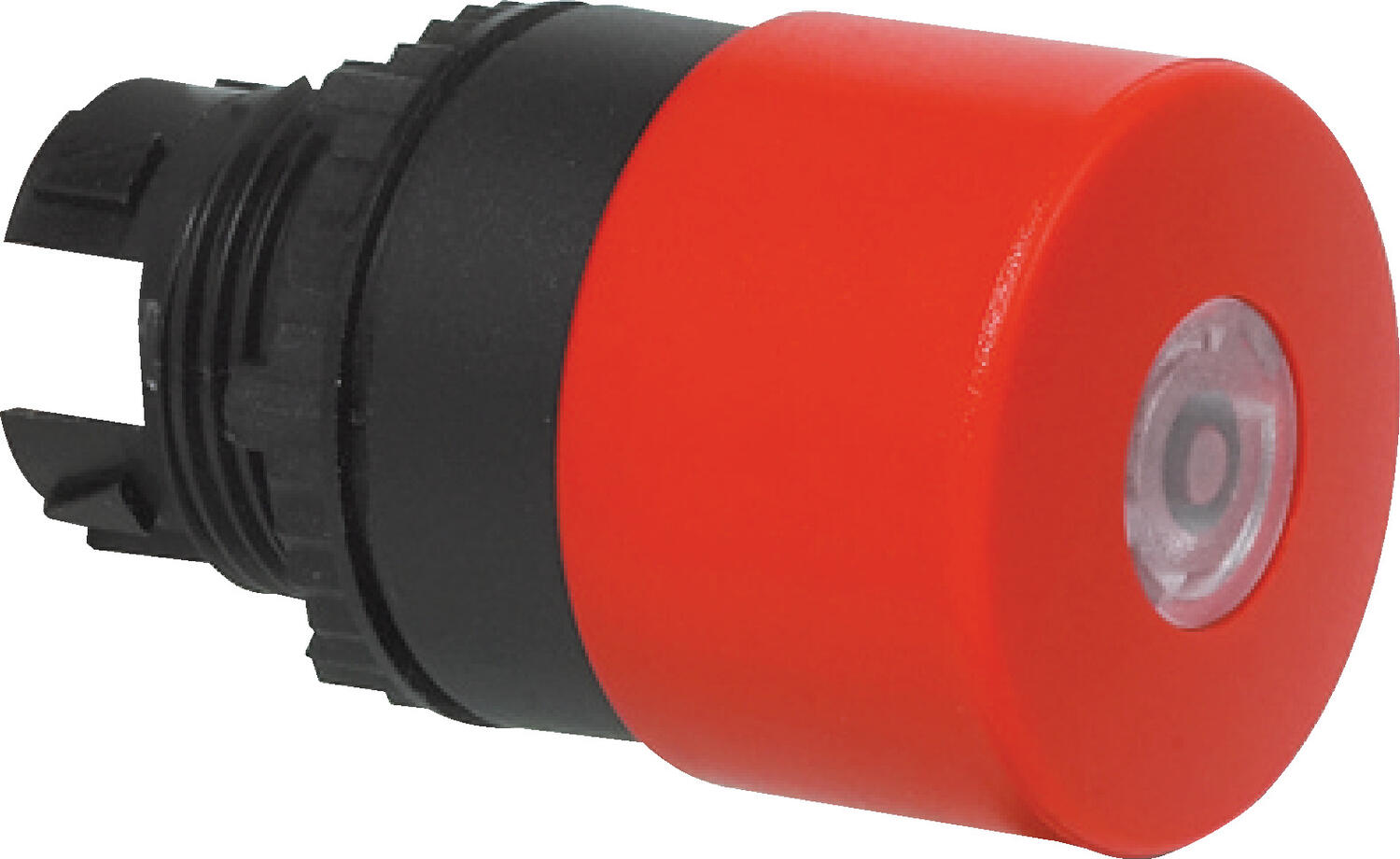

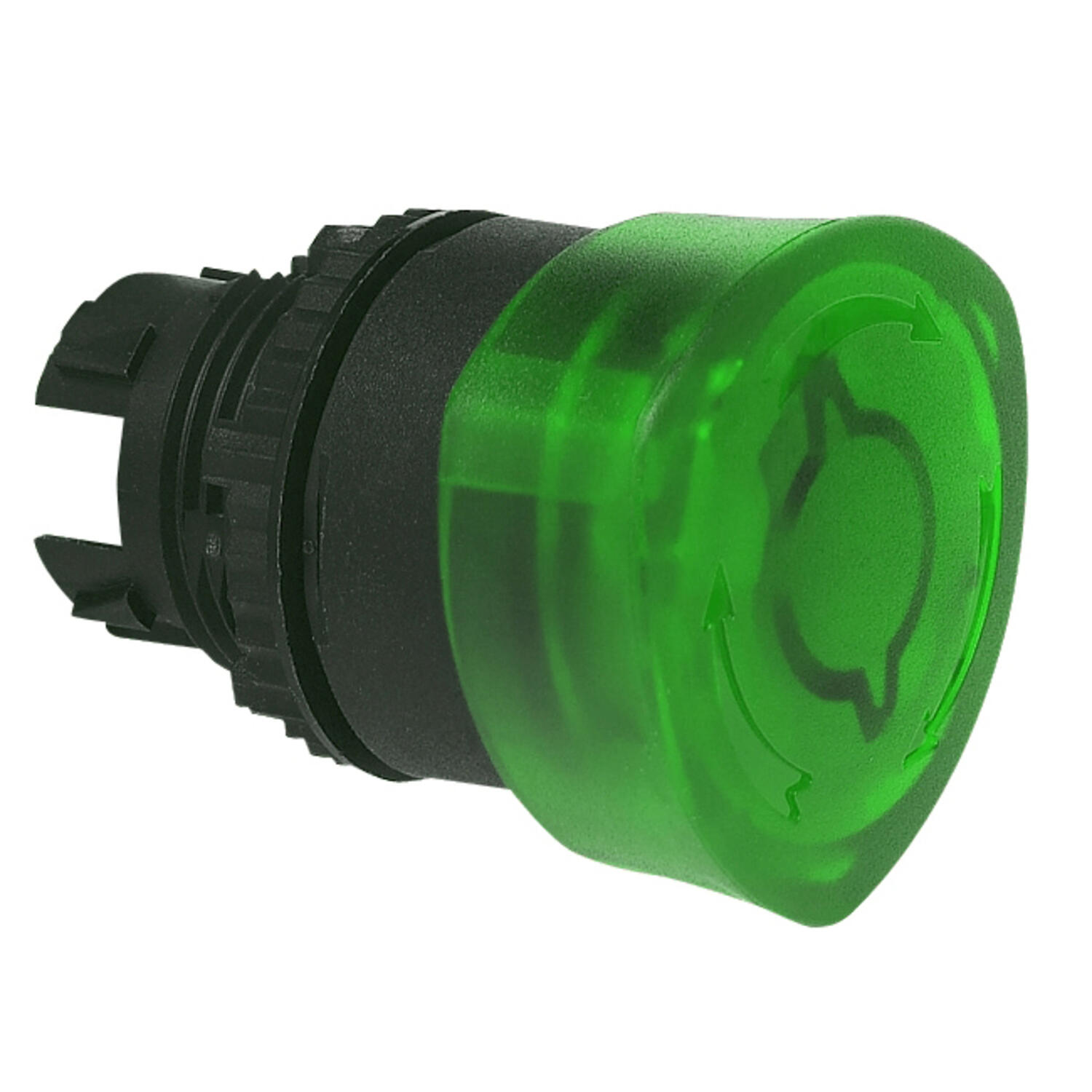

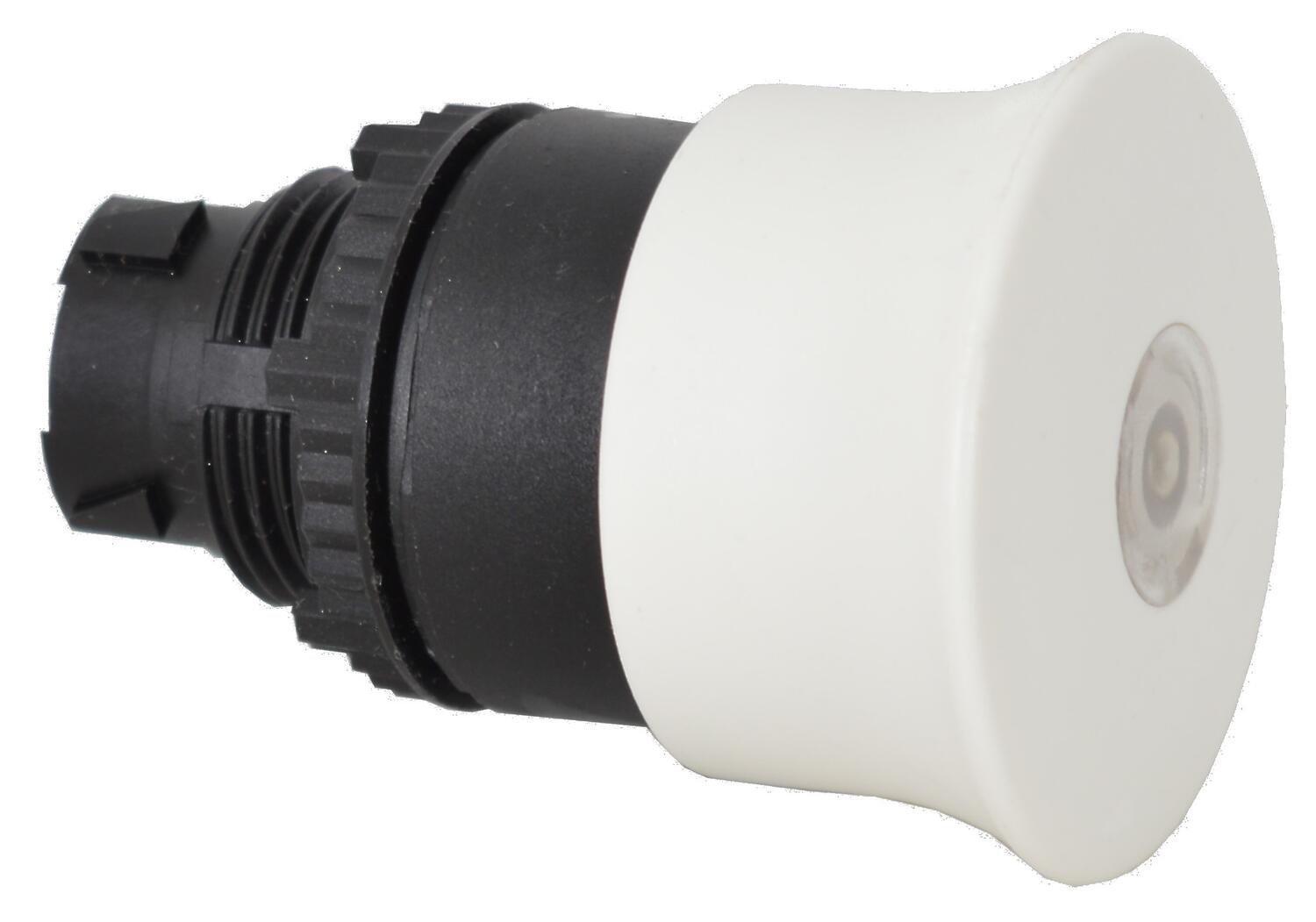

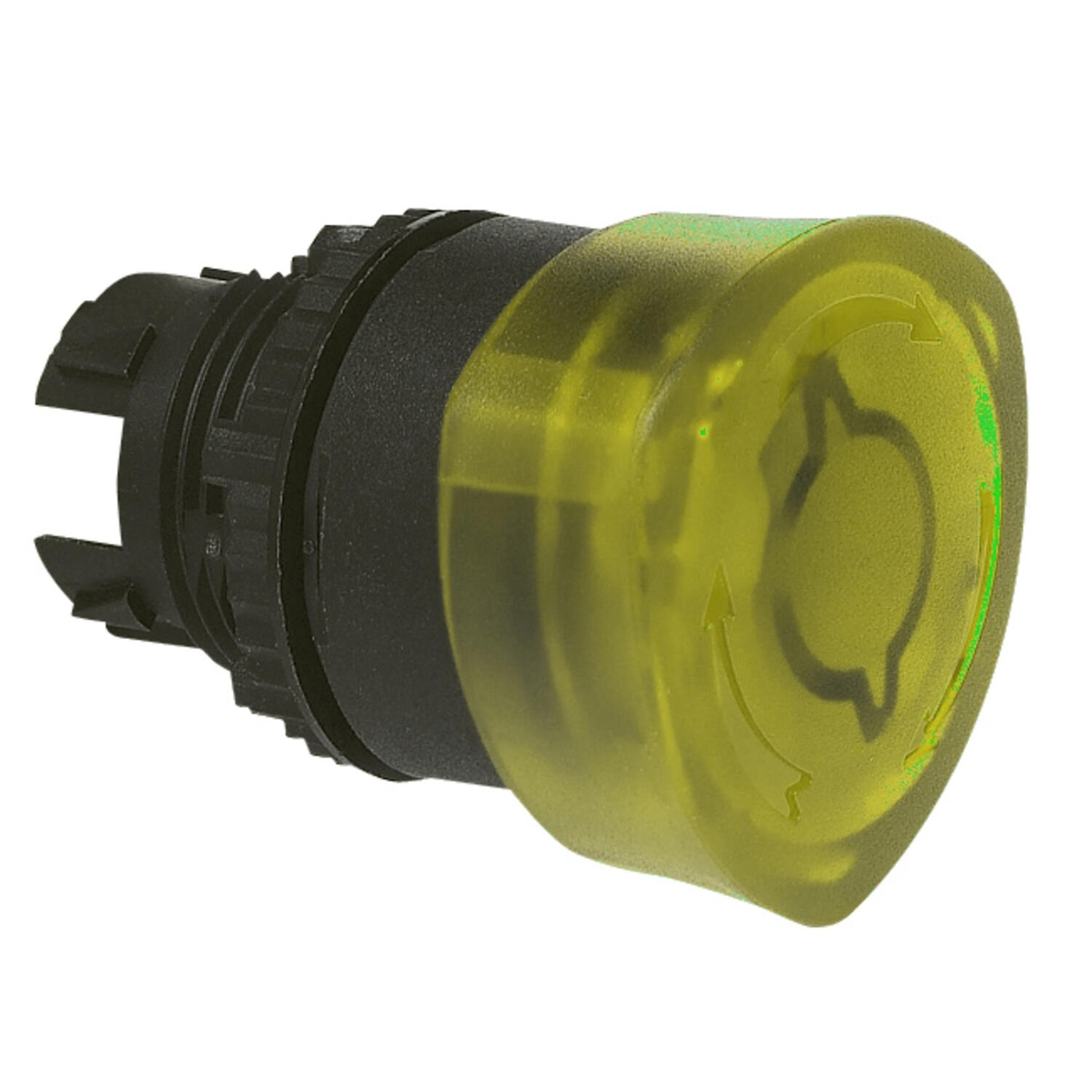

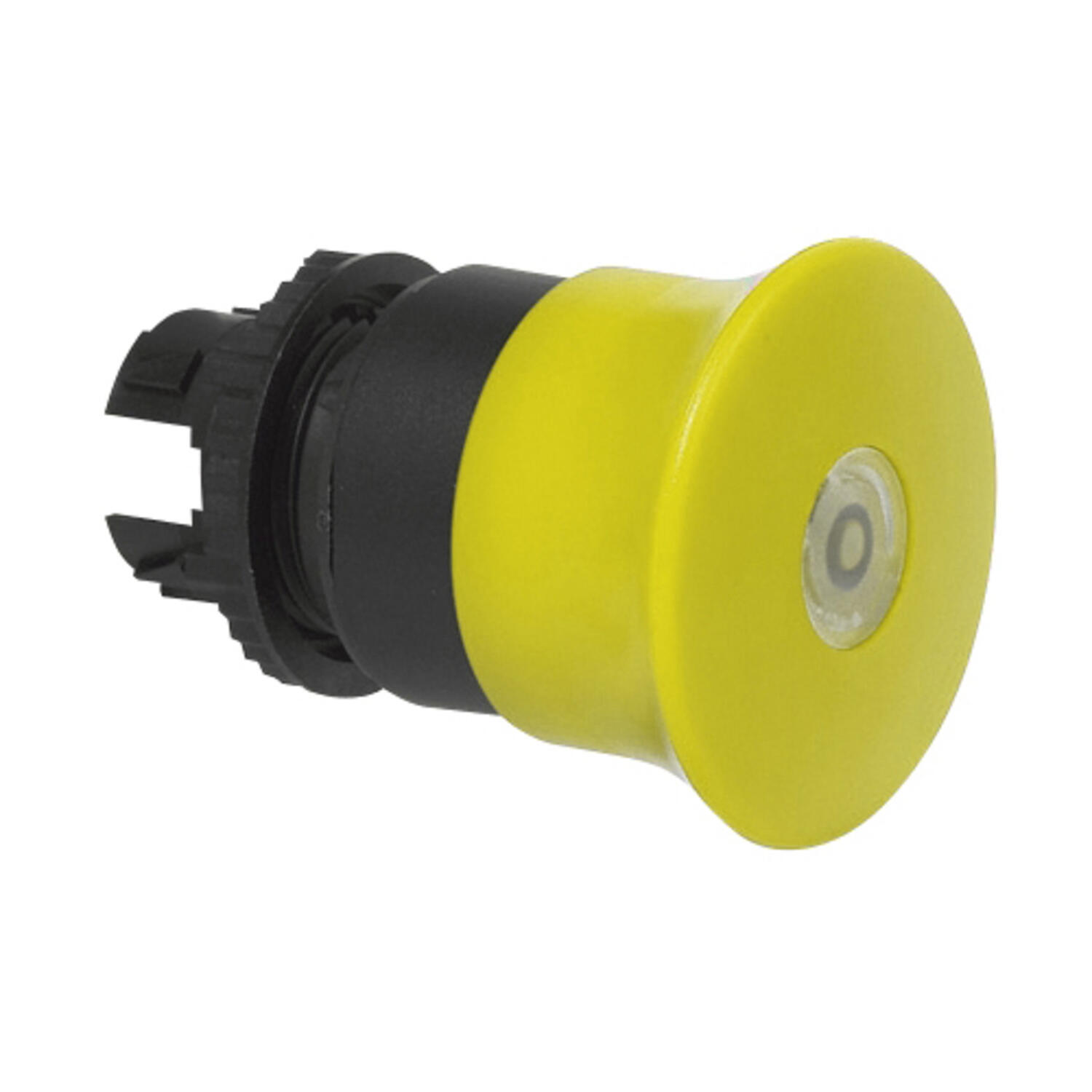

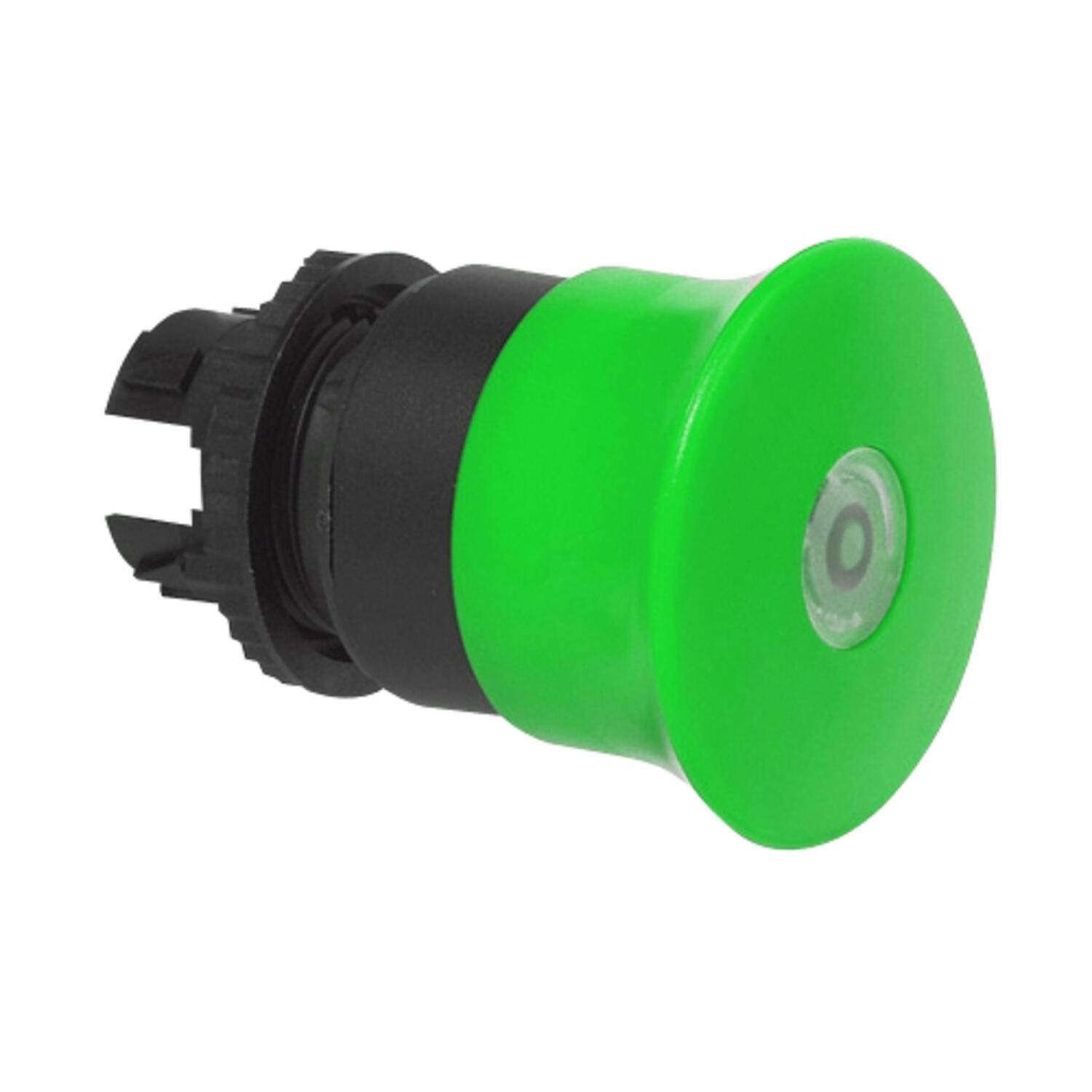

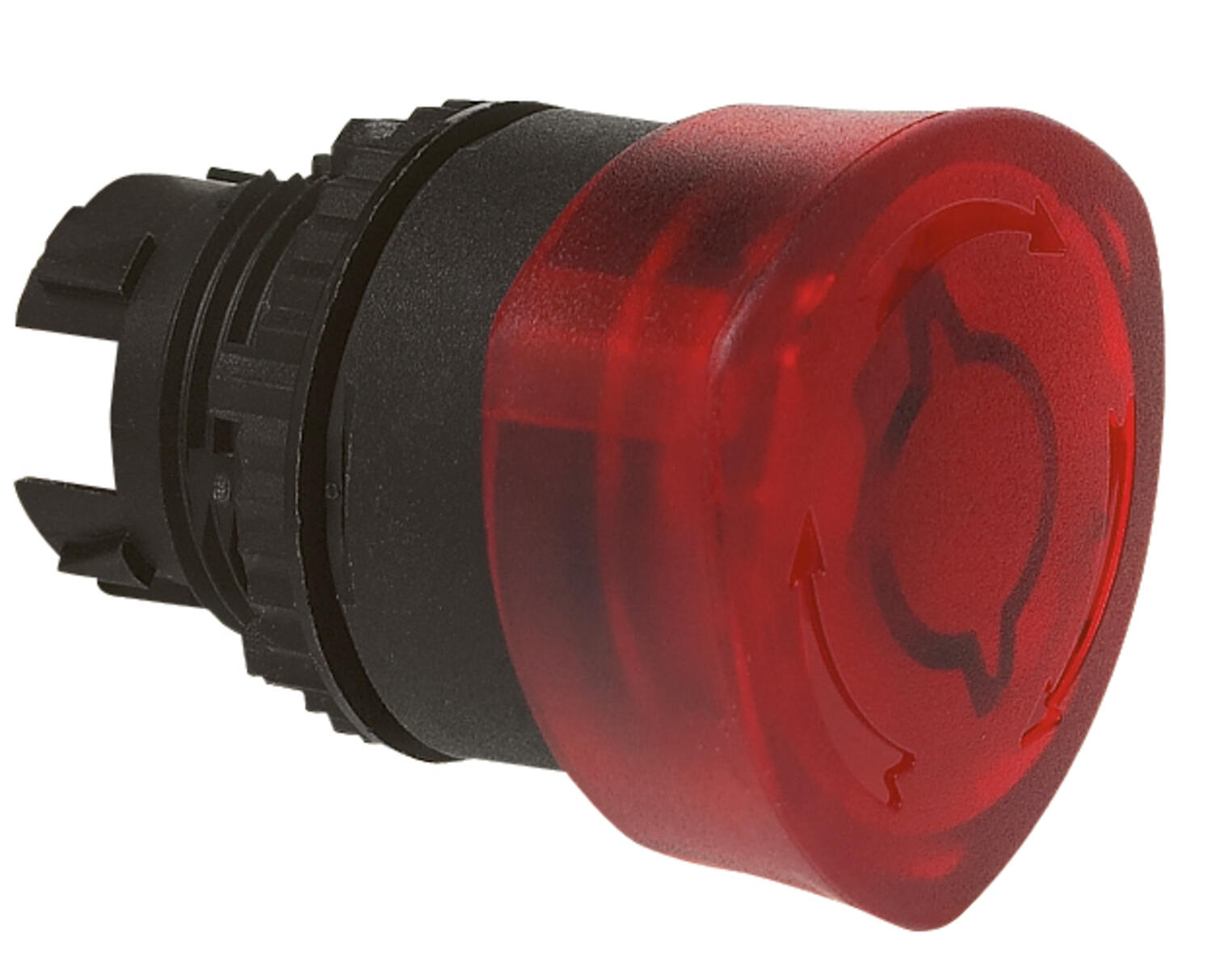

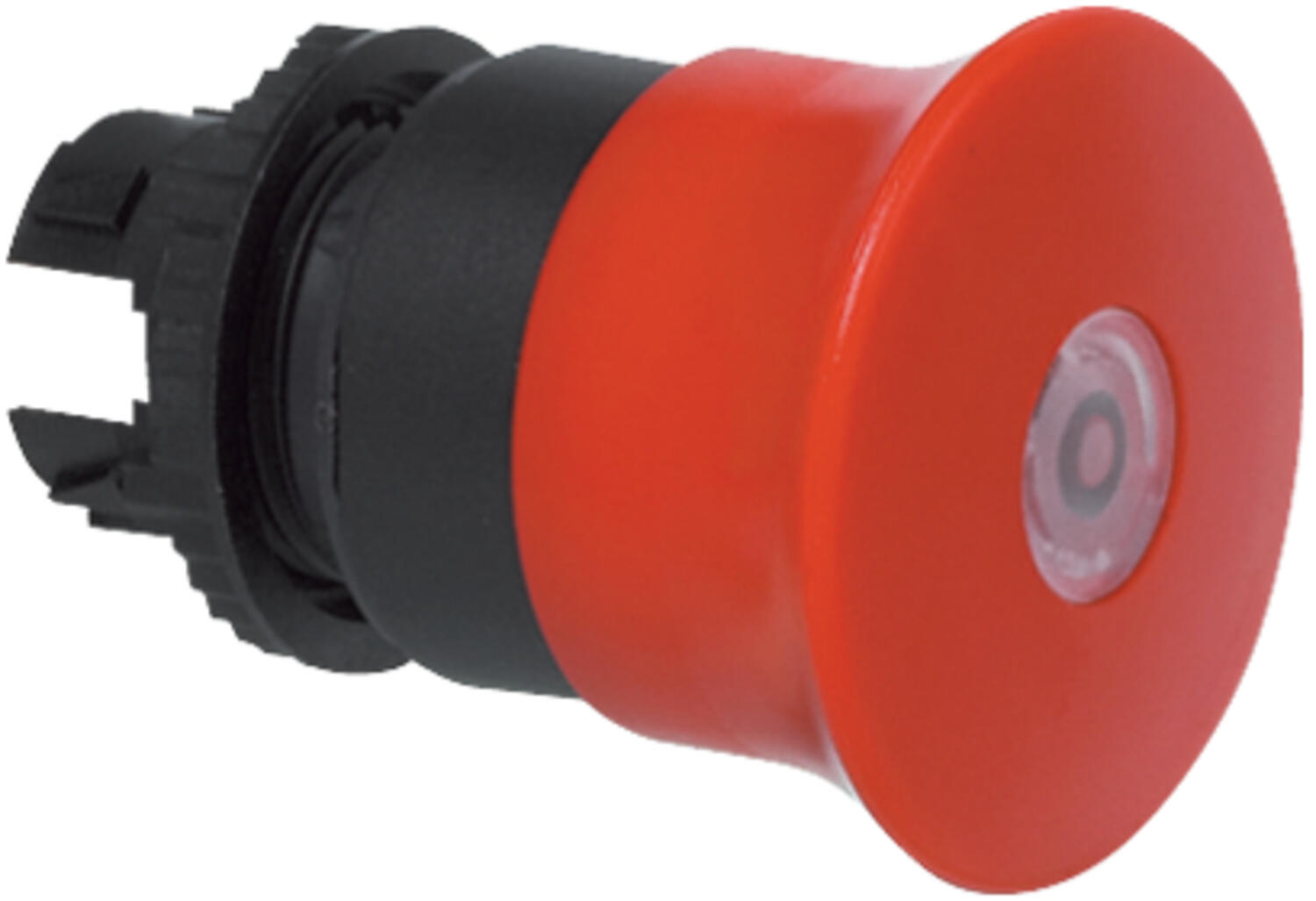

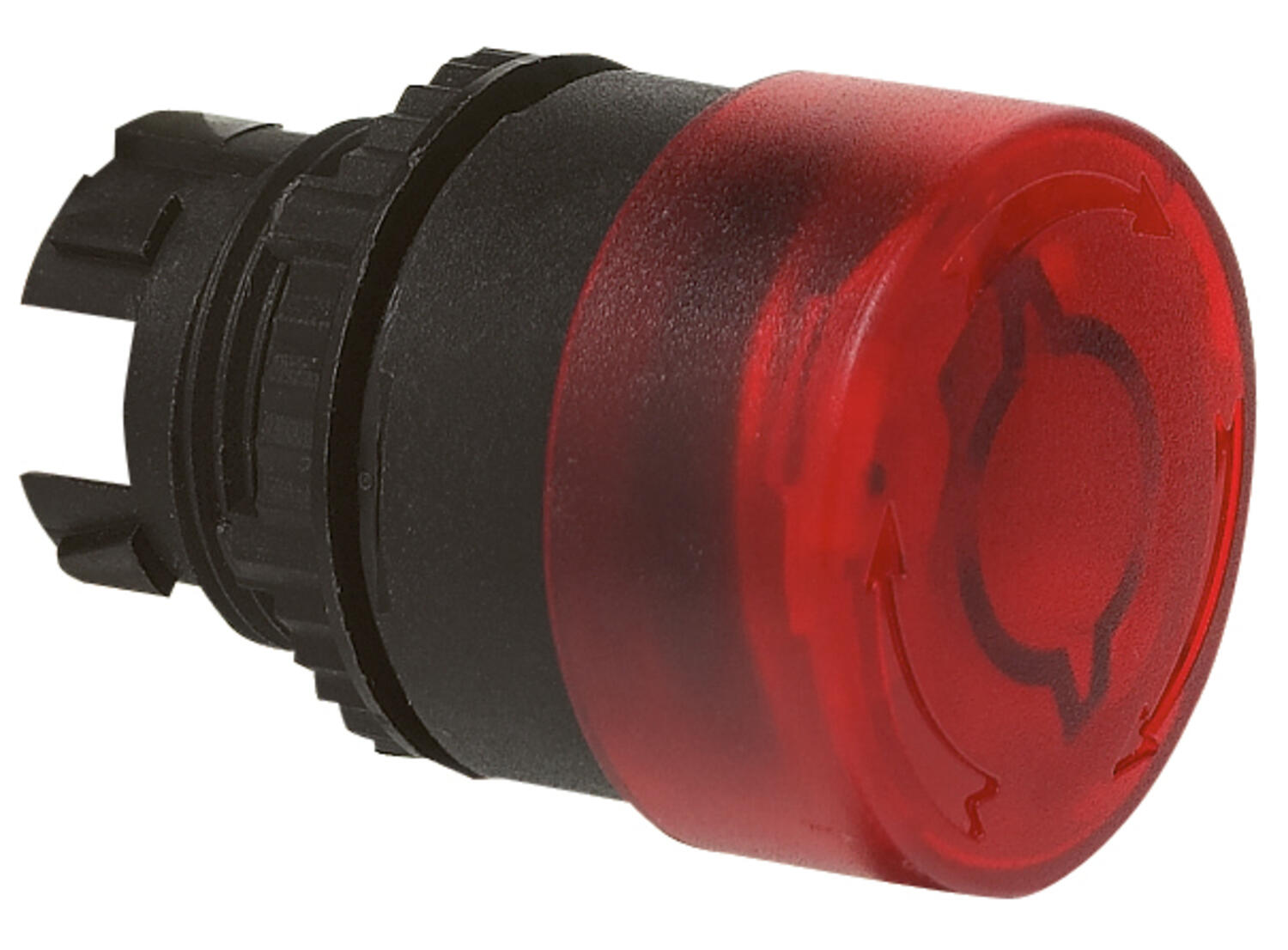

Illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull & turn release.
Combine with separate 3 module clip, LED block (must be in centre position) and contact blocks to make a complete illuminated mushroom head assembly.
- IP66 / IP69K
- Head size Ø32mm or Ø40mm
- Pull or turn reset
- Illuminate with LED blocks
Selected variant
Specifications

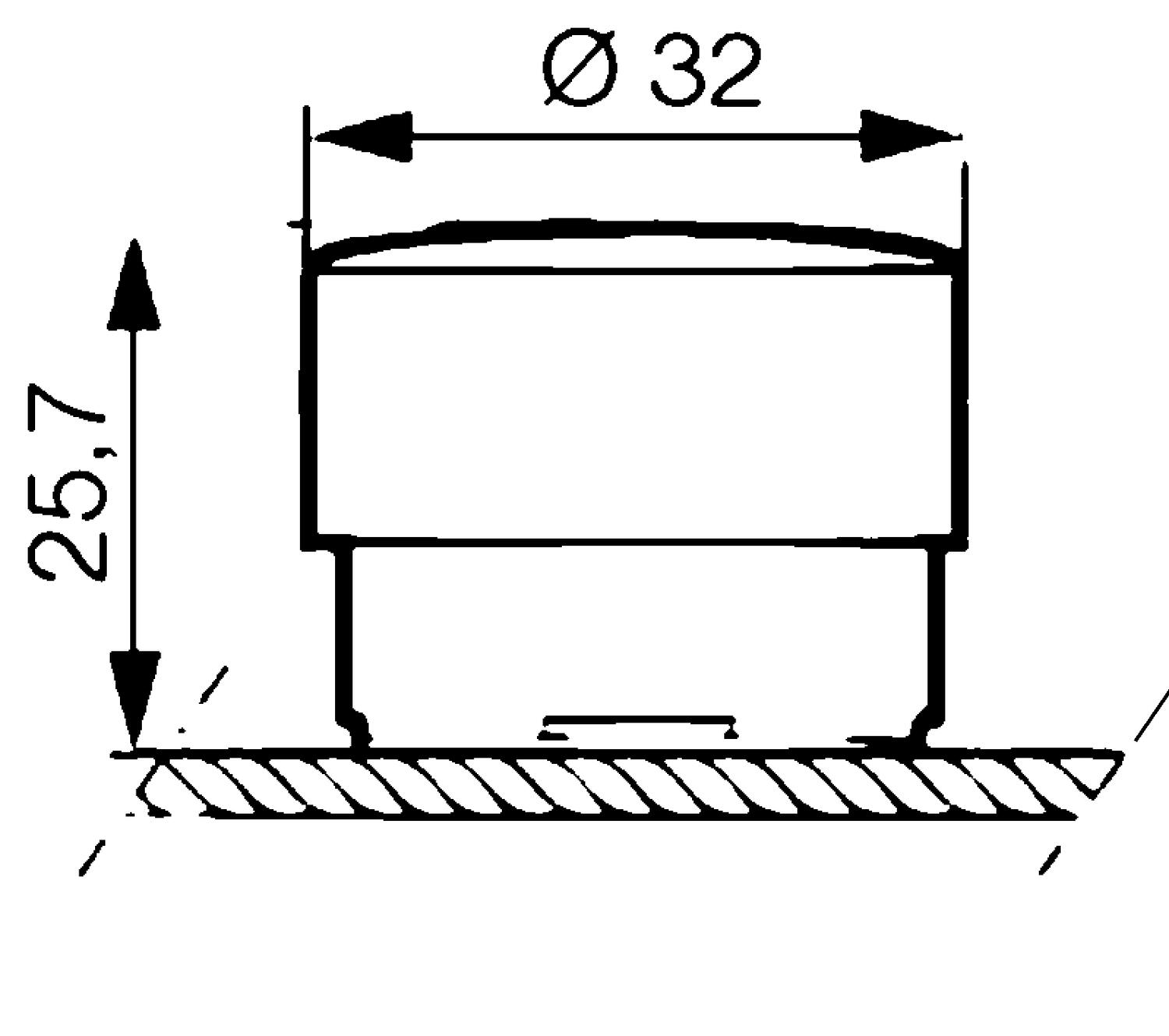

| Type/Model | Mushroom ø32mm |
|---|---|
| Function | Turn reset |
| Color | Red |
| Illuminated | Yes |
| IP Class | IP66, IP69, IP69K |
| Impact resistance | IK05 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Available in head sizes Ø32mm & Ø40mm with reset options of pull & turn release.
Combine with separate 3 module clip, LED block (must be in centre position) and contact blocks to make a complete illuminated mushroom head assembly.
