BACO

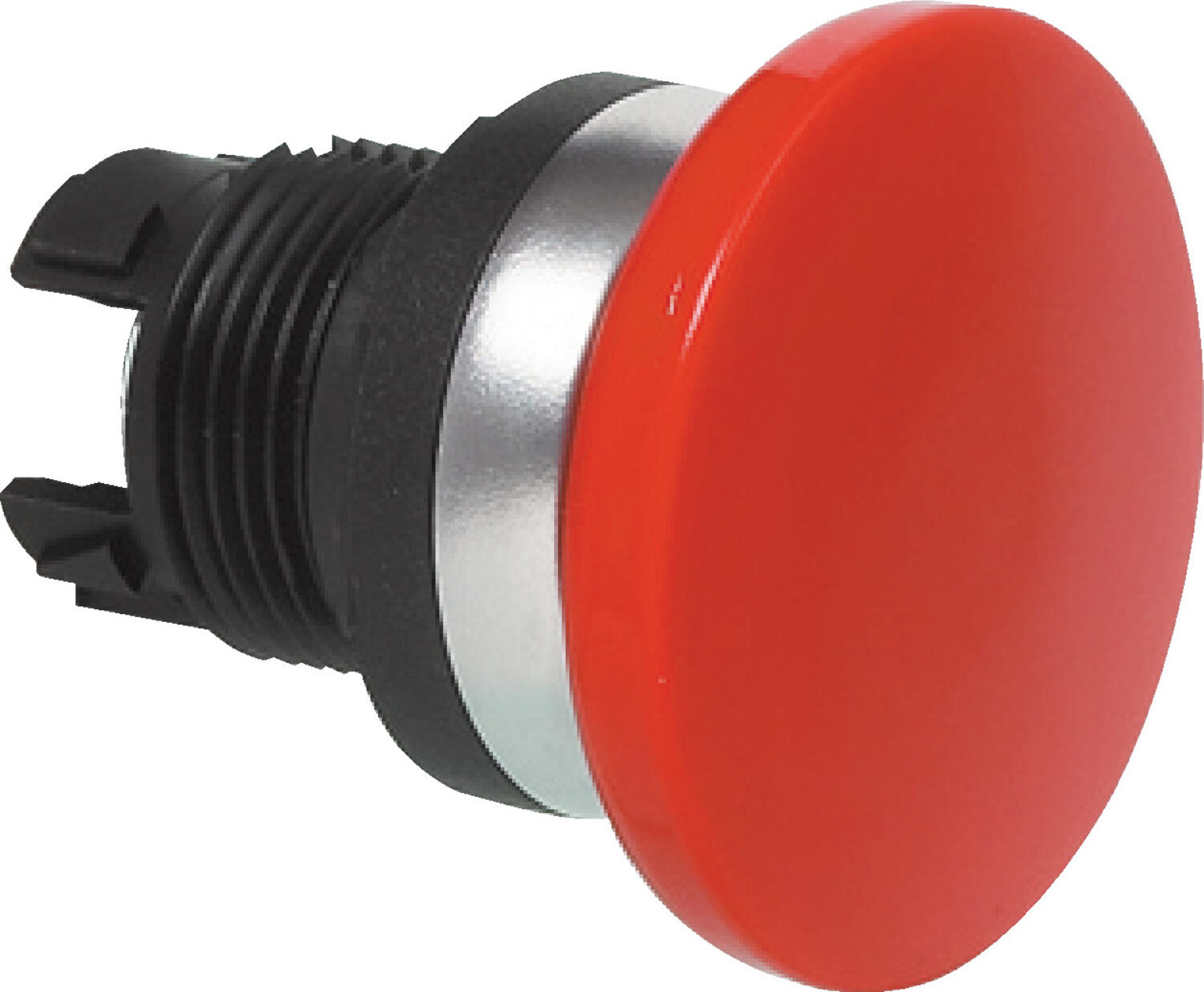

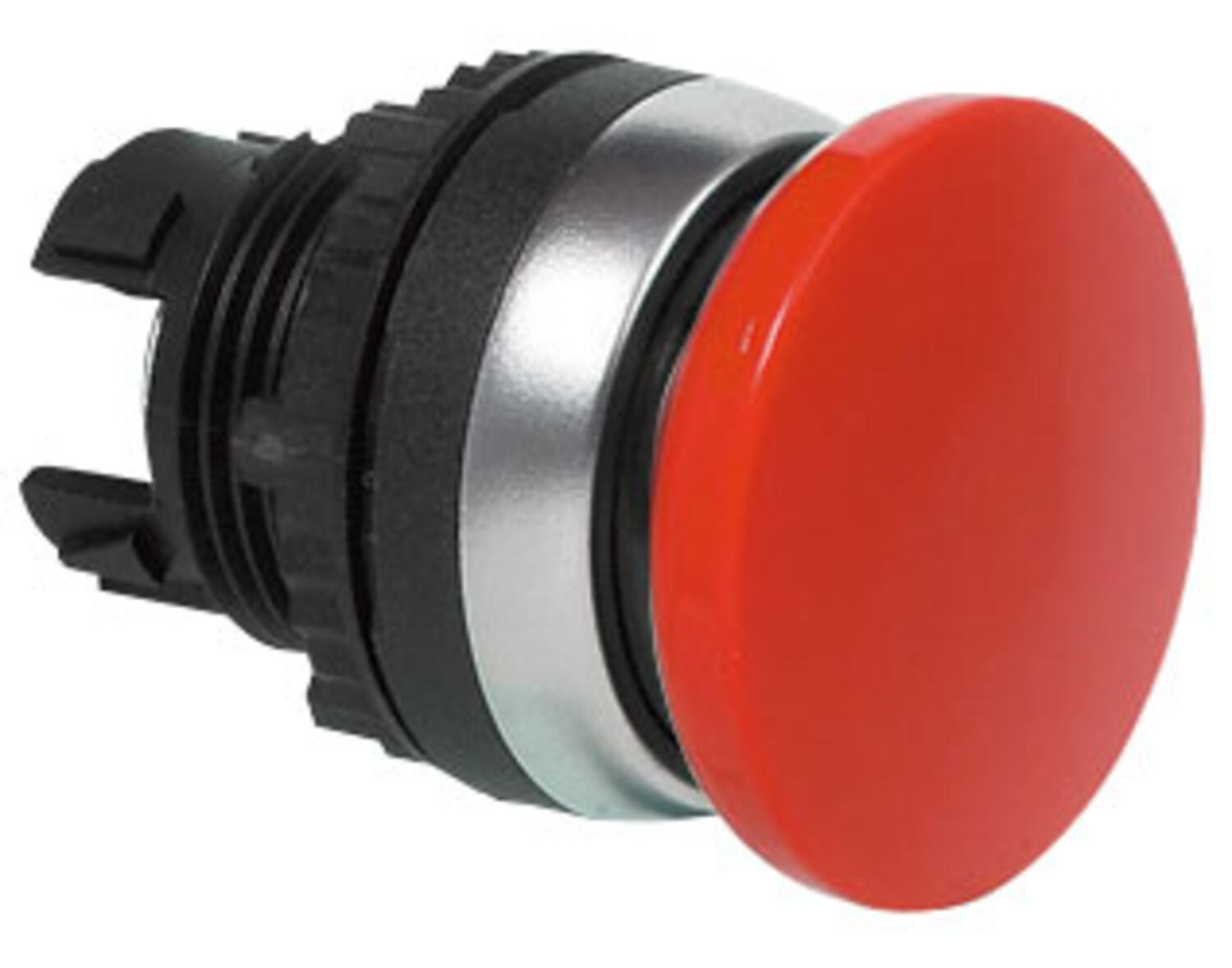

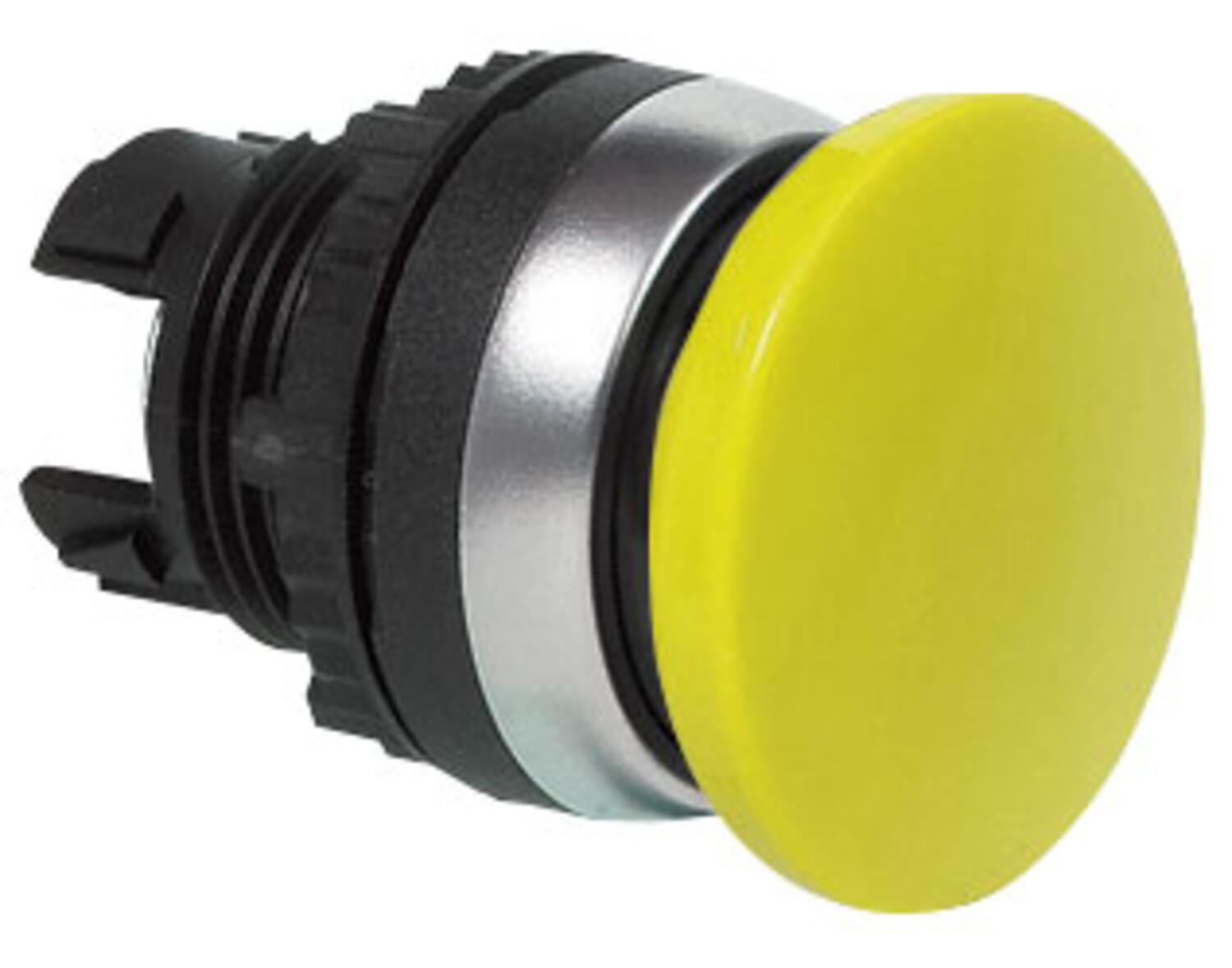

Non Illuminated Mushroom
Mushroom Head
Spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K

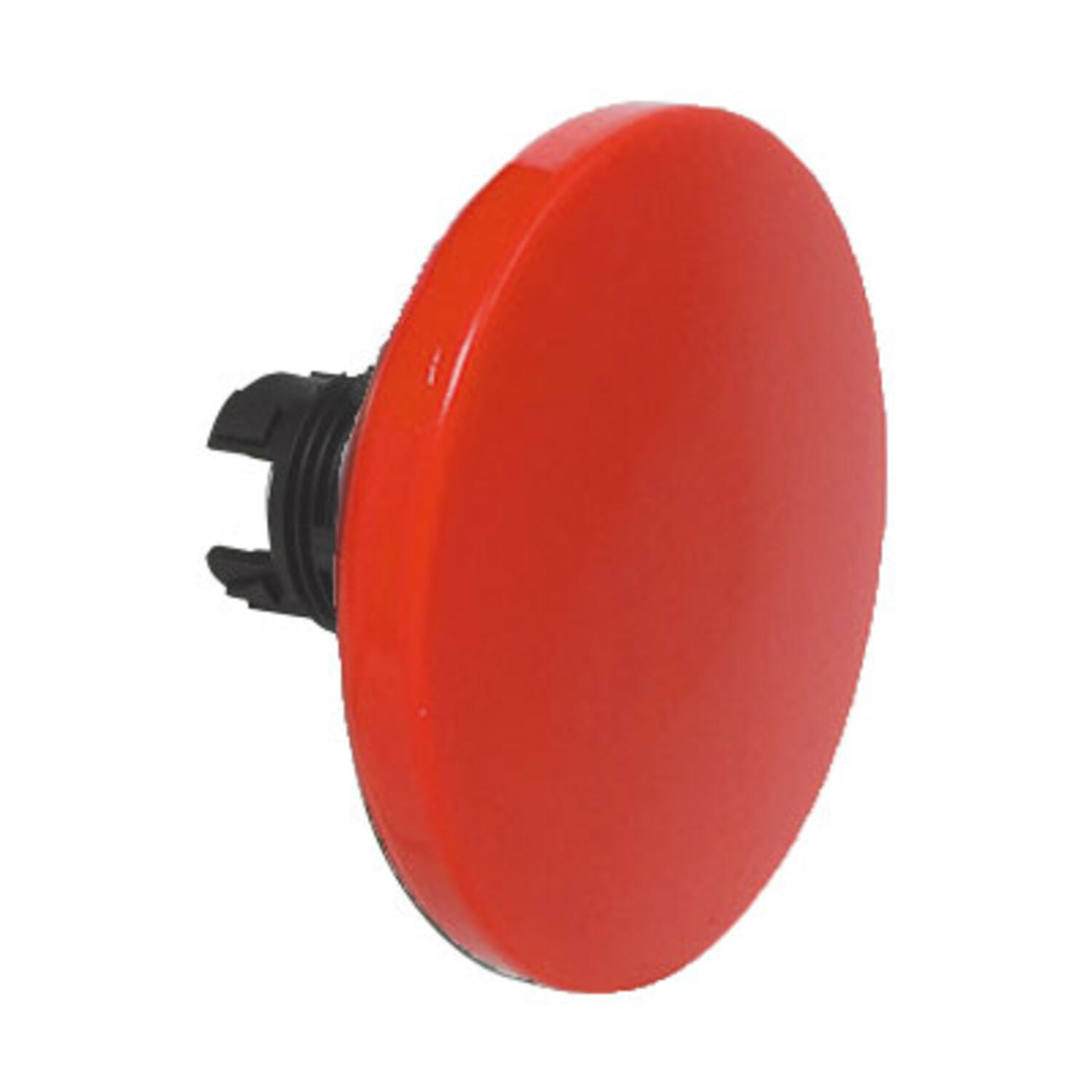

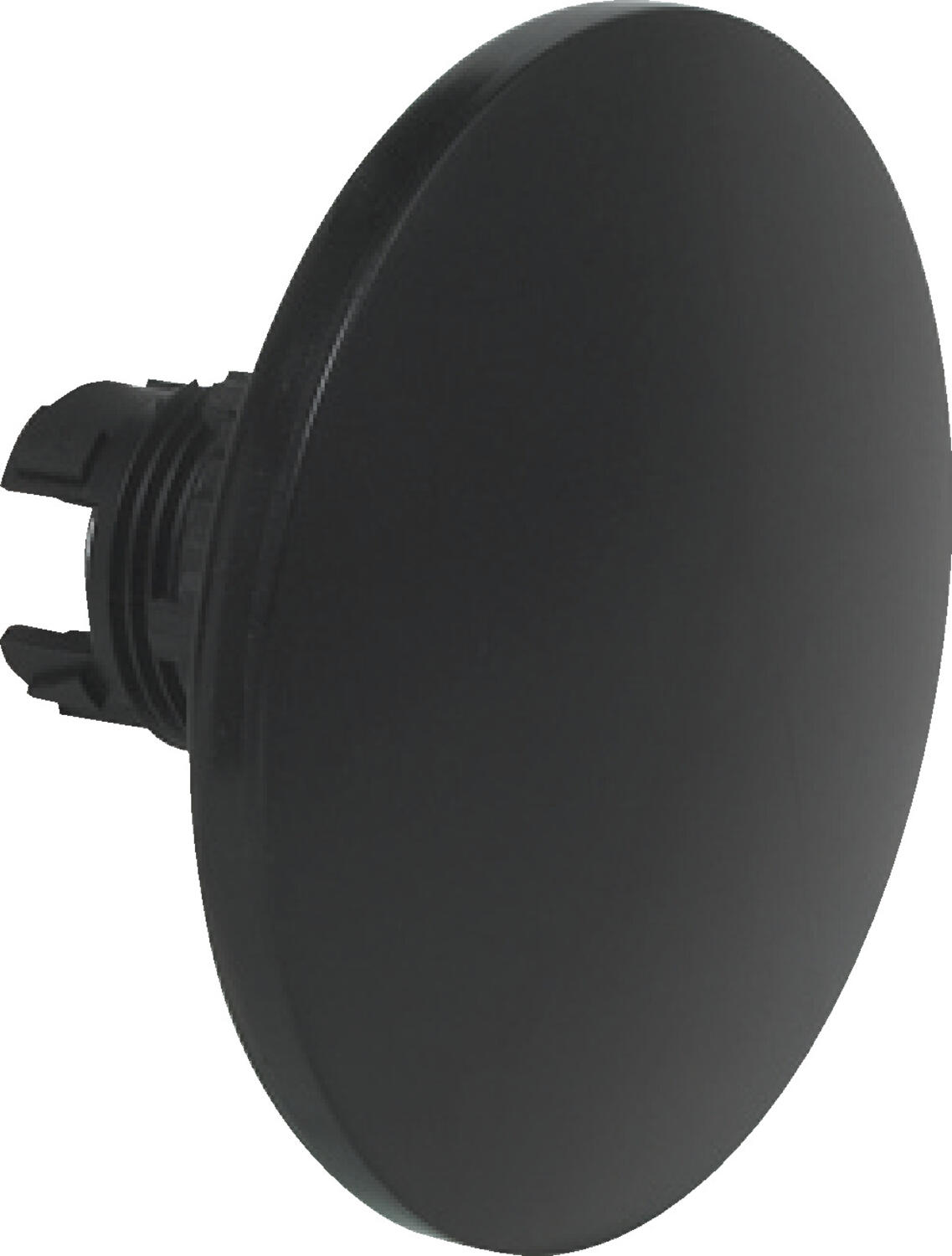

Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator. The 40mm heads are well matched to the base of a closed fist and the 70mm heads the flat palm of a hand.
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Supplied with a matt chrome bezel as standard.

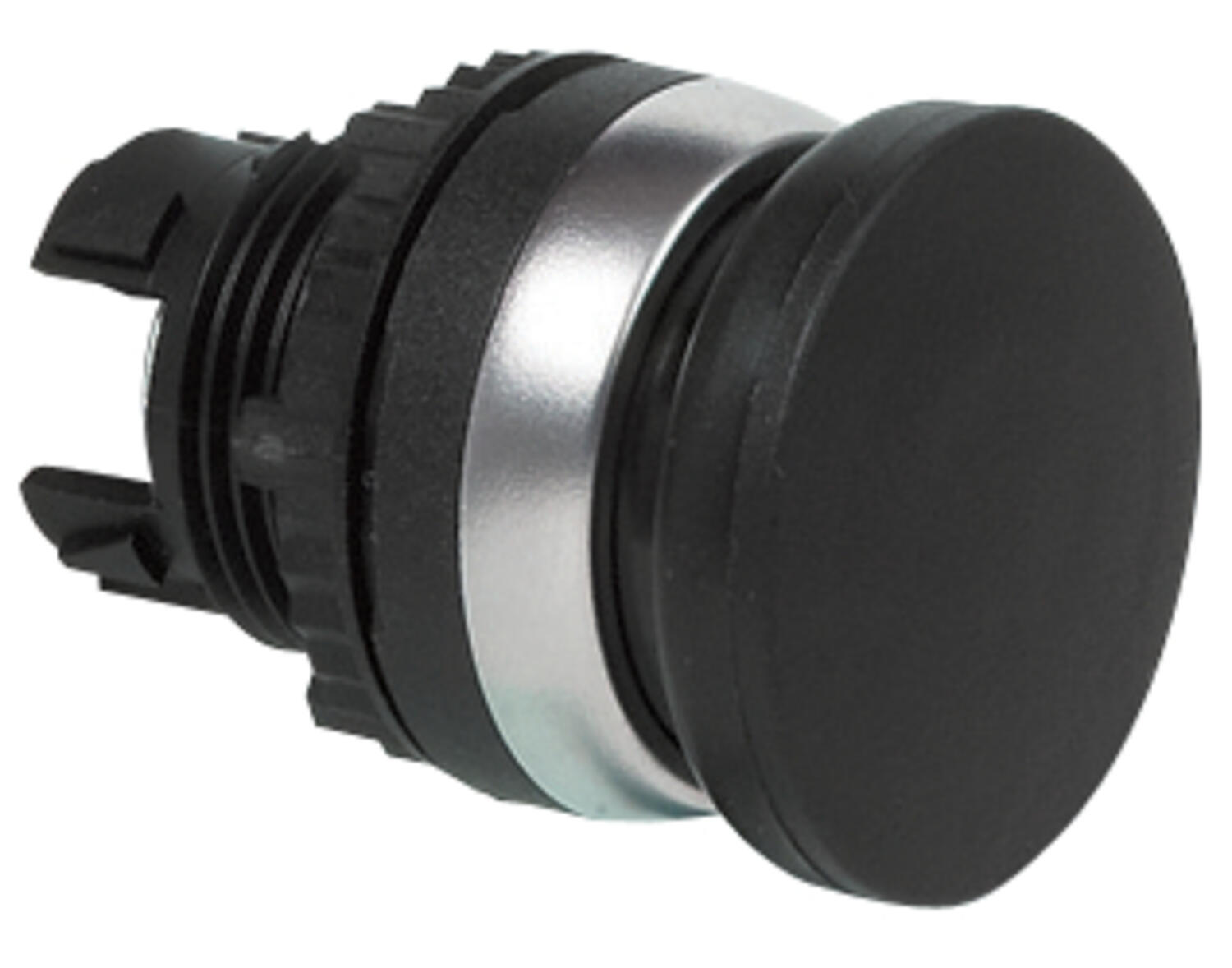

For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
- IP66 / IP69K
- Non latching spring return
- Diameter 32mm, 40mm & 70mm heads
Selected variant
Specifications

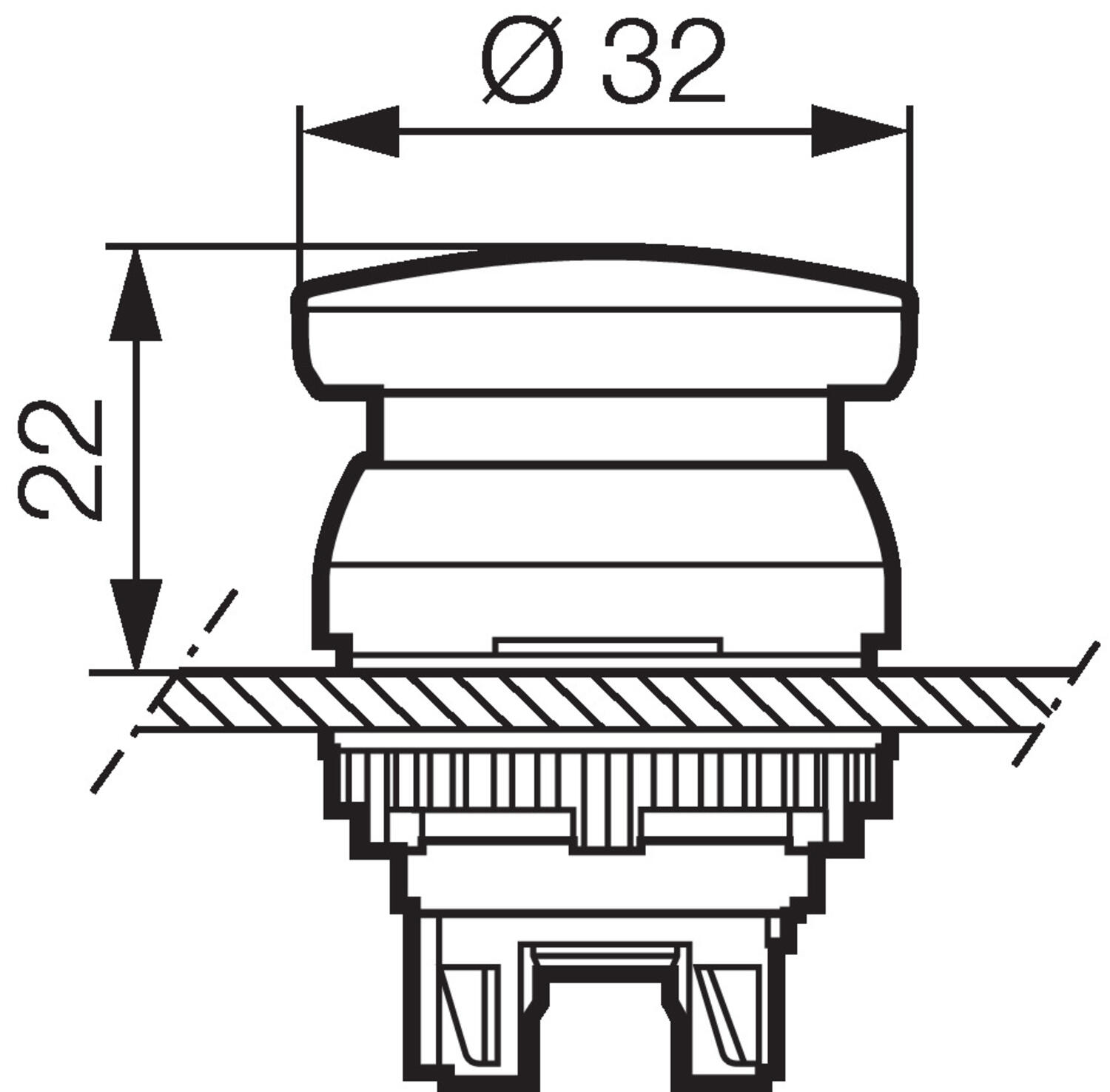

| Type/Model | Mushroom ø32mm |
|---|---|
| Function | Spring return |
| Color | Red |
| Illuminated | No |
| IP Class | IP66, IP69, IP69K |
| Impact resistance | IK05 |
| Protection Class | II (double insulated) |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Weight | 18.8 g |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator. The 40mm heads are well matched to the base of a closed fist and the 70mm heads the flat palm of a hand.
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
