BACO
Mechanical Reset Button
Adjustable mechanical push button
Adjustable push button that allows mechanical activation of other devices.

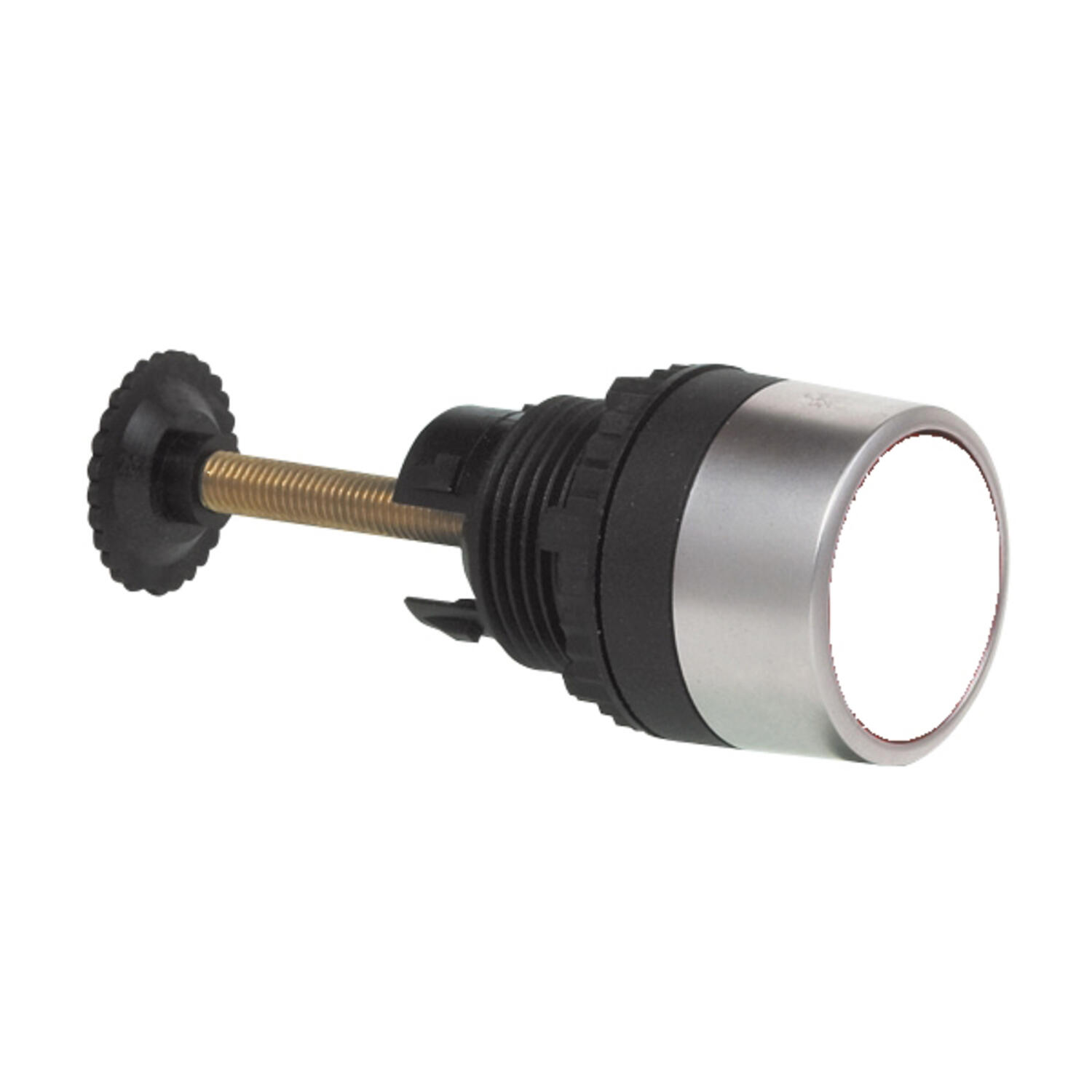

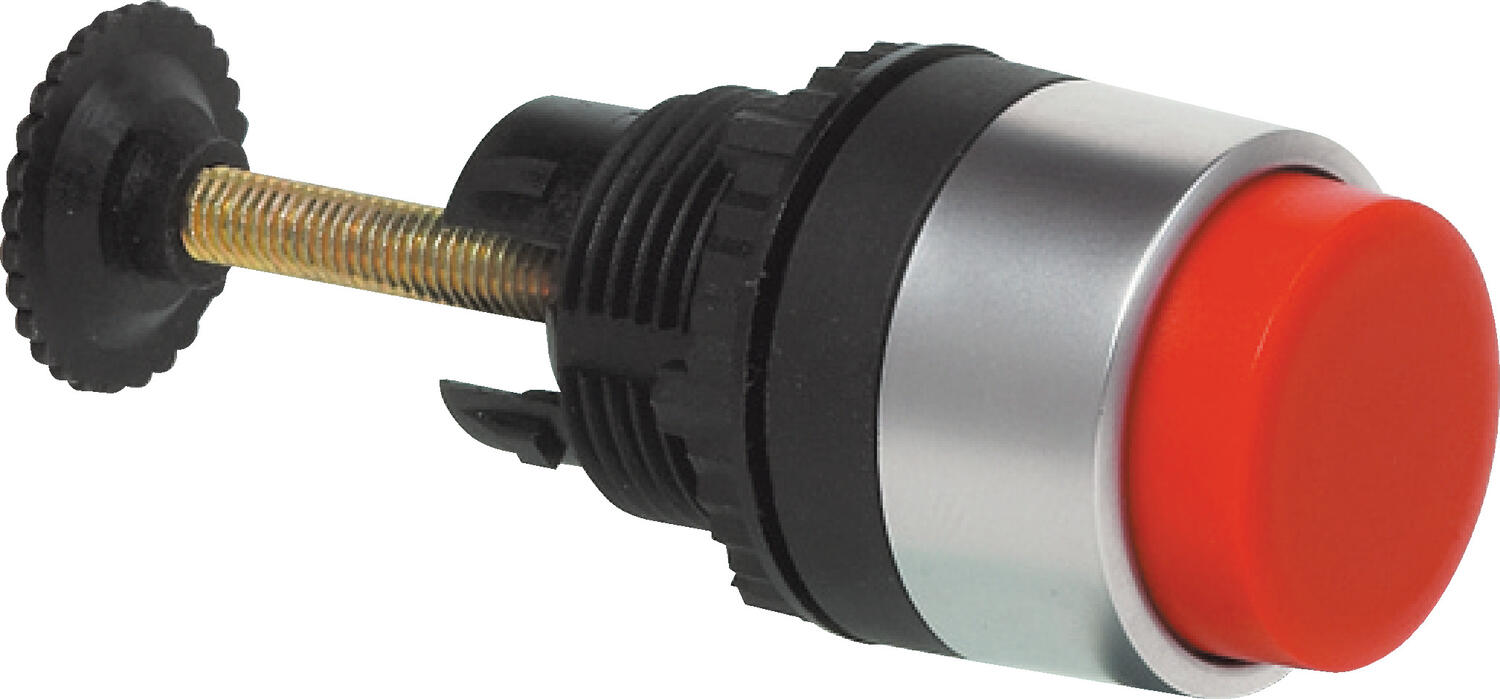

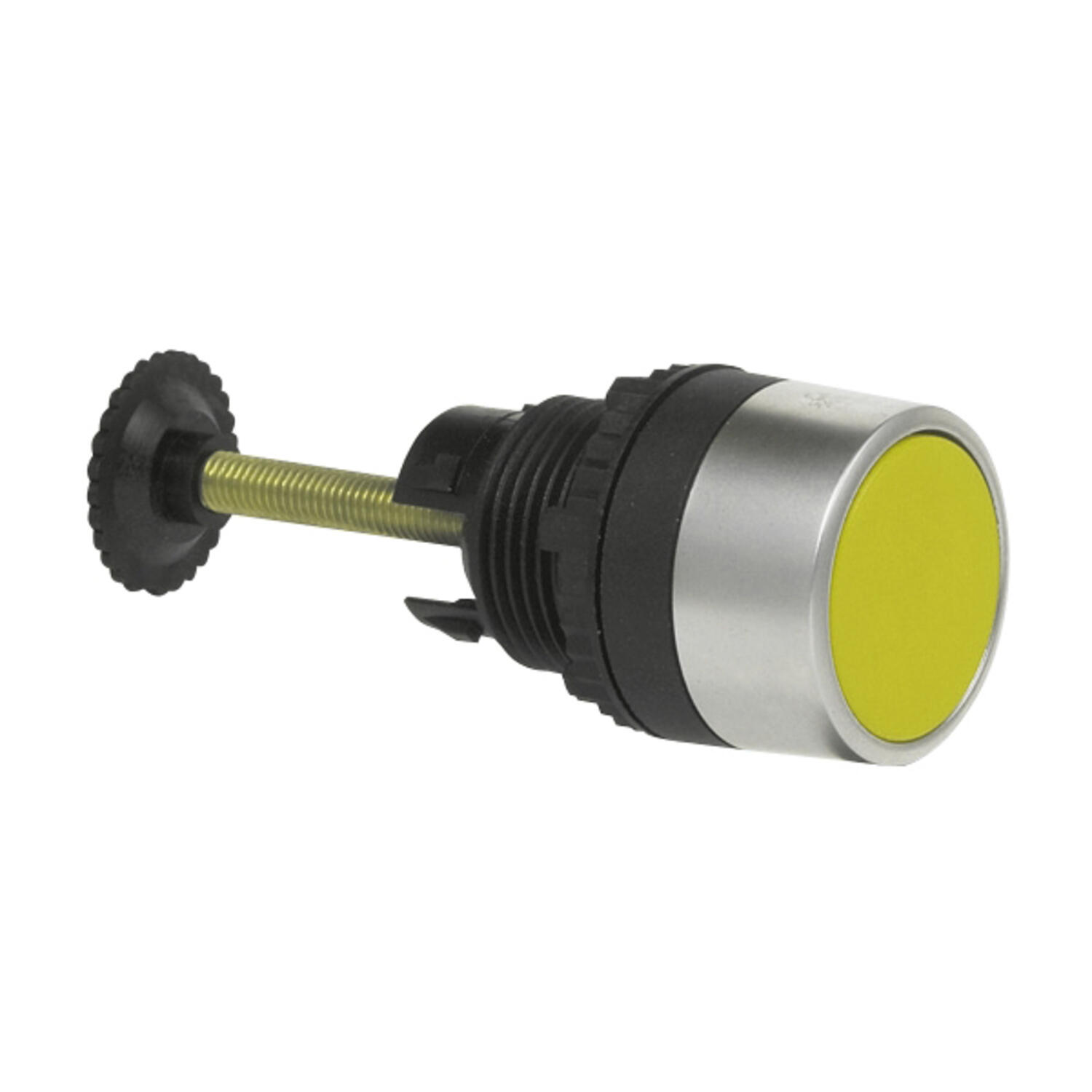

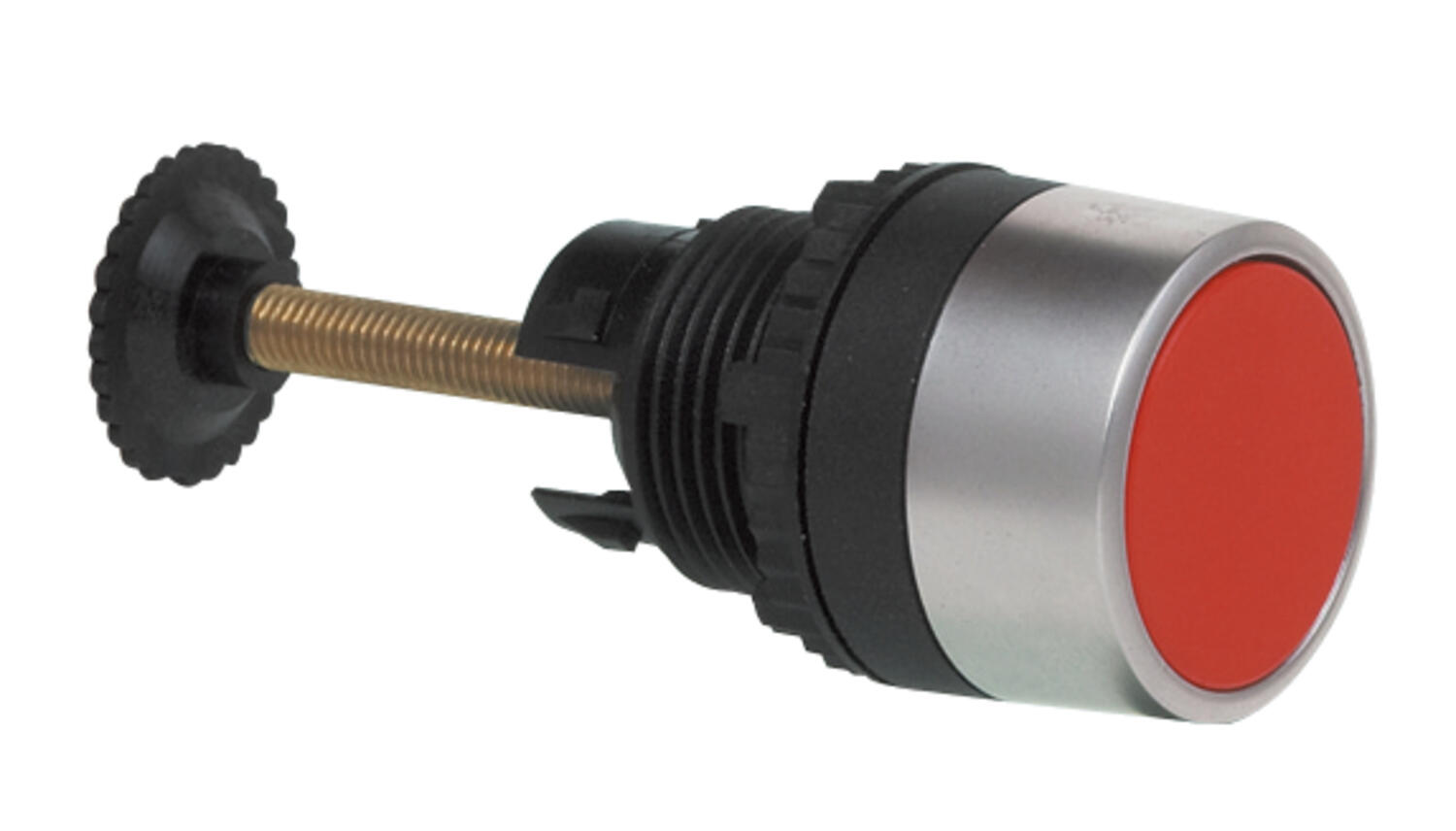

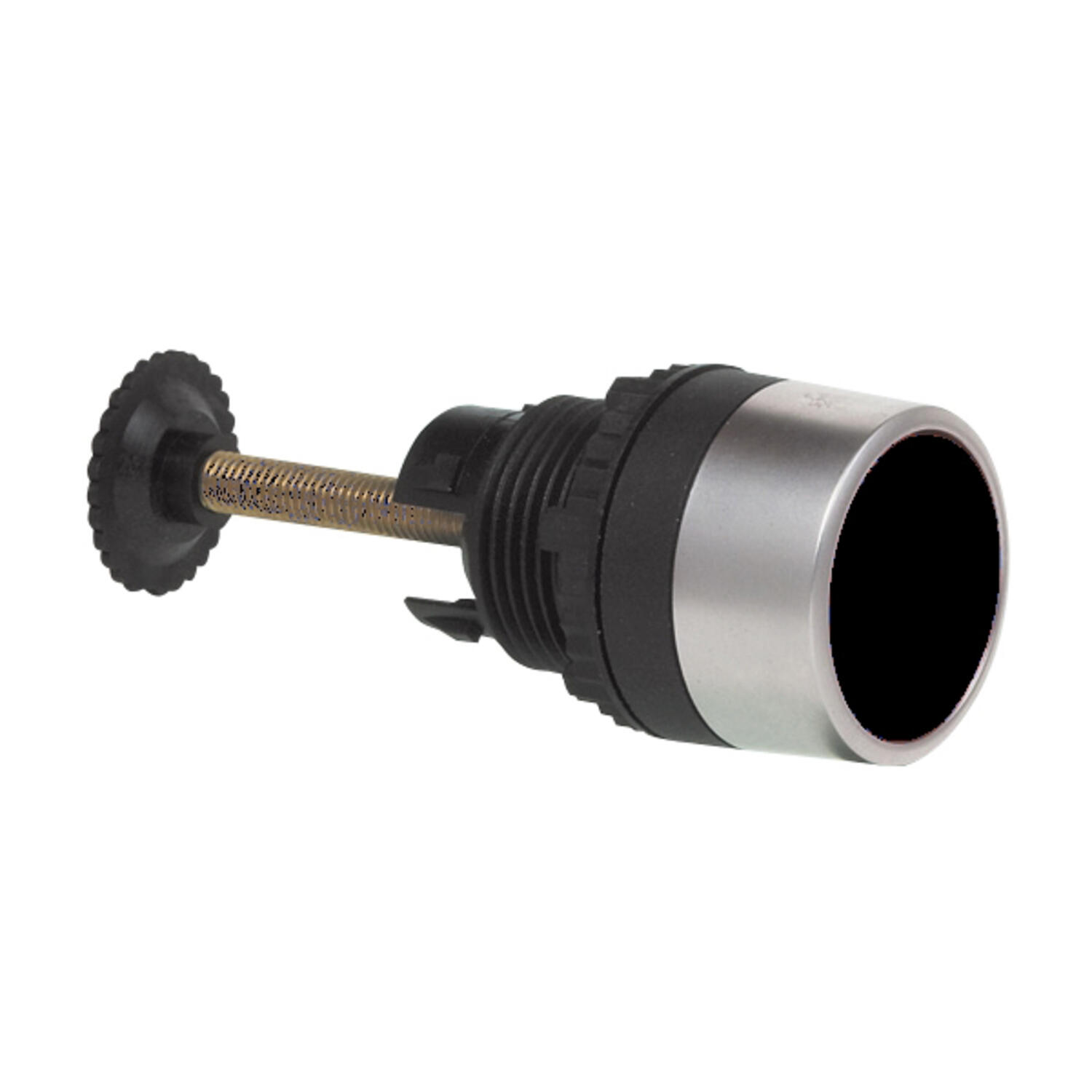

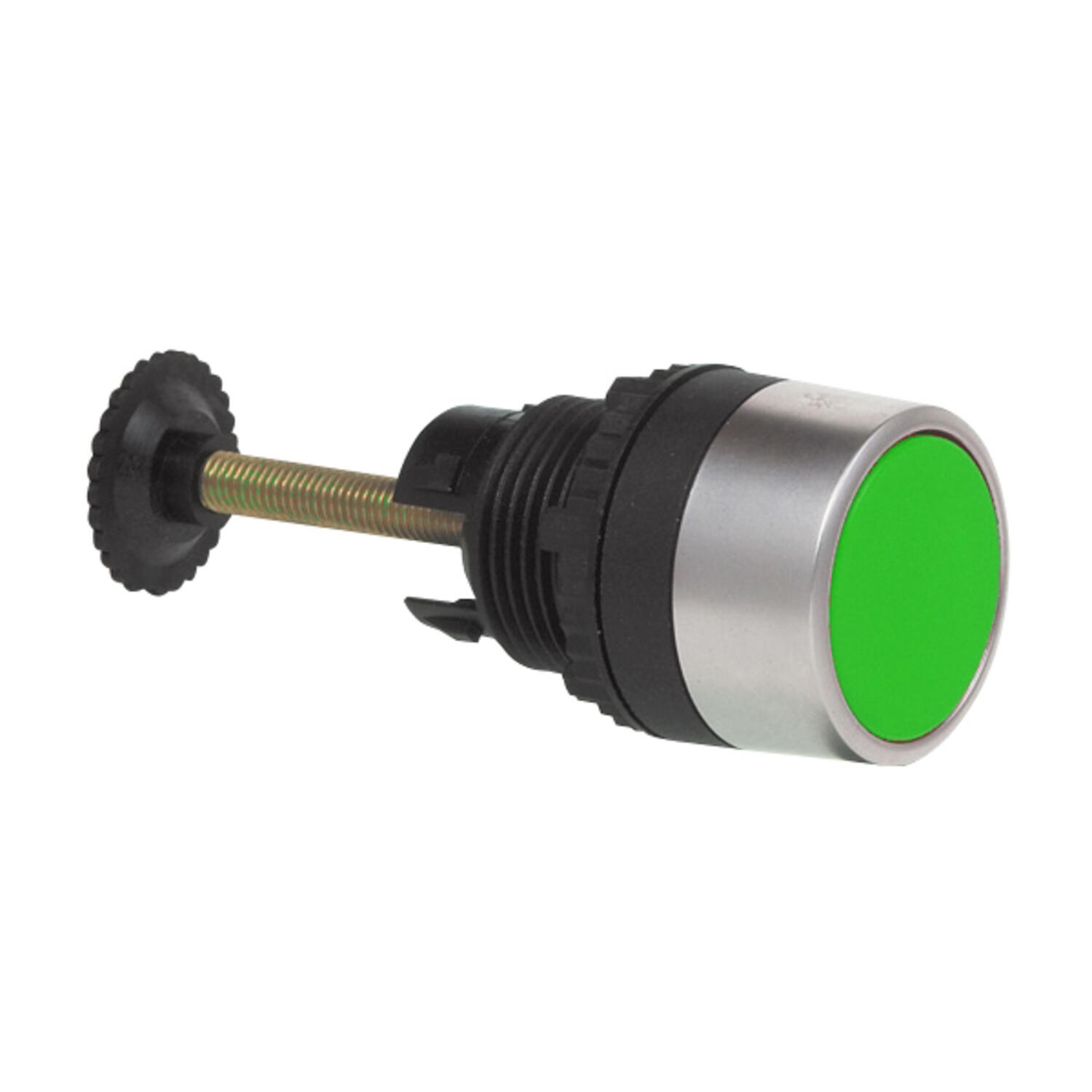

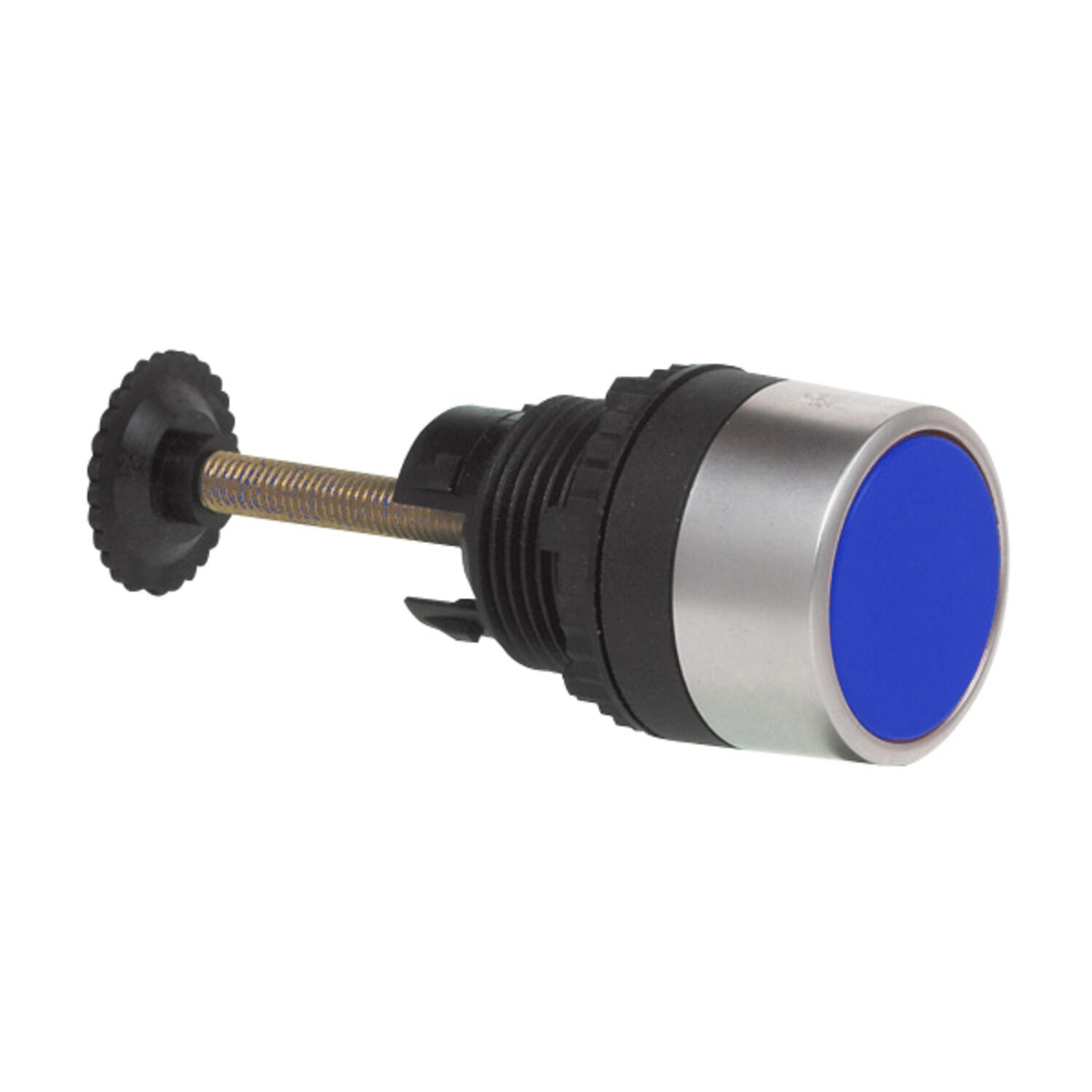

The buttons are available in 6 colours in flush or non flush.
When pressed the button has a movement stroke of 11mm and the rear plunger can be adjusted between 26mm to 46mm from the front side of the panel.
Optionally any of the heads can be supplied with custom text or symbol please enquire for further details.
- Flush or non flush
- Stroke 11mm
- Adjustment 26mm to 46mm depth
- Optional engraving possible
Selected variant
Specifications
| Type/Model | Flush pushbutton |
|---|---|
| Function | Spring return |
| Color | Red |
| Illuminated | No |
| IP Class | IP65 |
| Impact resistance | IK05 |
| Protection Class | II (double insulated) |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
|---|---|

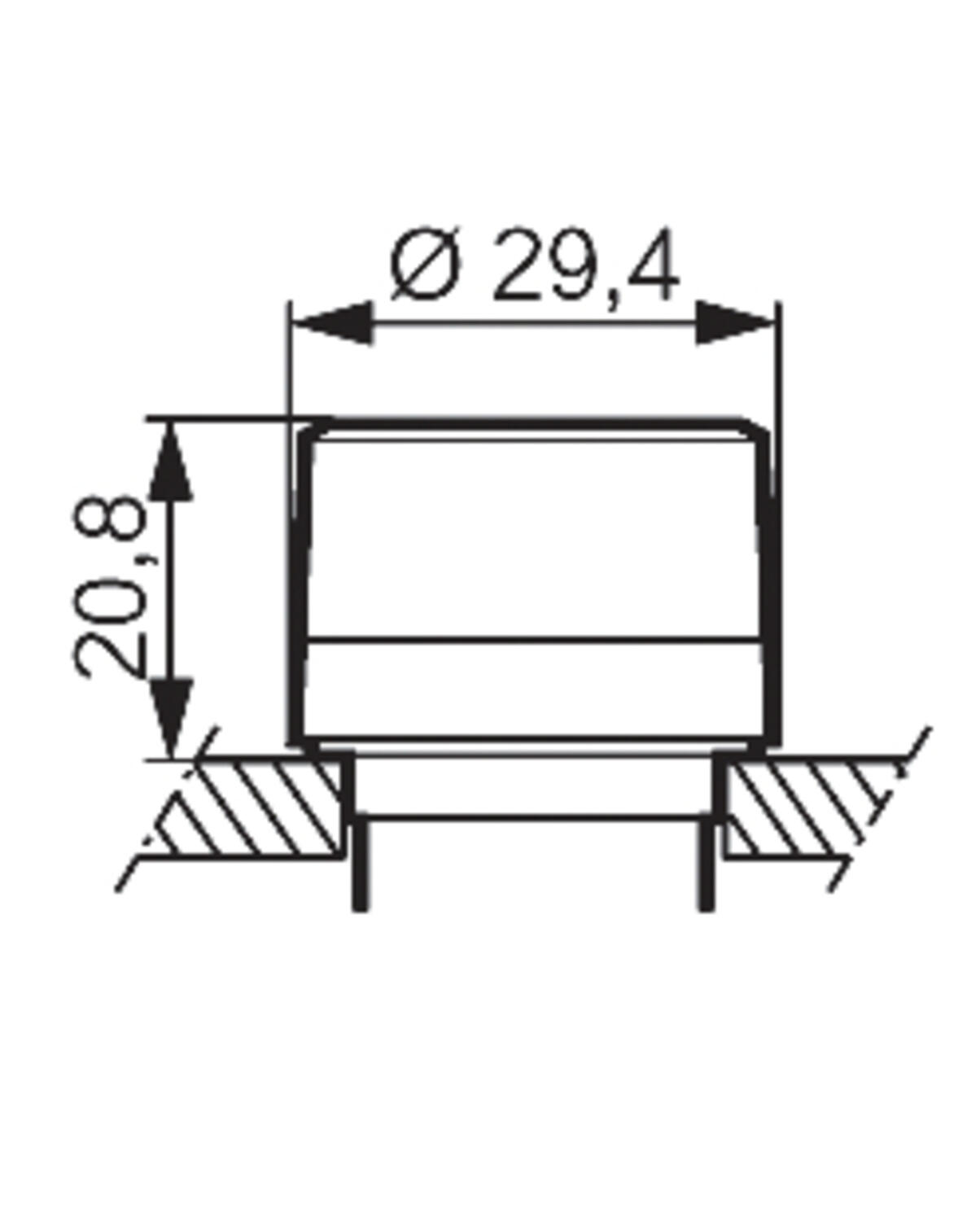

| Height | 20.8 mm |
| Weight | 24 g |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Torque max | 3 |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Adjustable push button that allows mechanical activation of other devices.
The buttons are available in 6 colours in flush or non flush.
When pressed the button has a movement stroke of 11mm and the rear plunger can be adjusted between 26mm to 46mm from the front side of the panel.
Optionally any of the heads can be supplied with custom text or symbol please enquire for further details.
