BACO
Illuminated Pushbutton
Super Flush Head
Illuminated super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K
Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.

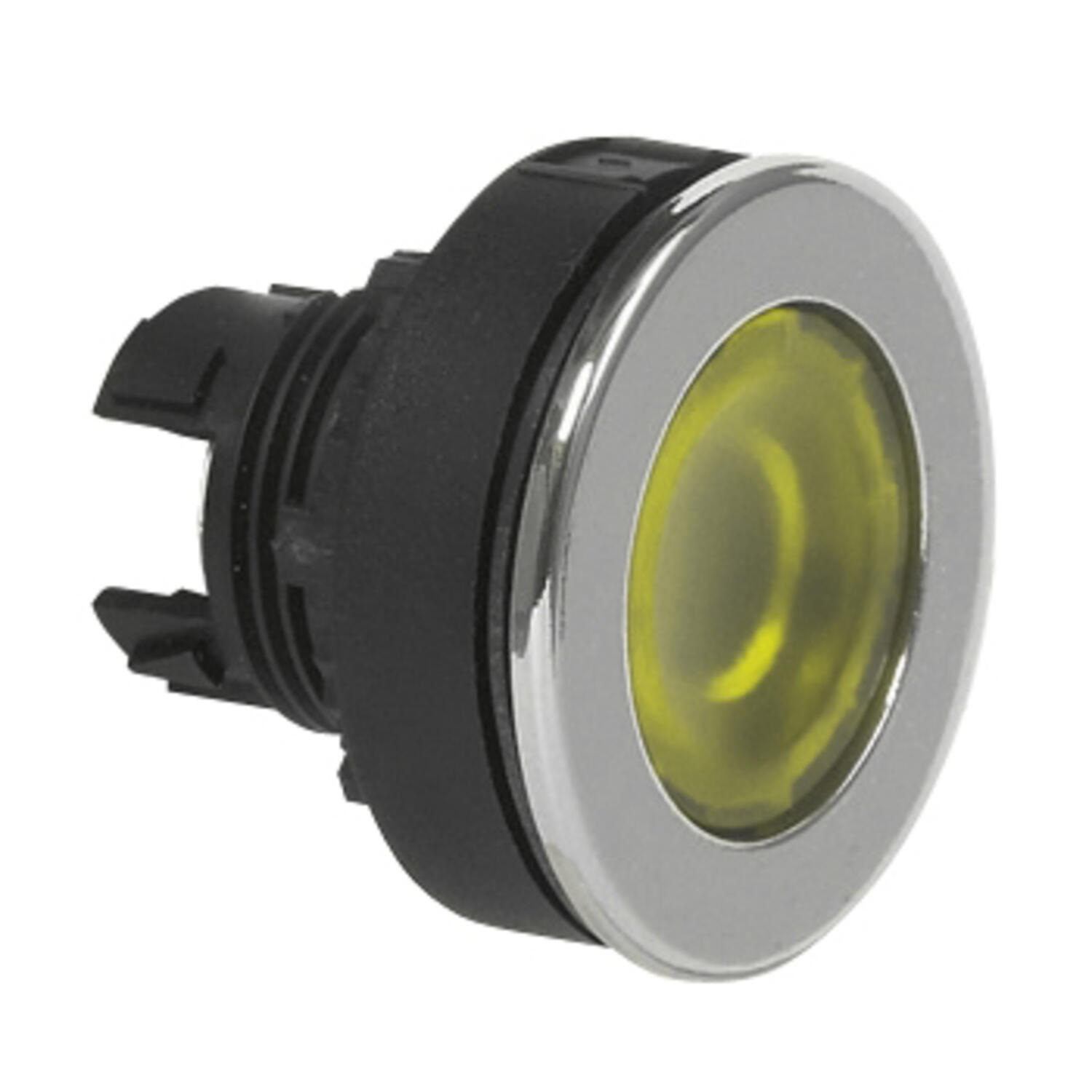

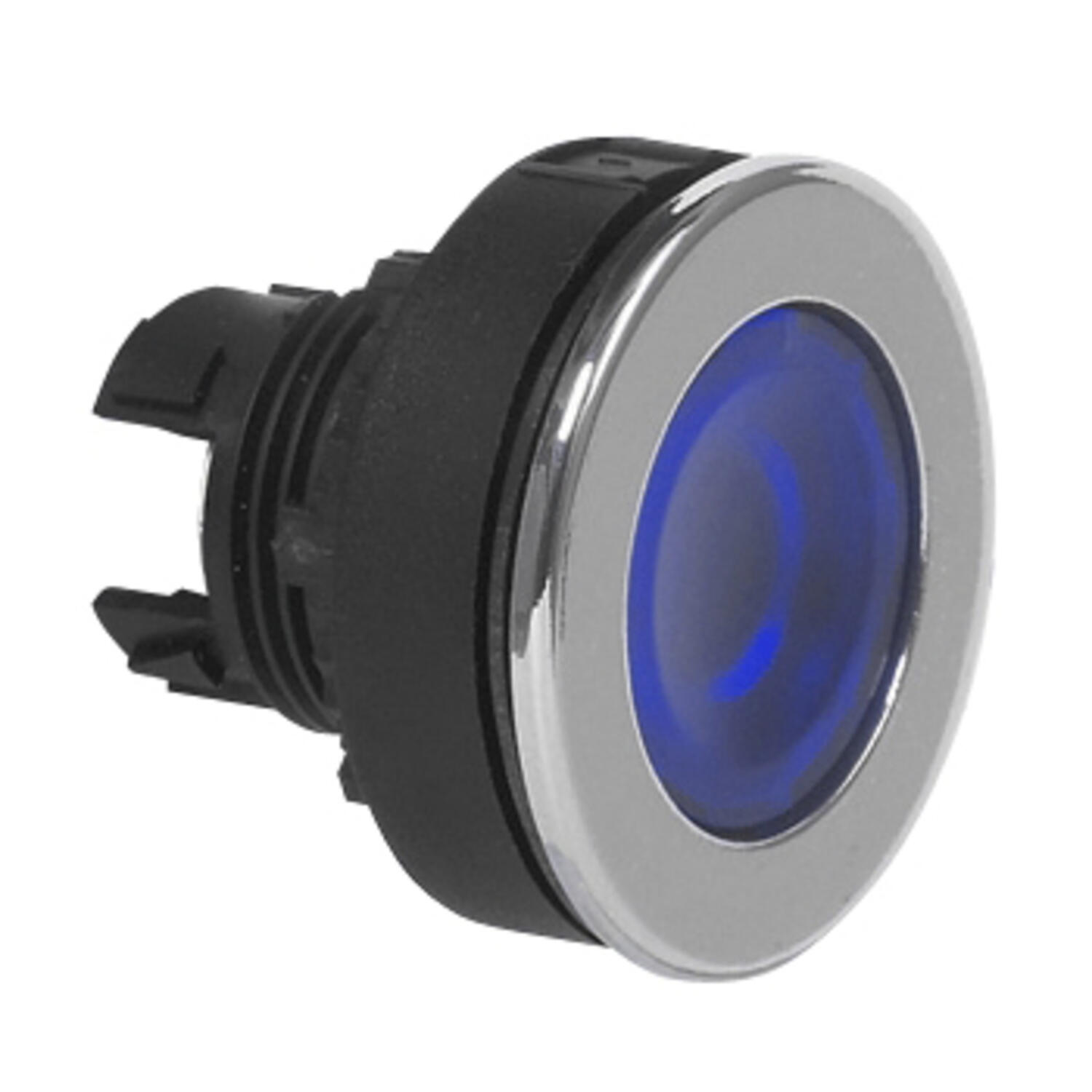

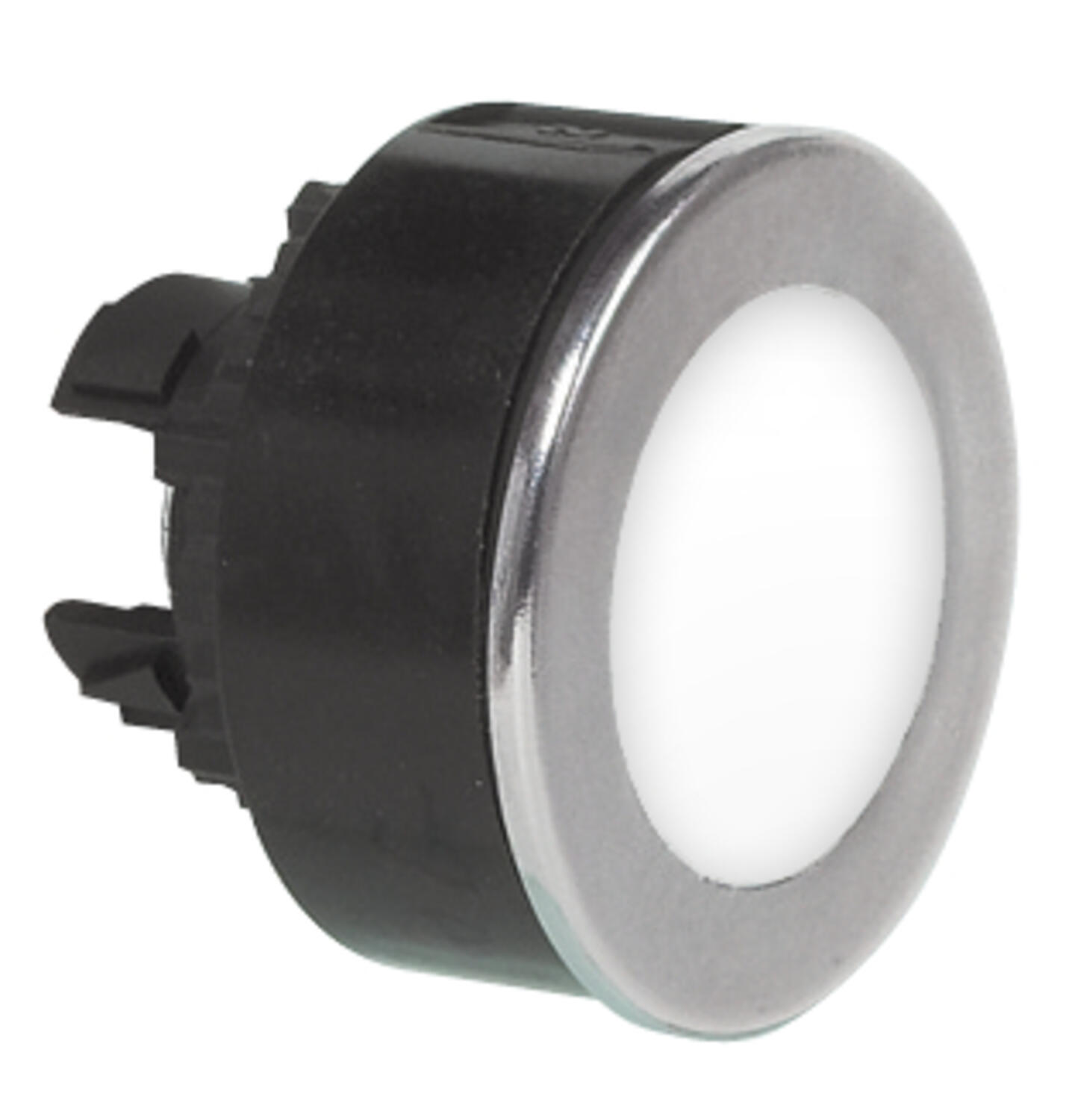

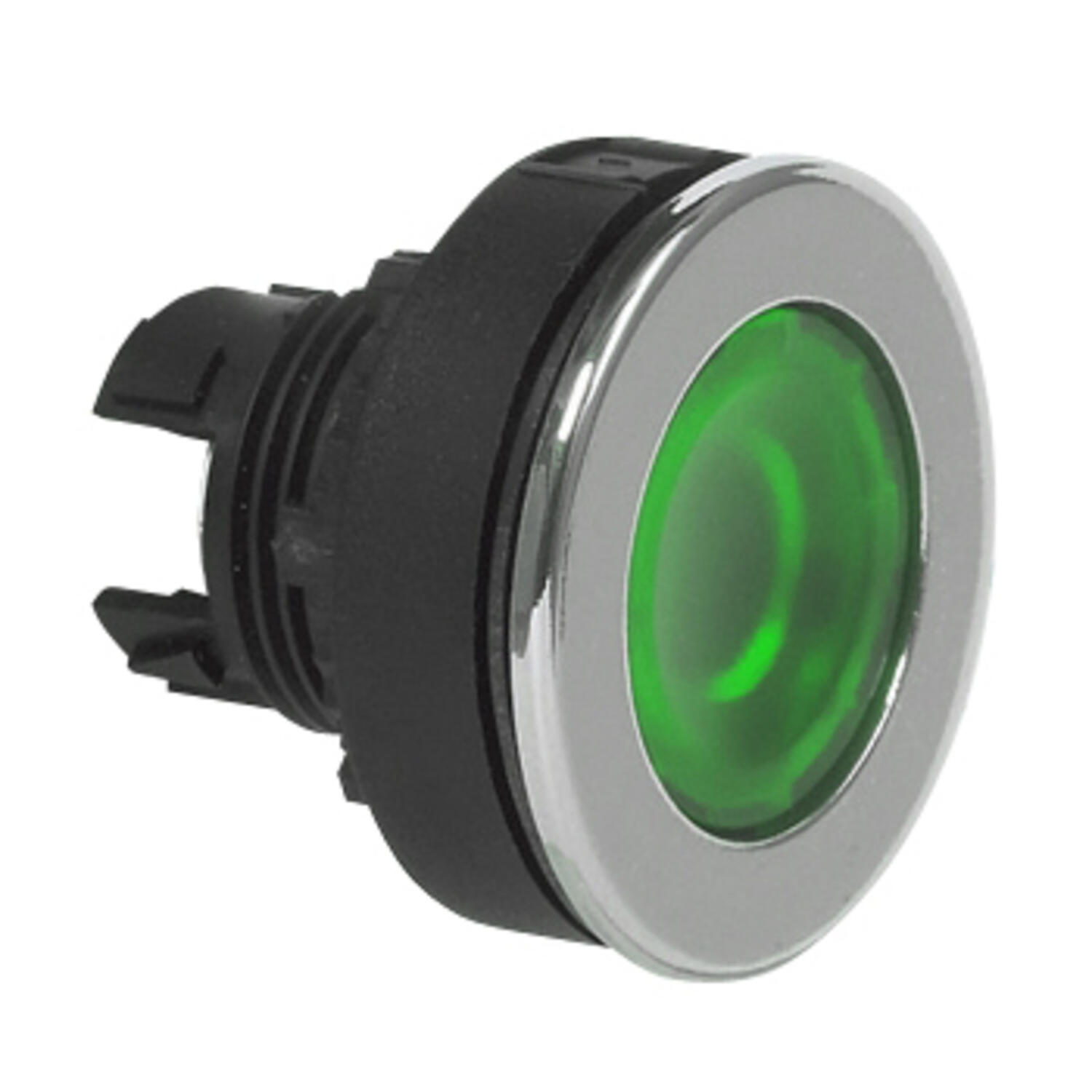

Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
- IP66 / IP69K
- Spring return
- Low profile flush mount
- Illuminate with LED blocks
Selected variant
Specifications
| Type/Model | Super flush pushbutton |
|---|---|
| Function | Spring return |

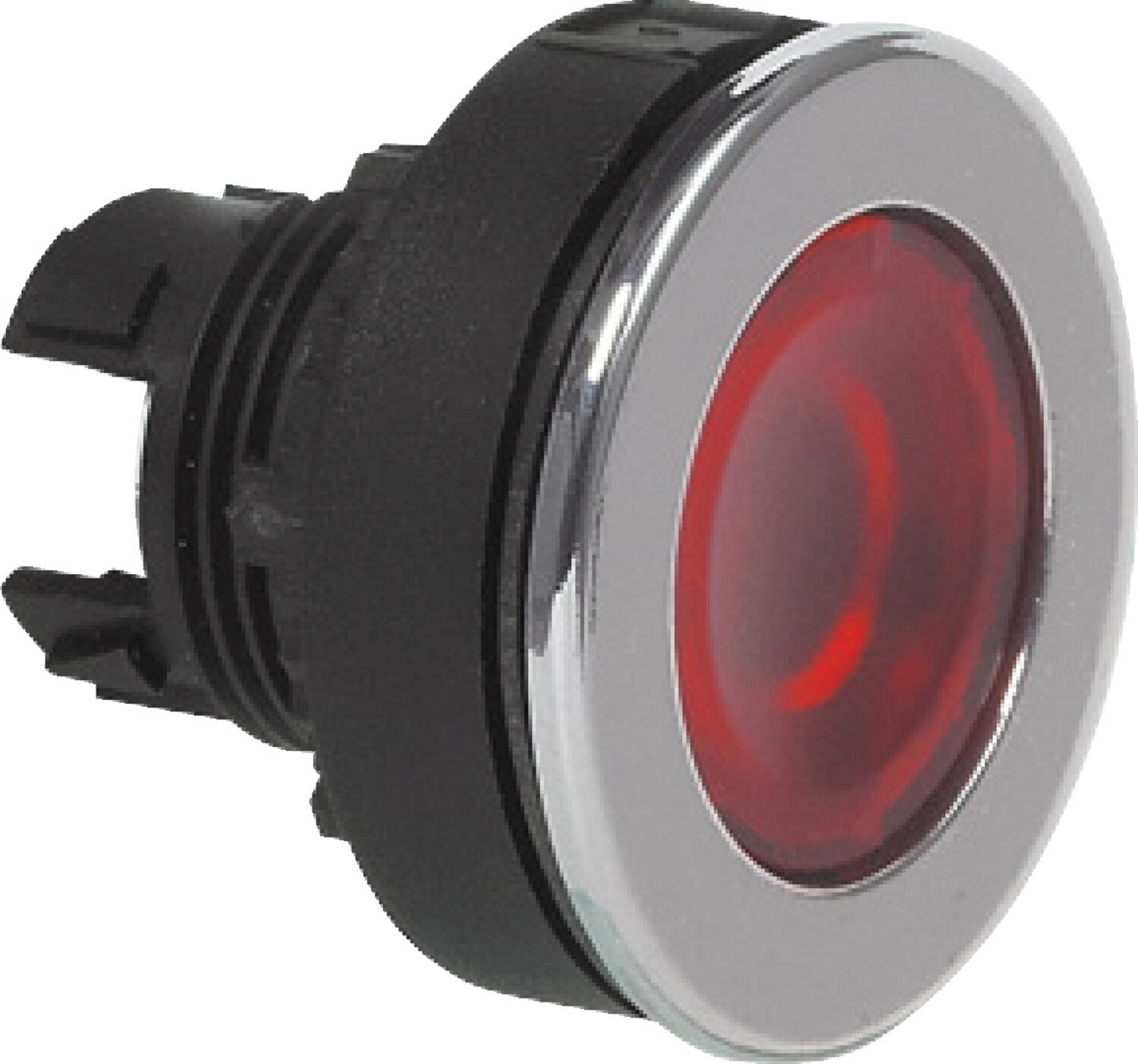

| Color | Red |
| Illuminated | Yes |
| IP Class | IP66 |
| Impact resistance | IK05 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Illuminated super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K
Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with clip, contact blocks and LED module (must be in centre position) to make complete illuminated pushbutton assembly.
Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
