BACO

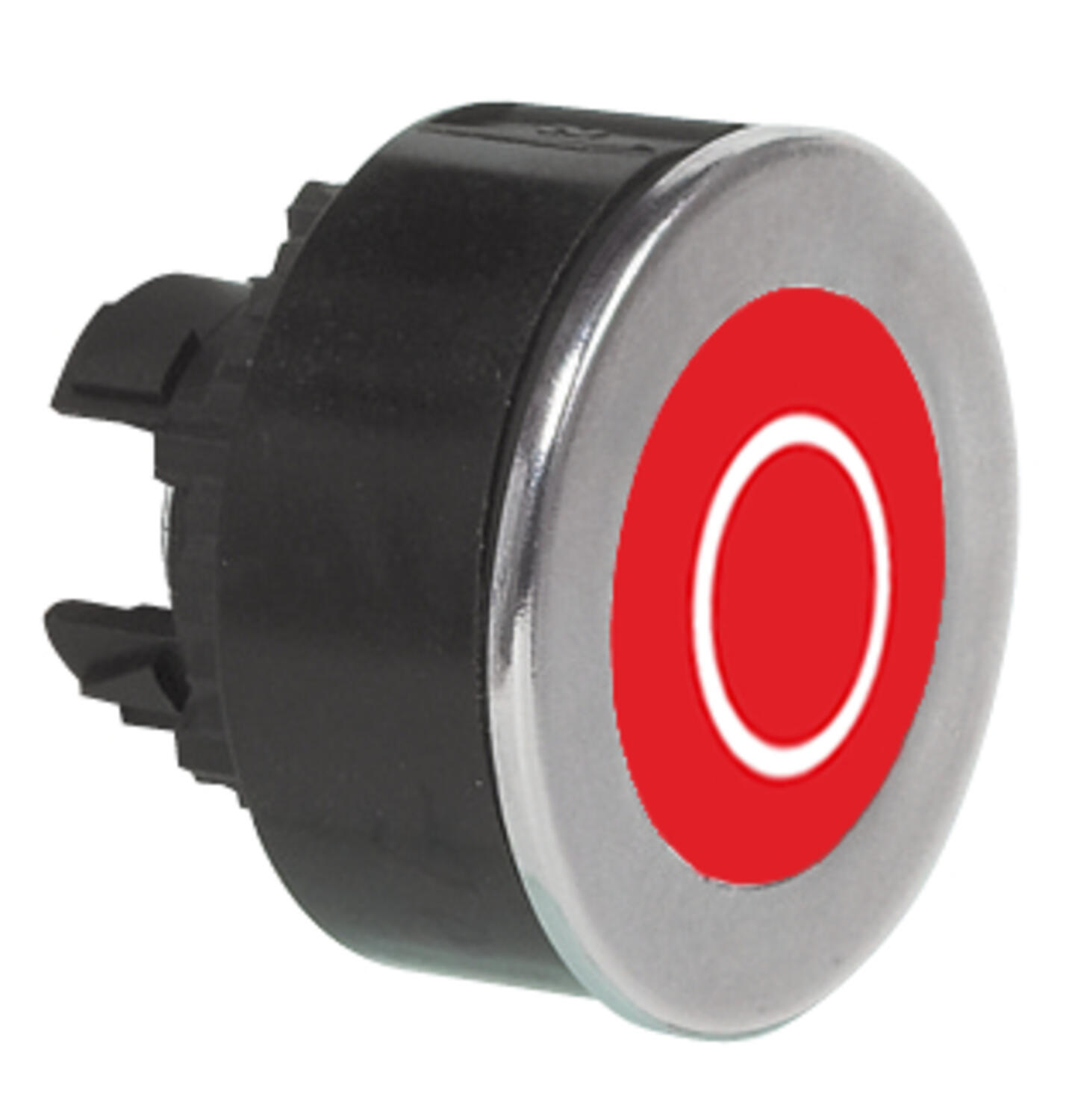

Non Illuminated Pushbutton
Super Flush Head

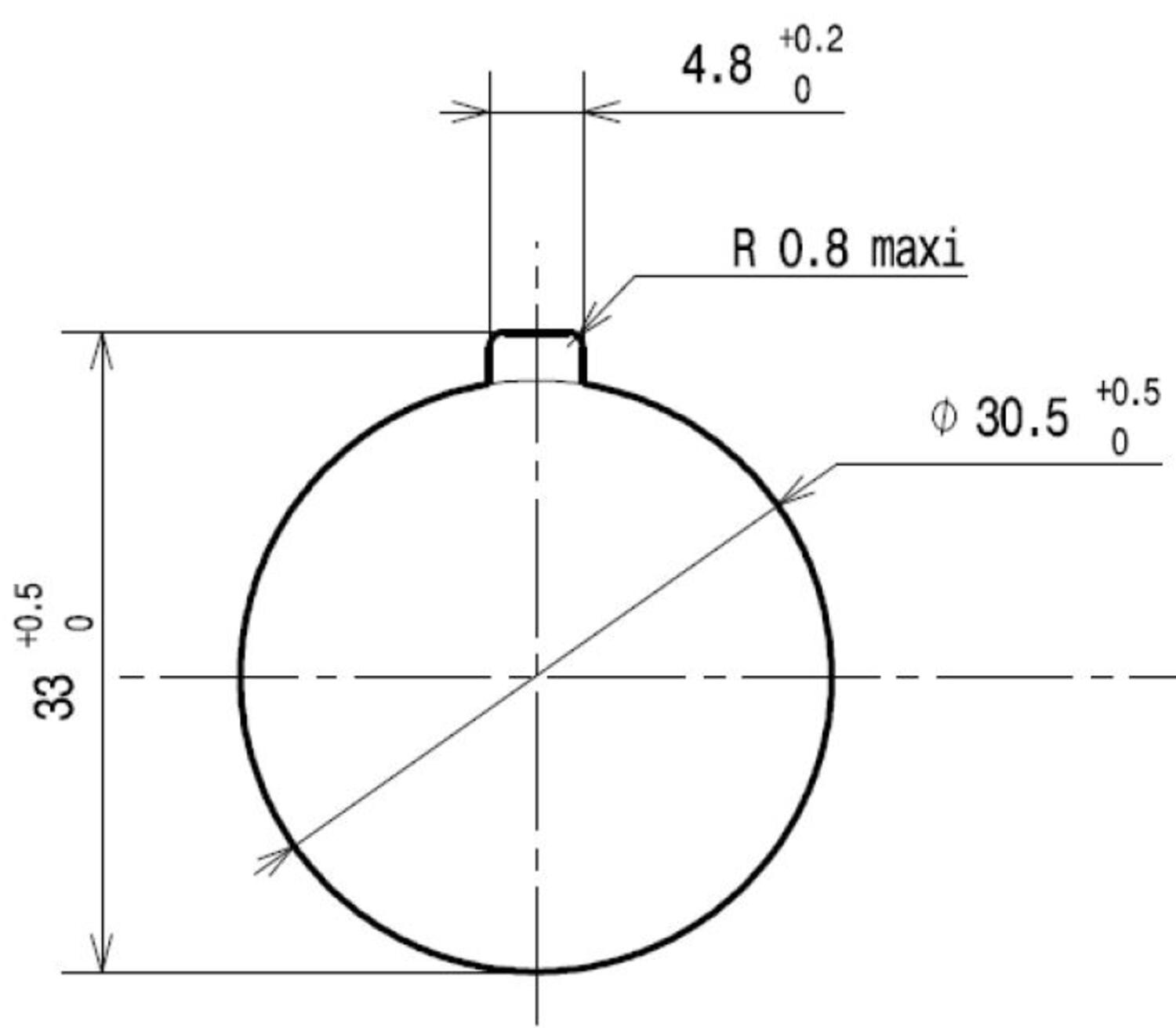

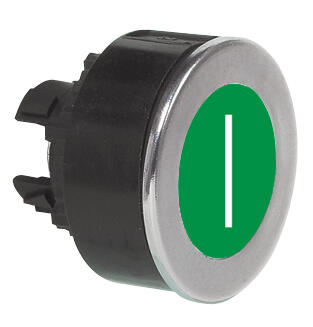

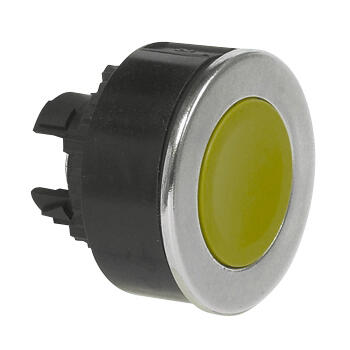

Super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K

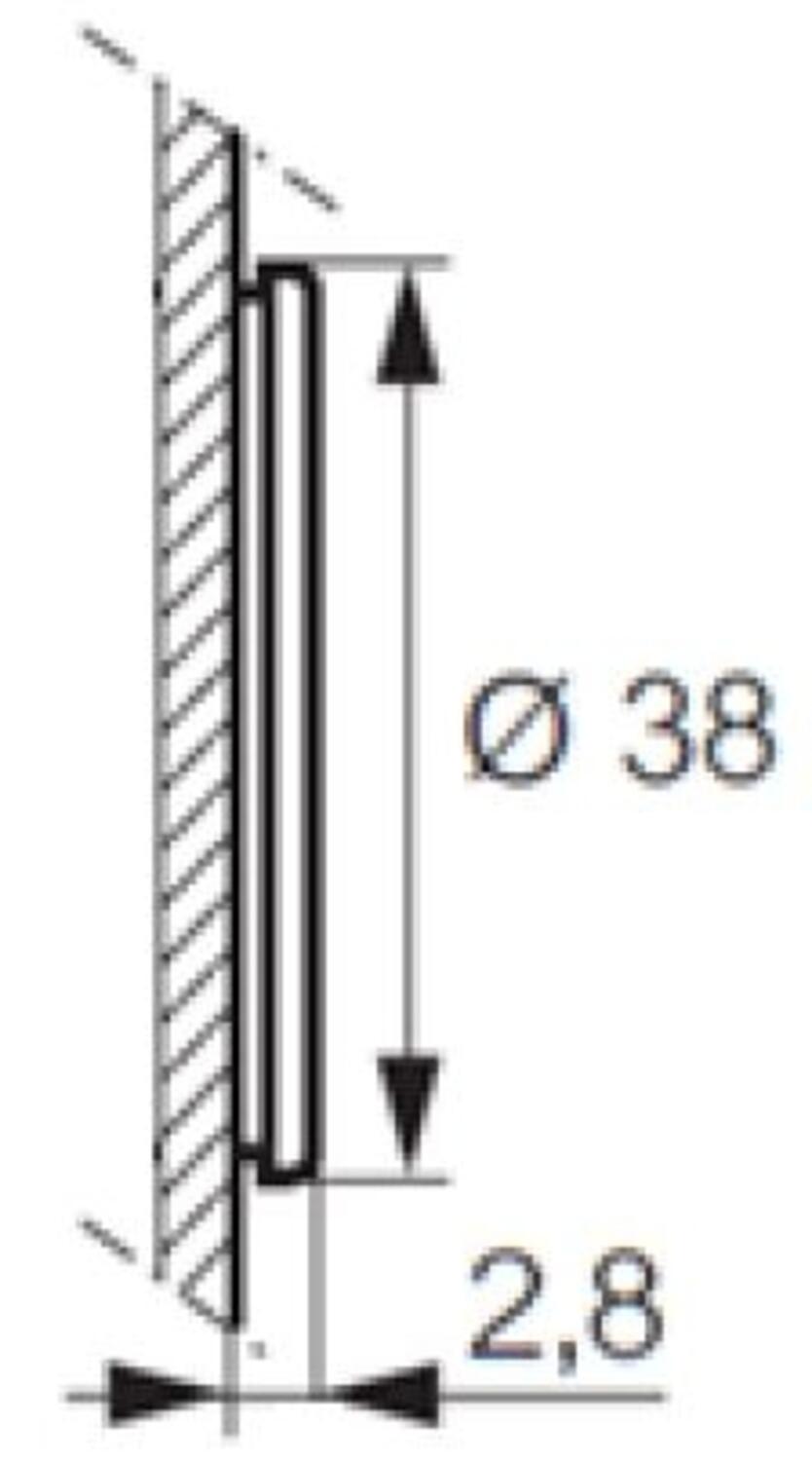

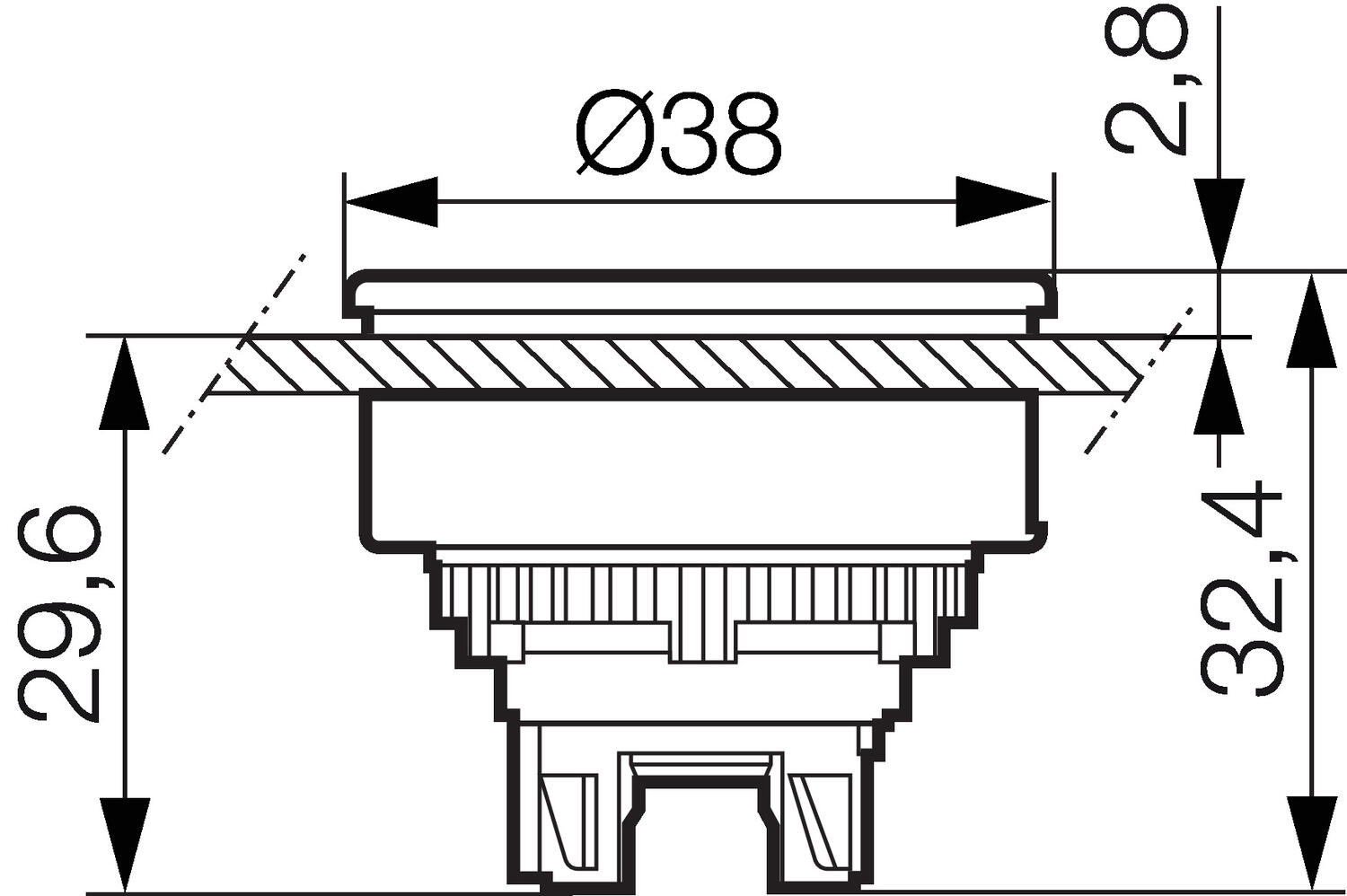

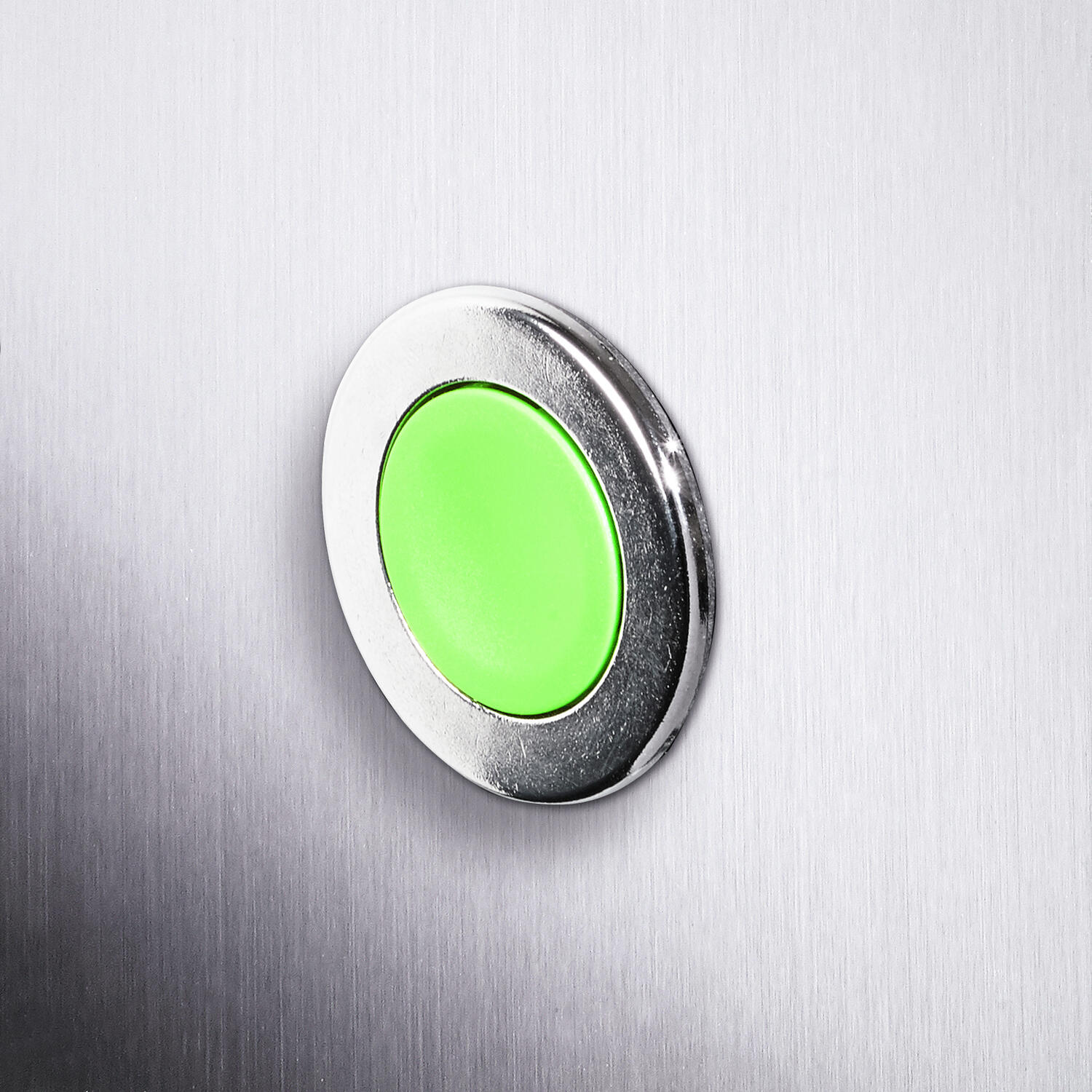

Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with separate clip and contact blocks to make complete pushbutton assembly.

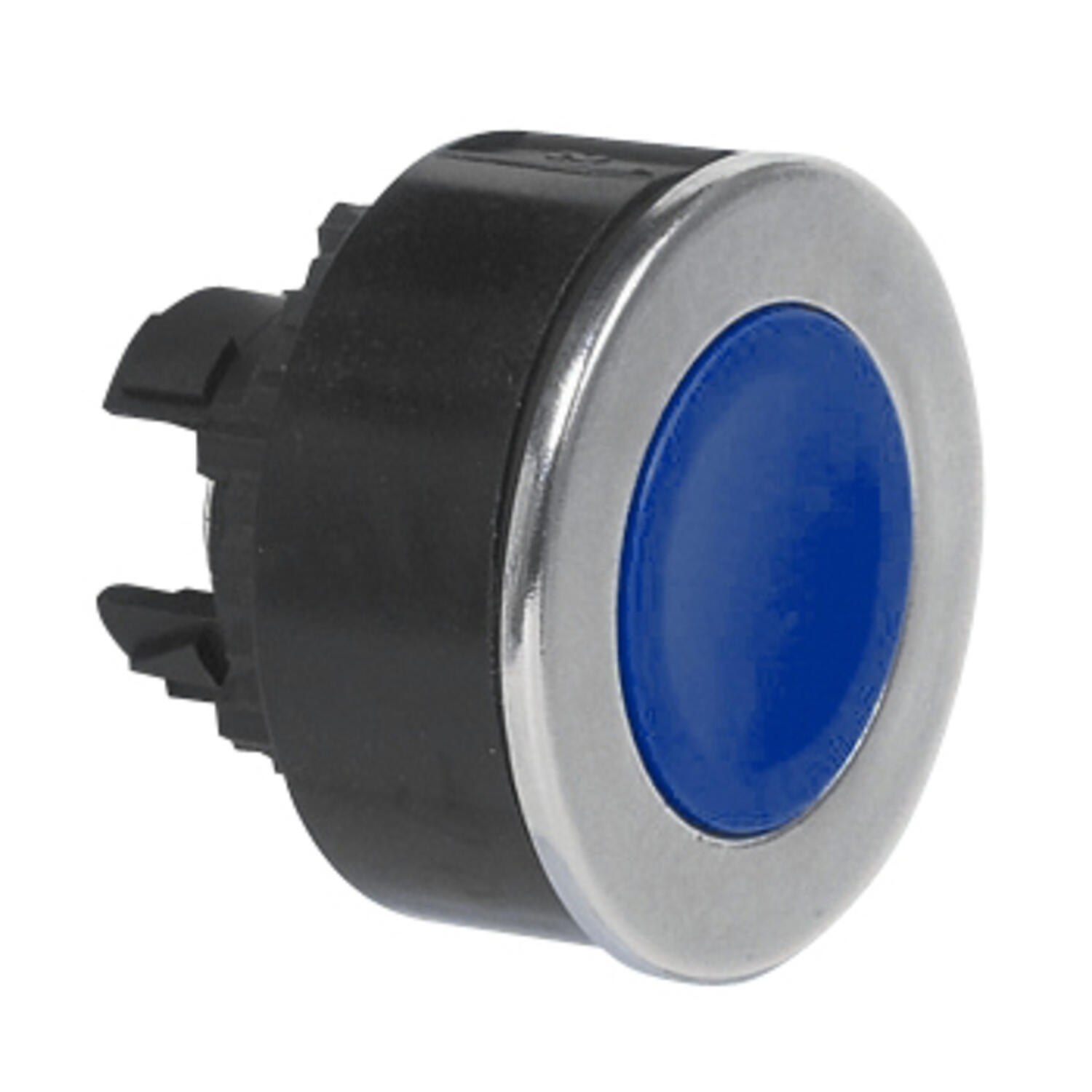

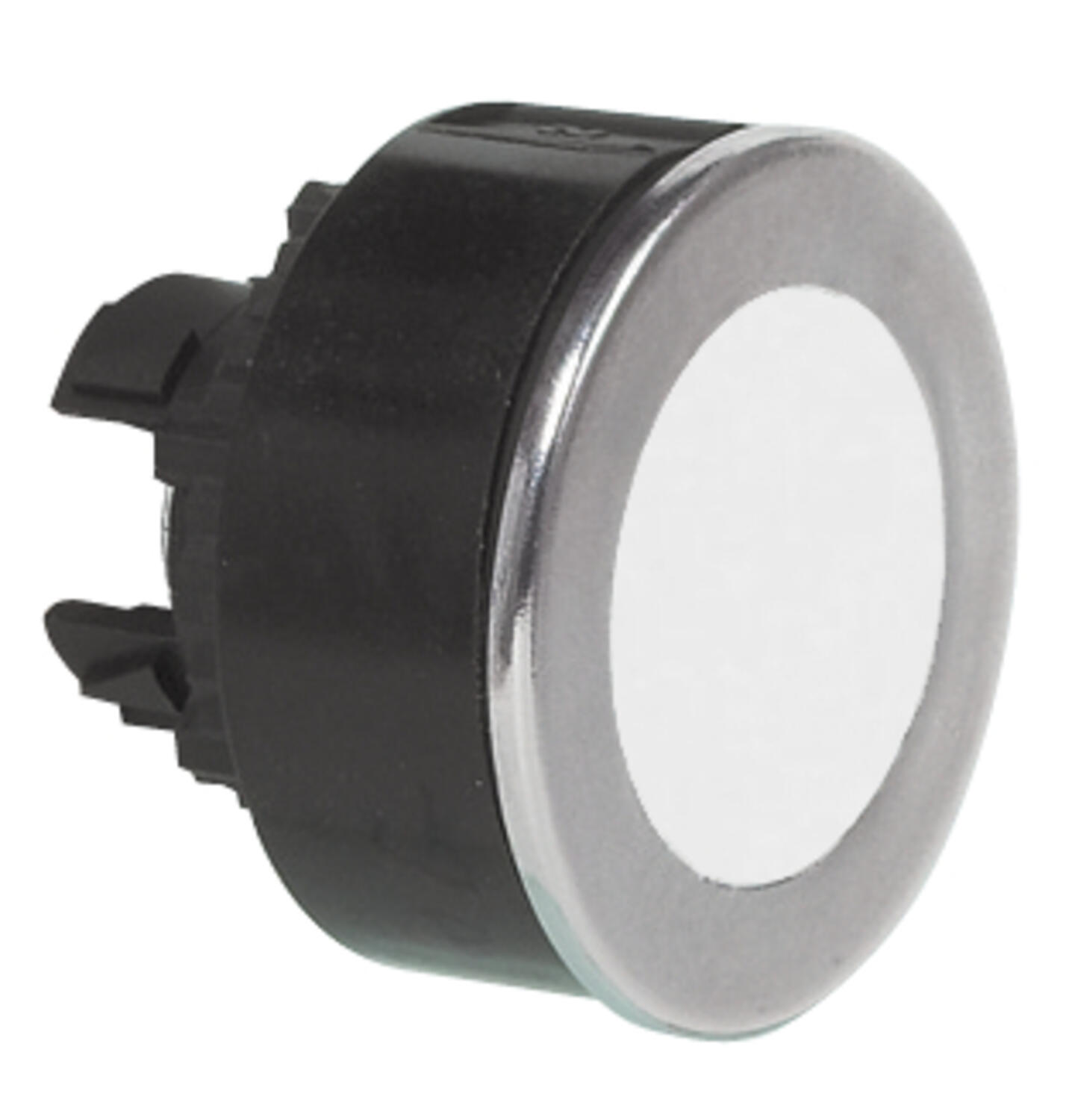

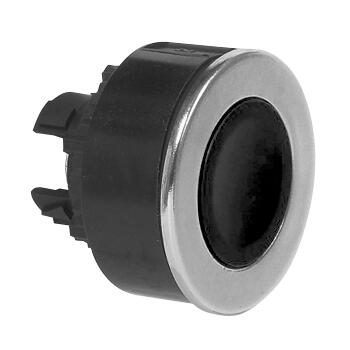

Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
- IP66 / IP69K
- Spring return
- Low profile flush mount
Selected variant
Specifications
| Type/Model | Super flush pushbutton |
|---|---|
| Function | Spring return |
| Color | Red |
| Illuminated | No |
| IP Class | IP66 |
| Impact resistance | IK05 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Super flush pushbutton heads that mount in a 30.5mm hole with protection rating IP66 / IP69K
Ideal for applications where a tamper proof, low profile button is required as only protrudes from front of panel by 2.8mm.
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Available in multiple colours in spring return with a metallic chrome bezel.
Optional text or symbol can be added please enquire for more details.
