BACO
Non Illuminated Selector Switch
Key Handle

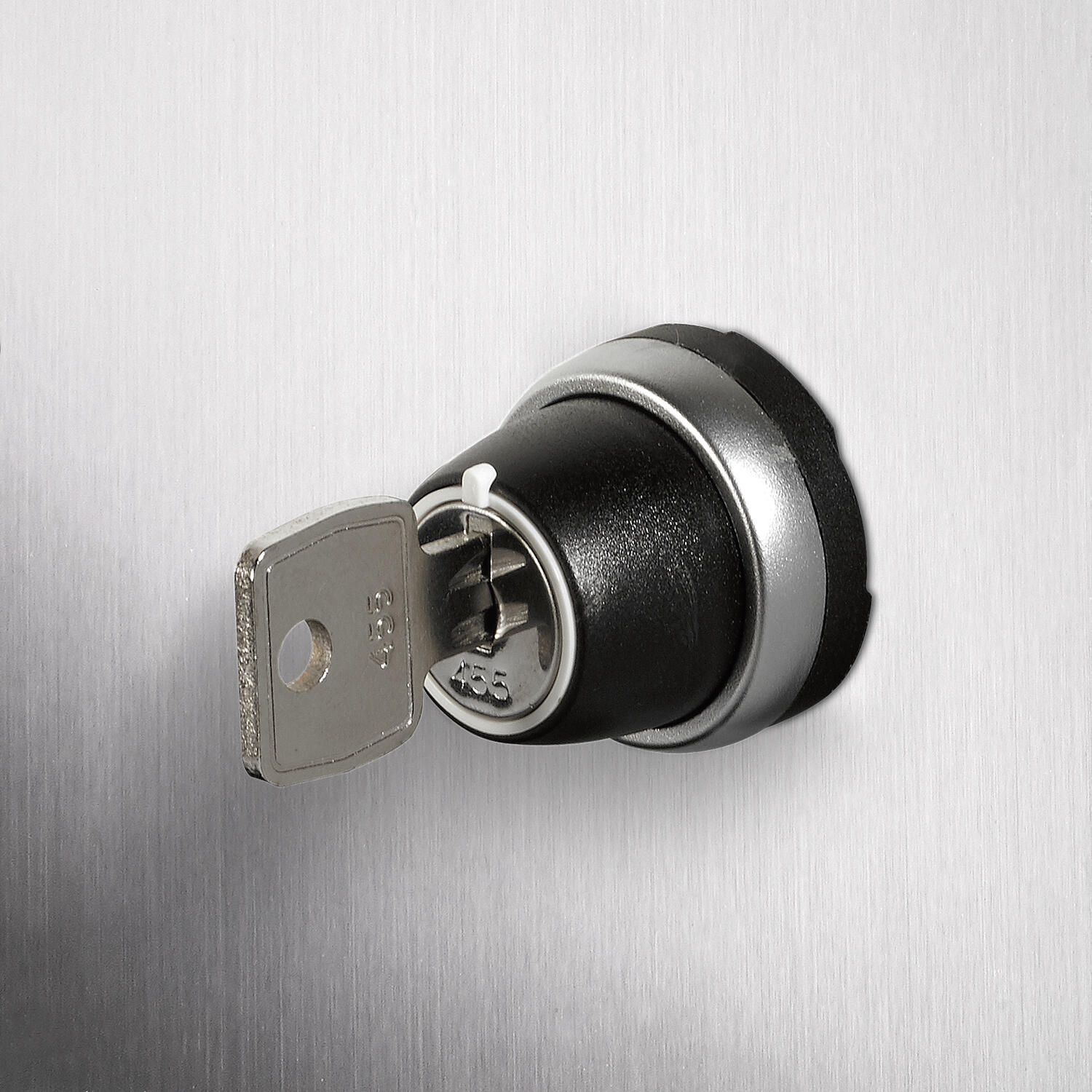

Non illuminated selector switch head that is key operated and mounts in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete switch assembly.
Each head supplied with 2 x keys.
Key profile 455 is standard.
Key profile 1424A available at no extra cost.
Other key profiles available at additional cost please enquire for details.
Available in 2 or 3 position, latching or spring return in various switching angles and key free options.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
- IP66 / IP69K
- 2 or 3 position
- Latching or spring return
- Multiple key profile options
Selected variant
Specifications
| Angle | 45° |
|---|---|
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate-resistant heat | IEC 60068-2-30 |
| Color | Black |
| Function | Stable |
| Illuminated | No |
| Impact resistance | IK05 |
| IP Class | IP66, IP69, IP69K |
| Key removable | 0 |
| Number of positions | 2 |
|---|---|
| Protection Class | II (double insulated) |
| Recommended Torque | 3 |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Type/Model | Key |
| Weight | 31.2 g |
Product description
Non illuminated selector switch head that is key operated and mounts in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete switch assembly.
Each head supplied with 2 x keys.
Key profile 455 is standard.
Key profile 1424A available at no extra cost.
Other key profiles available at additional cost please enquire for details.
Available in 2 or 3 position, latching or spring return in various switching angles and key free options.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
