BACO
Triple Touch
Non Illuminated

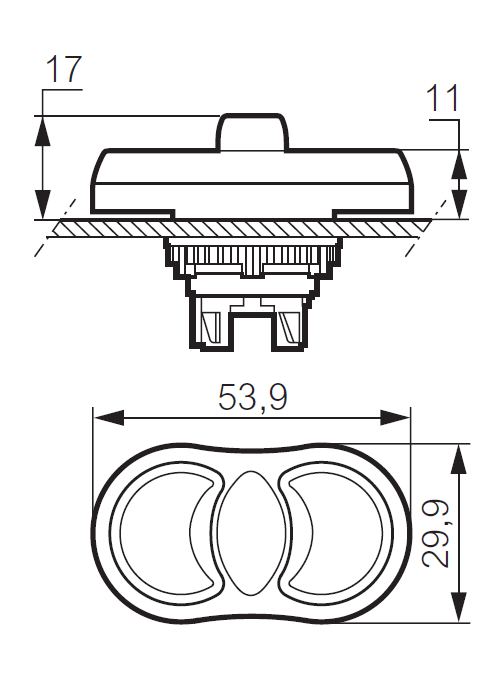

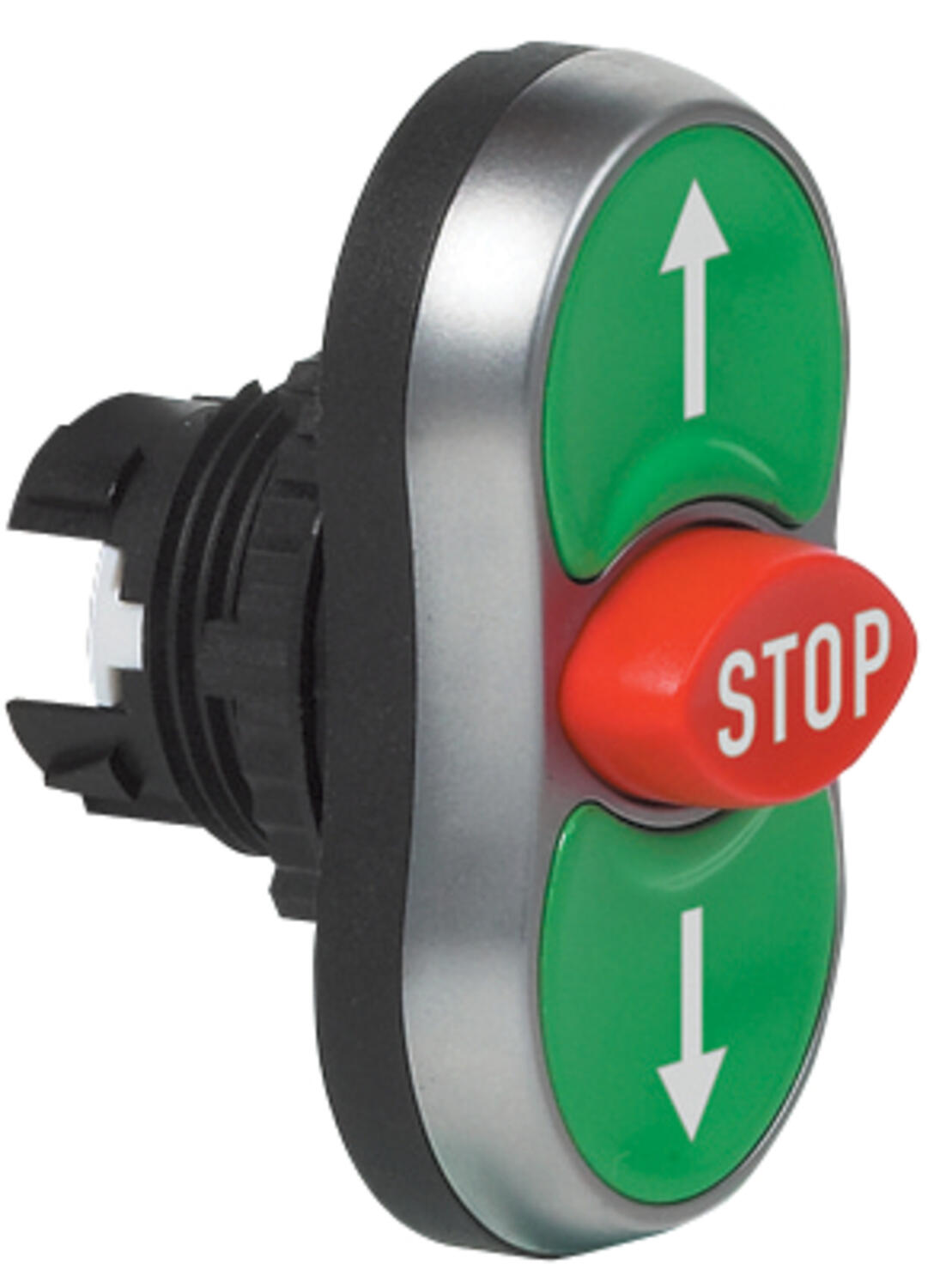

Non illuminated triple touch heads that mount in a 22.5mm hole with protection rating IP66

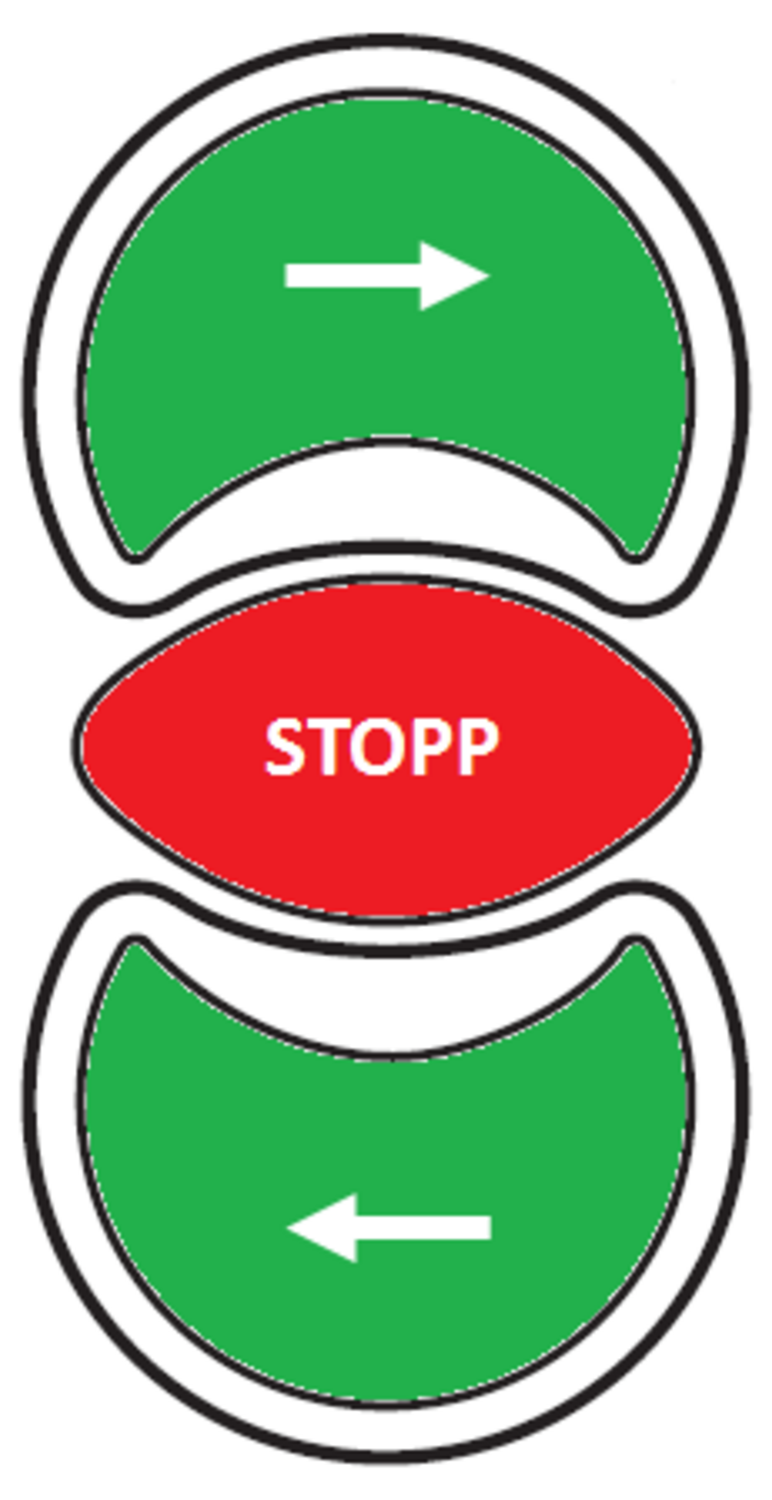

The buttons top and bottom are flush with a projecting centre button.
Combine with separate 333E clip and contact blocks to make complete triple touch assembly.
Available in various colour / text / symbol combinations.
All pushbuttons are spring return.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L61xxxx to L62xxxx.
Other colour / text / symbol combinations are possible please enquire for more details.
- IP66
- Flush pushbuttons
- Spring return
- Centre projecting button
Selected variant
Specifications
| Type/Model | Triple touch |
|---|---|
| Function | Spring return |
| Color | Green/red/green |
| Illuminated | No |
| IP Class | IP66 |
| Impact resistance | IK05 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
| Recommended Torque | 3 |
| Climate-resistant heat | IEC 60068-2-30 |
| Climate resistance to sea air | IEC 60068-2-52 |
| Climate resistance cyclic damp heat | IEC 60068-2-3 |
Product description
Non illuminated triple touch heads that mount in a 22.5mm hole with protection rating IP66
The buttons top and bottom are flush with a projecting centre button.
Combine with separate 333E clip and contact blocks to make complete triple touch assembly.
Available in various colour / text / symbol combinations.
All pushbuttons are spring return.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L61xxxx to L62xxxx.
Other colour / text / symbol combinations are possible please enquire for more details.
