CROUZET CONTROL
1 Phase Over/Under Current Relay MIC

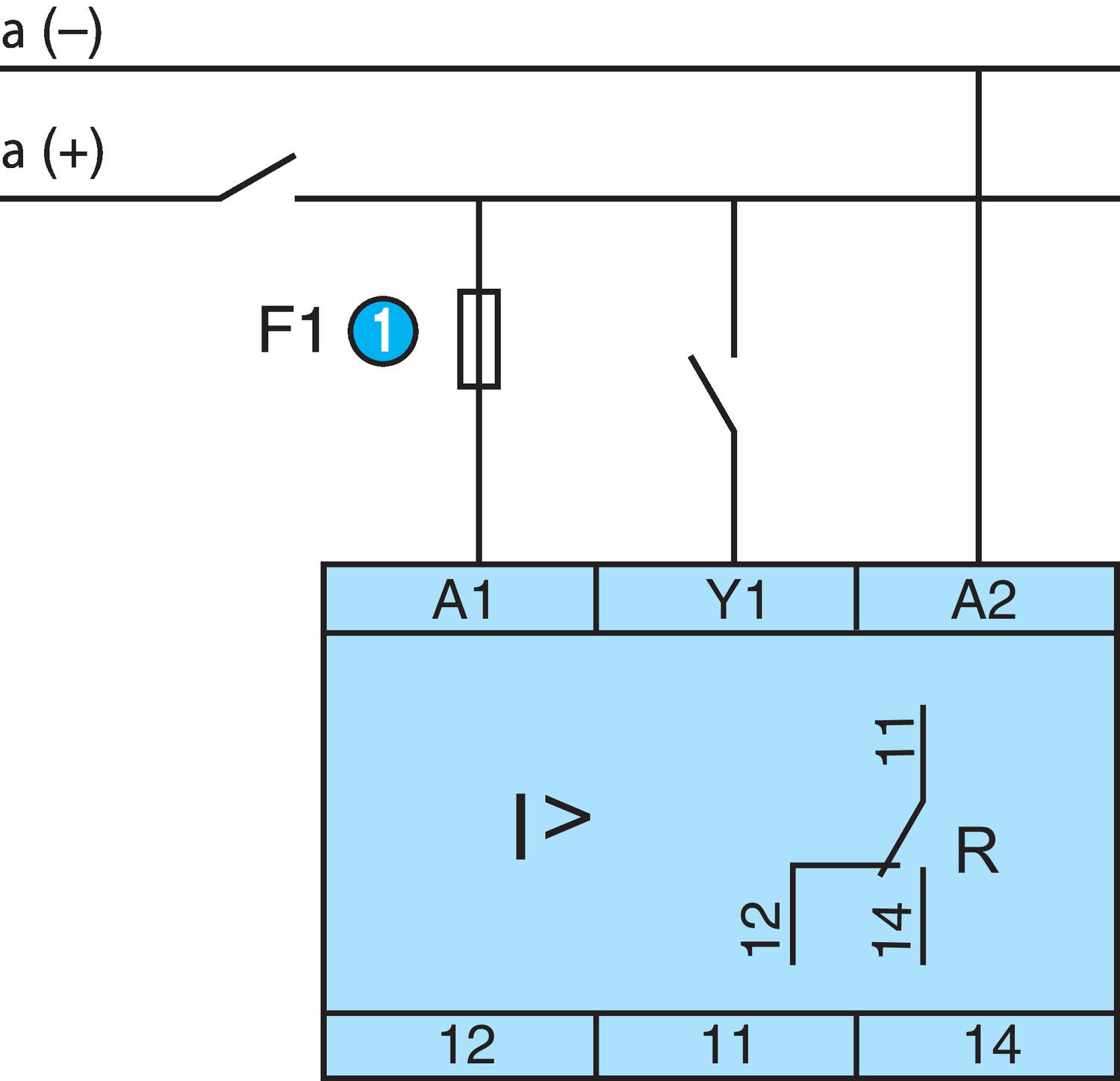

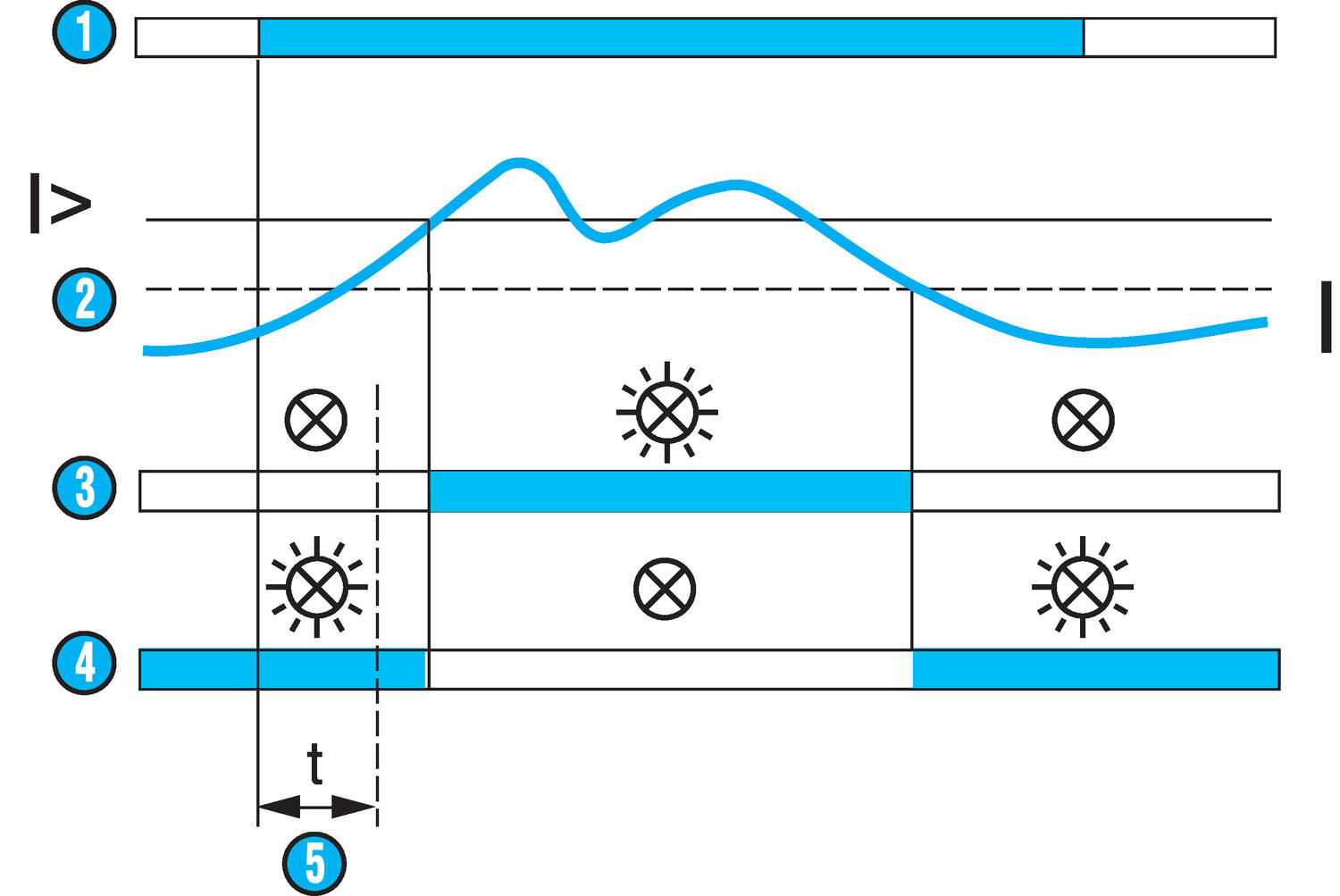

For control of over-current in ac networks via internal current transformer. The unit requires supply voltage. The current conductor is run through the hole in the relay (current transformer) for measurement of the ac current. The current transformer hole is 10 mm. The MIC relay controls over-currents. The relay activates (closes) when the current exceeds the limit value that is shown on the front and drops out (opens) when the current drops below the limit value, minus the hysteresis value (static 15 % of the displayed limit value). When Y1 is connected to A1 (+), the relay function is inverted. The relay drops out when the current exceeds the limit value shown on the front and activates when the current drops below the hysteresis value (over-current). The relay can also be used for under-current function. Contact OEM Automatic's Panel Components product area about this function.
- Measurement range 2-20 A ac
- Integrated current transformer
- Over/under-current function
- Measures true RMS
Selected variant
Specifications

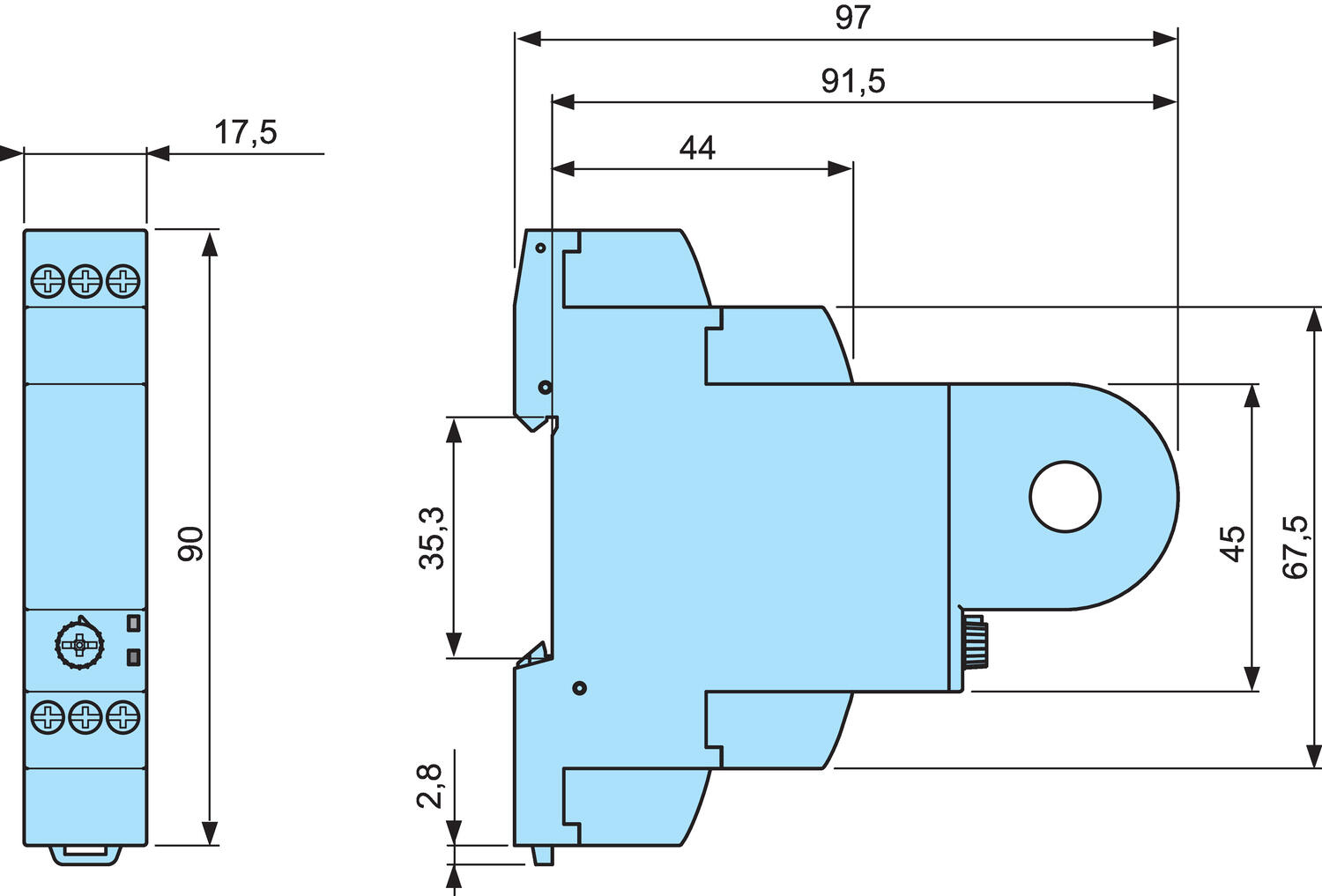

| Time Delay Start | 0.5 s |
|---|---|
| Lower Limit | 2A |
| Approvals | CE, CSA, GL, RoHS, UL |
| Breaking capacity | 5A, 250V AC/DC |
| Overload Continuous Max | 100 A |
| Temperature range to | 50 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -20 °C |
| Recovery Time Min | 0.2 ms |
|---|---|
| Temperature range bearing, from | -40 °C |
| Weight | 110 g |
| Supply voltage | 24-240V AC/DC |
| Output | Relay 1 pole C/O |
| Current Transformer Diameter | 10 mm |
| Upper Limit | 20A |
