CROUZET CONTROL

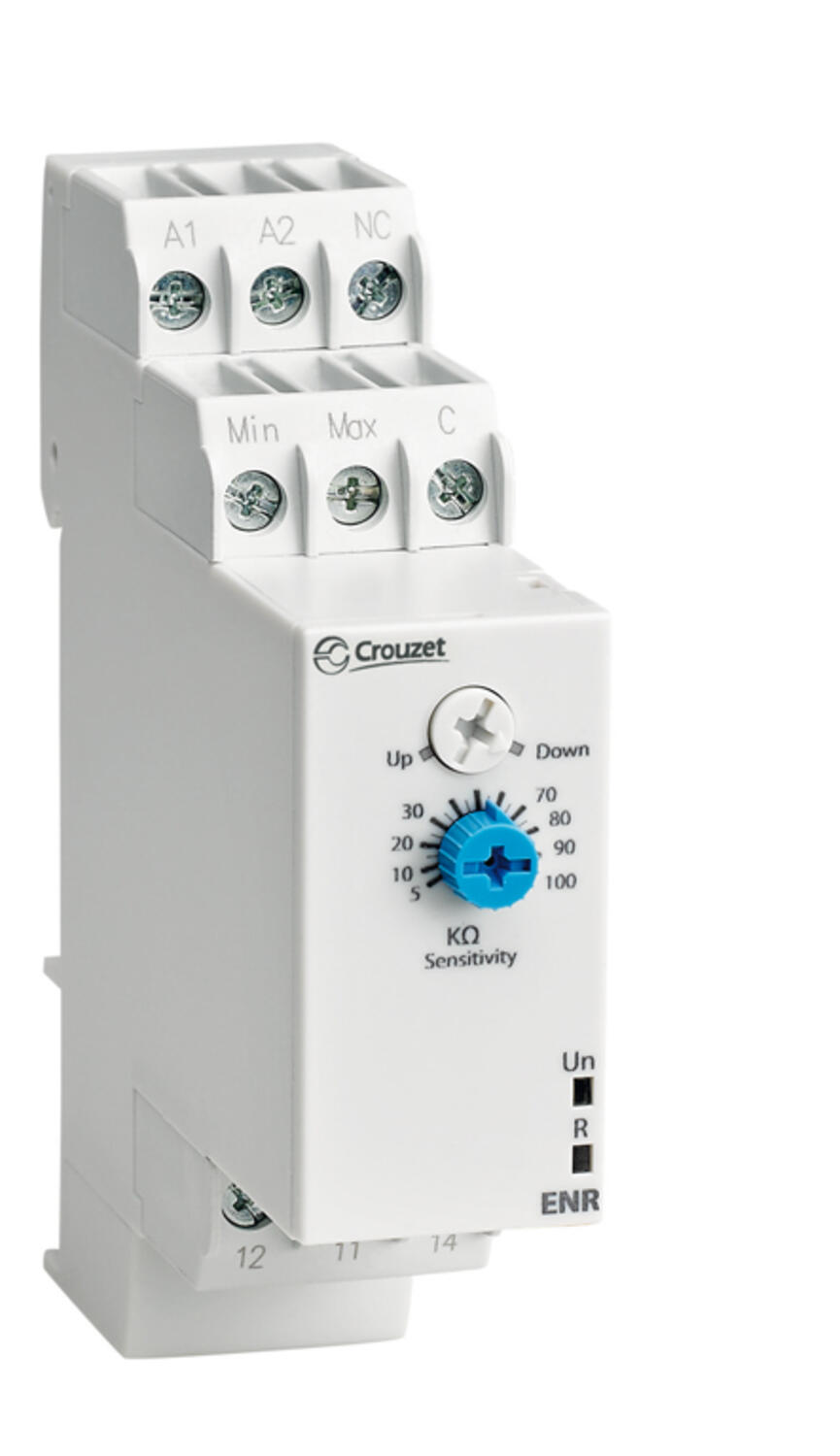

Level control relay ENR
KEY FEATURES
- Regulation of 1 or 2 levels (min / max)
- Monitoring filling (UP) or emptying (DOWN) selected by a switch on the front panel
- Probes supplied with AC current
- Time delay preventing wave effect adjustable from 0.1 to 5s (ENRM)
- Sensitivity adjustable on front panel from 250 Ω to 1 M Ω (ENRM)
- Sensitivity adjustable on front panel from 5 KΩ to 100 k Ω (ENR)
- Regulation of 2 levels
- Filling/emptying function
- Mittaus johtavilla elektrodeilla. Leveys 22,5 mm
- Sensitivity adjustable 5 kΩ - 100 kΩ
- 24-240 V AC/DC
Selected variant
Specifications
| Approvals | CE, CSA, RoHS, UL |
|---|---|
| Breaking capacity | 8A, 250V AC |
| Electrode Current | 1 mA |
| Electrode Voltage | 12 V AC |
| IP Class Connection | IP20 |
| IP Class Housing | IP30 |
| Operating Voltage AC / DC Max | 264 V |
| Supply Voltage AC / DC Min | 20.4 V |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 70 °C |
| Temperature range from | -20 °C |
| Temperature range to | 50 °C |
| Weight | 91 g |
| Width | 22.5 mm |
Product description
KEY FEATURES
- Regulation of 1 or 2 levels (min / max)
- Monitoring filling (UP) or emptying (DOWN) selected by a switch on the front panel
- Probes supplied with AC current
- Time delay preventing wave effect adjustable from 0.1 to 5s (ENRM)
- Sensitivity adjustable on front panel from 250 Ω to 1 M Ω (ENRM)
- Sensitivity adjustable on front panel from 5 KΩ to 100 k Ω (ENR)
