COMATRELECO

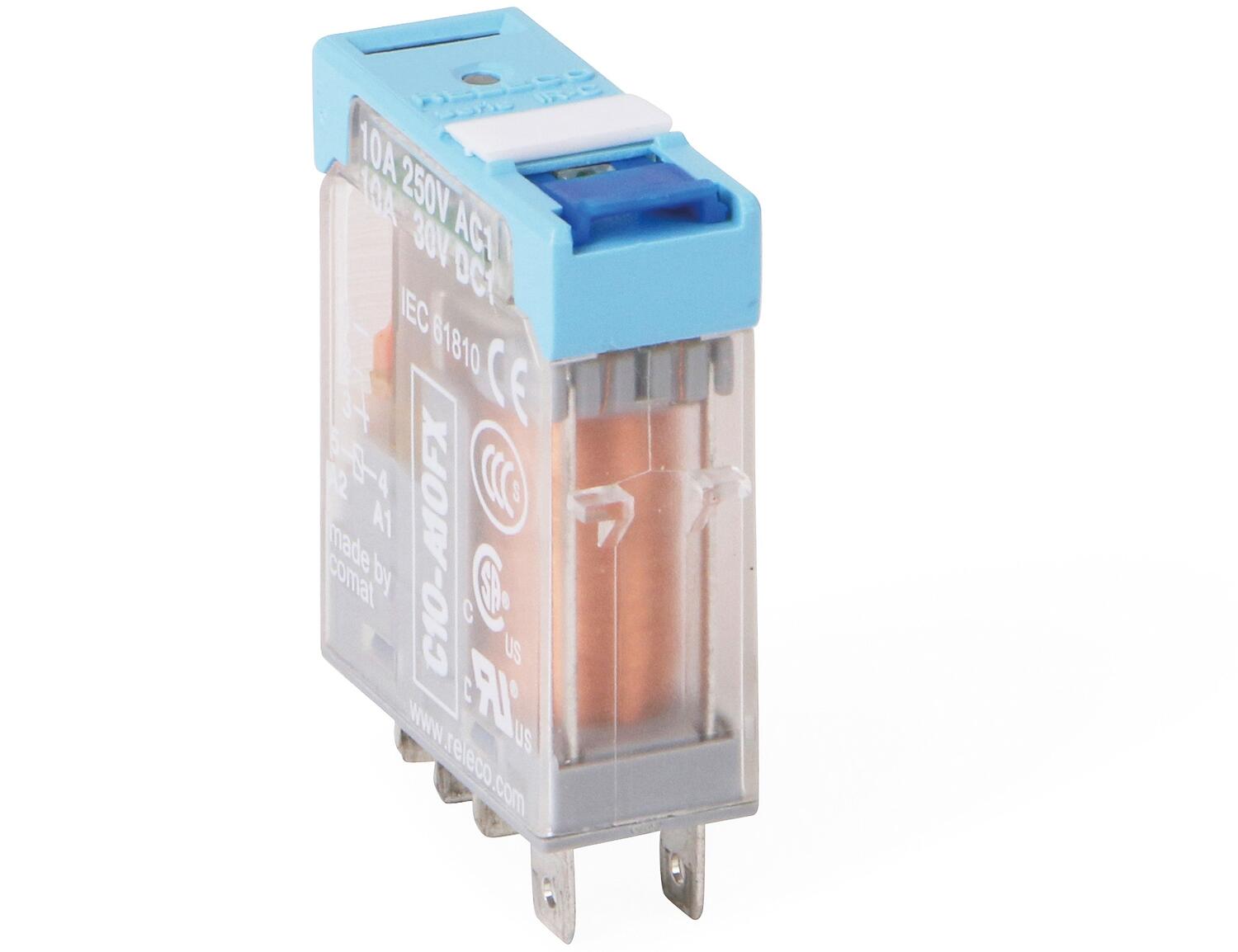

C10 interface relay

1-pole 10 A

  • Robust flat pins, for industrial applications
  • Both mechanical and LED indication
  • Colour-coded test button
  • Twin contact for low loads

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Nominal power ac 1.1 VA
Coil Voltage AC 12 V AC
Overvoltage UNX Max 1.1
OFF-Voltage Un Max 0.1
Number Of Contacts 1
Contact Material AgNi
Switching Capability Voltage 250 V
Breaking Capacity Current 10 A
Recommended Min Load 10 mA / 10 V
Surge Current (20Ms) 30 A
Release Time 5 ms
Release Time Kontaktstudstid 8 ms
IP Class IP40
Insulation Class EN60947 250 V (pollution 3, Group C)
Temperature range from -40 °C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range to 70 °C
Frequency 50 Hz
Optional Coil X (LED)
Approvals CCC, CE, CSA, Gost R, RoHS, UL
Type of relay Industrial relays

Downloads

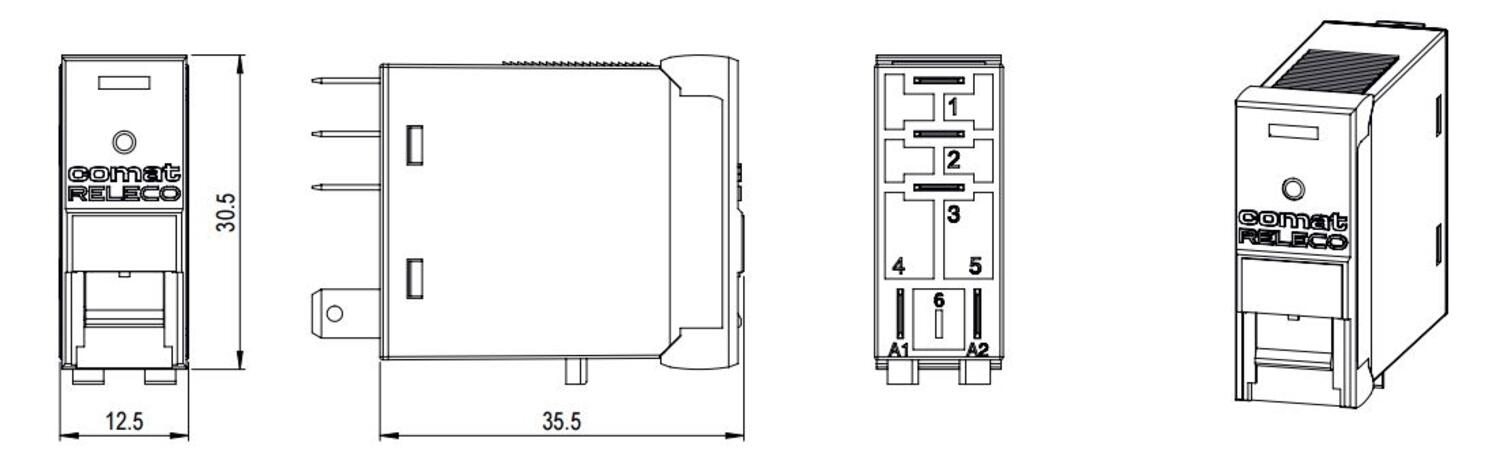

Measurements and connections

Technical illustrations

Accessories

Related products

Related

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

Relay school 1
Knowledge

Relay School - Lesson 1

Can you distinguish between a bifurcated contact and a normal contact at a glance?

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Articles Nominal power ac Nominal power dc Coil Voltage AC Coil Voltage AC / DC Coil Voltage DC Overvoltage UNX Max OFF-Voltage Un Max Number Of Contacts Contact Material Switching Capability Voltage Breaking Capacity Current Recommended Min Load Surge Current (20Ms) Release Time Release Time Kontaktstudstid IP Class Insulation Class EN60947 Temperature range from Temperature range bearing, from Temperature range bearing, to Temperature range to Frequency Optional Coil Approvals Type of relay
Relay 5 Pin 1 Pole LED 12V ac
Art:
C10A10X12A Copied
1.1 VA
12 V AC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 24V ac
Art:
C10A10X24A Copied
1.1 VA
24 V AC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 115V ac
Art:
C10A10X115A Copied
1.1 VA
115 V AC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 230V ac
Art:
C10A10X230A Copied
1.1 VA
230 V AC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay IRC 1-pole RC 230VAC
Art:
C10A10R230A Copied
1.1 VA
230 V AC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
RC (RC protection)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 6V dc
Art:
C10A10X6D Copied
0.7 W
6 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 12V dc
Art:
C10A10X12D Copied
0.7 W
12 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 24V dc
Art:
C10A10X24D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 48V dc
Art:
C10A10X48D Copied
0.7 W
48 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole LED 110V dc
Art:
C10A10X110D Copied
0.7 W
110 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole Diode LED 12V dc
Art:
C10A10FX12D Copied
1.1 VA
0.7 W
12 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
FX (pole protection + LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole Diode LED 24V dc
Art:
C10A10FX24D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
FX (pole protection + LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole Diode LED 110V dc
Art:
C10A10FX110D Copied
0.7 W
110 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
FX (pole protection + LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole BR LED 24V ac/dc
Art:
C10A10BX24AD Copied
1.1 VA
0.7 W
24 V AC/DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
BX (unicoil)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole BR LED 48V ac/dc
Art:
C10A10BX48AD Copied
1.1 VA
0.7 W
48 V AC/DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
BX (unicoil)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
IRC 1-POL SLUTANDE, 24VDC
Art:
C10G1024D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
8 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
CCC, CE, RoHS, UL, Gost R
Industrial relays
Relay 4 Pin 1 Pole N/O LED 24V dc
Art:
C10G10X24D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
8 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, RoHS, UL, Gost R
Industrial relays
RELAY IRC HDC LED 110VDC LED
Art:
C10G10X110D Copied
0.7 W
110 V DC
1.1
0.1
1
AgNi
250 V
10 A
10 mA / 10 V
30 A
8 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, RoHS, UL, Gost R
Industrial relays
Relay 5 Pin 1 Pole Twin 3µ Au LED 115V ac
Art:
C10T13X115A Copied
1.1 VA
115 V AC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay 5 Pin 1 Pole Twin 3µ Au LED 230V ac
Art:
C10T13X230A Copied
1.1 VA
230 V AC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay 5 Pin 1 Pole Twin 3µ Au LED 24V dc
Art:
C10T13X24D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay IRC 1-pole,twin,LED 48VDC
Art:
C10T13X48D Copied
0.7 W
48 V DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay 5 Pin 1 Pole Twin 3µ Au LED 110V dc
Art:
C10T13X110D Copied
0.7 W
110 V DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay 5 Pin 1 Pole Twin 3µ Au BR LED 24V ac/dc
Art:
C10T13BX24AD Copied
1.1 VA
0.7 W
24 V AC/DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
BX (unicoil)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay IRC 1-pole,twinLED 48VAC/DC
Art:
C10T13BX48AD Copied
1.1 VA
0.7 W
48 V AC/DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
6 A
1 mA / 5 V
15 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
BX (unicoil)
CCC, CE, CSA US, RoHS, UL, Gost R
Industrial relays
Relay IRC 1-pole, Au, LED, 24VDC
Art:
C10A18X24D Copied
0.7 W
24 V DC
1.1
0.1
1
AgNi + 3 µ Au
250 V
10 A
5 mA / 5 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays
Relay 5 Pin 1 Pole 5µ Au LED 230V ac
Art:
C10A18X230A Copied
1.1 VA
230 V AC
1.1
0.1
1
AgNi + 3 µ Au
250 V
10 A
5 mA / 5 V
30 A
5 ms
8 ms
IP40
250 V (pollution 3, Group C)
-40 °C
-40 °C
80 °C
70 °C
50 Hz
X (LED)
CCC, CE, CSA, Gost R, RoHS, UL
Industrial relays

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
