COMATRELECO

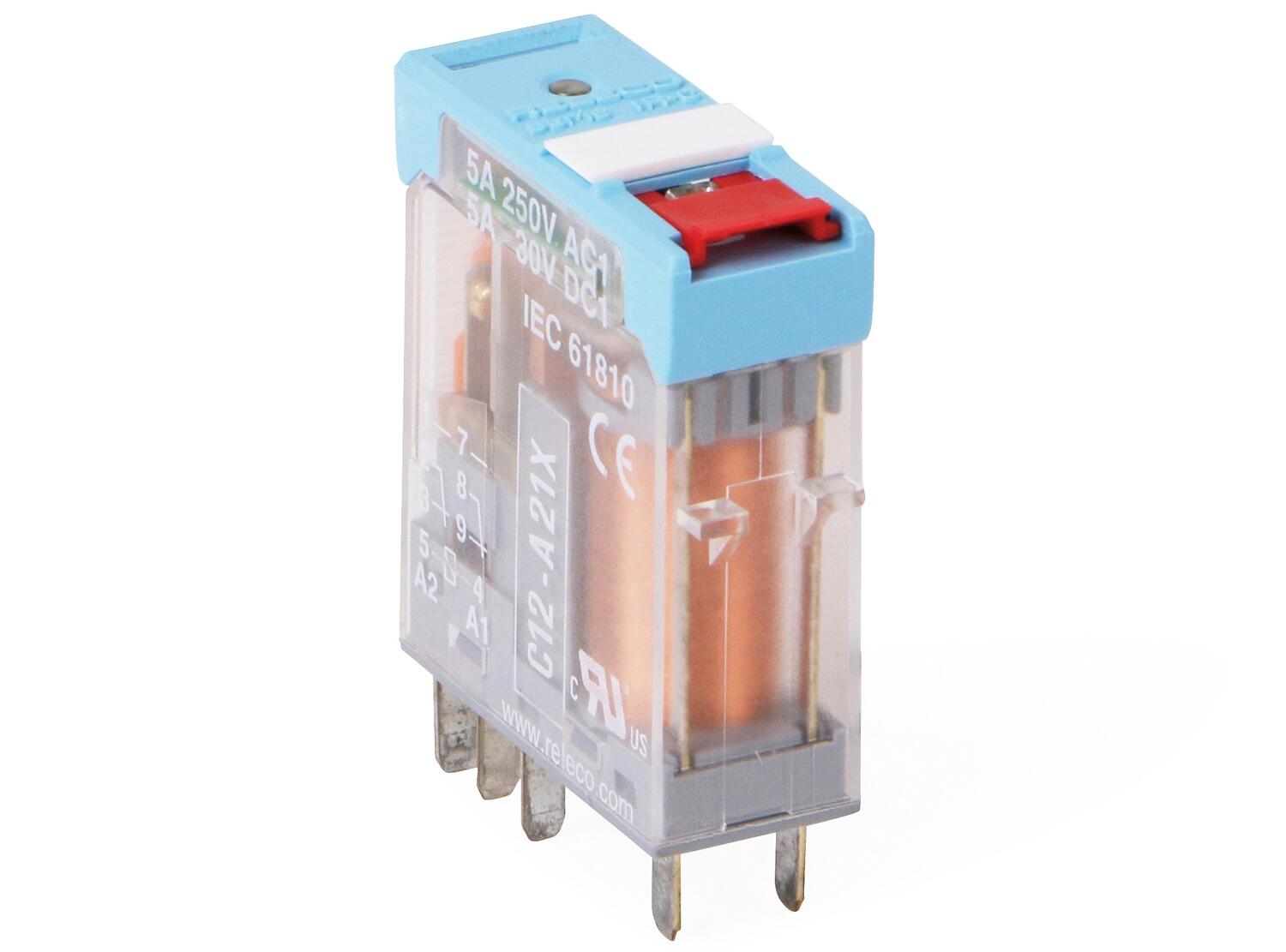

C12 interface relay

2-pole 5 A

  • Robust flat pins
  • Both mechanical and LED indication
  • Colour-coded test button
  • Integrated safety components

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Working Un 0,8-1,10
Nominal power ac 1.1 VA
Coil Voltage AC 12 V AC
Voltage Min 0.6 V
Overvoltage UNX Max 1.1
Response Time 10 ms
Number Of Contacts 2
Contact Material AgNi + 0,2 µ Au
Switching Capability Voltage 250 V
Breaking Capacity Current 5 A
The Recommended Maximum Load 5 A/250 V AC 1; 0,5A/110 V DC-1
Recommended Min Load 10 mA/10 V
Surge Current (20Ms) 15 A
Bounce Time 1
Release Time 5 ms
Release Time Kontaktstudstid 8 ms
IP Class IP40
Isolation Contact / Contact 3000 V
Isolation Contact / Coil 5000 V
Frequency 50 Hz
Optional Coil X (LED)
Weight 21 g

Downloads

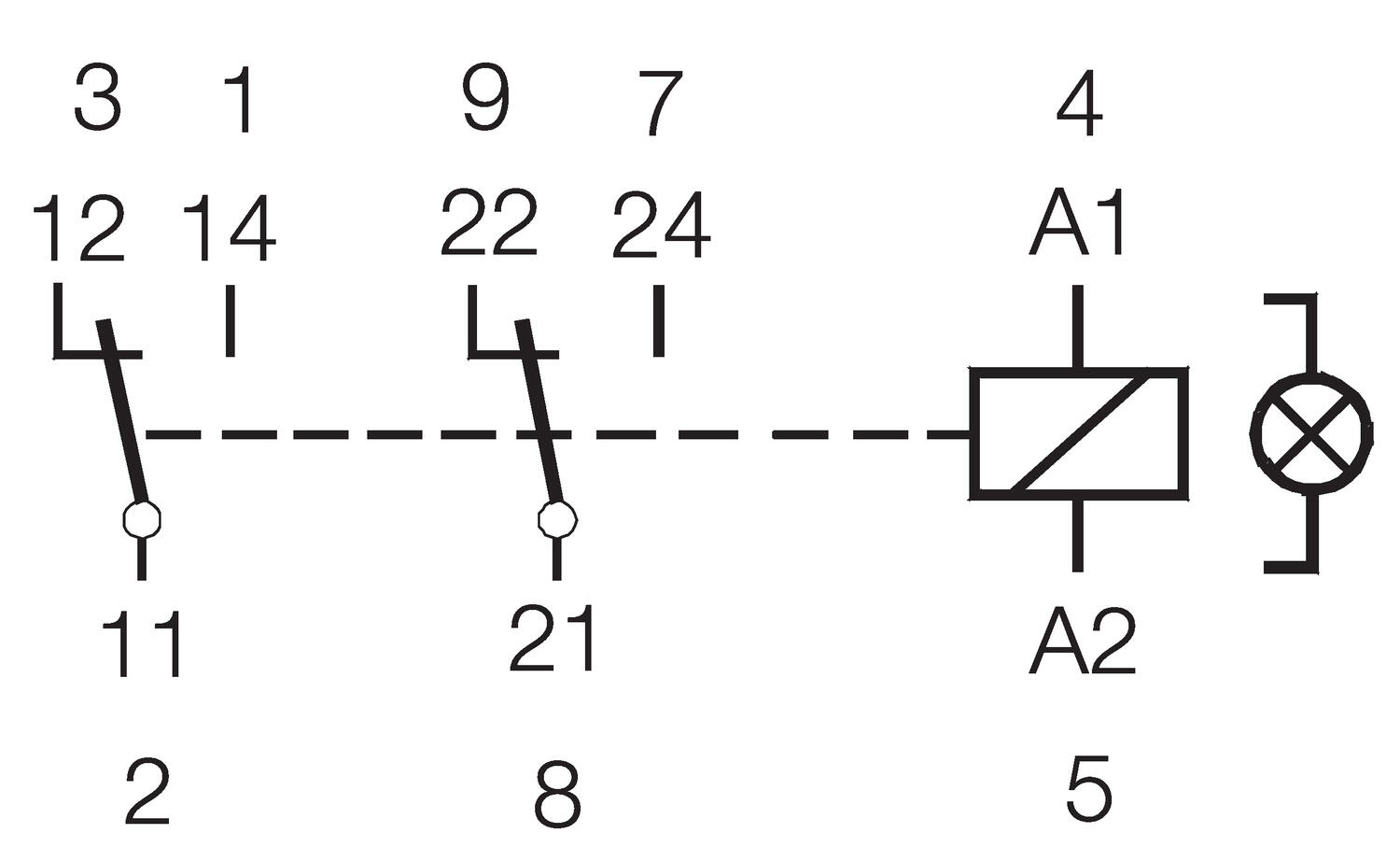

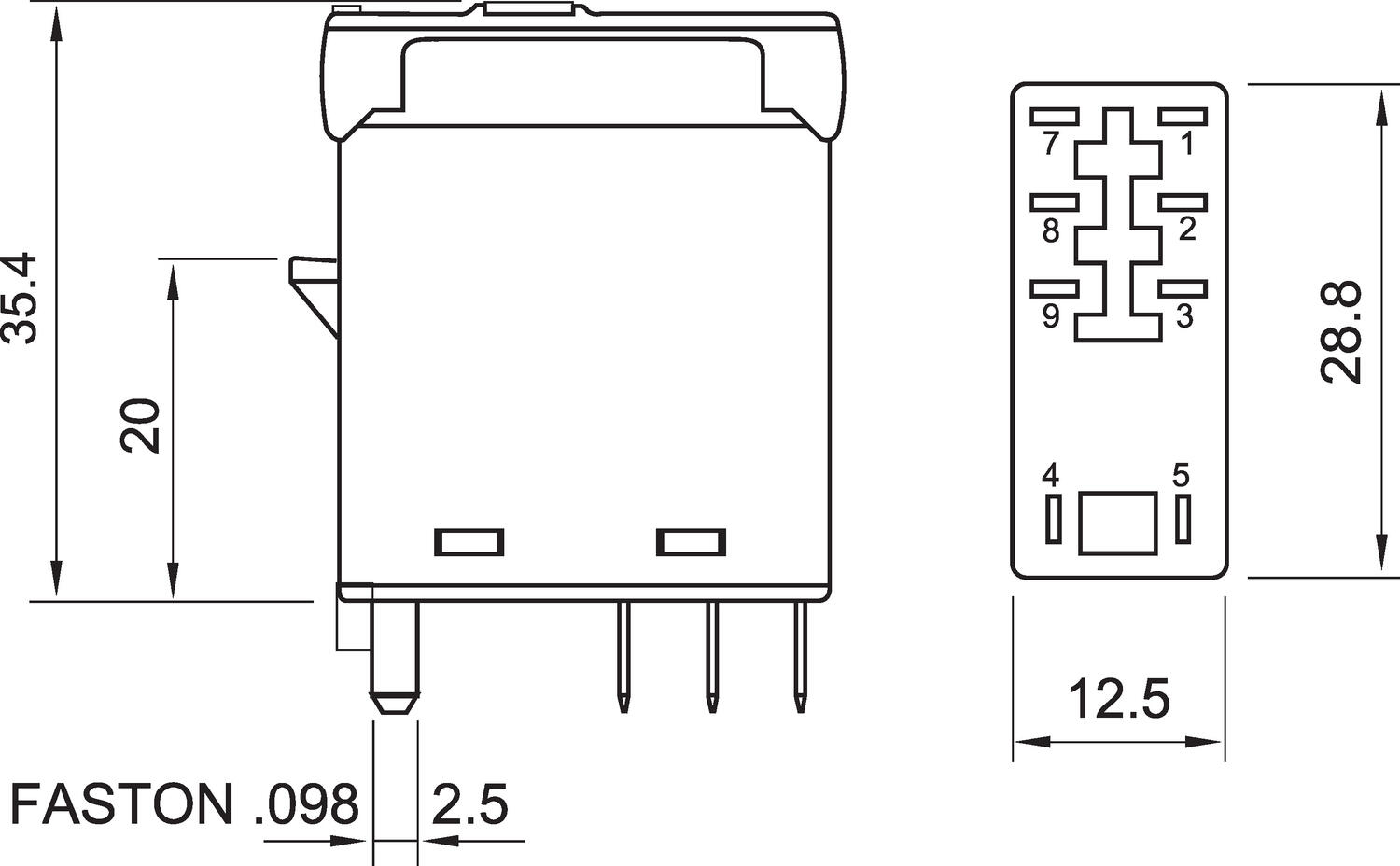

Measurements and connections

Accessories

Related products

Related

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

Relay school 1
Knowledge

Relay School - Lesson 1

Can you distinguish between a bifurcated contact and a normal contact at a glance?

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Articles Working Un Nominal power ac Nominal power dc Coil Voltage AC Coil Voltage AC / DC Coil Voltage DC Voltage Min Overvoltage UNX Max Response Time Number Of Contacts Contact Material Switching Capability Voltage Breaking Capacity Current The Recommended Maximum Load Recommended Min Load Surge Current (20Ms) Bounce Time Release Time Release Time Kontaktstudstid IP Class Isolation Contact / Contact Isolation Contact / Coil Frequency Optional Coil Weight
Relay 8 Pin 2 Pole LED 12V ac
Art:
C12A21X12A Copied
0,8-1,10
1.1 VA
12 V AC
0.6 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 24V ac
Art:
C12A21X24A Copied
0,8-1,10
1.1 VA
24 V AC
0.6 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 115V ac
Art:
C12A21X115A Copied
0,8-1,10
1.1 VA
115 V AC
0.6 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 230V ac
Art:
C12A21X230A Copied
0,8-1,10
1.1 VA
230 V AC
0.6 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay IRC 2-pole RC 230VAC
Art:
C12A21R230A Copied
0,8-1,10
1.1 VA
230 V AC
0.6 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
RC (RC protection)
21 g
Relay IRC 2-pole, LED, 230VAC 10Au
Art:
C12A22X230A Copied
0,8-1,10
1.1 VA
230 V AC
0.6 V
1.1
10 ms
2
AgNi + 3 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
5 mA/5 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 12V dc
Art:
C12A21X12D Copied
0,8-1,10
0.7 W
12 V DC
0.35 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 24V dc
Art:
C12A21X24D Copied
0,8-1,10
0.7 W
24 V DC
0.35 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 48V dc
Art:
C12A21X48D Copied
0,8-1,10
0.7 W
48 V DC
0.35 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole LED 110V dc
Art:
C12A21X110D Copied
0,8-1,10
0.7 W
110 V DC
0.35 V
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
X (LED)
21 g
Relay 8 Pin 2 Pole BR LED 24V ac/dc
Art:
C12A21BX24AD Copied
0,8-1,10
1.1 VA
0.7 W
24 V AC/DC
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
BX (unicoil)
21 g
Relay 8 Pin 2 Pole BR LED 48V ac/dc
Art:
C12A21BX48AD Copied
0,8-1,10
1.1 VA
0.7 W
48 V AC/DC
1.1
10 ms
2
AgNi + 0,2 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
10 mA/10 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
BX (unicoil)
21 g
Relay 8 Pin 2 Pole 3µ Au BR LED 24V ac/dc
Art:
C12A22BX24AD Copied
0,8-1,10
1.1 VA
0.7 W
24 V AC/DC
1.1
10 ms
2
AgNi + 3 µ Au
250 V
5 A
5 A/250 V AC 1; 0,5A/110 V DC-1
5 mA/5 V
15 A
1
5 ms
8 ms
IP40
3000 V
5000 V
50 Hz
BX (unicoil)
21 g

Selected variant

Select a variant in the list
