COMATRELECO

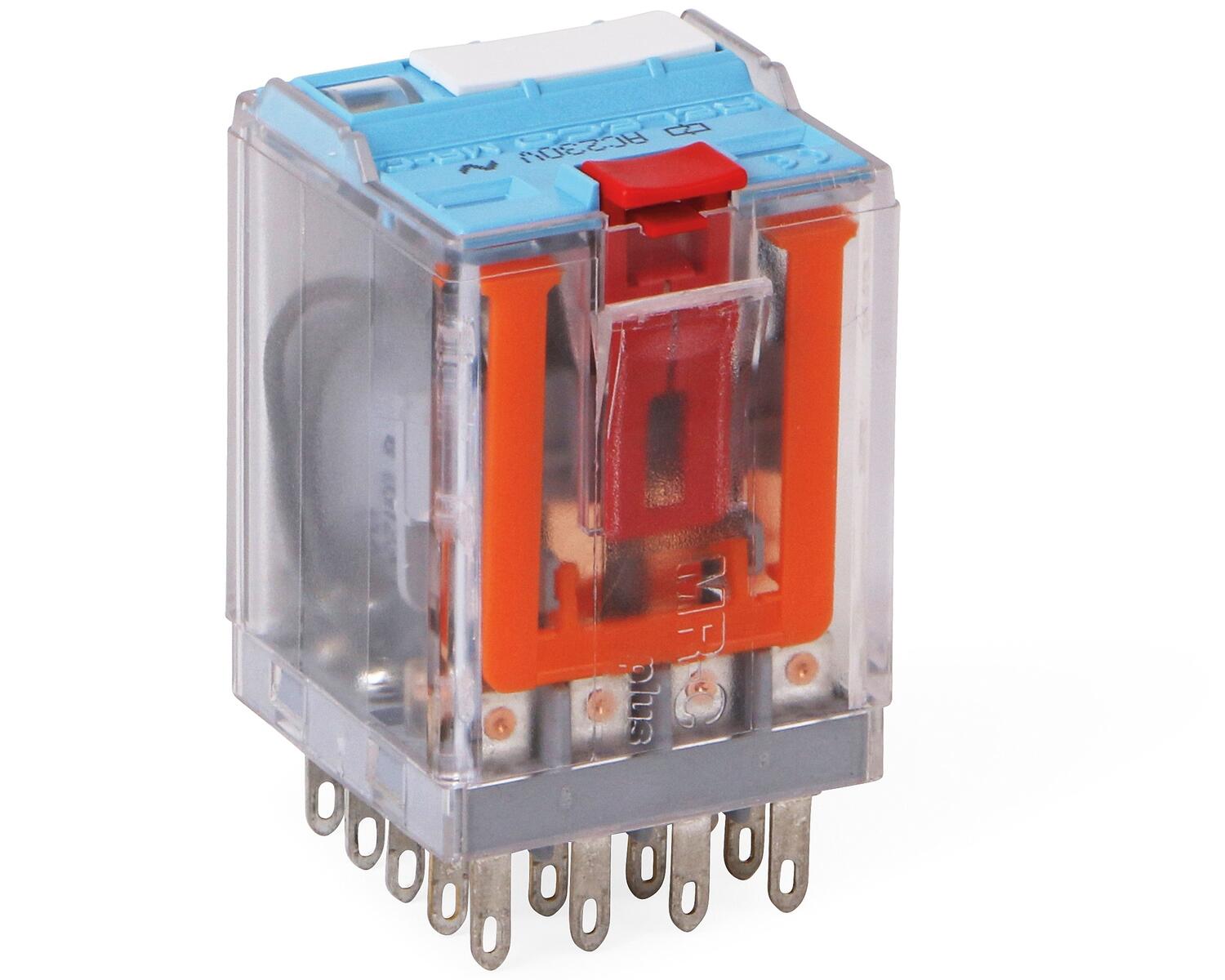

C4 industrial relay

4-pole 10 A

  • Marking system that can be custom-marked at factory
  • Colour-coded test button, both lockable and spring-loaded
  • Mechanical indication, double windows

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Nominal power ac 2.4 VA
Coil Voltage AC 24 V AC
OFF-Voltage Un Max 0.15
Number Of Contacts 4
Contact Material AgNi
Switching Capability Voltage 250 V
Breaking Capacity Current 10 A
The Recommended Maximum Load 10 A/250 V AC-1; 0,5 A/110 V DC-1
Recommended Min Load 10 mA/5 V
Resistive Load 110 V DC Max 55 W
Resistive Load 24 V dc Max 240 W
Surge Current (20Ms) 30 A
Bounce Time 3
Release Time 8 ms
Release Time Kontaktstudstid 9 ms
IP Class IP40
Isolation Contact / Contact 2500 V
Isolation Contact / Coil 2500 V
Insulation Class EN60947 250 V Pollution 3, Group C
Temperature range from -40 °C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range to 60 °C
Frequency 50 Hz
Weight 90 g
Approvals CCC, Gost R, Lloyd´s, CE, RoHS

Downloads

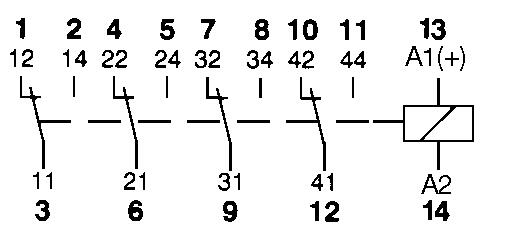

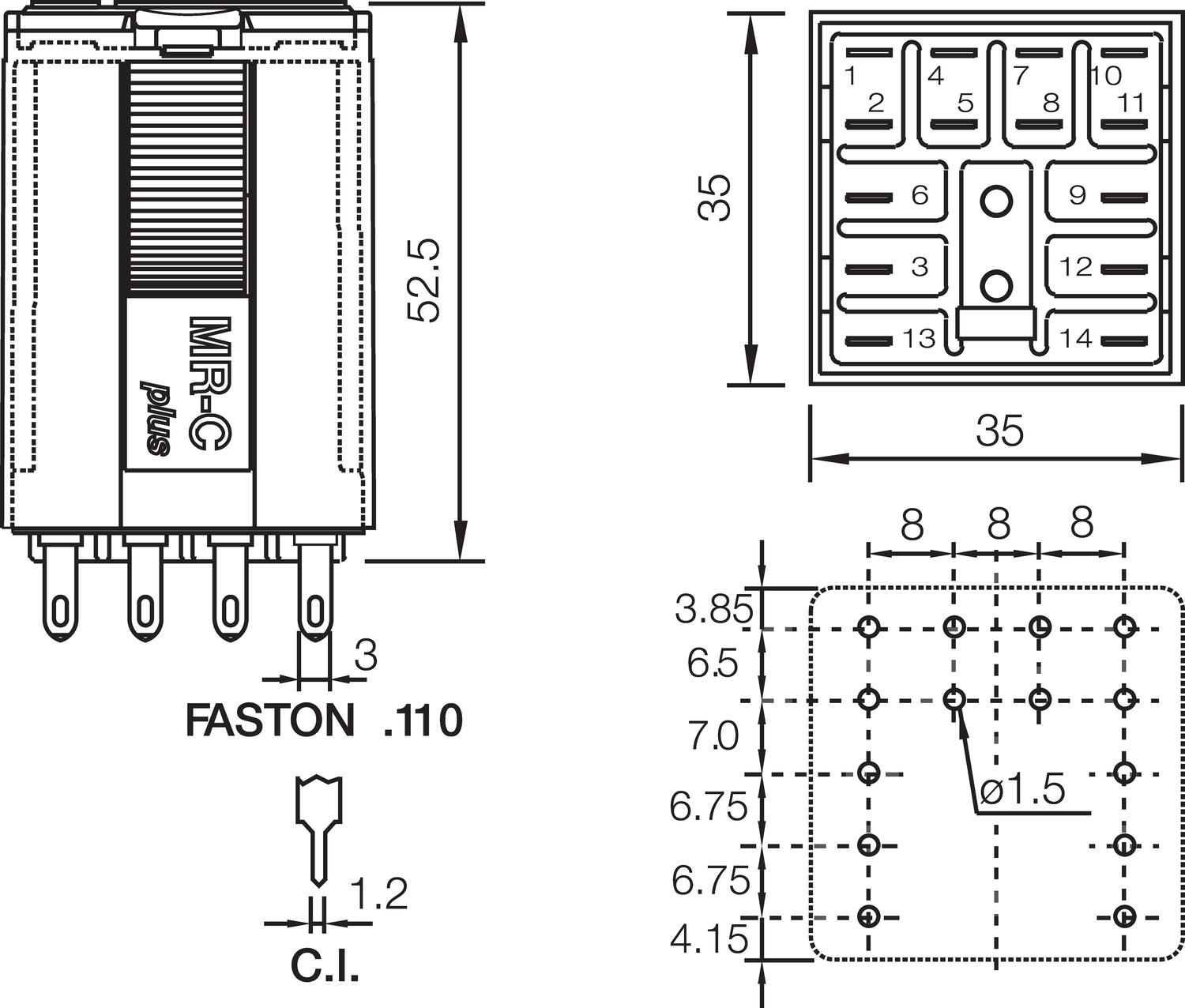

Measurements and connections

Accessories

Related

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

Relay school 1
Knowledge

Relay School - Lesson 1

Can you distinguish between a bifurcated contact and a normal contact at a glance?

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Articles Nominal power ac Spoleffekt AC Nominal power dc Coil Voltage AC Coil Voltage DC OFF-Voltage Un Max Number Of Contacts Contact Material Switching Capability Voltage Breaking Capacity Current The Recommended Maximum Load Recommended Min Load Resistive Load 110 V DC Max Resistive Load 24 V dc Max Surge Current (20Ms) Bounce Time Release Time Release Time Kontaktstudstid IP Class Isolation Contact / Contact Isolation Contact / Coil Insulation Class EN60947 Temperature range from Temperature range bearing, from Temperature range bearing, to Temperature range to Frequency Optional Coil Weight Approvals
Relay 14 Pin 4 Pole 24V ac
Art:
C4-A4024A Copied
2.4 VA
24 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 115V ac
Art:
C4-A40115A Copied
2.4 VA
115 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 230V ac
Art:
C4-A40230A Copied
2.4 VA
230 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 24V ac
Art:
C4-A40X24A Copied
2.4 VA
24 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 115V ac
Art:
C4-A40X115A Copied
2.4 VA
115 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 230V ac
Art:
C4-A40X230A Copied
2.4 VA
230 V AC
0.15
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay MRC 4-pole 12 VDC
Art:
C4-A4012D Copied
1.4 W
12 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 24V dc
Art:
C4-A4024D Copied
1.4 W
24 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay MRC 4-pole 48 VDC
Art:
C4-A4048D Copied
1.4 W
48 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay MRC 4-pole 60 VDC
Art:
C4-A4060D Copied
1.4 W
60 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 110V dc
Art:
C4-A40110D Copied
1.4 W
110 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 125V dc
Art:
C4-A40125D Copied
1.4 W
125 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay MRC 4-pole 220VDC
Art:
C4-A40220D Copied
1.4 W
220 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 24V dc
Art:
C4-A40X24D Copied
1.4 W
24 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay MRC 4-pole 110 VDC LED
Art:
C4-A40X110D Copied
1.4 W
110 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 220V dc
Art:
C4-A40X220D Copied
1.4 W
220 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 24V dc
Art:
C4-A40DX24D Copied
1.4 W
24 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 48V dc
Art:
C4-A40DX48D Copied
1.4 W
48 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 24V dc
Art:
C4-A40FX24D Copied
1.4 W
24 V DC
0.1
4
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
FX (pole protection + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 3 Pole Latching 230V ac
Art:
C4-R30230A Copied
2.4 VA
230 V AC
3
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V; 5 mA/5 V
55 W
240 W
30 A
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay 14 Pin 3 Pole Latching 24V dc
Art:
C4-R3024D Copied
1.5 W
24 V DC
3
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V; 5 mA/5 V
55 W
240 W
30 A
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay 14 Pin 3 Pole Latching 110V dc
Art:
C4-R30110D Copied
110 V DC
3
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
72 W
30 A
50 ms
50 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay MRC 2-pole NO "double make" 24VDC
Art:
C4-X2024D Copied
1.3 W
24 V DC
2
AgNi
250 V
10 A
30 A
8 ms
IP40
2500 V
2500 V
-40 °C
-40 °C
80 °C
60 °C
50 Hz
90 g
CCC, CE, RoHS
Relay 14 Pin 2 Pole N/O 3mm GAP LED 24V dc
Art:
C4-X20X24D Copied
1.3 W
24 V DC
2
AgNi
250 V
10 A
30 A
8 ms
IP40
2500 V
2500 V
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
90 g
CCC, CE, RoHS
