COMATRELECO

C7 miniature relay

2-pole 10 A

  • Colour-coded test button, both lockable and non-locking
  • Marking system
  • Mechanical indication

Selected variant

Releco_2019.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Working Un 0,8-1,10
Nominal power ac 1.2 VA
Coil Voltage AC 12 V AC
Response Time 16 ms
OFF-Voltage Un Max 0.25
Number Of Contacts 2
Contact Material AgNi
Switching Capability Voltage 250 V
Breaking Capacity Current 10 A
The Recommended Maximum Load 10 A/250 V AC-1; 0,5 A/110 V DC-1
Recommended Min Load 10 mA/10 V
Resistive Load 110 V DC Max 55 W
Resistive Load 24 V dc Max 240 W
Surge Current (20Ms) 30 A
Bounce Time 3
Release Time 8 ms
Release Time Kontaktstudstid 9 ms
IP Class IP40
Isolation Contact / Contact 2500 V
Isolation Contact / Coil 2500 V
Insulation Class EN60947 250 V Pollution 3, Group C
Temperature range from -40 °C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range to 60 °C
Frequency 50 Hz
Weight 43 g
Approvals CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL

Downloads

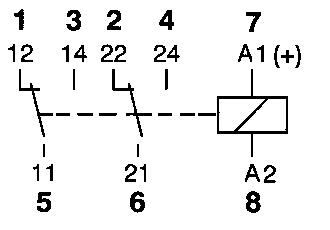

Measurements and connections

Accessories

Related products

Related

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

Relay school 1
Knowledge

Relay School - Lesson 1

Can you distinguish between a bifurcated contact and a normal contact at a glance?

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Working Un Nominal power ac Nominal power dc Coil Voltage AC Coil Voltage DC Response Time OFF-Voltage Un Max Number Of Contacts Contact Material Switching Capability Voltage Breaking Capacity Current The Recommended Maximum Load Recommended Min Load Resistive Load 110 V DC Max Resistive Load 24 V dc Max Surge Current (20Ms) Bounce Time Release Time Release Time Kontaktstudstid IP Class Isolation Contact / Contact Isolation Contact / Coil Insulation Class EN60947 Temperature range from Temperature range bearing, from Temperature range bearing, to Temperature range to Frequency Optional Coil Weight Approvals
Relay QRC-RELÄ 2-pole 12VAC
Art:
C7A2012A Copied
0,8-1,10
1.2 VA
12 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 24V ac
Art:
C7A2024A Copied
0,8-1,10
1.2 VA
24 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 48V ac
Art:
C7A2048A Copied
0,8-1,10
1.2 VA
48 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 115V ac
Art:
C7A20115A Copied
0,8-1,10
1.2 VA
115 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 230V ac
Art:
C7A20230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 24V ac
Art:
C7A20X24A Copied
0,8-1,10
1.2 VA
24 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 48V ac
Art:
C7A20X48A Copied
0,8-1,10
1.2 VA
48 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 115V ac
Art:
C7A20X115A Copied
0,8-1,10
1.2 VA
115 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 230V ac
Art:
C7A20X230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 12V dc
Art:
C7A2012D Copied
0,8-1,10
1 W
12 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 24V dc
Art:
C7A2024D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole 48VDC
Art:
C7A2048D Copied
0,8-1,10
1 W
48 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 110V dc
Art:
C7A20110D Copied
0,8-1,10
1 W
110 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole 220VDC
Art:
C7A20220D Copied
0,8-1,10
1 W
220 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 12V dc
Art:
C7A20X12D Copied
0,8-1,10
1 W
12 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 24V dc
Art:
C7A20X24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole LED 48V dc
Art:
C7A20X48D Copied
0,8-1,10
1 W
48 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole 110VDC LED
Art:
C7A20X110D Copied
0,8-1,10
1 W
110 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole Diode LED 24V dc
Art:
C7A20DX24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
DX (diode + LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole Diode LED 12V dc
Art:
C7A20FX12D Copied
0,8-1,10
1 W
12 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
FX (pole protection + LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole Diode LED 24V dc
Art:
C7A20FX24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
FX (pole protection + LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole Flange Mount 24V dc
Art:
C7A20E24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V; 5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 10µ Au 230V ac
Art:
C7A28230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi + 5 µ Au
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole LED, Au 24VAC
Art:
C7A28X24A Copied
0,8-1,10
1.2 VA
24 V AC
16 ms
0.25
2
AgNi + 5 µ Au
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole LED, Au 230VAC
Art:
C7A28X230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi + 5 µ Au
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole 10µ Au 24V dc
Art:
C7A2824D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi + 5 µ Au
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 2-pole LED, Au 24VDC
Art:
C7A28X24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi + 5 µ Au
250 V
10 A
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
30 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay QRC 1-pole NO 230VAC
Art:
C7X10230A Copied
0,8-1,10
1.5 VA
230 V AC
20 ms
0.25
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
10 mA/10 V
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay 4 Pin 1 Pole N/O 24V dc
Art:
C7X1024D Copied
0,8-1,10
1.3 W
24 V DC
20 ms
0.2
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
10 mA/10 V
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 1-pole NO 48VDC
Art:
C7X1048D Copied
0,8-1,10
1.3 W
48 V DC
20 ms
0.2
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
10 mA/10 V
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 1-pole 110VDC
Art:
C7X10110D Copied
0,8-1,10
1.3 W
110 V DC
20 ms
0.2
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
10 mA/10 V
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 1-pole NO diode LED 24VDC
Art:
C7X10FX24D Copied
0,8-1,10
1.3 W
24 V DC
20 ms
0.2
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
10 mA/10 V
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
FX (pole protection + LED)
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 1-pole 24VDC panel mounted
Art:
C7X10E24D Copied
0,8-1,10
1.5 W
24 V DC
20 ms
0.2
1
AgNi
250 V
10 A
10 A/250 V AC-1; 6A/110 V DC-1
660 W
240 W
30 A
3
10 ms
11 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 1-pole WOLFRAM, LED, 230VAC
Art:
C7W10X230A Copied
0,8-1,10
1.5 VA
230 V AC
20 ms
0.25
1
AgNi/W
250 V
10 A
10 A/250 V AC-1; 6 A/250 V AC-5a/b
10 mA/10 V
500 A
3
10 ms
11 ms
IP40
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC, Lloyd´s
Relay QRC 2-pole twin 230VAC
Art:
C7T21230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi + 0,2 µ Au
250 V
6 A
6 A/250 V AC-1; 6A/30 V DC-1
5 mA/5 V
55 W
140 W
15 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 8 Pin 2 Pole Twin 0.2µ Au LED 230V ac
Art:
C7T21X230A Copied
0,8-1,10
1.2 VA
230 V AC
16 ms
0.25
2
AgNi + 0,2 µ Au
250 V
6 A
6 A/250 V AC-1; 6A/30 V DC-1
5 mA/5 V
55 W
140 W
15 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
X (LED)
43 g
CE, Gost R, RoHS, CCC
Relay QRC 2-pole twin 24VDC
Art:
C7T2124D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi + 0,2 µ Au
250 V
6 A
6 A/250 V AC-1; 6A/30 V DC-1
5 mA/5 V
55 W
140 W
15 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
43 g
CE, Gost R, RoHS, CCC
Relay QRC 2-pole diode LED 24VDC
Art:
C7T21DX24D Copied
0,8-1,10
1 W
24 V DC
16 ms
0.2
2
AgNi + 0,2 µ Au
250 V
6 A
6 A/250 V AC-1; 6A/30 V DC-1
5 mA/5 V
55 W
140 W
15 A
3
8 ms
9 ms
IP40
2500 V
2500 V
250 V Pollution 3, Group C
-40 °C
-40 °C
80 °C
60 °C
50 Hz
DX (diode + LED)
43 g
CE, Gost R, RoHS, CCC

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
