Sockets for C4 industrial relays
4-pole

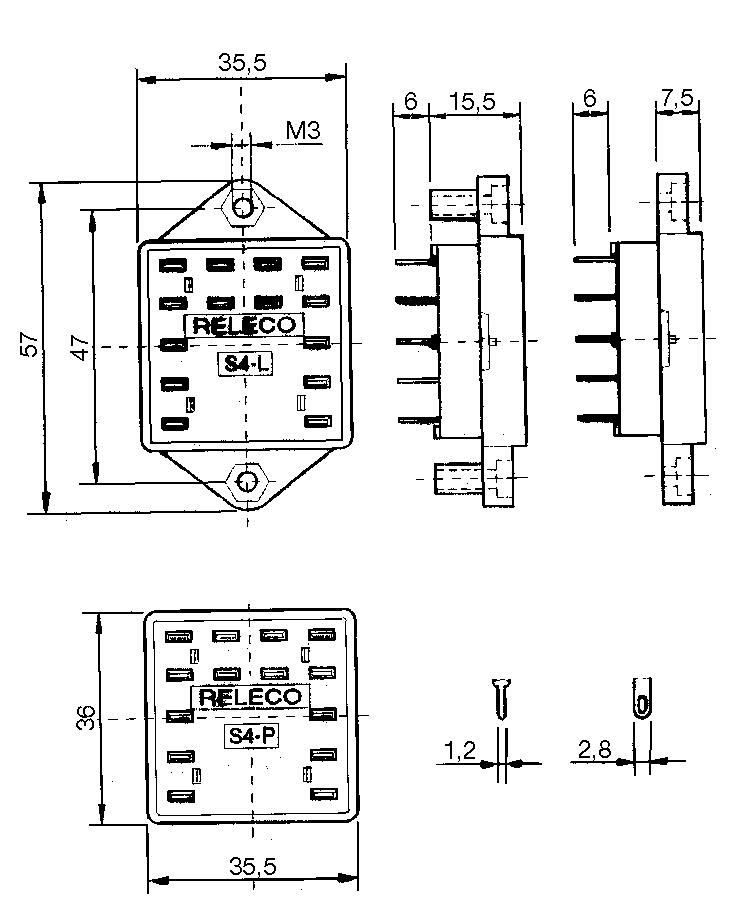

Article | S4B | S4L, S4P, S4PO | |
Fits relay | C4 | C4 | |
Description | Screw socket. | S4L: Solder socket with attachment lug | |
Connection | |||
Nominal load | 10 A/250 V | 10 A/250 V | |
Isolation conn./conn. | 2500 V | 2500 V | |
Isolation conn./rail | 2500 V | - | |
Screw socket, conn. | M3, Pozzi | - | |
Torque, conn. | 1.2 Nm | - | |
| |||
Wiring capacity, connection | |||
Single conductor | 4 mm² 2x2.25 mm² | - | |
Multi-conductor cable | 22-14 AWG | - | |
Material | Cicoloy | Cicoloy | |
Weight | 75 g | 12 g | |
Temperature range | -20 °C to +60 °C | -20 °C to +60 °C | |
Approval | See separate approval list. | ||
Wiring capacity, connection | ||
Single conductor | 4 mm² 2x2.25 mm² | - |
Multi-conductor cable | 22-14 AWG | - |
Material | Cicoloy | Cicoloy |
Weight | 75 g | 12 g |
Temperature range | -20 °C to +60 °C | -20 °C to +60 °C |
Approval | See separate approval list. | |
S4B | S4L, S4P, S4PO |
Part Numbers
Order number | Description |

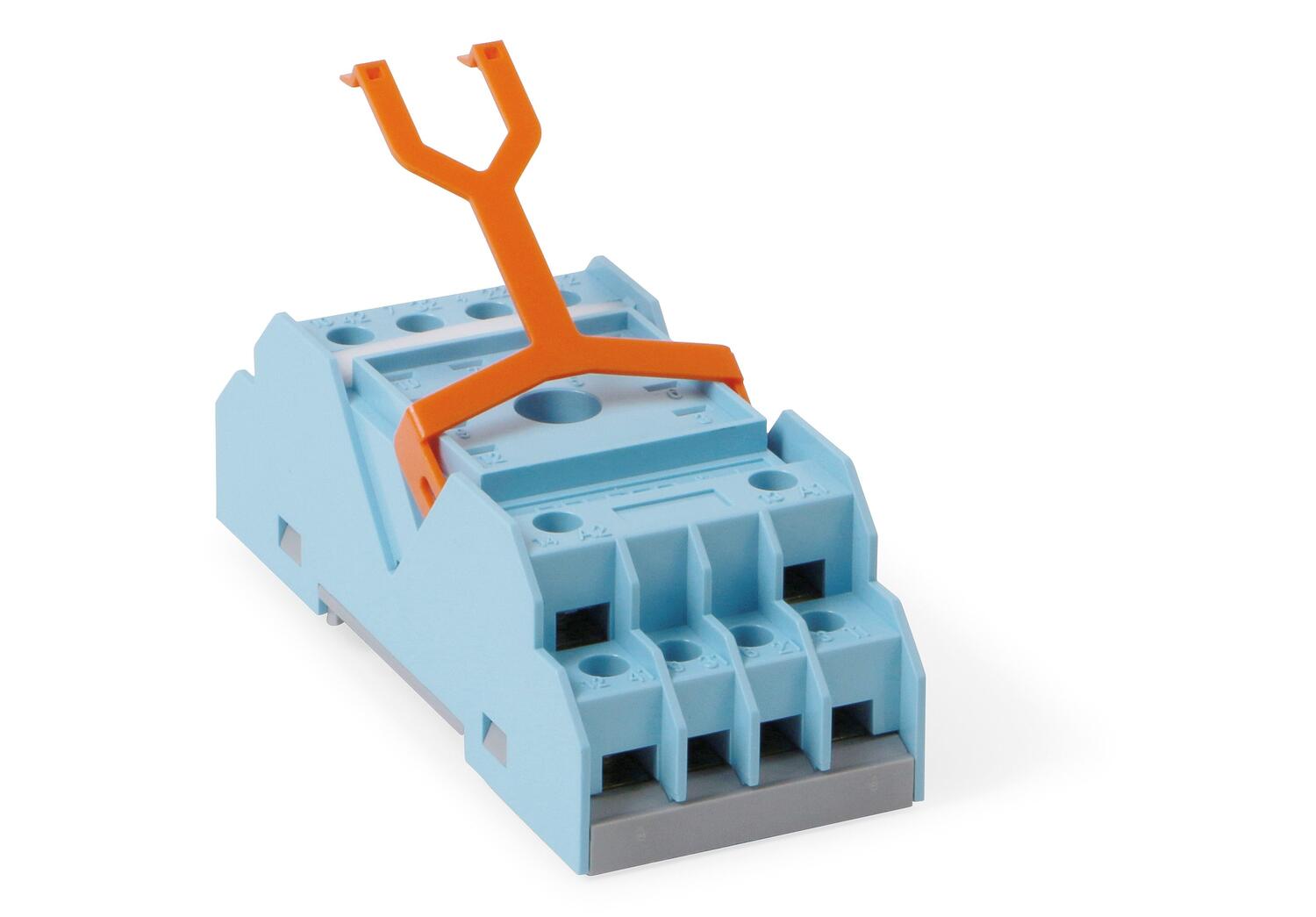

S4B | Screw socket with retaining bow for C4 relays |
S4L | Solder socket for C4 relays |

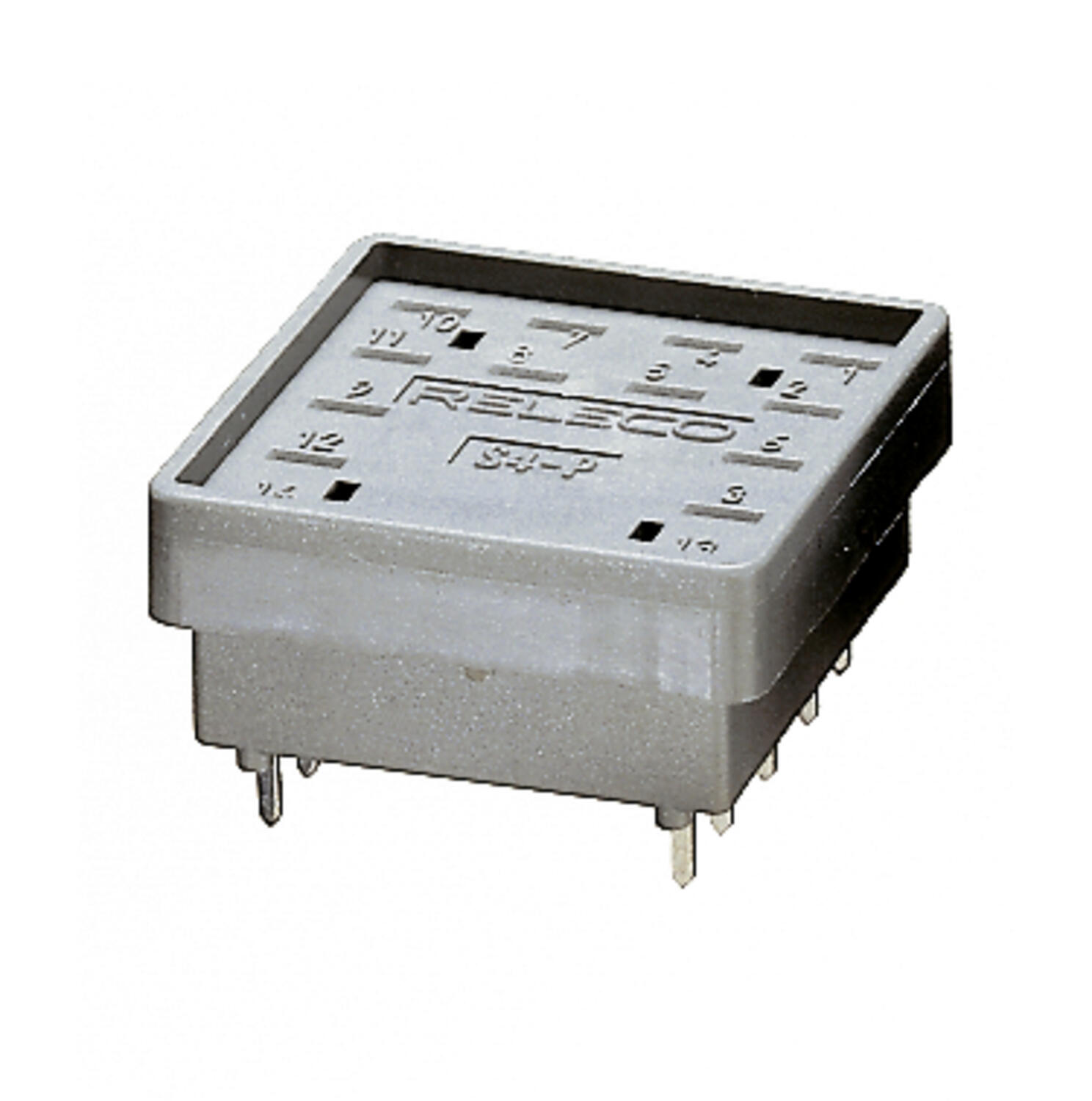

S4P | Circuit board socket for C4 relays |
S4PO | Circuit board socket with attachment lug for C4 relays |
S3C | Retaining bow in metal for C2/C3/C4 relays |
S4R | Rear bracket for mounting on DIN rail or screw attachment to |
S5R | Flat bracket for screw attachment to C4/C5 relays |
S44 | Semi-protection for rear bracket S4R for C4/C5 relays |
SONP | Black blind test button for C3/C4/C5 relays |
SOOP | Orange non-locking test button for C3/C4/C5 relays |
- Both DIN and EN connection numbering
- Semi-protected
- Integrated retaining bow
- Logic connection
Selected variant
Specifications
| Switching Capability Voltage | 250 V |
|---|---|
| Breaking Capacity Current | 10 A |
| Temperature range from | -40 °C |
| Temperature range bearing, from | -30 °C |
| Temperature range bearing, to | 80 °C |
| Temperature range to | 60 °C |
| Weight | 21 g |
Downloads
Product description
Article | S4B | S4L, S4P, S4PO | |
Fits relay | C4 | C4 | |
Description | Screw socket. | S4L: Solder socket with attachment lug | |
Connection | |||
Nominal load | 10 A/250 V | 10 A/250 V | |
Isolation conn./conn. | 2500 V | 2500 V | |
Isolation conn./rail | 2500 V | - | |
Screw socket, conn. | M3, Pozzi | - | |
Torque, conn. | 1.2 Nm | - | |
| |||
Wiring capacity, connection | |||
Single conductor | 4 mm² 2x2.25 mm² | - | |
Multi-conductor cable | 22-14 AWG | - | |
Material | Cicoloy | Cicoloy | |
Weight | 75 g | 12 g | |
Temperature range | -20 °C to +60 °C | -20 °C to +60 °C | |
Approval | See separate approval list. | ||
Wiring capacity, connection | ||
Single conductor | 4 mm² 2x2.25 mm² | - |
Multi-conductor cable | 22-14 AWG | - |
Material | Cicoloy | Cicoloy |
Weight | 75 g | 12 g |
Temperature range | -20 °C to +60 °C | -20 °C to +60 °C |
Approval | See separate approval list. | |
S4B | S4L, S4P, S4PO |
Part Numbers
Order number | Description |
S4B | Screw socket with retaining bow for C4 relays |
S4L | Solder socket for C4 relays |
S4P | Circuit board socket for C4 relays |
S4PO | Circuit board socket with attachment lug for C4 relays |
S3C | Retaining bow in metal for C2/C3/C4 relays |
S4R | Rear bracket for mounting on DIN rail or screw attachment to |
S5R | Flat bracket for screw attachment to C4/C5 relays |
S44 | Semi-protection for rear bracket S4R for C4/C5 relays |
SONP | Black blind test button for C3/C4/C5 relays |
SOOP | Orange non-locking test button for C3/C4/C5 relays |
